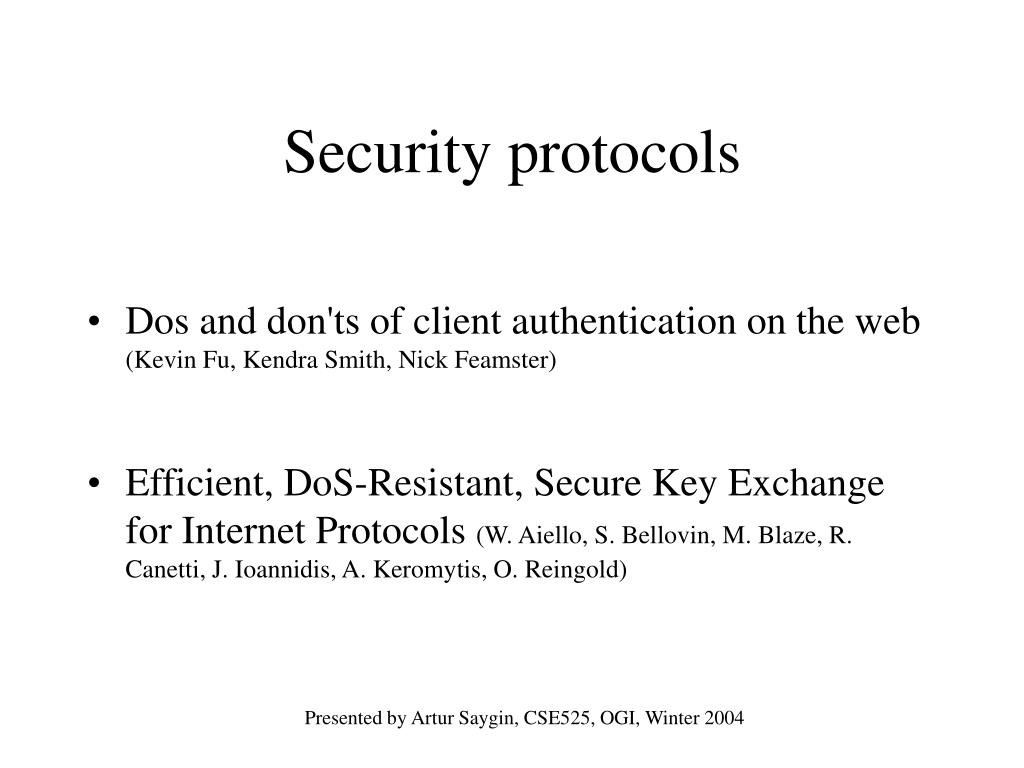

  1. Security protocols • Dos and don'ts of client authentication on the web (Kevin Fu, Kendra Smith, Nick Feamster) • Efficient, DoS-Resistant, Secure Key Exchange for Internet Protocols (W. Aiello, S. Bellovin, M. Blaze, R. Canetti, J. Ioannidis, A. Keromytis, O. Reingold) Presented by Artur Saygin, CSE525, OGI, Winter 2004

  2. Why? • Well-studied authentication schemes exist • HTTP and SSL/TLS authentication • People continue using their own schemes • 27 web sites expected • Authentication scheme weakened on 2 • Unauthorized access gained on 8 • Secret authenticator key extracted on 1

  3. Authentication • Client Authentication – providing of identity of client to server • Server Authentication – providing of identity of server to client

  4. Client and server talk using HTTP. Since it’s stateless every request includes authenticator

  5. Practical limitations of authentication • Deployability • Client computation (Java, Jscript, Tcl, Flash, ActiveX).. ?? • Client state – cookies • User acceptability • Easier for user is better • Performance • Stronger the protocol more it costs (SSL handshake)

  6. Server security requirements • Coarse-grained service – cares about legality of access without taking care of visitors identity • Fine-grained service – cares about identity and therefore knows if access is legal

  7. Confidentiality and privacy • Confidentiality – protection of traffic from disclosure by anyone except sender and recipient • Often confused with authentication • Privacy – protection of data from unauthorized access

  8. Breaks • Existential forgery – breaks coarse-grained service • Selective forgery – breaks c-g service as well as fine-grained one • Replay attack – reusing sniffed authenticators • Total break – recovery of secret key to generate authenticator

  9. Adversaries • Interrogative – adaptive querying of server • May use publicly known facts (list of usernames) • Eavesdropping – sniffing traffic and replaying back authenticators • Active – sniffing and modifying traffic

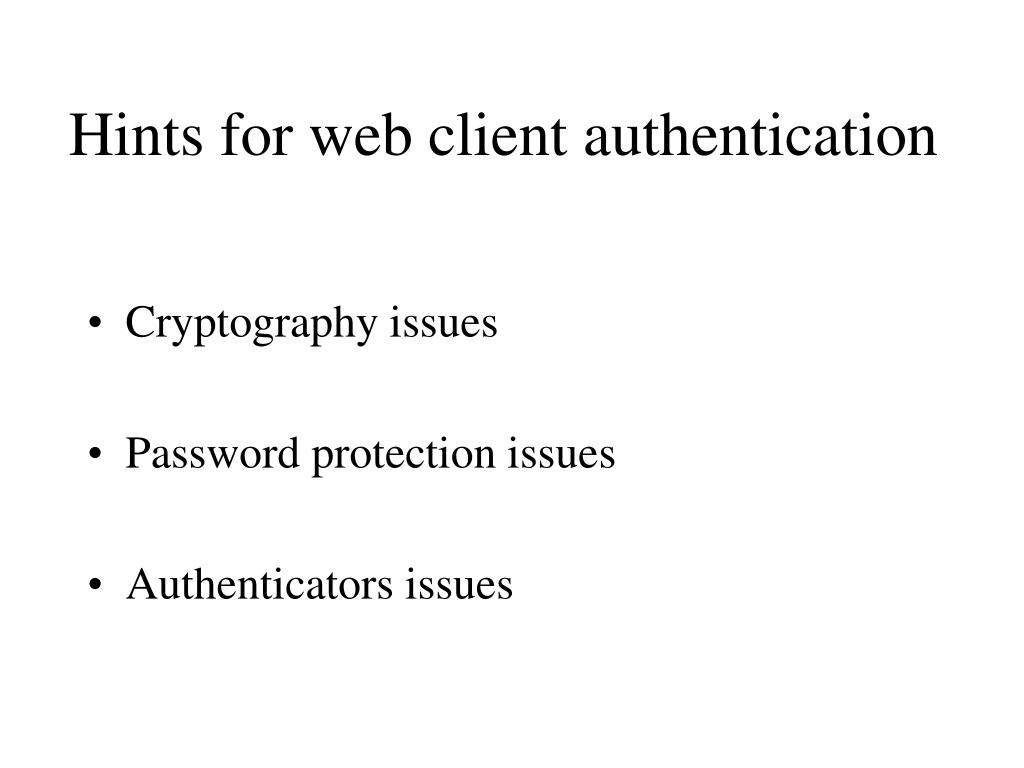

  10. Hints for web client authentication • Cryptography issues • Password protection issues • Authenticators issues

  11. Cryptography • Keep it simple • Don’t be inventive • Don’t rely on secrecy of protocol • Understand tools you use • Do not compose security scheme

  12. Passwords • Limit exposure of passwords • Prohibit guessable passwords • Reauthenticate before password change

  13. Authenticators • Make authenticator unforgeable • Protect secret authenticator • Avoid use of persistent cookies • Limit lifetime of authenticators • Bind authenticators to addresses

  14. Example design • Simple, portable, secure against interrogative adversary exp=t&data=s&digest=MACk(exp=t&data=s) t – expiration time s – arbitrary data server associates with client MAC(…) - non-malleable message authenticator code (HMAC-MD5, HMAC-SHA1)

  15. Example design • Expiration time (t) • No need to keep state about user • Avoidance of session number scheme • Server makes decisions of time issues • Differs from site to site • Arbitrary data (s) • More data without keeping state • Make sure its not sensitive

  16. Example design • Authentication • If t is not expired server computes digest and compares with one that client sent • Revocation • Not provided in this scheme • Short session? • Server key rotation?

  17. Alternative – session number scheme • Subject to guessing attack on session number space • O(n) server states required for n users • Complicated use on multi-server systems due to synchronization need

  18. Security analysis • Non-malleable MAC secures against authenticator forgeries • Authenticator hijacking work between sniff time and expiration time • Run on top of SSL to provide confidentiality of authenticator • Brute force faces key size and key rotation parameters • Passwords still can be stolen

  19. Implementation and performance • Perl 5.4, LWP, HTTP, CGI, FCGI and Digest modules • Pentium III 733MHz, Linux 2.2-18 kernel, Apache 1.3.17 • Gigabit link with 20usec rtt between machines • Microbenchmark • 1000 trials of crypt() with 8byte input and 2byte salt • 8.08usec on average • 1000 trials of HMAC-SHA1 with 20byte input • 41.4usec average

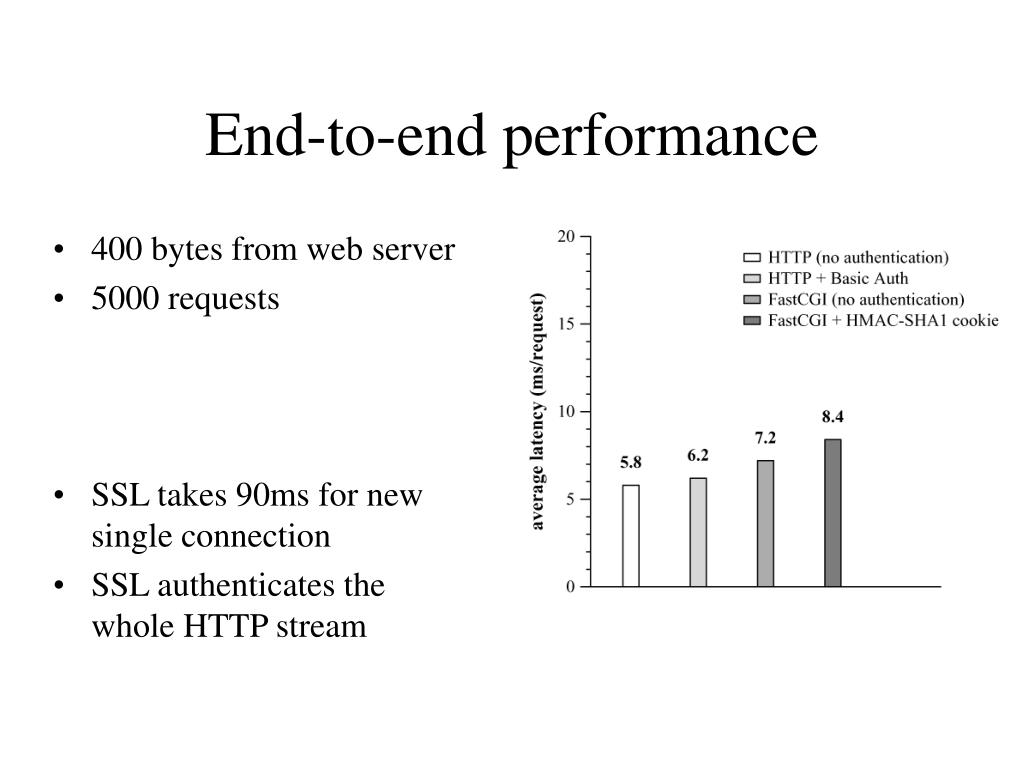

  20. End-to-end performance • 400 bytes from web server • 5000 requests • SSL takes 90ms for new single connection • SSL authenticates the whole HTTP stream

  21. General authentication protocols • AuthA, EKE, Kerberos, SRP and others • Unsuitable for short term connections since take time to set up • Undesirable for web servers since require computations

  22. Web-specific authentication protocols • Basic authentication in HTTP • Login and password send in request as plain text • Does not provide expiration, therefore exposes long term authenticator • Digest authentication in HTTP • Sends cryptographic hash of login, password, server nonce, URL and HTTP method • Very little client support • SSL • Provides confidentiality • Authentication is achieved via X.509 certificates • Public-key infrastructure required • Client support issues (IE and NN certificates do not interoperate)

  23. Just Fast Keying (JFK) • Security • Perfect Forward Secrecy (The confidence that the compromise of a long-term key does not compromise any earlier session keys".) • Privacy (protection of initiator’s or responder’s identity) • Memory-DoS • Computation DoS • Efficiency (2 round trips) • Non-Negotiated (negotiations create complications) • Simplicity

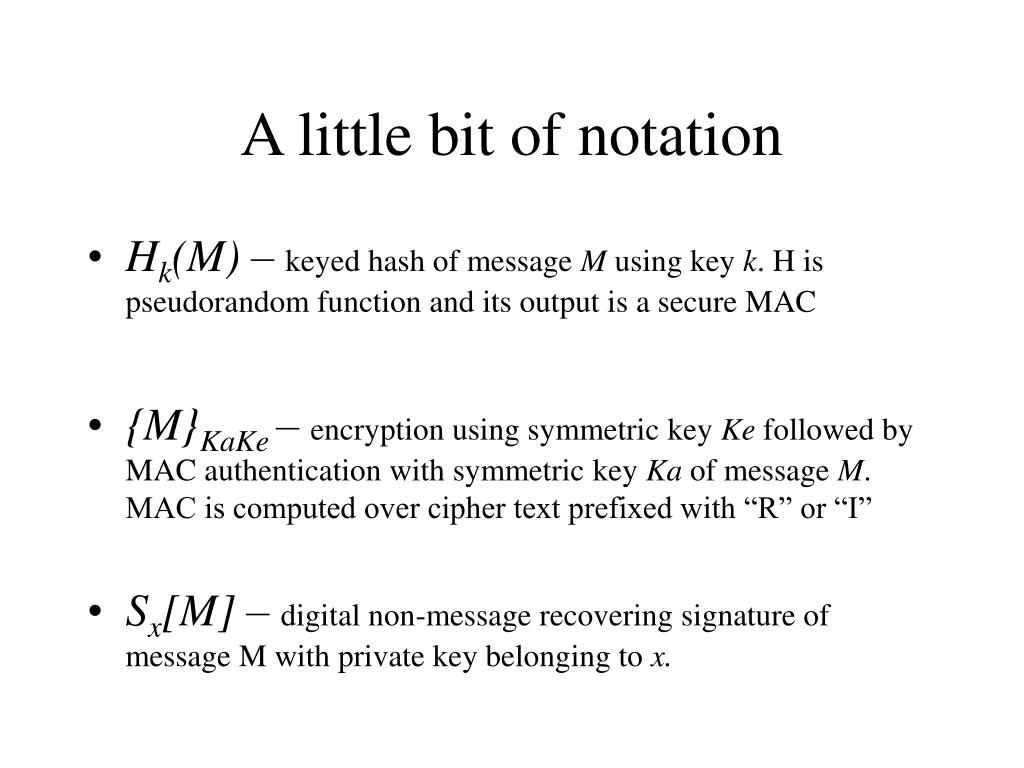

  24. A little bit of notation • Hk(M) – keyed hash of message M using key k. H is pseudorandom function and its output is a secure MAC • {M}KaKe – encryption using symmetric key Ke followed by MAC authentication with symmetric key Ka of message M. MAC is computed over cipher text prefixed with “R” or “I” • Sx[M] – digital non-message recovering signature of message M with private key belonging to x.

  25. IPi – initiator’s network address gi – initiators current exponential gr – responder’s current exponential Ni – initiator’s nonce Nr – responder’s nonce IDi – initiator’s certificate or public key identifying information IDr – responder’s certificate or public key identifying information Idr’ – an indication by the initiator as to what auth info the latter should use HKr – transient hash key private to responder sa – cryptographic and service properties association that initiator wants to establish. Contains Domain-of-Interpretation which JFK understands and application specific bit string sa’ – SA information the responder may need to give the initiator (responder’s SPI in IPSec) Kir – shared key derived from gir, NI and NR used for application protection Ke, Ka – shared keys derived from gir, NI and NR used to encrypt and authenticate messages 3 and 4 of JFK protocol grpinfoR– all groups supported by responder, symmetric algorithms used to protect messages 3 and 4, and hash functions used for key generation Message components

  26. JFKi • I – R : NI, gi, IDR’ (1) • R – I : NI, NR, gr, grpinfoR, IDR,(2) Sr[gr, grpinfoR], HHKR(gr, NR, NI, IPI) • I – R : NI, NR, gi, gr, (3) HHKR(gr, NR, NI, IPI), {IDI, sa, SI[NI, NR, gi, gr, IDR, sa]}KaKe • R – I : {SR[NI, NR, gi, gr, IDI, sa, sa’], sa’}KaKe (4)

  27. JFKi • Initiator’s identity is protected • Ke = Hgir(NI, NR, “1”) • Ka = Hgir(NI, NR, “2”) • Diffie-Hellman computation of gir requires • responder’s private key and initiator’s public key or • initiator’s private key and responder’s public key or • inverse function from known values which is extremely expensive

  28. JFKi • Responder is protected from DoS • Message 2 is “cheap” to compute • Elements of message 2 can be computed once in 30 sec; NR must change each time • Message 4 is computed after round trip indication • No states created • Pairs of message 3 and 4 cached to avoid duplicate computations • Cache is searched by auth token • Cache is purged after HKR is changed

  29. JFKr • I – R : NI, gi (1) • R – I : NI, NR, gr, grpinfoR, (2) HHKR(gr, NR, NI, IPI) • I – R : NI, NR, gi, gr, (3) HHKR(gr, NR, NI, IPI), {IDI, IDR’, sa, SI[NI, NR, gi, gr, grpinfoR]}KaKe • R – I : {IDR, sa’, SR[gr, NR, gi, NI} KaKe (4)

  30. Rejections • Message 2 is a rejection • responder does not accept the group of initiators exponential from message 1 • Message 4 is a rejection • lack of authorization • disagreement on service and cryptographic algorithms requested • something else (IP information)

  31. IKE • Current standard for key establishment and SA parameter negotiation • Two phase protocol • Phase #1 (Phase 1 SA) decides • Auth method • Encryption/hash method • Diffie-Hellman group

  32. Phase #1 –Main mode • 3rd and 5th messages are objects for DoS cpu attack • Identities protected at cost of 3 round trips

  33. Phase #1 – Aggressive mode • DoS memory attack on responder from random IPs • No identity protection

  34. Phase #2 – Quick mode • Decides • Security algorithms • Type of traffic to protect • IP security protocol (ESP/AH) • Messages protected using Phase #1 keys

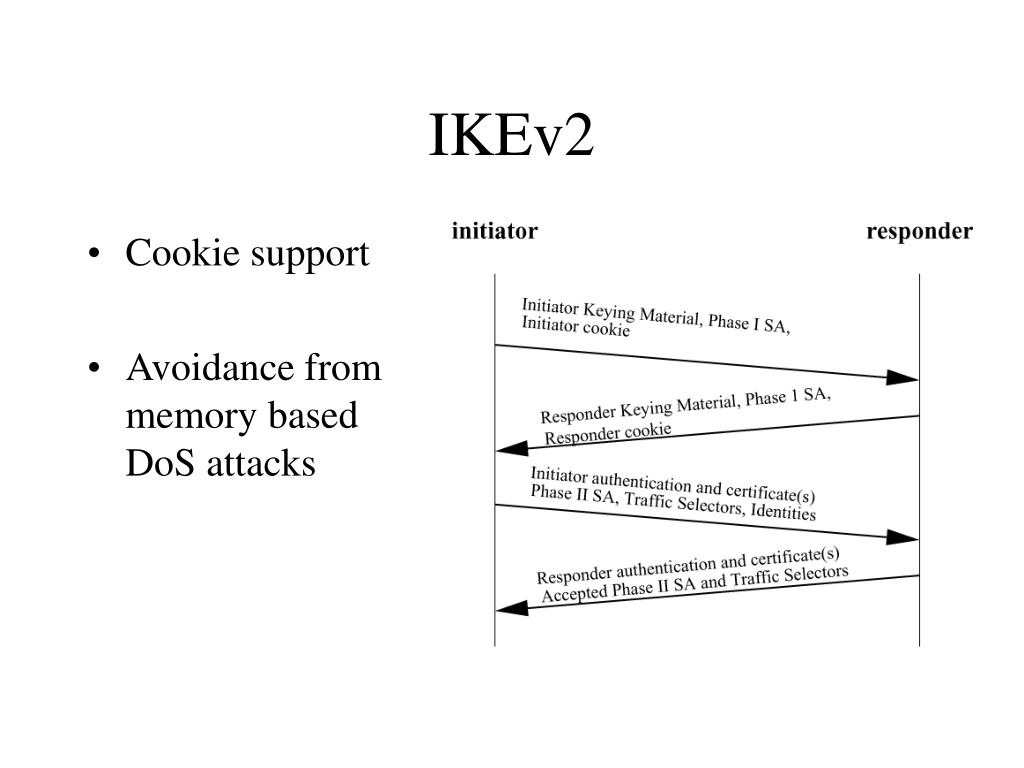

  35. IKEv2 • Cookie support • Avoidance from memory based DoS attacks
