MultiSpeak 3.0 UpdatesRNI 3.1 SP1

C-PAMI-WGE-0006-01


Multispeak 3 0 updates rni 3 1 sp1

Review the Sensus MultiSpeak 3.0 solution and identify updates to that solution between release 2.2.4 and 3.1 SP1 of the RNI.

The goals of this module are to:


Multispeak 3 0 updates rni 3 1 sp1

Sensus MultiSpeak 3.0 Solution

Section One


Multispeak 3 0 updates rni 3 1 sp1

  • List the functions Sensus supports from the MultiSpeak v3.0 standard.

  • Describe the purpose of each function.

  • Recognize which methods are associated with each function.


About the sensus multispeak gateways

About the Sensus MultiSpeak Gateways

MultiSpeak 3.0 Solution

Access RNI functionality through a well-defined interface

Secure the interface using authentication, authorization, encryption

Translate from internal RNI data structures to external (e.g. MultiSpeak) data structures

Manage data delivery


Sensus multispeak v3 0 function support

Sensus MultiSpeak v3.0 Function Support

Customer Billing

Outage Management

OD

CD

MR

MultiSpeak v3.0 web applications

FlexNet Gateway application server (Tomcat)

MultiSpeak v3.0 Solution

Meter Reading (MR)

Outage Detection (OD)

Connect-Disconnect (CD)


About the multispeak 3 0 meter reading mr function

About the MultiSpeak 3.0 Meter Reading (MR) Function

MultiSpeak 3.0 Solution

Interface 2A of specification 3.0j

Contains a Web service, MRCB

  • Provides meter read data and lifecycle management

  • Located at http://<rniweb.mycompany.com>/multispeak/mrcb

    Contains a Web service client, CBMR

  • Performs meter synchronization with a remote CB system

  • CBMR script (command line utility) available to trigger data synchronization using these methods

    Appropriate LDAP/AD permissions required to execute methods


Multispeak v3 0 meter reading mr methods

MultiSpeak v3.0 Meter Reading (MR) Methods

MultiSpeak 3.0 Solution


Multispeak v3 0 outage detection od function

MultiSpeak v3.0 Outage Detection (OD) Function

MultiSpeak 3.0 Solution

Interface 5 of specification 3.0j

Contains a Web service, ODOA

  • Provides outage notifications

  • Allows “Are you alive” ping to meter

  • Located at http://<rniweb.mycompany.com>/multispeak/odoa

    Contains a Web service client, OAOD

  • Sends notifications to remote OD system

  • Real-time alarms

    Appropriate LDAP/AD permissions required to execute methods


Multispeak 3 0 outage detection od methods

MultiSpeak 3.0 Outage Detection (OD) Methods

MultiSpeak 3.0 Solution


Multispeak 3 0 connect disconnect cd function

MultiSpeak 3.0 Connect-Disconnect (CD) Function

MultiSpeak 3.0 Solution

Interface 2B of specification 3.0j

Contains a Web service, CDCB

  • Manages the remote connection and disconnection of meters

  • Subset of methods defined by specification

  • Located at http://<rniweb.mycompany.com>/multispeak/cdcb

    Contains a Web service client, CBCD

  • Sends notifications to remote CB system

    Appropriate LDAP/AD permissions required to execute methods


Multispeak 3 0 connect disconnect cd methods

MultiSpeak 3.0 Connect-Disconnect (CD) Methods

MultiSpeak 3.0 Solution

New in RNI 3.1


Multispeak 3 0 updates rni 3 1 sp1

Summary of MultiSpeak 3.0 Changes from RNI 2.2.4 to 3.1

Section Two


Multispeak 3 0 updates rni 3 1 sp1

  • Identify updates to the MultiSpeak 3.0 solution for RNI version 3.1 SP1.


Multispeak 3 0 updates

MultiSpeak 3.0 Updates

MultiSpeak 3.0 Updates

Added remote connect/disconnect/arm for electric and gas meters

Added ability to open/close the valve in the Remote Gas Shutoff SmartPoint module

Added option to suppress metrology power failure alarm

Added option to not report an alarm on a power failure associated with a tamper event

Added Watt hour and Watts resolution in the GetLatestReadingByMeterNo response


Additional multispeak 3 0 updates

Additional MultiSpeak 3.0 Updates

MultiSpeak 3.0 Updates

Added SOAP Action HTTP header to notifications and CBMR requests

Added MultiSpeak Message Header to SOAP fault responses

Added serviceLocationID (POD) parameter to ODEventNotification method

Added GetCDSupportedMeters method


Multispeak 3 0 updates rni 3 1 sp1

Configuring MultiSpeak Parameters in the RNI

Section Three


Multispeak 3 0 updates rni 3 1 sp1

  • Configure common gateway properties.

  • Configure logging levels.

  • Perform data synchronization.


Configuring multispeak gateway properties steps 1 3

Configuring MultiSpeak Gateway Properties: Steps 1-3

In FlexWare, click Administration > Configuration

Click Customer/Network/Configuration

Click Configuration tab

Note: Gateway configurations are named in the following manner:

[Gateway].[Function].[Method].[Property]

*The Method may be omitted if the configuration is not specific to a method.

Configuring MultiSpeak 3.0 Parameters


Configuring multispeak gateway properties steps 4 7

Configuring MultiSpeak Gateway Properties: Steps 4-7

Configuring MultiSpeak 3.0 Parameters

7

Save the changes

4

Select your company from the list.

Do not change the System Defaults

5

Locate the parameter to change. Uncheck the System Default value.

6

Select or enter the desired value

Note: Any user can view values, but you must have the appropriate permissions to make changes.


Various log files available for troubleshooting

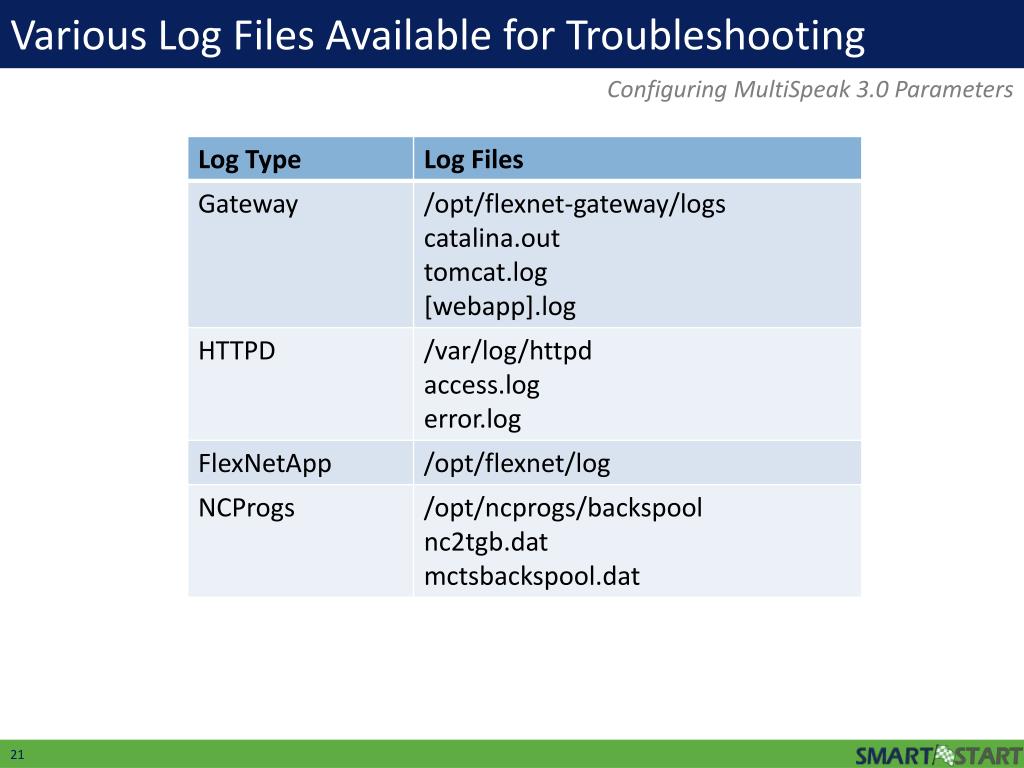

Various Log Files Available for Troubleshooting

Configuring MultiSpeak 3.0 Parameters


About logging levels

About Logging Levels

Determines level of information to include in notifications

Levels

  • WARN: Quiet level

  • INFO: Audit level

  • DEBUG: Troubleshooting level

    Logging granularity at Java class level

Configuring MultiSpeak 3.0 Parameters

Default logging displays start-up messages, warnings and errors, and when messages are sent and received


Setting logging level for gateway

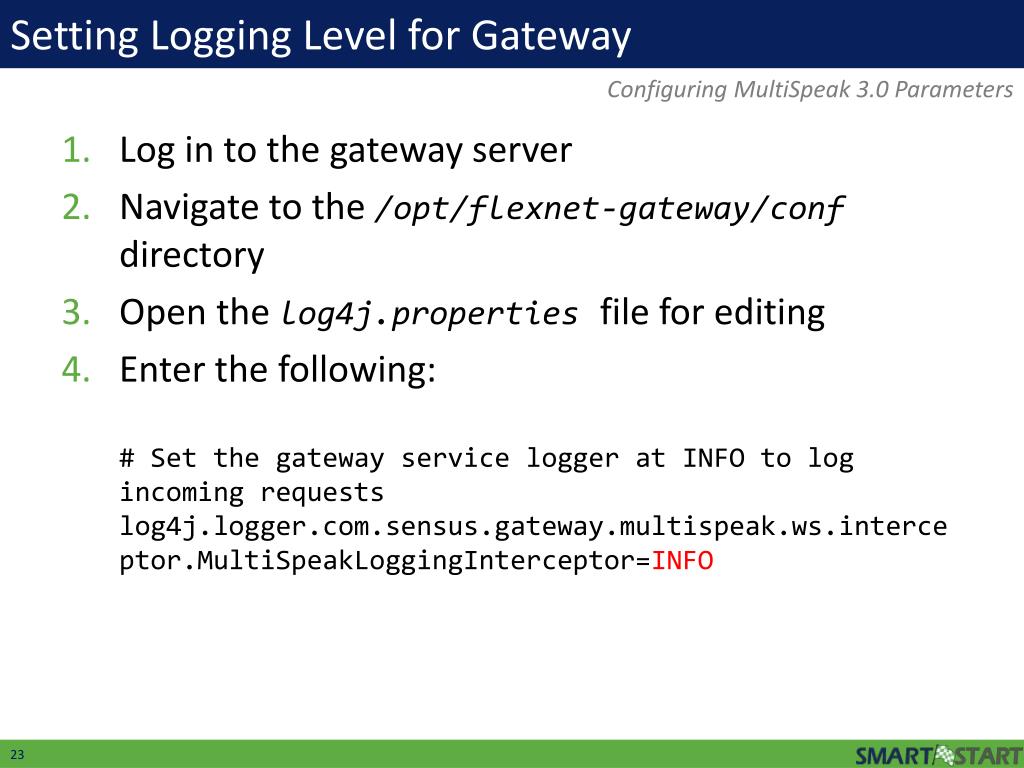

Setting Logging Level for Gateway

Configuring MultiSpeak 3.0 Parameters

Log in to the gatewayserver

Navigate to the /opt/flexnet-gateway/conf directory

Open the log4j.properties file for editing

Enter the following:# Set the gateway service logger at INFO to log incoming requestslog4j.logger.com.sensus.gateway.multispeak.ws.interceptor.MultiSpeakLoggingInterceptor=INFO


About data synchronization

About Data Synchronization

Configuring MultiSpeak 3.0 Parameters

MultiSpeak 3.0 gateway includes command line utility to trigger data synchronization using GetAllMeters and GetAllServiceLocations CBMR web methods


Performing a data synchronization

Performing a Data Synchronization

Configuring MultiSpeak 3.0 Parameters

Log in to the Web server

Navigate to the /opt/flexnet-gateway/webapps/ multispeakv3-cb-client/WEB-Inf/bin directory

Run the CBMR scriptcb.sh

Enter one of the following options:

  • 3: Start synchronization of meters only

  • 4: Start synchronization of service locations only

  • 5: Start synchronization of both meters and service locations

    Enter information requested by the resulting prompts

View the cb.log file for messages regarding the synchronization


Multispeak 3 0 updates rni 3 1 sp1

  • Which function is supported by the Sensus MultiSpeak 3.0 solution?

    • Home Area Network

    • Demand Response

    • Meter Reading

    • Distribution Automation


Multispeak 3 0 updates rni 3 1 sp1

  • What is the purpose of the Meter Reading function?

    • Provides event information related to managing outages

    • Provides meter read data and lifecycle management

    • Manages the remote connection and disconnection of meters

    • Sends notifications to remote OD system


Multispeak 3 0 updates rni 3 1 sp1

  • What is the purpose of the Outage Detection function?

    • Provides event information related to managing outages

    • Manages meter synchronization with a remote CB system

    • Manages the remote connection and disconnection of meters

    • Provides meter read data and lifecycle management


Multispeak 3 0 updates rni 3 1 sp1

  • What is the purpose of the Connect Disconnect function?

    • Manages meter synchronization with a remote CB system

    • Provides event information related to managing outages

    • Provides meter read data and lifecycle management

    • Manages the remote connection and disconnection of meters


Multispeak 3 0 updates rni 3 1 sp1

  • Check the MultiSpeak function associated with each method.


Multispeak 3 0 updates rni 3 1 sp1

  • Which MultiSpeak 3.0 function was added for electric and gas meters for RNI v3.1 SP1?

    • Meter Reading

    • Outage Detection

    • Connect Disconnect

    • None of the above


Multispeak 3 0 updates rni 3 1 sp1

  • Indicate whether the following statements are True or False.

    • MultiSpeakMsgHeader was added in SOAP fault responses _______

    • SOAPAction HTTP headers were added to Outage Detection requests _______

    • Option to suppress metrology power failure alarm now supported _______

    • GetCDMeterIds method added _______

True

False

True

False


Multispeak 3 0 updates rni 3 1 sp1

  • Data synchronization is performed in what manner?

    • Using a web interface

    • Using a command line utility

    • Using a database query

    • None of the above


Multispeak 3 0 updates rni 3 1 sp1

  • Which are the three logging levels available with the MultiSpeak logs?

    • Info, Debug, Caution

    • Info, Warn, Debug

    • Normal, Caution, Warn

    • Normal, Debug, Warning
