Presentation Transcript
horner fxp facilities

Horner Fxp Facilities

July 2007

Horner APG

what is fxp

What is Fxp?

Fxp (File Exchange Protocol) is intended as an alternative to Ftp for Ocs units with Removable Media support but no Ethernet interface.

Fxp draws largely from Ftp but is named Fxp in order to differentitate it from standard Ftp which works over an IP connection.

Horner APG

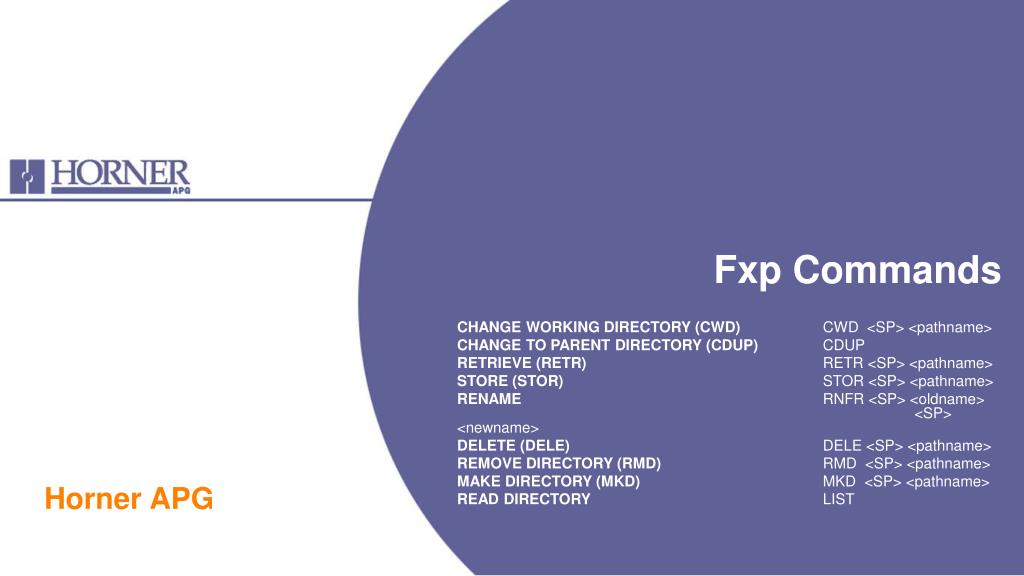

fxp commands

Fxp Commands

CHANGE WORKING DIRECTORY (CWD) CWD <SP> <pathname>

CHANGE TO PARENT DIRECTORY (CDUP) CDUP

RETRIEVE (RETR) RETR <SP> <pathname>

STORE (STOR) STOR <SP> <pathname>

RENAME RNFR <SP> <oldname> <SP> <newname>

DELETE (DELE) DELE <SP> <pathname>

REMOVE DIRECTORY (RMD) RMD <SP> <pathname>

MAKE DIRECTORY (MKD) MKD <SP> <pathname>

READ DIRECTORY LIST

Horner APG

explorer interface mode

Explorer Interface Mode

Explorer Interface Mode allows the user to transfer files using a graphical interface

Horner APG

slide5

Local Directory Structure

Local File List Format

Remote File List Format

Local

File

List

File Transfer

(Or use ‘Drag ‘n’ drop’)

Remote Directory Structure

Remote

File

List

Progress Window

Horner APG

script mode

Script Mode

A user script can be used to control FxpClient in automatic mode. Simply start FxpClient with the script file name on the command line.

Horner APG

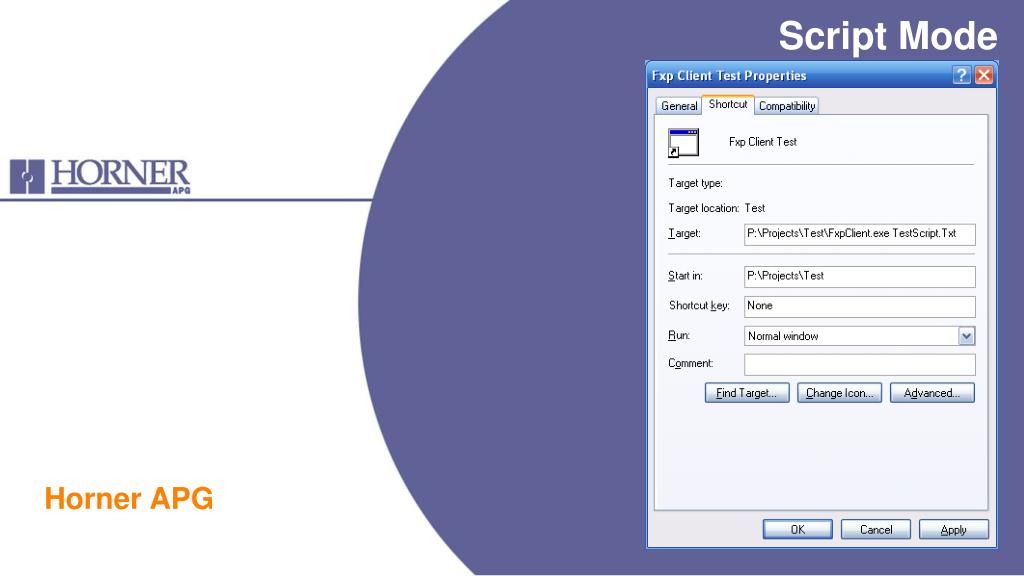

script mode1

Script Mode

Horner APG

silent mode

Silent Mode

Silent Mode is a variation of scripted mode where the output status is stored to a log file rather than announced on screen.

Simply add the option –silent:<log_file_name> to the script mode command line.

Horner APG
