Presentation Transcript


Fea of towers for dome c l.jpg

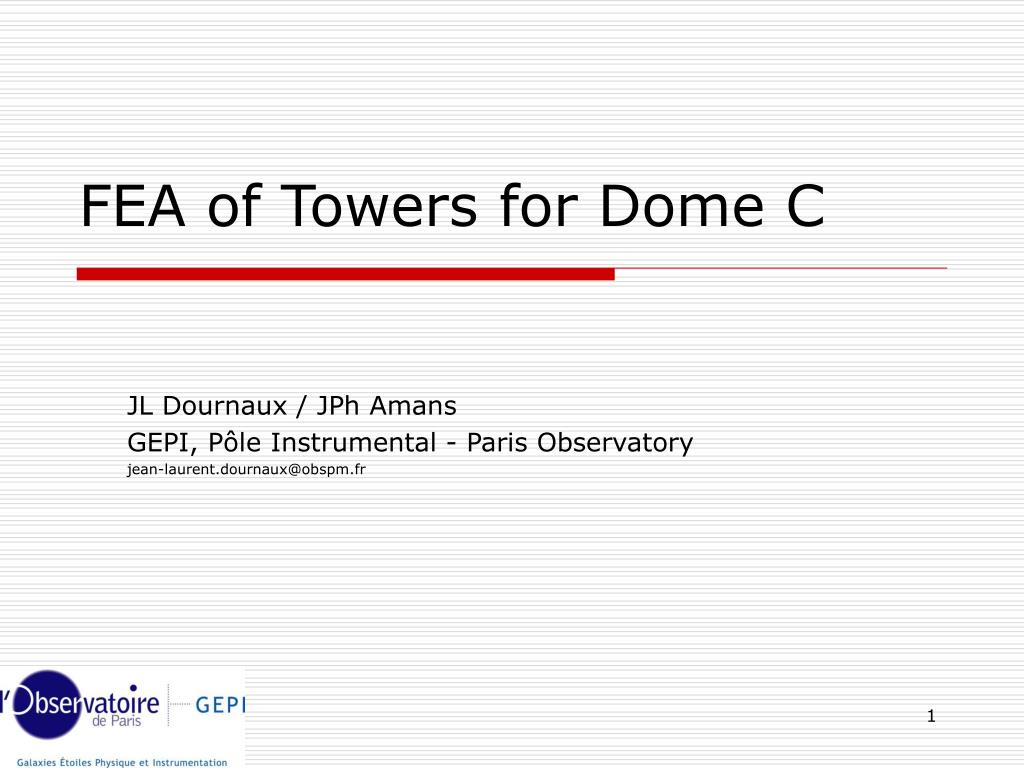

FEA of Towers for Dome C

JL Dournaux / JPh Amans

GEPI, Pôle Instrumental - Paris Observatory

[email protected]


Fea of towers for dome c2 l.jpg

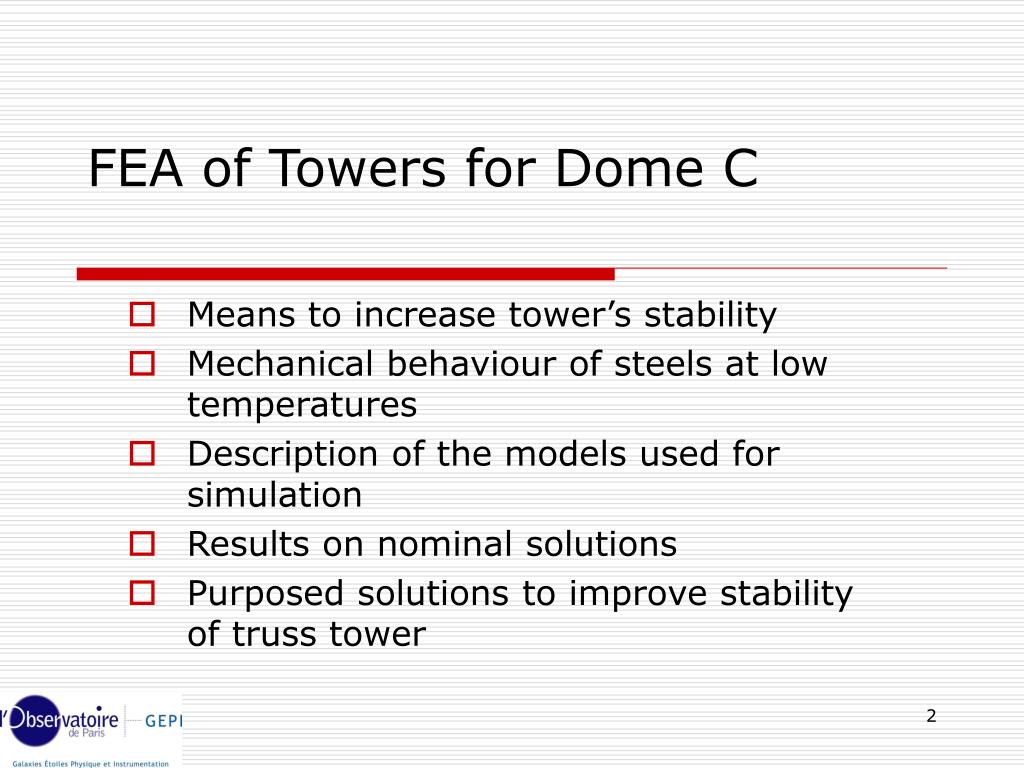

FEA of Towers for Dome C

Means to increase tower’s stability

Mechanical behaviour of steels at low temperatures

Description of the models used for simulation

Results on nominal solutions

Purposed solutions to improve stability of truss tower


How to increase tower s stability hammerschlag et al 2006 l.jpg

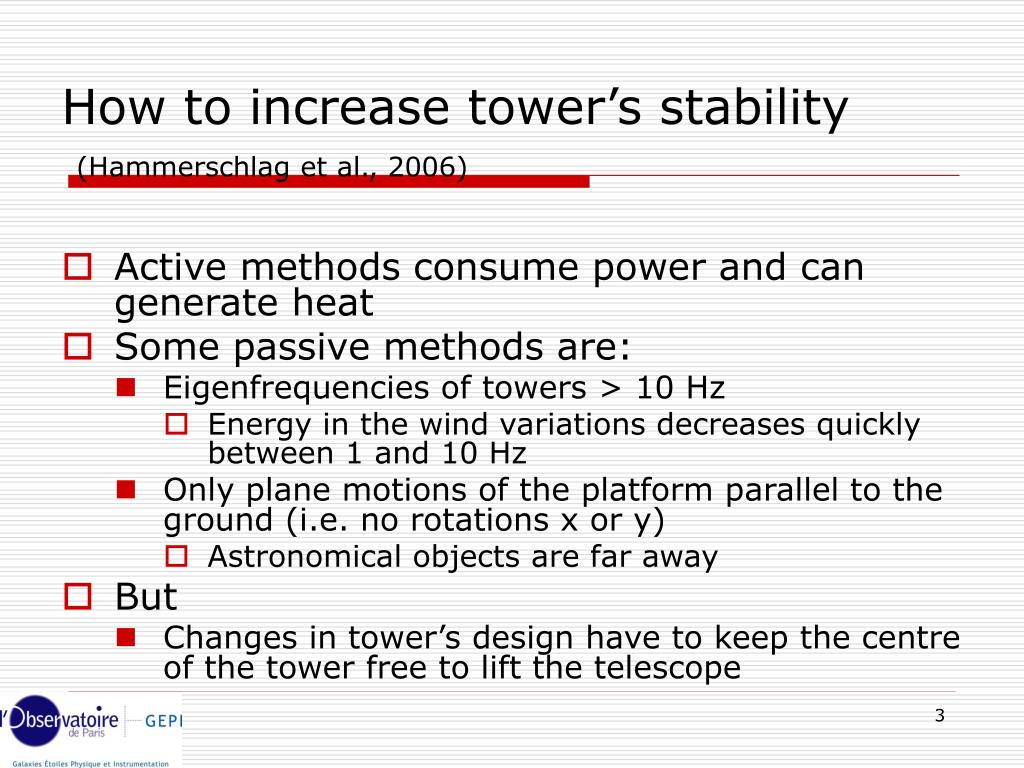

How to increase tower’s stability(Hammerschlag et al., 2006)

  • Active methods consume power and can generate heat

  • Some passive methods are:

    • Eigenfrequencies of towers > 10 Hz

      • Energy in the wind variations decreases quickly between 1 and 10 Hz

    • Only plane motions of the platform parallel to the ground (i.e. no rotations x or y)

      • Astronomical objects are far away

  • But

    • Changes in tower’s design have to keep the centre of the tower free to lift the telescope


Aim of the study l.jpg

Aim of the study

  • Preliminary FEA of 2 concept towers designed by JP Amans (GEPI, Paris Observatory)

  • Check the stability of these concept towers

  • Improve performances of these 2 concept towers

Truss Tower“Amans” Tabouret Tower (ATT)


Mechanical behaviour of steels at low temperatures l.jpg

Mechanical Behaviour of Steels at low temperatures

  • E increases slowly when T decreases

  • Small differences in E values between summer (-30°C) and winter (-80°C)

    • For a C steel: 207 / 210 GPa

    • For a stainless steel: 168 / 174 GPa

  • Ductility decreases strongly when T decreases

5 Stainless Steel / 6 C Steel

(Thermeau, 2004)


Models description l.jpg

Models Description

  • Containers and platform are not modelled

  • Boundary Conditions:

    • Tower’s feet are fixed

    • Mass applied on the top of the tower: 100 t

  • No rotation between tubes (joints)

  • No thermal gradients


Dynamic behaviour of truss tower l.jpg

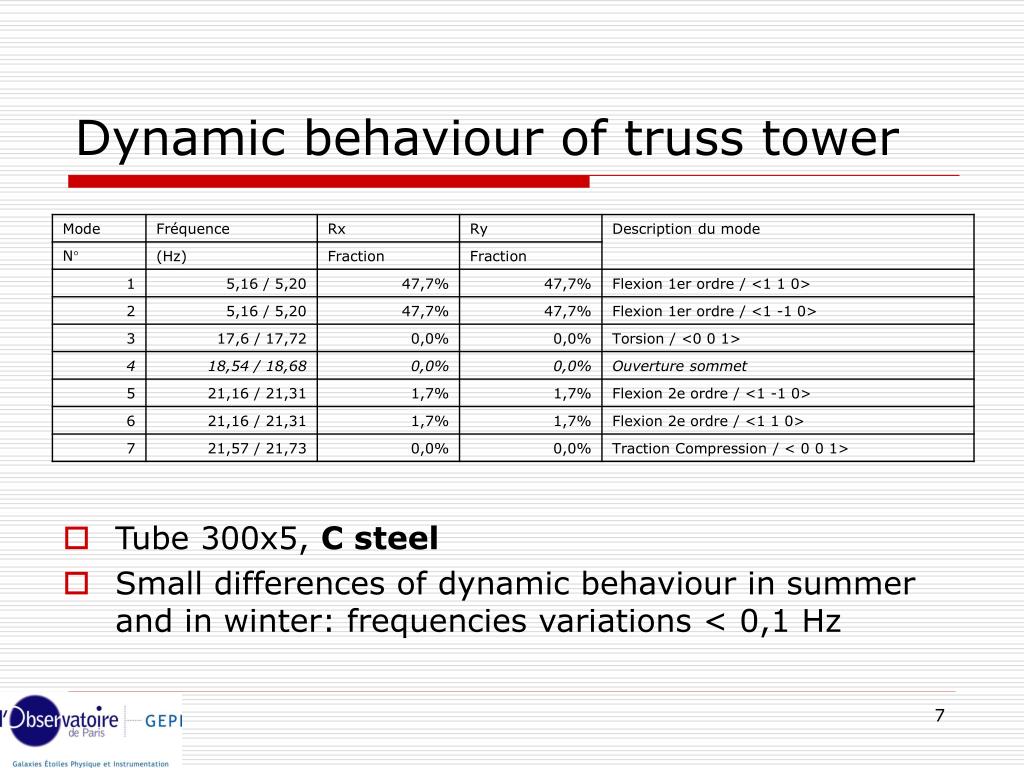

Dynamic behaviour of truss tower

  • Tube 300x5, C steel

  • Small differences of dynamic behaviour in summer and in winter: frequencies variations < 0,1 Hz


Dynamic behaviour of truss tower8 l.jpg

Dynamic behaviour of truss tower

  • Tube 300x5, stainless steel

  • Small differences of dynamic behaviour in summer and in winter: frequencies variations < 0,1 Hz


Dynamic behaviour of truss tower9 l.jpg

Dynamic behaviour of truss tower

  • The following results are for a Carbon steel @ -80°C

  • The 1st modes @ 5,2 Hz harm because they create a strong rotation of platform

  • Change tower’s design to increase these frequencies and reduce the rotation they produce


Dynamic behaviour of truss tower10 l.jpg

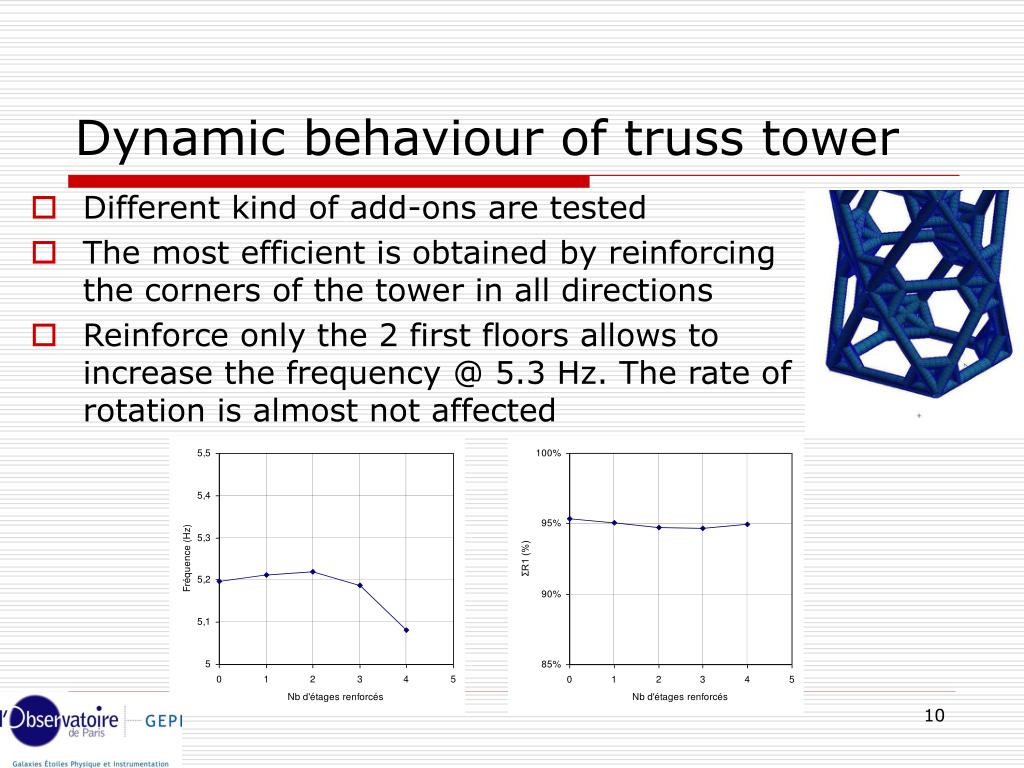

Dynamic behaviour of truss tower

  • Different kind of add-ons are tested

  • The most efficient is obtained by reinforcing the corners of the tower in all directions

  • Reinforce only the 2 first floors allows to increase the frequency @ 5.3 Hz. The rate of rotation is almost not affected


Dynamic behaviour of truss tower11 l.jpg

Dynamic behaviour of truss tower

  • Increase tube diameter of the 2 firsts floors allows to improve tower’s performances


Dynamic behaviour of amans tabouret stool tower l.jpg

Dynamic behaviour of Amans Tabouret(Stool) Tower

  • Tubes 1016x4 & 291x3

  • Modes 1/2 & 4/5 harm

  • Eigenfrequencies are lower than for truss tower but the platform is more stable


Dynamic behaviour of att l.jpg

Dynamic behaviour of ATT

  • Tower’s performances seem to be less sensitive to tube diameter than Truss Tower


Conclusions l.jpg

Conclusions

  • Results:

    • Add appropriate add-ons and increase diameters of vertical tubes of first floors may allow to obtain 1st modes of truss tower beyond 10 Hz

    • Platform’s rotations are weaker for ATT but eigenfrequencies too

  • Next steps:

    • Test other concept tower(s)

    • Master student (Calculate transfer function to precisely determine wind effects by FEM, implement methods for vibration control, define a prototype…) in collaboration with Pr André Preumont (ULB/INSA Lyon)
