Bibliometric Analysis with Sci2: Choose Your Own Adventure

Bibliometric Analysis with Sci2: Choose Your Own Adventure. Laura Ridenour School of Library and Information Science, Indiana University. Overview. P aper citation network using Sci2 Gathering data Examining and understanding file format Adjusting program parameters for speed

thane-gay
Download Presentation

Bibliometric Analysis with Sci2: Choose Your Own Adventure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Bibliometric Analysis with Sci2:Choose Your Own Adventure Laura Ridenour School of Library and Information Science, Indiana University

  2. Overview • Paper citation network using Sci2 • Gathering data • Examining and understanding file format • Adjusting program parameters for speed • Using the Network Analysis Toolkit • Visualizing a network • Exporting data for use in other programs

  3. Gathering Data • ISI file format • Text file with special formatting • Downloadable from Web of Science • 500 records at a time from WoS • Other sources include the Scholarly Database (http://sdb.cns.iu.edu/search/), but data from this source works slightly differently than shown in this tutorial • Can also use any data with nodes and edges, as long as it’s a clean data set

  4. Required tools • Sci2 - https://sci2.cns.iu.edu/user/welcome.php • Must create an account in order to download • A text editor • Helpful: • Oxygen, Gephi

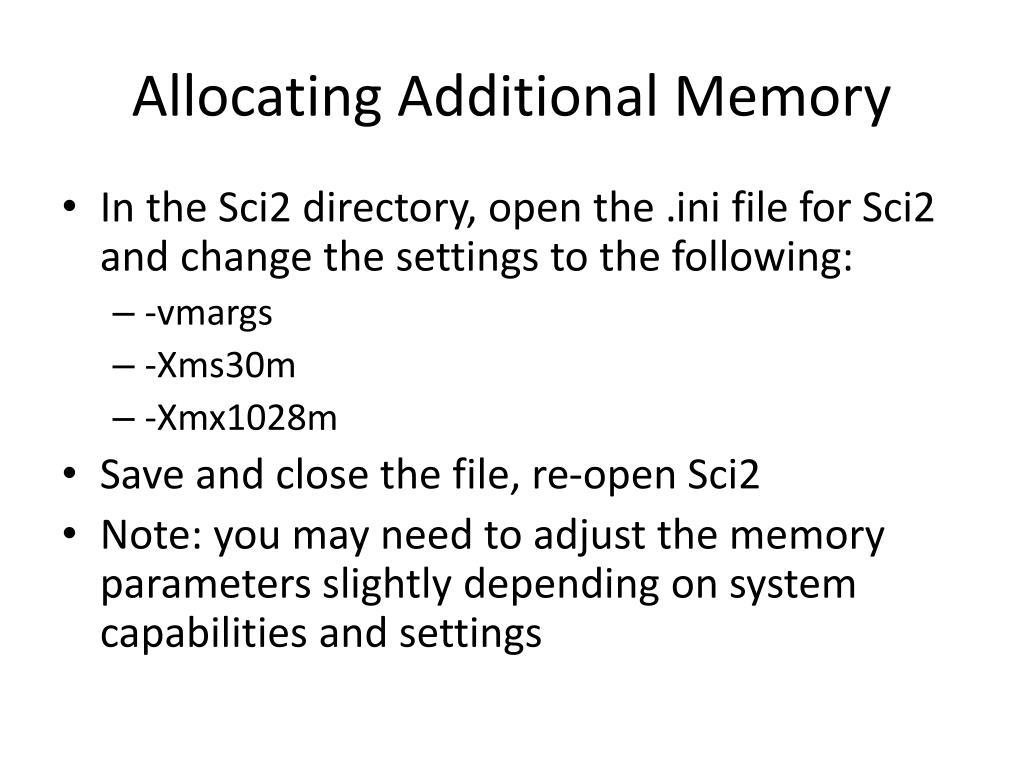

  5. Allocating Additional Memory • In the Sci2 directory, open the .ini file for Sci2 and change the settings to the following: • -vmargs • -Xms30m • -Xmx1028m • Save and close the file, re-open Sci2 • Note: you may need to adjust the memory parameters slightly depending on system capabilities and settings

  6. http://www.libraries.iub.edu

  7. Web of Knowledge

  8. Download Settings

  9. What an ISI File Looks Like

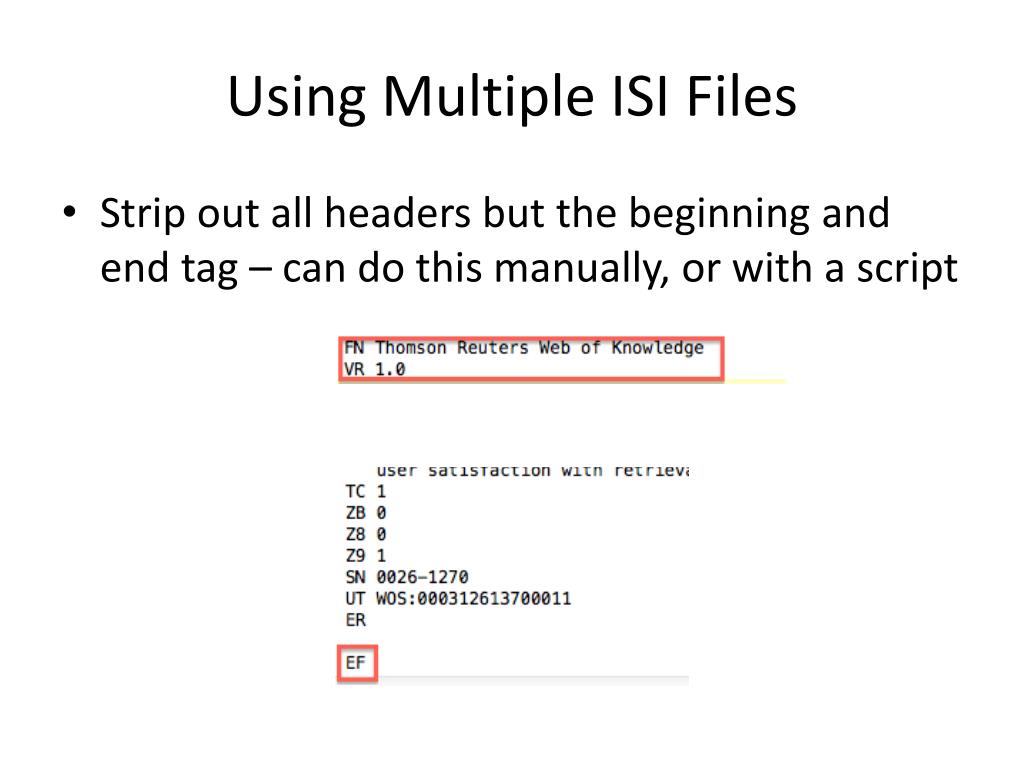

  10. Using Multiple ISI Files • Strip out all headers but the beginning and end tag – can do this manually, or with a script

  11. Sci2 • File > Load > (select your file and click ‘Open’) > choose ‘ISI flat format’ > click ‘Select’

  12. In the Data Manager • Right-click the loaded file, select “view” to check and/or modify the file • If you modify the file, be sure to save the file to a permanent location and reload it into the data manager

  13. Extracting the Network

  14. Data Manager

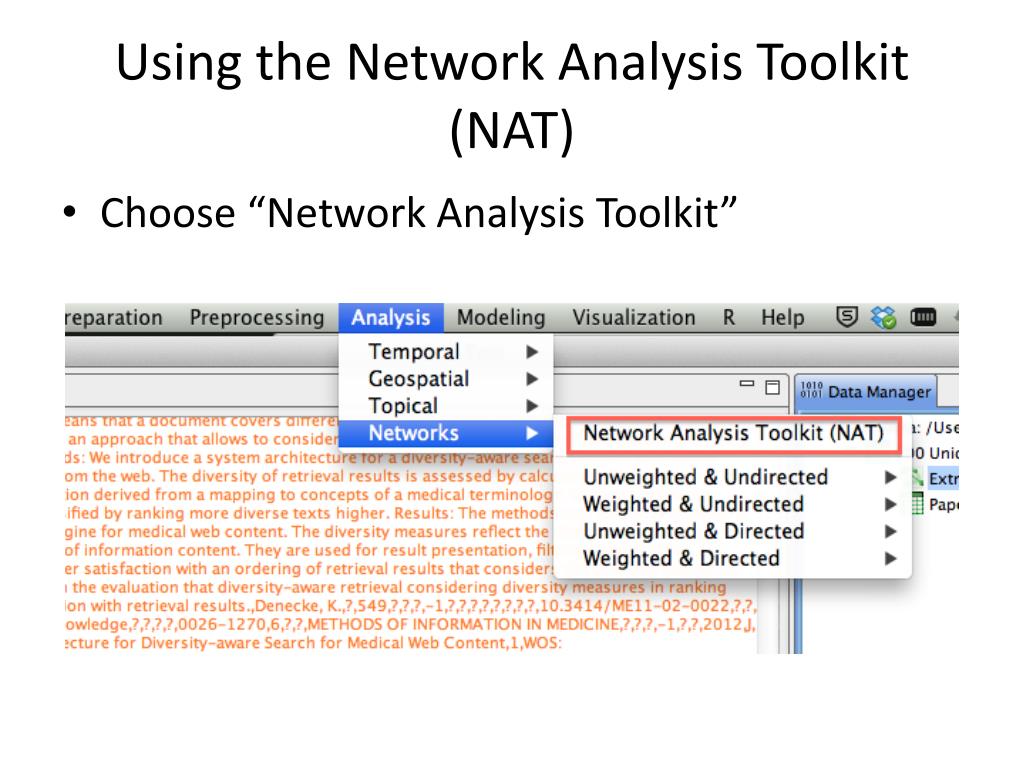

  15. Using the Network Analysis Toolkit (NAT) • Choose “Network Analysis Toolkit”

  16. NAT Analysis is Displayed in the Console

  17. Examining the Output • Checking the NAT results can save time. If the network is particularly densely connected, using a faster system may save time

  18. Visualization • Select the extracted network to visualize from the Data Manager

  19. Visualization (cont’d) • Visualization > Networks > GUESS

  20. Visualization (GUESS)

  21. Choosing a layout (GUESS) • Layout > GEM (or whichever layout you would like to use)

  22. Initial GEM Layout (GUESS)

  23. Graph Modifier Dashboard in GUESS

  24. Play!! • Take some time to play with different properties in the network. Feel free to use the interpreter,it uses jython(examples on next slide, from CNS wiki)

  25. Jython Examples

  26. Exporting Data • From the Data Manager, right click the appropriate graph file and select “Save”

  27. Exporting Data (cont’d) • Choose GraphML for importing a graph into Gephi • After saving, change the file extension from .XML to .graphml to make the file usable by Gephi • Choose .net for Pajek

  28. Additional Resources • http://wiki.cns.iu.edu/ • http://gephi.org/
