4 5 oneos downloading software upgrade

4.5 OneOs DownloadingSoftware Upgrade


Software upgrade loading a new oneos image

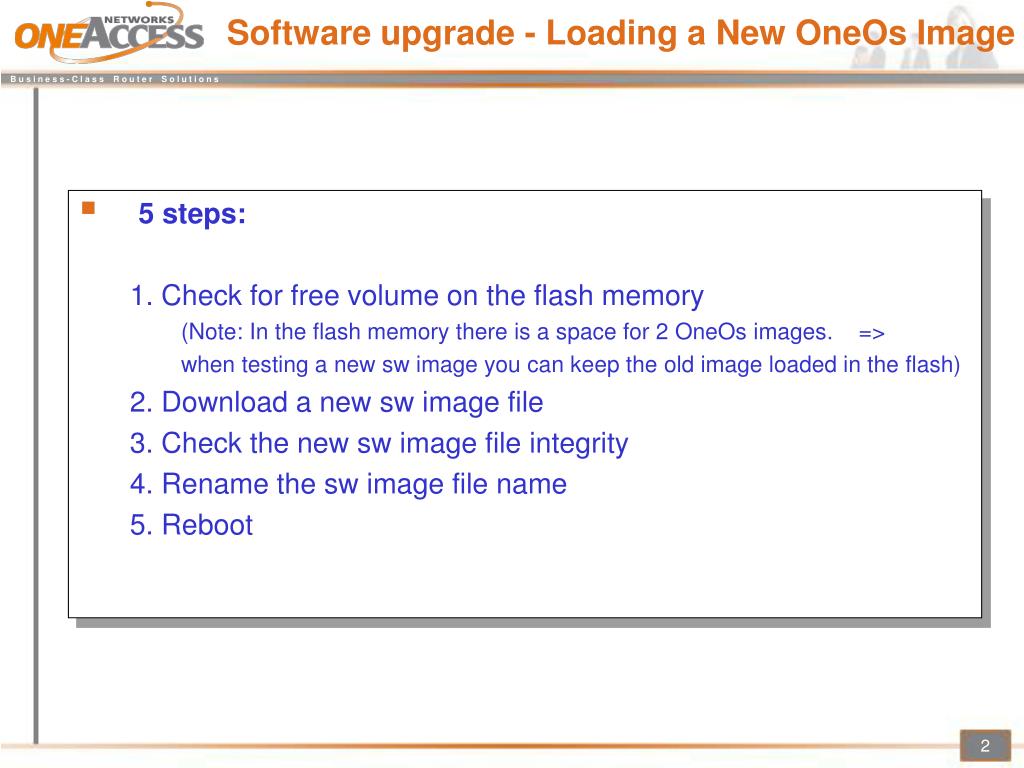

Software upgrade - Loading a New OneOs Image

  • 5 steps:

    1. Check for free volume on the flash memory

    (Note: In the flash memory there is a space for 2 OneOs images. =>

    when testing a new sw image you can keep the old image loaded in the flash)

    2. Download a new sw image file

    3. Check the new sw image file integrity

    4. Rename the sw image file name

    5. Reboot


Cli administration commands

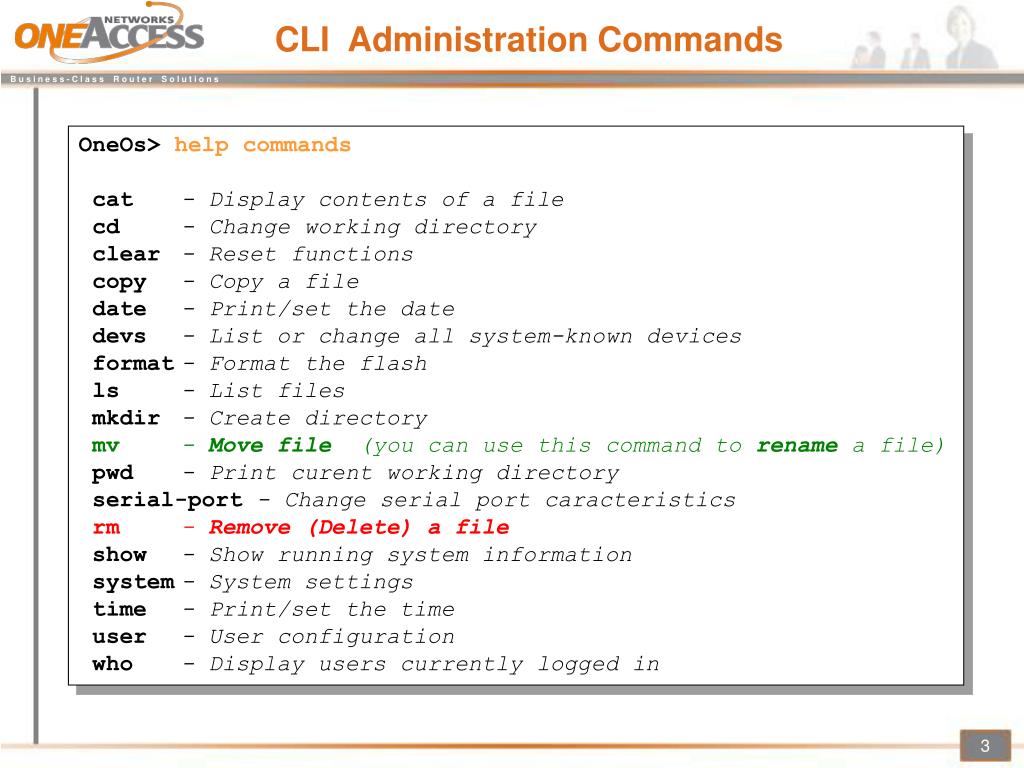

CLI Administration Commands

OneOs> help commands

cat- Display contents of a file

cd- Change working directory

clear- Reset functions

copy- Copy a file

date- Print/set the date

devs- List or change all system-known devices

format- Format the flash

ls- List files

mkdir- Create directory

mv- Move file (you can use this command to rename a file)

pwd- Print curent working directory

serial-port - Change serial port caracteristics

rm- Remove (Delete) a file

show- Show running system information

system- System settings

time- Print/set the time

user- User configuration

who- Display users currently logged in

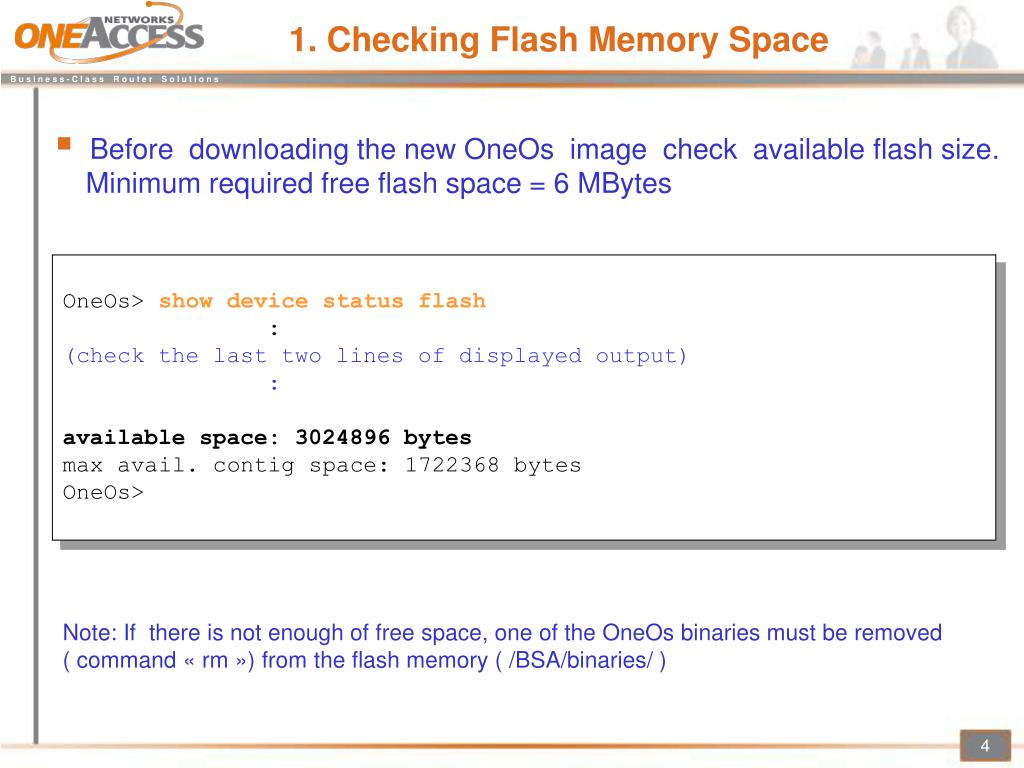

1 checking flash memory space

1. Checking Flash Memory Space

  • Before downloading the new OneOs image check available flash size.

    Minimum required free flash space = 6 MBytes

OneOs>show device status flash

:

(check the last two lines of displayed output)

:

available space: 3024896 bytes

max avail. contig space: 1722368 bytes

OneOs>

Note: If there is not enough of free space, one of the OneOs binaries must be removed ( command « rm ») from the flash memory ( /BSA/binaries/ )


2 software file download 1 2

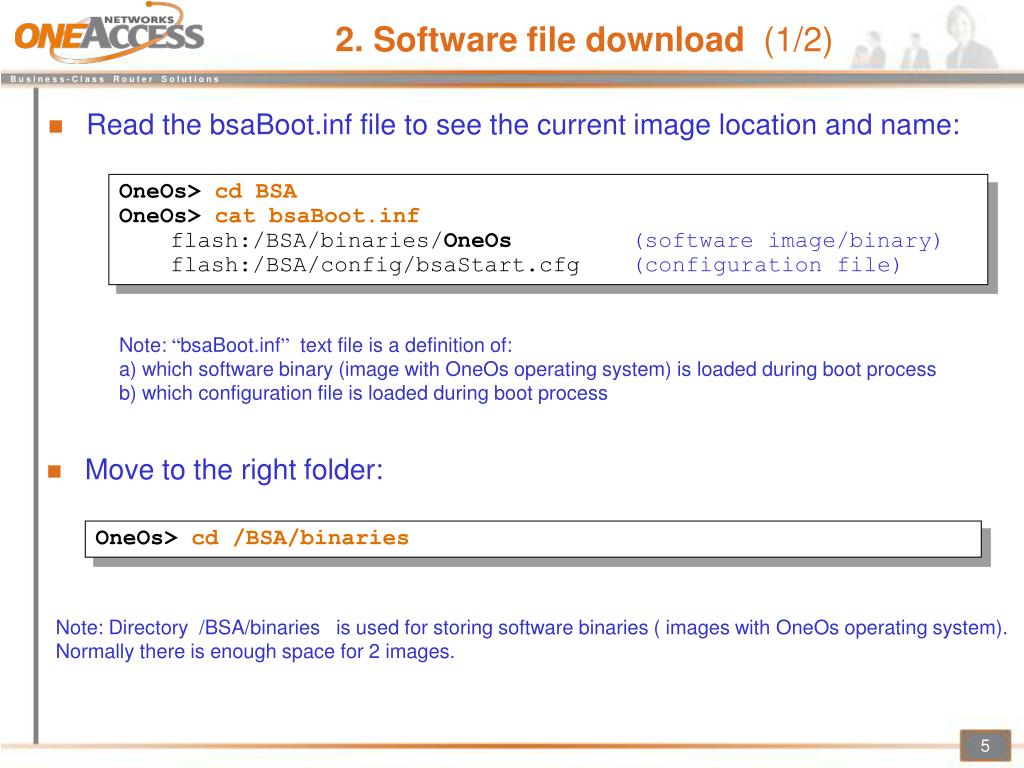

2. Software file download (1/2)

  • Read the bsaBoot.inf file to see the current image location and name:

  • OneOs> cd BSA

  • OneOs> cat bsaBoot.inf

    • flash:/BSA/binaries/OneOs (software image/binary)

    • flash:/BSA/config/bsaStart.cfg(configuration file)

Note: “bsaBoot.inf” text file is a definition of:

a) which software binary (image with OneOs operating system) is loaded during boot process

b) which configuration file is loaded during boot process

  • Move to the right folder:

OneOs> cd /BSA/binaries

Note: Directory /BSA/binaries is used for storing software binaries ( images with OneOs operating system).

Normally there is enough space for 2 images.


2 software file download 2 2

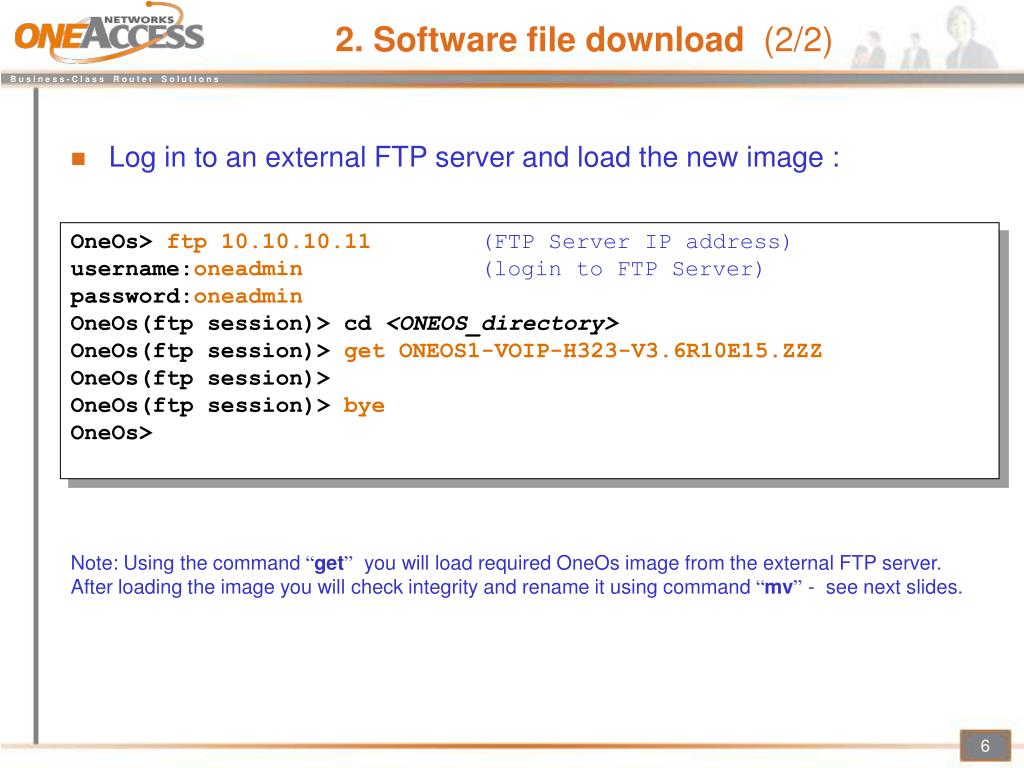

2. Software file download (2/2)

OneOs> ftp 10.10.10.11(FTP Server IP address)

username:oneadmin (login to FTP Server)

password:oneadmin

OneOs(ftp session)> cd <ONEOS_directory>

OneOs(ftp session)> get ONEOS1-VOIP-H323-V3.6R10E15.ZZZ

OneOs(ftp session)>

OneOs(ftp session)> bye

OneOs>

  • Log in to an external FTP server and load the new image :

Note: Using the command “get” you will load required OneOs image from the external FTP server.

After loading the image you will check integrity and rename it using command “mv” - see next slides.


3 verification of software integrity

3. Verification of Software Integrity

  • Verify loaded image for integrity :

CLI> show soft-file info [<path>/]<filename>

CLI> show soft-file info ONEOS1-VOIP-H323-V3.6R10E15.ZZZ

one200-COLT>sh soft-file info OneOs

Binary file informations :

file name = /BSA/binaries/OneOs

software version = ONEOS1-VOIP_H323-V3.6R10E14

software creation date = 19/04/07 18:17:57

file size = 6360069 (0x610C05)

header checksum = 0x8B3BA334

computed checksum = 0x8B3BA334

target device = One30/50/60/200

file is OK

CLI>

CLI> verify soft-file [<path>/]<filename>

CLI> verify soft-file NewOneOs

file is OK

CLI>

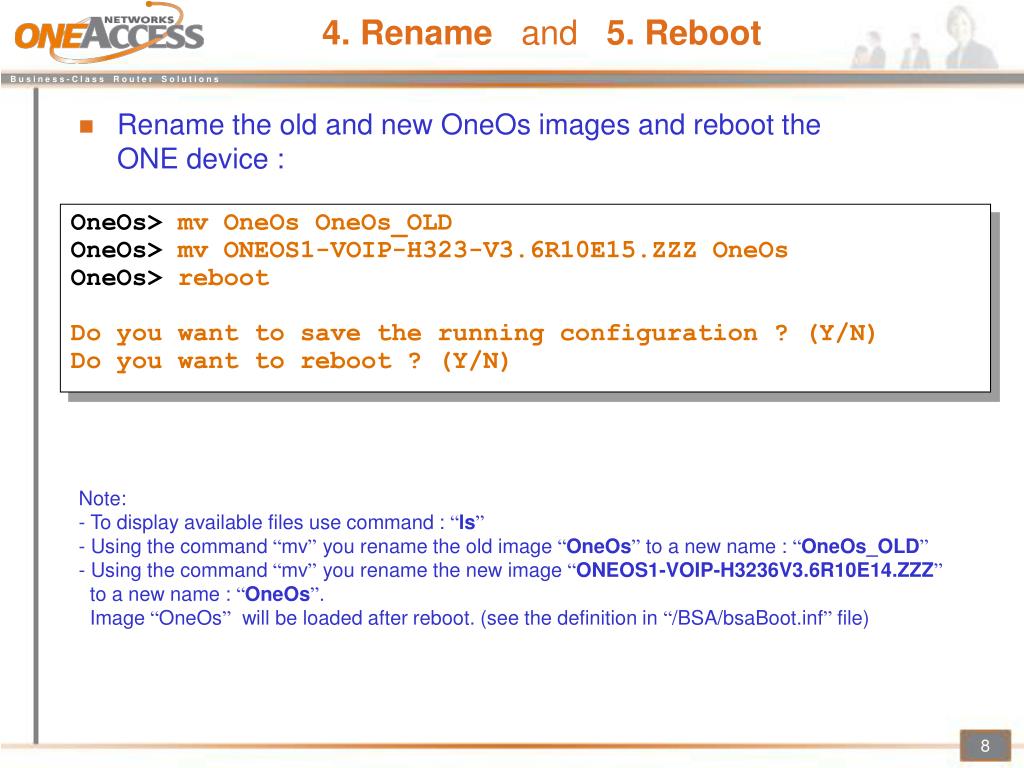

4 rename and 5 reboot

4. Rename and 5. Reboot

OneOs> mv OneOs OneOs_OLD

OneOs> mv ONEOS1-VOIP-H323-V3.6R10E15.ZZZ OneOs

OneOs> reboot

Do you want to save the running configuration ? (Y/N)

Do you want to reboot ? (Y/N)

  • Rename the old and new OneOs images and reboot the ONE device :

  • Note:

  • - To display available files use command : “ls”

  • Using the command “mv” you rename the old image “OneOs” to a new name : “OneOs_OLD”

  • Using the command “mv” you rename the new image “ONEOS1-VOIP-H3236V3.6R10E14.ZZZ”

  • to a new name : “OneOs”.

  • Image “OneOs” will be loaded after reboot. (see the definition in “/BSA/bsaBoot.inf” file)


4 5 trouble shooting

4.5 Trouble Shooting

Show Statistics Commands

Event Filters

System Logging

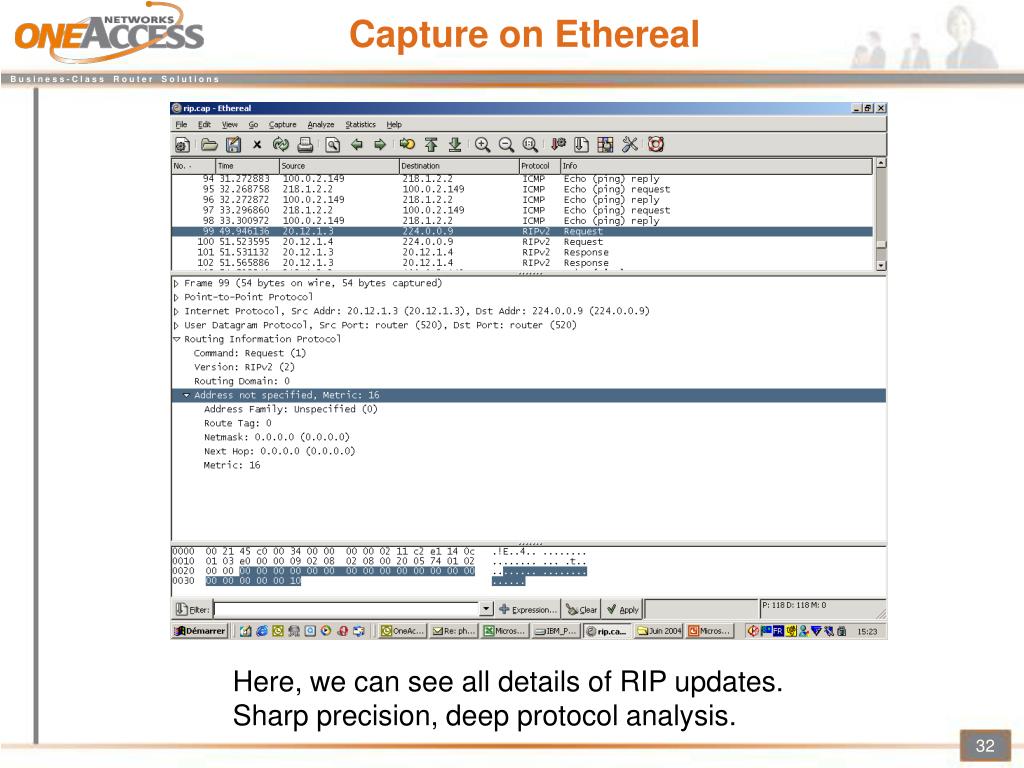

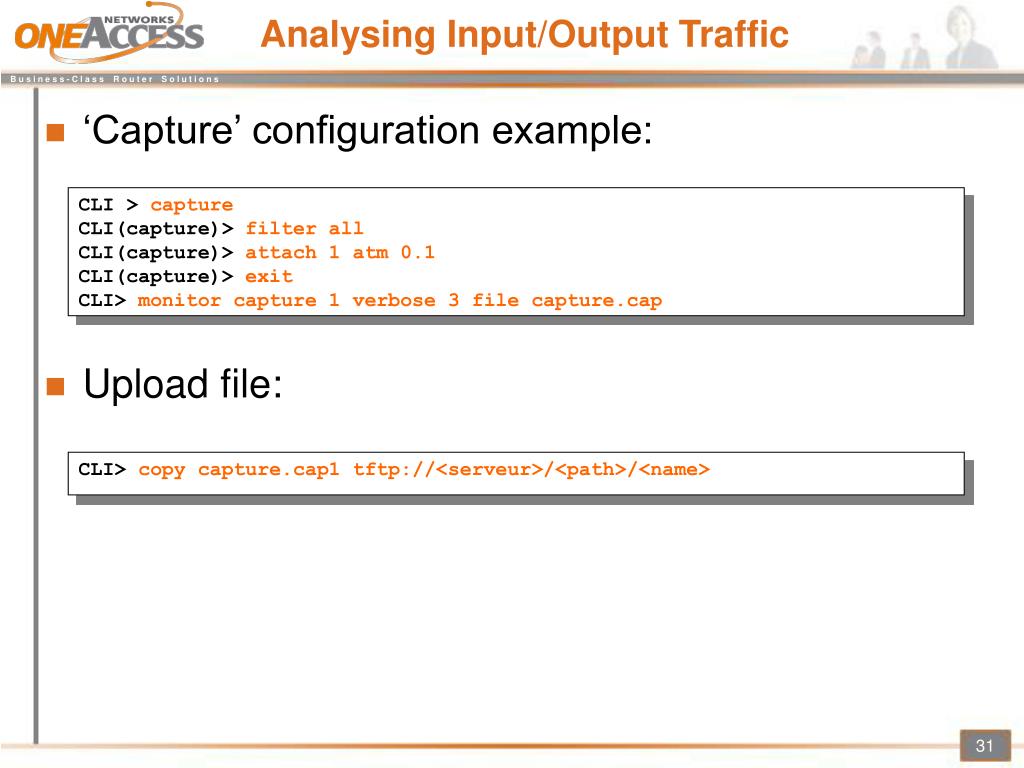

Capture Tool

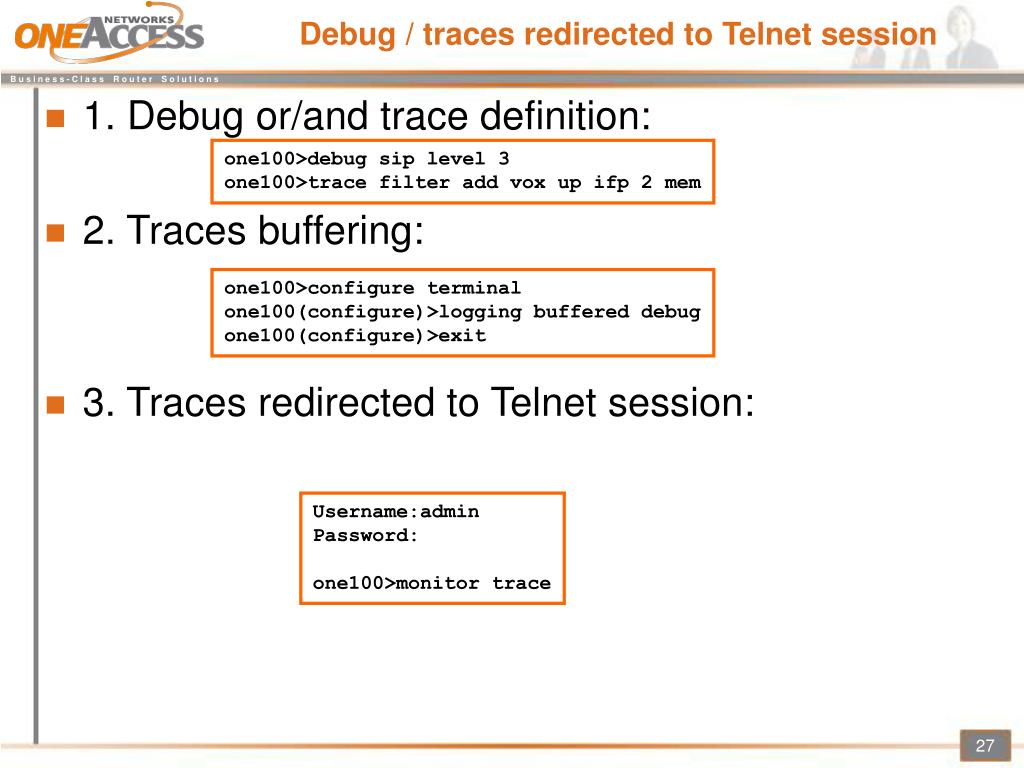

Debug Tool

Troubleshooting Commands

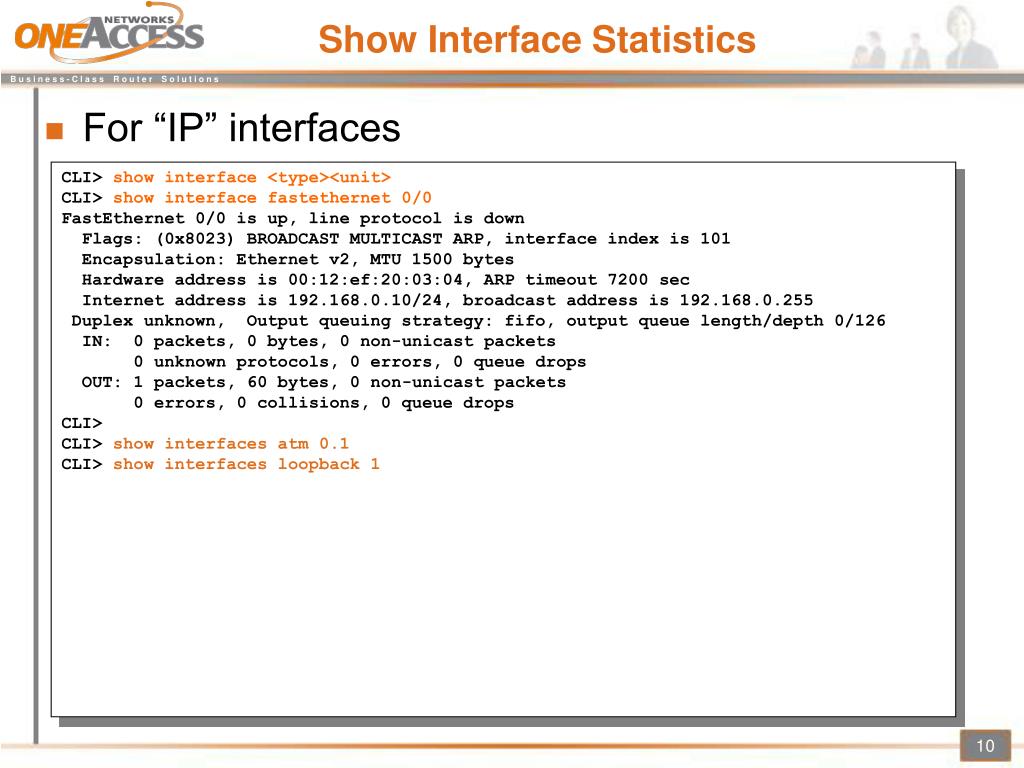

Show interface statistics

Show Interface Statistics

  • For “IP” interfaces

CLI> show interface <type><unit>

CLI> show interface fastethernet 0/0

FastEthernet 0/0 is up, line protocol is down

Flags: (0x8023) BROADCAST MULTICAST ARP, interface index is 101

Encapsulation: Ethernet v2, MTU 1500 bytes

Hardware address is 00:12:ef:20:03:04, ARP timeout 7200 sec

Internet address is 192.168.0.10/24, broadcast address is 192.168.0.255

Duplex unknown, Output queuing strategy: fifo, output queue length/depth 0/126

IN: 0 packets, 0 bytes, 0 non-unicast packets

0 unknown protocols, 0 errors, 0 queue drops

OUT: 1 packets, 60 bytes, 0 non-unicast packets

0 errors, 0 collisions, 0 queue drops

CLI>

CLI> show interfaces atm 0.1

CLI> show interfaces loopback 1

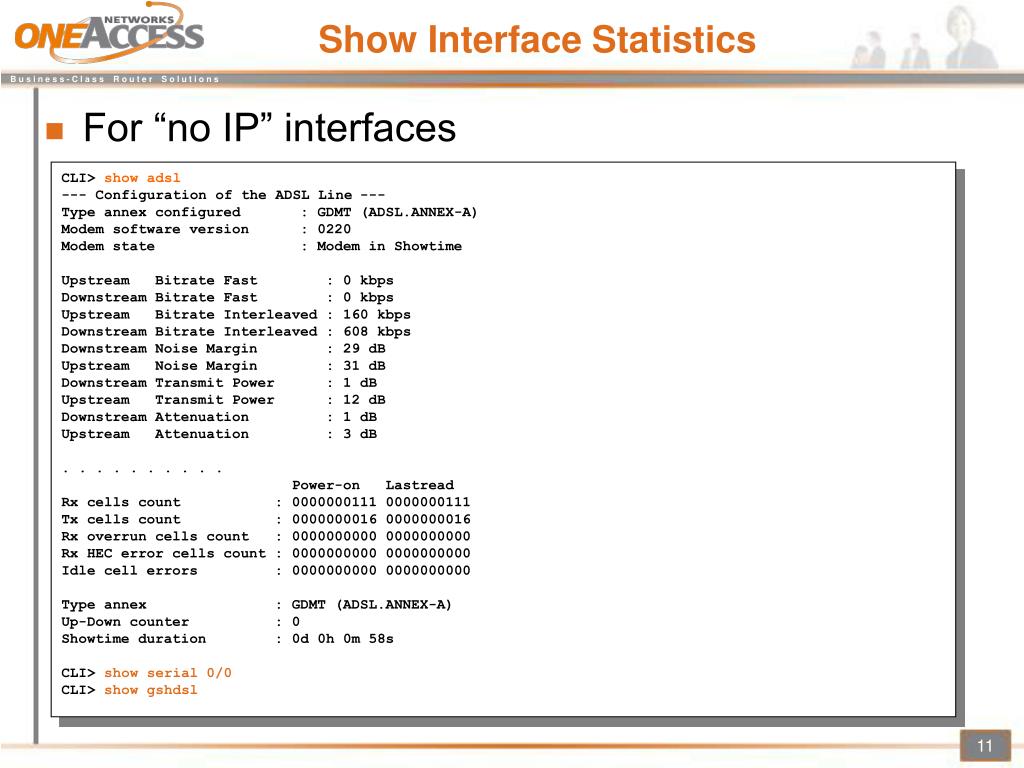

Show interface statistics1

Show Interface Statistics

  • For “no IP” interfaces

CLI> show adsl

--- Configuration of the ADSL Line ---

Type annex configured : GDMT (ADSL.ANNEX-A)

Modem software version : 0220

Modem state : Modem in Showtime

Upstream Bitrate Fast : 0 kbps

Downstream Bitrate Fast : 0 kbps

Upstream Bitrate Interleaved : 160 kbps

Downstream Bitrate Interleaved : 608 kbps

Downstream Noise Margin : 29 dB

Upstream Noise Margin : 31 dB

Downstream Transmit Power : 1 dB

Upstream Transmit Power : 12 dB

Downstream Attenuation : 1 dB

Upstream Attenuation : 3 dB

. . . . . . . . . .

Power-on Lastread

Rx cells count : 0000000111 0000000111

Tx cells count : 0000000016 0000000016

Rx overrun cells count : 0000000000 0000000000

Rx HEC error cells count : 0000000000 0000000000

Idle cell errors : 0000000000 0000000000

Type annex : GDMT (ADSL.ANNEX-A)

Up-Down counter : 0

Showtime duration : 0d 0h 0m 58s

CLI> show serial 0/0

CLI> show gshdsl

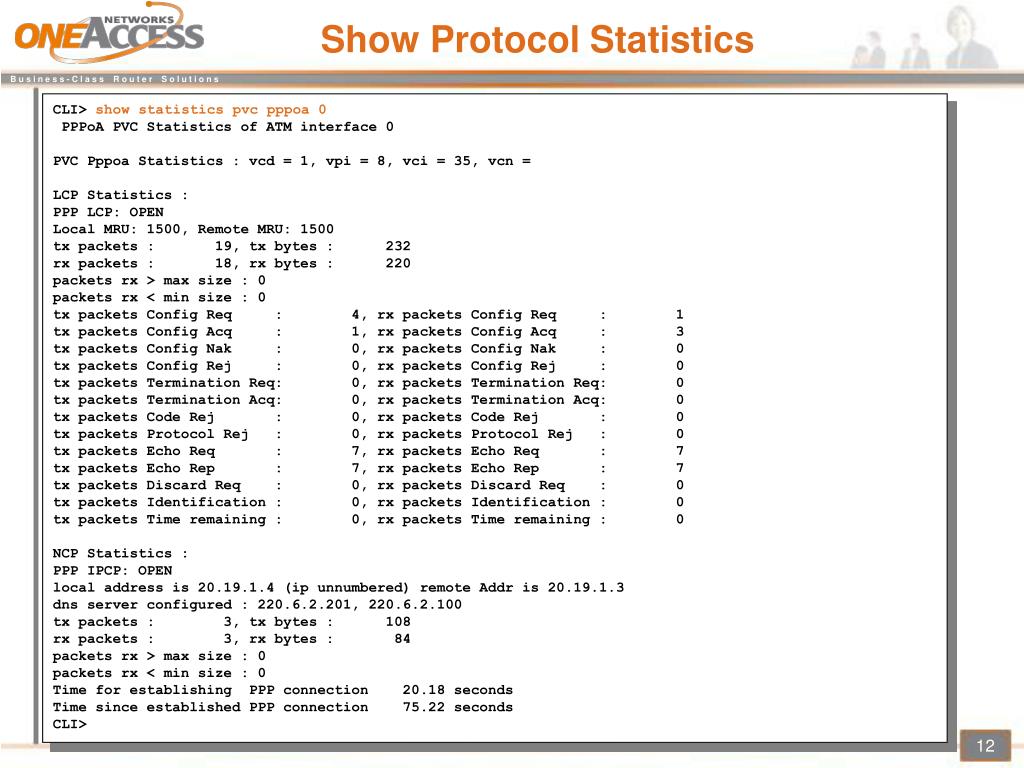

Show protocol statistics

Show Protocol Statistics

CLI> show statistics pvc pppoa 0

PPPoA PVC Statistics of ATM interface 0

PVC Pppoa Statistics : vcd = 1, vpi = 8, vci = 35, vcn =

LCP Statistics :

PPP LCP: OPEN

Local MRU: 1500, Remote MRU: 1500

tx packets : 19, tx bytes : 232

rx packets : 18, rx bytes : 220

packets rx > max size : 0

packets rx < min size : 0

tx packets Config Req : 4, rx packets Config Req : 1

tx packets Config Acq : 1, rx packets Config Acq : 3

tx packets Config Nak : 0, rx packets Config Nak : 0

tx packets Config Rej : 0, rx packets Config Rej : 0

tx packets Termination Req: 0, rx packets Termination Req: 0

tx packets Termination Acq: 0, rx packets Termination Acq: 0

tx packets Code Rej : 0, rx packets Code Rej : 0

tx packets Protocol Rej : 0, rx packets Protocol Rej : 0

tx packets Echo Req : 7, rx packets Echo Req : 7

tx packets Echo Rep : 7, rx packets Echo Rep : 7

tx packets Discard Req : 0, rx packets Discard Req : 0

tx packets Identification : 0, rx packets Identification : 0

tx packets Time remaining : 0, rx packets Time remaining : 0

NCP Statistics :

PPP IPCP: OPEN

local address is 20.19.1.4 (ip unnumbered) remote Addr is 20.19.1.3

dns server configured : 220.6.2.201, 220.6.2.100

tx packets : 3, tx bytes : 108

rx packets : 3, rx bytes : 84

packets rx > max size : 0

packets rx < min size : 0

Time for establishing PPP connection 20.18 seconds

Time since established PPP connection 75.22 seconds

CLI>

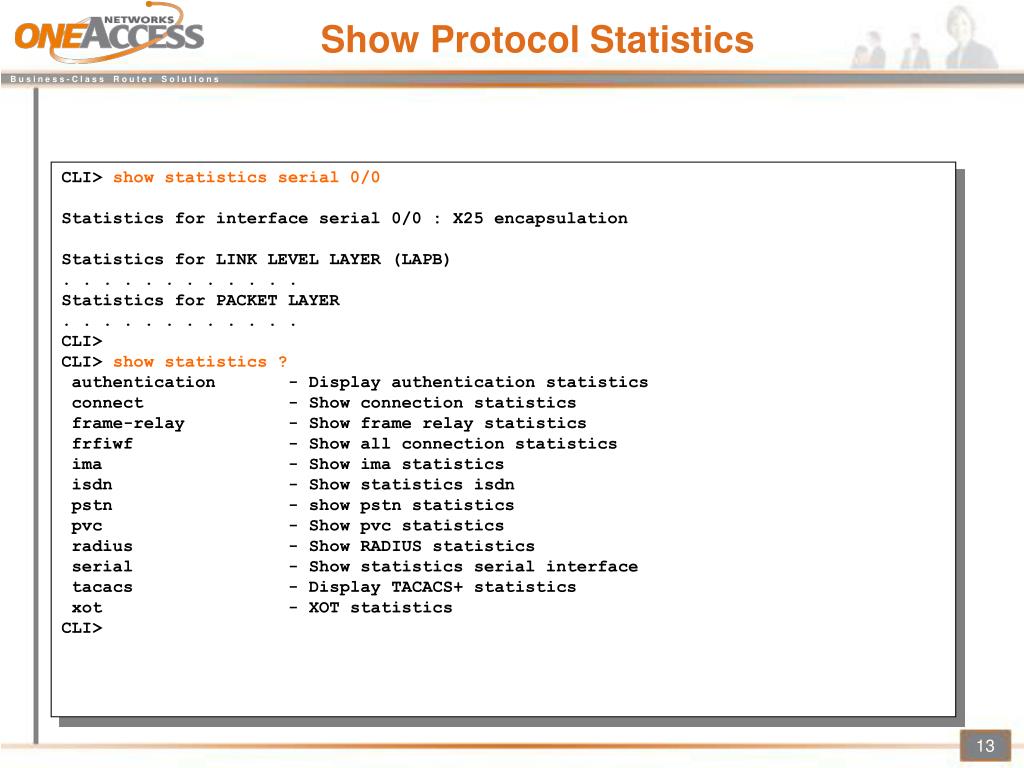

Show protocol statistics1

Show Protocol Statistics

CLI> show statistics serial 0/0

Statistics for interface serial 0/0 : X25 encapsulation

Statistics for LINK LEVEL LAYER (LAPB)

. . . . . . . . . . . .

Statistics for PACKET LAYER

. . . . . . . . . . . .

CLI>

CLI> show statistics ?

authentication - Display authentication statistics

connect - Show connection statistics

frame-relay - Show frame relay statistics

frfiwf - Show all connection statistics

ima - Show ima statistics

isdn - Show statistics isdn

pstn - show pstn statistics

pvc - Show pvc statistics

radius - Show RADIUS statistics

serial - Show statistics serial interface

tacacs - Display TACACS+ statistics

xot - XOT statistics

CLI>

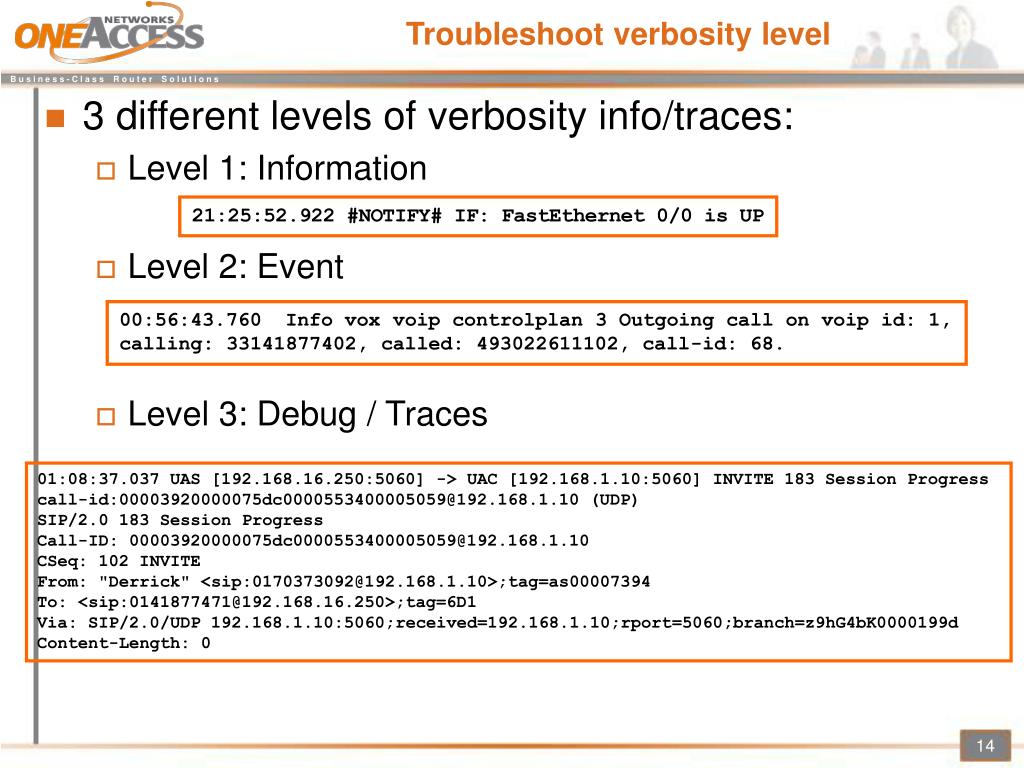

Troubleshoot verbosity level

Troubleshoot verbosity level

  • 3 different levels of verbosity info/traces:

    • Level 1: Information

    • Level 2: Event

    • Level 3: Debug / Traces

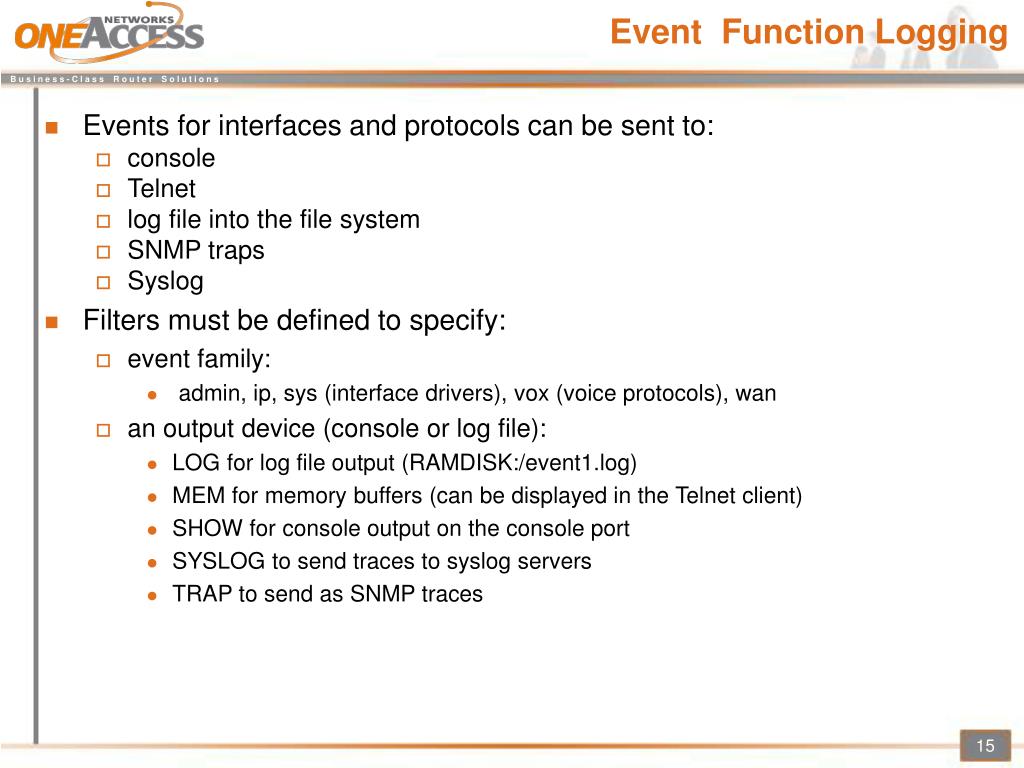

Event function logging

Event Function Logging

  • Events for interfaces and protocols can be sent to:

    • console

    • Telnet

    • log file into the file system

    • SNMP traps

    • Syslog

  • Filters must be defined to specify:

    • event family:

      • admin, ip, sys (interface drivers), vox (voice protocols), wan

    • an output device (console or log file):

      • LOG for log file output (RAMDISK:/event1.log)

      • MEM for memory buffers (can be displayed in the Telnet client)

      • SHOW for console output on the console port

      • SYSLOG to send traces to syslog servers

      • TRAP to send as SNMP traces


Functions for event logging

Functions for Event Logging

  • Event logging configuration:

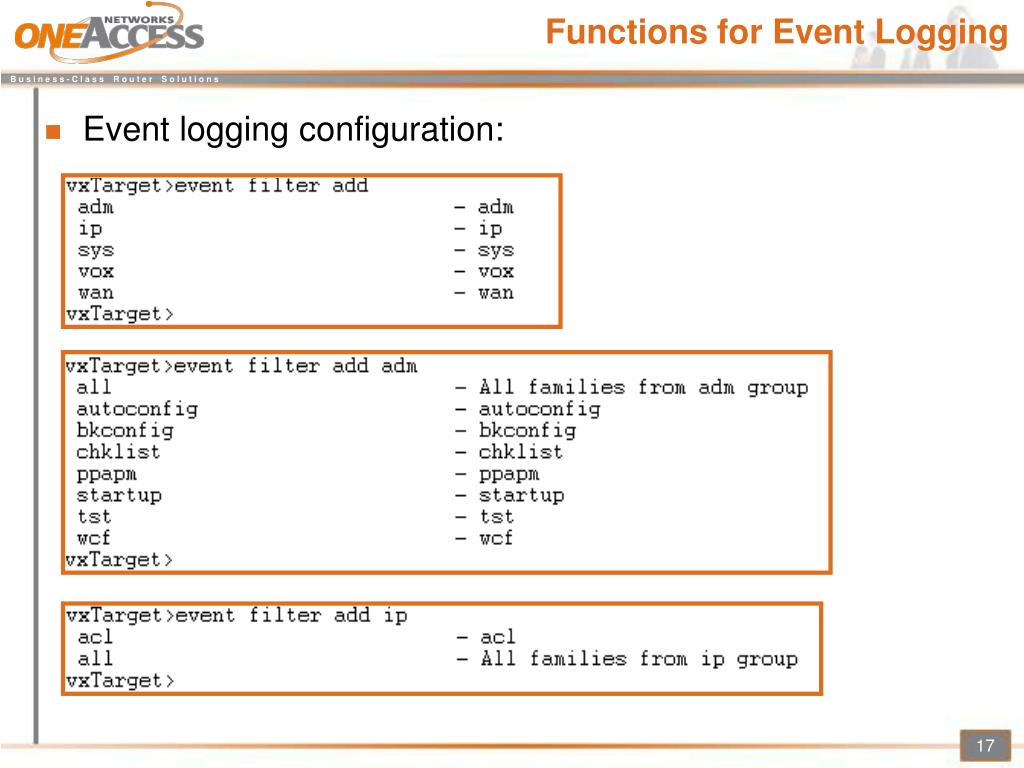

Functions for event logging1

Functions for Event Logging

  • Event logging configuration:


Functions for event logging2

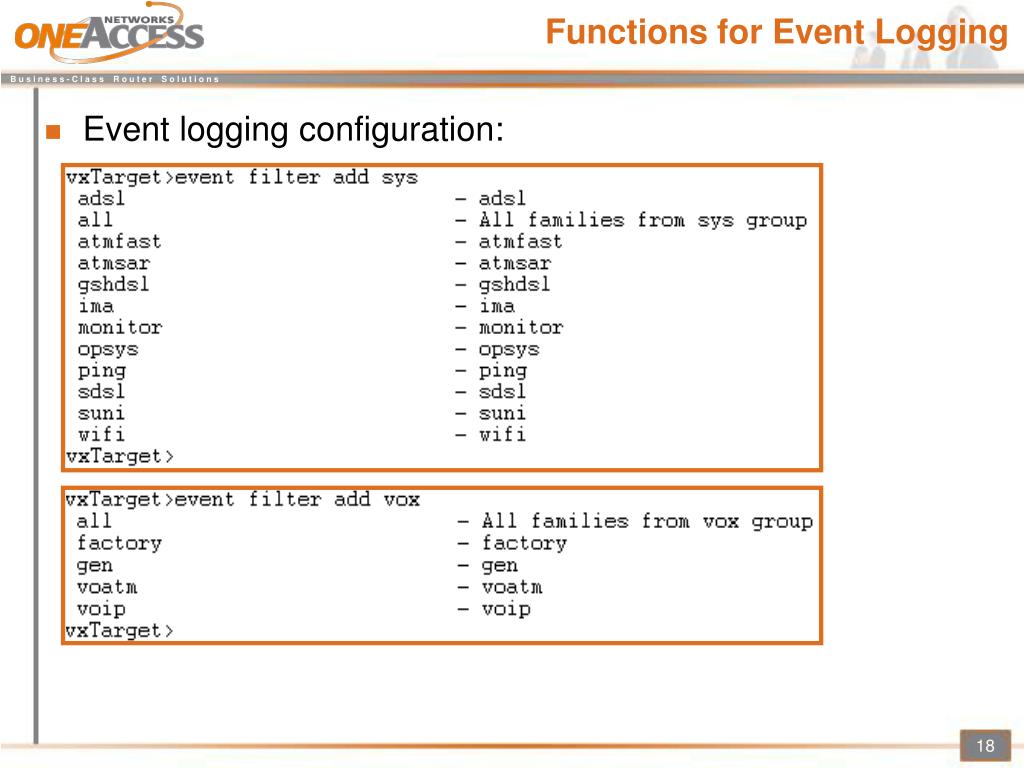

Functions for Event Logging

  • Event logging configuration:


Functions for event logging3

Functions for Event Logging

  • Event logging configuration:


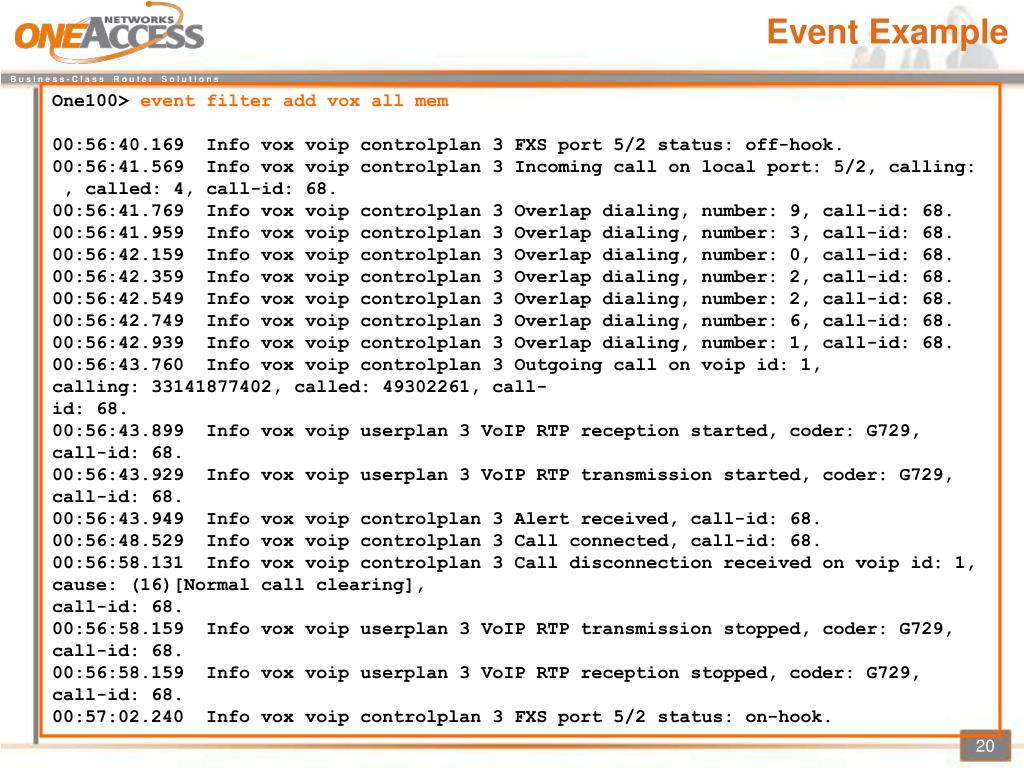

Event example

Event Example

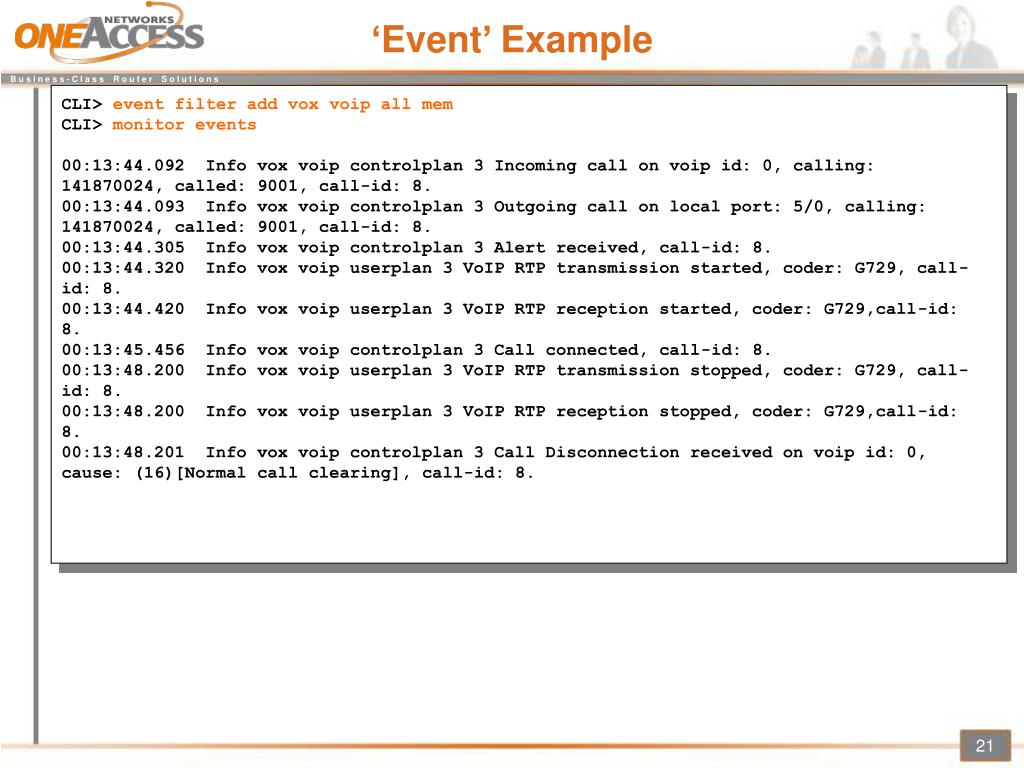

Event example1

‘Event’ Example

CLI> event filter add vox voip all mem

CLI> monitor events

00:13:44.092 Info vox voip controlplan 3 Incoming call on voip id: 0, calling: 141870024, called: 9001, call-id: 8.

00:13:44.093 Info vox voip controlplan 3 Outgoing call on local port: 5/0, calling: 141870024, called: 9001, call-id: 8.

00:13:44.305 Info vox voip controlplan 3 Alert received, call-id: 8.

00:13:44.320 Info vox voip userplan 3 VoIP RTP transmission started, coder: G729, call-id: 8.

00:13:44.420 Info vox voip userplan 3 VoIP RTP reception started, coder: G729,call-id: 8.

00:13:45.456 Info vox voip controlplan 3 Call connected, call-id: 8.

00:13:48.200 Info vox voip userplan 3 VoIP RTP transmission stopped, coder: G729, call-id: 8.

00:13:48.200 Info vox voip userplan 3 VoIP RTP reception stopped, coder: G729,call-id: 8.

00:13:48.201 Info vox voip controlplan 3 Call Disconnection received on voip id: 0, cause: (16)[Normal call clearing], call-id: 8.


Event management

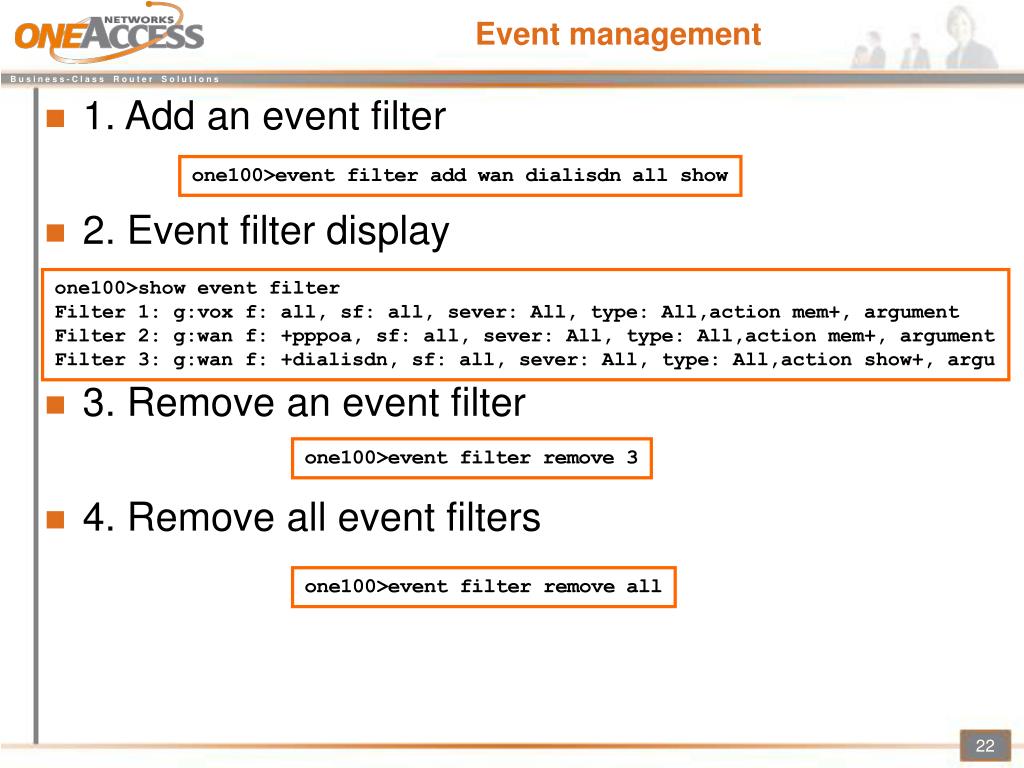

Event management

  • 1. Add an event filter

  • 2. Event filter display

  • 3. Remove an event filter

  • 4. Remove all event filters


System logging

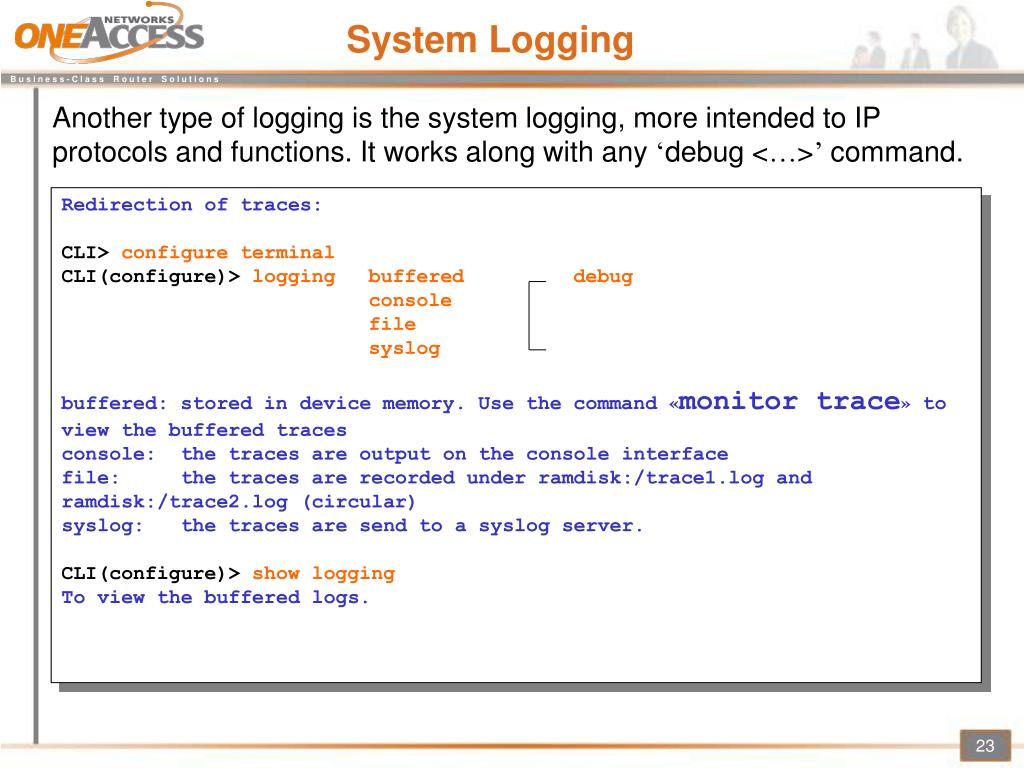

System Logging

Another type of logging is the system logging, more intended to IP protocols and functions. It works along with any ‘debug <…>’ command.

Redirection of traces:

CLI> configure terminal

CLI(configure)> loggingbuffereddebug

console

file

syslog

buffered: stored in device memory. Use the command «monitor trace» to view the buffered traces

console: the traces are output on the console interface

file: the traces are recorded under ramdisk:/trace1.log and ramdisk:/trace2.log (circular)

syslog: the traces are send to a syslog server.

CLI(configure)> show logging

To view the buffered logs.

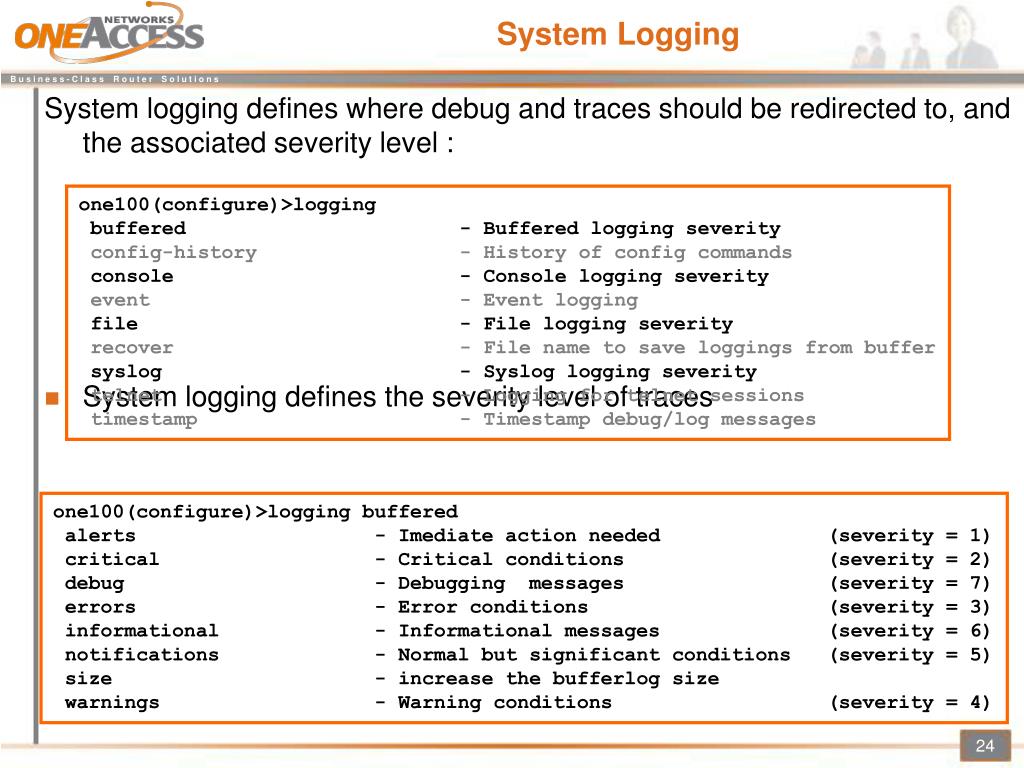

System logging1

System Logging

System logging defines where debug and traces should be redirected to, and the associated severity level :

  • System logging defines the severity level of traces


Events redirected to telnet session

Events redirected to telnet session

  • 1. Event filter definition:

  • 2. Event redirection to telnet session:

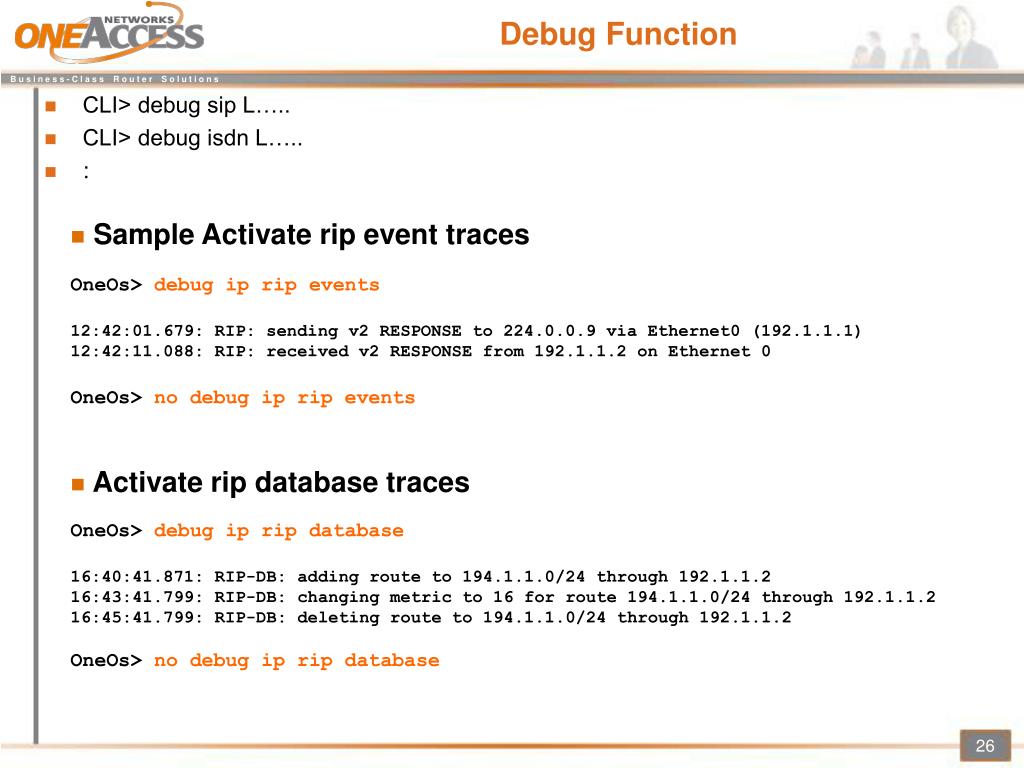

Debug function

Debug Function

  • CLI> debug sip L…..

  • CLI> debug isdn L…..

  • :

  • Sample Activate rip event traces

  • OneOs>debug ip rip events

  • 12:42:01.679: RIP: sending v2 RESPONSE to 224.0.0.9 via Ethernet0 (192.1.1.1)

  • 12:42:11.088: RIP: received v2 RESPONSE from 192.1.1.2 on Ethernet 0

  • OneOs>no debug ip rip events

  • Activate rip database traces

  • OneOs>debug ip rip database

  • 16:40:41.871: RIP-DB: adding route to 194.1.1.0/24 through 192.1.1.2

  • 16:43:41.799: RIP-DB: changing metric to 16 for route 194.1.1.0/24 through 192.1.1.2

  • 16:45:41.799: RIP-DB: deleting route to 194.1.1.0/24 through 192.1.1.2

  • OneOs>no debug ip rip database


Debug traces redirected to telnet session

Debug / traces redirected to Telnet session

  • 1. Debug or/and trace definition:

  • 2. Traces buffering:

  • 3. Traces redirected to Telnet session:

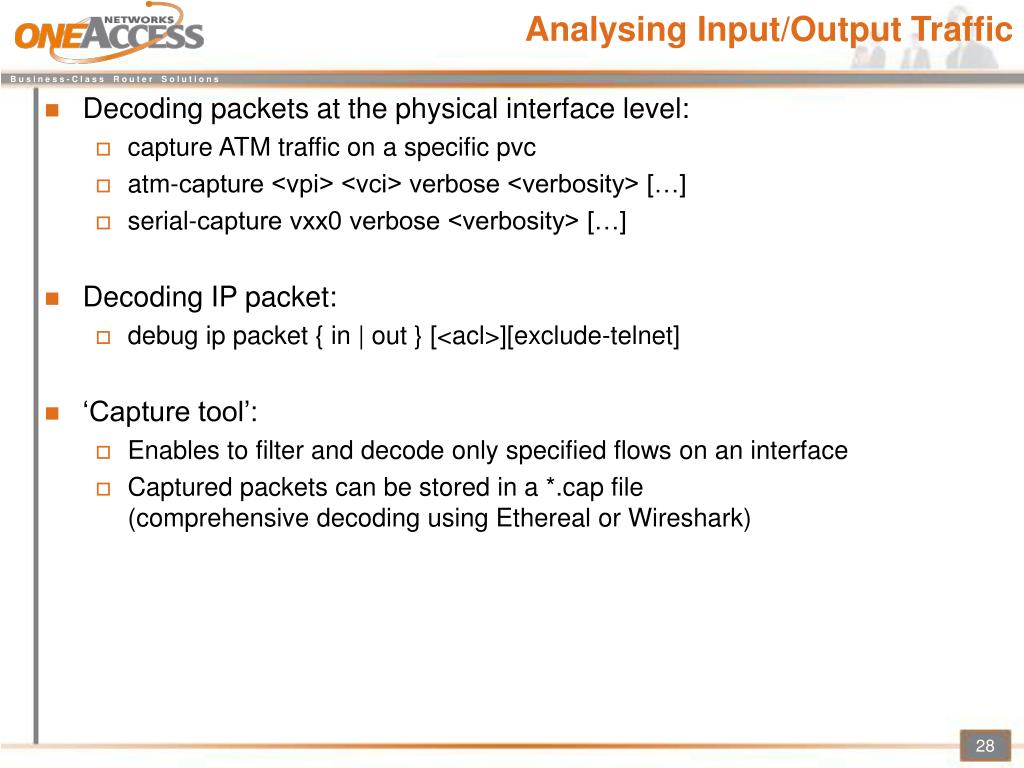

Analysing input output traffic

Analysing Input/Output Traffic

  • Decoding packets at the physical interface level:

    • capture ATM traffic on a specific pvc

    • atm-capture <vpi> <vci> verbose <verbosity> […]

    • serial-capture vxx0 verbose <verbosity> […]

  • Decoding IP packet:

    • debug ip packet { in | out } [<acl>][exclude-telnet]

  • ‘Capture tool’:

    • Enables to filter and decode only specified flows on an interface

    • Captured packets can be stored in a *.cap file (comprehensive decoding using Ethereal or Wireshark)


Atm capture

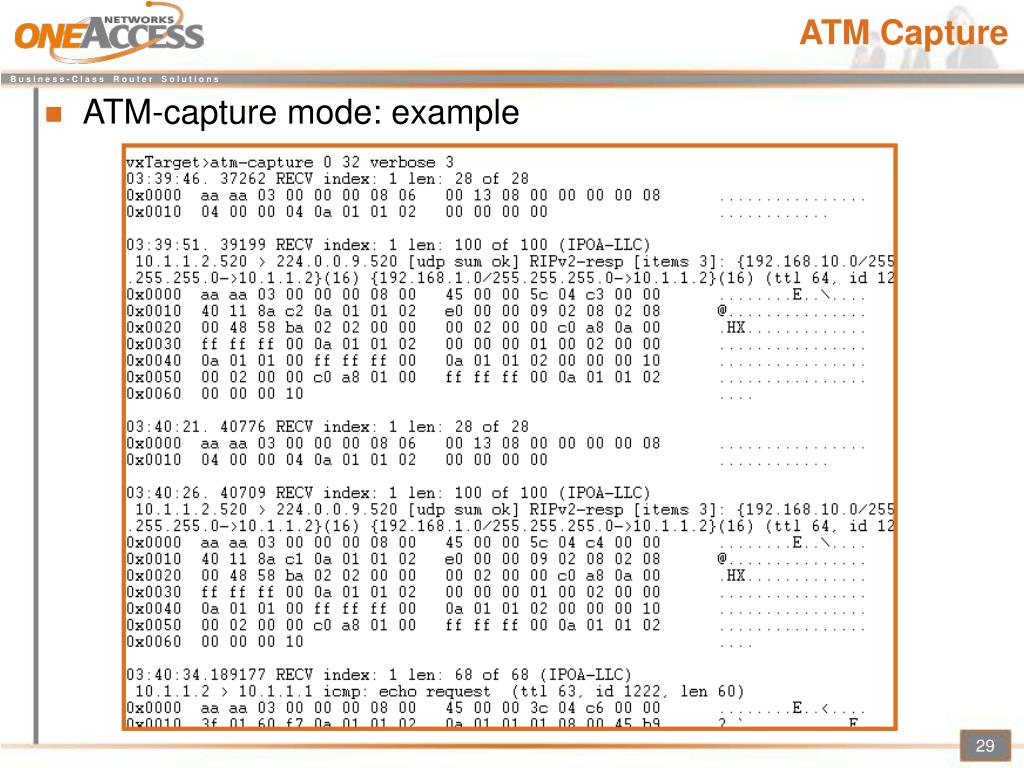

ATM Capture

  • ATM-capture mode: example

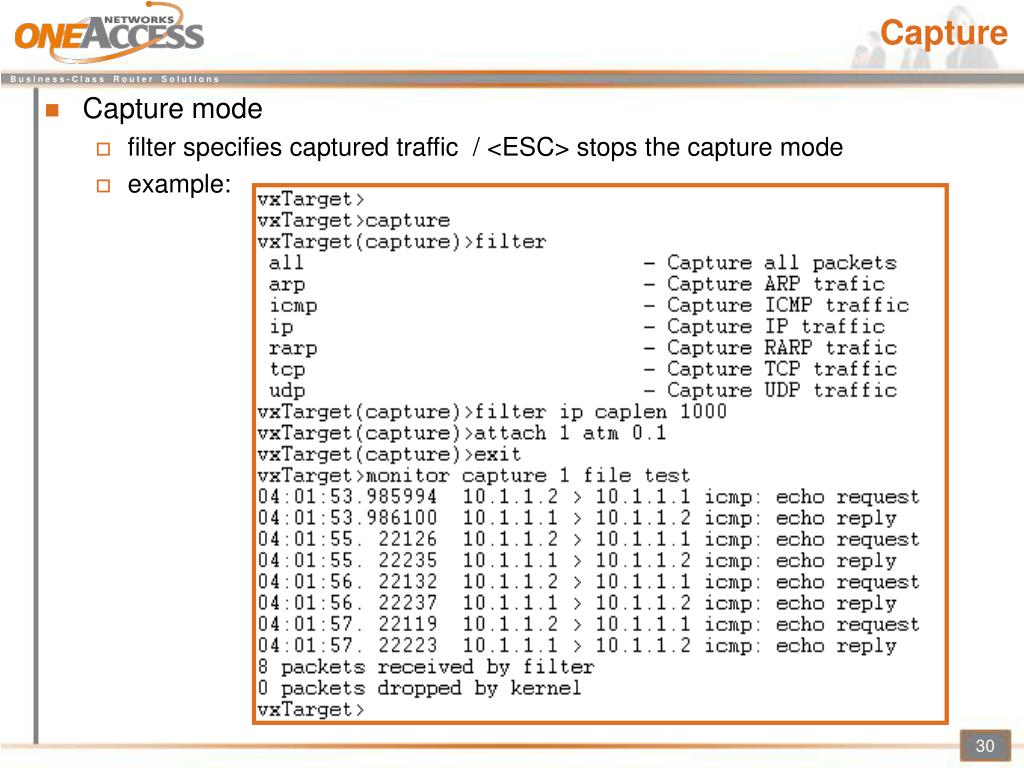

Capture

Capture

  • Capture mode

    • filter specifies captured traffic / <ESC> stops the capture mode

    • example:


Analysing input output traffic1

CLI > capture

CLI(capture)> filter all

CLI(capture)> attach 1 atm 0.1

CLI(capture)> exit

CLI> monitor capture 1 verbose 3 file capture.cap

CLI> copy capture.cap1 tftp://<serveur>/<path>/<name>

Analysing Input/Output Traffic

  • ‘Capture’ configuration example:

  • Upload file:


Capture on ethereal

Capture on Ethereal

Here, we can see all details of RIP updates.

Sharp precision, deep protocol analysis.

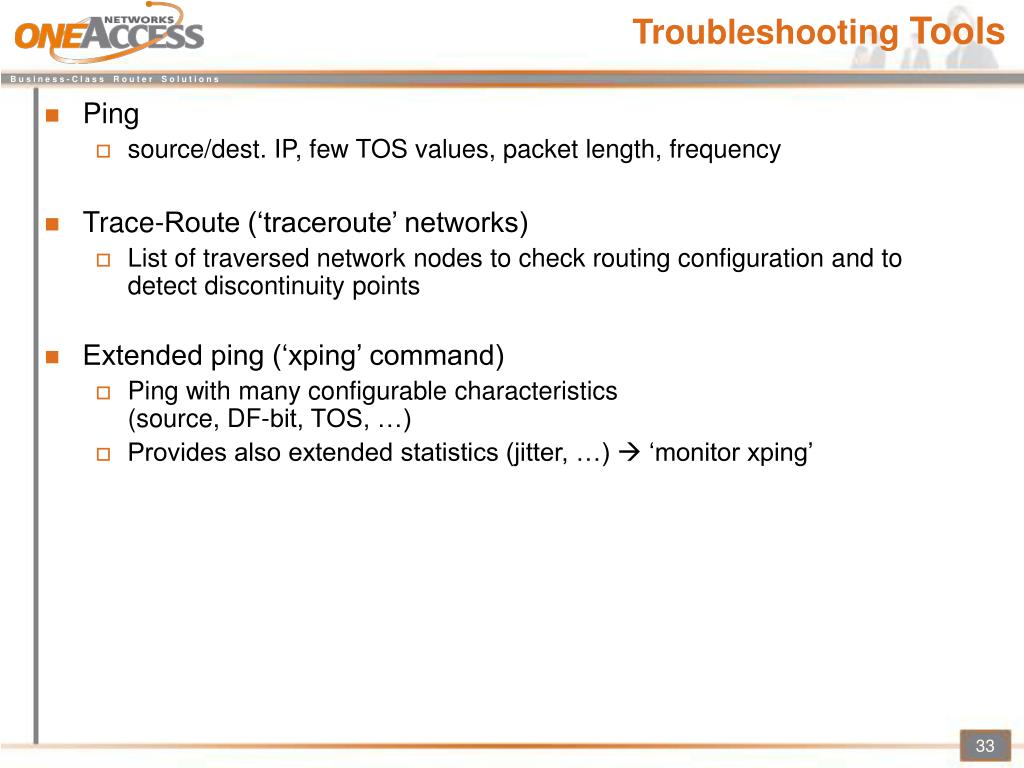

Troubleshooting tools

Troubleshooting Tools

  • Ping

    • source/dest. IP, few TOS values, packet length, frequency

  • Trace-Route (‘traceroute’ networks)

    • List of traversed network nodes to check routing configuration and to detect discontinuity points

  • Extended ping (‘xping’ command)

    • Ping with many configurable characteristics (source, DF-bit, TOS, …)

    • Provides also extended statistics (jitter, …)  ‘monitor xping’


4 5 oneos downloading software upgrade

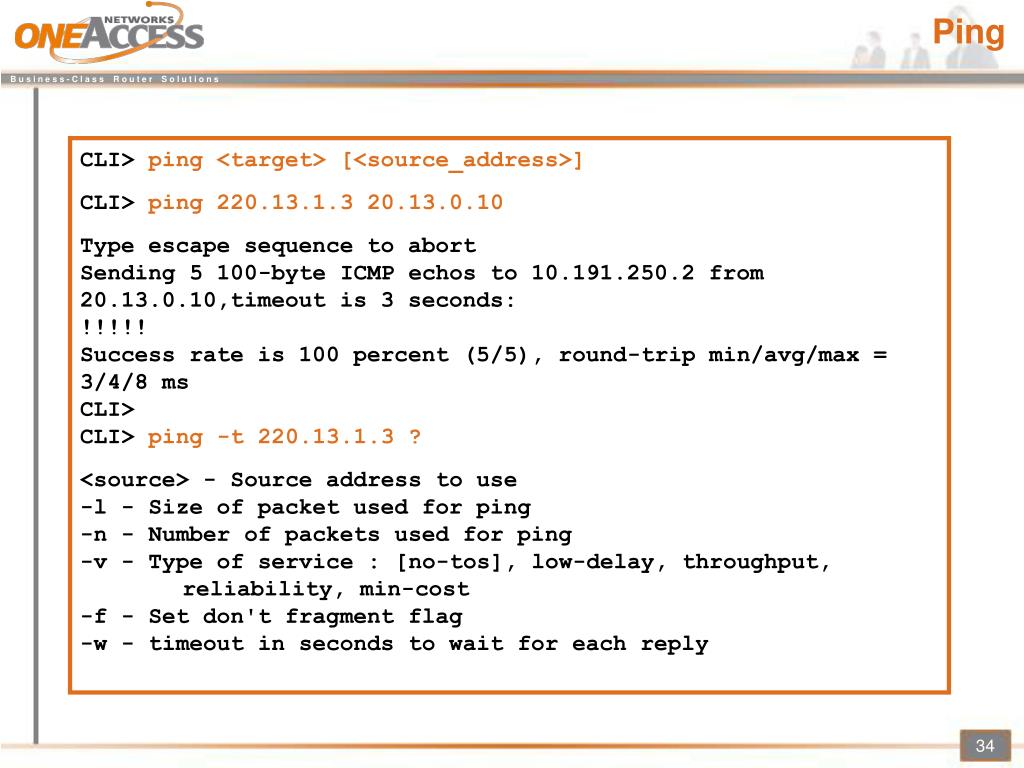

Ping

  • CLI> ping <target> [<source_address>]

  • CLI> ping 220.13.1.3 20.13.0.10

  • Type escape sequence to abort

  • Sending 5 100-byte ICMP echos to 10.191.250.2 from 20.13.0.10,timeout is 3 seconds:

  • !!!!!

  • Success rate is 100 percent (5/5), round-trip min/avg/max = 3/4/8 ms

  • CLI>

  • CLI>ping -t 220.13.1.3 ?

  • <source> - Source address to use

  • -l - Size of packet used for ping

  • -n - Number of packets used for ping

  • -v - Type of service : [no-tos], low-delay, throughput, reliability, min-cost

  • -f - Set don't fragment flag

  • -w - timeout in seconds to wait for each reply

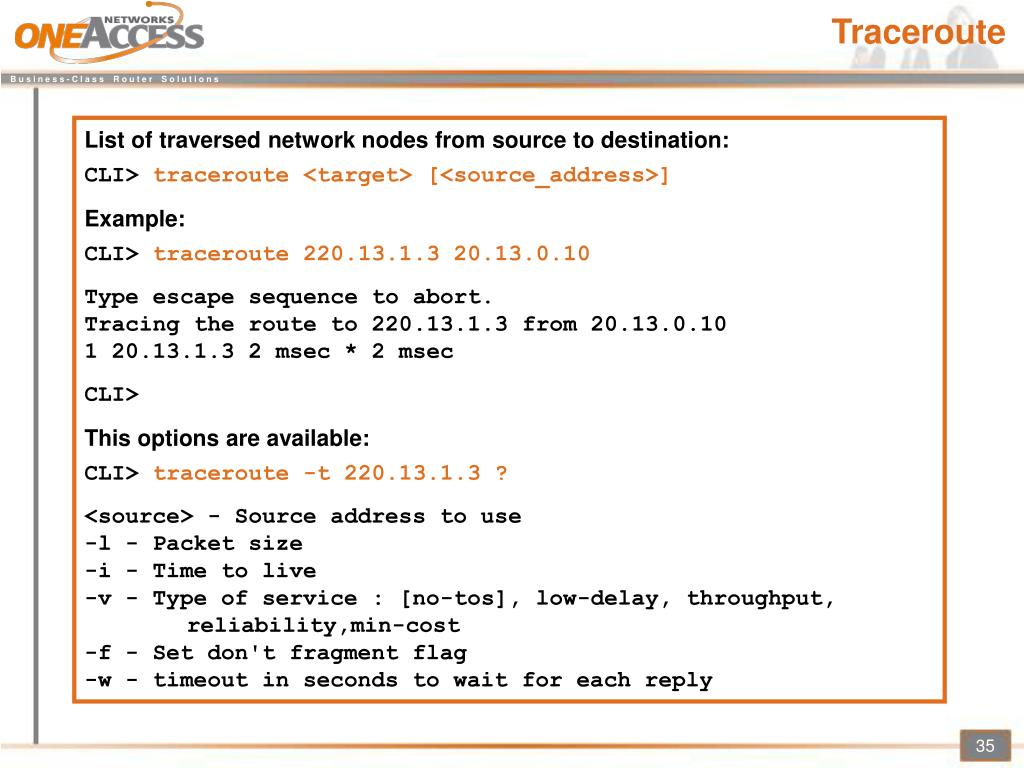

Traceroute

Traceroute

List of traversed network nodes from source to destination:

CLI> traceroute <target> [<source_address>]

Example:

CLI> traceroute 220.13.1.3 20.13.0.10

Type escape sequence to abort.

Tracing the route to 220.13.1.3 from 20.13.0.10

1 20.13.1.3 2 msec * 2 msec

CLI>

This options are available:

CLI>traceroute -t 220.13.1.3 ?

<source> - Source address to use

-l - Packet size

-i - Time to live

-v - Type of service : [no-tos], low-delay, throughput, reliability,min-cost

-f - Set don't fragment flag

-w - timeout in seconds to wait for each reply

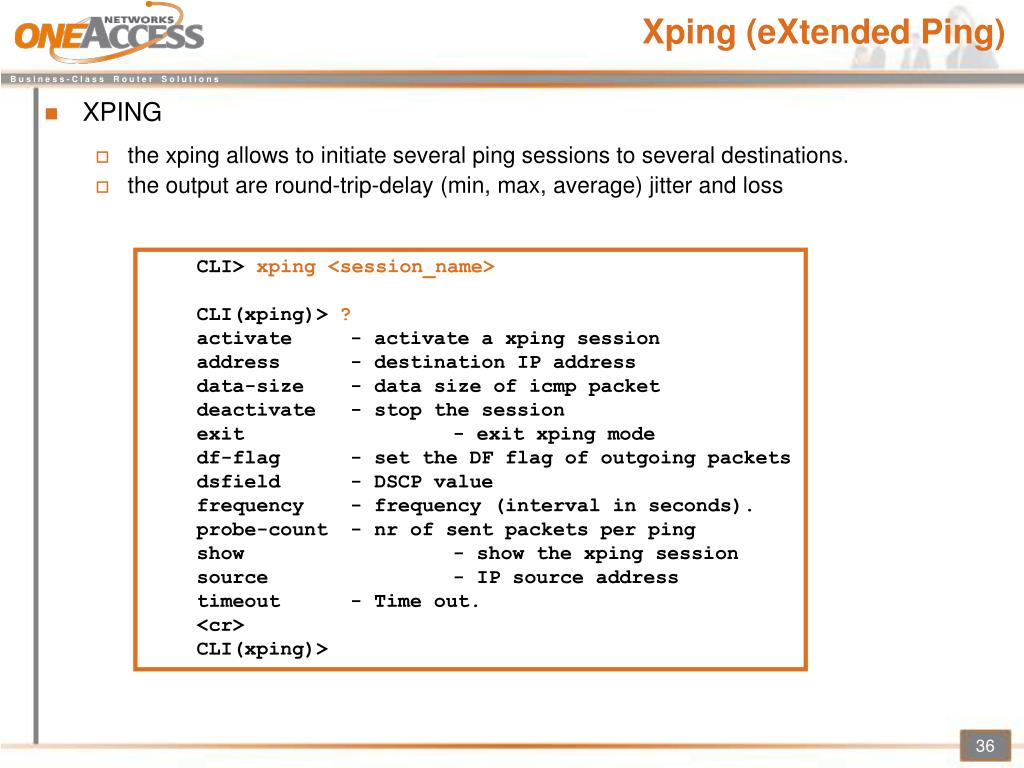

Xping extended ping

Xping (eXtended Ping)

  • XPING

    • the xping allows to initiate several ping sessions to several destinations.

    • the output are round-trip-delay (min, max, average) jitter and loss

  • CLI> xping <session_name>

  • CLI(xping)> ?

  • activate - activate a xping session

  • address - destination IP address

  • data-size - data size of icmp packet

  • deactivate - stop the session

  • exit - exit xping mode

  • df-flag - set the DF flag of outgoing packets

  • dsfield - DSCP value

  • frequency - frequency (interval in seconds).

  • probe-count - nr of sent packets per ping

  • show - show the xping session

  • source - IP source address

  • timeout - Time out.

  • <cr>

  • CLI(xping)>

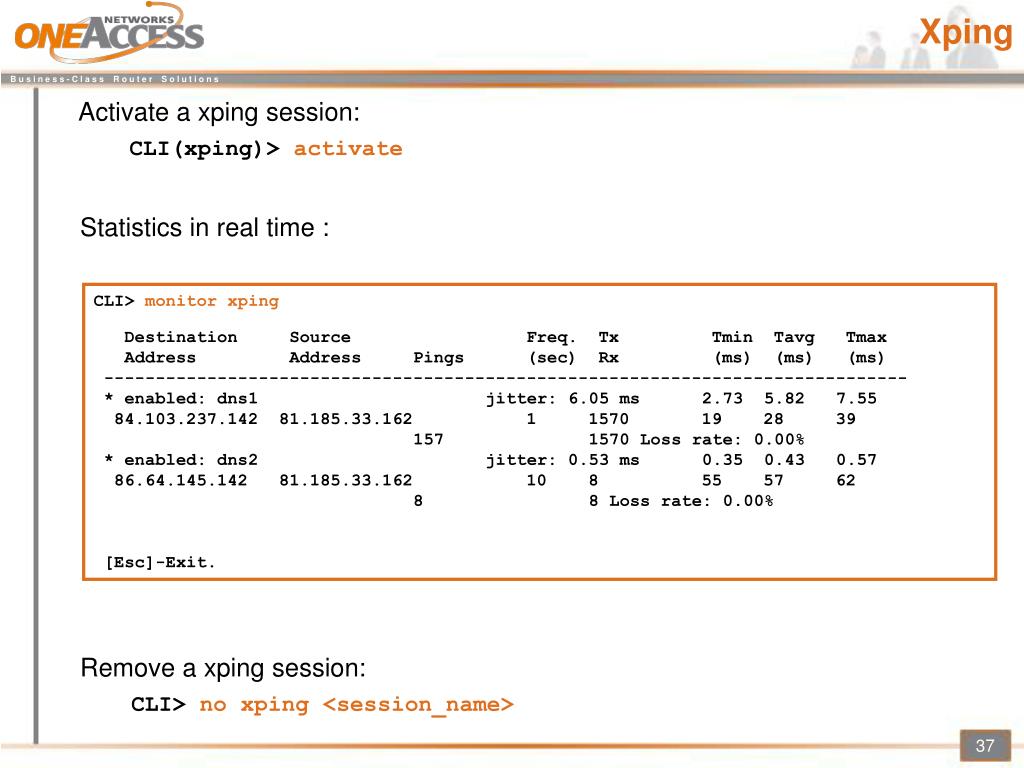

Xping

Xping

  • Activate a xping session:

    • CLI(xping)> activate

Statistics in real time :

CLI> monitor xping

Destination Source Freq. Tx Tmin Tavg Tmax

Address Address Pings (sec) Rx (ms) (ms) (ms)

------------------------------------------------------------------------------

* enabled: dns1 jitter: 6.05 ms 2.73 5.82 7.55

84.103.237.142 81.185.33.162 1 1570 19 28 39

157 1570 Loss rate: 0.00%

* enabled: dns2 jitter: 0.53 ms 0.35 0.43 0.57

86.64.145.142 81.185.33.162 10 8 55 57 62

8 8 Loss rate: 0.00%

[Esc]-Exit.

  • Remove a xping session:

    • CLI> no xping <session_name>


The ultimate tech support command

The Ultimate Tech. Support Command

  • The ‘show tech-sup’ command is an useful command that shows many interesting information for OneAccess support engineers:

OneOs> show tech-sup[paging]

  • So, including a ‘show tech-sup’ in a Trouble Ticket never hurts and is often more efficient than explanations.

  • Also, it is often helpful to call this command two times, so that OneAccess can observe which counters gets incremented (and which one are not)


  • Login
