Oregon DOT CORS Installations

Oregon Real-time GPS Network


Supporting documents

Supporting documents

  • 7305only:\Geodetic_Control\1_ORGN\Procurement

    • ORGN_install_parts_list.xls

  • 7305only:\Geodetic_Control\1_ORGN\Recon and Installation\Site Install Worksheet

    • new install worksheet in odot format.doc


  • Oregon dot cors installations

    SCIGN Antenna Mount, stainless steel

    1-1/4" x 2" stainless nipple

    2" to 1-1/4" bell reducer, galvanized

    Galvanized nipples, 2” diam., for building standoff

    Galvanized Pipe GPS Antenna Mast 2" x 84"

    Galvanized 90 degree Elbow 2"

    Cast Iron Companion Flanges 2"


    Oregon dot cors installations

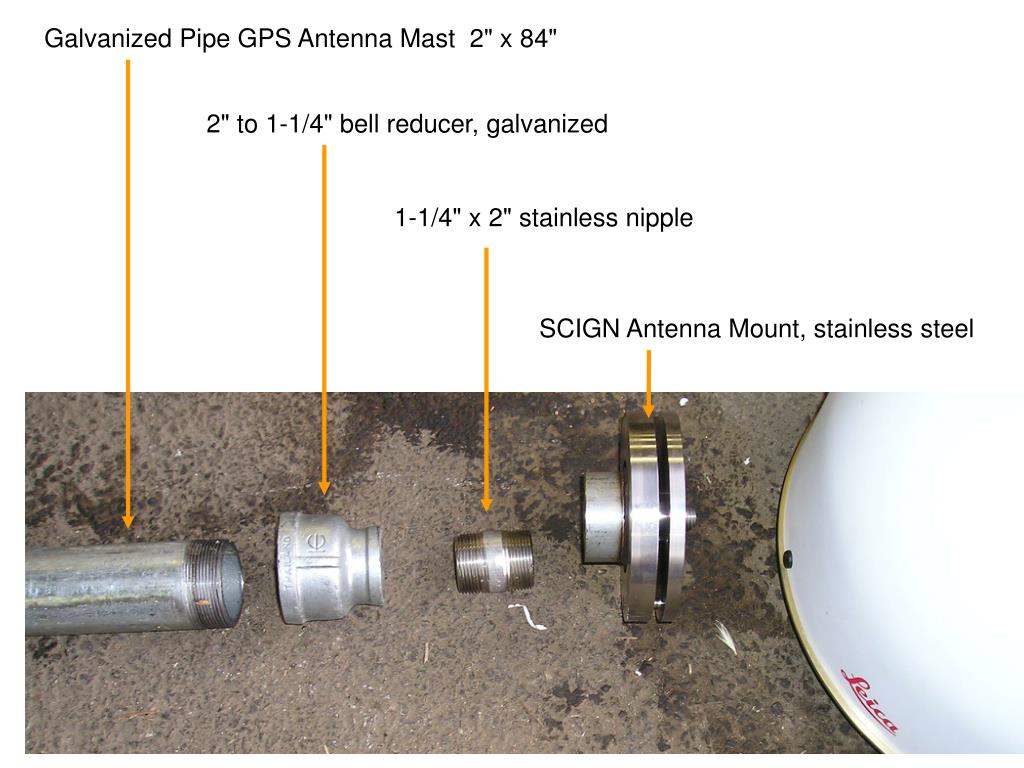

    Galvanized Pipe GPS Antenna Mast 2" x 84"

    2" to 1-1/4" bell reducer, galvanized

    1-1/4" x 2" stainless nipple

    SCIGN Antenna Mount, stainless steel


    Spray threads w cold galvanizing compound

    Spray threads w/ cold galvanizing compound


    Detail of building mounts

    Detail of building mounts

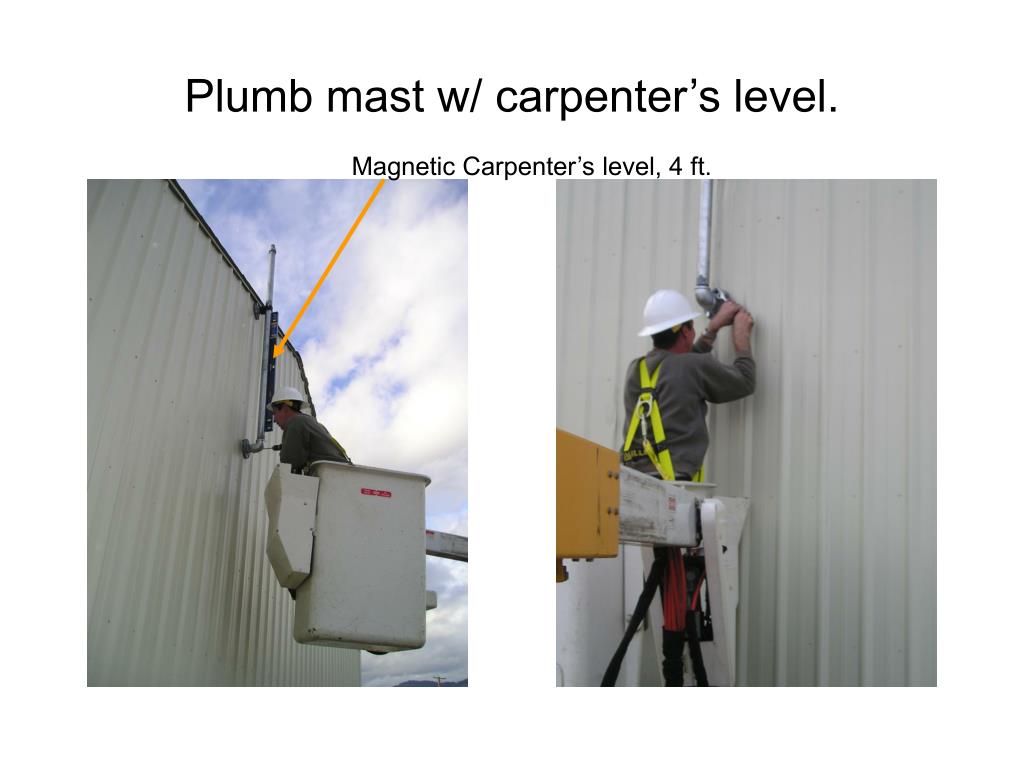

    Plumb mast w carpenter s level

    Plumb mast w/ carpenter’s level.

    Magnetic Carpenter’s level, 4 ft.


    Apply thread sealing compound on threads

    Apply thread sealing compound on threads.


    Oregon dot cors installations

    Tools to level and lock antenna to SCIGN mount.Thin hand built wrench used to tighten antenna onto the SCIGN mount.

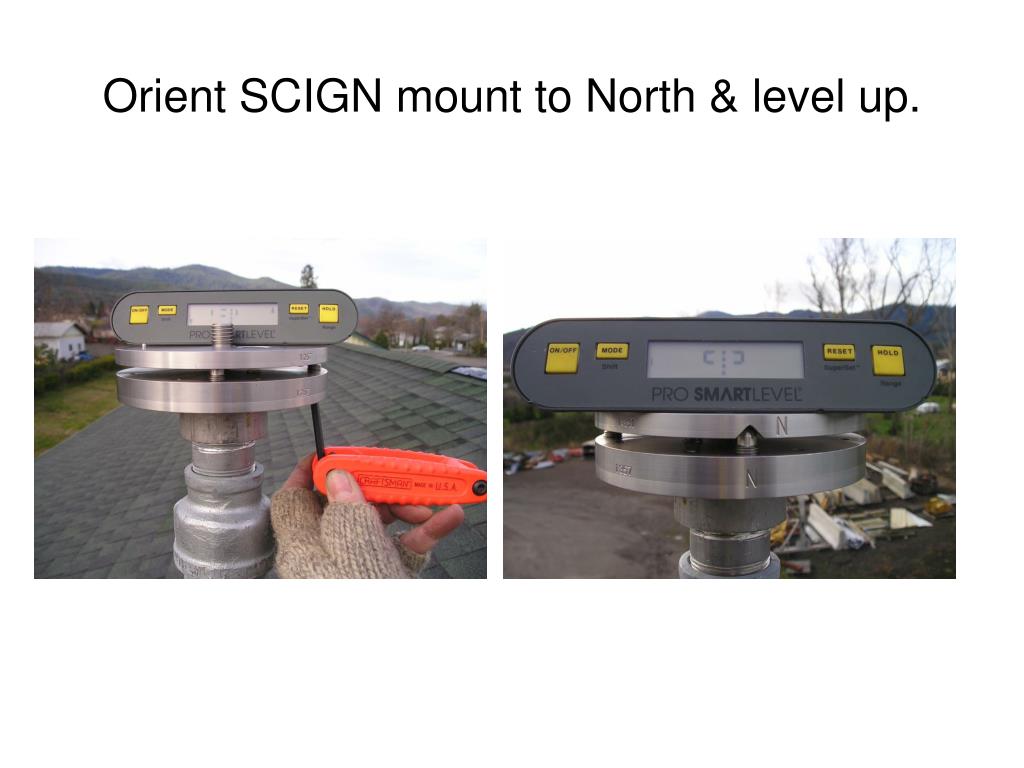

    Orient scign mount to north level up

    Orient SCIGN mount to North & level up.

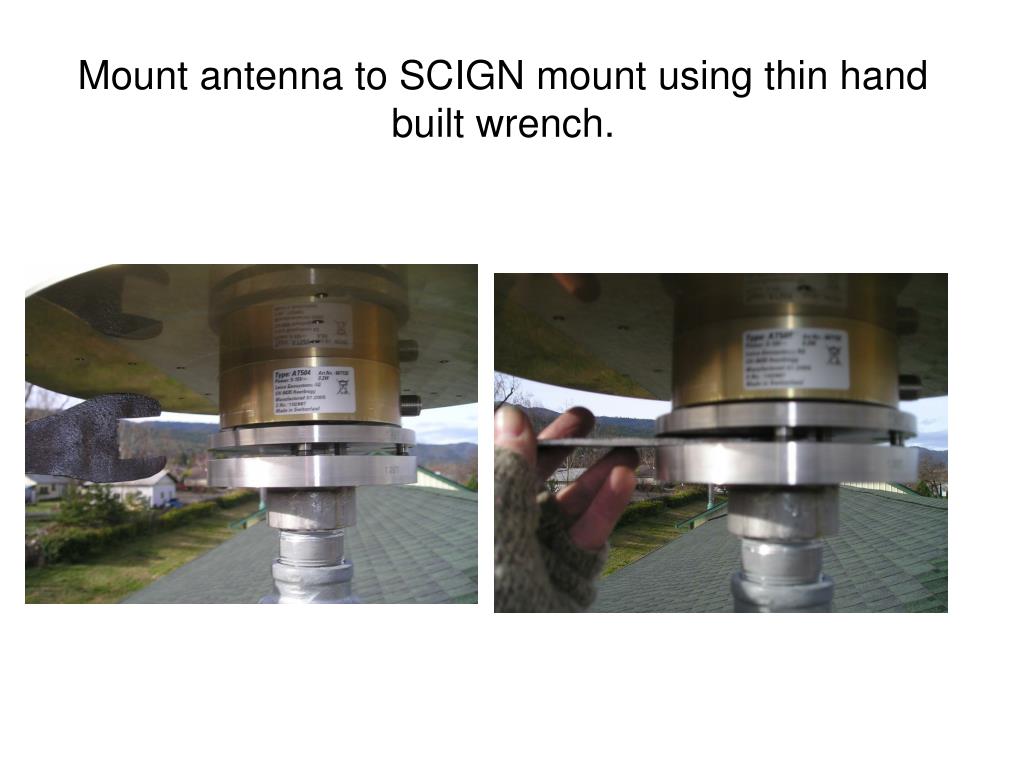

    Mount antenna to scign mount using thin hand built wrench

    Mount antenna to SCIGN mount using thin hand built wrench.


    Oregon dot cors installations

    Stretch rubber tape to seal antenna cable.Drip loop at antenna cable wall entry.Cable ties on antenna cable.


    Completed antenna mount

    Completed Antenna Mount

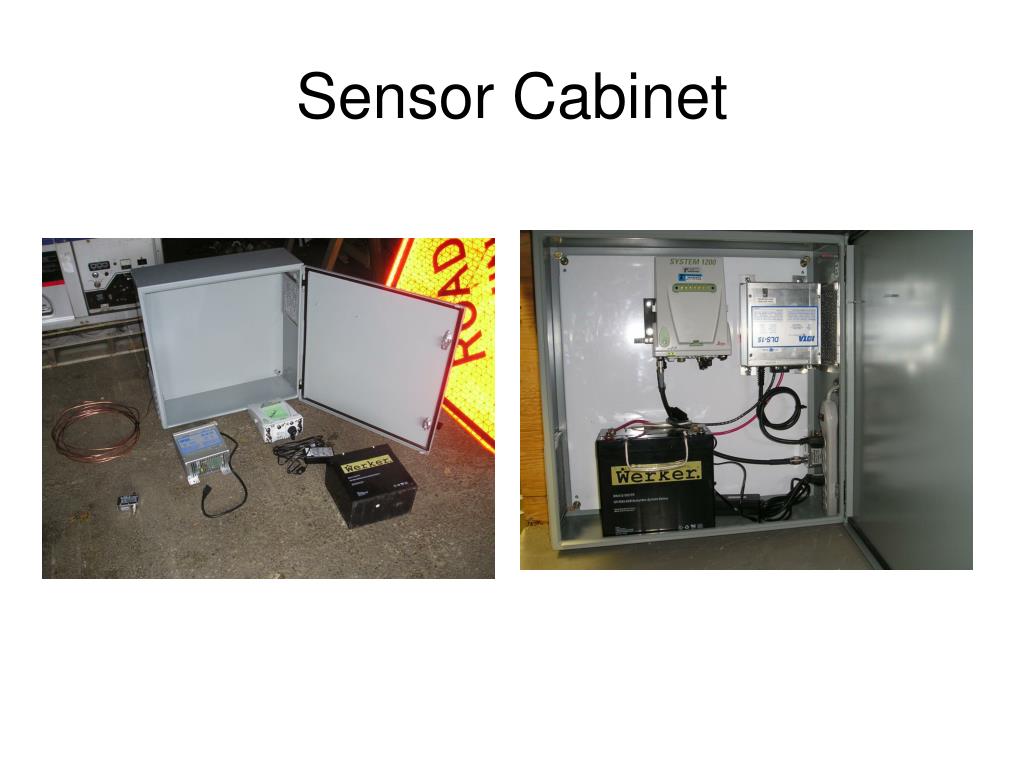

    Sensor cabinet

    Sensor Cabinet
