  1. February 14, 2013 @ XFELO Workshop In SooKo on behalf of PAL XFEL Team Welcome to PAL XFEL Project

  2. PAL XFEL Project Summary • Build 0.1 nm coherent X-ray source for Korean scientists. • Soft X-ray of 1 ~ 10 nm range is also covered. • 10 GeV S-band normal-conducting electron linac and out-vacuum undulators are used to generate the coherent light. • Project Period: 2011~ 2014 • Total cost: 400 Billion Won (~ 400 MUSD) • 20 BWon for FY2011 • 45 BWon for FY2012 • 85 BWon for FY2013 • Length of the building: 1,110 m

  3. XFEL Layout

  4. Site Plan

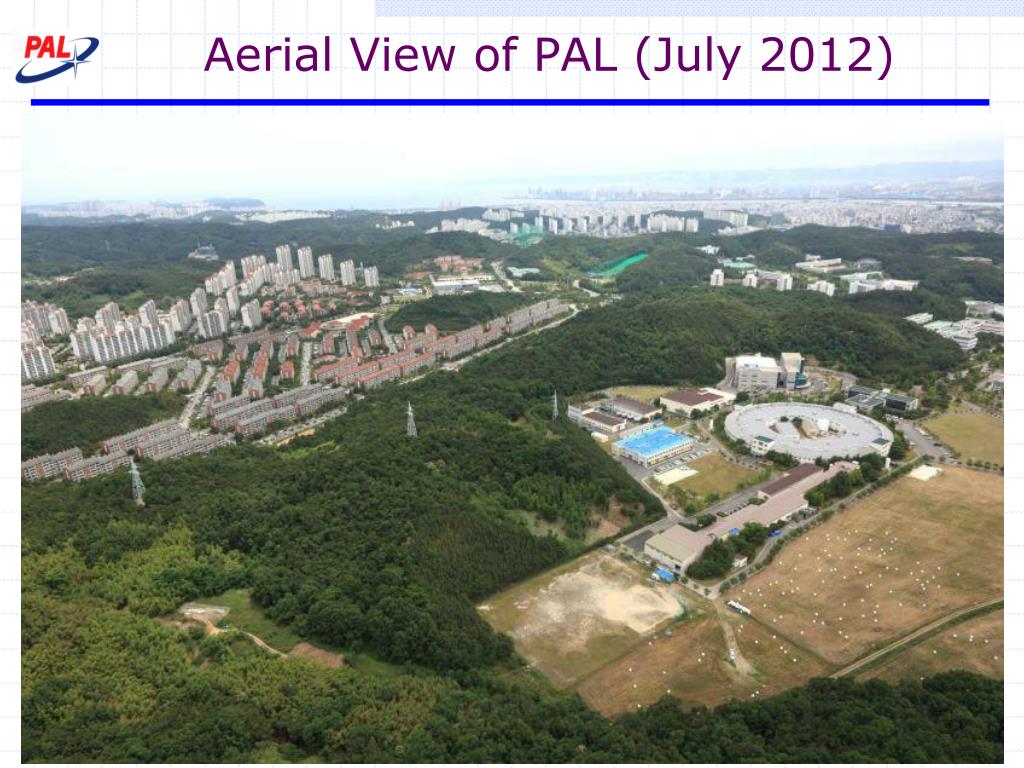

  5. Aerial View of PAL (July 2012)

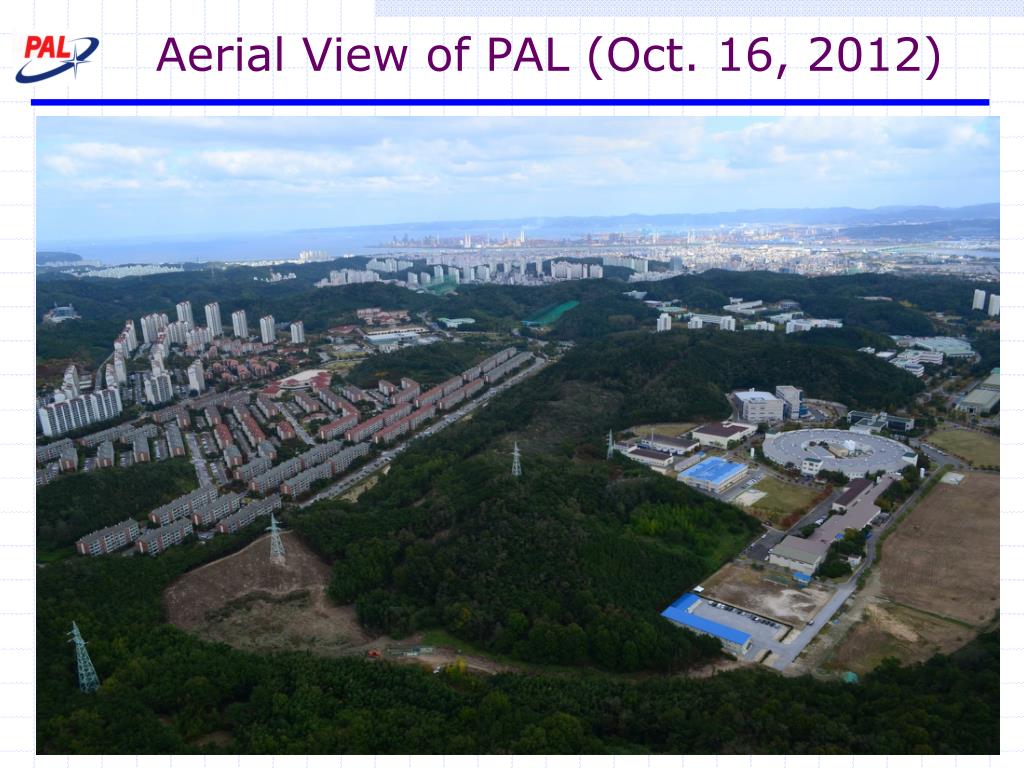

  6. Aerial View of PAL (Oct. 16, 2012)

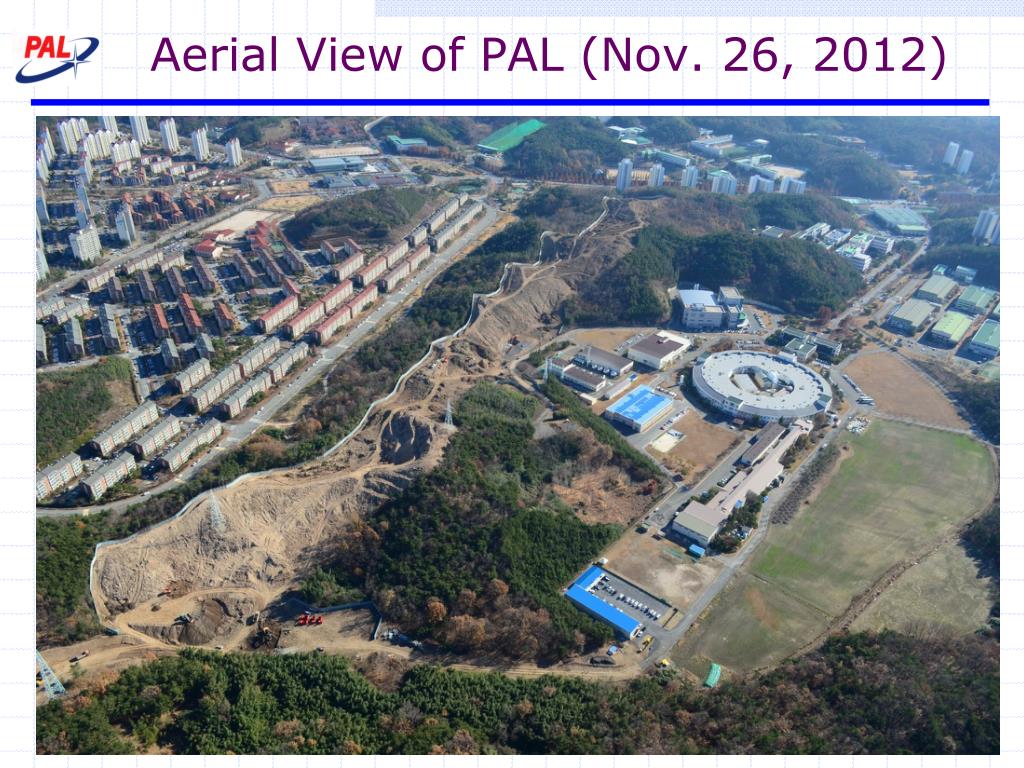

  7. Aerial View of PAL (Nov. 26, 2012)

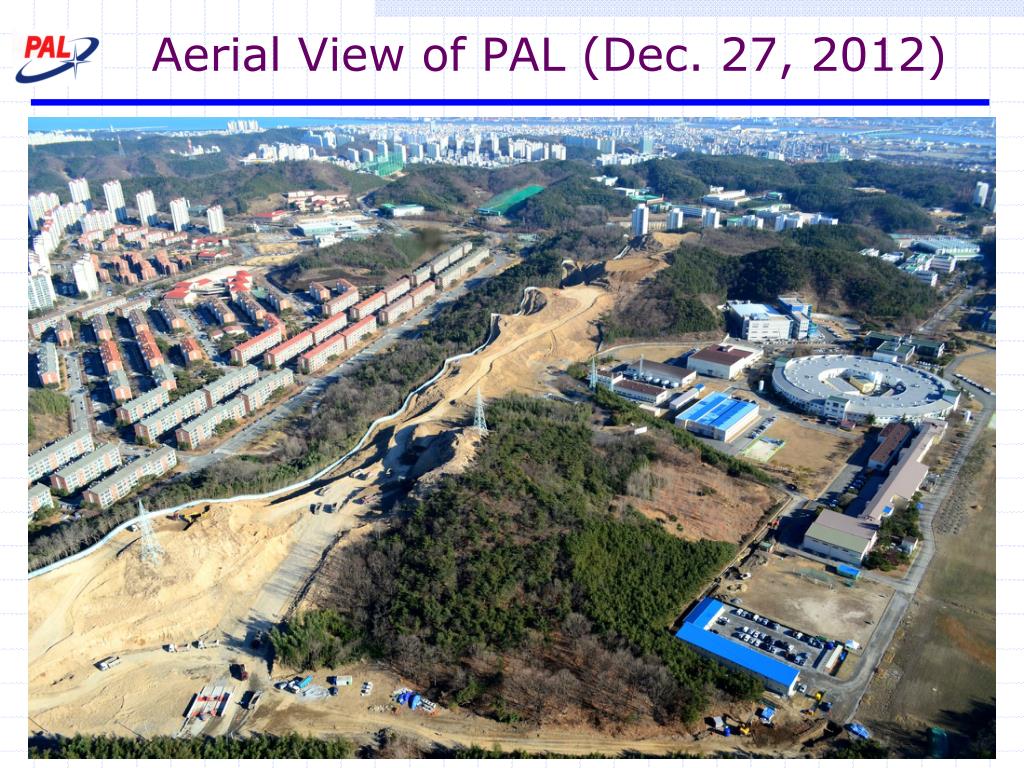

  8. Aerial View of PAL (Dec. 27, 2012)

  9. Aerial View of PAL (Jan. 26, 2013)

  10. New 154 kV line (underground)

  11. View from experiment hall

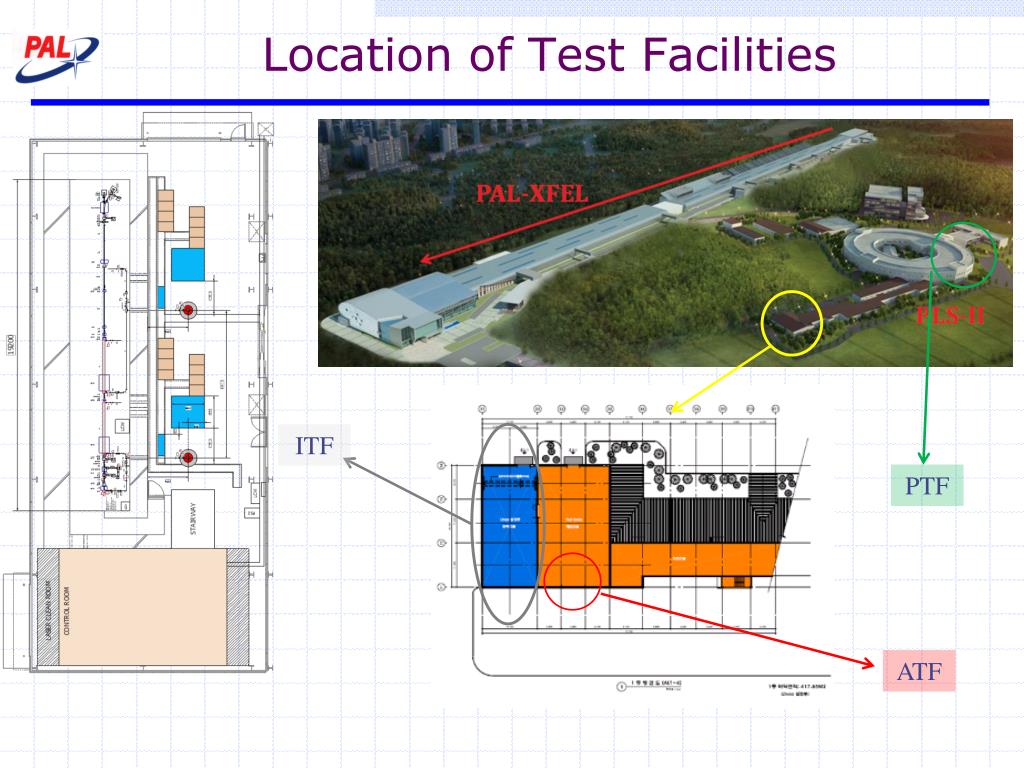

  12. Location of Test Facilities ITF PTF ATF

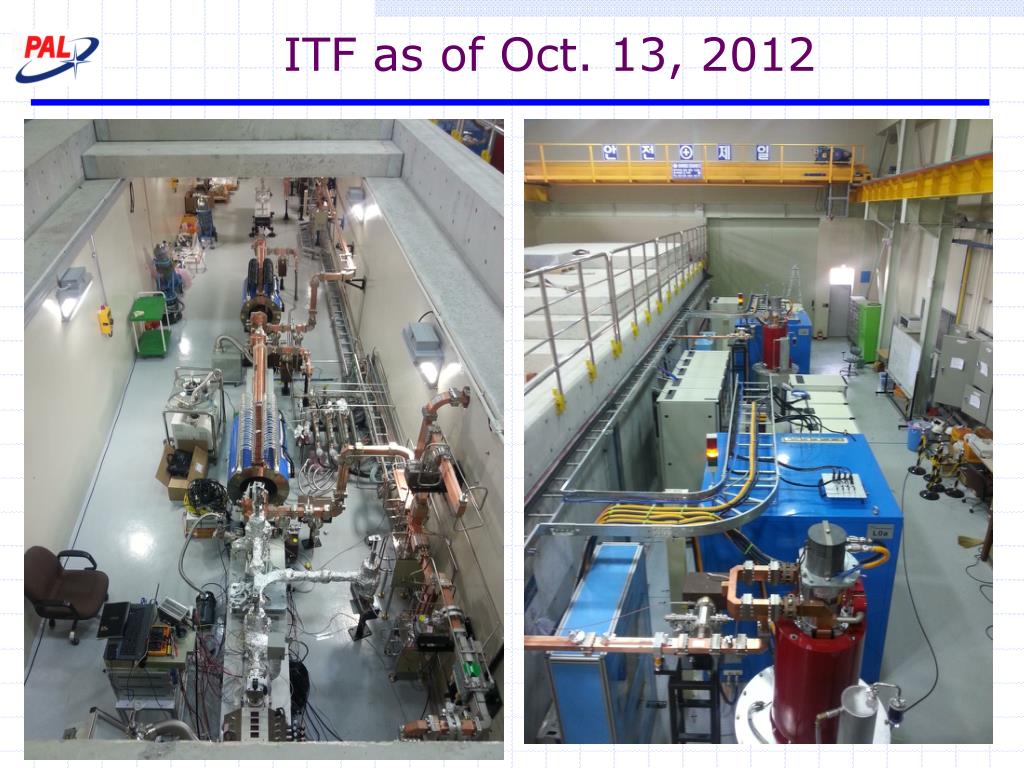

  13. ITF as of Oct. 13, 2012

  14. Modulators under test

  15. LLRF installed in ITF

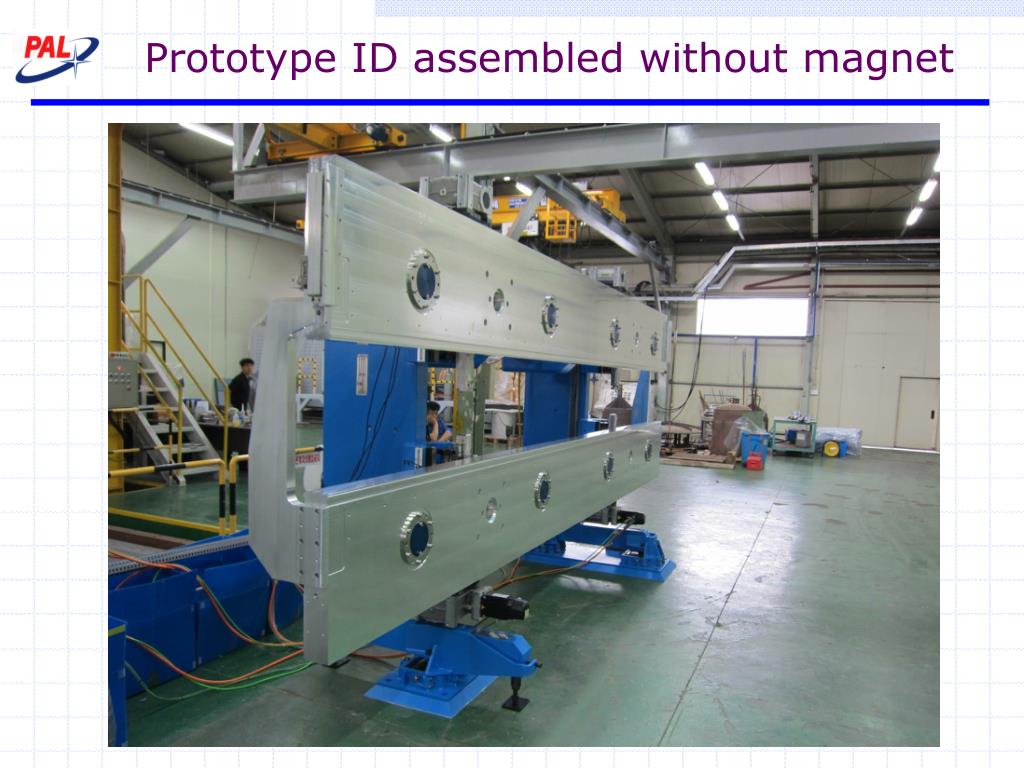

  16. Prototype ID assembled without magnet

  17. 137 MeV Beam @ ITF January 9, 2013

  18. Thank you for your continuous supports!
