Purpose

Purpose

  • Use numerical integration to determine whether a physical system involved in a collision obeys Newton’s Second Law.


Newton s second law

Newton’s Second Law

,where

Net force

acting on

object


Newton s second law in case you didn t recognize it

Newton’s Second Law, in case you didn’t recognize it

, if m = constant (dm/dt=0)


Impulse

Impulse

Change in momentum

“Impulse”

Impulse = Change in Momentum


The basic idea of this lab

The Basic Idea of this Lab

Measure momentum

change using the photogate

(vinitial before collision, and

vfinal after collision)

Numerically integrate the

measurements from the

force sensor during the

collision.

Compare


Setup for elastic collision

Setup for Elastic Collision

flat bumper

photogate

spring

A bit of clay as a counter-weight

bumper with needle

eraser

Force Sensor

Glider

Air Track

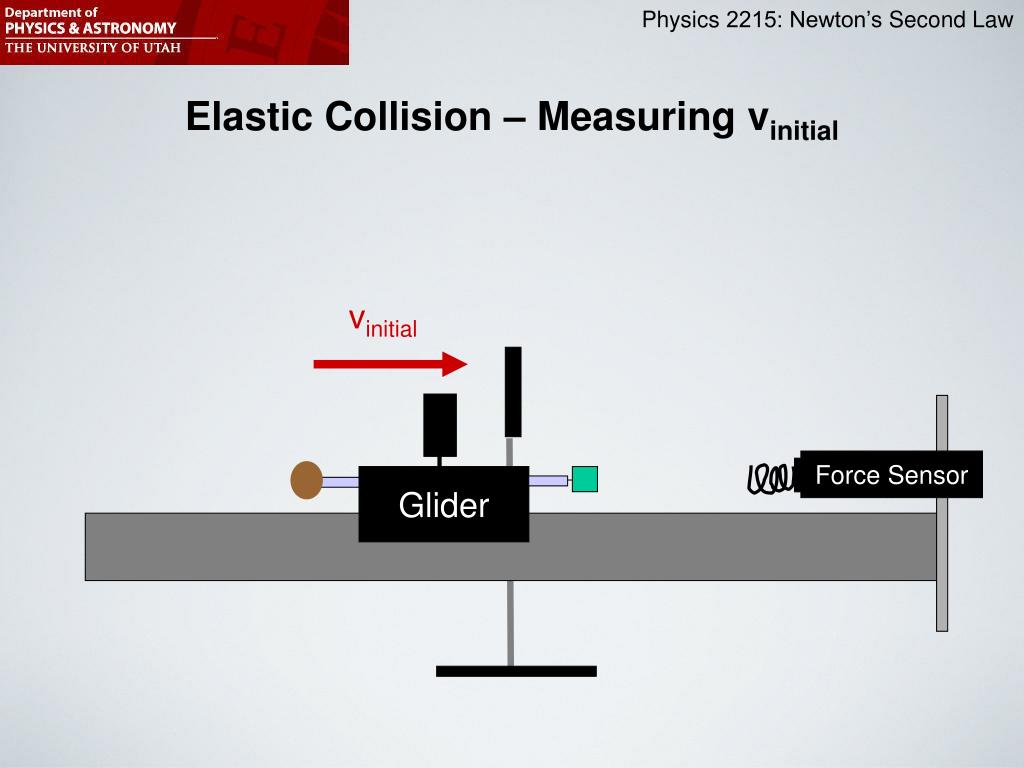

Elastic collision measuring v initial

Glider

Elastic Collision – Measuring vinitial

vinitial

Force Sensor


Elastic collision measuring the force during the collision

Glider

Elastic Collision – Measuring the force during the collision

Force Sensor


Elastic collision measuring v final going through the photogate in the other direction

Elastic Collision – Measuring vfinal(going through the photogate in the other direction)

vfinal

Force Sensor

Glider


Setup for inelastic collision

Setup for Inelastic Collision

photogate

Modeling clay

on hook (don’t

use spring)

Modeling

clay

Force Sensor

Glider

Air Track


Inelastic collision measuring v initial

Inelastic Collision – Measuring vinitial

vinitial

Force Sensor

Glider


Inelastic collision measuring the force during the collision

Inelastic Collision – Measuring the force during the collision

Force Sensor

Glider


Inelastic collision v final 0

Inelastic Collision : vfinal=0

Force Sensor

Glider


The force time diagram during the collision

The force-time diagram during the collision

force

collision

time

After collision:

Force = 0 (if tared properly)

Before collision:

Force = 0 (if tared properly)


The force time diagram during the collision1

The force-time diagram during the collision

force

collision

time

force

time

Discrete measurements in

certain time intervals

get recorded also

in a table in Capstone


Numerical integration using the table data

Numerical Integration using the Table Data

time (in s)

Force (in N)

0.00

0.01

0.02

0.03

0.12

0.13

before collision (f=0)

0.00

0.00

0.01

0.02

0.03

0.01

0.00

Export these data to Excel.

Integrate in Excel using the trapezoidal

rule (see homework).

after collision (f=0)
