  1. Parallel Optimization Tools for High Performance Design of Integrated Circuits Azadeh Davoodi Assistant Professor (joint work with my student Tai-Hsuan Wu) Department of Electrical and Computer Engineering WISCADVLSI Design Automation Lab http://wiscad.ece.wisc.edu Thanks to: Jeff Linderoth

  2. 120% 100% 80% Profit 60% 40% 20% 0% 0 3 6 9 12 15 -20% Months Late Research: Optimality in IC Design “Optimality matters to shorten the design cycle of Integrated Circuits and meet stringent time-to-market requirements.” Source: MIPS Technologies Optimality: • required to assess the quality of existing design techniques • currently use heuristics to solve large-scale, non-linear and discrete optimization problems • have no idea how far might be from the optimal solution

  3. sL sH k1 sL sH sL sH k2 k3 ... ... Kn-1 ... Kn 2n Optimization for High Performance Design • Discrete optimization problem • Typically the relaxed continuous version is solved as a convex program and the result is discretized j dj Tcons

  4. Examples of Optimization Complexity Azadeh Davoodi--WISCAD

  5. Workers W1 W2 W3 W4 Using Master-Worker Framework of Condor for Grid Optimization http://www.cs.wisc.edu/condor/mw C++ APIs which facilitate: • dynamic and opportunistic resource utilization • fault tolerant implementation via checkpointing and job migration Master Unprocessed Tasks Finished Tasks T1 T5 T2 T6 T7 T3 T4 T8 T9 Tasks in process Azadeh Davoodi--WISCAD

  6. sL sH sL sH sL sH ... ... ... 2n Master-Worker Implementation for High Performance IC Design • Worker: • each worker computes upper and lower bounds for K number of nodes in the search tree sequentially and communicates the bounds to the Master Master: • imposes variable ordering in the branch-and-bound search tree • applies pruning of sub-optimal branches • check points after every 5000 completed tasks by workers

  7. Dealing with Communication Overhead • 3 types of data exchange between the Master and each Worker: • scalar upper and lower bounds • circuit information (optimization problem description) • partial variable assignment • Send above only once when the worker is allocated and reuse each worker for future tasks as much as possible

  8. MW Implementation in Condor MASTER SUBMIT FILE Universe   = Scheduler Executable = master_DGS_socket Image_Size = 100000 +MemoryRequirements = 100 Input   = in_master.socket Output  = out_master.socket Error  = out_worker.socket Log   = _DGS.log Requirements = (Arch == "INTEL" && OPSYS=="LINUX") getenv  = True Queue WORKER SUBMIT FILE Universe = Vanilla #Worker 1Executable= exec0.$$(Opsys).$$(Arch).exe arguments = 0 8997 8997 144.92.240.35 Log = log_file Output = output_file.0 Error = error_file.0 Requirements = ( Arch=="INTEL“ && OPSYS=="LINUX") should_transfer_files = Yes when_to_transfer_output = ON_EXIT rank = Mips on_exit_remove = false Queue #Worker 2 … • Resource Information: • 179 CAE machines Intel/Linux • If all CAE are in use, “Flocks” to the queue of Intel/Linux machines in CS Azadeh Davoodi--WISCAD

  9. Results On-an-average each variable had 4.5 discrete options to choose from. Azadeh Davoodi--WISCAD

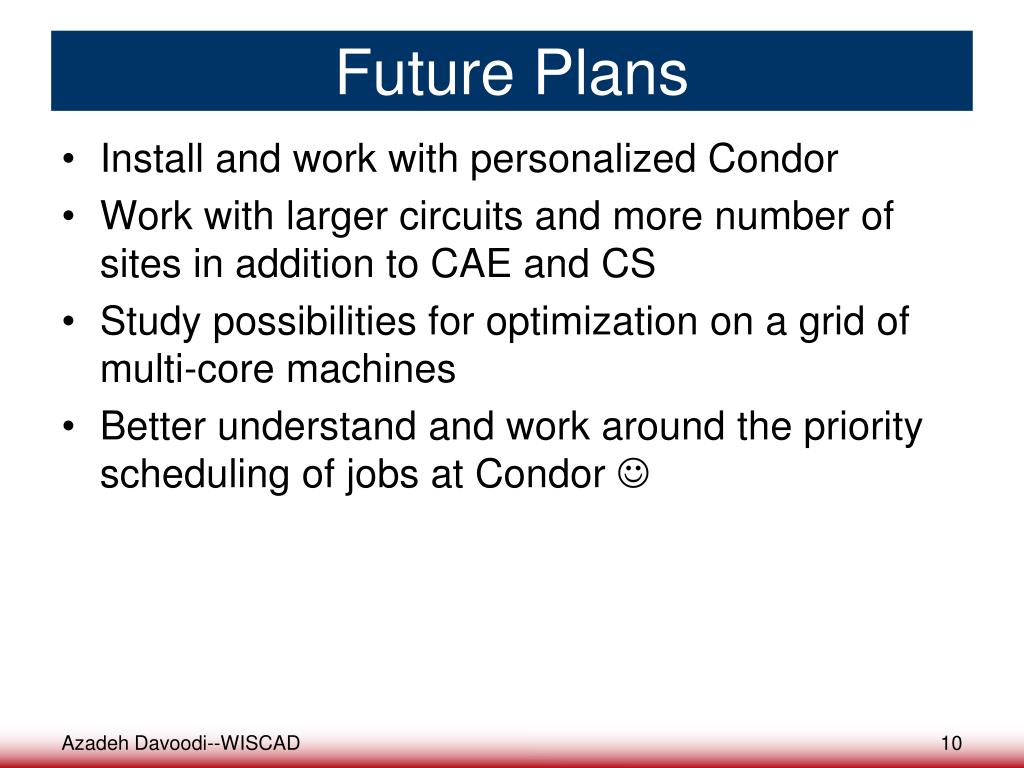

  10. Future Plans • Install and work with personalized Condor • Work with larger circuits and more number of sites in addition to CAE and CS • Study possibilities for optimization on a grid of multi-core machines • Better understand and work around the priority scheduling of jobs at Condor  Azadeh Davoodi--WISCAD
