The mcrl2 toolset

The mCRL2 toolset

Jan Friso Groote, JeroenKeiren, WiegerWesselink,

SjoerdCranen, Frank Stappers, (many others)

4S100 – Verification of discrete-event systems

Eindhoven, The Netherlands

October 17, 2011


The mcrl2 toolset

Introduction

4S100: Frank Stappers


Analysis techniques

Analysis techniques

  • Analysis techniques used in hardware/software development:

    • Structural analysis: what things are in the system

      • Class diagrams (software)

      • CAD-models (hardware)

      • PCB design (electronic circuits)

    • Behavioral analysis: what happens in the system

      • Matlabsimulink models

      • Message sequence charts

      • Petri nets

      • Process algebra

      • Temporal logic...

4S100: Frank Stappers

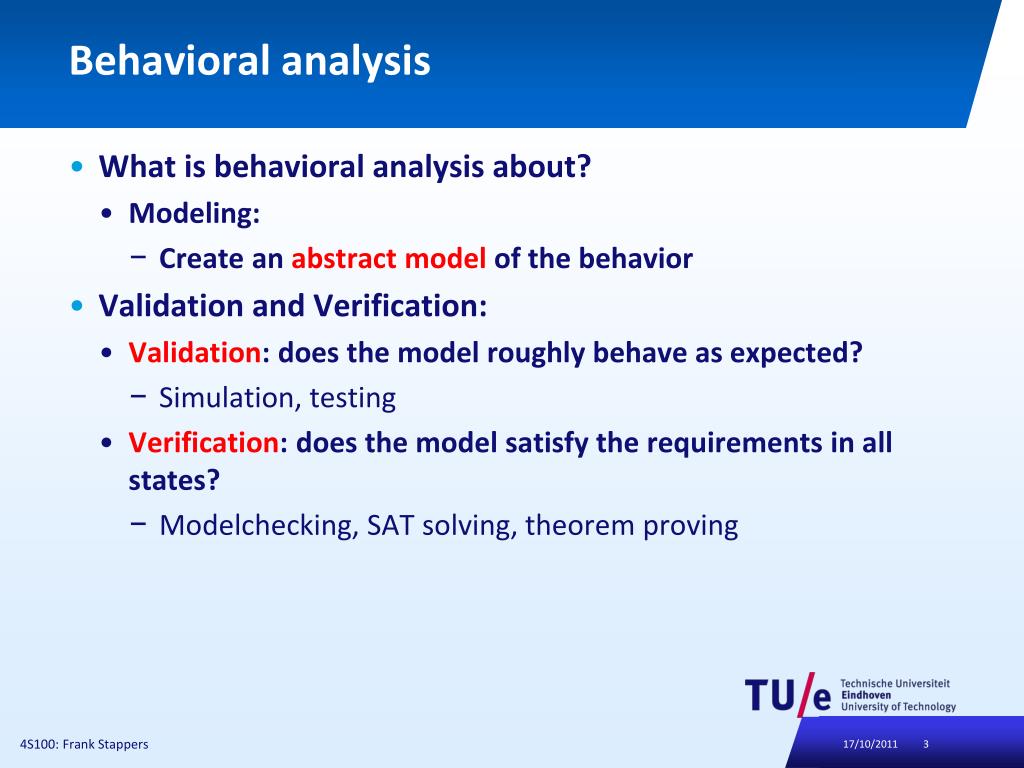

Behavioral analysis

Behavioral analysis

  • What is behavioral analysis about?

    • Modeling:

      • Create an abstract model of the behavior

  • Validation and Verification:

    • Validation: does the model roughly behave as expected?

      • Simulation, testing

    • Verification: does the model satisfy the requirements in all states?

      • Modelchecking, SAT solving, theorem proving

4S100: Frank Stappers


Behavioral analysis1

Behavioral analysis

Why modeling?

To reduce complexity:

Direct verification of software/hardware system is impossible due to the huge number of states.

Much more complex than e.g. Rubik’s cube:

43,252,003,274,489,856,000 (4.3 * 10 19) states

4S100: Frank Stappers


Behavioral analysis2

Behavioral analysis

100%

(and this is even true for our language)

From our experience:

Without proper modeling it is impossible to get a system right.

Implementing a model does not introduce substantial flaws.

Modeling an implementation nearly always reveals flaws or ambiguities.

4S100: Frank Stappers


Toolsets for behavioral analysis

Toolsets for behavioral analysis

For verification of industrial systems, tool support is essential. Toolsets for modeling, validation and verification of behavior:

CADP (INRIA Rhone Alpes, France)

SPIN (Bell Labs, USA)

FDR (Formal Systems Limited, Oxford, UK)

Uppaal(Uppsala University, Sweden)

NuSMV(Carnegie Mellon University, USA)

mCRL2 (MDSE group / LaQuSo, TU/e)

...

4S100: Frank Stappers


Mcrl2 toolset overview history

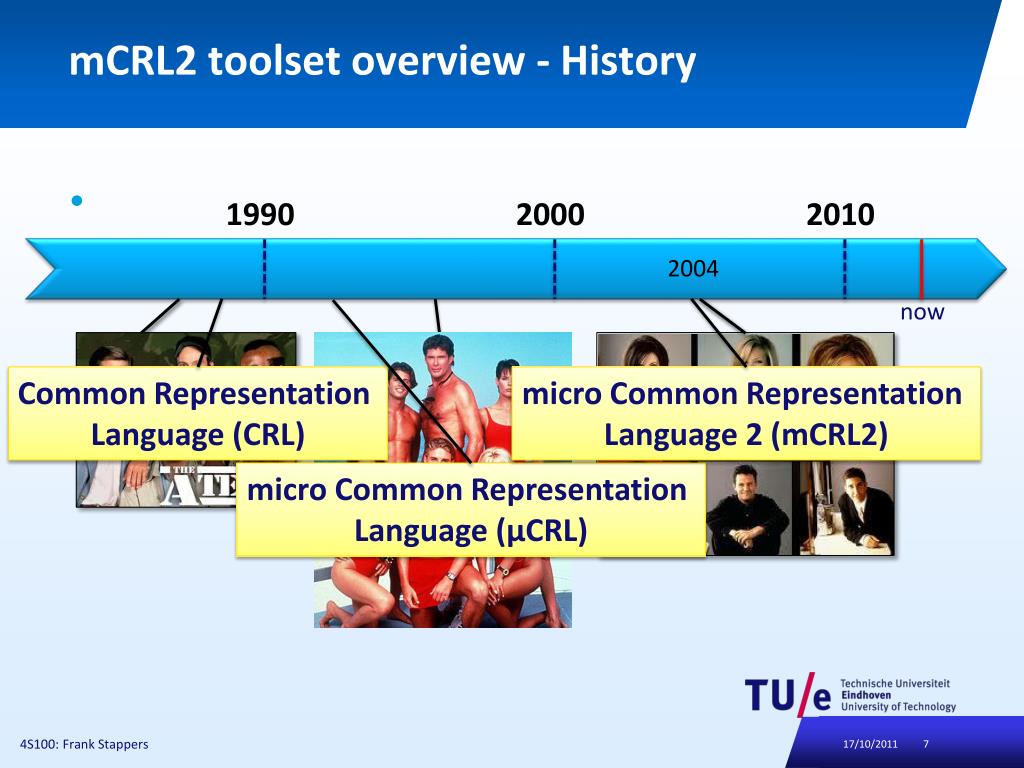

mCRL2 toolset overview - History

1990

2000

2010

now

2004

Common Representation

Language (CRL)

micro Common Representation

Language 2 (mCRL2)

micro Common Representation

Language (μCRL)

4S100: Frank Stappers


Mcrl2 toolset overview general information

mCRL2 toolset overview – General Information

  • The mCRL2 toolset can be used for the specification, validation and verification of concurrent systems and protocols.

  • Collection of tools

  • Available for the following platforms:

    • Microsoft Windows

    • Linux (Ubuntu/openSUSE/Fedora)

    • Mac OS X

  • Distributed under the Boost license

  • Available at http://mcrl2.org

4S100: Frank Stappers


Toolset overview

Toolset overview

4S100: Frank Stappers


Success stories

Success stories

4S100: Frank Stappers


The mcrl2 toolset

modeling

4S100: Frank Stappers


Actions

Actions

  • The behavior of a process is that which we can observe.

  • Observable behavior and observing behavior can be expressed in terms of actions.

  • Example:

    • A lamp has to shine in order for us to see that it is on.

    • We have to look at a lamp to see that it is shining.

4S100: Frank Stappers

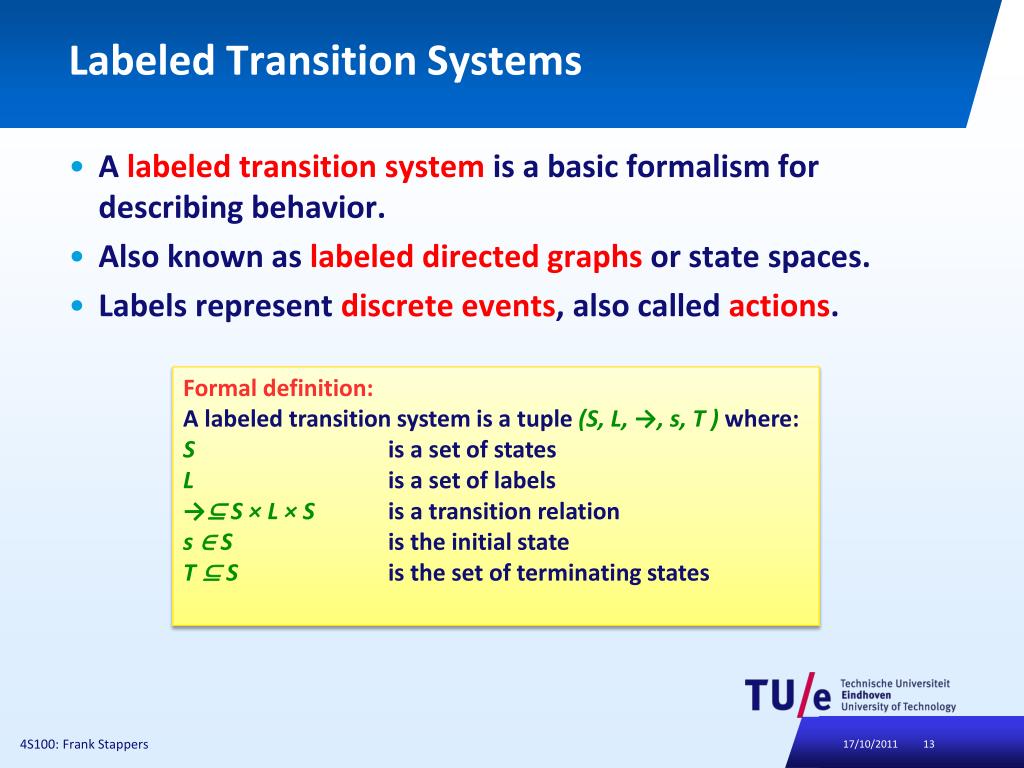

Labeled transition systems

Labeled Transition Systems

Formal definition:

A labeled transition system is a tuple (S, L, →, s, T ) where:

Sis a set of states

Lis a set of labels

→⊆ S × L × Sis a transition relation

s ∈ Sis the initial state

T ⊆ Sis the set of terminating states

A labeled transition system is a basic formalism for describing behavior.

Also known as labeled directed graphs or state spaces.

Labels represent discrete events, also called actions.

4S100: Frank Stappers


Labeled transition systems1

Labeled Transition Systems

Example: Ordering items

4S100: Frank Stappers


Basic process algebra

Basic process algebra

A process with name ∈ is defined as

P can be of the following form:

An action (a ∈ Act)

Sequential composition

Alternative composition

Recursion (Y∈ )

The deadlock process

Internal/hidden action

4S100: Frank Stappers


Basic process algebra1

Basic process algebra

Relating algebra to LTSs

4S100: Frank Stappers


Basic process algebra ordering items

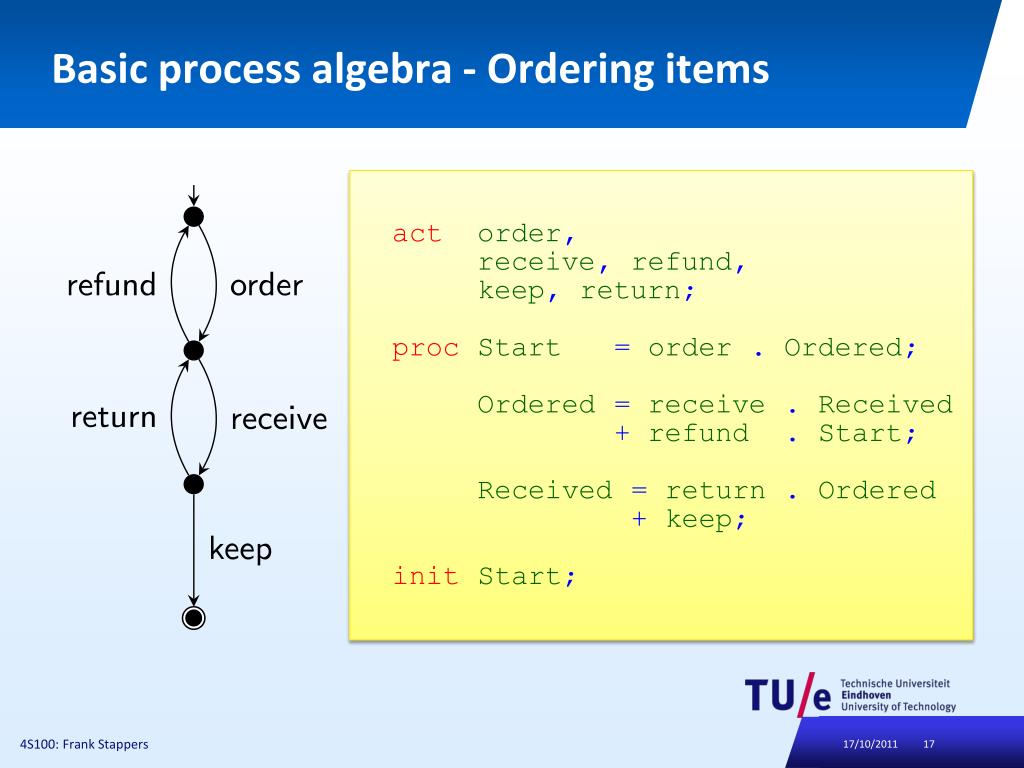

Basic process algebra - Ordering items

4S100: Frank Stappers

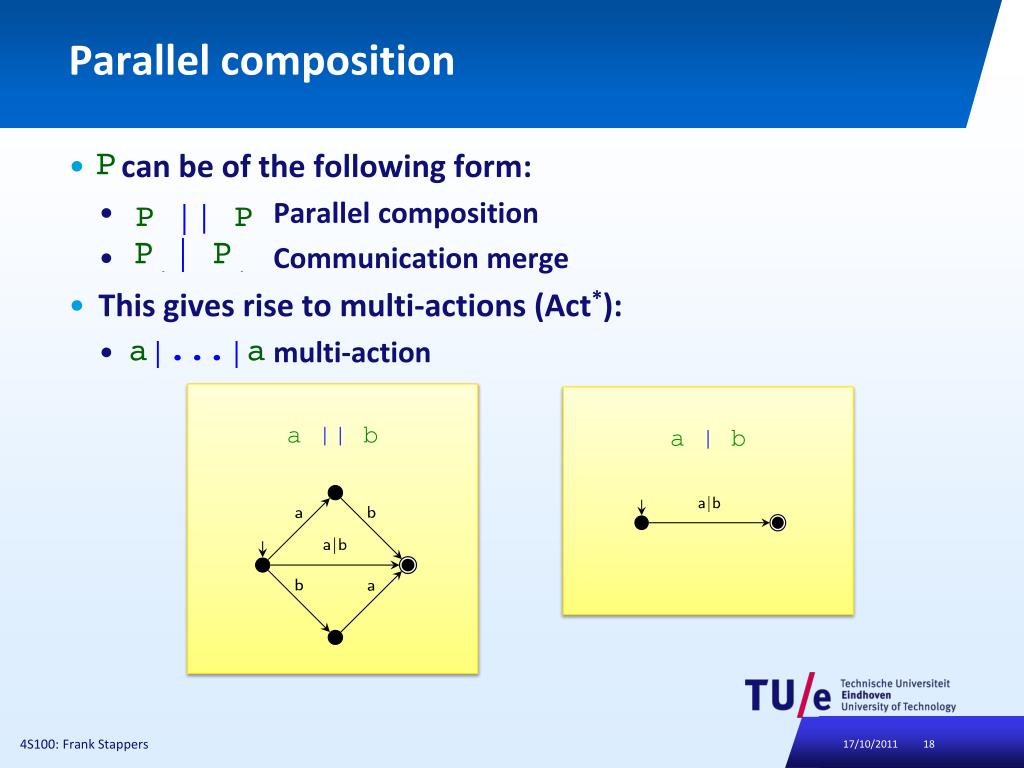

Parallel composition

Parallel composition

a || b

a | b

  • can be of the following form:

    • Parallel composition

    • Communication merge

  • This gives rise to multi-actions (Act*):

    • multi-action

4S100: Frank Stappers


Parallelism

Parallelism

Process specification

4S100: Frank Stappers


Parallelism1

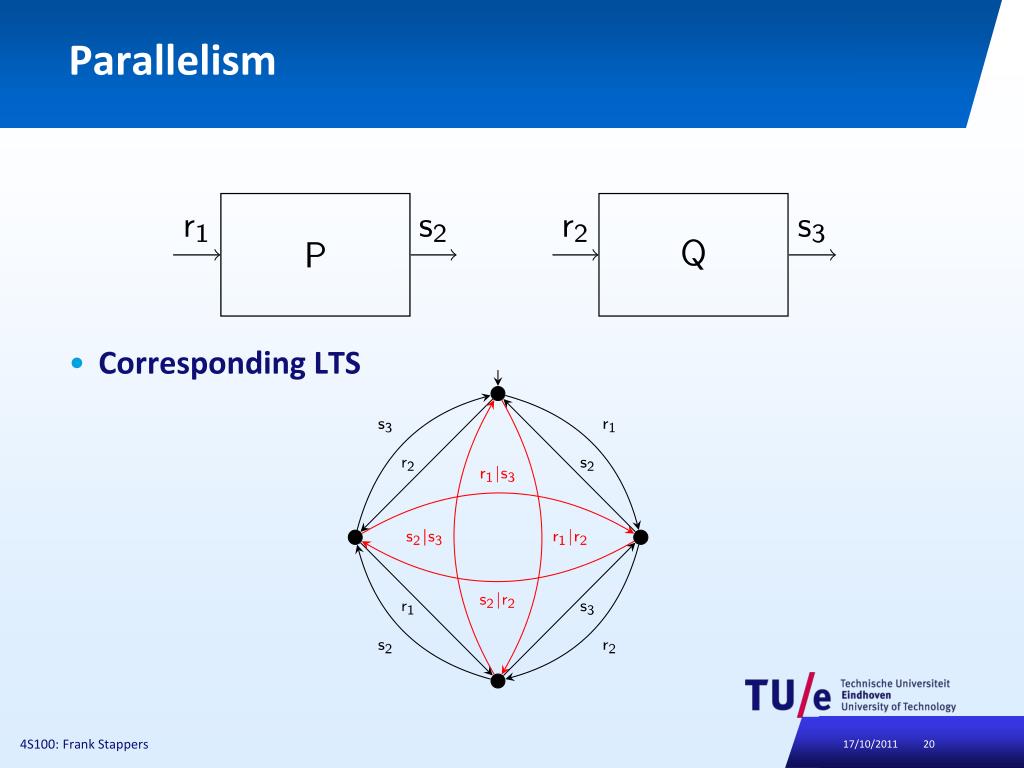

Parallelism

Corresponding LTS

4S100: Frank Stappers


Communication

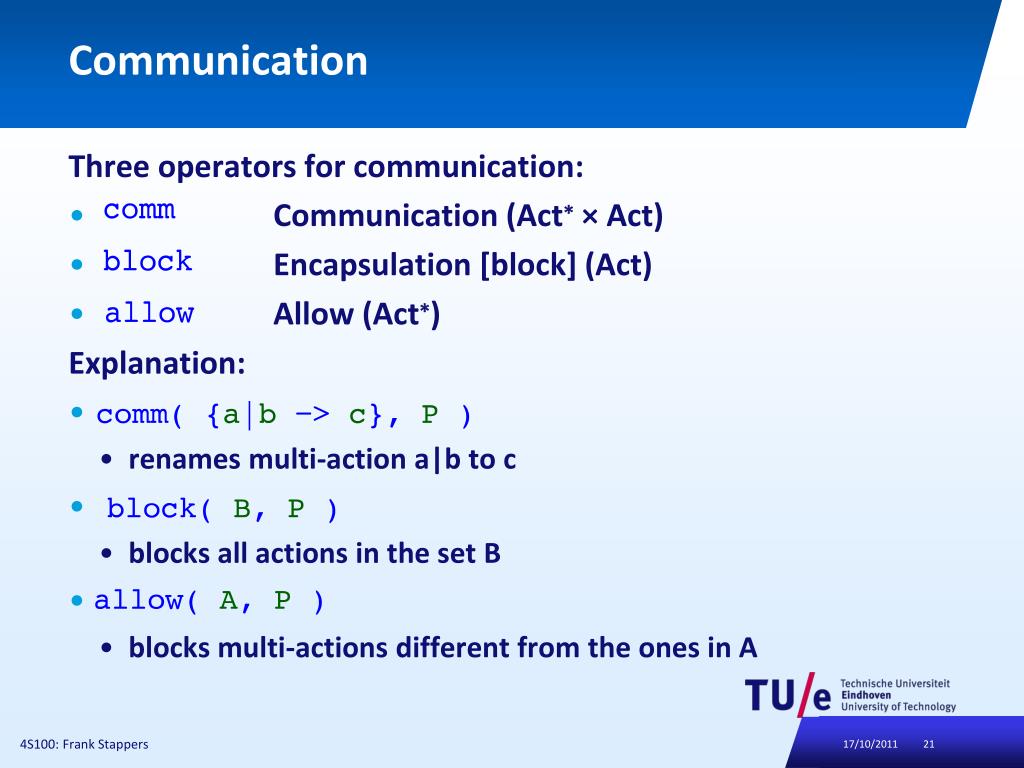

Communication

Three operators for communication:

  • Communication (Act∗ × Act)

  • Encapsulation [block] (Act)

  • Allow (Act∗)

    Explanation:

    • renames multi-action a|b to c

    • blocks all actions in the set B

    • blocks multi-actions different from the ones in A

4S100: Frank Stappers


Communication1

Communication

  • Specification:

4S100: Frank Stappers


Processes with data

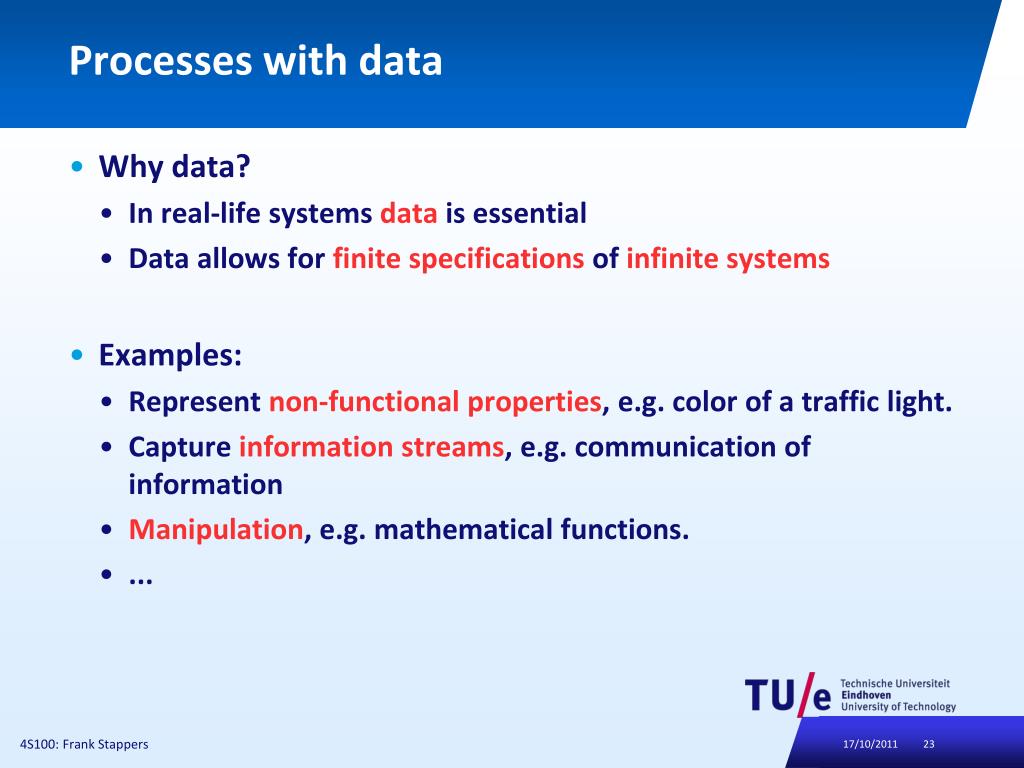

Processes with data

  • Why data?

    • In real-life systems data is essential

    • Data allows for finite specifications of infinite systems

  • Examples:

    • Represent non-functional properties, e.g. color of a traffic light.

    • Capture information streams, e.g. communication of information

    • Manipulation, e.g. mathematical functions.

    • ...

4S100: Frank Stappers


Processes with data1

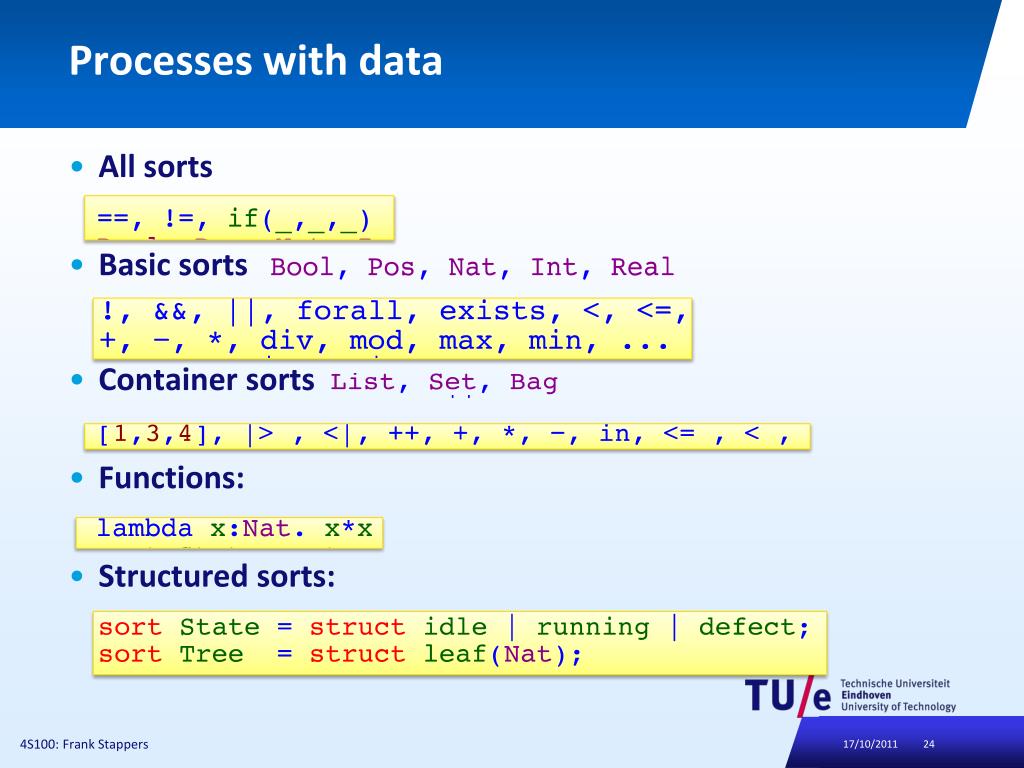

Processes with data

All sorts

Basic sorts

Container sorts

Functions:

Structured sorts:

4S100: Frank Stappers

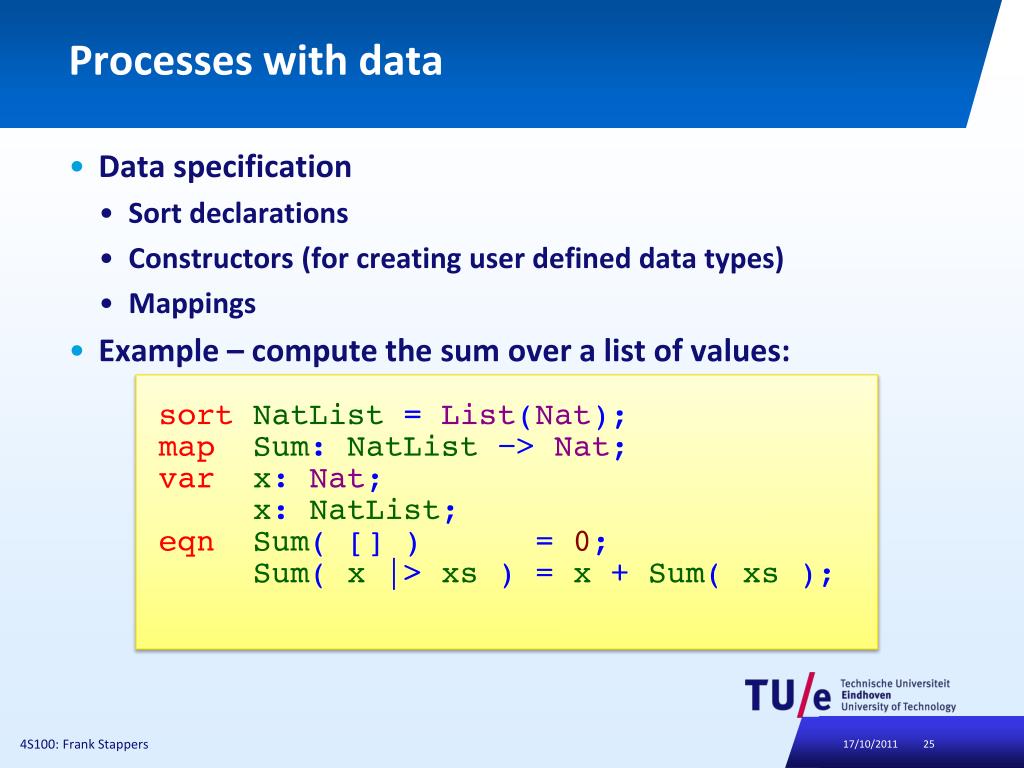

Processes with data2

Processes with data

  • Data specification

    • Sort declarations

    • Constructors (for creating user defined data types)

    • Mappings

  • Example – compute the sum over a list of values:

4S100: Frank Stappers


Processes with data3

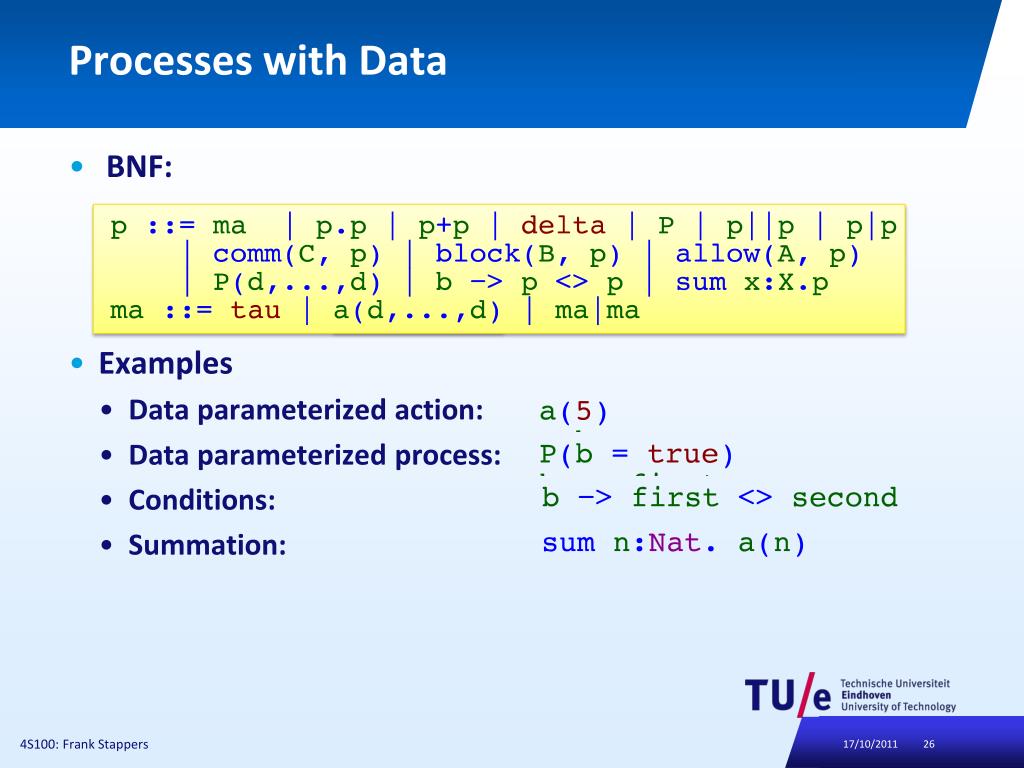

Processes with Data

  • BNF:

  • Examples

    • Data parameterized action:

    • Data parameterized process:

    • Conditions:

    • Summation:

4S100: Frank Stappers

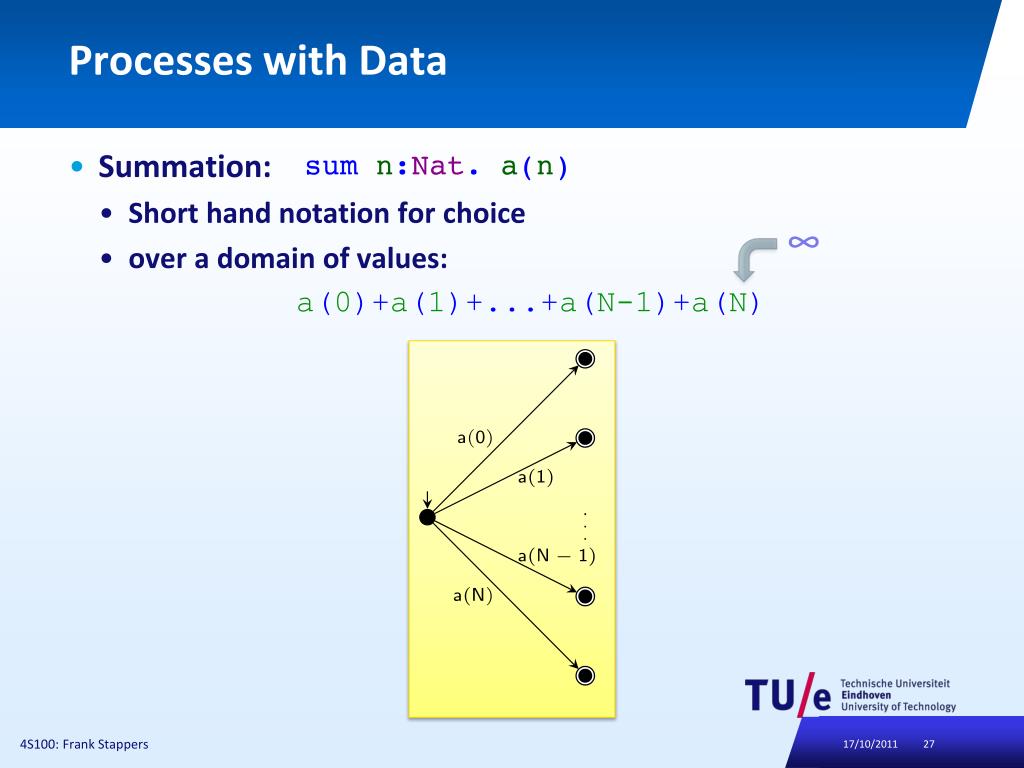

Processes with data4

Processes with Data

  • Summation:

    • Short hand notation for choice

    • over a domain of values:

      a(0)+a(1)+...+a(N-1)+a(N)

4S100: Frank Stappers


An odd max 5 counter

An odd-max-5-counter

  • Process specification

counter

filter

4S100: Frank Stappers


An odd max 5 counter1

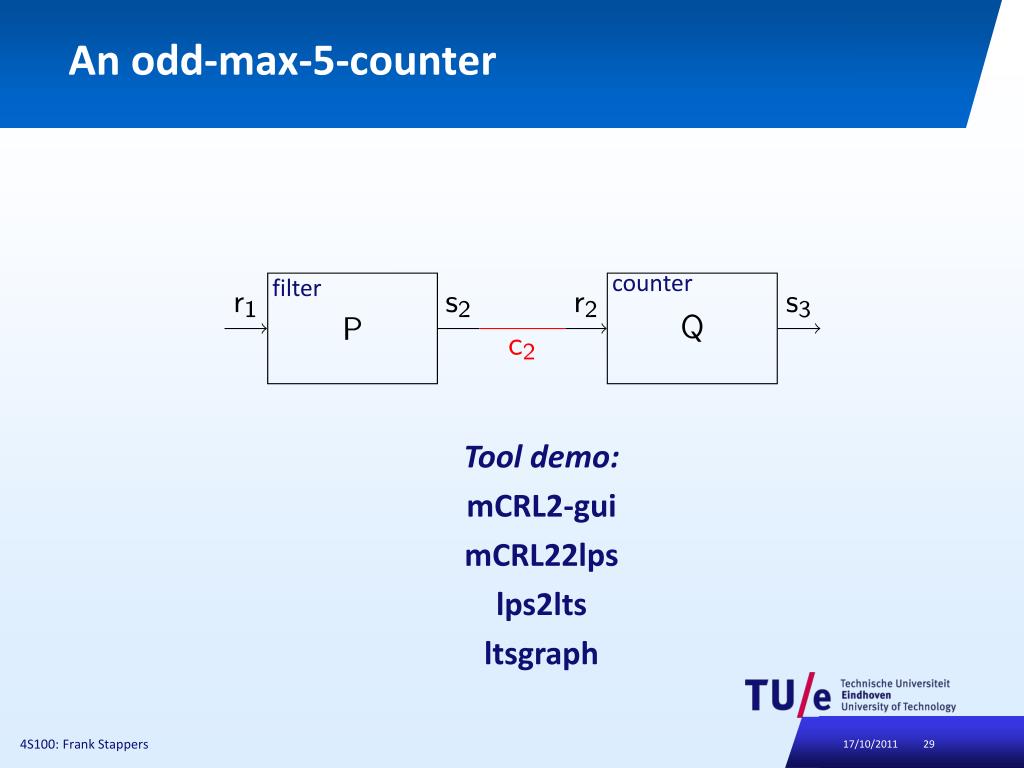

An odd-max-5-counter

Tool demo:

mCRL2-gui

mCRL22lps

lps2lts

ltsgraph

counter

filter

4S100: Frank Stappers


Verification

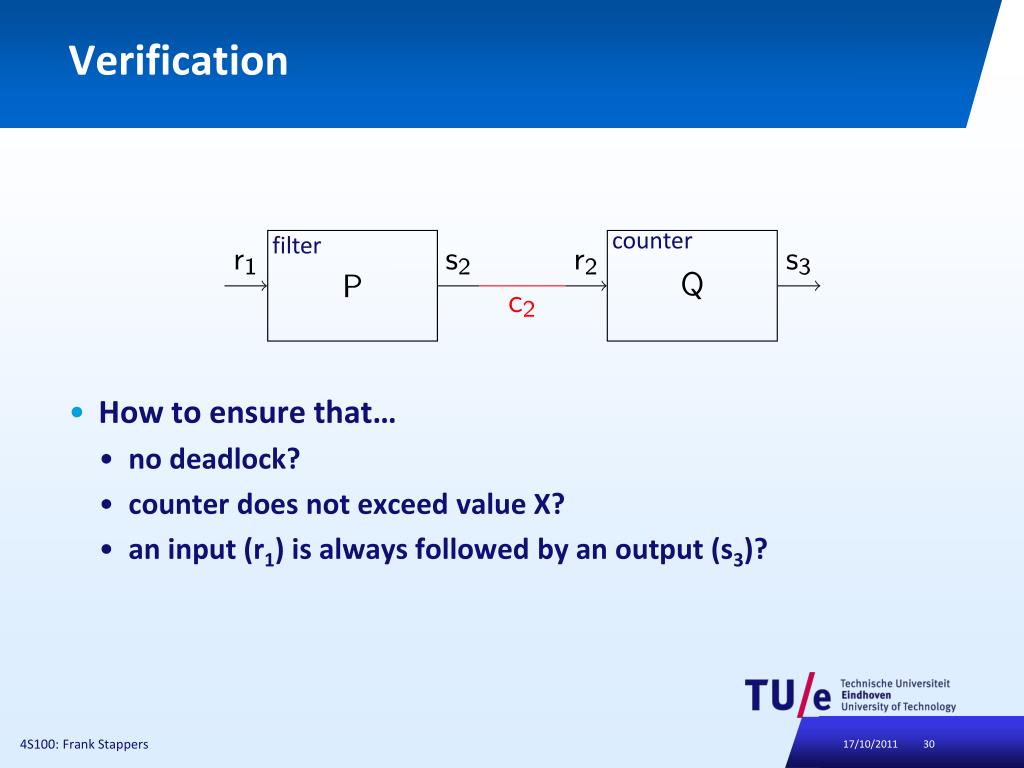

Verification

counter

filter

  • How to ensure that…

    • no deadlock?

    • counter does not exceed value X?

    • an input (r1) is always followed by an output (s3)?

4S100: Frank Stappers


The mcrl2 toolset

Verification

4S100: Frank Stappers


Verification1

Verification

Temporal logic used within mCRL2:

μ-calculus with data, time and regular expressions

Model checking is an automated verification method. It can be used to check functional requirements against a model.

A (software or hardware) system is modeledin mCRL2

The requirements are specified as properties in a temporal logic

A model checking algorithm decides whether the property holds for the model.

4S100: Frank Stappers


Temporal logic

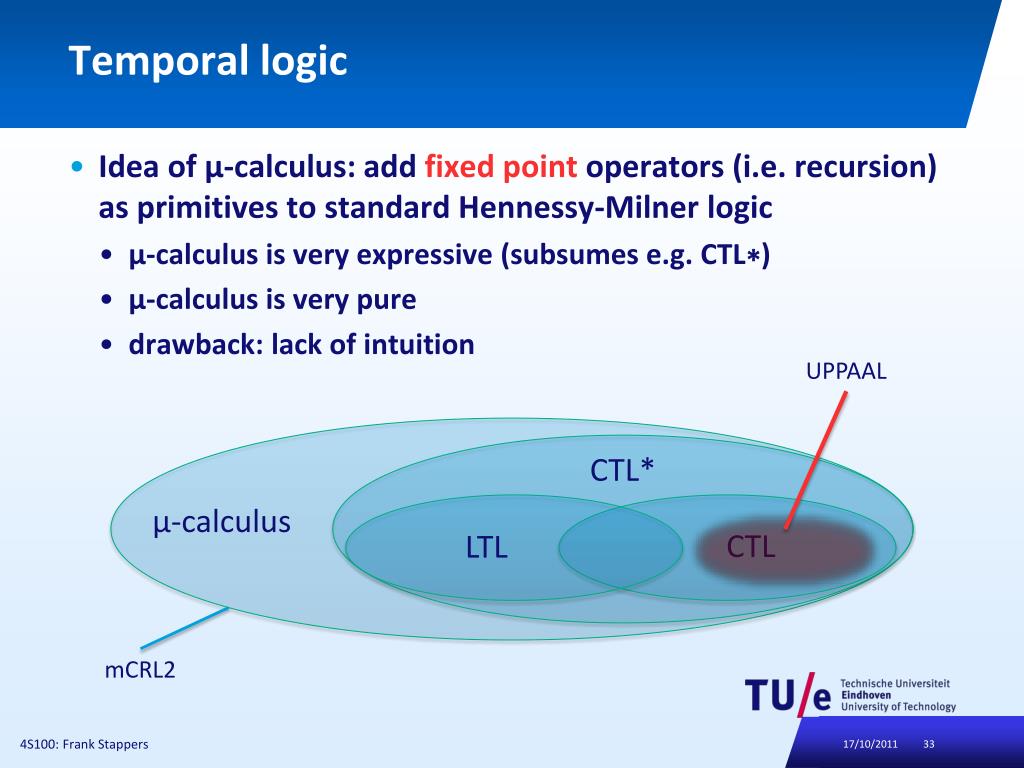

Temporal logic

UPPAAL

CTL*

μ-calculus

CTL

LTL

mCRL2

  • Idea of μ-calculus: add fixed point operators (i.e. recursion) as primitives to standard Hennessy-Milner logic

    • μ-calculus is very expressive (subsumes e.g. CTL∗)

    • μ-calculus is very pure

    • drawback: lack of intuition

4S100: Frank Stappers


A flavor of calculus

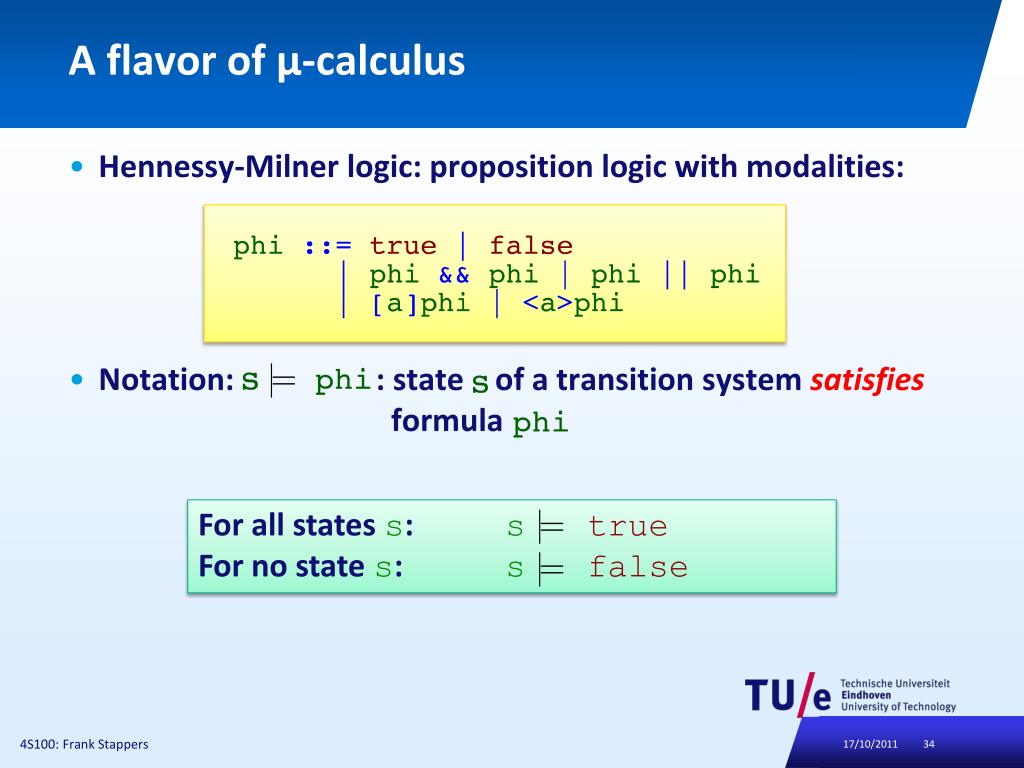

A flavor of μ-calculus

For all states s: s true

For no state s: sfalse

Hennessy-Milner logic: proposition logic with modalities:

Notation: : state of a transition system satisfies formula

4S100: Frank Stappers

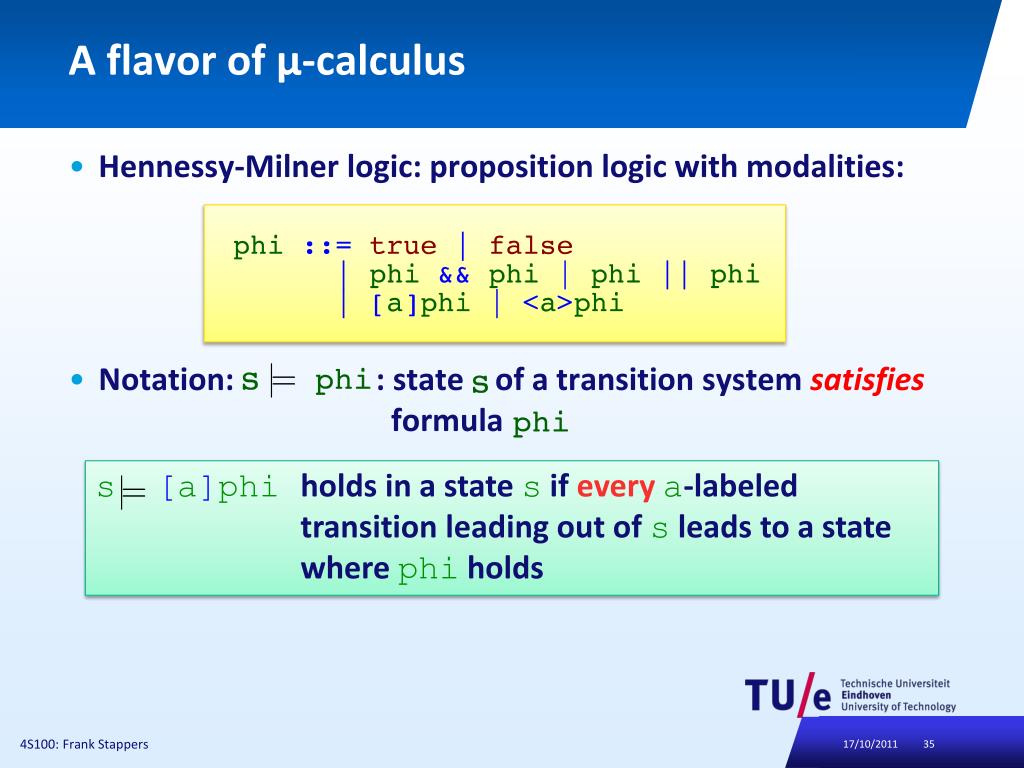

A flavor of calculus1

A flavor of μ-calculus

s [a]phiholds in a state sif everya-labeled

transition leading out of sleads to a state

where phi holds

Hennessy-Milner logic: proposition logic with modalities:

Notation: : state of a transition system satisfies formula

4S100: Frank Stappers


A flavor of calculus2

A flavor of μ-calculus

s <a>phiholds in a state s if any a-labeled

transition leading out of s leads to a state

where phiholds

Hennessy-Milner logic: proposition logic with modalities:

Notation: : state of a transition system satisfies formula

4S100: Frank Stappers

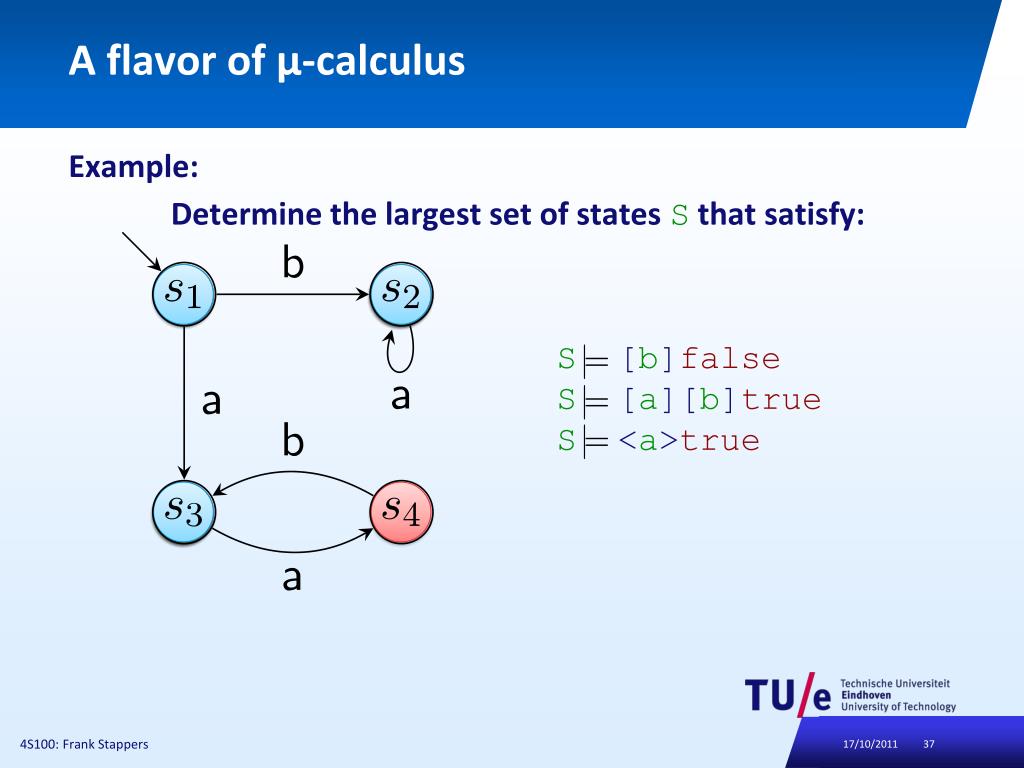

A flavor of calculus3

A flavor of μ-calculus

S [b]false

S [a][b]true

S <a>true

Example:

Determine the largest set of states S that satisfy:

4S100: Frank Stappers


A flavor of calculus4

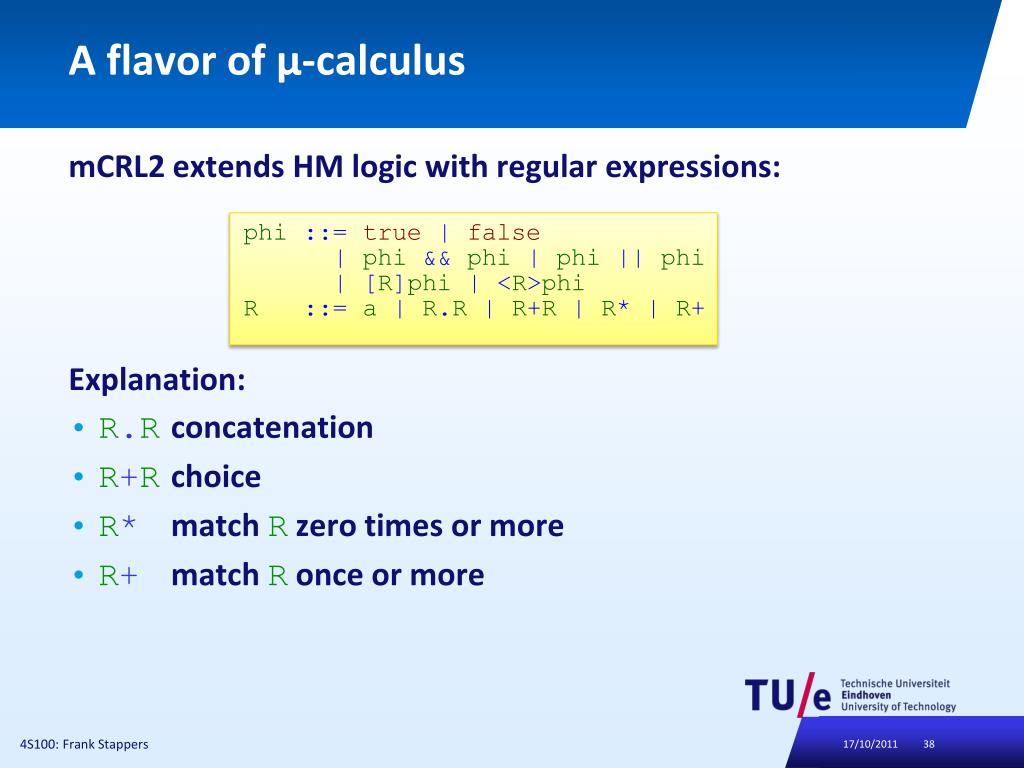

A flavor of μ-calculus

mCRL2 extends HM logic with regular expressions:

Explanation:

R.Rconcatenation

R+Rchoice

R*match R zero times or more

R+match Ronce or more

4S100: Frank Stappers


A flavor of calculus5

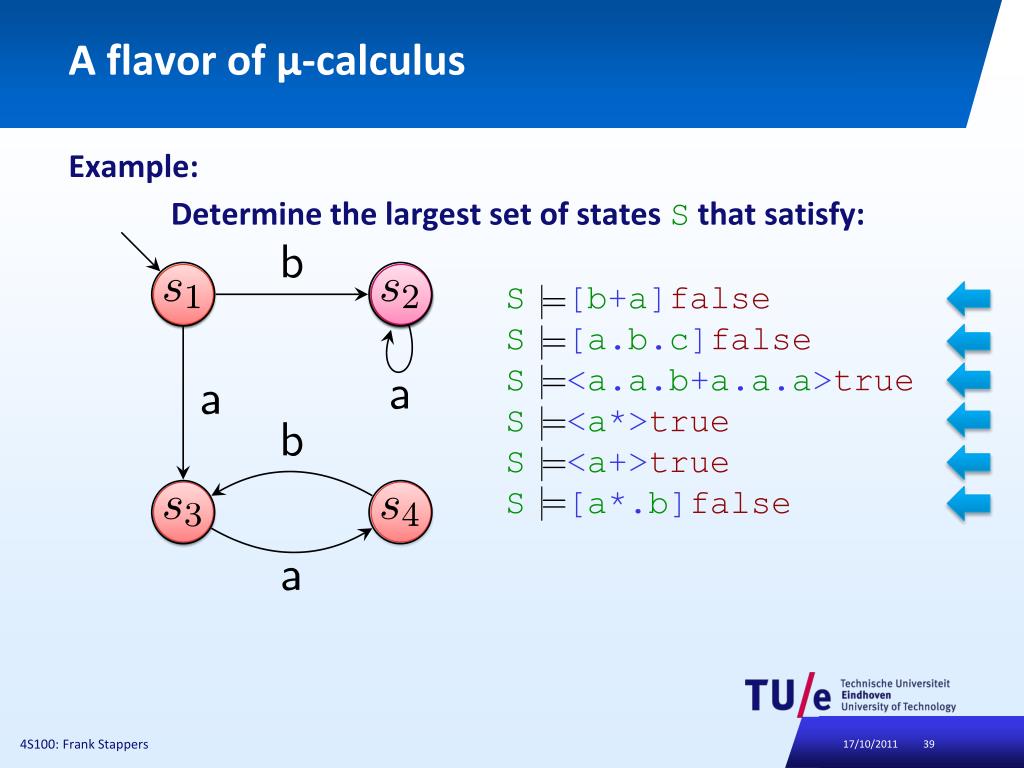

A flavor of μ-calculus

S[b+a]false

S [a.b.c]false

S<a.a.b+a.a.a>true

S<a*>true

S<a+>true

S[a*.b]false

Example:

Determine the largest set of states S that satisfy:

4S100: Frank Stappers


An odd max 5 counter verification

An odd-max-5-counter verification

counter

filter

action wildcard

r1’,s3’ actions with eliminated data parameters

  • How to ensure that…

    • no deadlock?

      [true*]<true>true

    • counter does not exceed value X?

      [true*.s3(X)]false

    • an input (r1) is always followed by an output (s3)?

      [true*.r1’.(!s3’)*]<(!s3’)*.s3’>true

4S100: Frank Stappers


An odd max 5 counter verification1

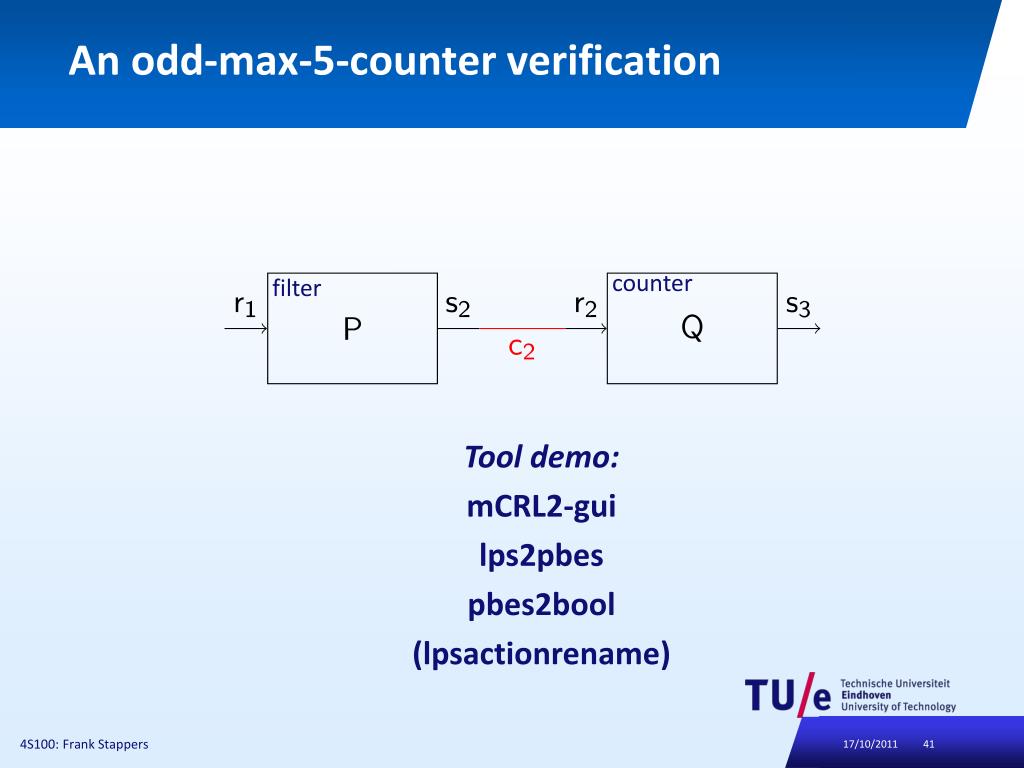

An odd-max-5-counter verification

Tool demo:

mCRL2-gui

lps2pbes

pbes2bool

(lpsactionrename)

counter

filter

4S100: Frank Stappers


The mcrl2 toolset

Case study

4S100: Frank Stappers


Hef system

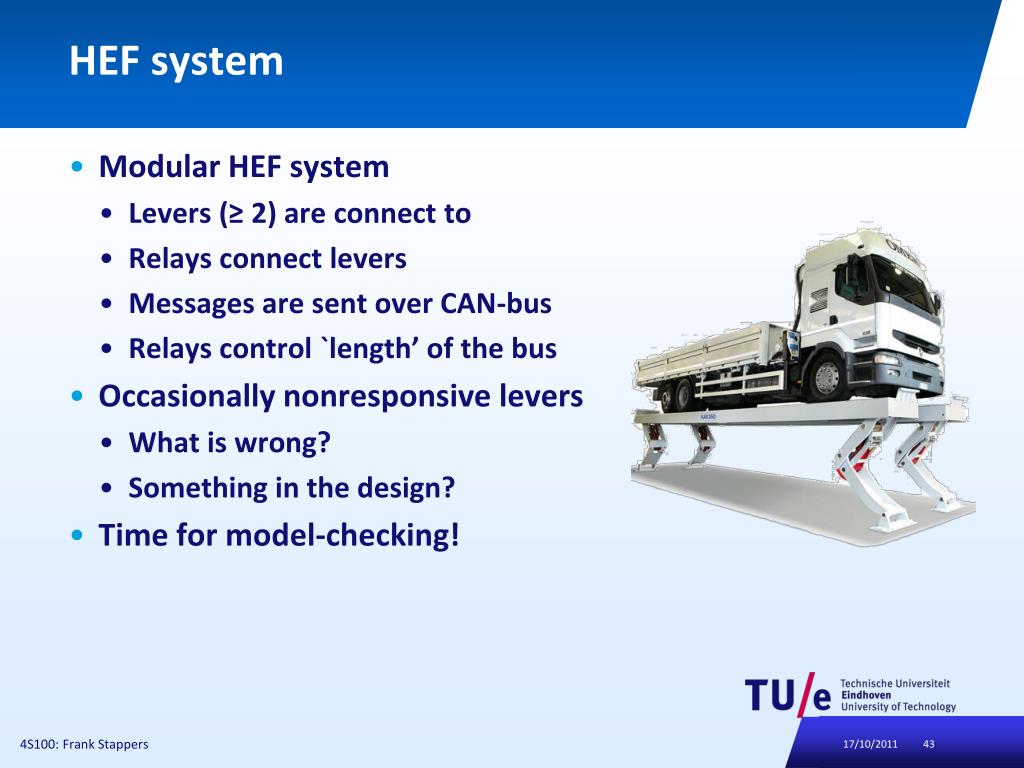

HEF system

4S100: Frank Stappers

  • Modular HEF system

    • Levers (≥ 2) are connect to

    • Relays connect levers

    • Messages are sent over CAN-bus

    • Relays control `length’ of the bus

  • Occasionally nonresponsive levers

    • What is wrong?

    • Something in the design?

  • Time for model-checking!

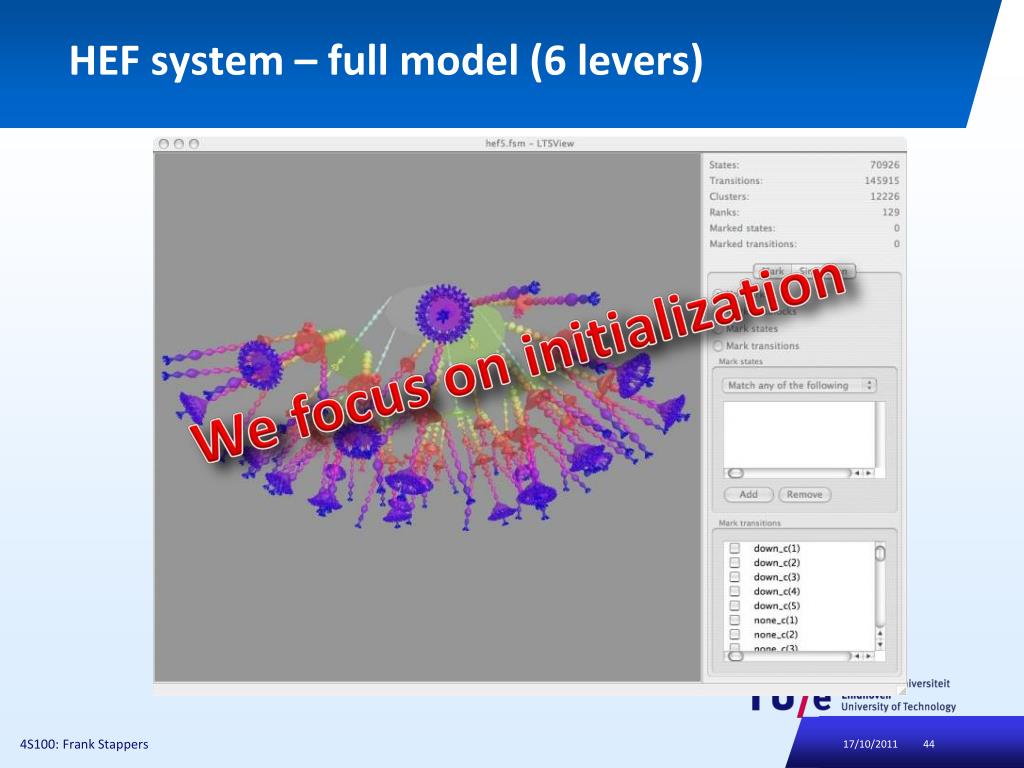

Hef system full model 6 levers

HEF system – full model (6 levers)

We focus on initialization

4S100: Frank Stappers


Hef system initialization

HEF system - initialization

4

3

1

2

4S100: Frank Stappers


Simplified hef system

Simplified HEF system

  • Assumptions:

    • Good weather-behavior

    • Initialization only!

    • No up- and down movement

    • Modular design

  • Simplified model:

    • User (#1)

    • Relays (#3)

    • Levers (#3)

  • Every process has a physical position (used for identification)

4S100: Frank Stappers


Simplified hef system user process

Simplified HEF system – User process

User process

  • User is attached to lever pos

  • Press “start”

    • Send send_start message to attached lever

  • Notification: “Found n levers”

    • recv_found message contains the n found levers

4S100: Frank Stappers


Simplified hef system relay process

Simplified HEF system – Relay process

Relay process:

Relay can be Open or Closed

Relay has a position between two levers and an open status:

Opening/closing relay:

4S100: Frank Stappers


Simplified hef system relay process1

Simplified HEF system – Relay process

Re-tweeting of message IDs

4S100: Frank Stappers


Simplified hef system lever process

Simplified HEF system – Lever process

  • Lever process

    • Lever has a position pos and an ID (0if uninitialized)

    • Update ID if uninitialized

    • If we get an ID and our ID is initialized we report to user

4S100: Frank Stappers


Simplified hef system lever process1

Simplified HEF system – Lever process

Open relay

Close relay

Sent current ID

4S100: Frank Stappers


Simplified hef system modeled system

Simplified HEF system – Modeled system

System decomposition

4S100: Frank Stappers


Simplified hef system analysis

Simplified HEF system – Analysis

?

Some properties checked:

  • No Deadlock:

    [true*]<true>true

    • We know that we modeled 3 levers, so 3 levers detected?

      <true*.found(3)>true

    • Finding only 2 levers would be stupid:

      [true*.found(2)]false

4S100: Frank Stappers


Simplified hef system the bug

Simplified HEF system – The bug…

Solved the day (again)

  • So what’s happing?

    start(0)

    ID_to_relay(0, 1)

    ID_from_relay(1, 1)

    ID_to_relay(1, 2)

    ID_from_relay(0, 2)

    found(2)

  • Problem: Process ID==1gets IDfrom process ID==2before the relay is closed!

  • Similar problem in the actual system:

    old relays did not close in time

4S100: Frank Stappers


Summary

Summary

  • The mCRL2 toolset:

    • facilitates many kinds of system behavior analysis

    • can be used to:

      • detect errors in the design

      • prevent errors already in the design

  • Small introduction, mCRL2 has many more features:

    • Functional programming in data specifications

    • Optimization with linear process specifications

    • State space reduction techniques

    • Checking for behavioral equivalence

    • Parameterized Boolean Equations Systems to solve properties

    • Solving Parity Games

    • Export to other (analysis) toolsets/formats

    • ….

4S100: Frank Stappers


  • Login
