Building scripts for hp loadrunner

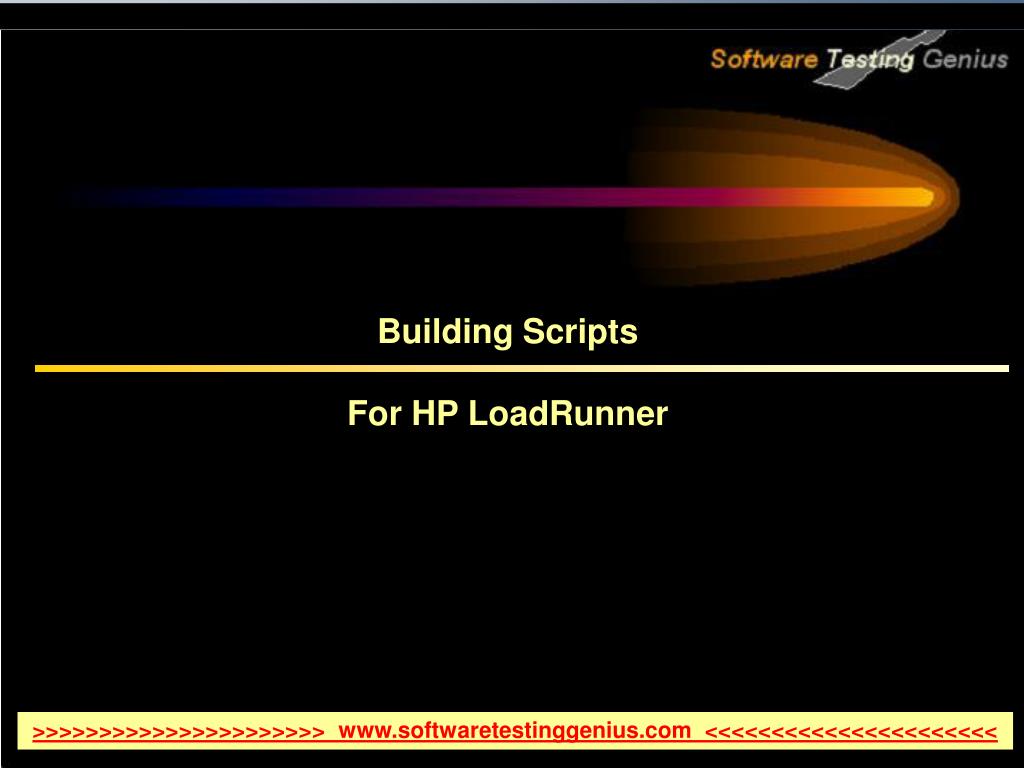

Building Scripts

For HP LoadRunner

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Building scripts

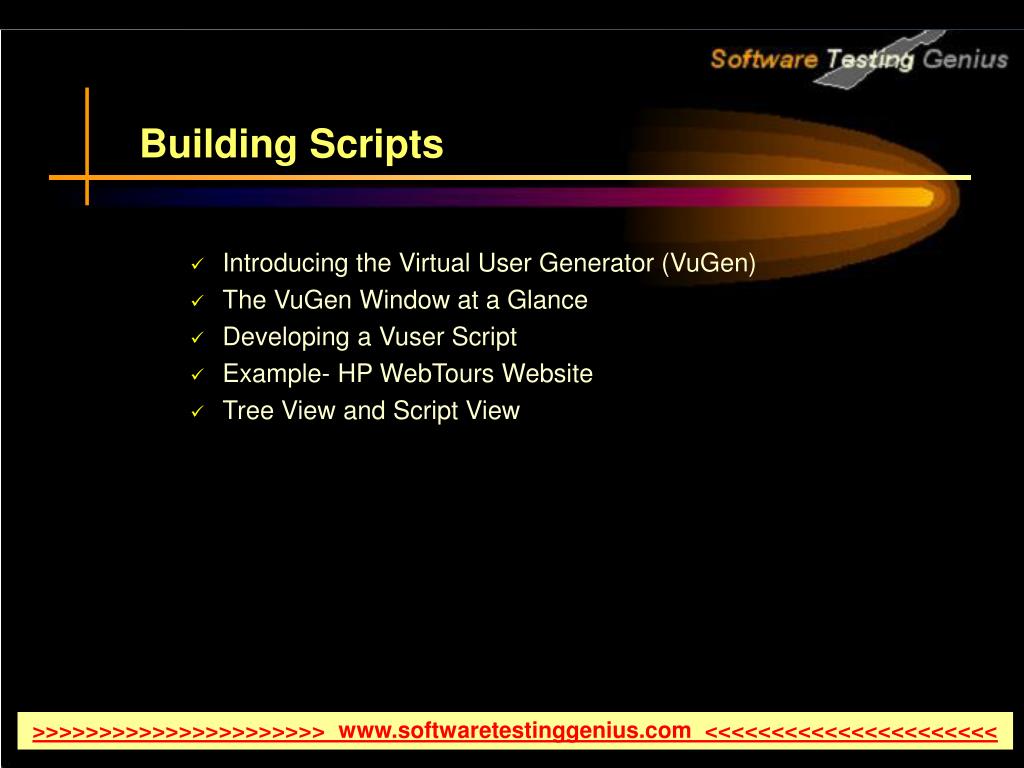

Building Scripts

Introducing the Virtual User Generator (VuGen)

The VuGen Window at a Glance

Developing a Vuser Script

Example- HP WebTours Website

Tree View and Script View

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Introducing the virtual user generator vugen

Introducing the Virtual User Generator (VuGen)

HP’s tool for creating Vuser scripts is the Virtual User Generator, VuGen.

During recording VuGen monitors the client end of the database and traces all the requests sent by the user and received from the user, to the server.

During playback, Vuser scripts communicate directly with the server by executing calls to the server API.

When a Vuser communicates directly with a server, system resources are not required for the client interface. This allows a large number of Vusers to run simultaneously on a single workstation, and few testing machines are required to emulate large server loads.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


The vugen window at a glance

The VuGen Window at a Glance

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Building scripts for hp loadrunner

Developing a Vuser script

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Recording options

Recording Options

HTML based: Records script for every user action that is performed during recording

URL based: Records each and every browser request to the server and resources received from the server.

HTML mode is recommended for browser applications while URL mode is recommended for non-browser applications.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Start recording

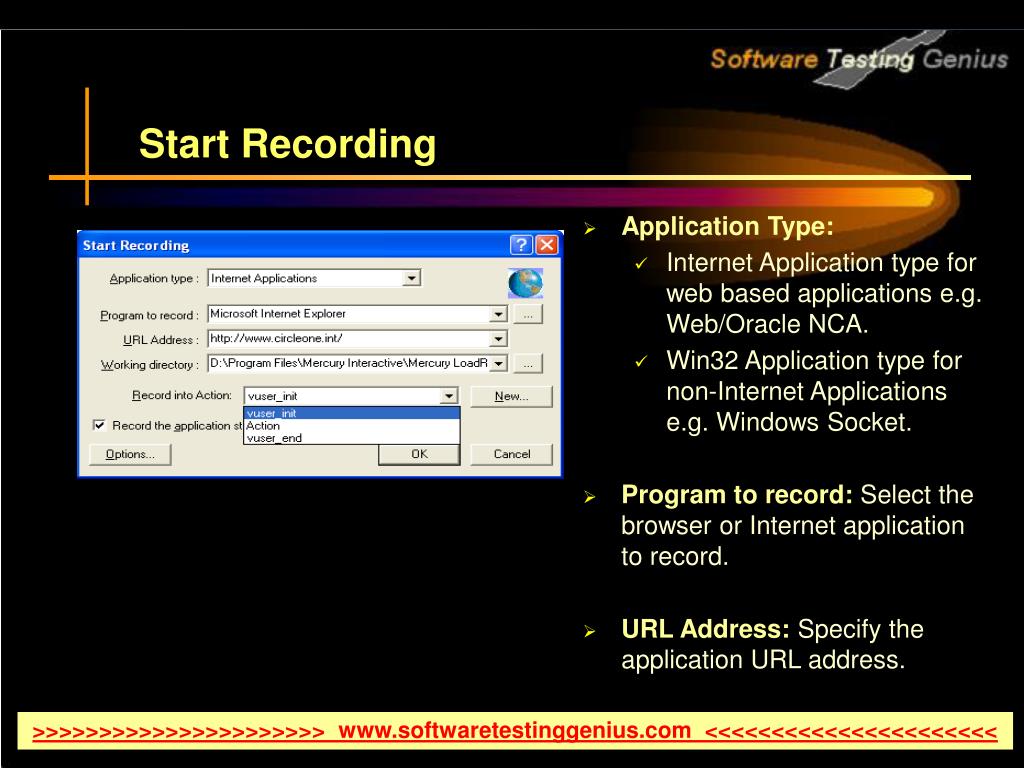

Start Recording

Application Type:

Internet Application type for web based applications e.g. Web/Oracle NCA.

Win32 Application type for non-Internet Applications e.g. Windows Socket.

Program to record: Select the browser or Internet application to record.

URL Address: Specify the application URL address.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Start recording1

Start Recording

Script consists of 3 sections…

Vuser_init( ): Login to server

Actions: Clients activities

Vuser_end( ): Logoff

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


User actions

User Actions

Logoff

(recording

optional)

Logon

(recording

optional)

User Actions

(Business Processes)

Action1.c, Action2.c, etc.

(e.g., Create Order, Ship Order)

vuser_end.c

vuser_init.c

This section may be iterated (repeated) during one test run

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Recording script

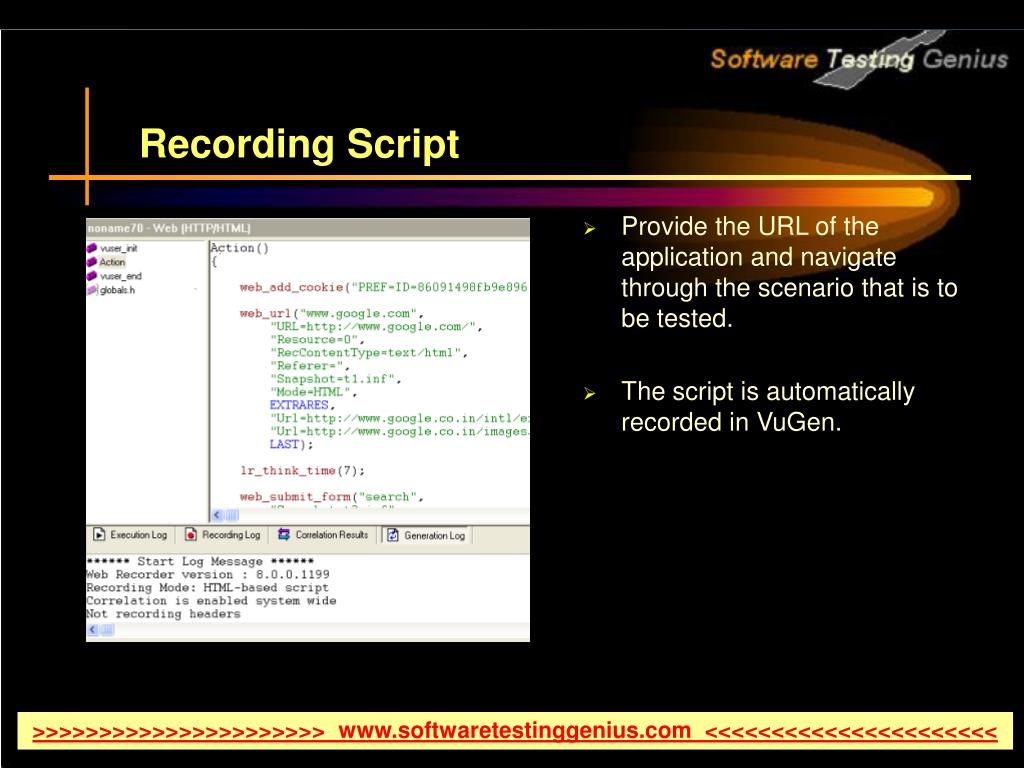

Recording Script

Provide the URL of the application and navigate through the scenario that is to be tested.

The script is automatically recorded in VuGen.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website

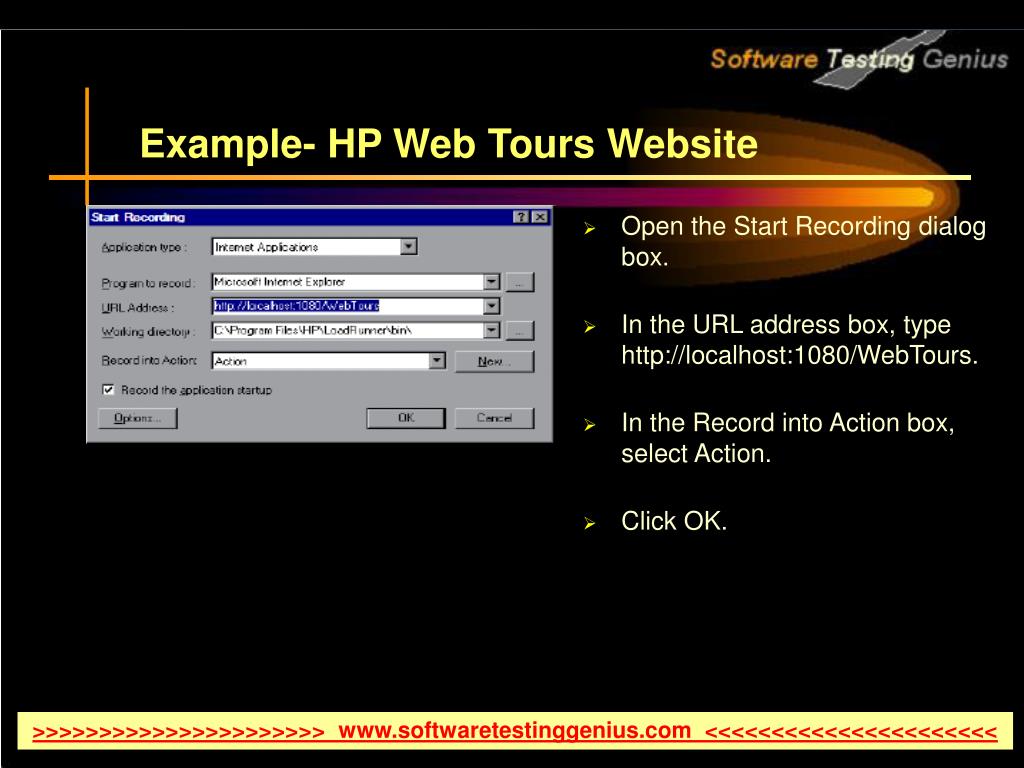

Example- HP Web Tours Website

Open the Start Recording dialog box.

In the URL address box, type http://localhost:1080/WebTours.

In the Record into Action box, select Action.

Click OK.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website1

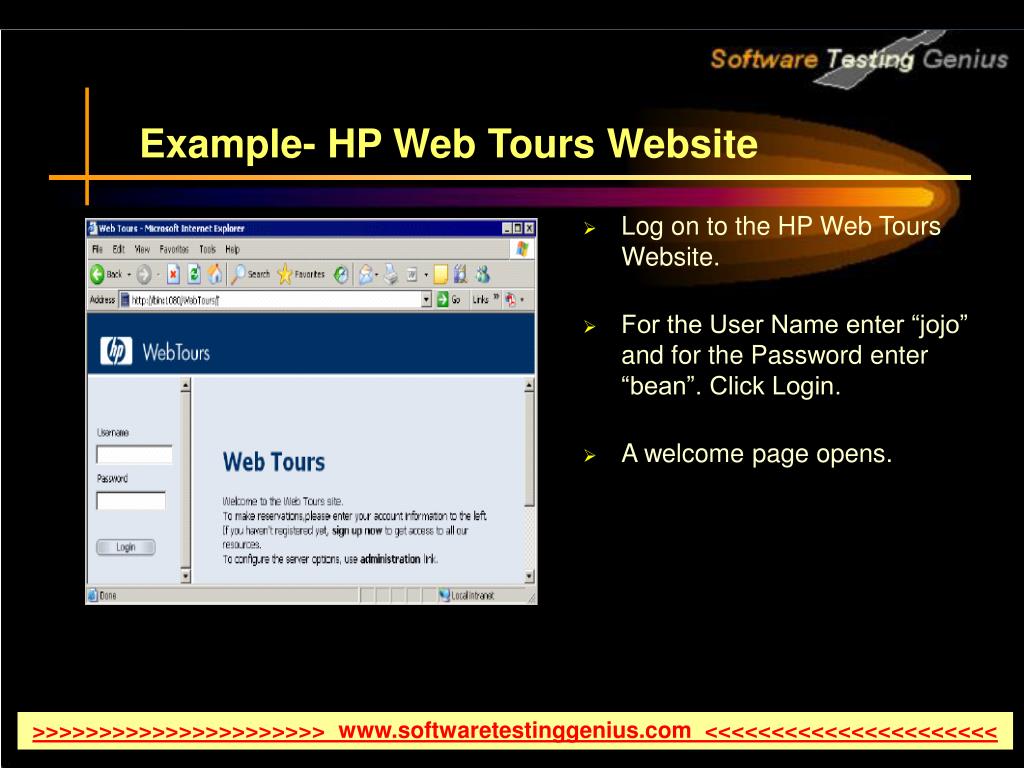

Example- HP Web Tours Website

Log on to the HP Web Tours Website.

For the User Name enter “jojo” and for the Password enter “bean”. Click Login.

A welcome page opens.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website2

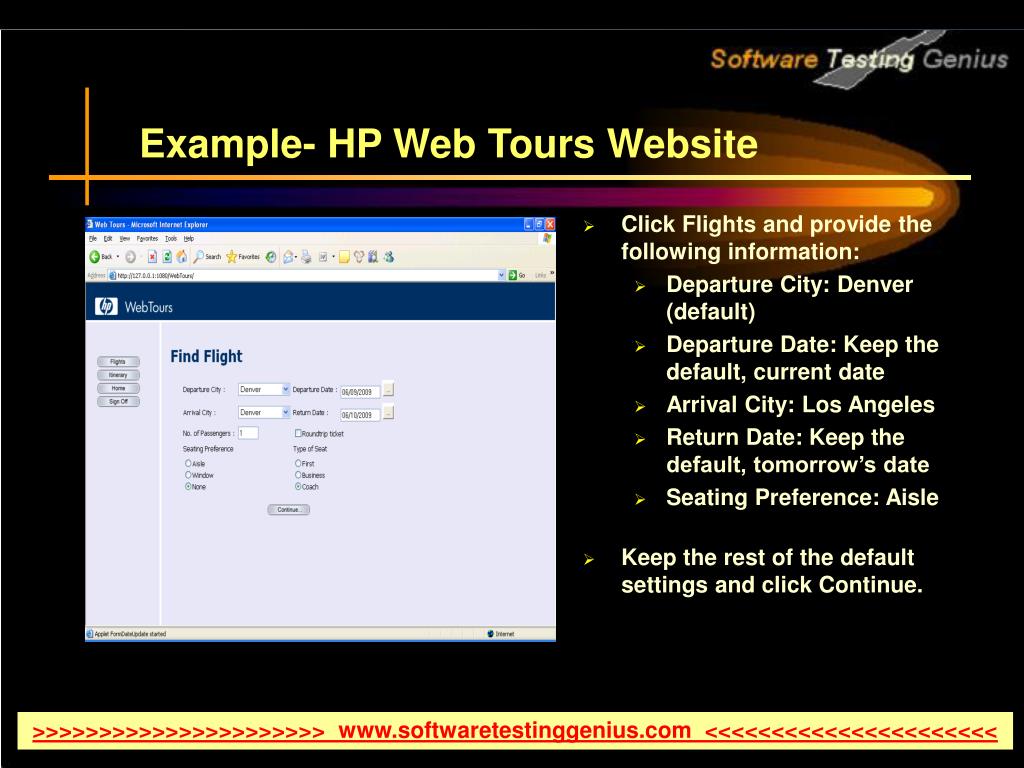

Example- HP Web Tours Website

Click Flights and provide the following information:

Departure City: Denver (default)

Departure Date: Keep the default, current date

Arrival City: Los Angeles

Return Date: Keep the default, tomorrow’s date

Seating Preference: Aisle

Keep the rest of the default settings and click Continue.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website3

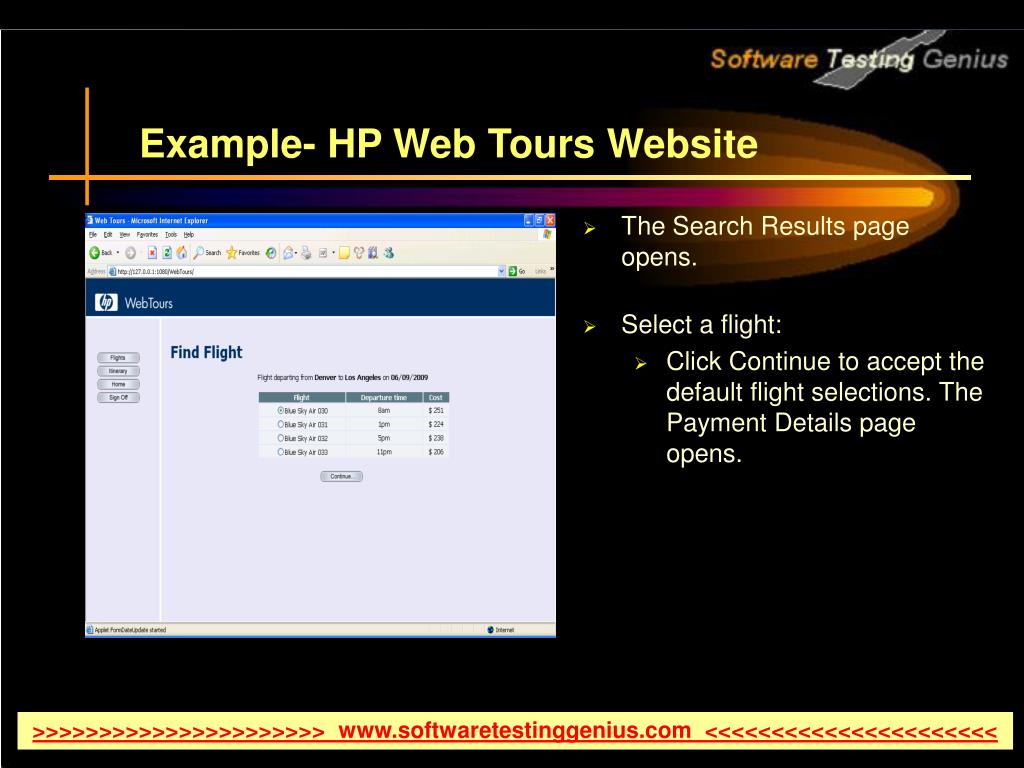

Example- HP Web Tours Website

The Search Results page opens.

Select a flight:

Click Continue to accept the default flight selections. The Payment Details page opens.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website4

Example- HP Web Tours Website

Enter payment information and book flight:

Enter 12345678 in the Credit Card box and type 06/10 in the Exp Date box.

Click Continue.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website5

Example- HP Web Tours Website

The Invoice page opens, displaying your invoice.

Check the itinerary:

Click Itinerary in the left pane.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website6

Example- HP Web Tours Website

The Itinerary page opens.

Click Sign Off in the left pane.

Click Stop on the floating toolbar to stop the recording process.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Example hp web tours website7

Example- HP Web Tours Website

The Code Generation pop up window opens while the Vuser script is generated and recording summary is displayed.

The recording summary includes the protocol information and a list of the actions created during the session. For each step you performed during recording, VuGen generated a snapshot, a picture of the window during recording.

Select File > Save or click the Save button.

Type basic_tutorial in the File name box and click Save.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Viewing the script script view

Viewing the script – Script View

Script view is a text-based view that lists the actions of the Vuser as API functions.

To view the script in Script view select View > Script View or click the Script View button.

In Script view, VuGen shows the script in an editor with color coded functions and their argument values.

You can type C or LoadRunner API functions, as well as control flow statements, directly into this window.

>>>>>>>>>>>>>>>>>>>>>> www.softwaretestinggenius.com <<<<<<<<<<<<<<<<<<<<<<


Building scripts for hp loadrunner

Create script for HP WebTours application using HTML based recording mode.

Create script for HP WebTours application using URL based recording modes.

How does Protocol Advisor works? Analyze WebTours application using Protocol advisor?

Create script for HP WebTours application using different actions for login, transactions and logout.

Questions - To Review Your Skills
