Presentation Transcript


Slide1 l.jpg

UEFI与固件程序设计

Tel:69589584

Email:[email protected]

同济大学软件学院


Agenda l.jpg

Agenda

  • EFI Driver Development

  • EFI Application Development


Efi driver model l.jpg

EFI Drivers

EFI Driver Model

  • Supports complex bus hierarchies

    • Follows the organization of physical/electrical architecture of the machine

  • Driver Binding Protocol provides flexibility

    • Function to match drivers to devices

    • Driver version management

    • Hot-plug and unload support

  • Drivers not tied to FLASH

    • Can be loaded from EFI System Partition

  • Extensible

    • Able to extend to future bus and device types


Driver design steps l.jpg

EFI Drivers

Driver Design Steps

  • Determine Driver Type

  • Identify Consumed I/O Protocols

  • Identify Produced I/O Protocols

  • Identify EFI Driver Model Protocols

  • Identify Additional Driver Features

  • Identify Target Platforms

    • x86

    • x64

    • Itanium Processor Family

    • EFI Byte Code (EBC)


What type of driver is being designed l.jpg

EFI Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Bus

Drivers

Device

Drivers

What Type of Driver is Being Designed?

EFI Images

Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Root Bridge Drivers

EFI 1.02

Drivers

Applications

OS Loaders


Device drivers l.jpg

EFI Drivers

Drivers

Device Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Manages a Controller or Peripheral Device

  • Start() Does Not Create Any Child Handles

  • Start() Produces One or More I/O Protocols

    • Installed onto the Device’s Controller Handle

Examples:

PCI Video Adapters

USB Host Controllers

USB Keyboards / USB Mice

PS/2 Keyboards / PS/2 Mice


Bus drivers l.jpg

EFI Drivers

Drivers

Bus Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Manages and Enumerates a Bus Controller

  • Start() Creates One or More Child Handles

  • Start() Produces Bus Specific I/O Protocols

    • Installed onto the Bus’s Child Handles

  • Examples:

    • PCI Network Interface Controllers

    • Serial UART Controllers


Hybrid drivers l.jpg

EFI Drivers

Hybrid Drivers

Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Manages and Enumerates a Bus Controller

  • Start() Creates One or More Child Handles

  • Start() Produces Bus Specific I/O Protocols

    • Installed onto the Bus’s Controller Handle

    • Installed onto Bus’s Child Handles

Examples:

PCI SCSI Host Controllers

PCI Fiber Channel Controllers

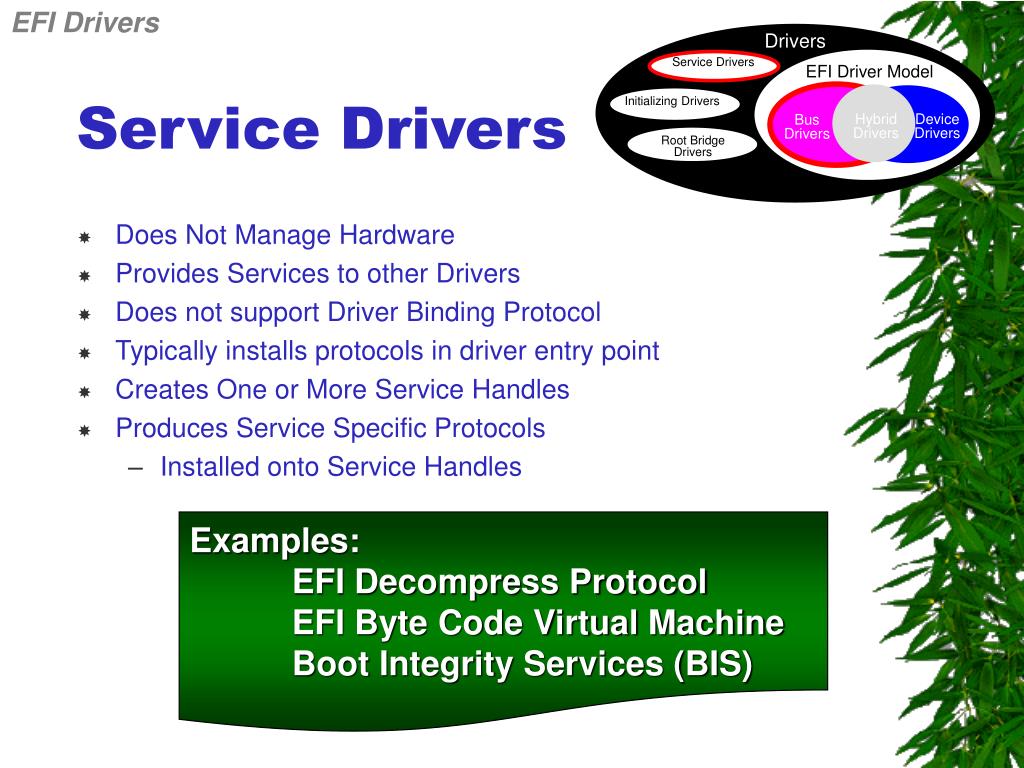

Service drivers l.jpg

EFI Drivers

Drivers

Service Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Does Not Manage Hardware

  • Provides Services to other Drivers

  • Does not support Driver Binding Protocol

  • Typically installs protocols in driver entry point

  • Creates One or More Service Handles

  • Produces Service Specific Protocols

    • Installed onto Service Handles

Examples:

EFI Decompress Protocol

EFI Byte Code Virtual Machine

Boot Integrity Services (BIS)


Initializing drivers l.jpg

EFI Drivers

Drivers

Initializing Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Typically Touches Hardware

  • Performs One Time Initialization Operations

  • Does Not Create Any Handles

  • Does Not Produce Any Protocols

  • Unloaded When Finished

Examples: None


Root bridge drivers l.jpg

EFI Drivers

Drivers

Root Bridge Drivers

Service Drivers

EFI Driver Model

Initializing Drivers

Hybrid Drivers

Device

Drivers

Bus

Drivers

Root Bridge Drivers

  • Typically Manages Part of Core Chipset

  • Directly Touches Hardware

  • Creates One or More Root Bridge Handles

  • Produces Root Bridge I/O Protocols

    • Installed onto new Root a Bridge Handles

Examples: PCI Host Bridge


What i o protocols are consumed l.jpg

EFI Drivers

FLASH

What I/O Protocols are Consumed?

  • PCI Adapters

    • PCI I/O Protocol

    • Device Path Protocol

  • USB Peripherals

    • USB I/O Protocol

    • Device Path Protocol


What i o protocols are produced l.jpg

EFI Drivers

FLASH

What I/O Protocols are Produced?

  • SCSI

  • SCSI RAID

  • Fiber Channel

  • SCSI Pass Thru Protocol

  • and

  • Block I/O Protocol


What i o protocols are produced14 l.jpg

EFI Drivers

FLASH

What I/O Protocols are Produced?

  • Network Interface

  • Controller (NIC)

  • UNDI

  • and

  • Network Interface Identifier Protocol


Driver design checklist l.jpg

EFI Drivers

Driver Design Checklist


Running efi drivers l.jpg

EFI Drivers

Running EFI drivers

  • ConnectController()

    • Called from Boot Manager or during load

    • Precedence rules are applied

      • Context override

      • Platform override

      • Bus override

      • Version number

    • Order of which drivers are installed into handle database is not deterministic

  • DisconnectController()

    • Must test and implement Stop()

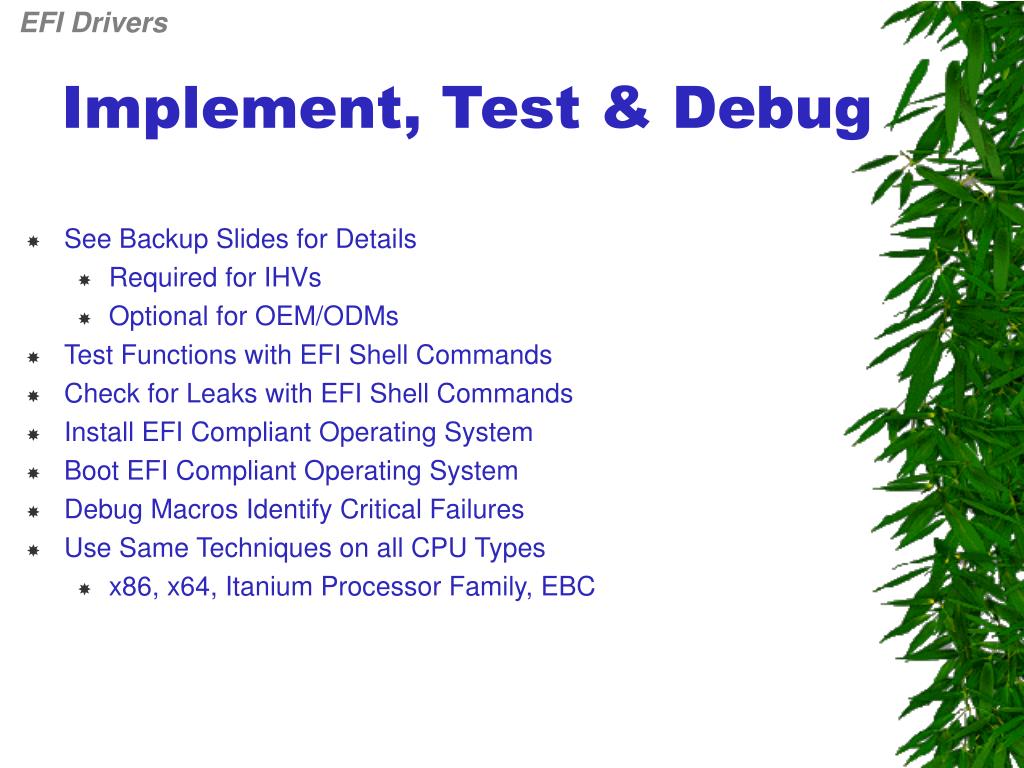

Implement test debug l.jpg

EFI Drivers

Implement, Test & Debug

  • See Backup Slides for Details

    • Required for IHVs

    • Optional for OEM/ODMs

  • Test Functions with EFI Shell Commands

  • Check for Leaks with EFI Shell Commands

  • Install EFI Compliant Operating System

  • Boot EFI Compliant Operating System

  • Debug Macros Identify Critical Failures

  • Use Same Techniques on all CPU Types

    • x86, x64, Itanium Processor Family, EBC


Driver guidelines l.jpg

Driver Guidelines

Driver Guidelines

  • Don’t touch hardware in Driver Entry

  • Keep Supported() small and simple

  • Move complex I/O into Start() and Stop()

  • Start() / Stop() mirror each other

    • InstallProtocolInterface()UninstallProtocolInterface()

    • OpenProtocol()CloseProtocol

    • AllocatePages()FreePages()

    • AllocatePool()FreePool()

  • Driver Entry / Unload() mirror each other

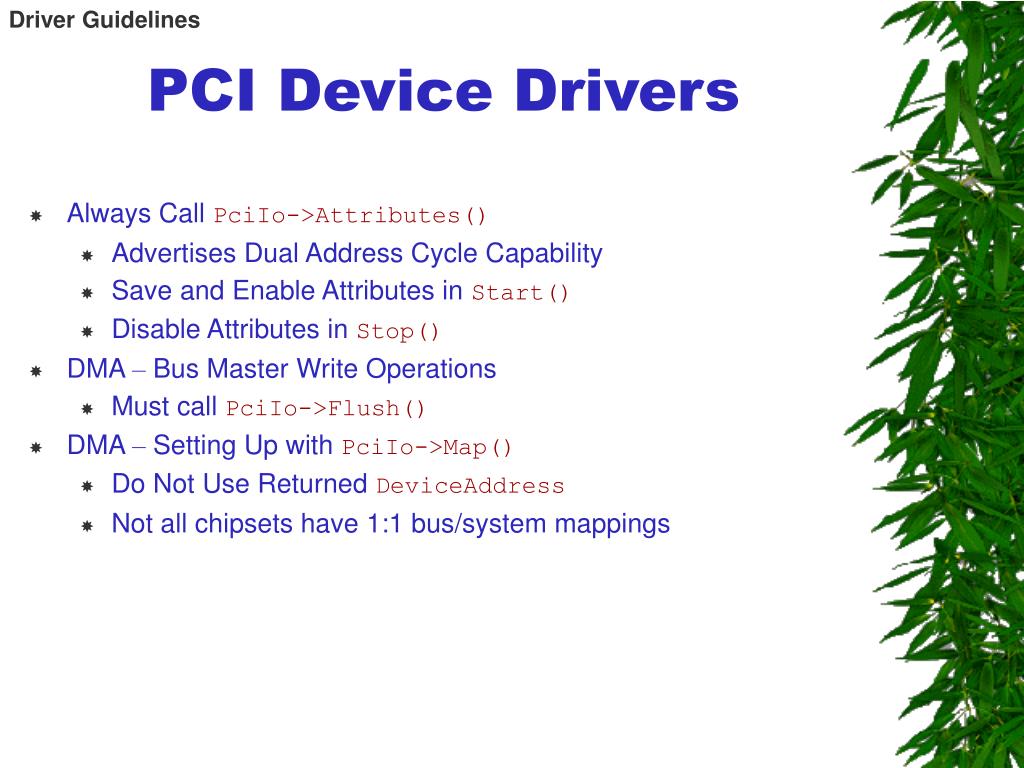

Pci device drivers l.jpg

Driver Guidelines

PCI Device Drivers

  • Always Call PciIo->Attributes()

    • Advertises Dual Address Cycle Capability

    • Save and Enable Attributes in Start()

    • Disable Attributes in Stop()

  • DMA – Bus Master Write Operations

    • Must call PciIo->Flush()

  • DMA – Setting Up with PciIo->Map()

    • Do Not Use Returned DeviceAddress

    • Not all chipsets have 1:1 bus/system mappings


Pci device drivers start l.jpg

Driver Guidelines

PCI Device Drivers – Start()

Status = PciIo->Attributes(

PciIo,

EfiPciIoAttributeOperationGet,

0,

&ControllerContext->OriginalPciIoAttributes

);

if (EFI_ERROR (Status)) {

// Error Handling

}

Status = PciIo->Attributes(

PciIo,

EfiPciIoAttributeOperationEnable,

(EFI_PCI_IO_ATTRIBUTE_IO |

EFI_PCI_IO_ATTRIBUTE_MEMORY |

EFI_PCI_IO_ATTRIBUTE_BUS_MASTER |

EFI_PCI_IO_ATTRIBUTE_DUAL_ADDRESS_CYCLE),

0,

NULL

);

if (EFI_ERROR (Status)) {

// Error Handling

}

Save Original and Enable


Pci device drivers stop l.jpg

Driver Guidelines

PCI Device Drivers – Stop()

Status = PciIo->Attributes(

PciIo,

EfiPciIoAttributeOperationSet,

&ControllerContext->OriginalPciIoAttributes

NULL

);

if (EFI_ERROR (Status)) {

// Error Handling

}

Restore Original


Preventing alignment faults l.jpg

Driver Guidelines

Preventing Alignment Faults

VOID

ScsiDeviceNodeInit (

IN OUT SCSI_DEVICE_PATH *ScsiDeviceNode,

IN UINT16 Pun,

IN UINT16 Lun

)

{

ScsiDeviceNode->Scsi.Header.Type = MESSAGING_DEVICE_PATH;

ScsiDeviceNode->Scsi.Header.SubType = MSG_SCSI_DP;

SetDevicePathNodeLength (&ScsiDeviceNode->Scsi.Header,

sizeof(SCSI_DEVICE_PATH));

ScsiDeviceNode->Scsi.Pun = Pun;

ScsiDeviceNode->Scsi.Lun = Lun;

}

BAD

ScsiDeviceNode may not be aligned


Preventing alignment faults23 l.jpg

Driver Guidelines

Preventing Alignment Faults

VOID

ScsiDeviceNodeInit (

IN OUT SCSI_DEVICE_PATH *ScsiDeviceNode,

IN UINT16 Pun,

IN UINT16 Lun

)

{

SCSI_DEVICE_PATH MyDeviceNode;

MyDeviceNode.Scsi.Header.Type = MESSAGING_DEVICE_PATH;

MyDeviceNode.Scsi.Header.SubType = MSG_SCSI_DP;

SetDevicePathNodeLength (&MyDeviceNode.Scsi.Header,

sizeof(SCSI_DEVICE_PATH));

MyDeviceNode.Scsi.Pun = Pun;

MyDeviceNode.Scsi.Lun = Lun;

gBS->CopyMem (ScsiDeviceNode,

&MyDeviceNode,

sizeof(SCSI_DEVICE_PATH));

}

GOOD

gBS->CopyMem() handles all alignments

MyDeviceNode is aligned


Use efi driver library functions l.jpg

Driver Guidelines

Use EFI Driver Library Functions

OK

CHILD_DEVICE Child;

Status = gBS->AllocatePool (

EfiBootServicesData,

sizeof (CHILD_DEVICE),

&Child

);

if (EFI_ERROR (Status)) {

return Status;

}

gBS->SetMem (Child, sizeof (CHILD_DEVICE), 0);

GOOD

CHILD_DEVICE Child;

Child = EfiLibAllocateZeroPool (sizeof (CHILD_DEVICE));

if (Child == NULL) {

return EFI_OUT_OF_RESOURCES;

}

Library Functions Simplify Source Code

Library Functions May Reduce Size

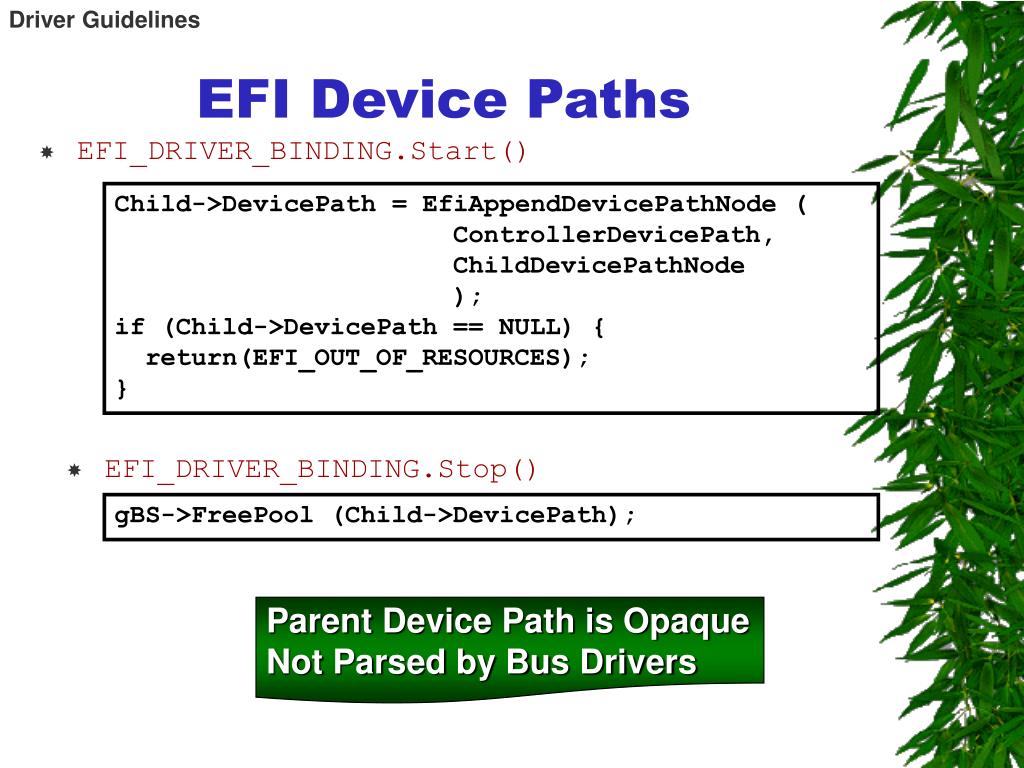

Efi device paths l.jpg

Driver Guidelines

EFI Device Paths

Child->DevicePath = EfiAppendDevicePathNode (

ControllerDevicePath,

ChildDevicePathNode

);

if (Child->DevicePath == NULL) {

return(EFI_OUT_OF_RESOURCES);

}

  • EFI_DRIVER_BINDING.Start()

  • EFI_DRIVER_BINDING.Stop()

gBS->FreePool (Child->DevicePath);

Parent Device Path is Opaque

Not Parsed by Bus Drivers


Bus walk tips l.jpg

Driver Guidelines

Bus Walk Tips

  • Use LocateHandleBuffer(Bus I/O Protocol)

    • Do not scan PCI configuration space

  • Implement support for RemainingDevicePath

    • Highly recommended for all bus drivers

      • (i.e. SCSI, Fibre Channel, etc.)

    • Allows bus driver to bypass full enumeration.

    • Reduces boot time


Component name protocol l.jpg

Driver Guidelines

Component Name Protocol

  • Limit Lengths of Names to 40 Unicode Characters

  • Include Driver Name and Version Number

  • UNDI Driver (Network Interface Controller)

    • Typically the Name of the PCI Controller

  • MAC Node Produced by an UNDI Driver

    • Identify Location of Physical Connector on NIC

  • PCI Slots

    • Identify Physical Location of PCI Slots in the System

  • SCSI / SCSI RAID / Fiber Channel

    • Controller - Typically name of the PCI Controller

    • Channel - Identify Physical Location of the SCSI Channel

    • Disk - Use Results from INQUIRY Command


Option rom size reduction l.jpg

Driver Guidelines

Option ROM Size Reduction

  • Use EFI Compression

  • Compile with EFI Byte Code Compiler

    • Single Binary for x86, x64 and Itanium

    • Smaller than Itanium Binaries

    • Comparable to x86 Binaries

    • Compresses Well ~ 50%


How to improve portability l.jpg

Driver Guidelines

How To Improve Portability

  • Do Not Assume Max Number of Children

  • Do Not Use Fixed Memory Addresses

  • Do Not Use Assembly

  • Do Not Use Floating Point Arithmetic

  • Some Minor EBC Porting Considerations

  • Bus Drivers Should Support Producing 1 Child at a time if possible (improves boot performance)

Driver Guidelines Improve Portability


Efi driver writer s guide l.jpg

Driver Writer’s Guide

EFI Driver Writer’s Guide

  • Captures Practical Experiences

  • Use as a Recipe Book

  • Must Read for all EFI Driver Developers

  • Living Document

    • Content Based on Industry Feedback

    • Updated as Techniques are Refined

    • Updated as New Technologies are Introduced


General topics l.jpg

Driver Writer’s Guide

General Topics

  • Overview of EFI Concepts

  • EFI Services

    • Commonly Used by EFI Drivers

    • Rarely Used by EFI Drivers

    • Should Not Be Used by EFI Drivers

  • General Driver Design Guidelines

  • Classes of EFI Drivers

  • Driver Entry Point

  • Private Context Data Structures

  • EFI Driver Model Protocols


Platform specific topics l.jpg

Driver Writer’s Guide

Platform Specific Topics

  • PCI Driver Guidelines

  • USB Driver Design Guidelines

  • SCSI Driver Design Guidelines

  • Size Optimizations

  • Speed Optimizations

  • Itanium Processor Family Considerations

  • EFI Byte Code Considerations

  • Building/Testing/Debugging EFI Drivers


Benefits of following efi driver guidelines l.jpg

Driver Writer’s Guide

Benefits of following EFIDriver Guidelines

  • Following EFI Driver Guidelines

    • Improves Portability, Quality, and Interoperability

    • Reduces Implementation Effort

    • May Increase Performance

    • May Reduce FLASH Overhead

EFI Driver Writer’s Guide Helps Improve EFI Drivers


Summary l.jpg

Summary

  • Good Designs Save Time and Money

  • Many Tools Available to Test and Debug

  • Using Driver Guidelines Improves Portability

  • Compile in EBC to have one driver image to support x86, x64 and Itanium.


Further information l.jpg

Further Information

  • http://developer.intel.com/technology/EFI

    • EFI Web site for information, IDF presentations and EFI Driver Writer’s Guide

  • http://www.uefi.org

    • Website for Unified EFI Forum

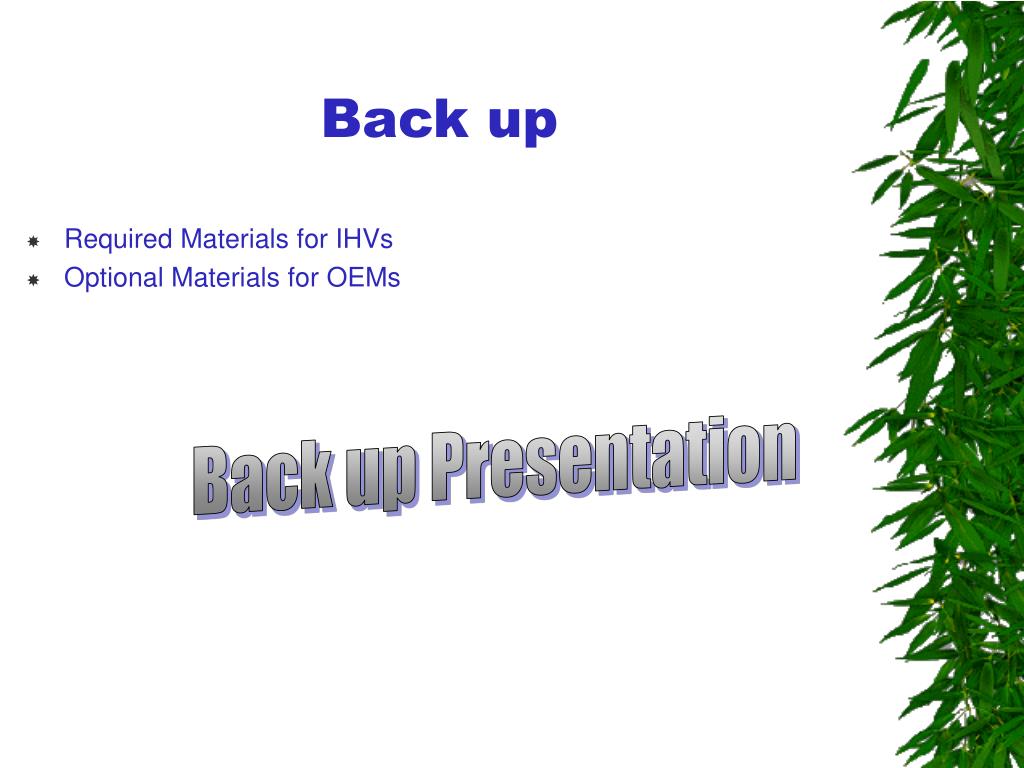

Back up l.jpg

Back up

  • Required Materials for IHVs

  • Optional Materials for OEMs

Back up Presentation


Agenda37 l.jpg

Agenda

  • Introduction

  • EFI Shell

  • EFI Toolkit

  • 3rd Party Libraries


What are efi applications l.jpg

What are EFI Applications?

  • EFI Applications extend firmware

    • No hardware dependence

    • No OS dependence

  • Portable across platforms

    • IA-32, Intel® 64, IA-64

  • Enables rapid application development


What is an efi application l.jpg

What is an EFI Application?

  • An EFI Loadable Image

    • Loaded by EFI loader just like drivers

    • Does not register protocols like drivers do

    • Consumes protocols

    • Typically user driven (exits when task completed)

    • Same set of interfaces available as drivers have

  • Can be used for

    • Platform diagnostics

    • Factory diagnostics

    • Utilities

    • Driver prototyping

    • ‘Platform’ applications


Efi shell l.jpg

EFI Shell

  • An EFI Application

  • Interactive Console Interface

  • Application Launch

  • Load EFI Drivers

  • Scripting Capability

  • Automatic execution of startup script file

  • Console redirection to files

  • Open Source located on http://efi-shell.tianocore.org project


Efi toolkit components l.jpg

EFI Toolkit Components

Source Included

  • Utilities

  • C Library

  • Network Stack

  • Platform Management

  • Compression

  • Database

Useful tools for EFI

application development

Open Source located on http://efi-toolkit.tianocore.org project


Programming models l.jpg

Programming Models

  • Native EFI Model

    • Uses only EFI constructs

    • Access to all EFI constructs

    • Smaller code size

  • Portability Model

    • Familiar programming interfaces

    • Easier to port ANSI/POSIX based programs

    • Larger binary image

  • A single program can use both


Efi toolkit integration l.jpg

EFI Toolkit Integration

Database

Utilities

C Library

Network

Compress

Management

EFI API

EFI

Hardware


C library l.jpg

C Library

  • FreeBSD Port

  • ANSI/POSIX compliant

  • System I/O- open(), read(), write(), close(), stat()

  • Standard I/O- fopen(), printf(), gets(), …

  • String/Char- strcmp(), isascii(), atoi(), …

  • Memory- malloc(), free(), realloc(), …

  • Time/Date- time(), asctime(), ctime(), …

  • Math- sqrt(), pow(), sin(), log(), …


Efi library l.jpg

EFI Library

  • “Lite Weight” C Library like functions

    • String Functions

    • Memory Support Functions

    • CRC Support Functions

    • Text I/O Functions

    • Math Functions

    • Spin Lock Functions

  • Specific EFI functions

    • Handle and Protocol Support Functions

    • Device Path Support Functions


Network components l.jpg

Network Components

  • Port of FreeBSD TCP/IP stack

  • Supports standard protocols

    • IPv4, ICMP, ARP, UDP, TCP

  • Socket library interface

  • Implemented as an EFI protocol


Miscellaneous l.jpg

Miscellaneous

  • SMBIOS Library

    • Library routines for parsing SMBIOS tables

  • Database

    • btree

    • Hashing

  • Compression

    • General purpose compression/decompression

    • Gzip functionality


Utilities l.jpg

Utilities

  • Network utilities

    • FTP client and server, ping

  • Text editor

  • Scripting interpreter (Python)

  • Sample applications


Efi hello c l.jpg

EFI Hello.c

#include "efi.h"

EFI_STATUS

InitializeHelloApplication (

IN EFI_HANDLE ImageHandle,

IN EFI_SYSTEM_TABLE *SystemTable

)

{

UINTN Index;

SystemTable->ConOut->OutputString(SystemTable->ConOut,

L”Hello application started\n");

SystemTable->ConOut->OutputString(SystemTable->ConOut,

L"\n\r\n\r\n\rHit any key to exit this image\n\r");

SystemTable->BootServices->WaitForEvent(

1, &(SystemTable->ConIn->WaitForKey), &Index);

SystemTable->ConOut->OutputString(SystemTable->ConOut,

L"\n\r\n\r");

return EFI_SUCCESS;

}


Efi library hello c l.jpg

EFI Library Hello.c

#include "efi.h"

#include "efilib.h"

EFI_STATUS

InitializeHelloLibApplication (

IN EFI_HANDLE ImageHandle,

IN EFI_SYSTEM_TABLE *SystemTable

)

{

InitializeLib (ImageHandle, SystemTable);

Print(L"\n\n\nHelloLib application started\n\n\n");

Print(L"\nHit any key to exit this image\n");

WaitForSingleEvent(ST->ConIn->WaitForKey,0);

ST->ConOut->OutputString (ST->ConOut, L"\n\r\n\r");

return EFI_SUCCESS;

}


C library hello c l.jpg

C Library Hello.c

#include <atk_libc.h>

#include <stdio.h>

EFI_STATUS

InitializeHelloLibCApplication (

IN EFI_HANDLE ImageHandle,

IN EFI_SYSTEM_TABLE *SystemTable

)

{

InitializeLib(ImageHandle, SystemTable);

printf("Hello LibC application started\n\n\n");

printf("Hit C/R to exit this image\n");

return( getchar() );

}


C library hello c52 l.jpg

C Library Hello.c

#include <atk_libc.h>

#include <stdio.h>

int main (int argc, char **argv)

{

printf("Hello LibC application started\n\n\n");

printf("Hit C/R to exit this image\n");

return( getchar() );

}


C support l.jpg

C++ Support

  • No direct support

    • No Global constructors and destructors

  • New and Delete can be mapped to malloc/free


Portable embedded graphics l.jpg

Portable Embedded Graphics

  • Portable Embedded Graphics

    • Portable graphics library for EFI

    • Similar windowing components (widgets)

      • Dialog boxes

      • Progress bars, scroll bars

      • Text boxes

      • Window Management

      • Fonts

      • Bitmaps, JPEG, …

  • Contact Swell Software

    • http://www.swellsoftware.com


Peg components l.jpg

PEG Components


Summary56 l.jpg

Summary

  • EFI Applications extend firmware

    • Provides system independence in the pre-boot space

      • Hardware

      • Operating System

      • Platform

        • IA-32, Intel® 64, and IA-64

  • Large library support

  • EFI Shell provides convenient launch point


Further information57 l.jpg

Further Information

  • https://efi-toolkit.tianocore.org/

    • EFI Web site for EFI Toolkit download

  • https://www.TianoCore.org

    • Website for EFI open source resources

      • EFI Developer Kit (EDK)

        • Nt32 emulation environment

      • EFI Shell Source

  • http://www.swellsoftware.com

    • Portable Embedded Graphics toolkit

  • http:/uefi.org

    • UEFI Specification


  • Login
