HSDL. Hierarchical Scan Description Language. The Hierarchical Scan Description Language ( HSDL ) was developed by to complement BSDL. HSDL using the same subset of VHSIC Scan Description Language (VHDL) statements as BSDL.

Download Presentation

HSDL

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Hsdl

HSDL


Hsdl

Hierarchical

Scan

Description

Language


The hierarchical scan description language hsdl was developed by to complement bsdl

The Hierarchical Scan Description Language (HSDL) was developed by to complement BSDL.


Hsdl using the same subset of vhsic scan description language vhdl statements as bsdl

HSDL using the same subset of VHSIC Scan Description Language (VHDL) statements as BSDL.


Bsdl focuses on describing only ieee 1149 1 compliant devices

BSDL focuses on describing only IEEE 1149.1 compliant devices.


It does not address ieee 1149 1 at the board system or multi chip module levels

It does not address IEEE 1149.1 at the board, system, or multi-chip module levels.


Bsdl also needs a few device level features added to better support interactive debug

BSDL also needs a few device-level features added to better support interactive debug.


Hsdl

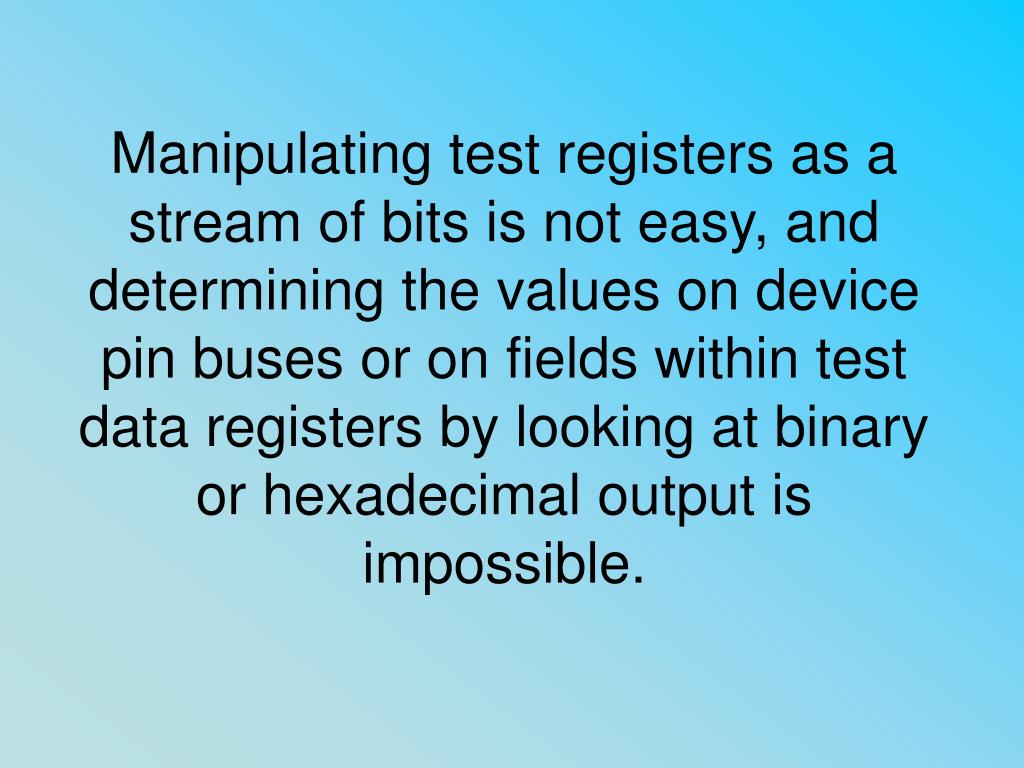

Manipulating test registers as a stream of bits is not easy, and determining the values on device pin buses or on fields within test data registers by looking at binary or hexadecimal output is impossible.


Hsdl

HSDL picks up where BSDL stops, describing additional attributes of IEEE 1149.1 devices and how IEEE 1149.1 devices are connected at the board and system level.


Hsdl addresses a number of deficiencies in both bsdl and configuration files

HSDL addresses a number of deficiencies in both BSDL and Configuration Files.


Hsdl

It supports all the features of BSDL for industry compatibility, providing support for automatic test-pattern generation, validation, and synthesis tools.


Hsdl

HSDL also supports all the convenience features of Configuration Files, providing the ability to describe boards, name subsets of test registers, create symbol tables for test registers or fields that use symbolic, named values, prevent illegal states from being established, and so forth.


Hsdl

For automated tools, HSDL includes new features such as those for describing different status values captured by a test register and designating them as "pass"or "fail" values.


Hsdl

For interactive use, HSDL includes new features such as those for adding descriptive text to each item in the entity.


Hsdl

HSDL is a strict superset of BSDL: All statements that are part of HSDL device entities but notpart of BSDL are optional.


Thus bsdl is an acceptable input to an hsdl translator

Thus, BSDL is an acceptable input to an HSDL translator!!!


Hsdl

HSDL device entities can be made acceptable to a BSDL translator simply by feeding them to the BSDL translator and deleting all the new statements that cause syntax errors, with no loss or change inmeaning.


Hsdl

HSDL uses the BSDL entity and package in new ways: Entities in HSDL describe modules as well as devices.


Hsdl

(A module is any level of architecture above the device level, including boards, multichip modules, backplanes, subsystems, and systems.)


Hsdl

In addition, HSDL provides two new packages used to indicate that an entity is an HSDL device or module.


Bsdl is great for describing how ieee 1149 1 is implemented in a device but stops there

BSDL is great for describing how IEEE 1149.1 is implemented in a device, but stops there…


Hsdl

HSDL provides a method for describing how IEEE 1149.1 devices are connected at the board, module, and system levels!


Hsdl

HSDL

serves needs

not addressed

by BSDL:


Hsdl

Describes the test bus

interconnections of IEEE 1149.1

at the board or module level

Improves ease-of-use and

reduces risk during interactive

design debug and verification

Allows descriptions of

boards with dynamic and

reconfigurable architectures


Hsdl module statements use much of the same syntax as bsdl

HSDL module statements use much of the same syntax as BSDL.


Hsdl

New statements have been added to describe the members and scan paths of the module and to simplify interactive use.


Hsdl

HSDL employs the same subset of VHDL statements used by BSDL. However, the VHDL statements are used in more flexible ways in HSDL than in BSDL.


Hsdl

For example, BSDL onlyattaches attributes to the entity. HSDL attaches attributes to the entity, the ports, and to Symbol Table and Path constants.


These three different vhdl items are used in the same manner in hsdl as they are in bsdl

These three different VHDL items are used in the same manner in HSDL as they are inBSDL.


Hsdl has two types of entities however device entities and module entities

HSDL has two types of entities, however: device entities and module entities.


A device entity describes an ieee 1149 1 device with test registers instructions and a tap

A device entitydescribes an IEEE 1149.1 device, with test registers, instructions, and a TAP.


Hsdl

A module entitydescribes an IEEE 1149.1 module, which contains other device and module entities arranged along a scan path.


Examples

EXAMPLES…


Hsdl

ENTITY DESCRIPTIONThe entity statement names the entity, such as the module name (e.g., BOARD). An entity description begins with an entity statement and terminates with an end statement:

entity BOARD is {statements to describe the entity go here}end BOARD;


Hsdl

GENERIC PARAMETER(Unchanged from BSDL)A generic parameter may come from outside the entity or it may be defaulted, such as a package type (e.g., "UNDEFINED").

generic

(PHYSICAL_PIN_MAP : string := "UNDEFINED")


Hsdl

LOGICAL PORT DESCRIPTION(Unchanged from BSDL)The port description gives logical names to the I/O pins (system and TAP pins), and denotes their nature such as input, output, bidirectional, and so on.

port (TDI:in bit;

TDO:out bit;

TMS:in bit;

TCK:in bit);


Hsdl

USE STATEMENTSThe use statement refers to external definitions found in packages and package bodies.

use STD_1149_1_1990.all;

use HSDL_module.all;


Hsdl

PIN MAPPING(S)(Unchanged from BSDL)The pin mapping provides a mapping of logical signals onto the physical pins of a particular entity.

attribute PIN_MAP of BOARD : entity is

PHYSICAL_PIN_MAP;

constant PINOUT1 : PIN_MAP_STRING :=

"TDI:1, TDO:2, TMS:3, TCK:4, GND:5";


Hsdl

SCAN PORT IDENTIFICATION(Unchanged from BSDL)The scan port identification statements define the entity's TAP.

attribute TAP_SCAN_IN of TDI : signal is TRUE;

attribute TAP_SCAN_OUT of TDO : signal is TRUE;

attribute TAP_SCAN_MODE of TMS : signal is TRUE;

attribute TAP_SCAN_CLOCK of TCK : signal is

(5.0e6, LOW);


Hsdl

PATH DESCRIPTIONModule paths are intended to describe the netlist of TAP signals (scan paths) on the board

constant boardpath1 : STATIC_PATH :=

"U1, U2";

end BOARD;


And there are many more

And there are many more…
