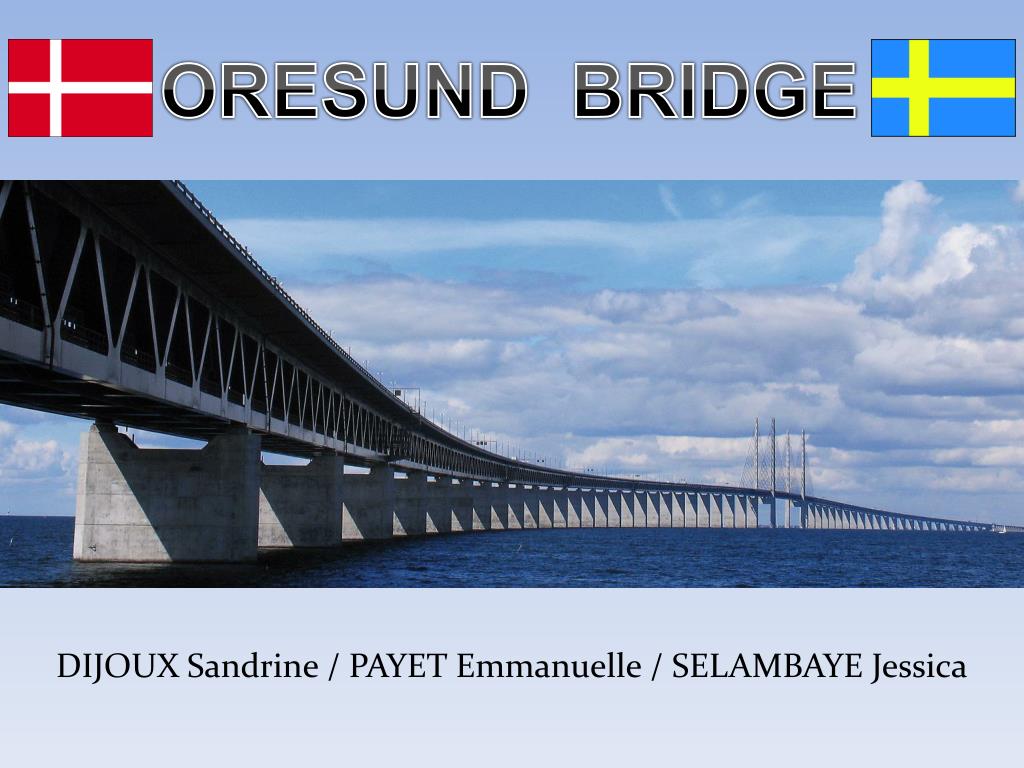

  1. ORESUND BRIDGE DIJOUX Sandrine / PAYET Emmanuelle / SELAMBAYE Jessica

  2. ORESUND BRIDGE DIJOUX Sandrine SELAMBAYE Jessica PAYET Emmanuelle

  3. SUMMARY History The bridge The railway and the tunnel Conclusion Webography

  4. KEY WORDS

  5. LOCALISATION

  6. HISTORY Malmo Copenhagen 16 kilometers Sweden Denmark OresundStrait

  7. HISTORY 3,510 meter 1 2 4,055 meter 7,845 meters Peberholm 3

  8. TIME LINE 9-12/6/2 000 thousands of people who walked, cycled or roller 17/7/95 Contract tunnel & contract the artificial island 16/7/97 Svanen 6/1/99 The 20th and final tunnel element is placed in the tunnel trench 27/11/95 Øresundskonsortiet signs a contract

  9. 1/7/2 004 Oresund Bridge Birthday’s 29/6/2001 biological environmental demands 12/6/2 000 80,000 participants/ half marathon 1/7/2 000 The inauguration of the Oresund Bridge 1/4/2002 236,651 vehicles cross the bridge

  10. CROSS-BORDER ACTIVITY

  11. WHY A CABLE-STAYED BRIDGE? Suspension bridge Cables Deck Main cable

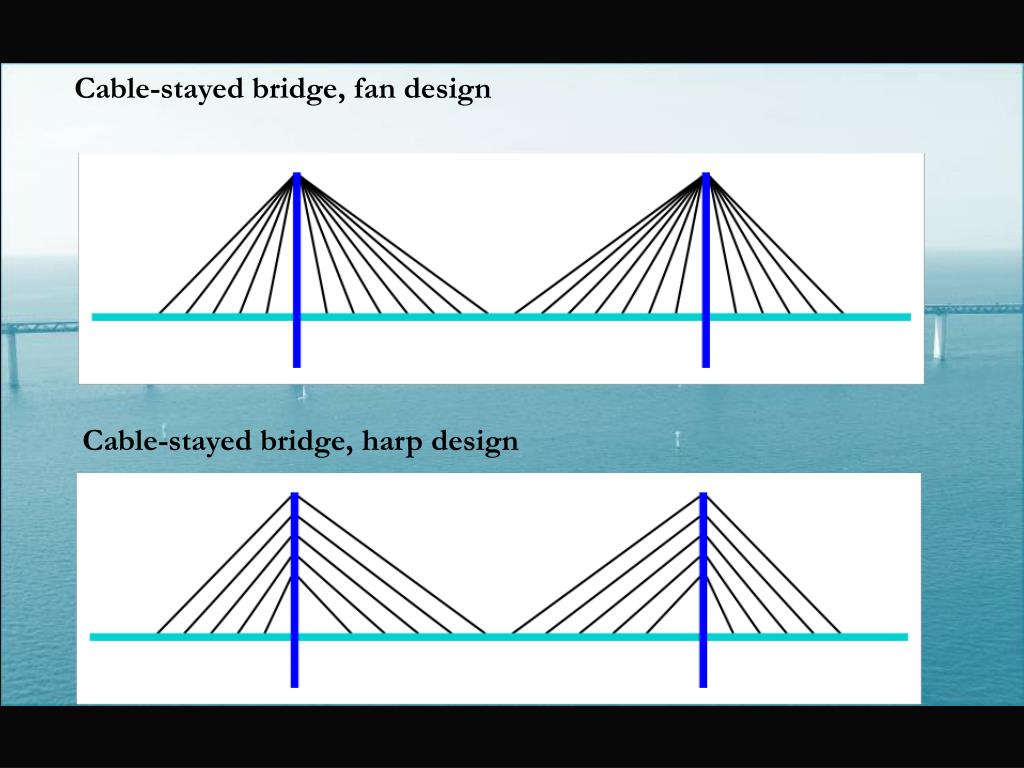

  12. Cable-stayed bridge, fan design Cable-stayed bridge, harp design

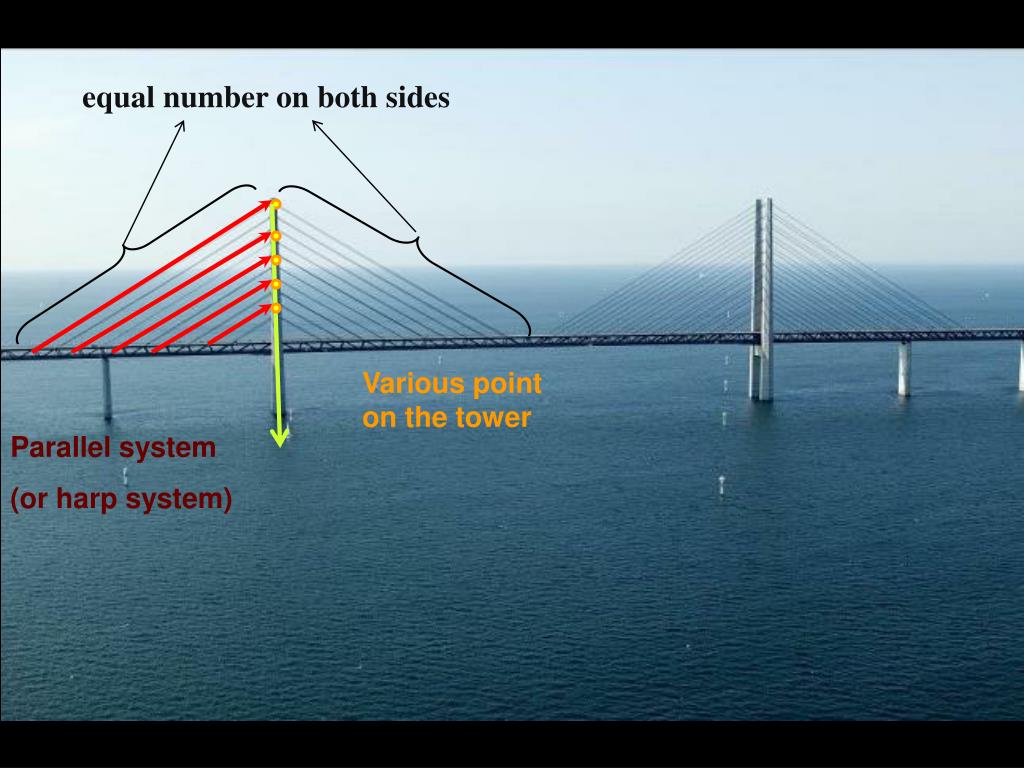

  13. equal number on both sides Various point on the tower Parallel system (or harp system)

  14. Total lenght: 7 845 m

  15. Total lenght: 7 845 M Suspendedlenght: 1 092 m Longestspan: 490 m

  16. Total lenght: 7 845 M Suspendedlenght: 1 092 m Longestspan: 490 m Width: 23.5 m, for 4 lanes of traffic

  17. Total lenght: 7 845 M Suspendedlenght: 1 092 m Longestspan: 490 m Width: 23.5 m Pylonheight: 203.5 m Clearance below: 57 m

  18. FONDATIONS vibrator probe frames concrete pipe driver skip trepan

  19. Matériaux utilisés et quantités

  20. Fabrication on-shore and transportation to the bridge line Main piers: construction insitu

  21. FLOATING CRANE : SVANEN 15 meters 20 meters 80 meters 9 500 N 30 meters 80 meters

  22. RAILWAY Bridge deck section The rail section is double track standard gauge (1435 mm) and capable of high-speeds exceeding 200 km/h.

  23. ARTIFICIAL ISLAND The island is approximately four kilometres long, and connects the bridge and tunnel of the Øresund link

  24. TECHNICAL INFORMATION 10m 38,8m 8,6m

  25. CONSTRUCTION OF IMMERSED TUBE TUNNEL Heavywater-proofbulkheads The precast reinforced concrete units were 8m high, 40m wide and 175m long and they weighed 55,000 metric tons.

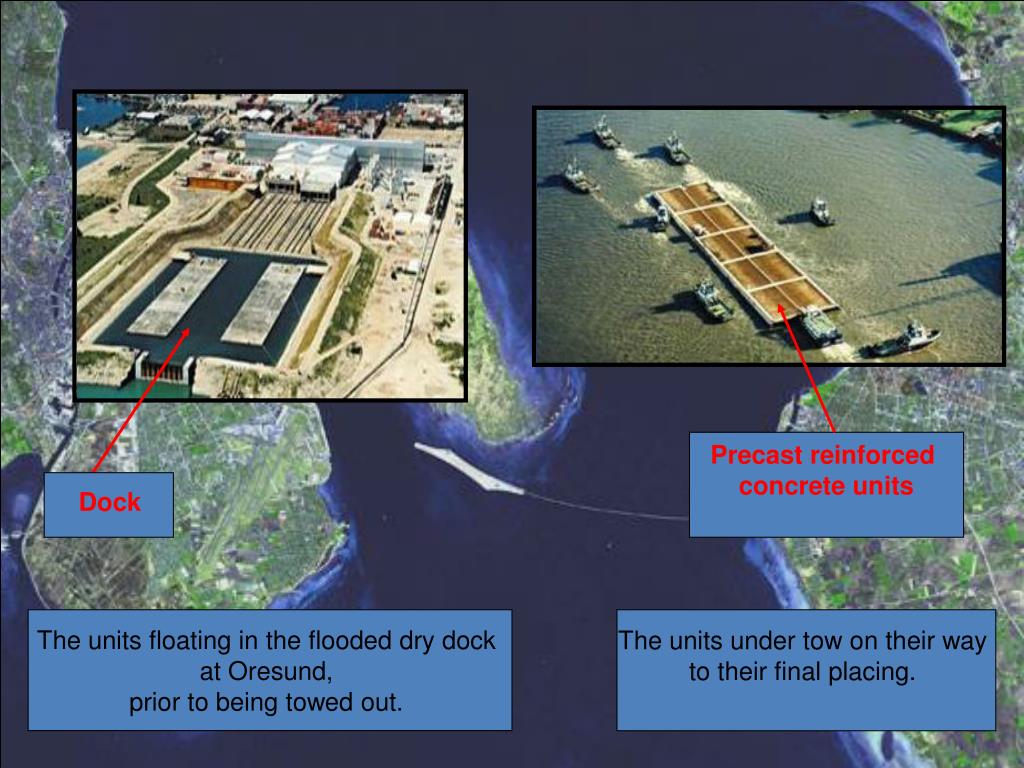

  26. Precast reinforced concrete units Dock The units floating in the flooded dry dock at Oresund, prior to being towed out. The units under tow on their way to their final placing.

  27. The precast reinforced concrete units The unit suspended over the dredged trench with the tugs holding the unit in position, ready for lowering to the sea bed.

  28. CONCLUSION

  29. WEBOGRAPHY www.wikipedia.fr www.technologystudent.com www.howeweb-talktalk.com osb.oeresundsbron.dk bridgepros.com earthobservatory.nasa.gov en.structurae.de
