  1. ViSEvAl • ViSualisation • and • EvAluation • http://team.inria.fr/stars/fr/2012/02/02/viseval-software/

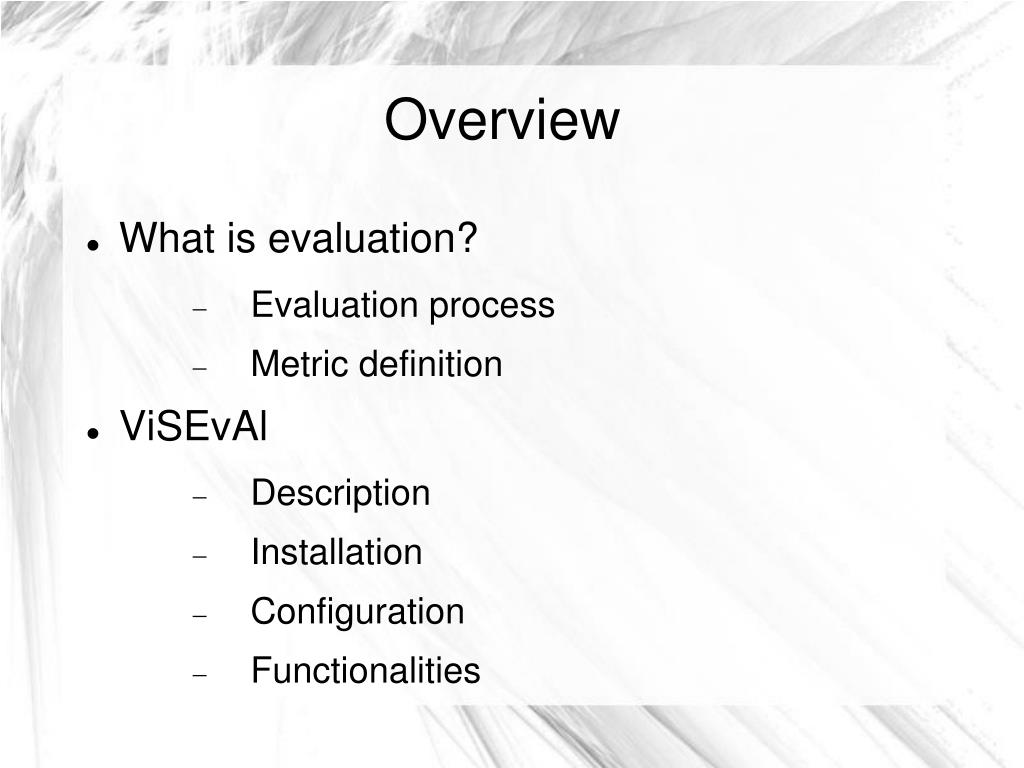

  2. Overview • What is evaluation? • Evaluation process • Metric definition • ViSEvAl • Description • Installation • Configuration • Functionalities

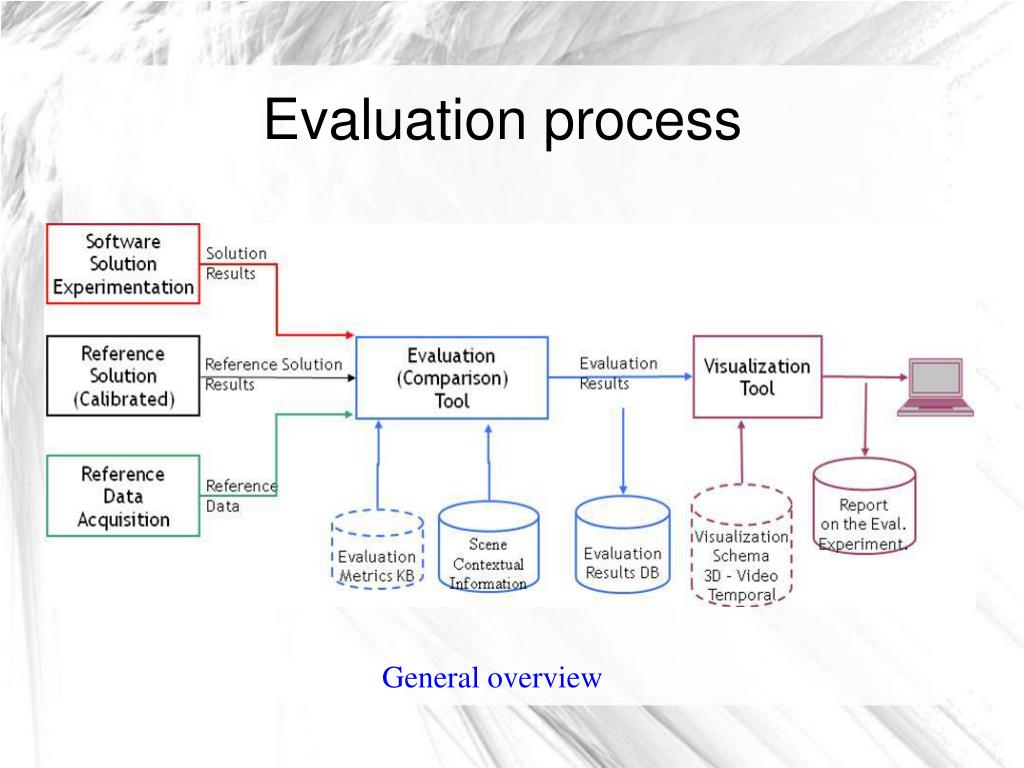

  3. Evaluation process General overview

  4. Metric definition • Metric = distance + filter + criteria • Distance: associate detected and annotated objects • Spatial: compare bonding boxes area • Temporal: compare time intervals • Filter: selects which object to evaluate • Specific type, distance to the camera, ... • Criteria: how the property of detected and annotated objects is similar? • 4 tasks: detection, classification, tracking, event detection

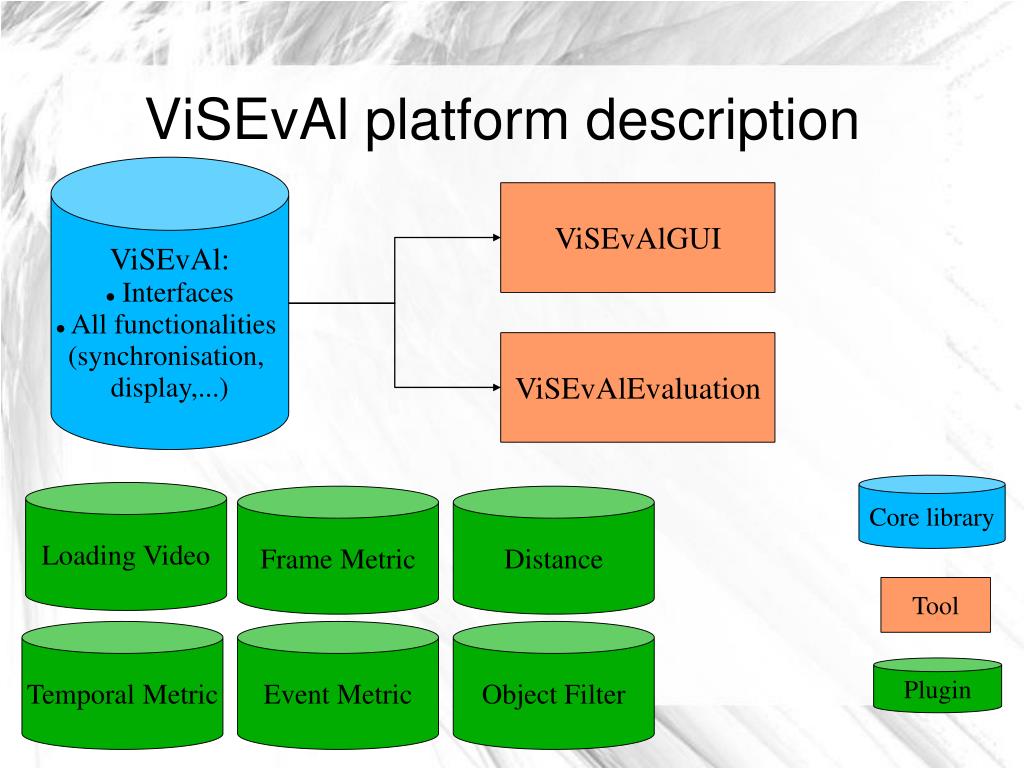

  5. ViSEvAl platform description • ViSEvAl: • Interfaces • All functionalities (synchronisation, display,...) ViSEvAlGUI ViSEvAlEvaluation Core library Loading Video Frame Metric Distance Tool Temporal Metric Event Metric Object Filter Plugin

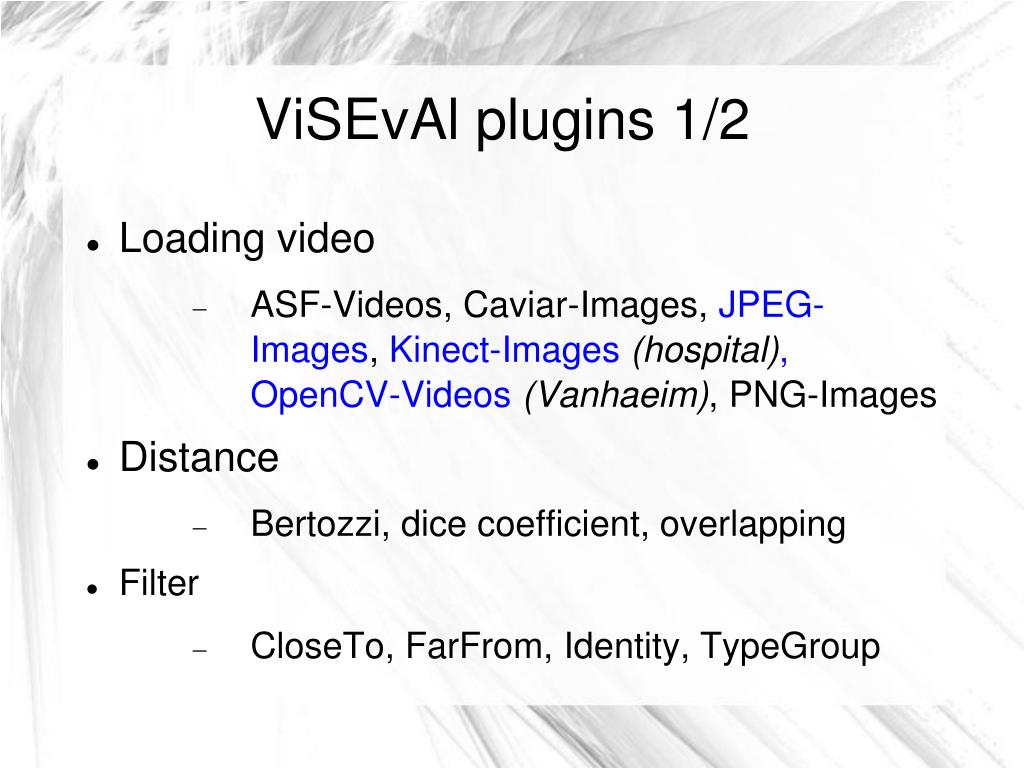

  6. ViSEvAl plugins 1/2 • Loading video • ASF-Videos, Caviar-Images, JPEG-Images, Kinect-Images (hospital), OpenCV-Videos (Vanhaeim), PNG-Images • Distance • Bertozzi, dice coefficient, overlapping • Filter • CloseTo, FarFrom, Identity, TypeGroup

  7. ViSEvAl plugins 2/2 • Criteria • Detection: M1.X • 2 criteria (M1.1: area, M1.2: silhouette) • Classification: M2.X • 2 criteria (M2.1: type, M2.2: sub type) • Tracking: M3.X • 6 criteria (M3.1: F2F, M3.2: persistence, M3.4 (tracking time), M3.5: confusion, M3.6, M3.7: confusion + tracking time, M3.8: frame detection accuracy) • Event: M4.X • 4 criteria (M4.1, M4.2: begin and end time,M4.3: common frame, M4.4: common time)

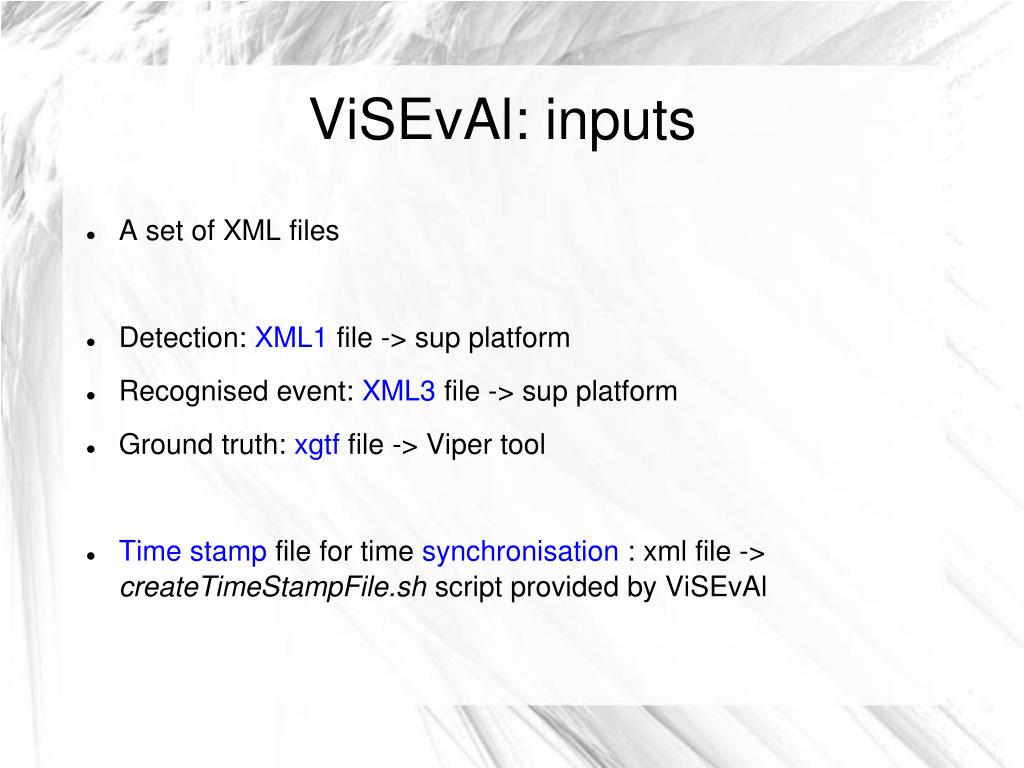

  8. ViSEvAl: inputs • A set of XML files • Detection: XML1 file -> sup platform • Recognised event: XML3 file -> sup platform • Ground truth: xgtf file -> Viper tool • Time stamp file for time synchronisation : xml file -> createTimeStampFile.sh script provided by ViSEvAl

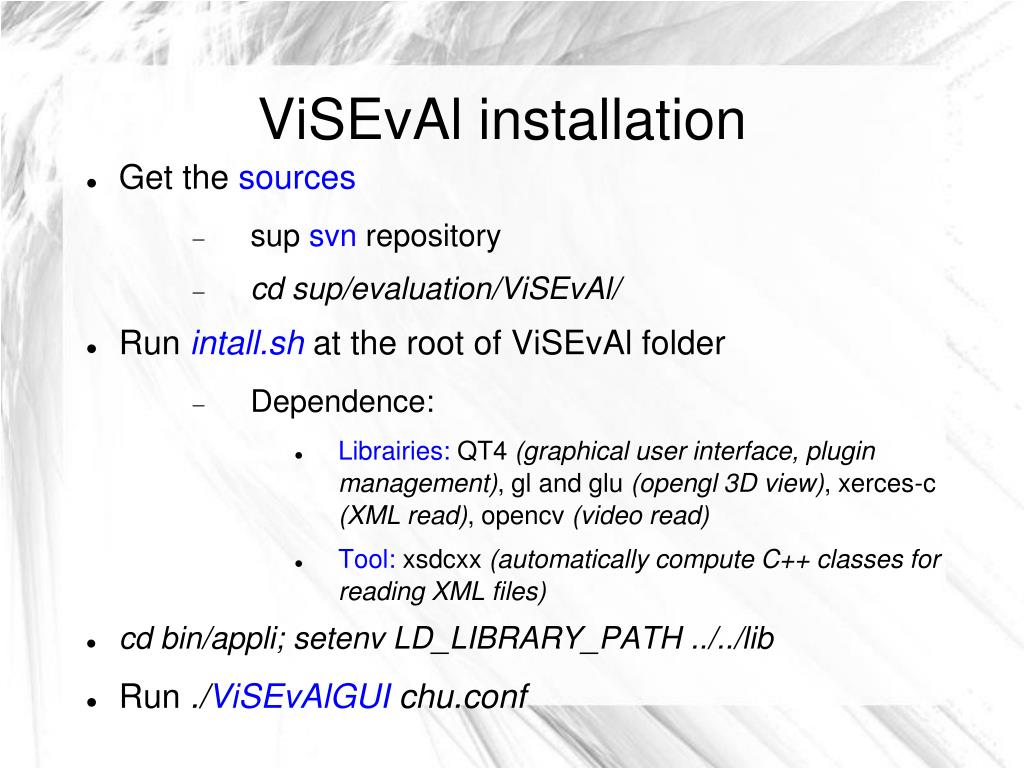

  9. ViSEvAl installation • Get the sources • sup svn repository • cd sup/evaluation/ViSEvAl/ • Run intall.shat the root of ViSEvAl folder • Dependence: • Librairies: QT4 (graphical user interface, plugin management), gl and glu (opengl 3D view), xerces-c (XML read), opencv (video read) • Tool: xsdcxx (automatically compute C++ classes for reading XML files) • cd bin/appli; setenv LD_LIBRARY_PATH ../../lib • Run ./ViSEvAlGUI chu.conf

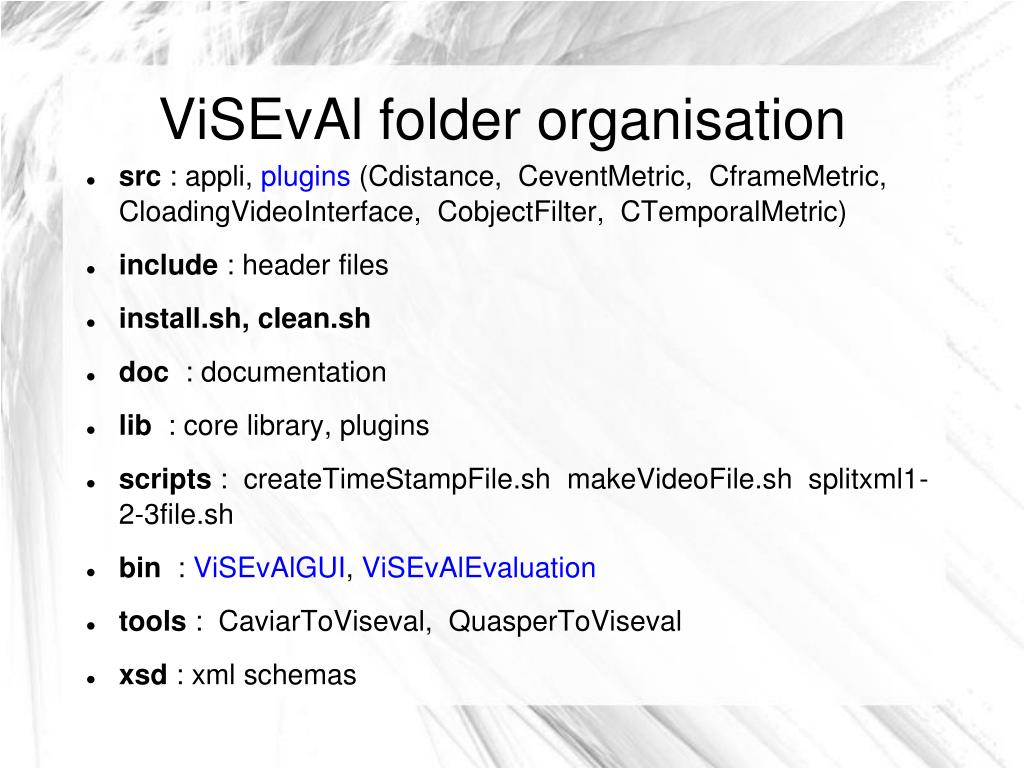

  10. ViSEvAl folder organisation • src : appli, plugins (Cdistance, CeventMetric, CframeMetric, CloadingVideoInterface, CobjectFilter, CTemporalMetric) • include : header files • install.sh, clean.sh • doc : documentation • lib : core library, plugins • scripts : createTimeStampFile.sh makeVideoFile.sh splitxml1-2-3file.sh • bin : ViSEvAlGUI, ViSEvAlEvaluation • tools : CaviarToViseval, QuasperToViseval • xsd : xml schemas

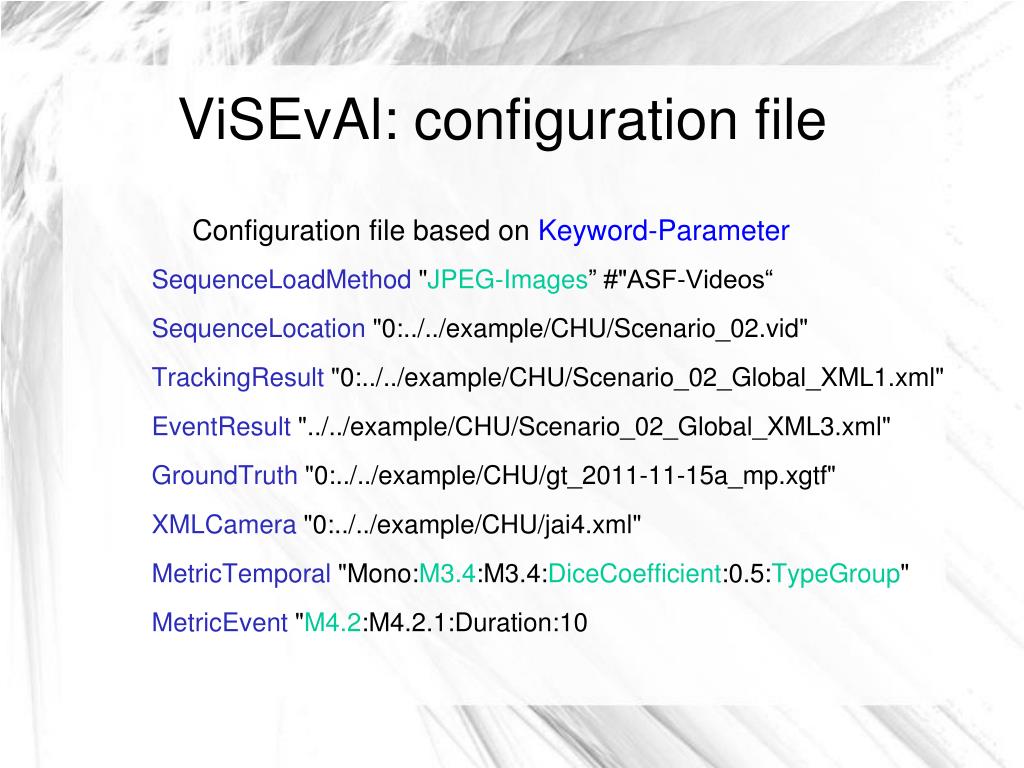

  11. ViSEvAl: configuration file Configuration file based on Keyword-Parameter SequenceLoadMethod"JPEG-Images” #"ASF-Videos“ SequenceLocation"0:../../example/CHU/Scenario_02.vid" TrackingResult"0:../../example/CHU/Scenario_02_Global_XML1.xml" EventResult"../../example/CHU/Scenario_02_Global_XML3.xml" GroundTruth"0:../../example/CHU/gt_2011-11-15a_mp.xgtf" XMLCamera"0:../../example/CHU/jai4.xml" MetricTemporal"Mono:M3.4:M3.4:DiceCoefficient:0.5:TypeGroup" MetricEvent"M4.2:M4.2.1:Duration:10

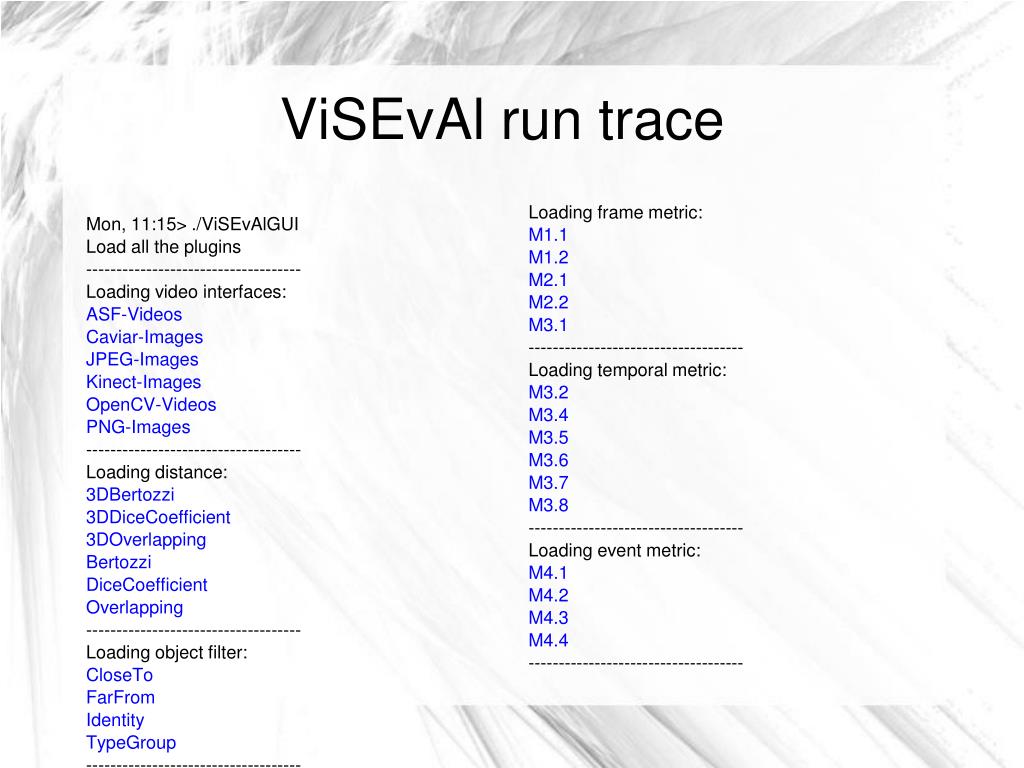

  12. ViSEvAl run trace Loading frame metric: M1.1 M1.2 M2.1 M2.2 M3.1 ------------------------------------ Loading temporal metric: M3.2 M3.4 M3.5 M3.6 M3.7 M3.8 ------------------------------------ Loading event metric: M4.1 M4.2 M4.3 M4.4 ------------------------------------ Mon, 11:15> ./ViSEvAlGUI Load all the plugins ------------------------------------ Loading video interfaces: ASF-Videos Caviar-Images JPEG-Images Kinect-Images OpenCV-Videos PNG-Images ------------------------------------ Loading distance: 3DBertozzi 3DDiceCoefficient 3DOverlapping Bertozzi DiceCoefficient Overlapping ------------------------------------ Loading object filter: CloseTo FarFrom Identity TypeGroup ------------------------------------

  13. ViSEvAl: two tools • ViSEvAlGUI • Graphical user interface • Visualise detection and ground truth on the images • User can easily select parameters (e.g. distance, threshold,...) • Frame metrics results are computed in live • ViSEvAlEvaluation • Generate a .res file containing the results of the metrics • Frame, temporal and event metrics are computed • User can evaluate several experiments • Same configuration file for the both tools

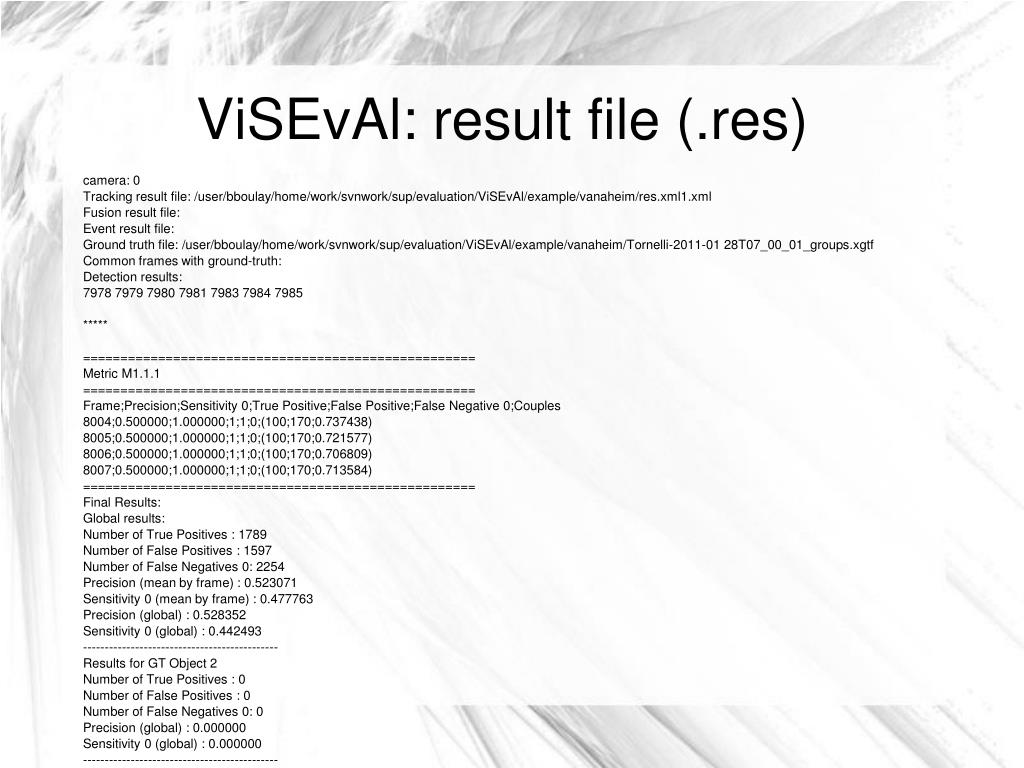

  14. ViSEvAl: result file (.res) camera: 0 Tracking result file: /user/bboulay/home/work/svnwork/sup/evaluation/ViSEvAl/example/vanaheim/res.xml1.xml Fusion result file: Event result file: Ground truth file: /user/bboulay/home/work/svnwork/sup/evaluation/ViSEvAl/example/vanaheim/Tornelli-2011-01 28T07_00_01_groups.xgtf Common frames with ground-truth: Detection results: 7978 7979 7980 7981 7983 7984 7985 ***** ==================================================== Metric M1.1.1 ==================================================== Frame;Precision;Sensitivity 0;True Positive;False Positive;False Negative 0;Couples 8004;0.500000;1.000000;1;1;0;(100;170;0.737438) 8005;0.500000;1.000000;1;1;0;(100;170;0.721577) 8006;0.500000;1.000000;1;1;0;(100;170;0.706809) 8007;0.500000;1.000000;1;1;0;(100;170;0.713584) ==================================================== Final Results: Global results: Number of True Positives : 1789 Number of False Positives : 1597 Number of False Negatives 0: 2254 Precision (mean by frame) : 0.523071 Sensitivity 0 (mean by frame) : 0.477763 Precision (global) : 0.528352 Sensitivity 0 (global) : 0.442493 --------------------------------------------- Results for GT Object 2 Number of True Positives : 0 Number of False Positives : 0 Number of False Negatives 0: 0 Precision (global) : 0.000000 Sensitivity 0 (global) : 0.000000 ---------------------------------------------
