Spacecraft accidents examining the past improving the future overview and challenger case study

SPACECRAFT ACCIDENTS:EXAMINING THE PAST, IMPROVING THE FUTUREOverview and Challenger Case Study

Bryan Palaszewski

working with the

Digital Learning Network

NASA Glenn Research Center


Introduction
Introduction

  • Why discuss this subject?

  • Past failures

  • Learning from those failures

  • Observations


Why discuss this subject
Why Discuss This Subject?

  • Many failures have occurred in large space projects, as well as all very complex projects.

  • Learning from our mistakes makes us smarter and more efficient, wasting less time and money, as well as possibly saving human lives.


Past failures 1 4

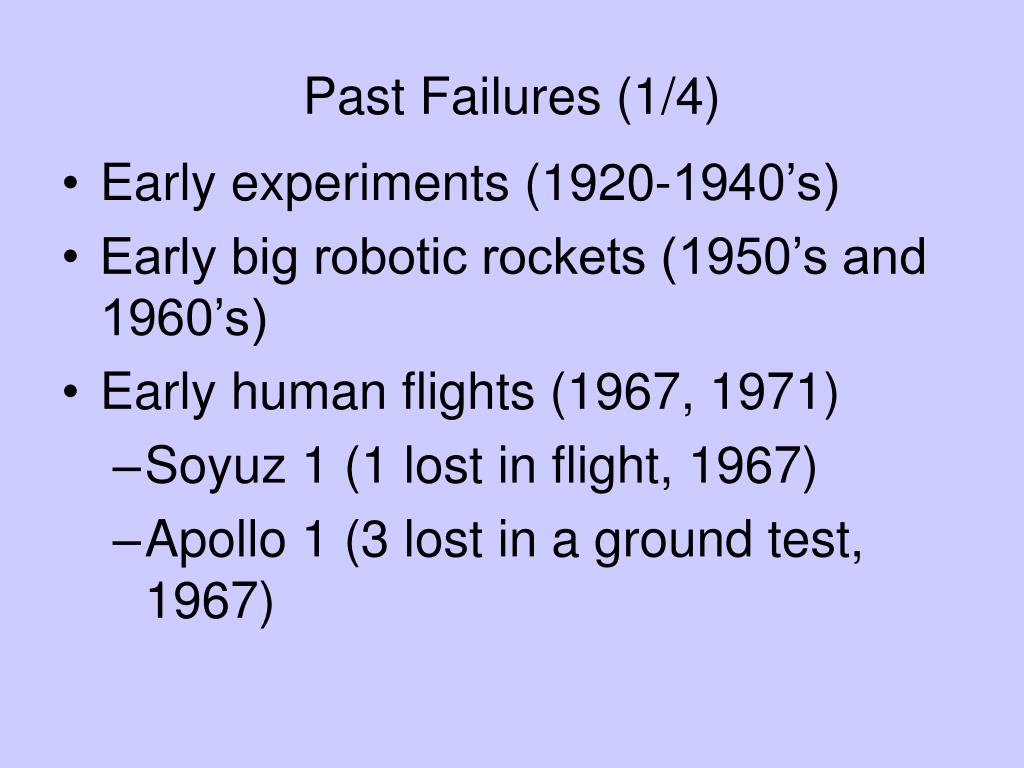

Past Failures (1/4)

  • Early experiments (1920-1940’s)

  • Early big robotic rockets (1950’s and 1960’s)

  • Early human flights (1967, 1971)

    • Soyuz 1 (1 lost in flight, 1967)

    • Apollo 1 (3 lost in a ground test, 1967)


Past failures 2 4
Past Failures (2/4)

  • Early human flights (continued)

    • Soyuz 11 (3 lost during reentry, 1971)

  • More-recent human flights

    • STS-51L, Challenger (7 persons lost, 1986)

    • STS-107, Columbia (7 persons lost, 2003)


Past failures 3 4
Past Failures (3/4)

  • Many robotic missions have had accidents or failures

    • Tracking and Data Relay Satellite (TDRS-1, ground control enabled recovery, 1983)

    • INTELSAT-VI communication satellite (Space Shuttle Endeavour used for recovery, 1992)


Past failures 4 4
Past Failures (4/4)

  • Many robotic missions have had accidents or failures (continued)

    • Mars Observer (lost, 1993)

    • Mars Climate Orbiter (lost, 1999)

    • Mars Polar Lander (crashed, 1999)

  • With each accident, an investigation is conducted to find the reason(s) for the failure.

  • Often there is a chain of incidents rather than just one cause.


Learning from those failures 1 2
Learning From Those Failures (1/2)

  • If a failure occurs, a major investigation committee is typically formed to find the cause.

    • Causes are identified (as with a detective) and solutions are suggested.


Learning from those failures 2 2

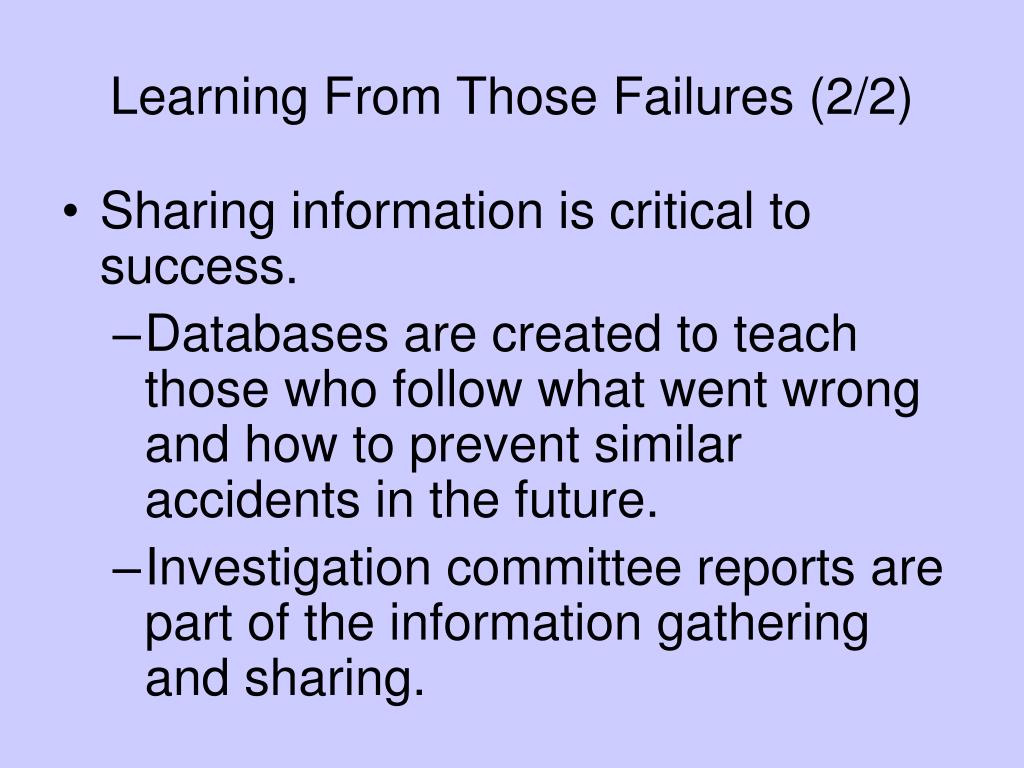

Learning From Those Failures (2/2)

  • Sharing information is critical to success.

    • Databases are created to teach those who follow what went wrong and how to prevent similar accidents in the future.

    • Investigation committee reports are part of the information gathering and sharing.


Observations
Observations

  • Communication is key to all successes.

    • Teams must understand one another to succeed.

  • Sharing information is critical to success.

  • “Teaching by doing” is important.

    • Hands-on work is very important.


Example case study

Example Case Study

STS-51L, Challenger Accident, January 28, 1986



Accident cause 1 2

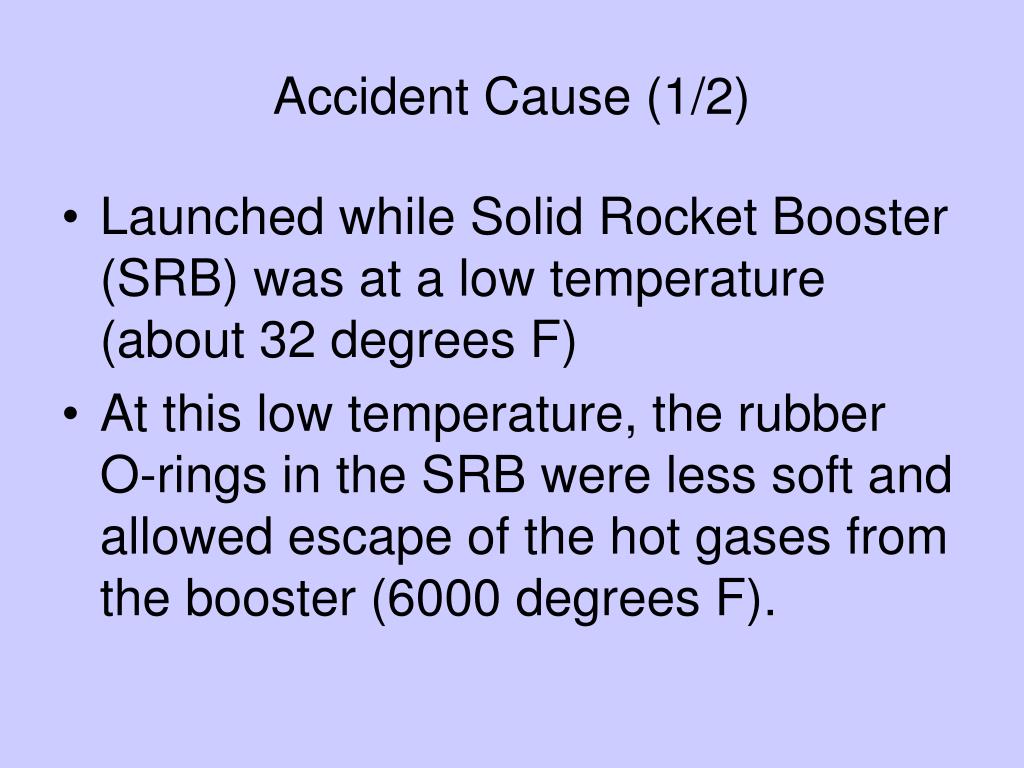

Accident Cause (1/2)

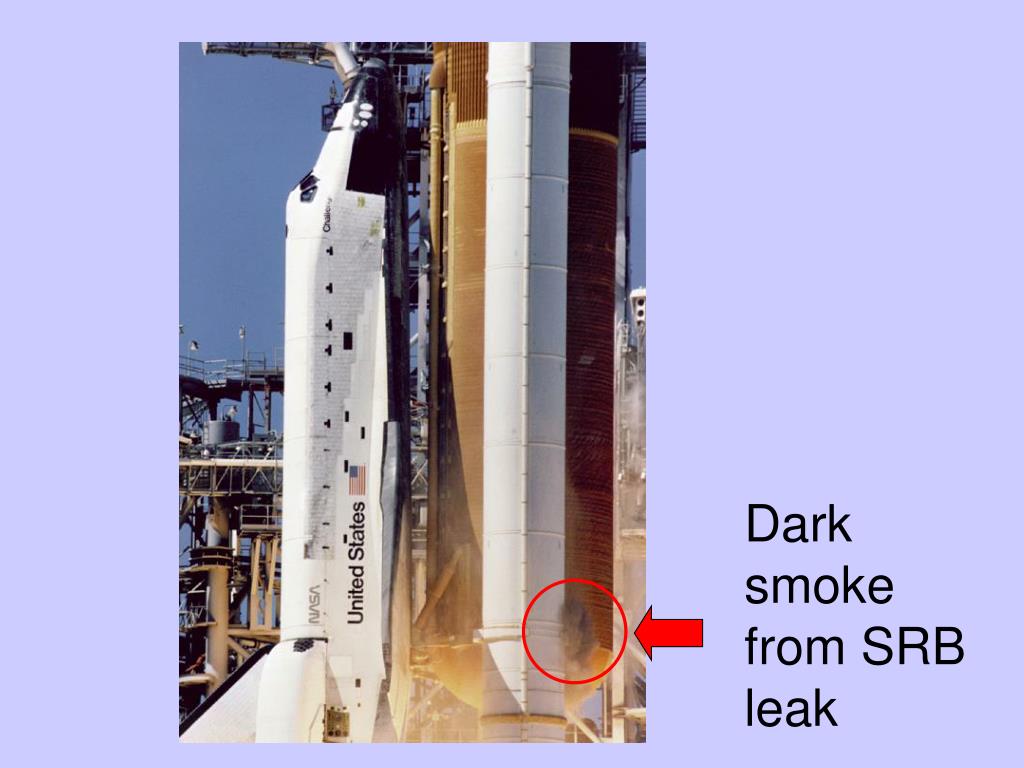

  • Launched while Solid Rocket Booster (SRB) was at a low temperature (about 32 degrees F)

  • At this low temperature, the rubber O-rings in the SRB were less soft and allowed escape of the hot gases from the booster (6000 degrees F).


Accident cause 2 2

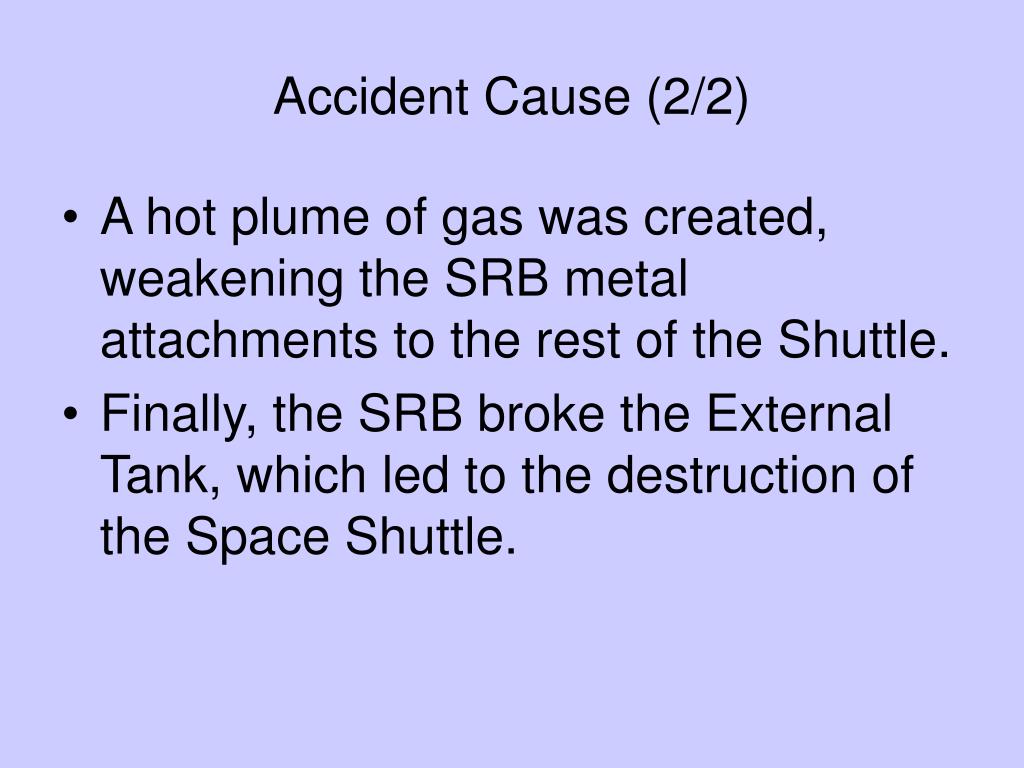

Accident Cause (2/2)

  • A hot plume of gas was created, weakening the SRB metal attachments to the rest of the Shuttle.

  • Finally, the SRB broke the External Tank, which led to the destruction of the Space Shuttle.


Results of the accident 1 5
Results of the Accident (1/5)

  • A Presidential Commission, including Neil Armstrong and Sally Ride, was formed to investigate the accident .

  • The Space Shuttle was grounded for 32 months.

  • Improvements were made to increase the sealing ability of the field joints where the leak of hot gases occurred.


Results of the accident 2 5

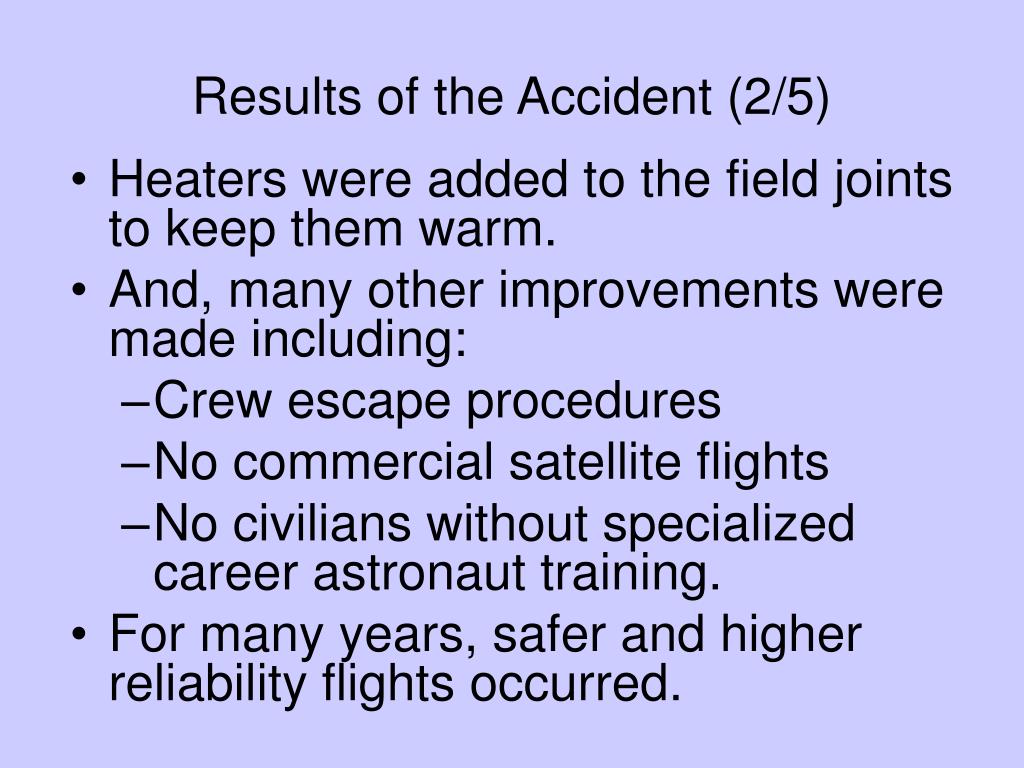

Results of the Accident (2/5)

  • Heaters were added to the field joints to keep them warm.

  • And, many other improvements were made including:

    • Crew escape procedures

    • No commercial satellite flights

    • No civilians without specialized career astronaut training.

  • For many years, safer and higher reliability flights occurred.


Results of the accident 3 5

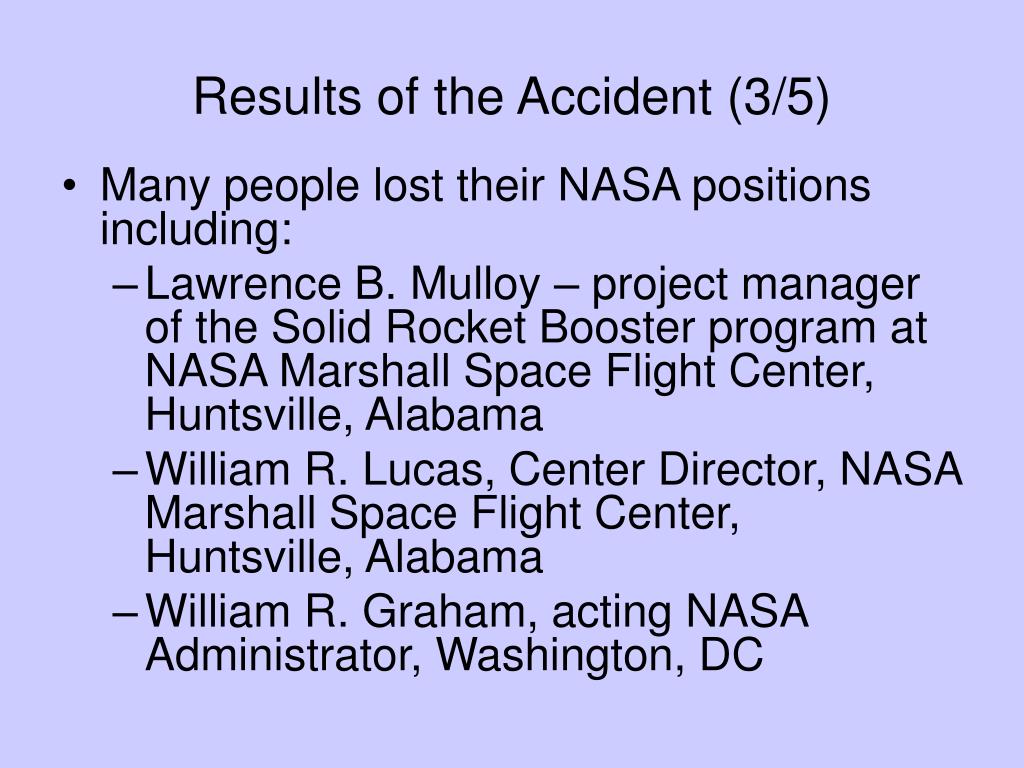

Results of the Accident (3/5)

  • Many people lost their NASA positions including:

    • Lawrence B. Mulloy – project manager of the Solid Rocket Booster program at NASA Marshall Space Flight Center, Huntsville, Alabama

    • William R. Lucas, Center Director, NASA Marshall Space Flight Center, Huntsville, Alabama

    • William R. Graham, acting NASA Administrator, Washington, DC


Results of the accident 4 5
Results of the Accident (4/5)

  • At Morton Thiokol, a private engineering firm, there were other effects:

    • Safety improvements were analyzed and created.

    • Many large-scale tests of the new SRB were conducted.

    • Roger Boisjoly, a program manager working on the SRB, had many problems (both mental and physical).


Results of the accident 5 5

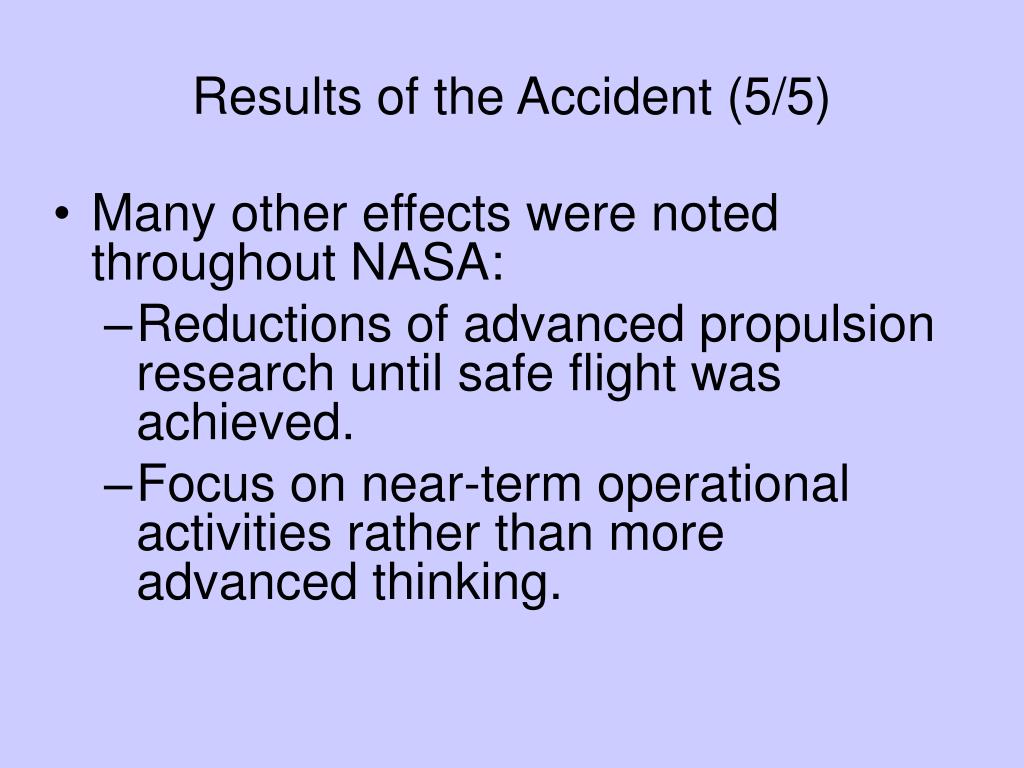

Results of the Accident (5/5)

  • Many other effects were noted throughout NASA:

    • Reductions of advanced propulsion research until safe flight was achieved.

    • Focus on near-term operational activities rather than more advanced thinking.


Thoughts of roger boisjoly morton thiokol 1 2

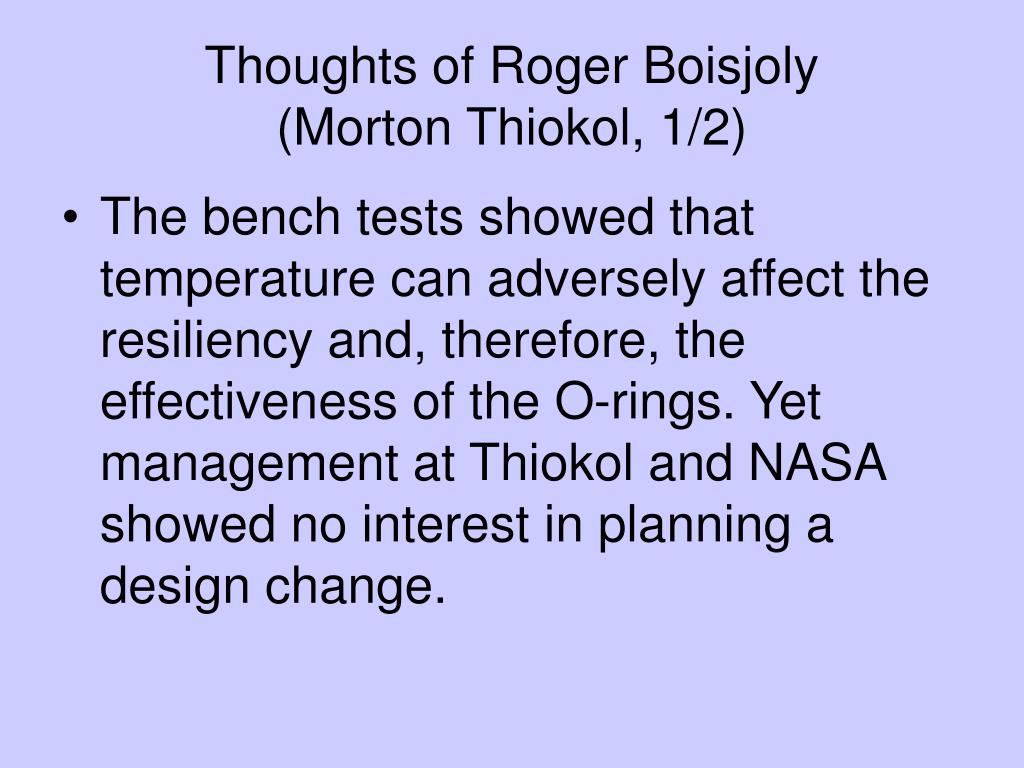

Thoughts of Roger Boisjoly (Morton Thiokol, 1/2)

  • The bench tests showed that temperature can adversely affect the resiliency and, therefore, the effectiveness of the O-rings. Yet management at Thiokol and NASA showed no interest in planning a design change.


Thoughts of roger boisjoly morton thiokol 2 2
Thoughts of Roger Boisjoly (Morton Thiokol, 2/2)

  • What general courses of action are reasonable for an engineer in this or a similar situation?

    • Consult personal advisors.

    • Gather knowledge of the problem.

    • Perform more experiments.

    • Consult peers at work.

    • Take concerns to a supervisor.

    • Write memos far up the corporate ladder.

    • Contact a professional society.
