C lessons

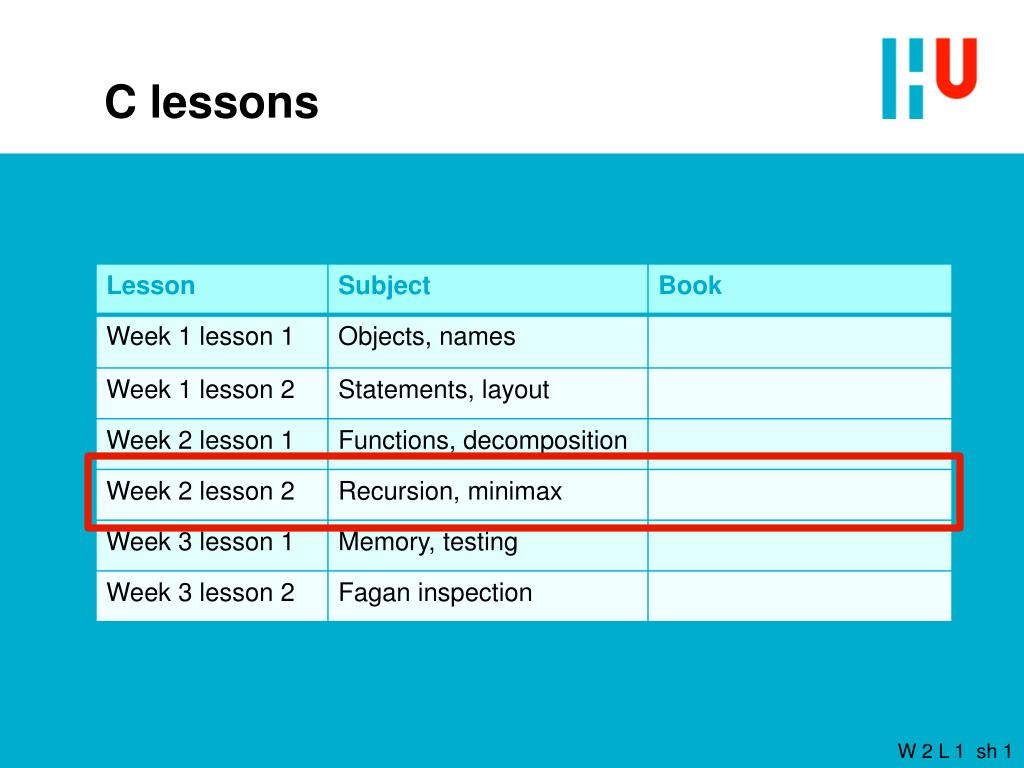

1. C lessons

2. Recursion A function can call itself unsigned int add( unsigned int a, unsigned int b ){ if( b == 0 ){ return a ); } return add( ++a, --b ); } • Useful recursion must • Have a terminating condition • Recurse to a simpler case • (nearer to the terminating condition)

3. Recursion – rewrite? One-point recursion can always be rewritten as a loop unsigned int add( unsigned int a, unsigned int b ){ while( b != 0 ){ a++; b--; } return a; } Multi-point recursion (in general) can not intlagest( node * node ){ int result = – MAXINT; if( node != NULL ){ result = maximum( result, node->value )); result = maximum( result, largest( node->left )); result = maximum( result, largest( node->right )); } return result; }

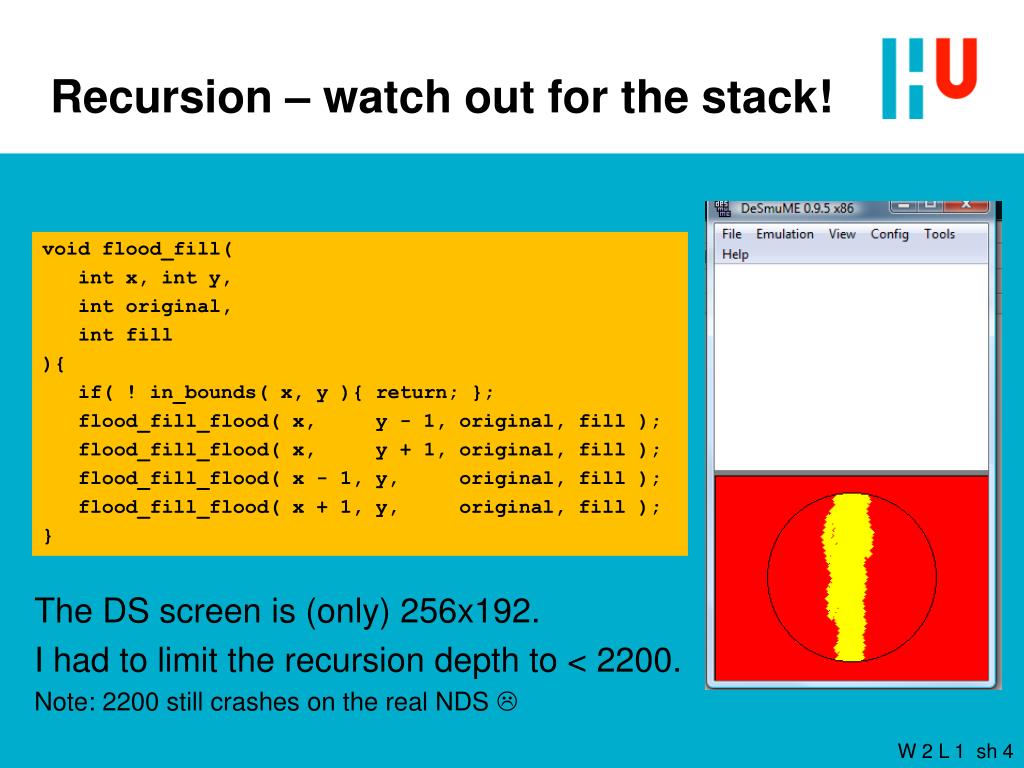

4. Recursion – watch out for the stack! void flood_fill( int x, int y, int original, int fill ){ if( ! in_bounds( x, y ){ return; }; flood_fill_flood( x, y - 1, original, fill ); flood_fill_flood( x, y + 1, original, fill ); flood_fill_flood( x - 1, y, original, fill ); flood_fill_flood( x + 1, y, original, fill ); } The DS screen is (only) 256x192. I had to limit the recursion depth to < 2200. Note: 2200 still crashes on the real NDS 

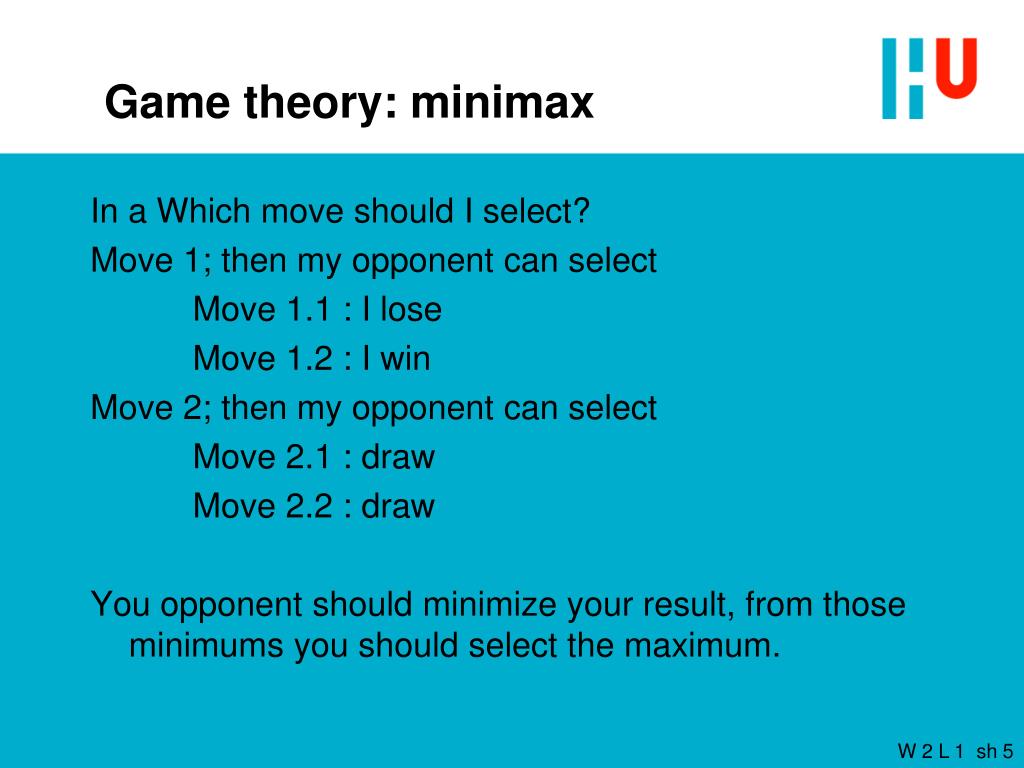

5. Game theory: minimax In a Which move should I select? Move 1; then my opponent can select Move 1.1 : I lose Move 1.2 : I win Move 2; then my opponent can select Move 2.1 : draw Move 2.2 : draw You opponent should minimize your result, from those minimums you should select the maximum.

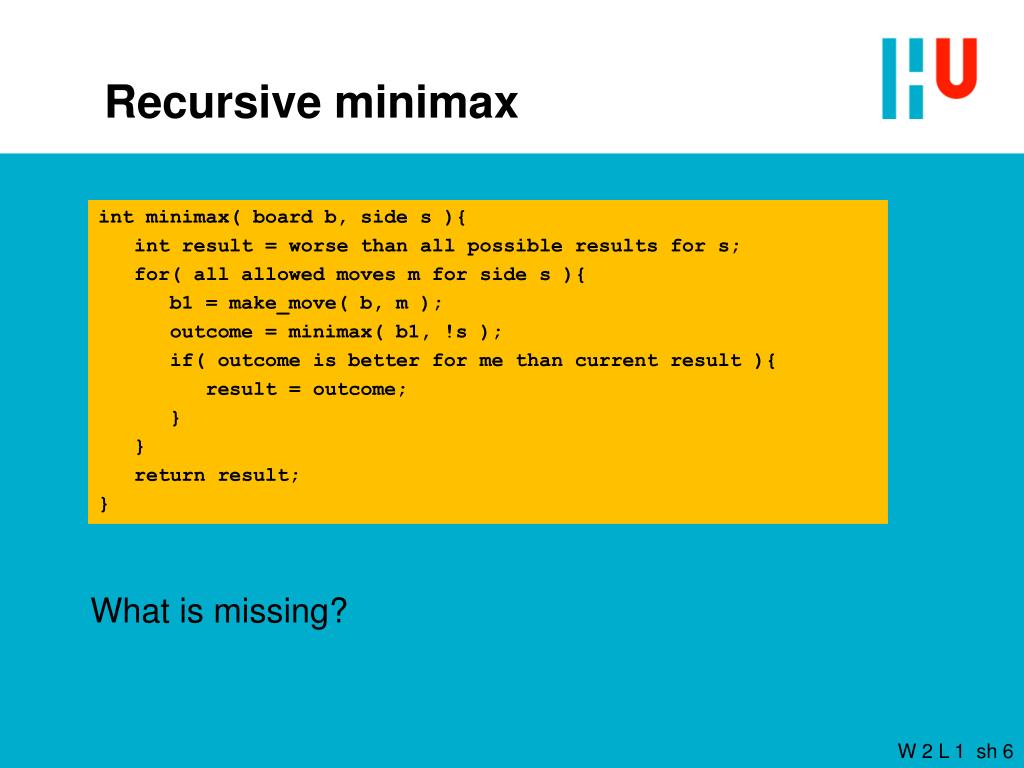

6. Recursive minimax intminimax( board b, side s ){ int result = worse than all possible results for s; for( all allowed moves m for side s ){ b1 = make_move( b, m ); outcome = minimax( b1, !s ); if( outcome is better for me than current result ){ result = outcome; } } return result; } What is missing?

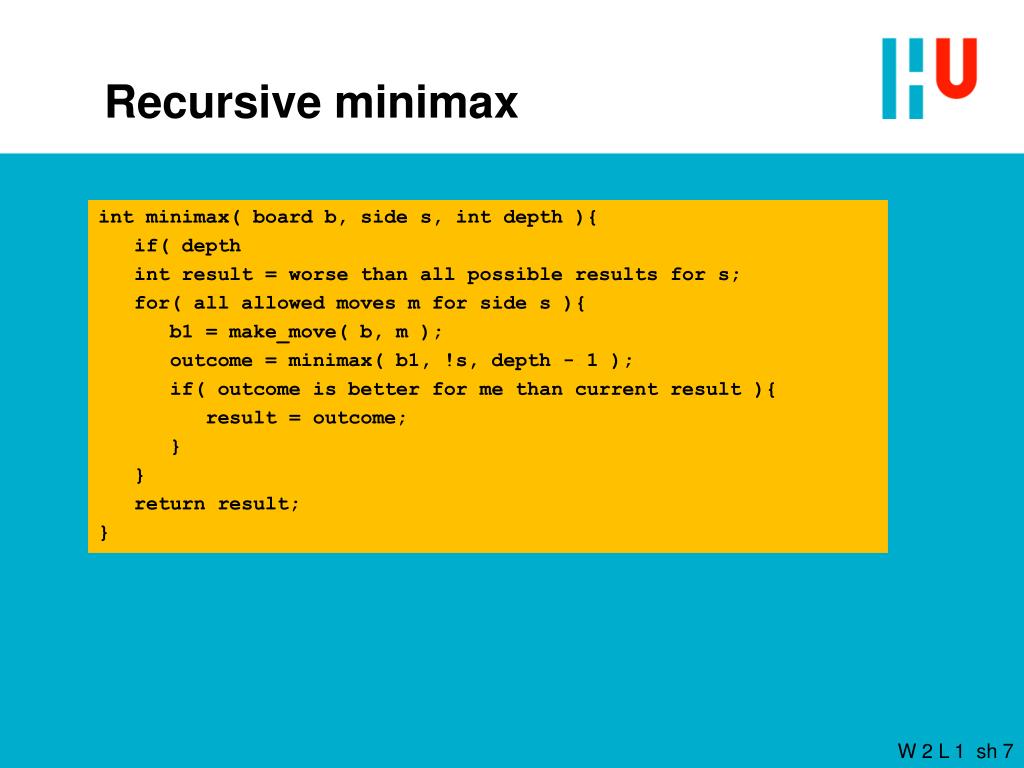

7. Recursive minimax intminimax( board b, side s, int depth ){ if( depth int result = worse than all possible results for s; for( all allowed moves m for side s ){ b1 = make_move( b, m ); outcome = minimax( b1, !s, depth - 1 ); if( outcome is better for me than current result ){ result = outcome; } } return result; }

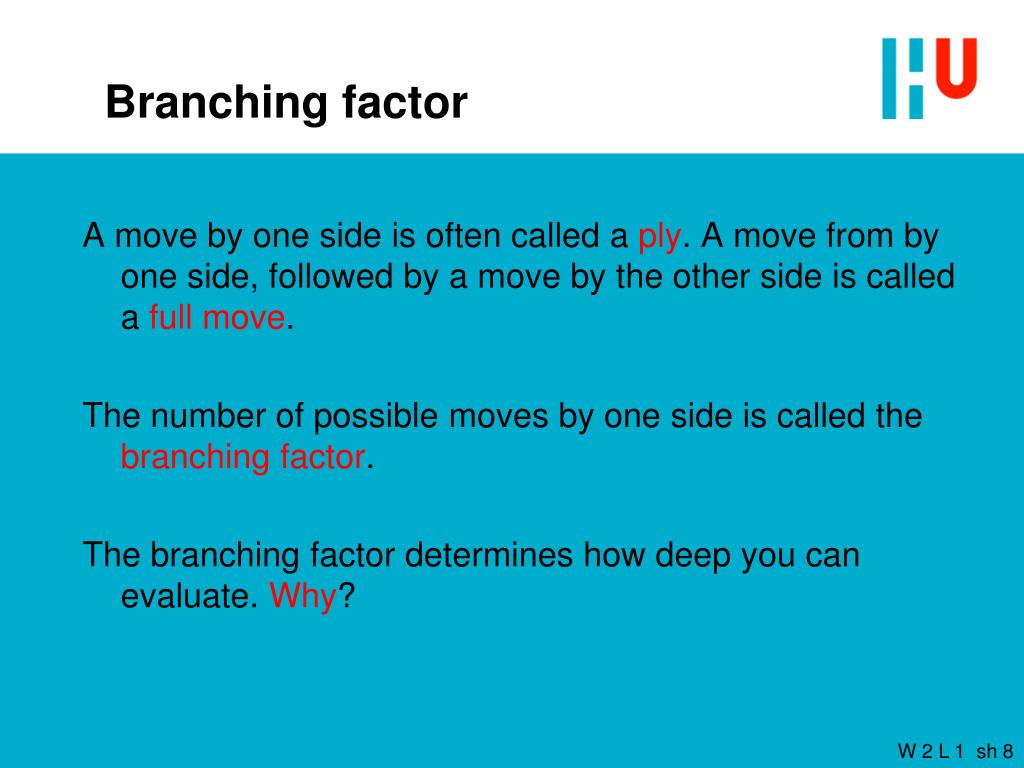

8. Branching factor A move by one side is often called a ply. A move from by one side, followed by a move by the other side is called a full move. The number of possible moves by one side is called the branching factor. The branching factor determines how deep you can evaluate. Why?

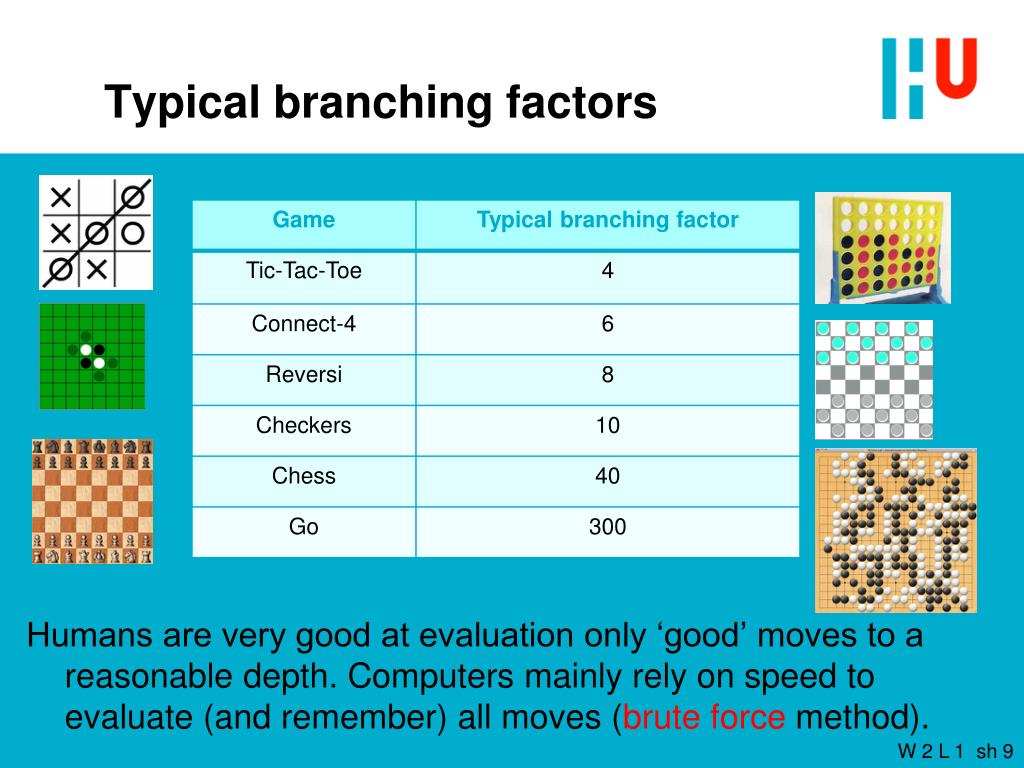

9. Typical branching factors Humans are very good at evaluation only ‘good’ moves to a reasonable depth. Computers mainly rely on speed to evaluate (and remember) all moves (brute force method).

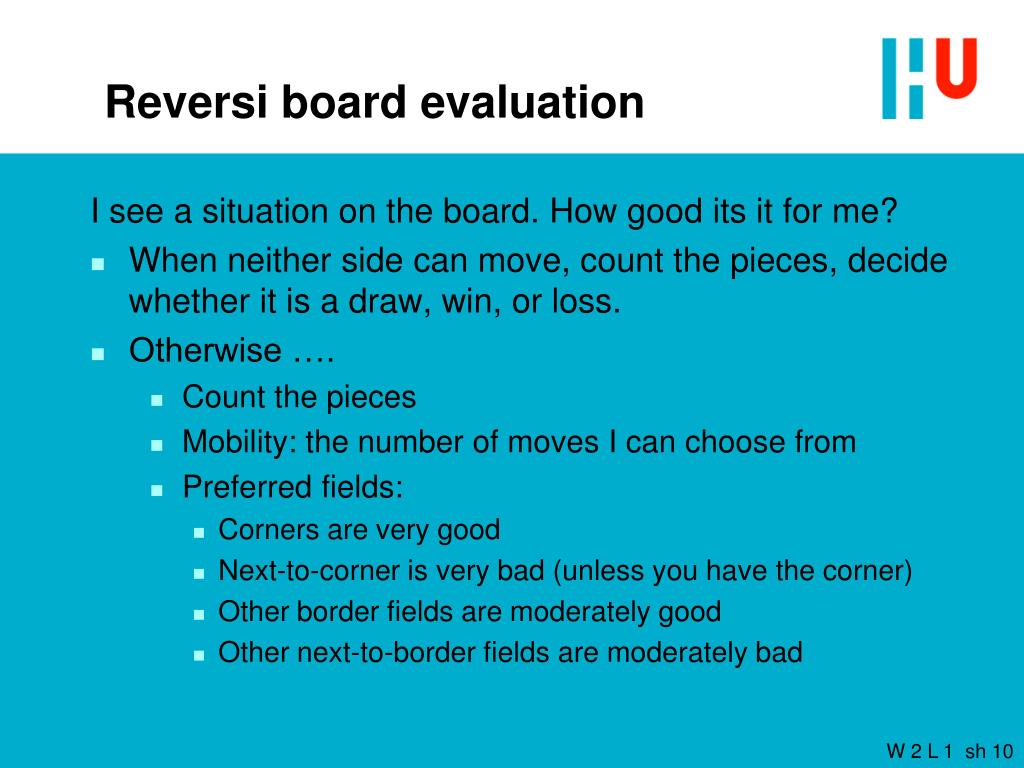

10. Reversi board evaluation I see a situation on the board. How good its it for me? • When neither side can move, count the pieces, decide whether it is a draw, win, or loss. • Otherwise …. • Count the pieces • Mobility: the number of moves I can choose from • Preferred fields: • Corners are very good • Next-to-corner is very bad (unless you have the corner) • Other border fields are moderately good • Other next-to-border fields are moderately bad

11. Reversi application week-2-2.zip • Complete application • Two nearly identical projects: PC and NDS • Each side can be man or machine • NDS version is ‘better’ for a human player (GUI) • PC version is faster (better for machine-versus-machine)

12. Reversi application - evaluators intevaluate_mobility( board b, int color ){ return reversi_board_n_moves( b, color ); } intevaluate_count( board b, int color ){ return reversi_board_count_color( b, color ) - reversi_board_count_color( b, reversi_opponent( color )); }

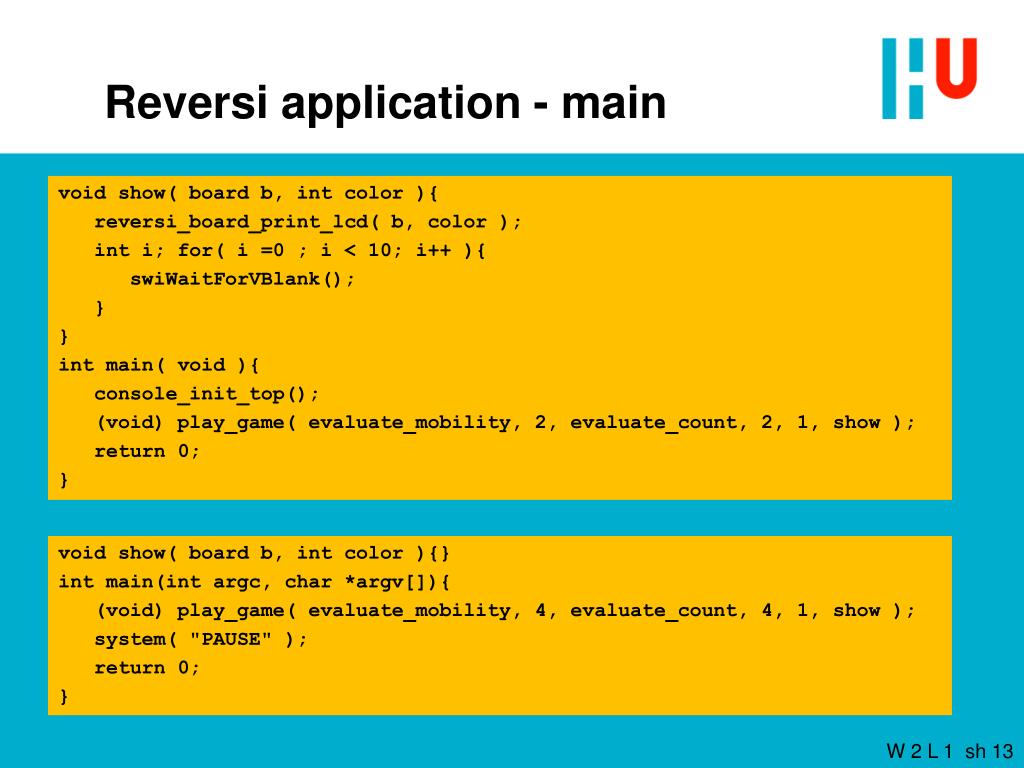

13. Reversi application - main void show( board b, int color ){ reversi_board_print_lcd( b, color ); inti; for( i =0 ; i < 10; i++ ){ swiWaitForVBlank(); } } intmain( void ){ console_init_top(); (void) play_game( evaluate_mobility, 2, evaluate_count, 2, 1, show ); return 0; } void show( board b, int color ){} int main(intargc, char *argv[]){ (void) play_game( evaluate_mobility, 4, evaluate_count, 4, 1, show ); system( "PAUSE" ); return 0; }

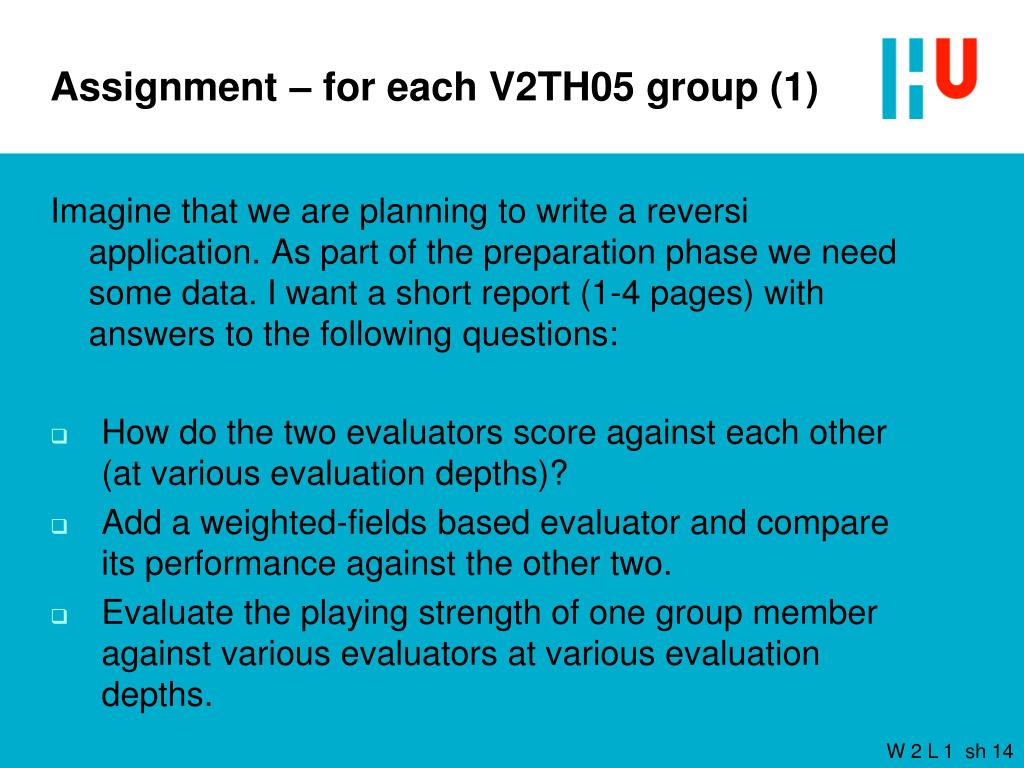

14. Assignment – for each V2TH05 group (1) • Imagine that we are planning to write a reversi application. As part of the preparation phase we need some data. I want a short report (1-4 pages) with answers to the following questions: • How do the two evaluators score against each other (at various evaluation depths)? • Add a weighted-fields based evaluator and compare its performance against the other two. • Evaluate the playing strength of one group member against various evaluators at various evaluation depths.

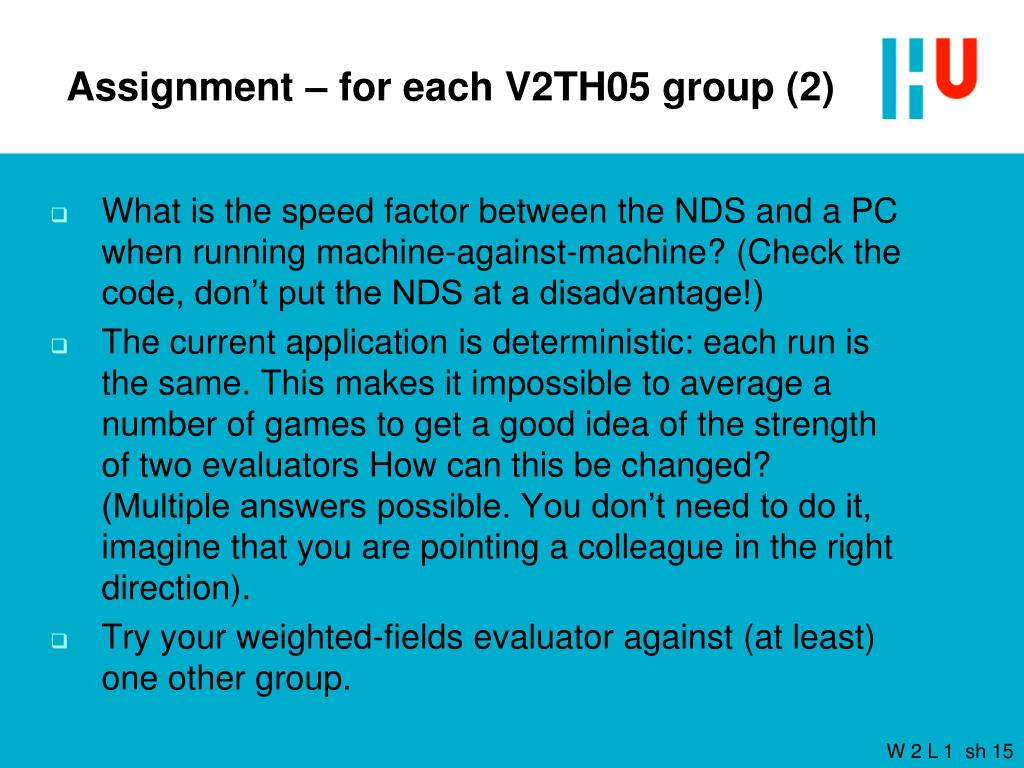

15. Assignment – for each V2TH05 group (2) • What is the speed factor between the NDS and a PC when running machine-against-machine? (Check the code, don’t put the NDS at a disadvantage!) • The current application is deterministic: each run is the same. This makes it impossible to average a number of games to get a good idea of the strength of two evaluators How can this be changed? (Multiple answers possible. You don’t need to do it, imagine that you are pointing a colleague in the right direction). • Try your weighted-fields evaluator against (at least) one other group.

16. Assignment – for each V2TH05 group (3) Requirements for the document: Either Dutch or English (but use only one language!). Readable, no SMS or telegram style. All questions must be answered and (when applicable) motivated. Explain your weighted-fields evaluator.
