Regional routing model review c model formulation and scenario analysis

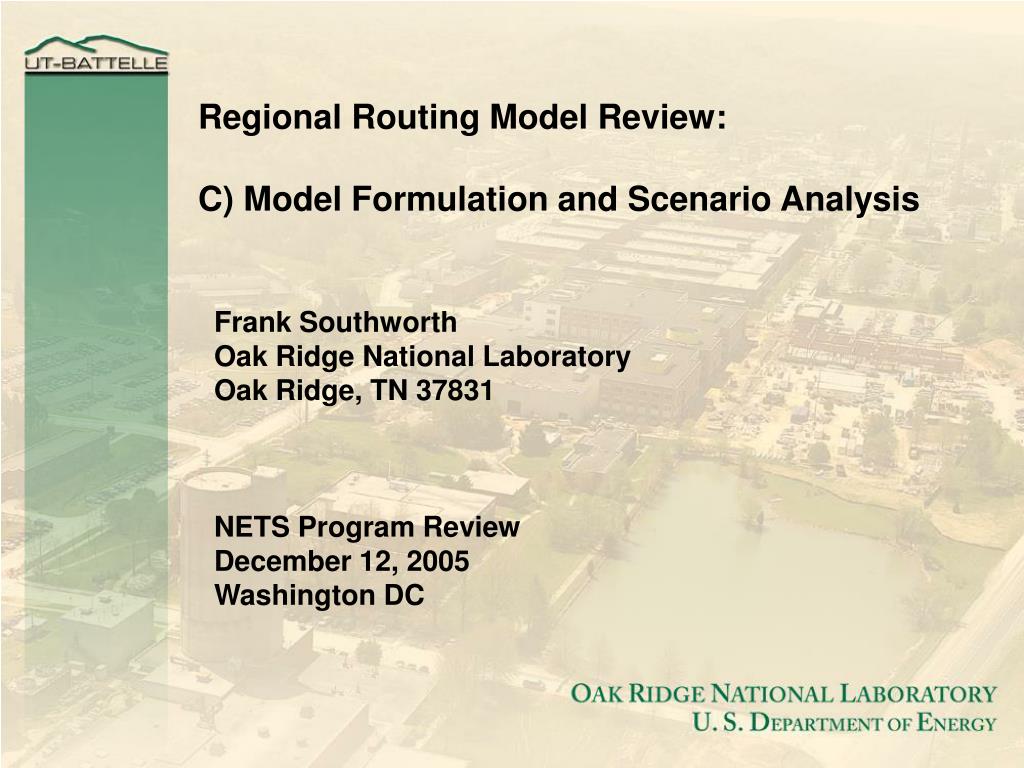

Regional Routing Model Review:

C) Model Formulation and Scenario Analysis

Frank Southworth

Oak Ridge National Laboratory

Oak Ridge, TN 37831

NETS Program Review

December 12, 2005

Washington DC


Regional routing model review c model formulation and scenario analysis

Calibration

Changes in Demands

Network Changes

Transit times, distances

County/Port Based

Commodity Production

/Consumption Forecasts

County/Port Based

Mode/Route/Market

Choice Model(s)*

Changes to Network

Conditions (Capacities)

and Mode/Route Costs

Forecasting,

Scenario

Analysis

dollar/ton shipment rates

NETS Tier 1

Regional Economic

Activity Forecasts/

Scenarios

Mode Specific

Rate Estimation

Models

Forecast / Scenario Based

Commodity Flows, Costs

and Benefits

Fuel, labor, I&M costs

by vehicle /vessel types

(C,M,V) (Data)

Changes in Supply

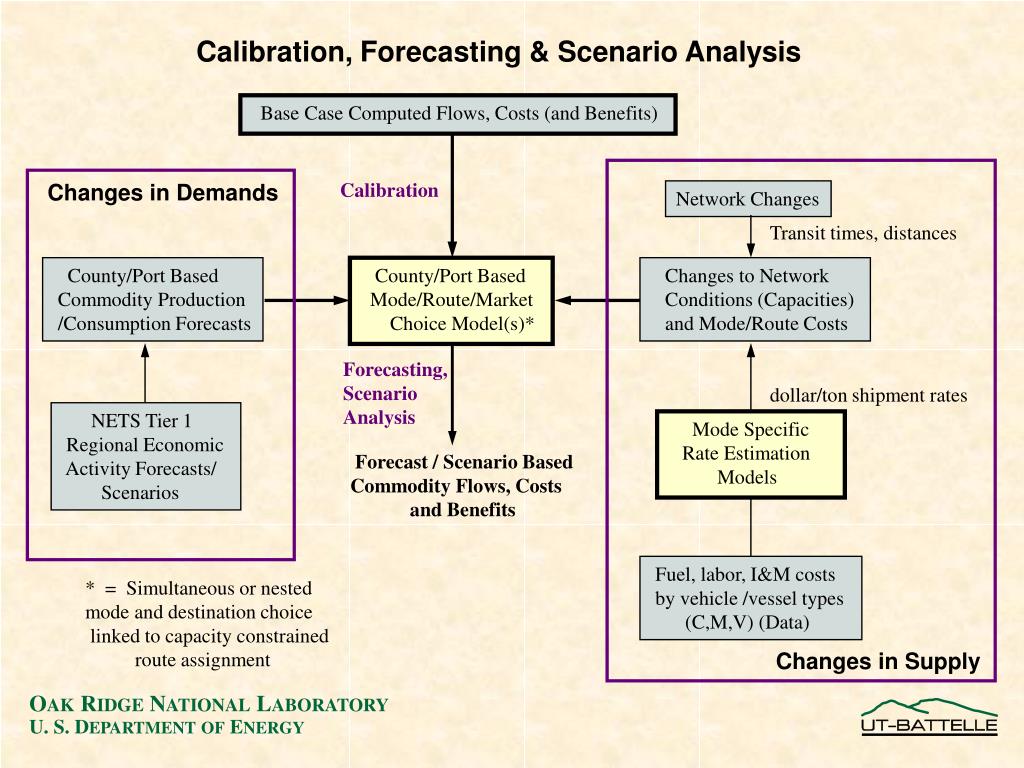

Calibration, Forecasting & Scenario Analysis

Base Case Computed Flows, Costs (and Benefits)

* = Simultaneous or nested

mode and destination choice

linked to capacity constrained

route assignment


Regional routing model review c model formulation and scenario analysis

Estimate Commodity

Production (O) &

Consumption (D)

by Region

Estimate O-to-D Costs per Ton

Connect Os and Ds to Estimate

O-to-D Commodity Flows

Assign O-to-D Flows to

Modes & Routes

Iterate to

Convergence

Re-Estimate O-to-D Costs per Ton

Re-Estimate O-to-D Flows

The Basic Flow and Cost Estimation Process


Regional routing model review c model formulation and scenario analysis

Prototype Regional Routing Model Formulation:

+ m 1/ βm ( Xi jm ln Xi jm) + m 1/ λm ( Xi jkm ln Xi jkm)

subject to:

Vak = ∑i ∑j ∑r δ i,j akr X i j kr for all links, a, and modes k, in the network

∑rX i j rk = X i j k for i=1,2,...I, and j=1,2,...J

∑kX i j k = X i j for i=1,2,...I, and j=1,2,...J

Vak ≥ 0

X i j kr ≥ 0

V = a link volume

X = an O-D flow volume

S = link transportation time or

generalized cost


Regional routing model review c model formulation and scenario analysis

i j m ] Aim Bjm

Xi jm = Oi m Dj m F[ βm,

* m

 i j ( Xi jm di j m } /  i,j Xi jm =

Freight Destination Choice (Flows Modeling):

where

i j m ]} for all i

Aim = 1/{j Bjm Djm F [ βm,

Bj m = 1/{i Aim Oim F [ βm, i j m ]} for all j

and


Regional routing model review c model formulation and scenario analysis

c ijm

= -(1/ λm ) ln {k exp (-λm c i j km )}

Freight Mode Choice:

Xijkm = Xijm *[exp(-θm ckm)/ ∑kεK(m) exp(-θm ckm)]

where (for example):

cijkm = α0 + α1 rijkm + α2 Sijkm + α3 vijkm

and,

(links mode and destination choice)


Regional routing model review c model formulation and scenario analysis

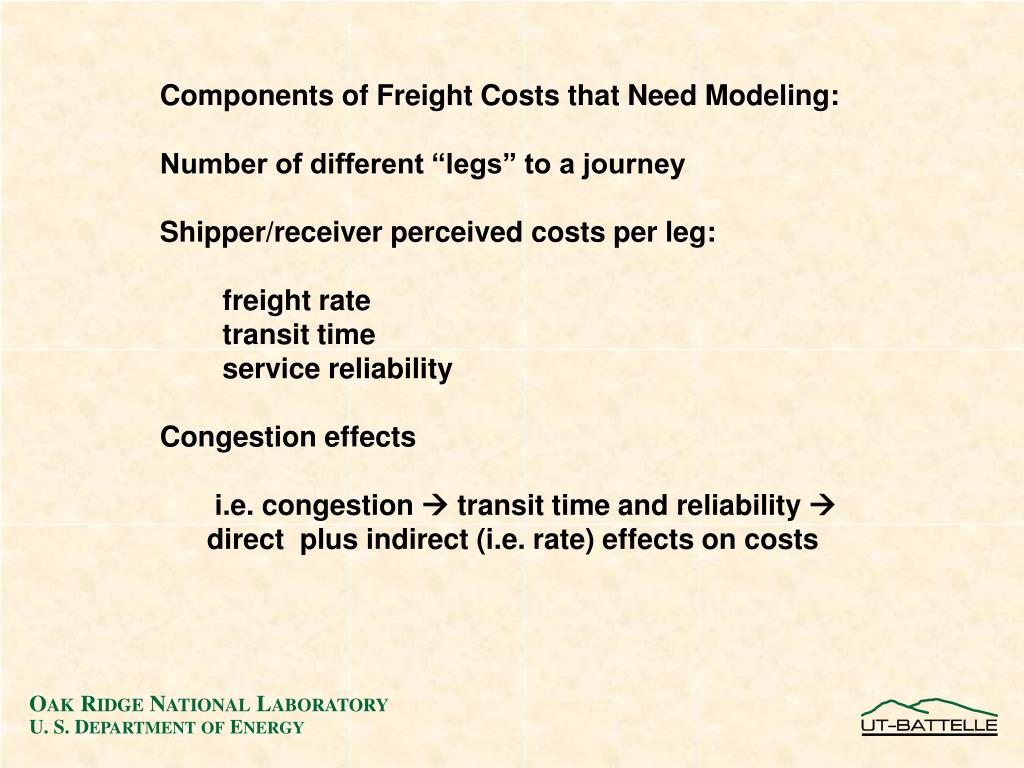

Components of Freight Costs that Need Modeling:

Number of different “legs” to a journey

Shipper/receiver perceived costs per leg:

freight rate

transit time

service reliability

Congestion effects

i.e. congestion  transit time and reliability 

direct plus indirect (i.e. rate) effects on costs


Regional routing model review c model formulation and scenario analysis

Lock Congestion Function

19

2000

2000

18.5

1800

1800

18

1600

1600

17.5

S = S0 * (1+ 0.15 (V/C)**4)

1400

1400

S = k /((C/x)

1)

17

1200

1200

S=Travel Time (Minutes)

16.5

S= Minutes of Delay/Tow

1000

1000

16

800

800

15.5

600

600

15

400

400

14.5

200

200

k

k

14

0

0

5

5

10

10

15

15

20

20

25

25

30

30

35

35

40

40

45

45

50

50

0

500

1000

1500

2000

C/2

C/2

C

C

Traffic Volume (Vehicles/hour)

x =Kilotons/Year (in thousands)

Network Link Transit Time (Congestion) Functions

Highway Congestion Function

“Generic” link congestion function for use in Toy Model:

Sa = Sao * [ 1 + θ1* Va + θ2 *( Va / Capa)γ ]


Regional routing model review c model formulation and scenario analysis

Generalized Transportation Costs (Shipper Perspective)

Level 1: (Statistical)

Freight Rates In-Transit Times Service Quality (Reliability)

Level 2: (Engineering)

Variable Operating Costs (Annualized)

Capital Operating Costs

Line-haul costs

Loading/unloading costs

Equipment utilization costs Commodity carrying costs

Administrative costs

Shipment distance

Cargo type (commodity, weight, volume)

Labor rate

Fuel price

Carrier/operator type

Equipment type

Company type (private/for-hire; size)

Contract type (duration)

Facility type, Location,

Operating licenses, fees and taxes

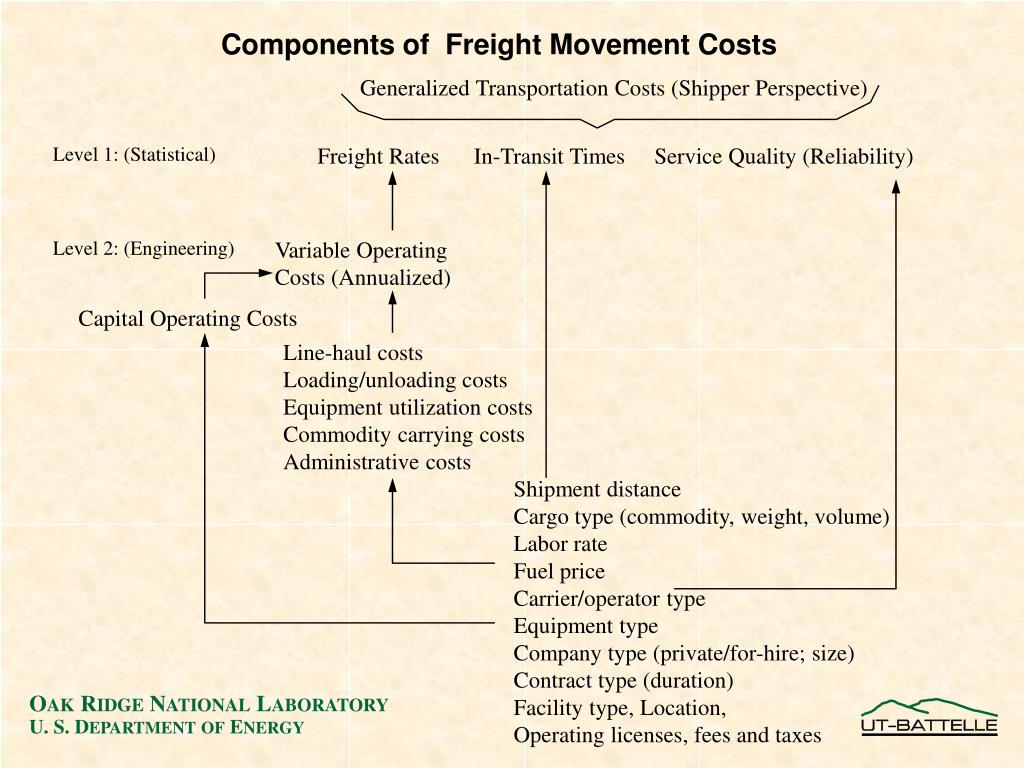

Components of Freight Movement Costs

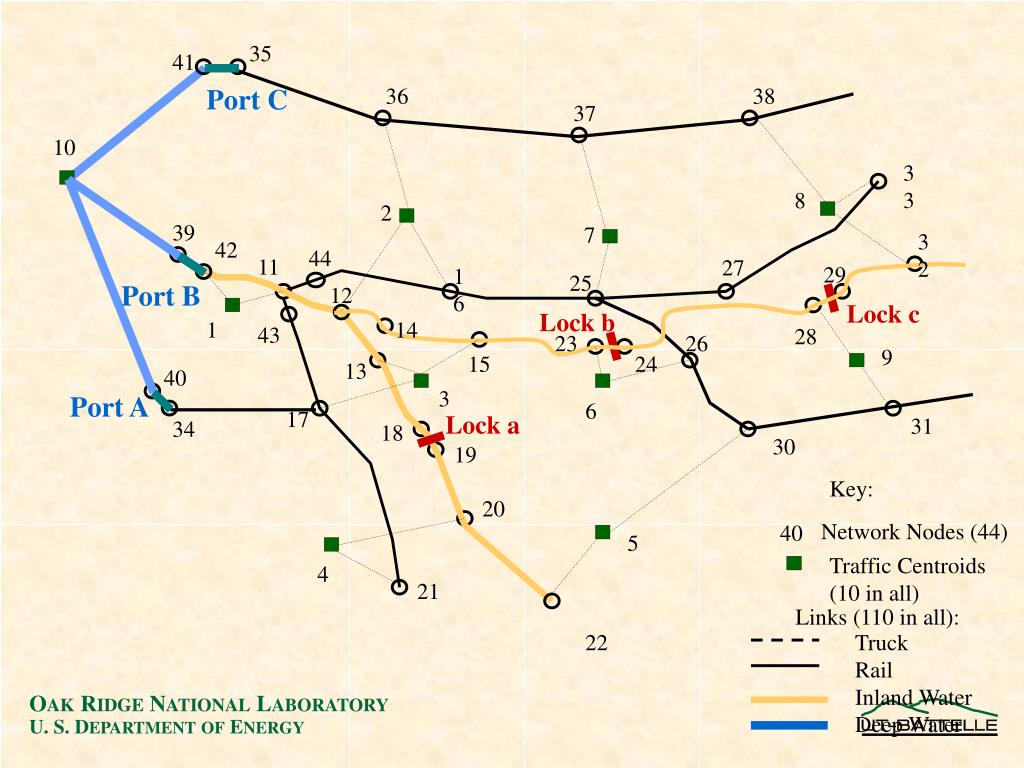

Regional routing model review c model formulation and scenario analysis

35

41

Port C

36

38

37

10

33

8

2

39

7

32

42

44

11

27

29

16

25

Port B

12

Lock c

Lock b

1

14

43

28

23

26

9

15

24

13

40

3

Port A

6

17

Lock a

31

34

18

30

19

Key:

20

Network Nodes (44)

40

5

Traffic Centroids

(10 in all)

4

21

Links (110 in all):

22

Truck

Rail

Inland Water

Deep Water


Regional routing model review c model formulation and scenario analysis

7

8

2

9

1

3

6

4

5


Regional routing model review c model formulation and scenario analysis

Model Run # 1

Origin Mode Split = 36.7% water

63.3 % rail


Regional routing model review c model formulation and scenario analysis

Model Run # 2

Origin Mode Split = 74.9% water

25.1% rail
