Viewing

Viewing

고려대학교 컴퓨터 그래픽스 연구실

kucg.korea.ac.kr


Fundamental types of viewing

Fundamental Types of Viewing

  • Perspective views

    • finite COP (center of projection)

  • Parallel views

    • COP at infinity

    • DOP (direction of projection)

parallel view

perspective view

kucg.korea.ac.kr


Parallel view

Parallel View

kucg.korea.ac.kr


Perspective view

Perspective View

kucg.korea.ac.kr


Classical viewing

Classical Viewing

  • Specific relationship between the objects and the viewers

kucg.korea.ac.kr


Orthographic projections

Orthographic Projections

  • Projectors are perpendicular to the projection plane

    • preserve both distances and angles

temple and three multiview orthographic projections

orthographic projections

kucg.korea.ac.kr


Axonometric projections 1 2

Axonometric Projections (1/2)

  • Projection plane can have any orientation with respect to the object

    • projectors are still orthogonal to the projection planes

construction

top view

side view

kucg.korea.ac.kr


Axonometric projections 2 2

Axonometric Projections (2/2)

  • Preserve parallel lines but not angles

    • isometric – projection plane is placed symmetrically with respect to the three principal faces

    • dimetric – two of principal faces

    • trimetric – general case

kucg.korea.ac.kr


Axonometric projections 2 21

Axonometric Projections (2/2)

  • Preserve parallel lines but not angles

    • isometric – projection plane is placed symmetrically with respect to the three principal faces

    • dimetric – two of principal faces

    • trimetric – general case

kucg.korea.ac.kr


Oblique projections

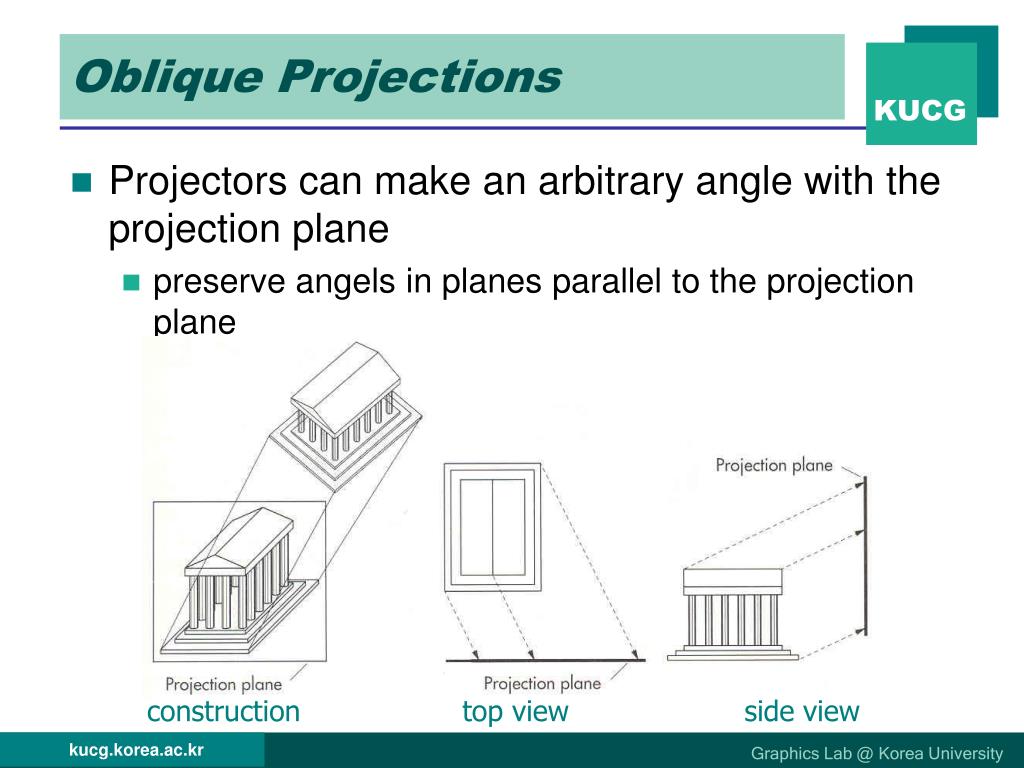

Oblique Projections

  • Projectors can make an arbitrary angle with the projection plane

    • preserve angels in planes parallel to the projection plane

construction

top view

side view

kucg.korea.ac.kr


Perspective projections 1 2

Perspective Projections (1/2)

  • Diminution of size

    • when objects are moved father from the viewer, their images become smaller

kucg.korea.ac.kr


Perspective projections 2 2

Perspective Projections (2/2)

  • One-, two-, and three-point perspectives

    • how many of the three principal directions in the object are parallel to the projection plane

    • vanishing points

three-point perspective

two-point perspective

one-point perspective

kucg.korea.ac.kr


Perspective projections 2 21

Perspective Projections (2/2)

  • One-, two-, and three-point perspectives

    • how many of the three principal directions in the object are parallel to the projection plane

    • vanishing points

three-point perspective

two-point perspective

one-point perspective

kucg.korea.ac.kr


Perspective projections 2 22

Perspective Projections (2/2)

  • One-, two-, and three-point perspectives

    • how many of the three principal directions in the object are parallel to the projection plane

    • vanishing points

three-point perspective

two-point perspective

one-point perspective

kucg.korea.ac.kr


Perspective projections 2 23

Perspective Projections (2/2)

  • One-, two-, and three-point perspectives

    • how many of the three principal directions in the object are parallel to the projection plane

    • vanishing points

three-point perspective

two-point perspective

one-point perspective

kucg.korea.ac.kr


Positioning of the camera 1 3

Positioning of the Camera (1/3)

  • OpenGL places a camera at the origin of the world frame pointing in the negative z direction

    • move the camera away from the objects

glTranslatef(0.0, 0.0, -d);

initial configuration

after change in the model-view matrix

kucg.korea.ac.kr


Positioning of the camera 2 3

Positioning of the Camera (2/3)

  • Look at the same object from the positive x axis

    • translation after rotation by 90 degrees about the y axis

glMatrixMode(GL_MODELVIEW);

glLoadIdentity( );

glTranslatef(0.0, 0.0, -d);

glRotatef(-90.0, 0.0, 1.0, 0.0);

kucg.korea.ac.kr


Positioning of the camera 3 3

Positioning of the Camera (3/3)

  • Create an isometric view of the cube

y

y

y

z

x

x

view from positive z axis

view from positive z axis

view from positive x axis

kucg.korea.ac.kr


Positioning of the camera 3 31

Positioning of the Camera (3/3)

  • Create an isometric view of the cube

glMatrixMode(GL_MODELVIEW);

glLoadIdentity( );

glTranslatef(0.0, 0.0, -d);

glRotatef(35.26, 1.0, 0.0, 0.0);

glRotatef(45.0, 0.0, 1.0, 0.0);

y

y

y

x

x

x

view from positive z axis

view from positive z axis

kucg.korea.ac.kr


U v n system 1 2

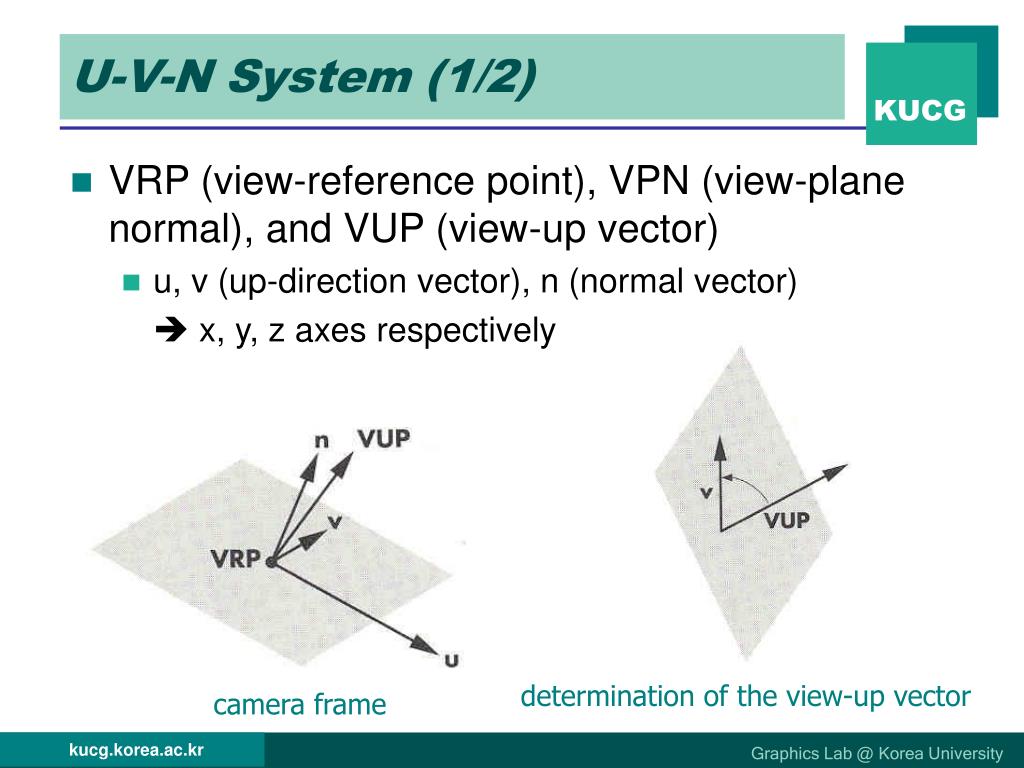

U-V-N System (1/2)

  • VRP (view-reference point), VPN (view-plane normal), and VUP (view-up vector)

    • u, v (up-direction vector), n (normal vector)

       x, y, z axes respectively

determination of the view-up vector

camera frame

kucg.korea.ac.kr


U v n system 2 2

U-V-N System (2/2)

  • Translation after rotation

    • VRP – (x, y, z)  T(-x, -y, -z)

    • VNP – (nx, ny, nz)  n

    • VUP – vup v = vup – (vup• n) n

       u = v  n

      (※ our assumption – all vectors must be normalized )

kucg.korea.ac.kr


Look at function

Look-At Function

  • OpenGL utility function

    • VRP: eyePoint

    • VPN: – ( atPoint – eyePoint )

    • VUP: upPoint – eyePoint

gluLookAt(eyex, eyey, eyez, atx, aty, atz, upx, upy, upz);

look-at positioning

kucg.korea.ac.kr


Others

Others

  • Roll, pitch, and yaw

    • ex. flight simulation

  • Elevation and azimuth

    • ex. star in the sky

kucg.korea.ac.kr


Simple perspective projections 1 2

Simple Perspective Projections (1/2)

  • Simple camera

    • projection plane is orthogonal to z axis

    • projection plane in front of COP

three-dimensional view

top view

side view

kucg.korea.ac.kr


Simple perspective projections 2 2

Model-view

Projection

Perspective division

projection pipeline

Simple Perspective Projections (2/2)

  • Homogeneous coordinates

  • Perspective projection matrix

kucg.korea.ac.kr


Simple orthogonal projections

Simple Orthogonal Projections

  • Projectors are perpendicular to the view plane

  • Orthographic projection matrix

kucg.korea.ac.kr


Projections in opengl

Projections in OpenGL

  • Angle of view

    • only objects that fit within the angle of view of the camera appear in the image

  • View volume

    • be clipped out of scene

    • frustum – truncated pyramid

kucg.korea.ac.kr


Perspective in opengl 1 2

Perspective in OpenGL (1/2)

  • Specification of a frustum

    • near, far: positive number !!

       zmax = – far

       zmin = – near

glMatrixMode(GL_PROJECTION);

glLoadIdentity( );

glFrustum(xmin, xmax, ymin, ymax, near, far);

kucg.korea.ac.kr


Perspective in opengl 2 2

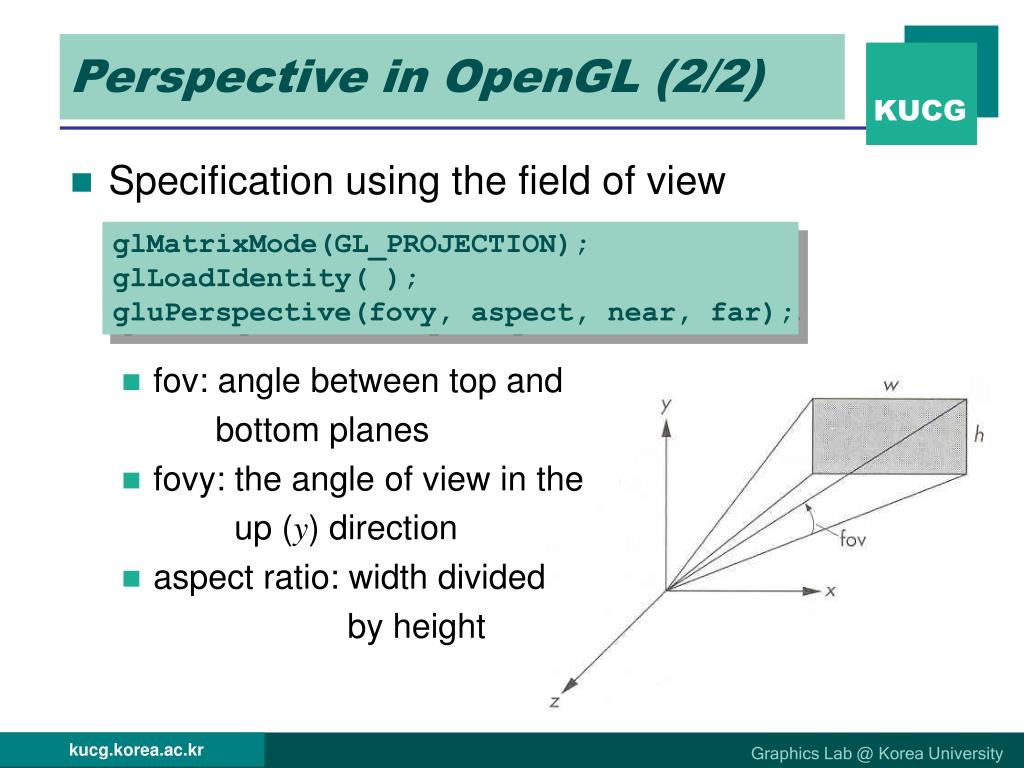

Perspective in OpenGL (2/2)

  • Specification using the field of view

    • fov: angle between top and

      bottom planes

    • fovy: the angle of view in the

      up (y) direction

    • aspect ratio: width divided

      by height

glMatrixMode(GL_PROJECTION);

glLoadIdentity( );

gluPerspective(fovy, aspect, near, far);

kucg.korea.ac.kr


Parallel in opengl

Parallel in OpenGL

  • Orthographic viewing function

    • OpenGL provides only this parallel-viewing function

    • near < far !!

       no restriction on the sign

       zmax = – far

       zmin = – near

glMatrixMode(GL_PROJECTION);

glLoadIdentity( );

glOrtho(xmin, xmax, ymin, ymax, near, far);

kucg.korea.ac.kr


Walking though a scene 1 2

Walking Though a Scene (1/2)

void keys(unsigned char key, int x, int y)

{

if(key == ‘x’) viewer[0] -= 1.0;

if(key == ‘X’) viewer[0] += 1.0;

if(key == ‘y’) viewer[1] -= 1.0;

if(key == ‘Y’) viewer[1] += 1.0;

if(key == ‘z’) viewer[2] -= 1.0;

if(key == ‘Z’) viewer[2] += 1.0;

}

void display(void)

{

glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

glLoadIdentity();

gluLookAt(viewer[0], viewer[1], viewer[2], 0,0,0, 0,1,0);

glRotatef(theta[0], 1.0, 0.0, 0.0);

glRotatef(theta[1], 0.0, 1.0, 0.0);

glRotatef(theta[2], 0.0, 0.0, 1.0);

colorcube( );

glFlush( );

glutSwapBuffers( );

}

kucg.korea.ac.kr


Walking though a scene 2 2

Walking Though a Scene (2/2)

void myReshape(int w, int h)

{

glViewport(0, 0, w, h);

glMatrixMode(GL_PROJECTION);

glLoadIdentity( );

if( w <= h )

glFrustum(-2.0, 2.0, -2.0*(GLfloat)h/(GLfloat)w,

2.0*(GLfloat)h/(GLfloat)w, 2.0, 20.0);

else

glFrustum(-2.0 *(GLfloat)w/(GLfloat)h,

2.0 *(GLfloat)w/(GLfloat)h, -2.0, 2.0, 2.0, 20.0);

glMatrixMode(GL_MODELVIEW);

}

kucg.korea.ac.kr


Projections shadows 1 2

Projections & Shadows (1/2)

  • Shadow polygon

  • Steps

    • light source at (xl, yl, zl)

    • translation (-xl, -yl, -zl)

    • perspective projection through the origin

    • translation (xl, yl, zl)

kucg.korea.ac.kr


Projections shadows 2 2

Projections & Shadows (2/2)

GLfloat m[16];/* shadow projection matrix */

for(i=0; i<16; i++) m[i] = 0.0;

m[0] = m[5] = m[10] = 1.0;

m[7] = -1.0/yl;

glColor3fv(polygon_color);

glBegin(GL_POLYGON);

.

./* draw the polygon normally */

.

glEnd( );

glMatrixMode(GL_MODELVIEW);

glPushMatrix( );/* save state */

glTranslatef(xl, yl, zl);/* translate back */

glMultMatrixf(m);/* project */

glTranslatef(-xl, -yl, -zl);/* move light to origin */

glColorfv(shadow_color);

glBegin(GL_POLYGON);

.

. /* draw the polygon again */

.

glEnd( );

glPopMatrix( );/* restore state */

kucg.korea.ac.kr


Shadows from a cube onto ground

Shadows from a Cube onto Ground

kucg.korea.ac.kr
