Staff Accommodation. Canteen or Restaurant. Laundry. Office washrooms. Raw wastewater sources. Grease trap. Cooling pit. Gravity collection network. Infiltration. Raw Pump station 1. Tanker Reception. Raw Pump station 2. Turbidity Elec. Conductivity. Collection System.

tawana
Download Presentation

Staff Accommodation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

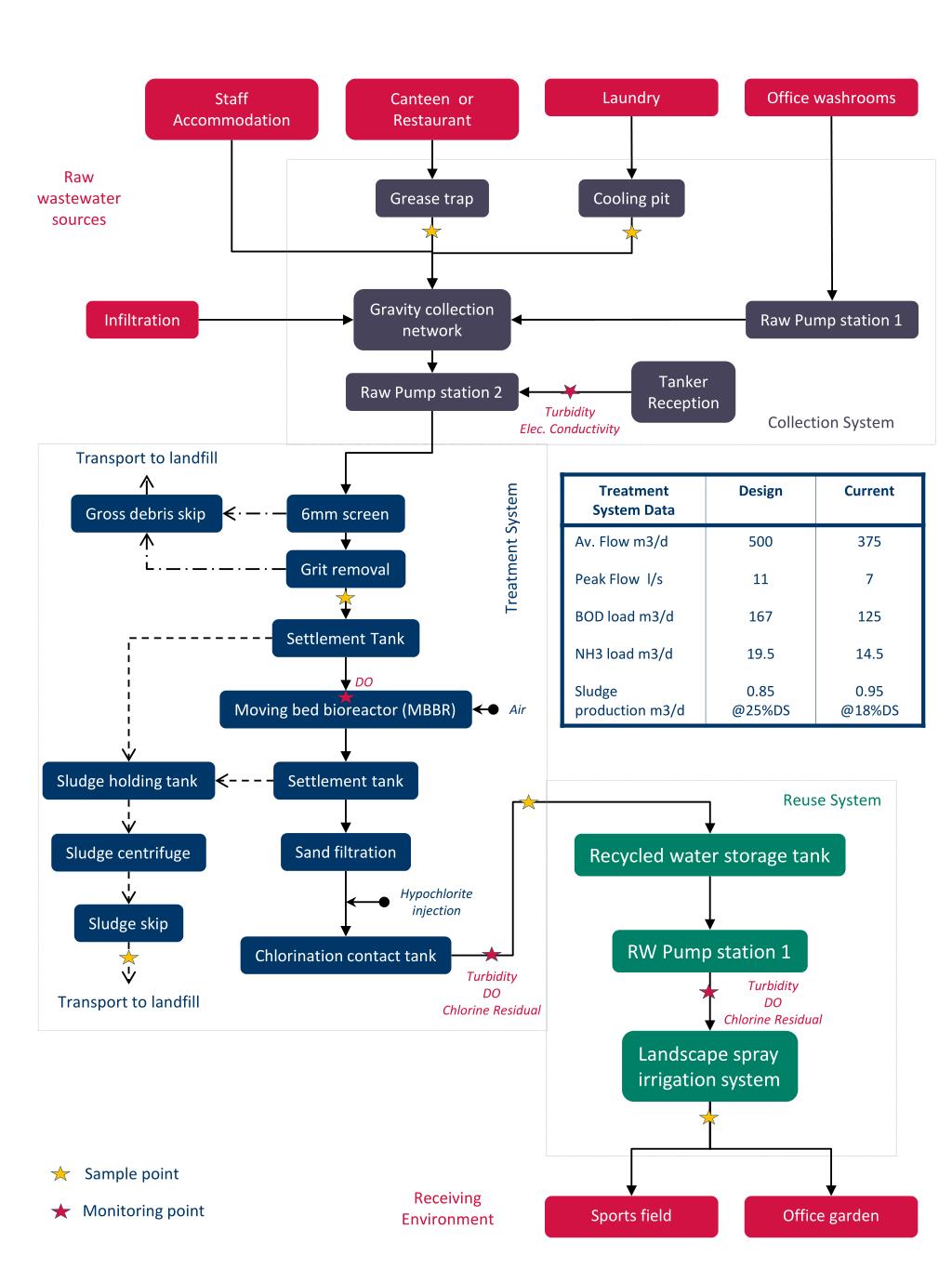

  1. Staff Accommodation Canteen or Restaurant Laundry Office washrooms Raw wastewater sources Grease trap Cooling pit Gravity collection network Infiltration Raw Pump station 1 Tanker Reception Raw Pump station 2 Turbidity Elec. Conductivity Collection System Transport to landfill Gross debris skip 6mm screen Treatment System Grit removal Settlement Tank DO Moving bed bioreactor (MBBR) Air Sludge holding tank Settlement tank Reuse System Sand filtration Sludge centrifuge Recycled water storage tank Hypochlorite injection Sludge skip RW Pump station 1 Chlorination contact tank Turbidity DO Chlorine Residual Turbidity DO Chlorine Residual Transport to landfill Landscape spray irrigation system Sample point Receiving Environment Monitoring point Sports field Office garden
