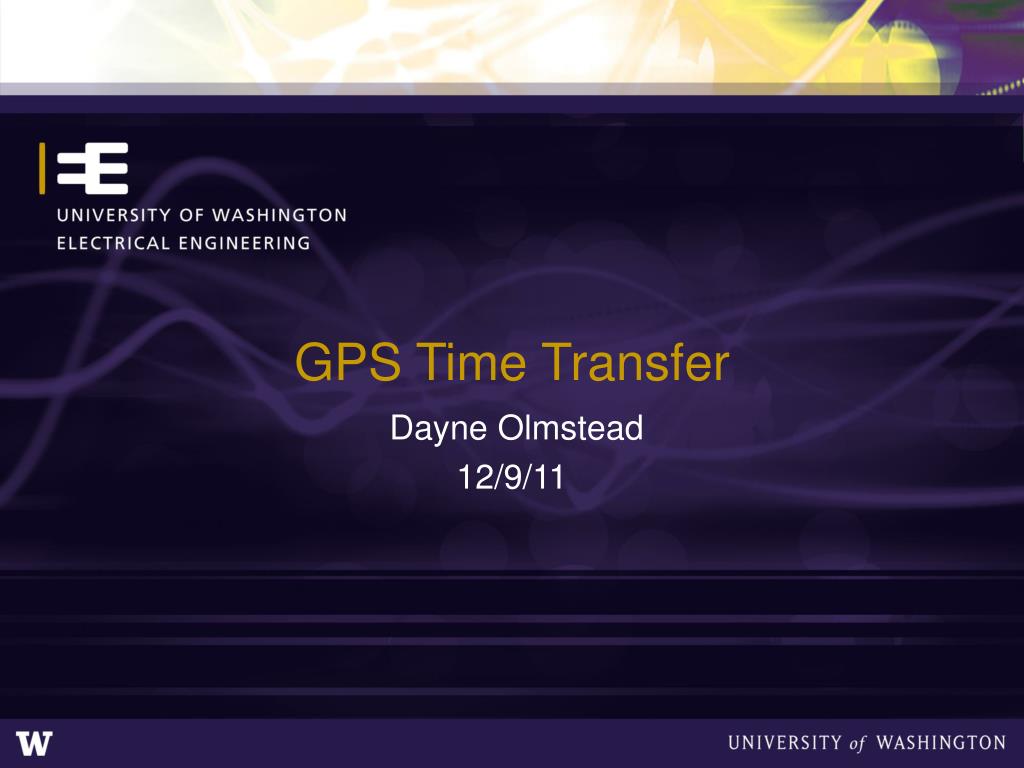

GPS Time Transfer

GPS Time Transfer. Dayne Olmstead 12/9/11. Current GPS Fleet. 31 Satellites currently in operation Medium Earth Orbit (20,180 km)– 6 orbital Planes: (4 satellites each + backups) Current operational satellites are exclusively Block II

tavorian
Download Presentation

GPS Time Transfer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. GPS Time Transfer Dayne Olmstead 12/9/11

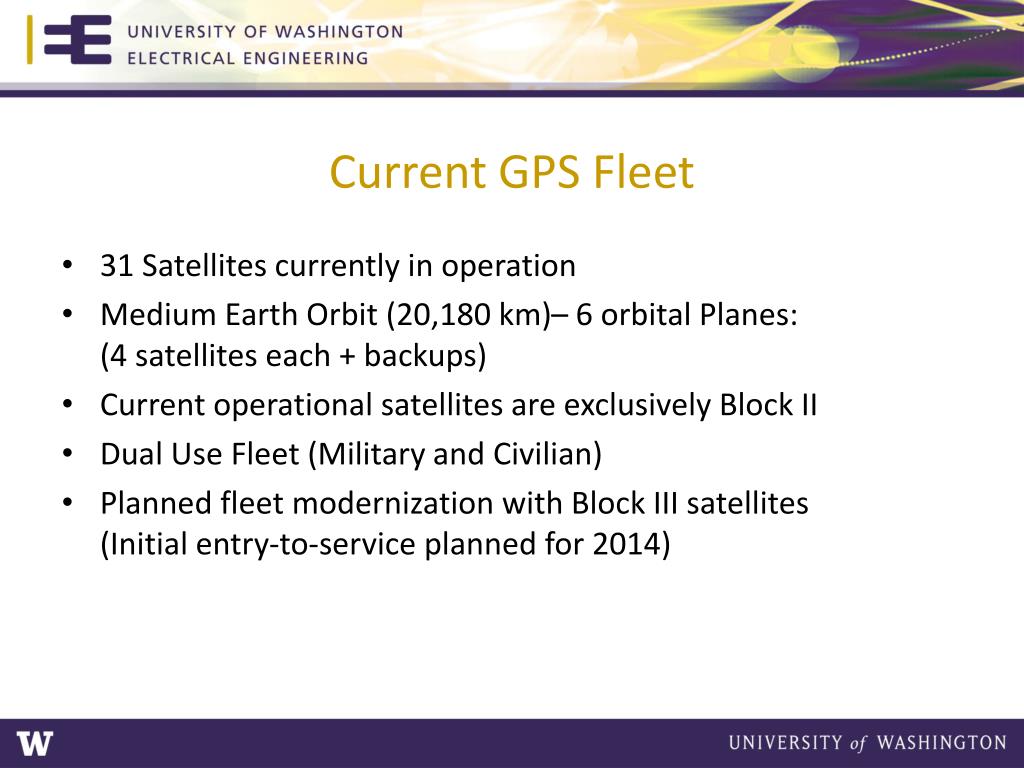

  2. Current GPS Fleet • 31 Satellites currently in operation • Medium Earth Orbit (20,180 km)– 6 orbital Planes: (4 satellites each + backups) • Current operational satellites are exclusively Block II • Dual Use Fleet (Military and Civilian) • Planned fleet modernization with Block III satellites (Initial entry-to-service planned for 2014)

  3. GPS IIIR/M Satellite lockheedmartin.com/products/GPS/

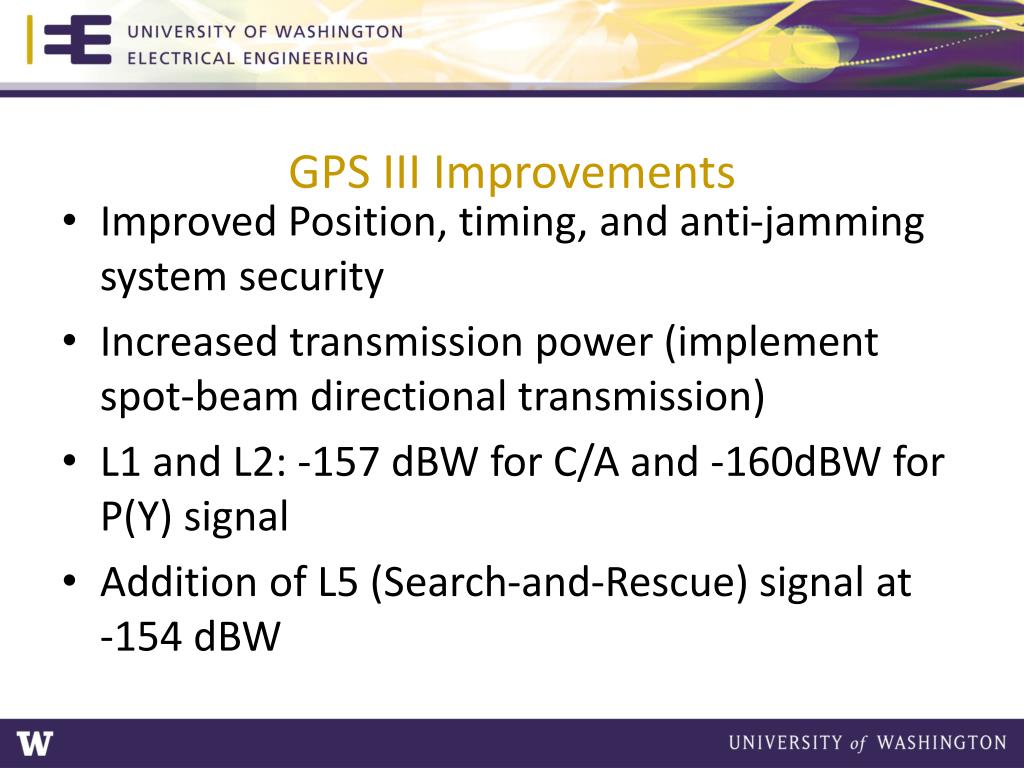

  4. GPS III Improvements • Improved Position, timing, and anti-jamming system security • Increased transmission power (implement spot-beam directional transmission) • L1 and L2: -157 dBW for C/A and -160dBW for P(Y) signal • Addition of L5 (Search-and-Rescue) signal at -154 dBW

  5. GPS Signaling • Course Acquisition Code (C/A Code): 1575.45 MHz carrier --Indexes satellite for identification --CDMA format (1,023 bit pseudorandom noise). Repeats once every millisecond. (1.023 Mbit/s) Gives unique PRN code for each satellite. • Precision Code (P-Code): 1227.60 MHz --Extremely long message (6.1871 x 1012 bits long, repeats once per week), encrypted code for military applications. Combined with ‘W-Code’ (classified specifications) to generate ‘Y-Code’ called P(Y)

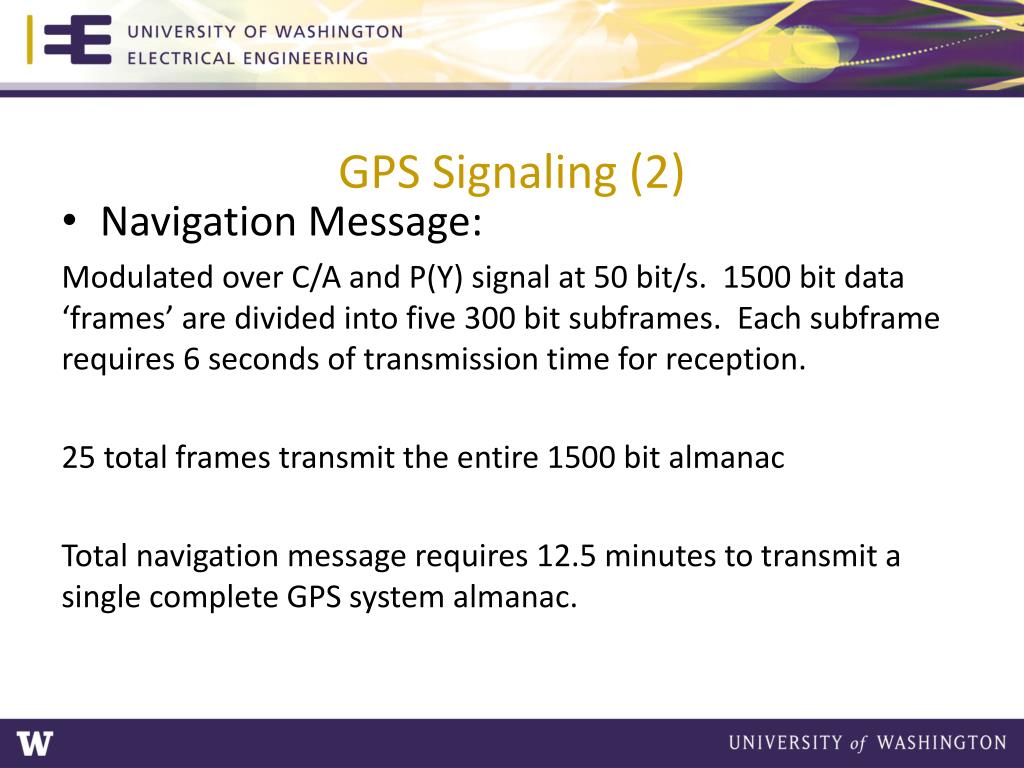

  6. GPS Signaling (2) • Navigation Message: Modulated over C/A and P(Y) signal at 50 bit/s. 1500 bit data ‘frames’ are divided into five 300 bit subframes. Each subframe requires 6 seconds of transmission time for reception. 25 total frames transmit the entire 1500 bit almanac Total navigation message requires 12.5 minutes to transmit a single complete GPS system almanac.

  7. GPS Signaling (3) • Individual Frame Contents: (Wikipedia, 2011)

  8. Onboard Timekeeping • Each Block II / IIA satellite has 2 Cesium and 2 Rubidium atomic clocks onboard. • Each Block IIIR satellite will carry 3 Rubidum atomic clocks • Current transmission specification is 100ns unaided UTC time transfer from existing satellite fleet

  9. Typical Unaided GPS Accuracy • Horizontal Accuracy 100m (95%) 300m (99.99%) • Vertical Accuracy 150m (95%) 450m (99.99%) • Time Accuracy 340 ns

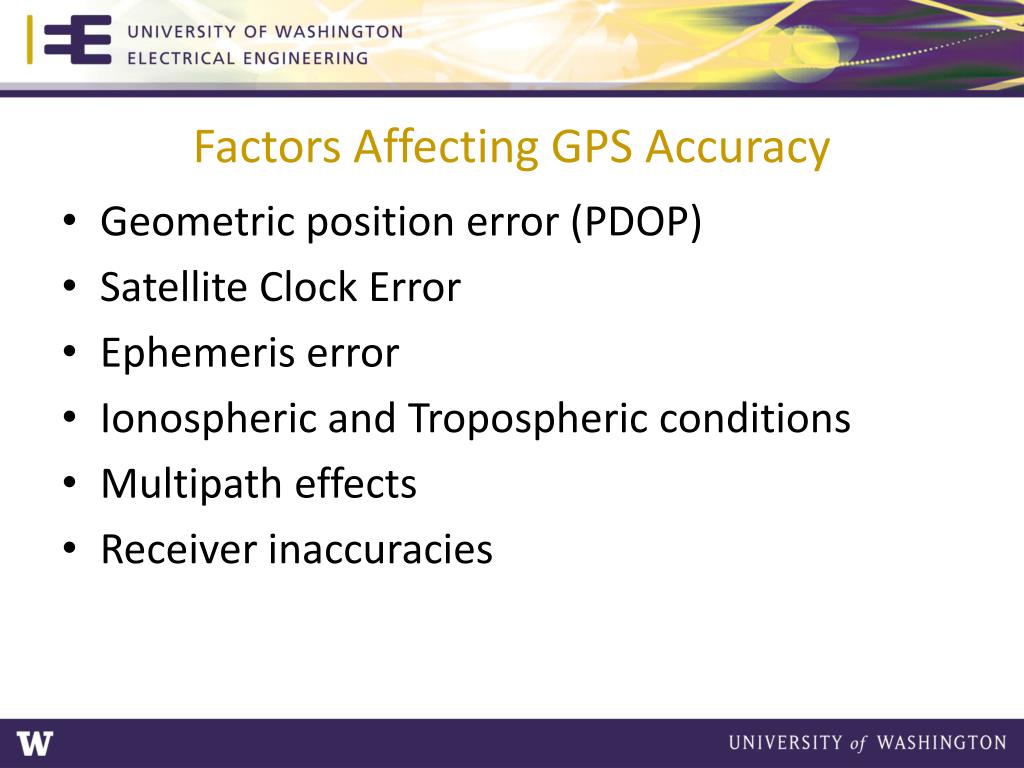

  10. Factors Affecting GPS Accuracy • Geometric position error (PDOP) • Satellite Clock Error • Ephemeris error • Ionospheric and Tropospheric conditions • Multipath effects • Receiver inaccuracies

  11. Selective Availability http://www.gps.gov/systems/gps/modernization/sa/data/

  12. Typical GPS Timing Uncertainties

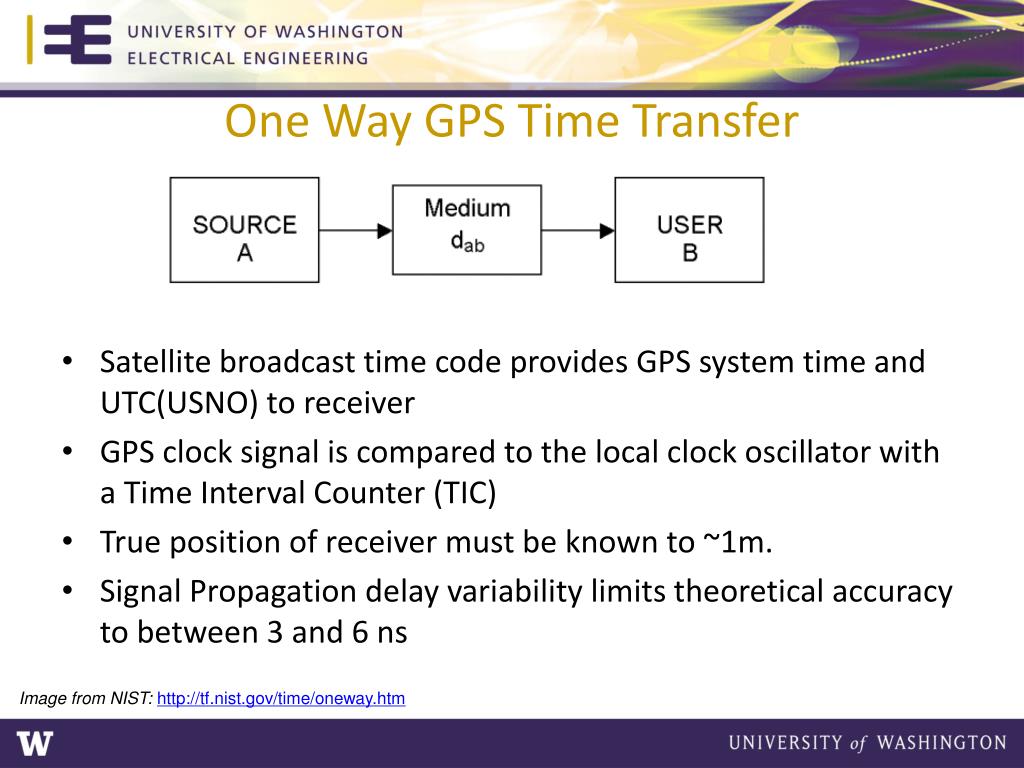

  13. One Way GPS Time Transfer • Satellite broadcast time code provides GPS system time and UTC(USNO) to receiver • GPS clock signal is compared to the local clock oscillator with a Time Interval Counter (TIC) • True position of receiver must be known to ~1m. • Signal Propagation delay variability limits theoretical accuracy to between 3 and 6 ns Image from NIST: http://tf.nist.gov/time/oneway.htm

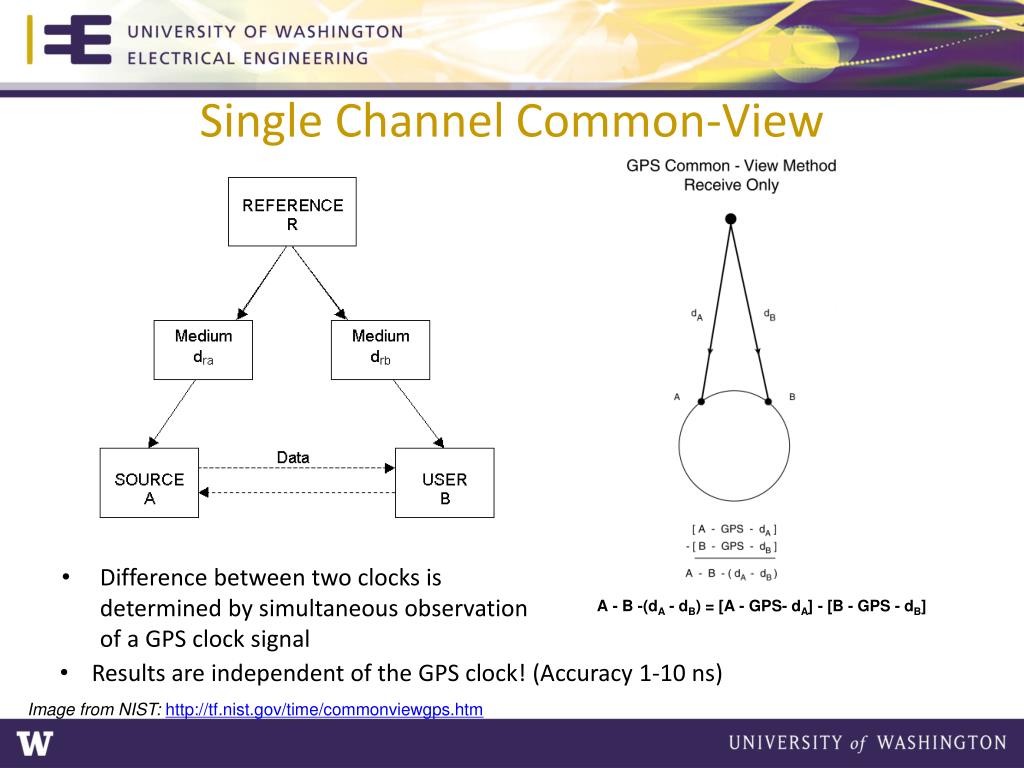

  14. Single Channel Common-View • Difference between two clocks is determined by simultaneous observation of a GPS clock signal A - B -(dA - dB) = [A - GPS- dA] - [B - GPS - dB] • Results are independent of the GPS clock! (Accuracy 1-10 ns) Image from NIST: http://tf.nist.gov/time/commonviewgps.htm

  15. Single Channel Common-View (2) • Must follow a published satellite tracking schedule • Data collection requires a minimum 13 minute reception time for both stations to acquire a complete almanac • Satellite orbital schedule limits common-view technique to 48 common-view tracks per day

  16. Multi-Channel Common-View • Eliminates the need for a common-view satellite schedule • Allows seamless comparison of time standards between multi-channel users within a reasonable distance ( Same continent) • Typically 5-6 satellites are above 15°elevation angle at any given time • Standard protocol is 16 minutes per track (2 minutes satellite acquisition, 13 minutes data logging, 1 minute separation between tracks) • Allows roughly 450 16 minute satellite tracks per day

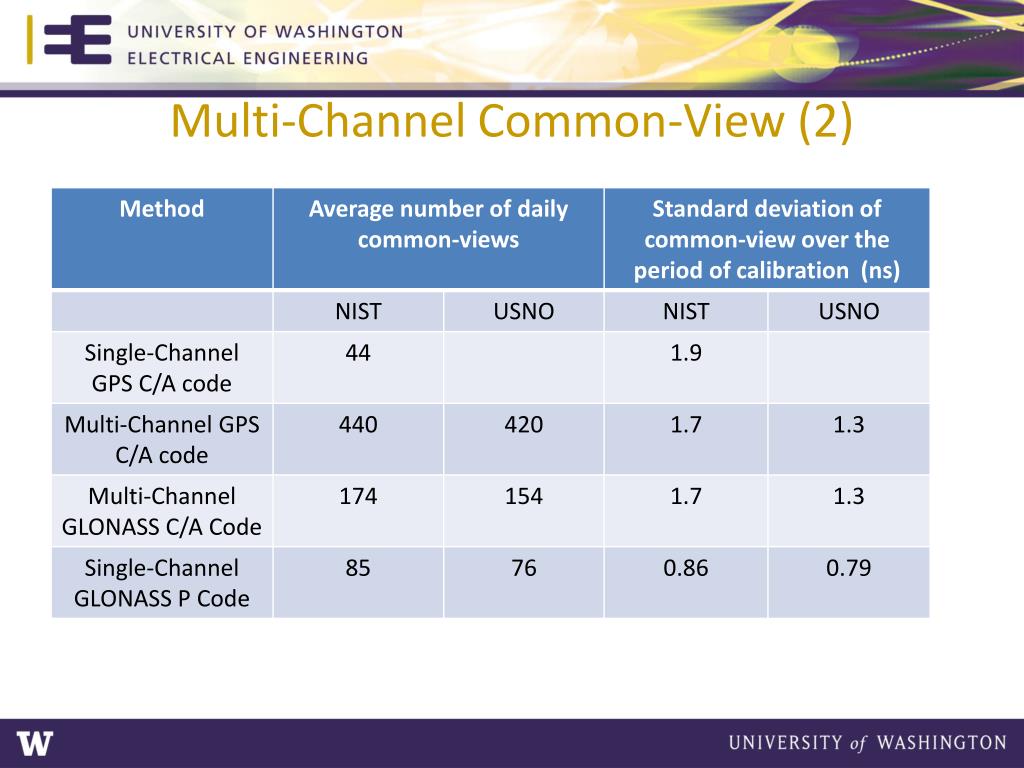

  17. Multi-Channel Common-View (2)

  18. Multi-Channel Common-View (3) • Requires a significant amount of digital computation • Demonstrates path losses from environmental effects in signal correction

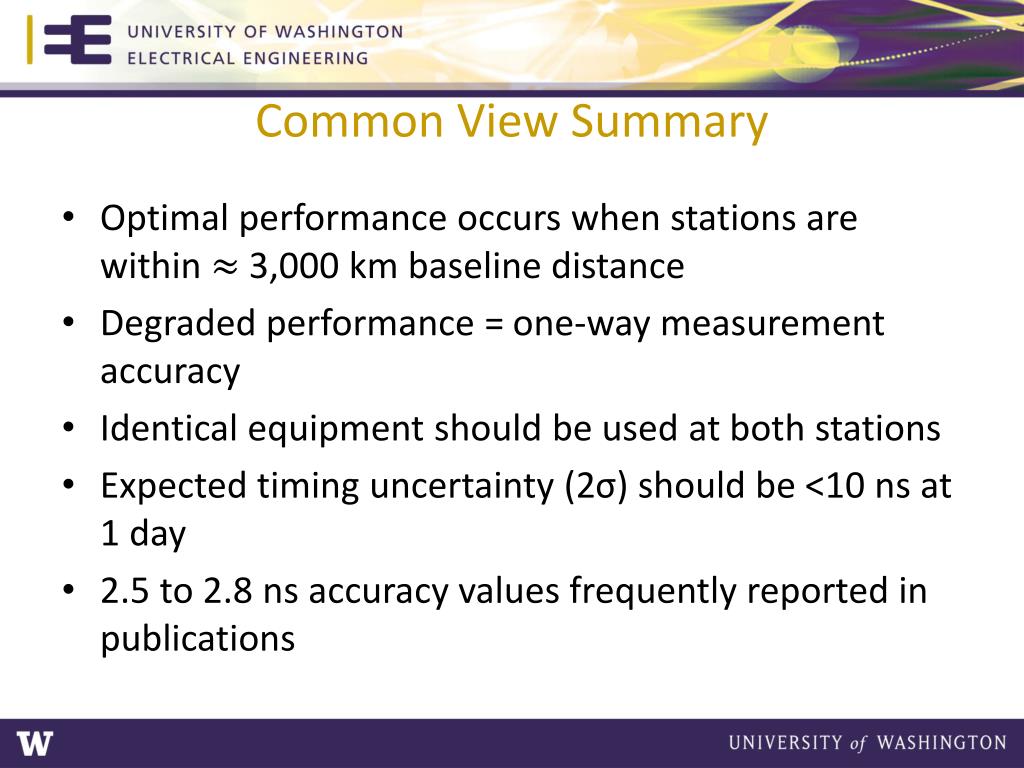

  19. Common View Summary • Optimal performance occurs when stations are within 3,000 km baseline distance • Degraded performance = one-way measurement accuracy • Identical equipment should be used at both stations • Expected timing uncertainty (2σ) should be <10 ns at 1 day • 2.5 to 2.8 ns accuracy values frequently reported in publications

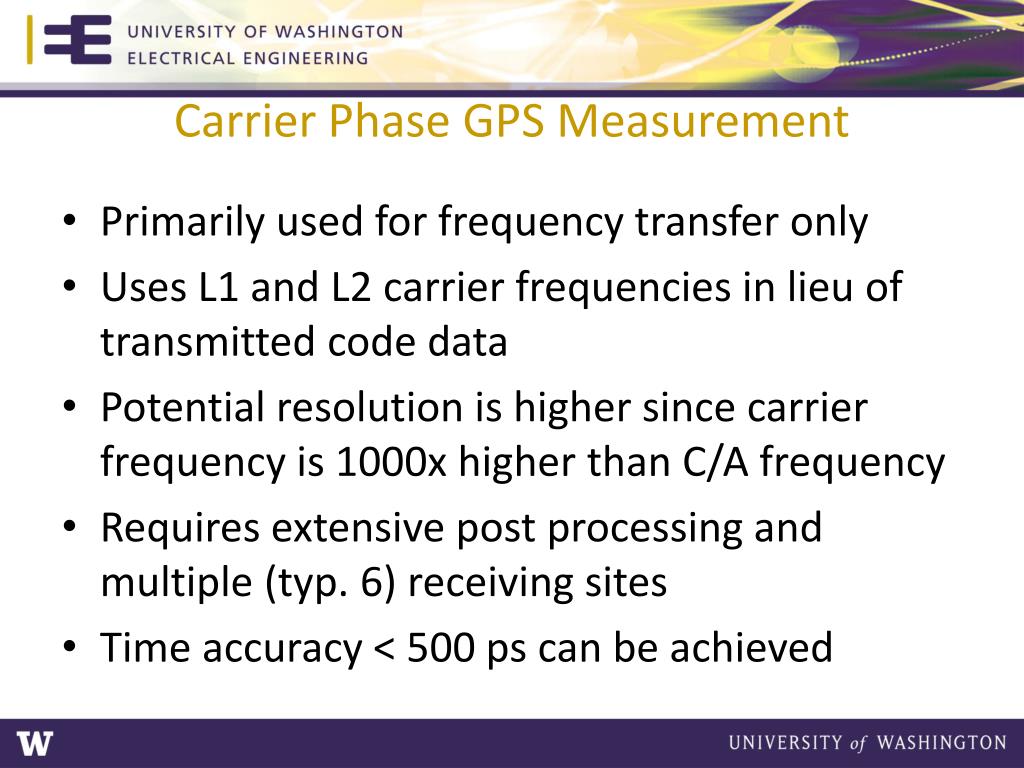

  20. Carrier Phase GPS Measurement • Primarily used for frequency transfer only • Uses L1 and L2 carrier frequencies in lieu of transmitted code data • Potential resolution is higher since carrier frequency is 1000x higher than C/A frequency • Requires extensive post processing and multiple (typ. 6) receiving sites • Time accuracy < 500 ps can be achieved

  21. Carrier Phase GPS Measurement (2) Where, = carrier wavelength, c/f = carrier phase observable for satellite S and receiver R = geometric range, , = satellite clock error = receiver clock error = propagation delay due to troposphere = propagation delay due to ionosphere = multipath error = unmodelled errors and receiver noise = carrier phase ambiguity or bias

  22. WAAS • Clock, Ephemeris, and ionospheric models are transmitted by geostationary satellite link to compatible receivers • Correction Data is computed by 24 ground stations throughout the United States • Similar system is the Japanese Multi-Functional Satellite Augmentation System (MSAS)

  23. WAAS (2) • Accuracy WAAS: -Spec: 7.6m (95%) -Act: 1.0m lateral 1.5m vertical MSAS: -Act: 1.5m -2.0m lateral and vertical http://www.environmental-studies.de/Precision_Farming/EGNOS_WAAS__E/3E.html

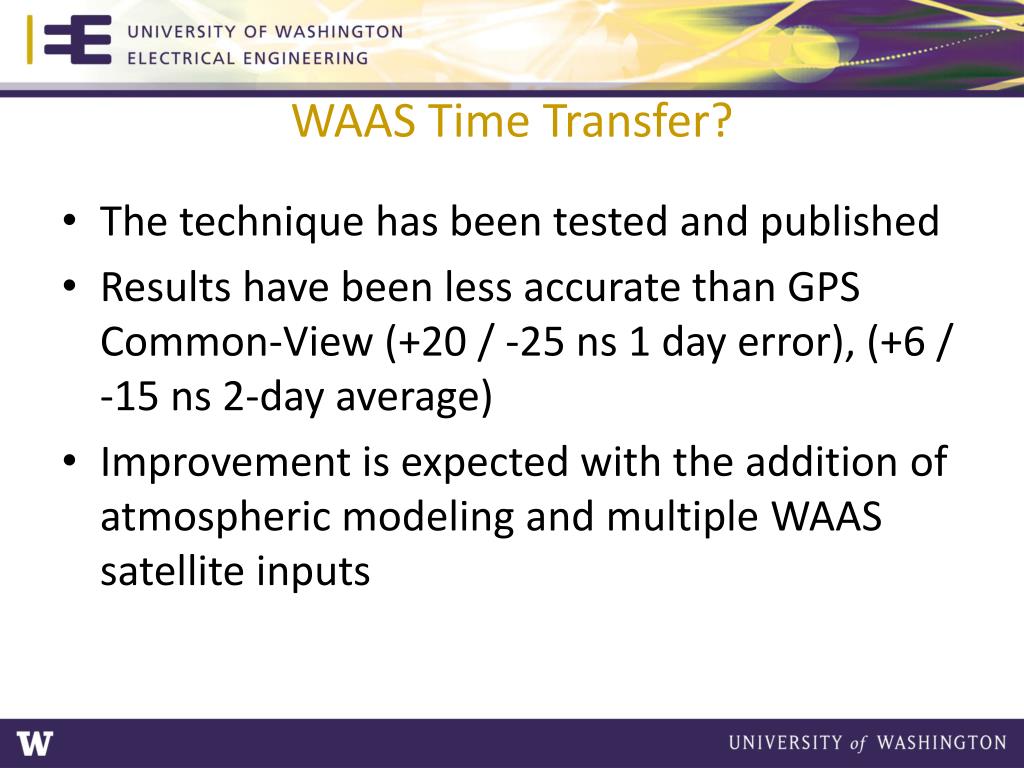

  24. WAAS Time Transfer? • The technique has been tested and published • Results have been less accurate than GPS Common-View (+20 / -25 ns 1 day error), (+6 / -15 ns 2-day average) • Improvement is expected with the addition of atmospheric modeling and multiple WAAS satellite inputs

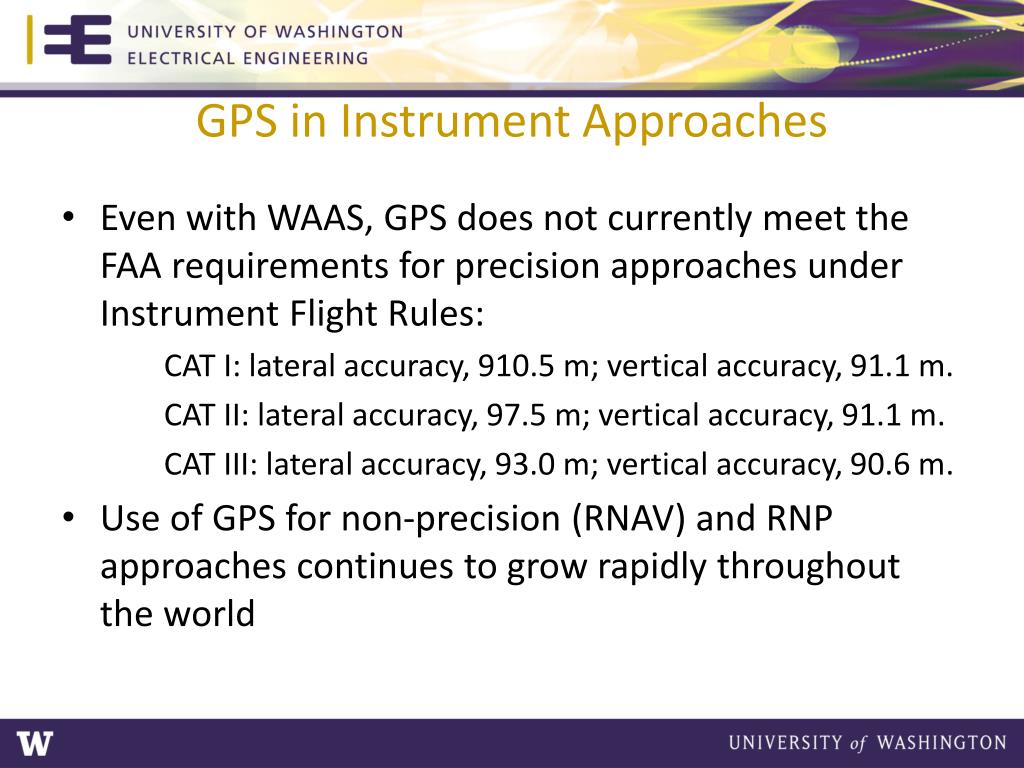

  25. GPS in Instrument Approaches • Even with WAAS, GPS does not currently meet the FAA requirements for precision approaches under Instrument Flight Rules: CAT I: lateral accuracy, 910.5 m; vertical accuracy, 91.1 m. CAT II: lateral accuracy, 97.5 m; vertical accuracy, 91.1 m. CAT III: lateral accuracy, 93.0 m; vertical accuracy, 90.6 m. • Use of GPS for non-precision (RNAV) and RNP approaches continues to grow rapidly throughout the world

  26. AFLD SFC CONDITIONS NOT MONITORED BETWEEN THE HOURS OF 2300 AND 0700. • NOT RCMDD FOR NIGHT USE OR IN MARGINAL WEATHER BY UNFAMILIAR PILOTS DUE TO MOUNTAINOUS TERRAIN.

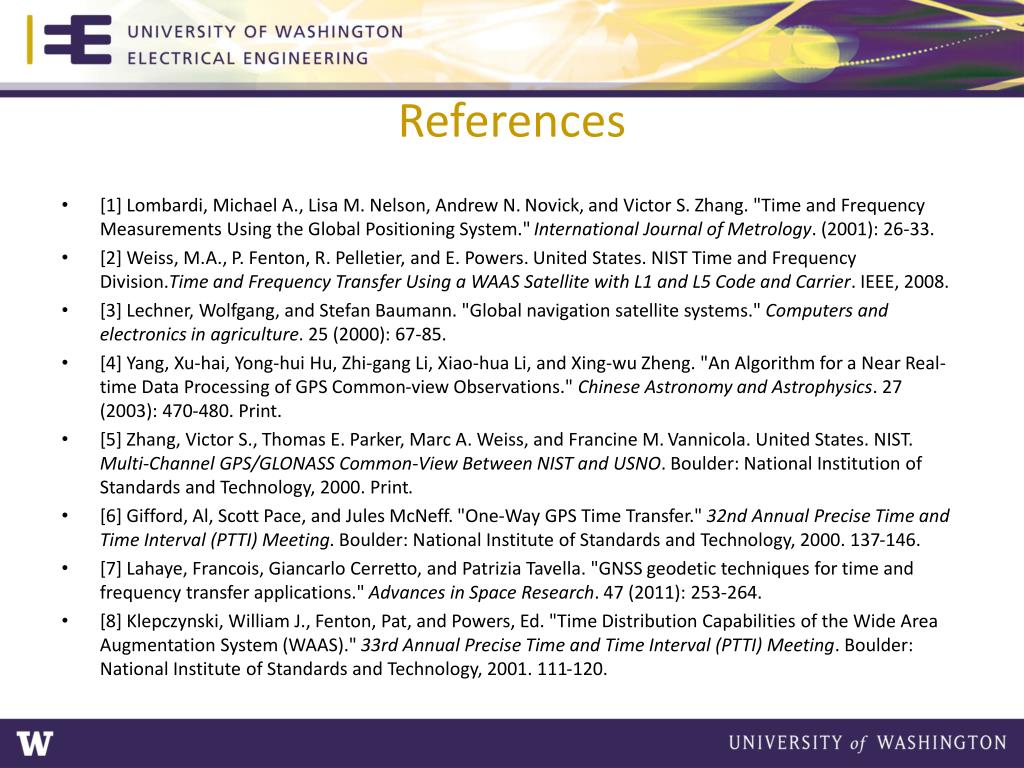

  27. References • [1] Lombardi, Michael A., Lisa M. Nelson, Andrew N. Novick, and Victor S. Zhang. "Time and Frequency Measurements Using the Global Positioning System." International Journal of Metrology. (2001): 26-33.   • [2] Weiss, M.A., P. Fenton, R. Pelletier, and E. Powers. United States. NIST Time and Frequency Division.Time and Frequency Transfer Using a WAAS Satellite with L1 and L5 Code and Carrier. IEEE, 2008.   • [3] Lechner, Wolfgang, and Stefan Baumann. "Global navigation satellite systems." Computers and electronics in agriculture. 25 (2000): 67-85.   • [4] Yang, Xu-hai, Yong-hui Hu, Zhi-gang Li, Xiao-hua Li, and Xing-wuZheng. "An Algorithm for a Near Real-time Data Processing of GPS Common-view Observations." Chinese Astronomy and Astrophysics. 27 (2003): 470-480. Print. • [5] Zhang, Victor S., Thomas E. Parker, Marc A. Weiss, and Francine M. Vannicola. United States. NIST. Multi-Channel GPS/GLONASS Common-View Between NIST and USNO. Boulder: National Institution of Standards and Technology, 2000. Print. • [6] Gifford, Al, Scott Pace, and Jules McNeff. "One-Way GPS Time Transfer." 32nd Annual Precise Time and Time Interval (PTTI) Meeting. Boulder: National Institute of Standards and Technology, 2000. 137-146.   • [7] Lahaye, Francois, Giancarlo Cerretto, and PatriziaTavella. "GNSS geodetic techniques for time and frequency transfer applications." Advances in Space Research. 47 (2011): 253-264.   • [8] Klepczynski, William J., Fenton, Pat, and Powers, Ed. "Time Distribution Capabilities of the Wide Area Augmentation System (WAAS)." 33rd Annual Precise Time and Time Interval (PTTI) Meeting. Boulder: National Institute of Standards and Technology, 2001. 111-120.
