Link Failures in IP Networks:

A Closer Look

Yashar Ganjali

Sprint Advanced Technology Lab.

August 5, 2003


Previous work

Previous Work

Link Failures

Maintenance

Unplanned

70 % of

Unplanned

Shared: Router Related, Optical Related, …

Individual Link Failures

Link Failures in IP Networks: A Closer Look


Our work

Our Work

  • Goal: gaining a deeper understanding of the causes & characteristics of link failures

  • How:

    • Using SONET alarm logs

    • Focusing on high failure links/periods

Link Failures in IP Networks: A Closer Look


Is is failures feb 2003

IS-IS Failures, Feb. 2003

Link Failures in IP Networks: A Closer Look


Number of failures per day

Number of Failures per Day

Link Failures in IP Networks: A Closer Look


Zoom in

Zoom In

Link Failures in IP Networks: A Closer Look


Zoom in cont d

Zoom In (Cont’d)

Link Failures in IP Networks: A Closer Look


High failure periods

High Failure Periods

  • Periods with a large number of failures (HNP)

  • Periods in which a large percentage of links are down (HDP)

Link Failures in IP Networks: A Closer Look


Number vs duration of failures

Number vs. Duration of Failures

Link Failures in IP Networks: A Closer Look


High failure periods1

High Failure Periods

Link Failures in IP Networks: A Closer Look


Periods with high number of failures

Periods with High Number of Failures

Link Failures in IP Networks: A Closer Look


High failure periods cont d

High Failure Periods (Cont’d)

  • We can also classify high failure periods based on spatial distribution of the links failing in those periods.

Link Failures in IP Networks: A Closer Look


Spatial distribution june 17 2003

Spatial DistributionJune 17, 2003

Link Failures in IP Networks: A Closer Look


Spatial distribution feb 26 2003

Spatial DistributionFeb. 26, 2003

Link Failures in IP Networks: A Closer Look


Links with high duration of failures

Links with High Duration of Failures

Link Failures in IP Networks: A Closer Look


Links with high number of failures

Links with High Number of Failures

Link Failures in IP Networks: A Closer Look


Matching is is failures with sonet alarms slos

Matching IS-IS Failures with SONET alarms (SLOS)

Link Failures in IP Networks: A Closer Look


Preliminary results

Preliminary Results

  • About 58% of all failures match with a SLOS alarm.

  • High Failure Links have a higher correlation with SLOS alarms (85%)

  • Router Related Failures show much less correlation than other classes (0-29%).

  • Periods with high number of failures show more correlation than periods with high duration of failures.

Link Failures in IP Networks: A Closer Look


Unmatched slos alarms

Unmatched SLOS alarms

Link Failures in IP Networks: A Closer Look


Matching slos alarms

Matching SLOS alarms

  • Problem: A large percentage (45%) of SLOS alarms do not correspond to any IS-IS failures

  • Solution: Remove links which are not up or links which go down for ever

  • Result: Less than 2% of SLOS alarms do not correspond to any IS-IS failures

Link Failures in IP Networks: A Closer Look


Matching is is failures sonet alarms

Matching IS-IS Failures & SONET alarms

Link Failures in IP Networks: A Closer Look


Unmatched slos alarms considering removed links

Unmatched SLOS alarms(considering removed links)

Link Failures in IP Networks: A Closer Look


Unmatched slos alarms1

Unmatched SLOS alarms

  • Spread over time

  • Almost half of them have a matching alarm (SLOS <-> SLOS cleared)

  • Minimum time between SLOS and SLOS cleared is 9 seconds.

  • More investigation???

Link Failures in IP Networks: A Closer Look


Research direction

Research Direction

  • High Failure Periods: Study cascading effects, spatial distribution of failures

  • High Failure Links: Predicting future failures based on passed ones.

  • Network Availability: How do failures affect network availability?

  • ???

Link Failures in IP Networks: A Closer Look


Yashar ganjali sprint advanced technology lab august 5 2003

You always pass failures on the way to success!

Thank you!

Link Failures in IP Networks: A Closer Look

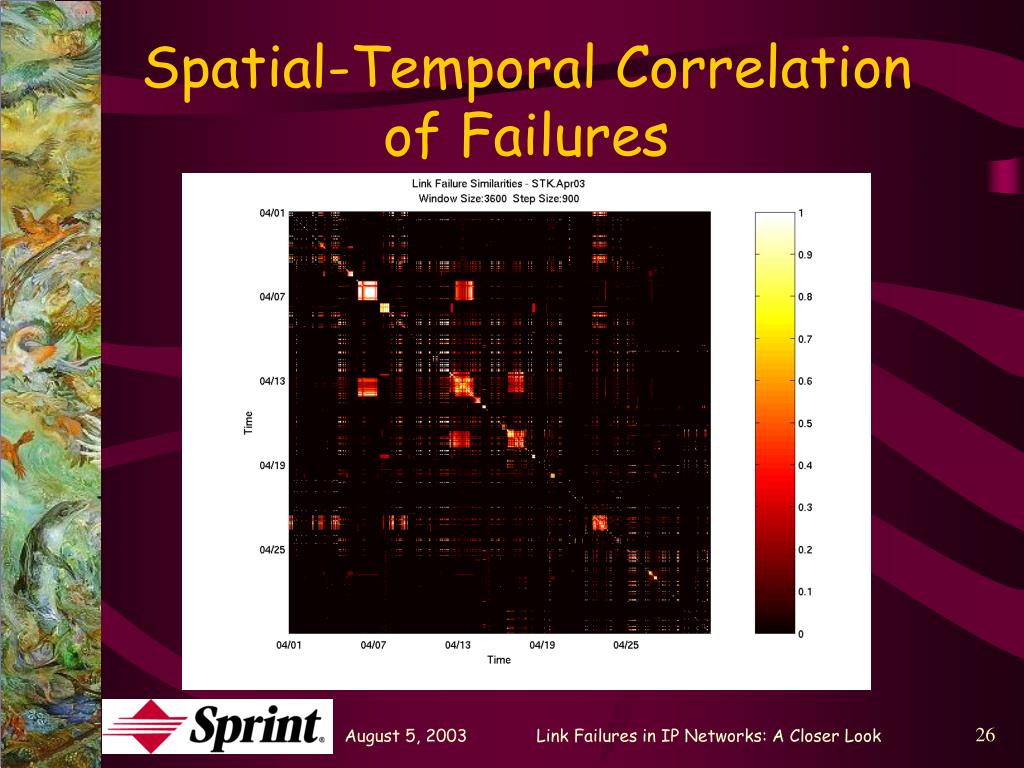

Spatial temporal correlation of failures

Spatial-Temporal Correlation of Failures

Link Failures in IP Networks: A Closer Look


Spatial temporal correlation of failures1

Spatial-Temporal Correlation of Failures

Link Failures in IP Networks: A Closer Look
