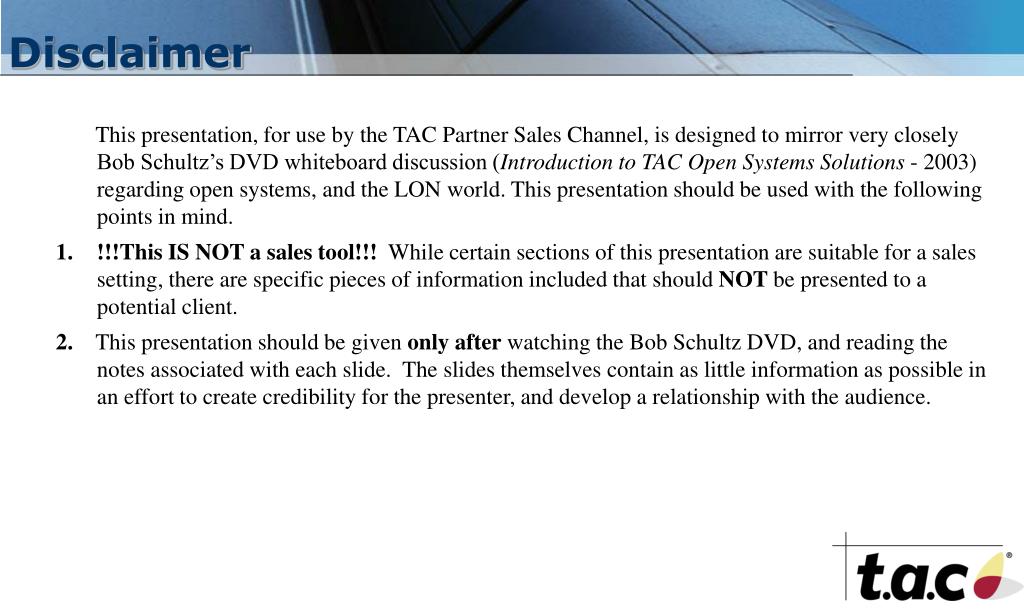

  1. Disclaimer • This presentation, for use by the TAC Partner Sales Channel, is designed to mirror very closely Bob Schultz’s DVD whiteboard discussion (Introduction to TAC Open Systems Solutions - 2003) regarding open systems, and the LON world. This presentation should be used with the following points in mind. • !!!This IS NOT a sales tool!!! While certain sections of this presentation are suitable for a sales setting, there are specific pieces of information included that should NOT be presented to a potential client. • 2. This presentation should be given only after watching the Bob Schultz DVD, and reading the notes associated with each slide. The slides themselves contain as little information as possible in an effort to create credibility for the presenter, and develop a relationship with the audience.

  2. Open Systems Terms, System Architecture & Basic Concepts

  3. Chapter 1 • LON Architecture • The Enterprise Level • The Hardware Level • Channels & Segments • Speed & Interoperability

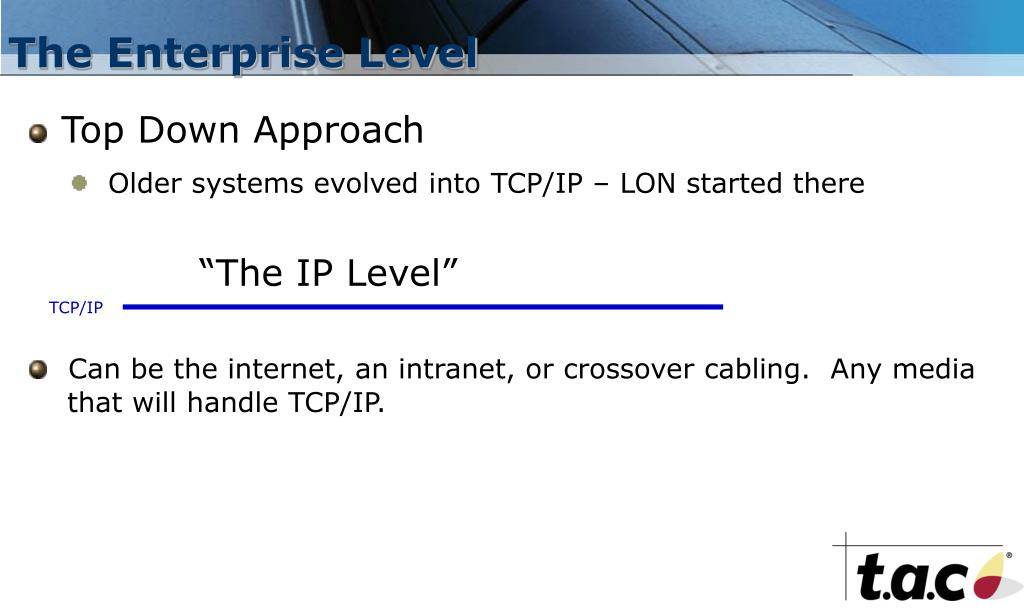

  4. The Enterprise Level TCP/IP • Top Down Approach • Older systems evolved into TCP/IP – LON started there “The IP Level” • Can be the internet, an intranet, or crossover cabling. Any media that will handle TCP/IP.

  5. The Enterprise Level “The Server” TCP/IP • Primary machine that interacts with the hardware environment. • Vista IV Server

  6. The Enterprise Level “The Client” TCP/IP • Communicates with hardware through the server. • Server/Client architecture implies vendor specific software. • Multiple Clients possible • Vista IV Workstation Server

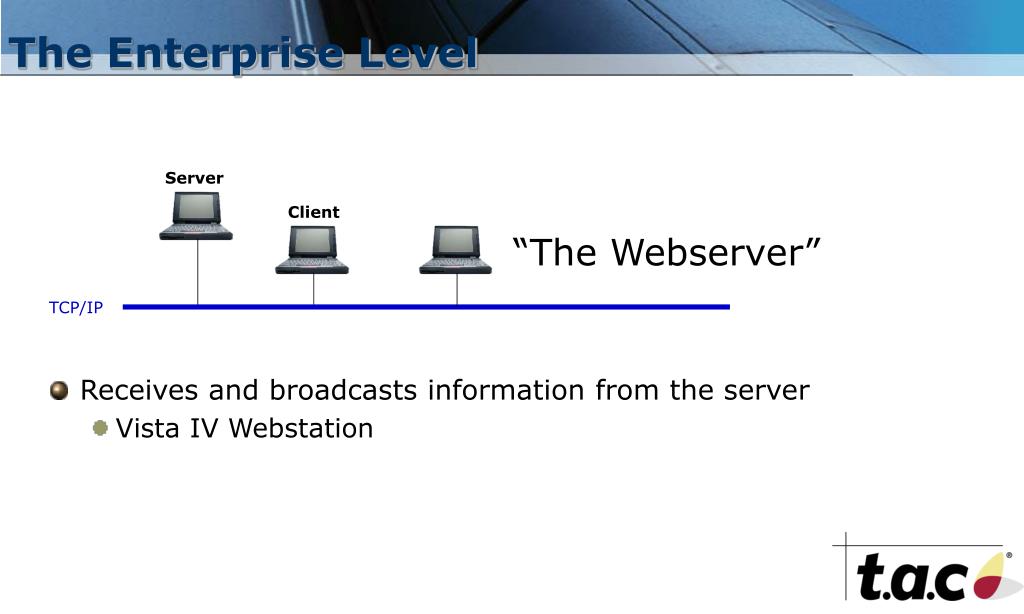

  7. The Enterprise Level “The Webserver” TCP/IP • Receives and broadcasts information from the server • Vista IV Webstation Server Client

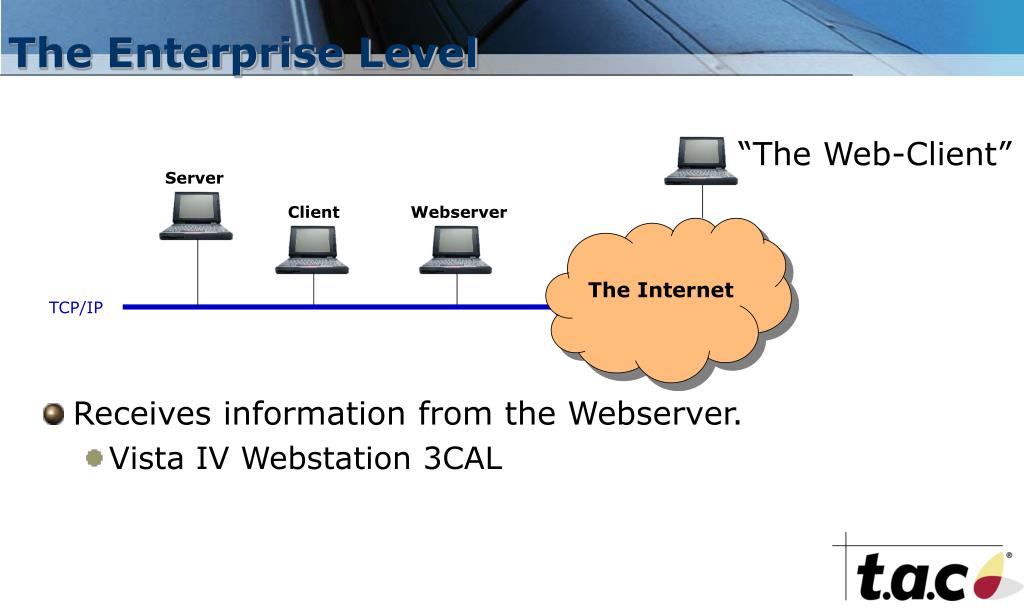

  8. The Enterprise Level The Internet • Receives information from the Webserver. • Vista IV Webstation 3CAL “The Web-Client” Server Client Webserver TCP/IP

  9. The Enterprise Level Web-client Server Client Webserver The Internet TCP/IP • Basic Enterprise level traffic flow • These are pieces of software –not necessarily separate machines.

  10. The Hardware Level Web-client Server Client Webserver The Internet TCP/IP • Routers • Network traffic cop • Protocol translation Router LON Backbone

  11. The Hardware Level Web-client Server Client Webserver TCP/IP The Internet Physical Layer Repeater

  12. Channels & Segments D D D D D D • Segment – A piece of the network defined by the boundaries of any communication governor. 50 device max. Device – Any piece of equipment on the network that possesses an Echelon neuron chip & I.D. Channel – Boundaries defined by routers. Usually consists of 2 segments.

  13. Channels & Segments T T T T • Terminators – Absorb reflecting signals,and improve communication quality.

  14. Channels & Segments WRONG 50 Dev. 50 Dev. 50 Dev. 50 Dev. 50 Dev. 50 Dev. 50 Dev. 50 Dev. • Common Misconception – LON is Logically AND Physically Flat. • 1 long wire carries all signals causing communications to bog, and system failure.

  15. The Hardware Level Web-client Server Client Webserver TCP/IP 50 Dev. 50 Dev. 50 Dev. 50 Dev. The Internet • Physically Tiered Logically Flat • No device ever more than 3 steps away from the Enterprise Level. “Don’t let anyone ever say we cannot deliver a system with superb communication characteristics.” - Bob Schultz

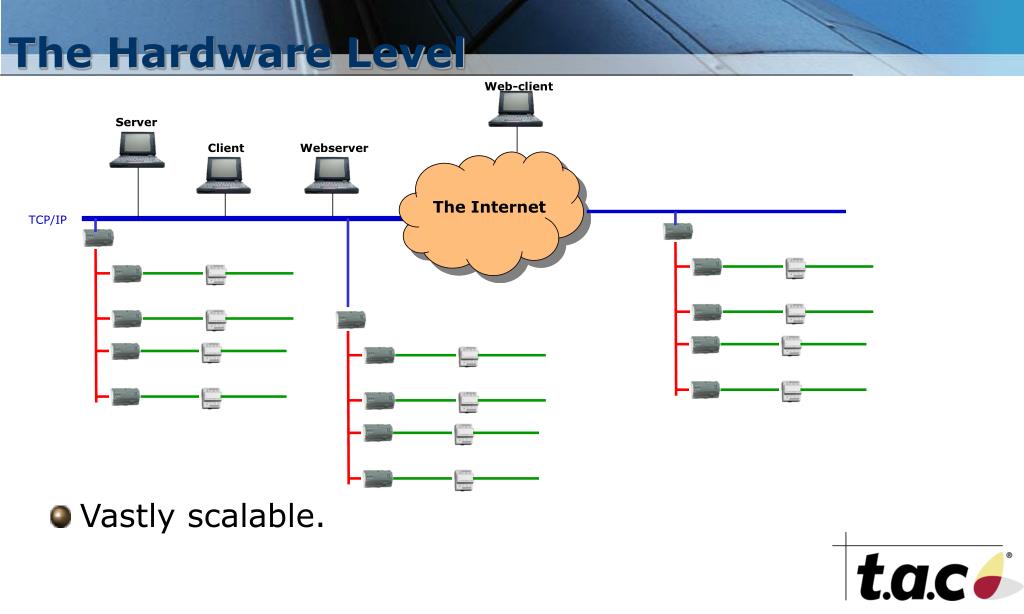

  16. The Hardware Level The Internet Web-client Server • Vastly scalable. Client Webserver TCP/IP

  17. Network Speed & Interoperability 100 Mbps The Internet 1.25 Mbps Or 78 kbps 78 kbps Web-client Server • Interoperability – Defined by: Media, Protocol & Speed • Echelon Transceiver forces 78kbs • Guarantees interoperability Client Webserver TCP/IP

  18. Chapter 2 Data • Network Bindings • Formatting • Echelon Conventions • Data Transmission

  19. Network Bindings D D • Bind– To connect and cause data flow • Logically Flat – True peer to peer. Opposite of Managed Communication • LonMaker Building I Building II

  20. Data Type – SNVT’s Standard Network Variable Type Basic format for data transmission across a LON-based network. Examples SNVT_temp_f = -273.17 to 1E38 degrees C SNVT_freq_hz = 0 to 6553.5 Hz SNVT_freq_khz = 0 to 6553.5 kHz SNVT_power_f = -1E38 to 1E38 watts SNVT_power_kilo = 0 to 6553.5 kW Multiple syntax possibilities for each process variable

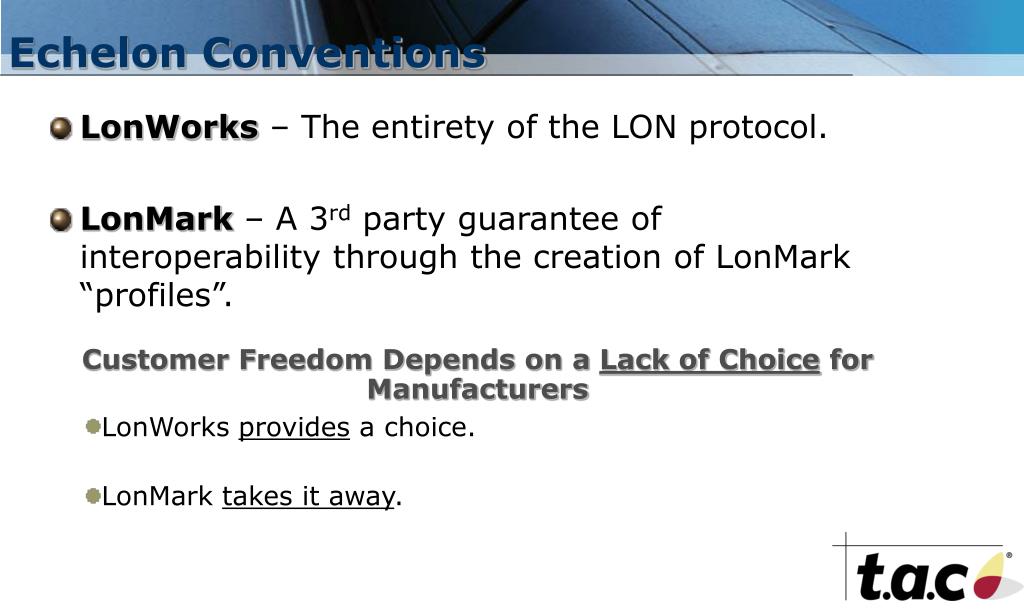

  21. Echelon Conventions • LonWorks – The entirety of the LON protocol. • LonMark – A 3rd party guarantee of interoperability through the creation of LonMark “profiles”. Customer Freedom Depends on a Lack of Choice for Manufacturers • LonWorks provides a choice. • LonMark takes it away.

  22. Data Transmission Send & Pray Low Priority data Ex – send OA temp to all VAV for display on stat. Send 3x’s & Pray Less Mid Priority data 99.9% effective Send Send Send Send Got it. Get it? Pray Less Pray • Acknowledged • Critical data • Ex- Outside Air temp to a process controller

  23. Chapter 3 Devices & Intra-level Communications • Application Specific Devices • Programmable Devices • Server/Device Communication • Software

  24. Application Specific Devices TAC Xenta 102 AX VAV ASC Belimo GM24 LON Actuator • A.S. Devices – Pre-determined logic by manufacturer. Configuration necessary. • VAV, Heat Pump…etc. controllers • LON-Based Sensors • LON-Based Actuators TAC Xenta 101 Fan Coil ASC • LON products add capability to contractors. • More tools

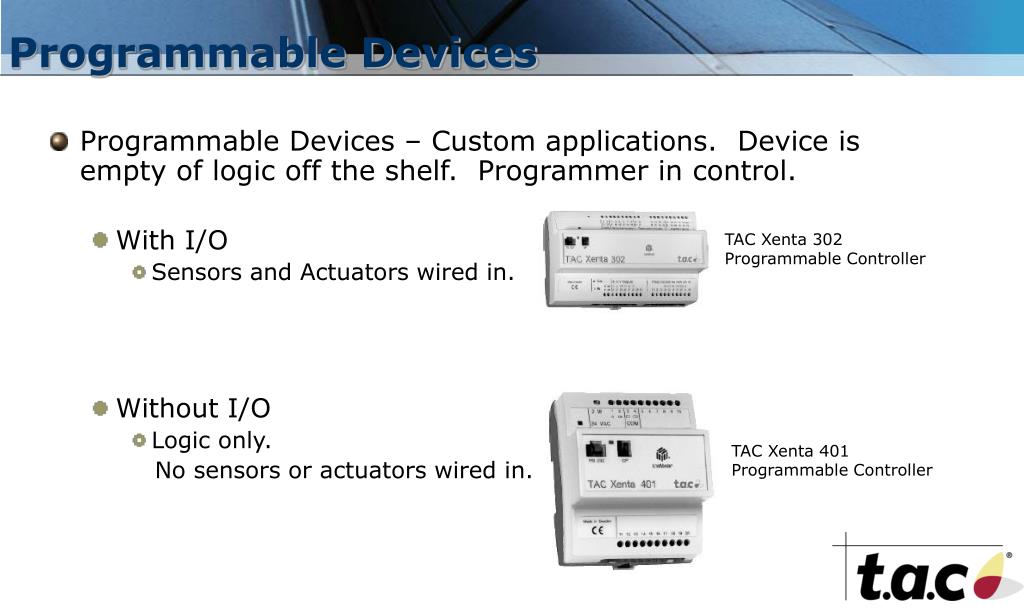

  25. Programmable Devices TAC Xenta 302 Programmable Controller TAC Xenta 401 Programmable Controller • Programmable Devices – Custom applications. Device is empty of logic off the shelf. Programmer in control. • With I/O • Sensors and Actuators wired in. • Without I/O • Logic only. No sensors or actuators wired in.

  26. Server Device Communication D D Open LonTalk TA Network Variables TAC Xenta 302 TAC Xenta 401 • Node-to-Node, more specifically, ASD-to-ASD communication in the LON World is fairly specific. • In a TAC environment, data can be passed using public communication, specific to TAC. • Programmable Controllers

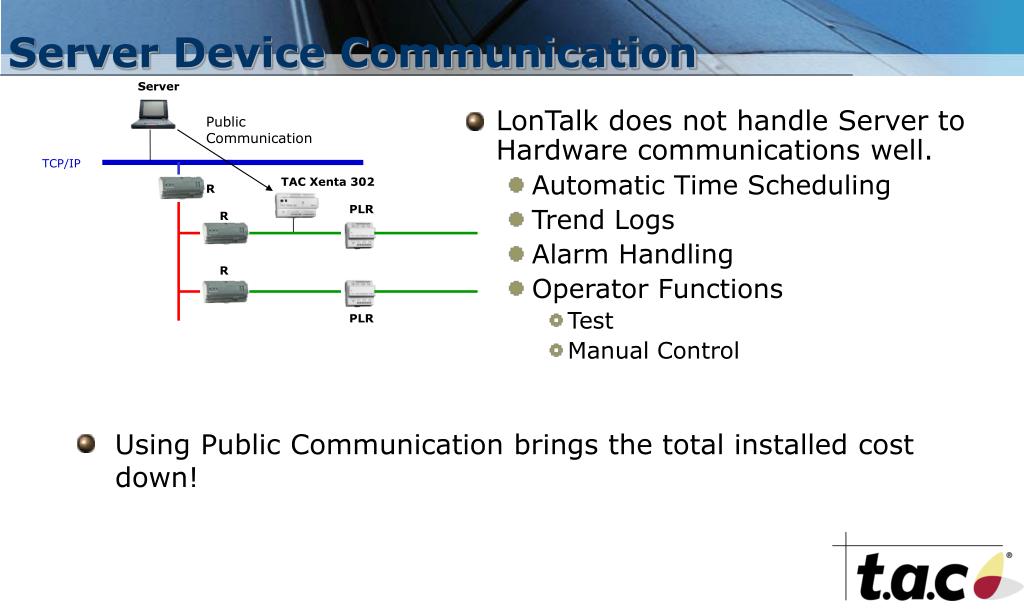

  27. Server Device Communication Server Public Communication • LonTalk does not handle Server to Hardware communications well. • Automatic Time Scheduling • Trend Logs • Alarm Handling • Operator Functions • Test • Manual Control TCP/IP TAC Xenta 302 R PLR R R PLR • Using Public Communication brings the total installed cost down!

  28. Software • Open Systems “modularize” software. Server Menta Workstation Webstation 3 CAL Webstation

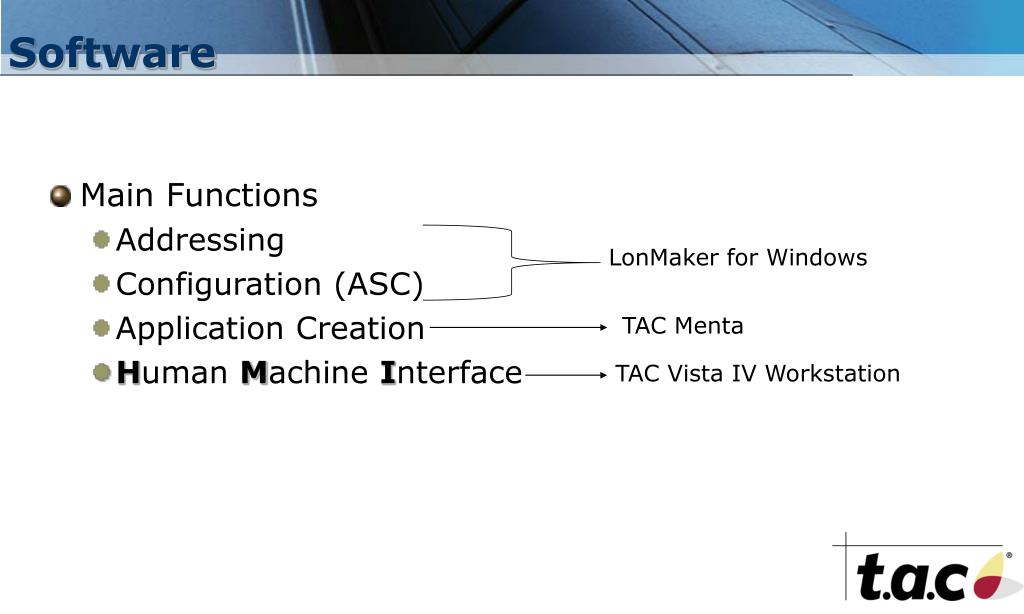

  29. Software LonMaker for Windows TAC Menta TAC Vista IV Workstation • Main Functions • Addressing • Configuration (ASC) • Application Creation • Human Machine Interface

  30. Software • LonMaker for Windows • Created by Echelon • Addresses all nodes • Binds all Network Communication • Visio Based • LNS Plug-in Support • Creates As-built Reports

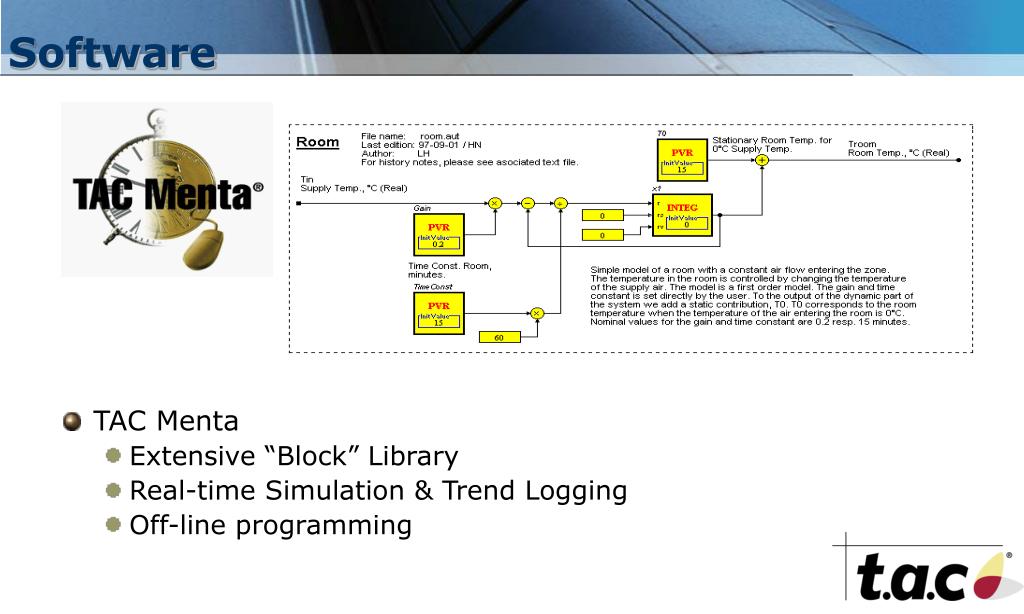

  31. Software • TAC Menta • Extensive “Block” Library • Real-time Simulation & Trend Logging • Off-line programming

  32. Software • TAC Vista IV Workstation • HMI • Alarm Handling • Trend Logging • Manual Control • Automated Scheduling

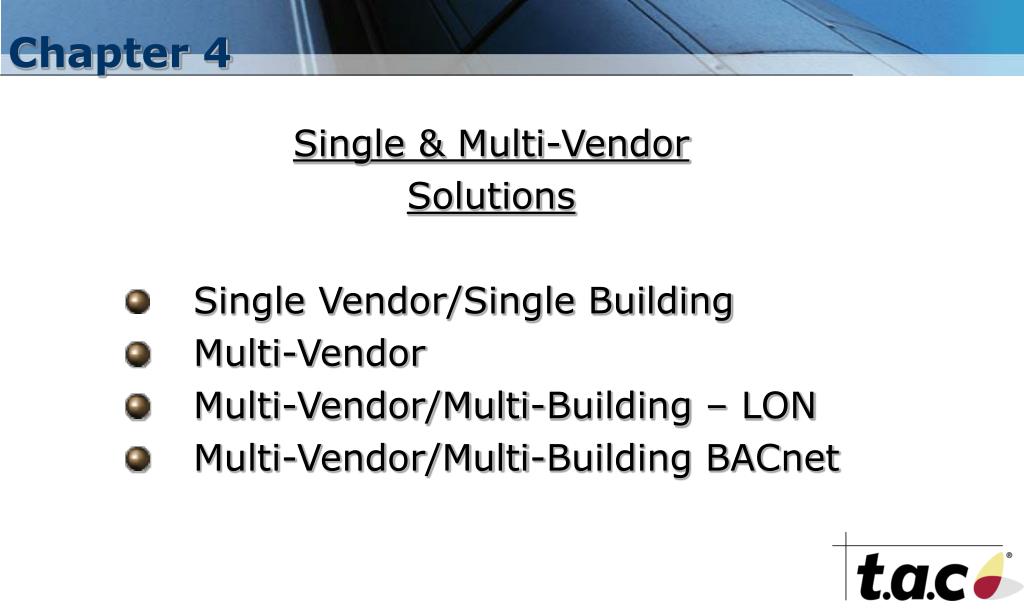

  33. Chapter 4 Single & Multi-Vendor Solutions • Single Vendor/Single Building • Multi-Vendor • Multi-Vendor/Multi-Building – LON • Multi-Vendor/Multi-Building BACnet

  34. Single Vendor/Single Building Client TAC Xenta 302 TAC Xenta 101 Values Server • Device Functionality • ASC’s have no memory TCP/IP • All Data flows to P.C. for processing R R PLR R PLR

  35. Single Vendor/Single Building Client Server • Device Functionality • ASC’s have no memory TCP/IP • All Data flows to P.C. for processing Alarms Schedules Trends R Data Collection • Alarm Generation • Trend Storing • Automated Schedules Values R PLR R PLR

  36. Multi-Vendor Client Logic only devices (401’s) Schedules Alarm Gen. Trends Server • Several logic only devices, placed high in the system architecture TCP/IP

  37. Multi-Vendor Client Network Area Controller (NAC) i.e. – JACE Box Server • NAC translates pure LON into HMI protocol. TCP/IP

  38. Multi-Vendor Client Server • Only pure LON SNVT’s are allowed to cross the DMZ TCP/IP DMZ – 100% LON SNVT =

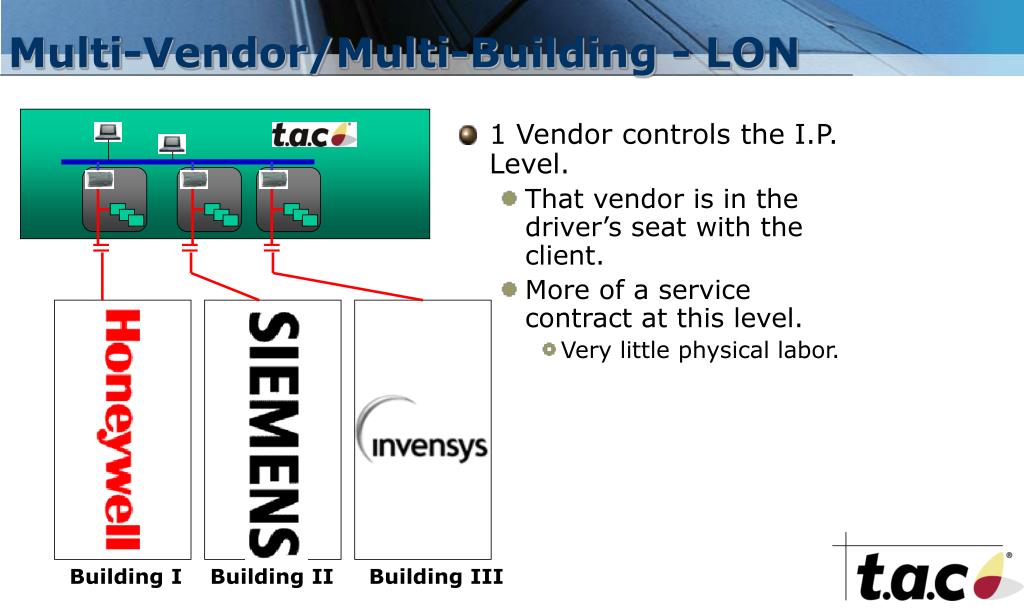

  39. Multi-Vendor/Multi-Building - LON • 1 Vendor controls the I.P. Level. • That vendor is in the driver’s seat with the client. • More of a service contract at this level. • Very little physical labor. = = = Building I Building II Building III

  40. Multi-Vendor/Multi-Building - LON • TAC can service a building even if the HMI doesn’t belong to us. = = = Building I Building II Building III

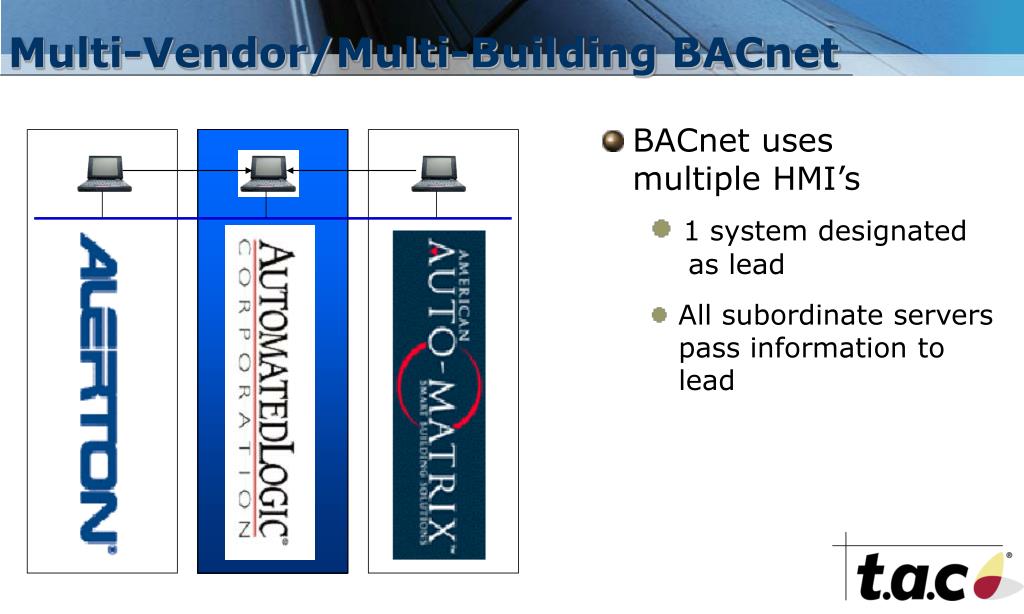

  41. Multi-Vendor/Multi-Building BACnet • BACnet uses multiple HMI’s • 1 system designated as lead • All subordinate servers pass information to lead

  42. Summing It Up • Physically Tiered – Logically Flat • Ladder/Rung Architecture • Interoperability • Speed, Media, Protocol • LonMark Association • Modular Software • Single/Multi Vendor Systems • Campus & Multi-Building Systems

  43. Keep in Mind • Build a vocabulary & a Dictionary • Be SPECIFIC • Plan Ahead

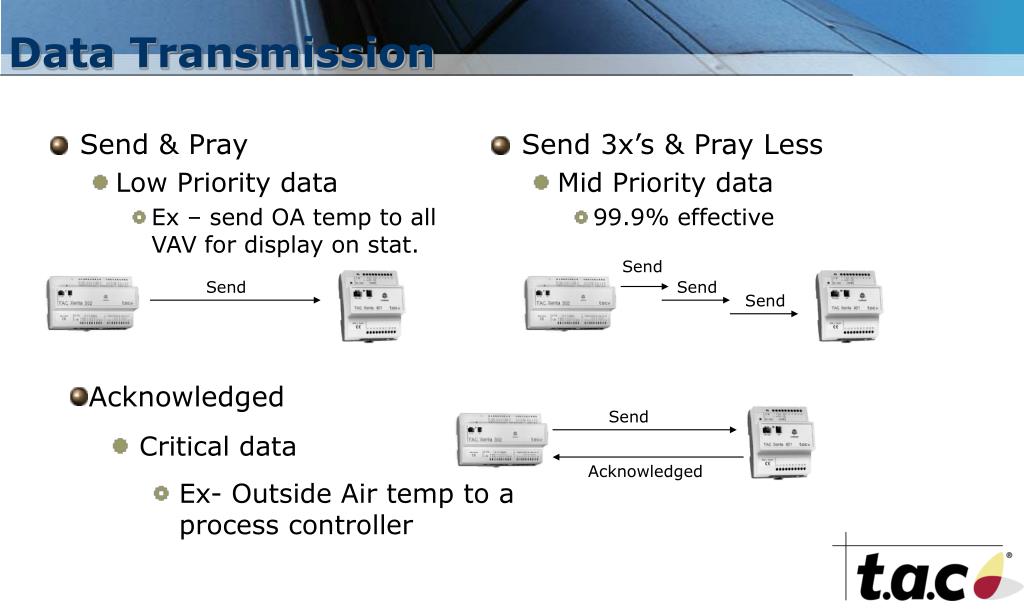

  44. Data Transmission Send & Pray Low Priority data Ex – send OA temp to all VAV for display on stat. Send 3x’s & Pray Less Mid Priority data 99.9% effective Send Send Send Send • Acknowledged • Critical data • Ex- Outside Air temp to a process controller Send Acknowledged
