  1. Not Your Father’s Commissioning Commissioning Changes & Requirements for LEED v4 • Presenters: • TIM McELROY, COMMISSIONING AUTHORITY • Certified Energy Manager, Qualified Commissioning Provider, LEED_AP • KEITH G. PEHL, PRESIDENT of OPTIMA ENGINEERING • Professional Engineer, LEED AP • CHRISTINE M. QUIGLEY, PRINCIPAL • Professional Engineer, Registered Roof Consultant, LEED AP

  2. Everything Changes… All the Time

  3. Requirement for preparing an Operating and Maintenance Plan • Requirement to engage Cx Agent by the end of the Design Development phase • Requirement for design review of enclosure

  4. LEED 2009 LEED v4 Enhanced Commissioning Fundamental Commissioning Enhanced Commissioning Fundamental Cx & Verification Option 2 Option 1 Path 2 Enhanced and Monitoring Based Cx (1 point) Path 1 Enhanced Commissioning (3 points) Envelope Cx (2 points)

  5. LEED 2009 LEED v4 Predesign, SD, DD

  6. LEED 2009 LEED v4 Construction Documents

  7. LEED 2009 LEED v4 Bidding

  8. LEED 2009 LEED v4 Construction EAp1 requirements: a sequence of operations for the building; the building occupancy schedule; equipment run-time schedules; setpointsfor all HVAC equipment; set lighting levels throughout the building; minimum outside air requirements; any changes in schedules or setpoints for different seasons, days of the week, and times of day; a systems narrative describing the mechanical and electrical systems and equipment; a preventive maintenance plan for building equipment described in the systems narrative; and a commissioning program that includes periodic commissioning requirements, ongoing commissioning tasks, and continuous tasks for critical facilities.

  9. LEED 2009 LEED v4 Post Construction

  10. LEED 2009 LEED v4 Occupancy

  11. LEED 2009 LEED v4 CxA Restrictions

  12. LEED 2009 LEED v4 CxA Qualifications

  13. LEED 2009 LEED v4 Systems Required to be in Scope of CxA

  14. Building Enclosure Commissioning (BECx) is a quality-focused process involving evaluation, verification, and documentation that a building’s envelope design, construction and operation meet defined performance expectations established during project initiation in the Owner’s Project Requirements (OPR). Building Enclosure Commissioning

  15. Foundations • Below Grade Walls • Plaza Decks and Planters • Exterior Cladding • Curtain walls and Storefronts • Windows and Doors • Sealant, Expansion Joints and Flashings • Air Barriers • Roofs • Skylights Building Enclosure Systems

  16. BE Function & Performance Expectations • Thermal Performance • Air/Moisture/Light Control • Fire Resistance • Acoustical Performance • Indoor Comfort • Structural Integrity • Security • Aesthetics • Maintainability/Sustainability • Economically Viable Why BECx?

  17. LEED 2009 EA Prerequisite 1: • “The building envelope is an important component of a facility that impacts energy consumption, occupant comfort and indoor air quality. While this prerequisite does not require building envelope commissioning, an owner can achieve significant financial savings and reduce risk of poor indoor air quality by including it in the commissioning process.” Why BECx?

  18. Why BECx? • Energy Savings • 2005 NIST Study concluded that “…continuous air barrier systems can reduce air leakage by up to 83%...” • ASHRAE Journal, March 2005: “Uncontrolled air leakage in buildings increases the heating and cooling energy consumption by up to 40%.”

  19. Building and MEP System Performance Dependent upon Building Enclosures • Well-recognized MEP Cx Benefits • MEP systems rely on properly designed and installed Building Enclosure Systems • Without air/moisture/thermal control, HVAC systems utilized to achieve thermal comfort and quality of indoor air will be unnecessarily expensive to install, operate and maintain Why BECx?

  20. Underperforming Buildings • March 2008 New Buildings Institute Study: 25% of LEED buildings are extremely less energy efficient than forecasted • LEED Gold Project Twin Lakes Green Building Complex (Sarasota County, FL): Evacuated for mold • LEED Platinum Project (Wake Forest, NC): Costly water intrusion investigation and flashing repair project Why BECx?

  21. Small Percentage But Big Consequences • “Transitions between building envelope components or assemblies generally total less than 1% of the building envelope area but can account for 90% of envelope failures and leakage.” - (NIBS Annex U, 2006) • “Errors and omissions in design and construction process are primary (and most frequently overlooked) source of uncontrolled rainwater penetration through the Building Envelope and represent 80% of all construction-related claims in the US.” – (Real Estate Issues. 33.3, 2008) Why BECx?

  22. Small Percentage But Big Consequences • BE Design Flaws/Construction Defects result in: • Uncontrolled air/water intrusion • Premature failures/deterioration • Biological growth • Increased energy costs • Costly investigations/repairs • Decreased occupant productivity/tenant retention Why BECx?

  23. Follow Industry Standards: • ASHRAE Guideline 0-2005 • NIBS Guideline 3-2012 • ASTM E2813-12 BECxApproach

  24. BECxApproach

  25. Pre-Design Phase • Design Phase • Construction Phase • Occupancy and Operations Phase BECx Process

  26. Attend project kick-off meeting • Establish communication plan • Review project requirements • Discuss influencing factors • Develop/document preliminary BE Owner’s Project Requirements (OPR) • Identify Scope and Budget for BECx • Develop preliminary BECx Plan Pre-Design Phase Services

  27. OPR Example: Exterior Enclosure Curtain Wall • Thermal Performance Criteria: Minimum R or U values • Structural Performance Criteria: Minimum live, snow, wind loads, maximum deflection and drift • Fire Resistance Criteria: Fire rating • Air Leakage Criteria: Maximum CFM/s.f. at specified pressure (psf) measured by specified standard • Water Leakage Criteria: No uncontrolled leaks at a static for specified pressure (psf) measured by specified standard • Condensation Control: Minimum Condensation Resistance Factor • Others: Acoustical Performance, Glare Control Owner’s Project Requirements

  28. BECx Plan Outlines: • BECx process • Roles and responsibilities of BECxA and other project team members • Methodology to verify and document compliance of as-built construction with contract documents and OPR • Clear, unambiguous definitions of failure and quantifiable threshold of performance to validate OPR and BOD BECx Plan

  29. 3rd Party Independent design review during Schematic Design, Design Development and Construction Document Phases • Attend design review meetings • Deliver BECx Specification Section 019115 • Develop and maintain Basis of Design (BOD) • Update OPR and BECx Plan Design Phase Services

  30. BE Drawings/Details Address: • Drainage Plane/Flashing Details • Air/Vapor Barrier System Details • Thermal Barrier Details • BE Reviews Verify: • Continuous/Constructible Control Layers • Material Compatibility and Product Appropriateness • Compliance with OPR, Building Code and Manufacturer’s Requirements • Drawing Continuity: Identification of Missing or Conflicting Details Design Reviews

  31. Attend Pre-Bid Conference • Review BE Information in Bids • Review BE Submittals and Shop Drawings • Coordinate BECx activities with Contractor • Update and Document OPR, BOD, BECx Plan Pre-Construction Phase Services

  32. Attend pre-construction, mock-ups installations and construction progress meetings • Perform on-site inspections and report observations • Assist with QA/QC reviews • Develop and maintain BE-related punch list reports of outstanding or defective items • Develop/distribute BECx close-out documents • Maintain/Update OPR, BOD and BECx Plan • Observe or Conduct Performance Verification Testing Construction Phase Services

  33. Inspection Services

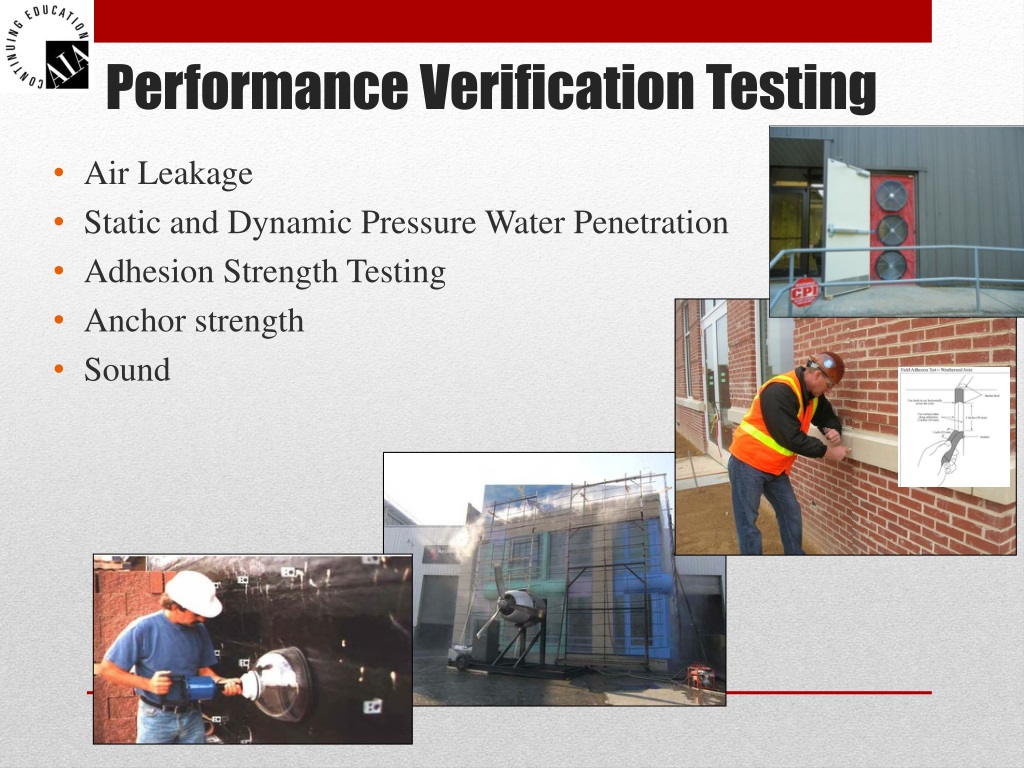

  34. Air Leakage • Static and Dynamic Pressure Water Penetration • Adhesion Strength Testing • Anchor strength • Sound Performance Verification Testing

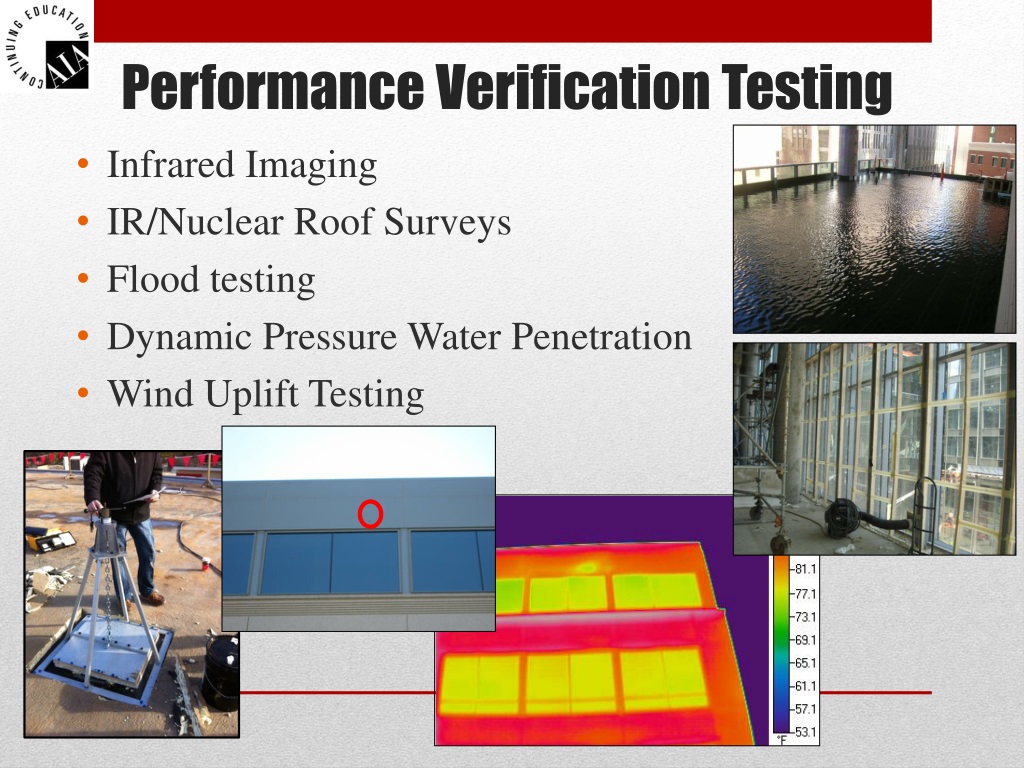

  35. Infrared Imaging • IR/Nuclear Roof Surveys • Flood testing • Dynamic Pressure Water Penetration • Wind Uplift Testing Performance Verification Testing

  36. Attend Occupancy and Operations planning meeting • Provide Final BECx Report • Summary of BE systems tested and results • Tabulation of BE system warranties • Maintenance Manual • Perform limited survey and testing (nondestructive) of BE systems at milestone intervals • Assist with LEED Certification • University of Florida: Innovation in Design credit for BECx • LEED V4: BECxstill not part of prerequisite Cx but BE Design Review required Occupancy and Operations Phase Services

  37. LEED 2009 LEED v4 Systems optional in scope of CxA (must pursue EAc3 / EAp1 to apply for ID credit)

  38. LEED 2009 LEED v4 • ASHRAE Guidelines 0-2005 - GENERAL • ASHRAE 1.1-2007 – HVAC Systems • NIBS Guideline 3-2012 – BUILDING ENVELOPE Referenced Standards

  39. LEED 2009 LEED v4 Envelope Requirements

  40. LEED 2009 LEED v4 Documents required to be uploaded to LEED Online

  41. Bottomline Changes to v4 from v2009 • Fundamental Cx& Verification • Includes envelope design review • 50k sf lowered to 20k sf • CxA designated prior to CDs • Added review and back-check of OPR, BOD and design documents • Added systems manual and facilities requirements documentation • Additional documentation uploaded to LEED Online • Enhanced Cx: • Option 1/Path 1 • Added ongoing Cxplan • Added systems manual requirements and operator and occupant training requirements to CDs • Verifying delivery of Facilities requirements, O&M plan and Systems Manual • Verify seasonal testing occurred • Option 1/Path 2 • M&V • Option 2 • Envelope inspection and performance testing

  42. QUESTIONS?

  43. THANK YOU
