  1. Interacting with SharePoint using the CSOM and REST API Presented by Eric Smith 2.1.2014

  2. Special Thanks to our Platinum Sponsor …and our Gold Sponsor

  3. Who am I? • SharePoint developer at L-3 Communications • 3 Years experience in SharePoint • BS from U of U and current MBA Student • MTA, MCSA, MOS, MCTS, MCITP, MCSD • Active in numerous mobile development projects

  4. Intro to CSOM and REST API

  5. SharePoint API

  6. CSOM • API for Remote applications • Designed to be similar to server-object model • Introduced in SharePoint 2010 and expanded in 2013 • Three implementations • .NET Managed, Silverlight, Javascript • Facades on top of /_vti_bin/Client.svc • Communication with SharePoint done in batches

  7. Three Implementations • .NET Managed • Located in <System Root>\ISAPI • Microsoft.SharePoint.Client.*.dll • Silverlight • Located in <System Root>\TEMPLATE\LAYOUTS\ClientBin • Microsoft.SharePoint.Client.*.Silverlight.dll • Microsoft.SharePoint.Client.*.Phone.dll • JavaScript • Located in <System Root >\TEMPLATE\LAYOUTS • SP.*.js

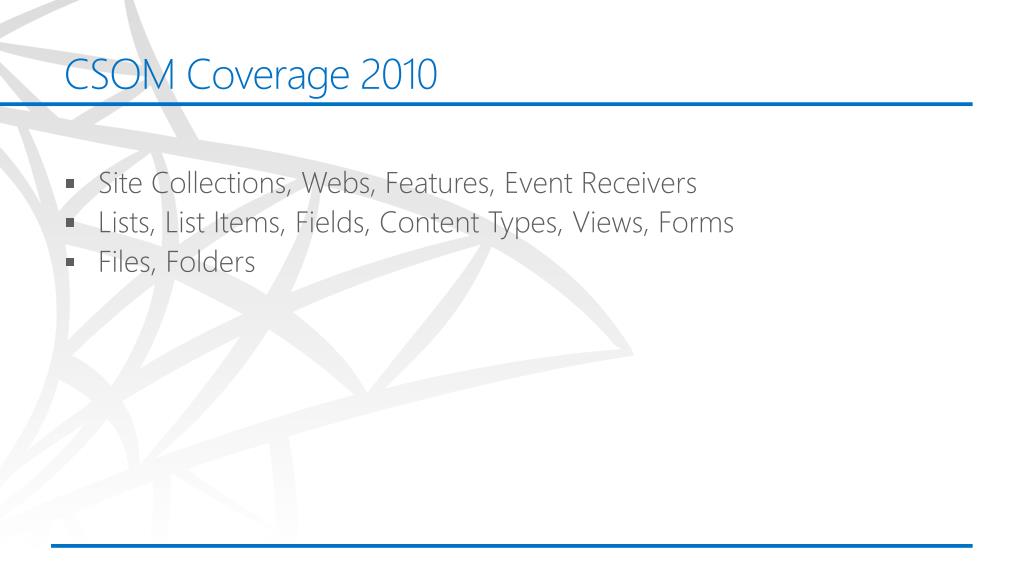

  8. CSOM Coverage 2010 • Site Collections, Webs, Features, Event Receivers • Lists, List Items, Fields, Content Types, Views, Forms • Files, Folders

  9. CSOM Coverage 2013 • Site Collections, Webs, Features, Event Receivers • Lists, List Items, Fields, Content Types, Views, Forms, IRM • Files, Folders • Users, Roles, Groups, User Profiles, Feeds • Web Parts • Search, Analytics • Taxonomy • Workflow • E-Discovery, Business Data (BCS)

  10. Communication With SharePoint • All CRUD operations are automatically batched • Requests for resources are matched using Load and LoadQuery • Batches are executed using ExecuteQuery or ExecuteQueryAsync • This triggers a POST request to Client.svc/ProcessQuery • Message body contains XML document with batched request information • Responses contains requested resources in JSON format

  11. Retrieving Resources Using Load • “Load” indicates specified object data should be included in next batch retrieval • Not all properties are retrieved • Primary exceptions are collections

  12. Retrieving Resources Using Load (cont.) Managed JavaScript varclientContext = SP.ClientContext.get_current(); this.oWebsite = clientContext.get_web(); clientContext.load(this.oWebsite); clientContext.executeQueryAsync( Function.createDelegate(this, this.onQuerySucceeded), this.onQueryFailed) ); function onQuerySucceeded(sender, args) { alert('Title: ' + this.oWebsite.get_title() + ' Description: ' + this.oWebsite.get_description()); } ClientContext context = new ClientContext("SiteUrl"); Web web = context.Web; context.Load(web); context.ExecuteQuery(); label1.Text = web.Title;

  13. Demo Using Load • DEMO TIME

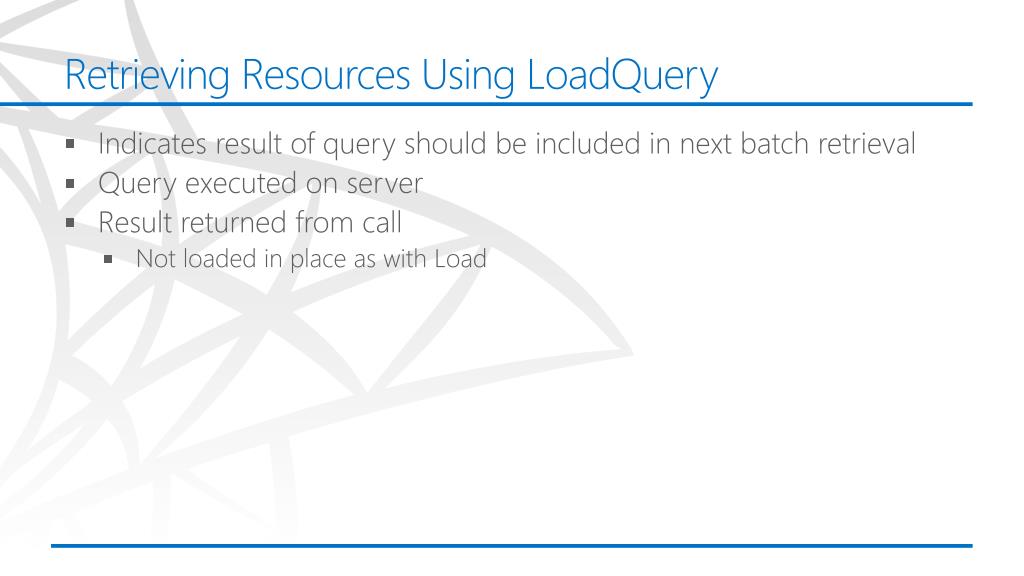

  14. Retrieving Resources Using LoadQuery • Indicates result of query should be included in next batch retrieval • Query executed on server • Result returned from call • Not loaded in place as with Load

  15. Demo using LoadQuery • DEMO TIME

  16. REST API • What is REST API in SharePoint • Data-centric web services based on the Open Data Protocol (OData) • Each resources or set of resources is addressable • http://<Site URL>/_api/web • http://<Site URL>/_api/web/lists • http://<Site URL>/_api/web /lists/getByTitle(“Vendors”) • Operations on resources mapped to HTTP verbs • GET, PUT, POST, DELETE, … • Results are AtomPub (XML) or JSON

  17. Why REST when we have CSOM? • REST has significant industry momentum • Allows stacks other than the .NET • Simpler and Easier to Use Than SOAP • SOAP had major limitations in it’s non-flexibility, it was hard to create, consume, and maintain • Results can be returned in JSON and ATOM format • Each query is submitted with a unique URL • REST Results can be cached by proxy servers because you no longer expect different results & run two different queries using same URL • Note – currently no support for batching

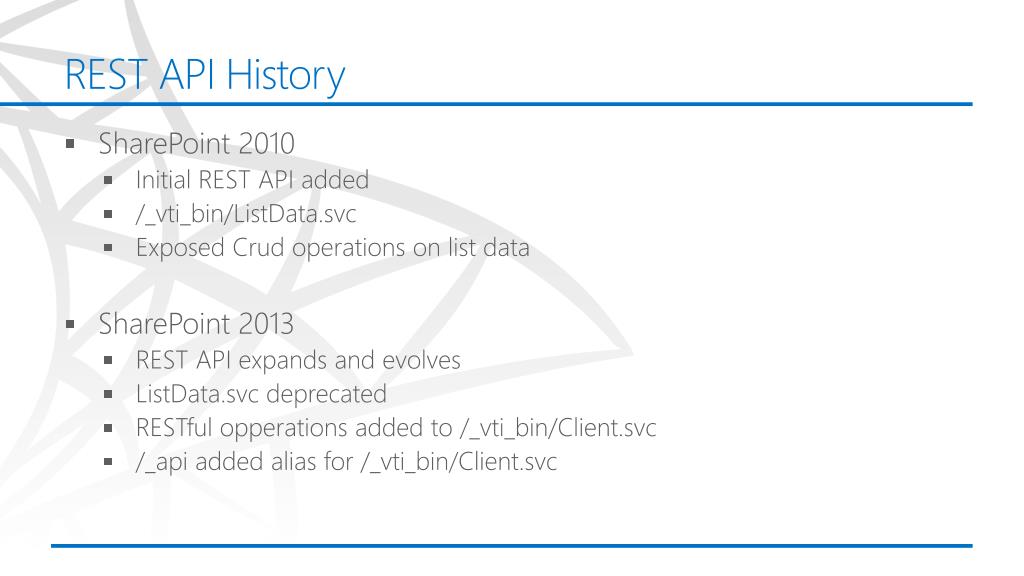

  18. REST API History • SharePoint 2010 • Initial REST API added • /_vti_bin/ListData.svc • Exposed Crud operations on list data • SharePoint 2013 • REST API expands and evolves • ListData.svc deprecated • RESTfulopperations added to /_vti_bin/Client.svc • /_api added alias for /_vti_bin/Client.svc

  19. REST API Coverage • Sites, Webs, Features, Event Receivers, Site Collections • Lists, List Items, Fields, Content Types, Views, Forms, IRM • Files, Folders • Users, Roles, Groups, User Profiles, Feeds • Search

  20. Retrieving Data using REST API (Managed) • /_api does not expose metadata (well...) • You cannot add a service reference from visual studio • Two options • Get data in XML format and use LINQ to XML • Get data in JSON format and use built-in or third party serialization • JavascriptSerializer, JSON.NET

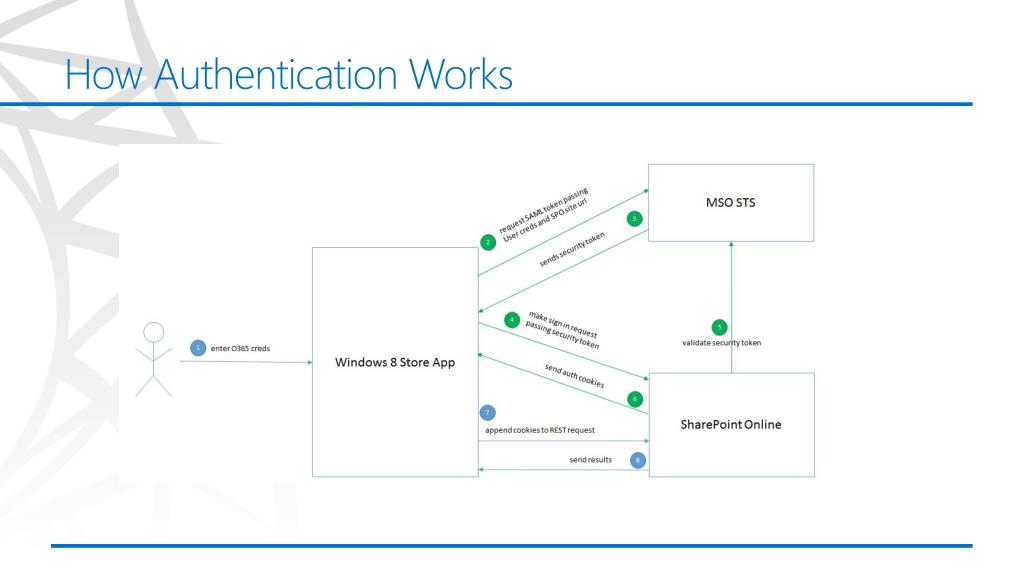

  21. How Authentication Works

  22. REST API Managed Demo • DEMO TIME

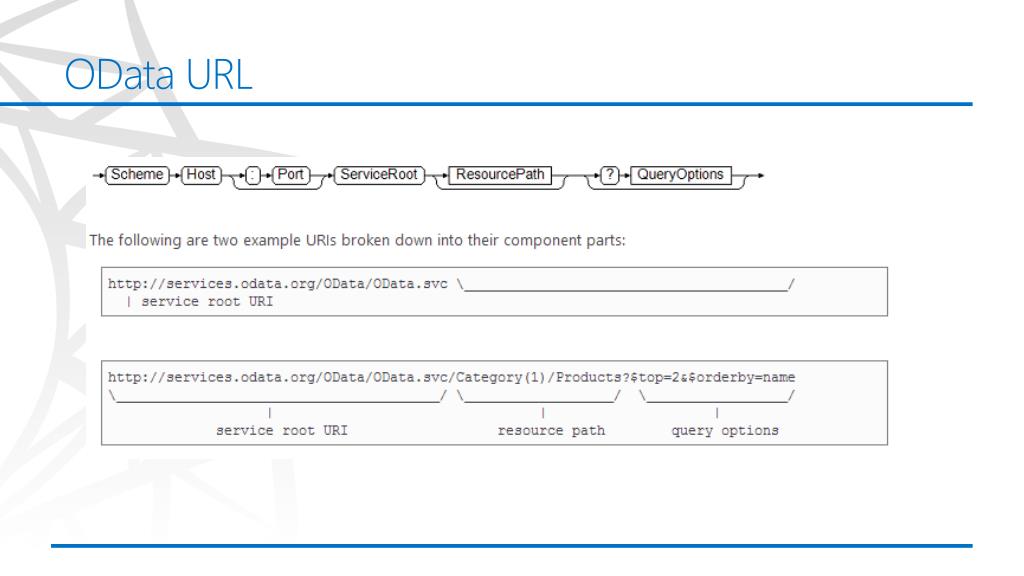

  23. OData URL

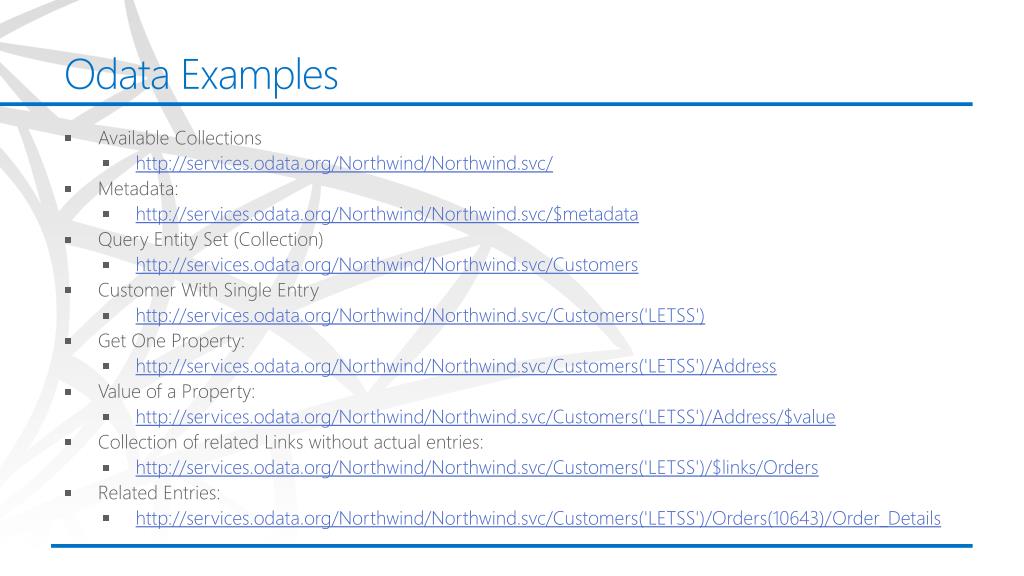

  24. Odata Examples • Available Collections • http://services.odata.org/Northwind/Northwind.svc/ • Metadata: • http://services.odata.org/Northwind/Northwind.svc/$metadata • Query Entity Set (Collection) • http://services.odata.org/Northwind/Northwind.svc/Customers • Customer With Single Entry • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS') • Get One Property: • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')/Address • Value of a Property: • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')/Address/$value • Collection of related Links without actual entries: • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')/$links/Orders • Related Entries: • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')/Orders(10643)/Order_Details

  25. Odata Query support • Options: $filter, $sort, $orderby, $top, $expand, $skip, $take, $metadata… • Operations: eq, ne, gt, ge, lt, le, and, or, not, mod, add, sub • Functions: startswith, substring, replace, tolower, trim, round, ceiling, day, month, year, typeof,… • Top 3 Customer from USA Order By ContactName • http://services.odata.org/Northwind/Northwind.svc/Customers?$filter=Country eq 'USA'&$orderby=ContactName&$top=3 • Return related Entries Inline • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')/$links/Orders • Get Data in JSON Format • http://services.odata.org/Northwind/Northwind.svc/Customers('LETSS')?$expand=Orders&$format=JSON

  26. SharePoint Examples • _api => _vti_bin/client.svc • _api/web/lists • _api/web/lists/lists(guid) • _api/web/lists/getByTitle(‘Announcements’) • _api/web/lists/getbytitle(‘Announcements’)/items(2)/FieldValuesAsHtml/$select=Title,Author • _api/web/getAvailableWebTemplates(lcid=1033) • _api/web/?$select=title,id • _api/web/lists/getByTitle(‘mylist’)?$select=title,firstname • _api/web/lists/getByTitle(‘customers’)?$select=title,firstname&startswith(Title, ‘p’)

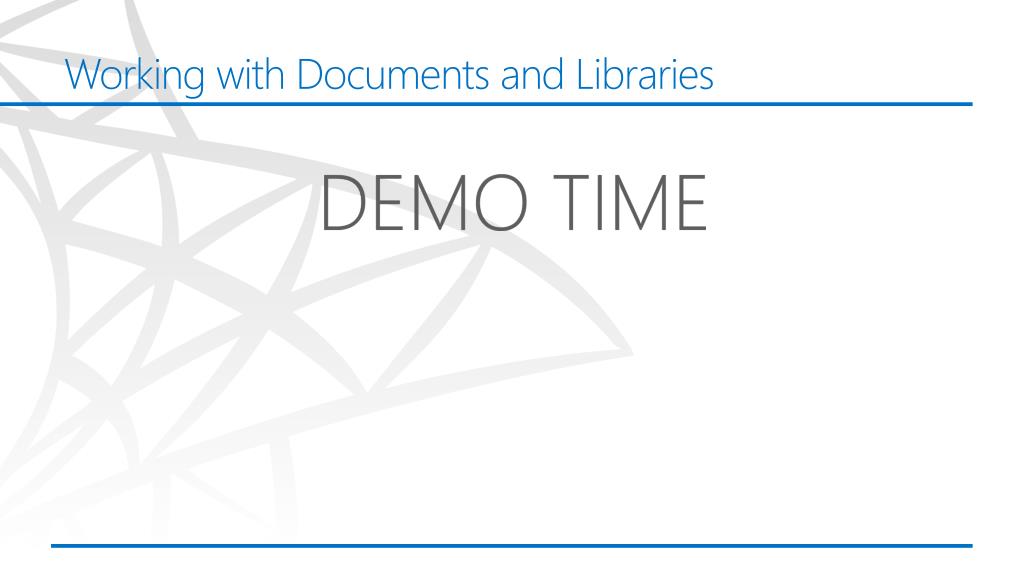

  27. Working with Documents and Libraries

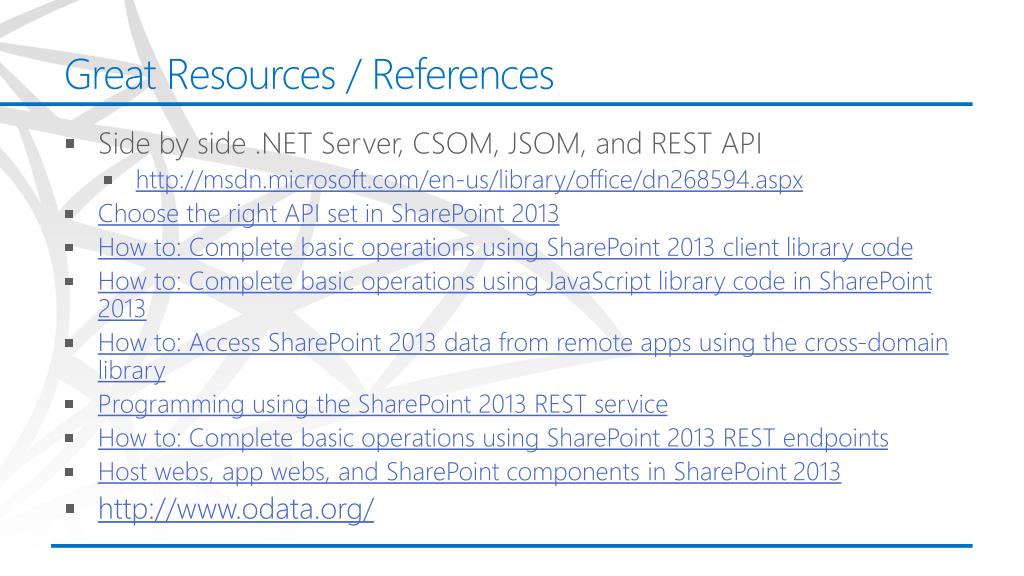

  28. Great Resources / References • Side by side .NET Server, CSOM, JSOM, and REST API • http://msdn.microsoft.com/en-us/library/office/dn268594.aspx • Choose the right API set in SharePoint 2013 • How to: Complete basic operations using SharePoint 2013 client library code • How to: Complete basic operations using JavaScript library code in SharePoint 2013 • How to: Access SharePoint 2013 data from remote apps using the cross-domain library • Programming using the SharePoint 2013 REST service • How to: Complete basic operations using SharePoint 2013 REST endpoints • Host webs, app webs, and SharePoint components in SharePoint 2013 • http://www.odata.org/

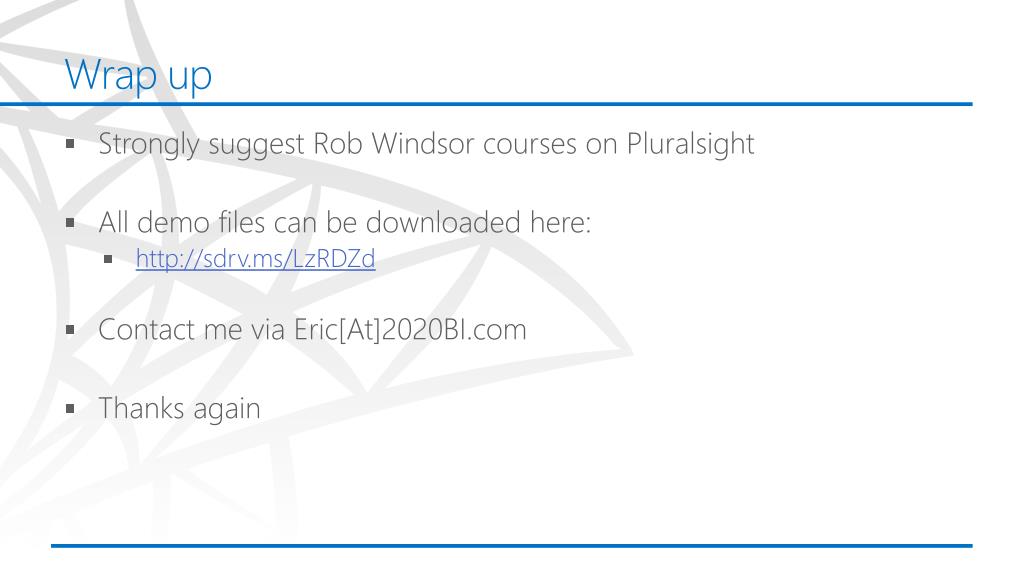

  29. Wrap up • Strongly suggest Rob Windsor courses on Pluralsight • All demo files can be downloaded here: • http://sdrv.ms/LzRDZd • Contact me via Eric[At]2020BI.com • Thanks again
