  1. Mobile Computing and Security Computer Science and Engineering

  2. Mobile Devices • Traditional computing and networking vs. mobile devices (smart phones, internet tables, etc.) • Widely accepted consumerization: individuals and organizations • Huge amount of sensitive data (personal and corporate) • Security and privacy threats Computer Science and Engineering

  3. OWASP Mobile Security Project • M1: Weak Server Side Controls • M2: Insecure Data Storage • M3: Insufficient Transport Layer Protection • M4: Unintended Data Leakage • M5: Poor Authorization and Authentication • M6: Broken Cryptography • M7: Client Side Injection • M8: Security Decisions Via Untrusted Inputs • M9: Improper Session Handling • M10: Lack of Binary Protections Computer Science and Engineering

  4. OWASP • Additional materials from OWASP: • The original (OWASP) presentation can be found here: SLIDES • The corresponding video can be found here: VIDEO Computer Science and Engineering

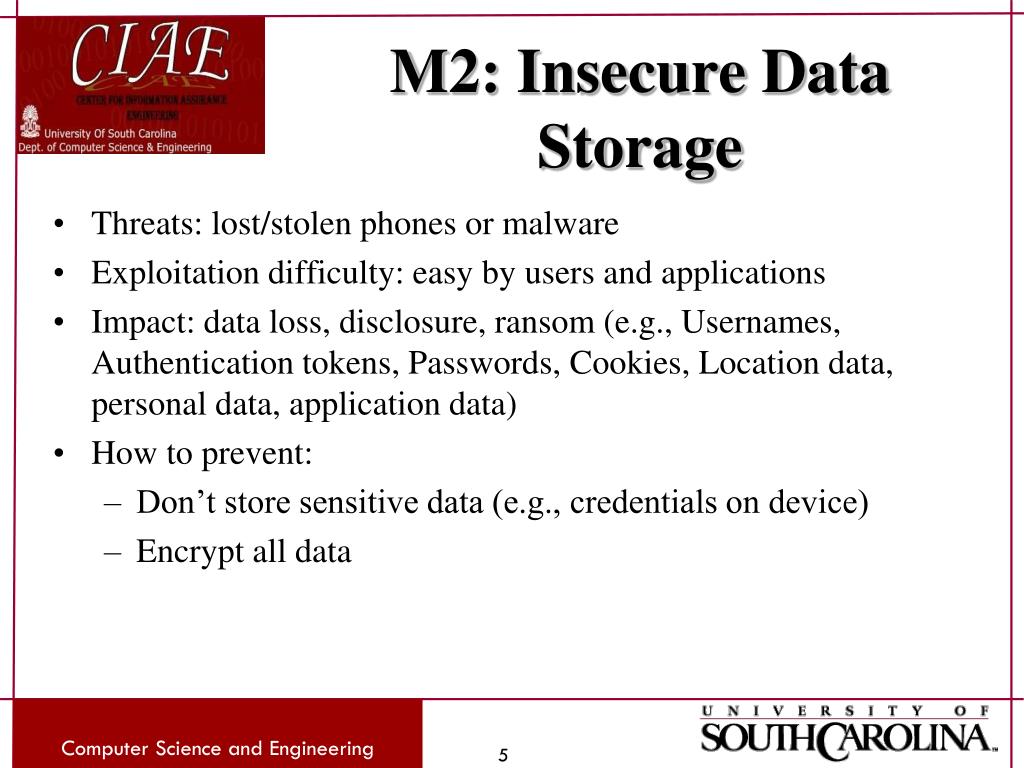

  5. M2: Insecure Data Storage • Threats: lost/stolen phones or malware • Exploitation difficulty: easy by users and applications • Impact: data loss, disclosure, ransom (e.g., Usernames, Authentication tokens, Passwords, Cookies, Location data, personal data, application data) • How to prevent: • Don’t store sensitive data (e.g., credentials on device) • Encrypt all data Computer Science and Engineering

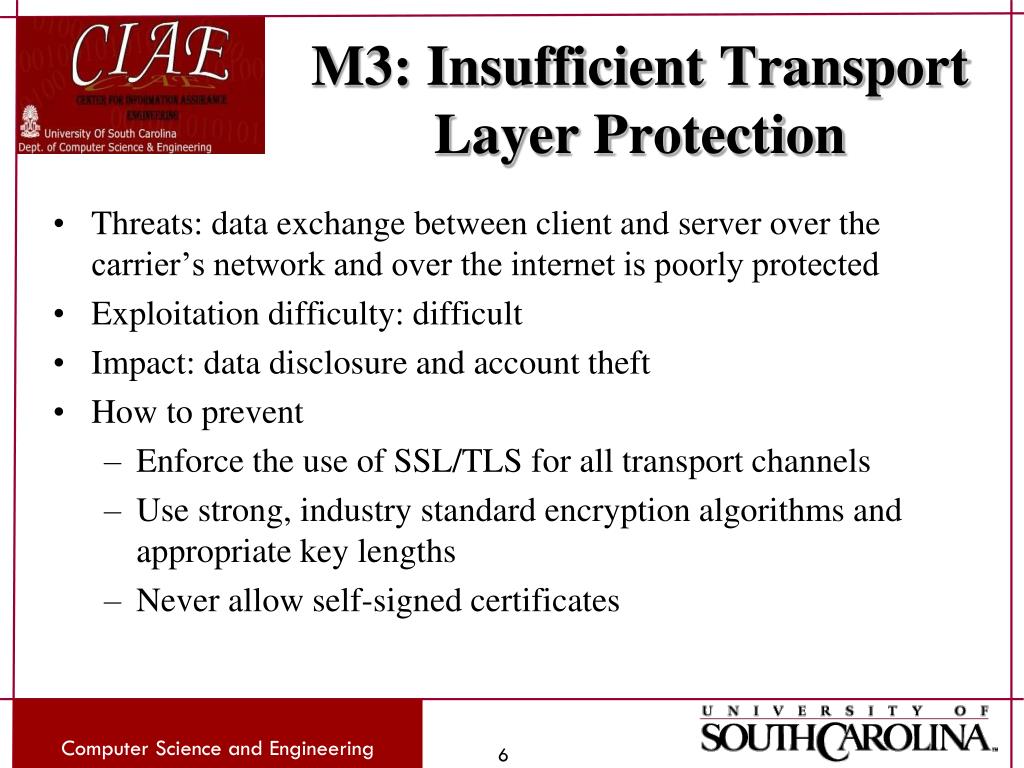

  6. M3: Insufficient Transport Layer Protection • Threats: data exchange between client and server over the carrier’s network and over the internet is poorly protected • Exploitation difficulty: difficult • Impact: data disclosure and account theft • How to prevent • Enforce the use of SSL/TLS for all transport channels • Use strong, industry standard encryption algorithms and appropriate key lengths • Never allow self-signed certificates Computer Science and Engineering

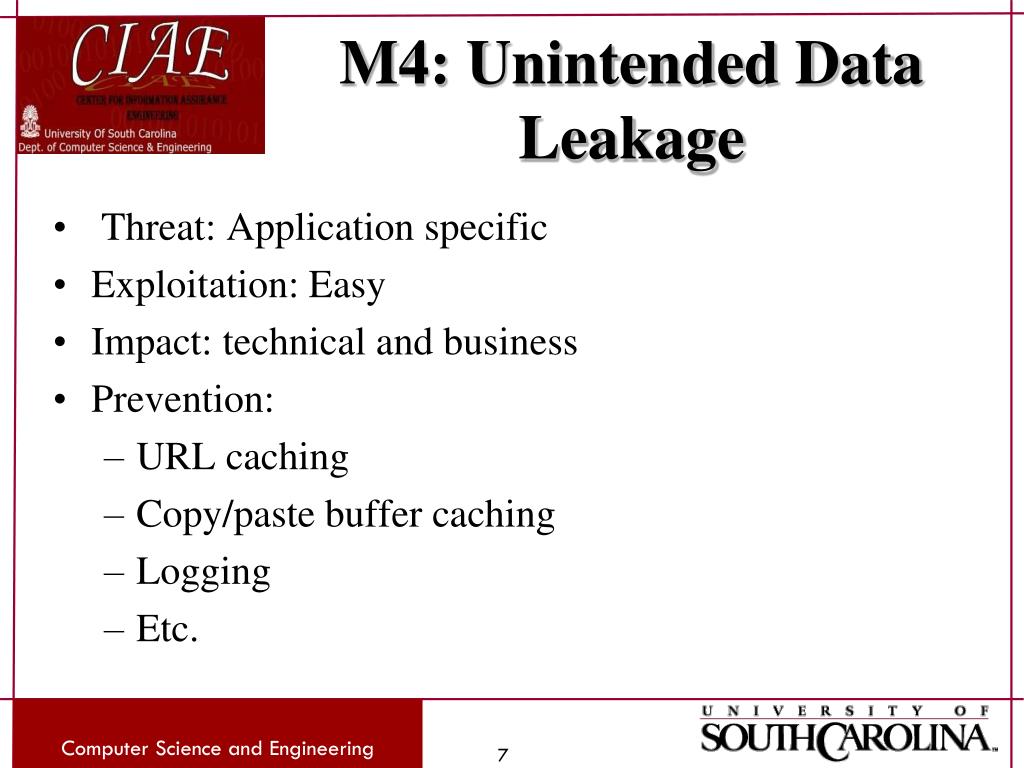

  7. M4: Unintended Data Leakage • Threat: Application specific • Exploitation: Easy • Impact: technical and business • Prevention: • URL caching • Copy/paste buffer caching • Logging • Etc. Computer Science and Engineering

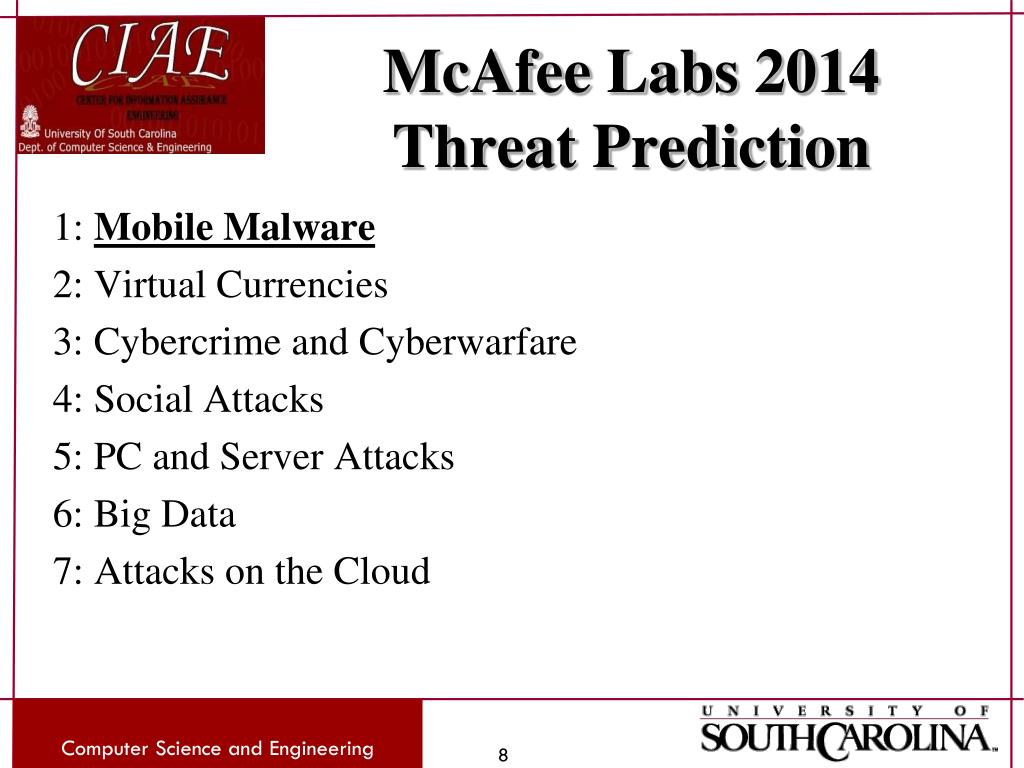

  8. McAfee Labs 2014 Threat Prediction 1: Mobile Malware 2: Virtual Currencies 3: Cybercrime and Cyberwarfare 4: Social Attacks 5: PC and Server Attacks 6: Big Data 7: Attacks on the Cloud Computer Science and Engineering

  9. Mobile Security Research ACM workshop on Security and privacy in smartphones and mobile devices – In conjunction with CCS conference • Device/hardware security • OS/Middleware security • Application security • Authenticating users to devices and services • Mobile Web Browsers • Usability • Privacy • Rogue application detection and recovery • Cloud support for mobile security Computer Science and Engineering

  10. Mobility and IT Risk Management • Mobile Device Management: MDM • Risk management and investment in cyber security • What type of security needed? • Mobile device policies • Risk areas: technology, policy, law Computer Science and Engineering

  11. Application Development Computer Science and Engineering

  12. Operating Systems • What is an operating system? • What operating systems do? • Why do we need security in operating systems? • Unintended errors, flaws, bugs, etc. • Malicious activities • Readings: • Silberschatz, Galvin, Gagne: Operating Systems Concepts, Chapters 14 and 15 Computer Science and Engineering

  13. What is a Secure Code? • Characteristics that contribute to security • Who defines the characteristics? • Assessment of security • What is the basis for the assessment? • IEEE Standard for Software Verification and Validation, 2005 • Bug, error, fault, … • US National Security Agency: System Security Engineering CMM (SSE CMM), http://www.sse-cmm.org/index.html Computer Science and Engineering CSCE 548 - Farkas 13

  14. OS Security Functionalities • Identity and credential management • Access control • Information flow • Audit and integrity protection Computer Science and Engineering

  15. Trusted Operating System • Code has been rigorously developed and analyzed • Key characteristics: • Functional correctness • Enforcement of integrity • Limited privilege • Appropriate confidence level Computer Science and Engineering

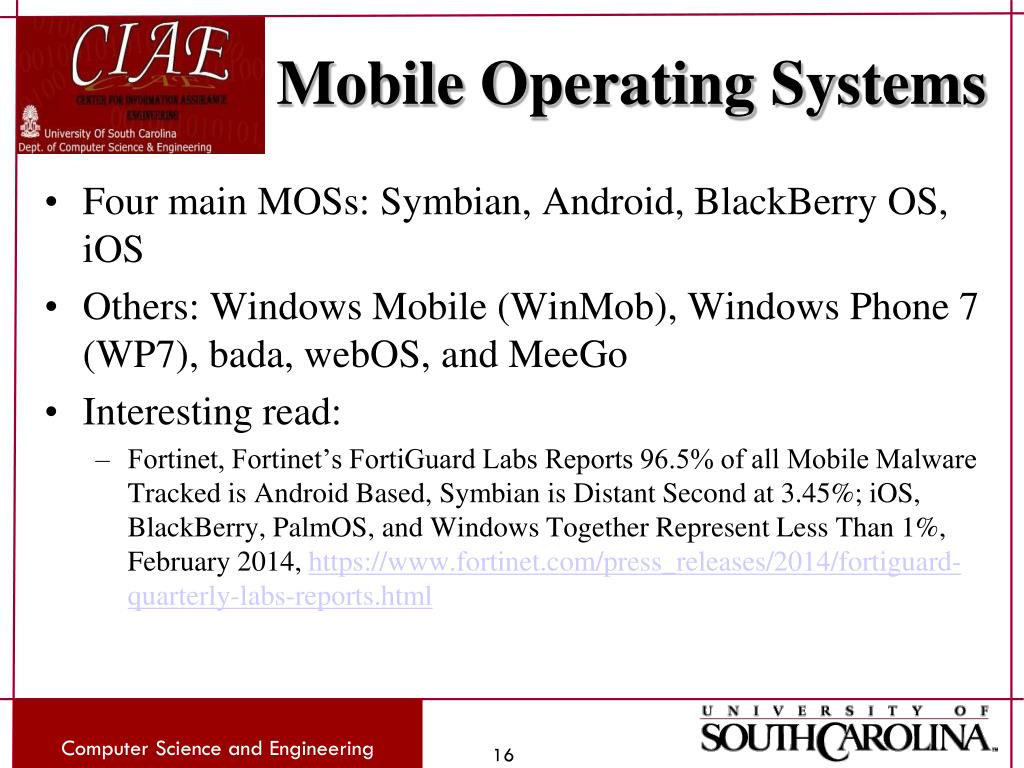

  16. Mobile Operating Systems • Four main MOSs: Symbian, Android, BlackBerry OS, iOS • Others: Windows Mobile (WinMob), Windows Phone 7 (WP7), bada, webOS, and MeeGo • Interesting read: • Fortinet, Fortinet’s FortiGuard Labs Reports 96.5% of all Mobile Malware Tracked is Android Based, Symbian is Distant Second at 3.45%; iOS, BlackBerry, PalmOS, and Windows Together Represent Less Than 1%, February 2014, https://www.fortinet.com/press_releases/2014/fortiguard-quarterly-labs-reports.html Computer Science and Engineering

  17. Mobile Application Development • Diverse and evolving MOSs • Different software development platforms and unique programming languages, custom API • Mashup services: support mobile application development without specific software development kits • Limited capabilities: mainly Internet-related resources but not other functionalities (e.g., database access, address book, etc.) Computer Science and Engineering

  18. Current Mobile Application Support • Use web browsers to support platform-independent applications • Use cross-platform mobile development tools (XMT) to support applications for different platforms from the same code base • Smartphone application characteristics: • Installation • Application structure • GUI elements Computer Science and Engineering

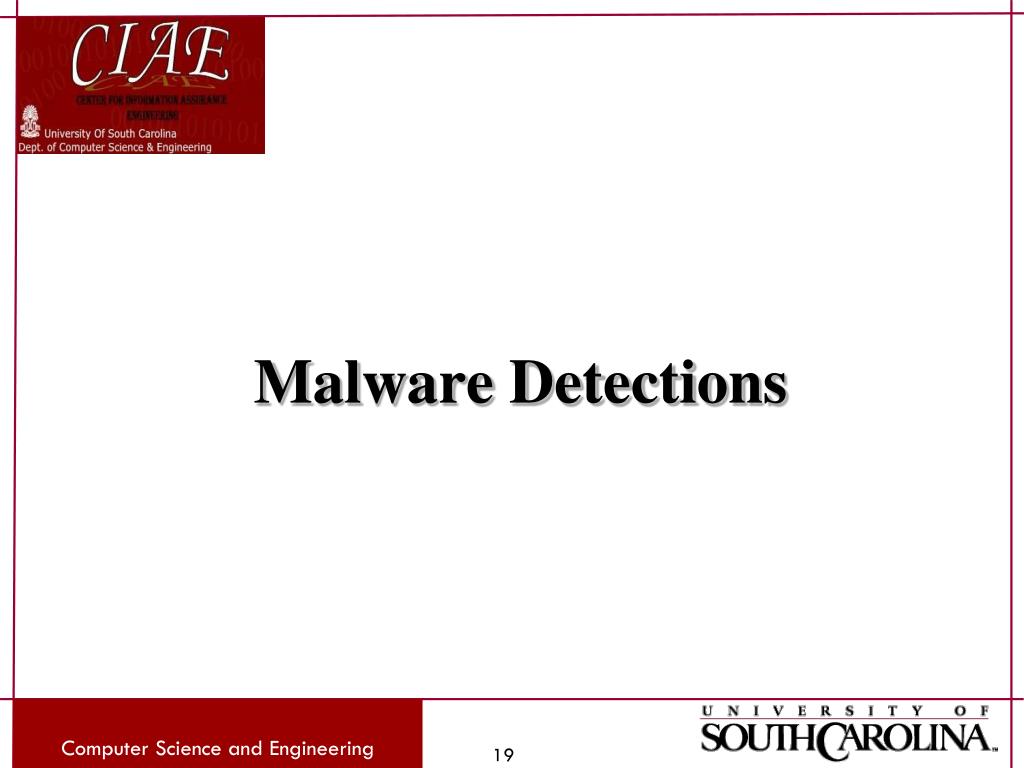

  19. Malware Detections Computer Science and Engineering

  20. Difficulties • Resource constraints: • Computational power • Energy resources • Change in the motivation: instant access to confidential and valuable information • 2011: 428 million mobile devices sold worldwide • Users are increasingly dependent on mobile phones • Increased functionalities Computer Science and Engineering

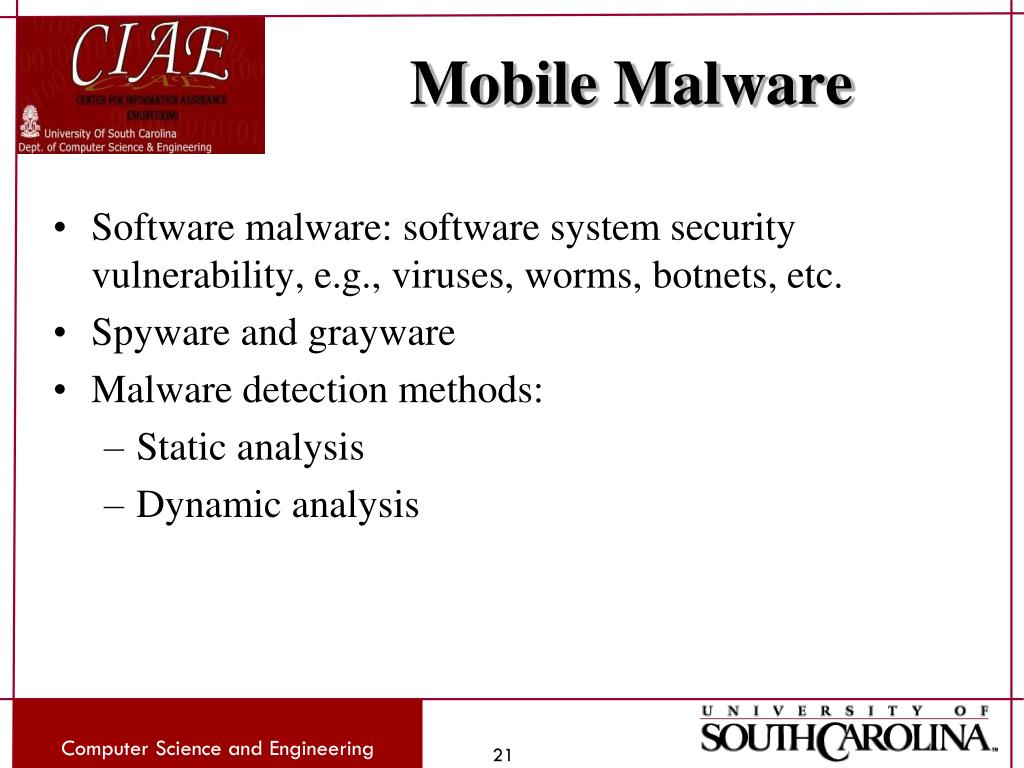

  21. Mobile Malware • Software malware: software system security vulnerability, e.g., viruses, worms, botnets, etc. • Spyware and grayware • Malware detection methods: • Static analysis • Dynamic analysis Computer Science and Engineering

  22. Static Analysis • Preliminary analysis to evaluate suspicious applications • Methods: • Analyze system calls • Taint control and data flow • Source code analysis for anomaly detection Computer Science and Engineering

  23. Dynamic Analysis • Executing the application in an isolated environment • Monitor dynamic behavior • Methods: • System-wide • Sandbox • Application Permission Analysis • Application intentions - Internet permissions • Back-end activities Computer Science and Engineering

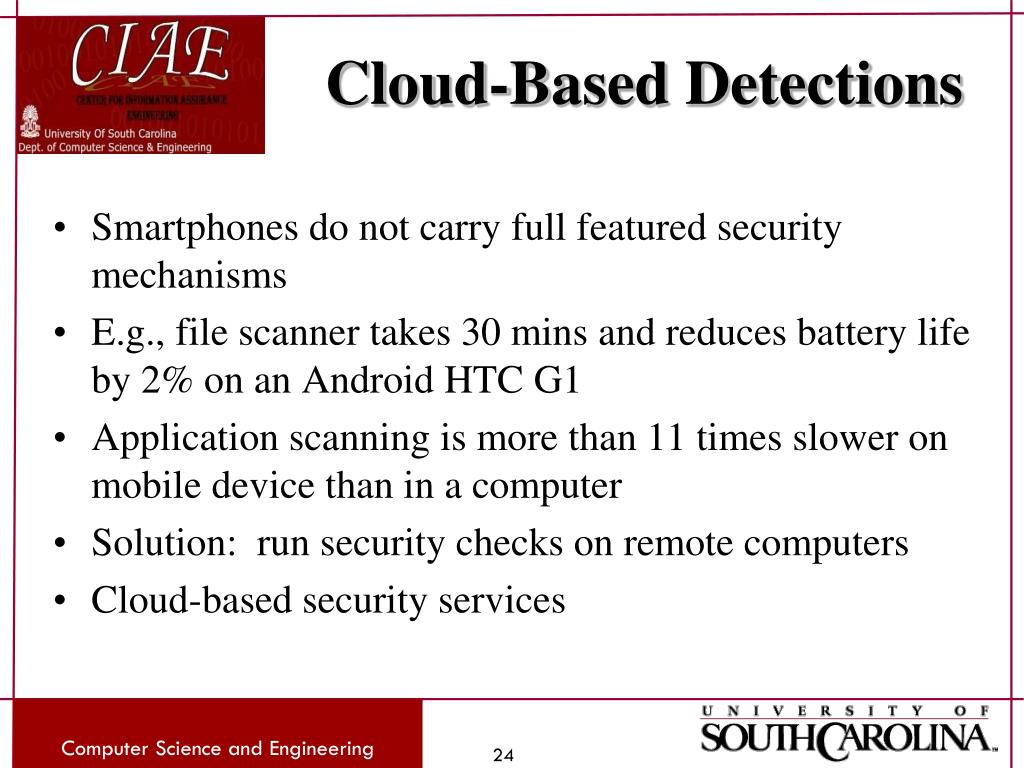

  24. Cloud-Based Detections • Smartphones do not carry full featured security mechanisms • E.g., file scanner takes 30 mins and reduces battery life by 2% on an Android HTC G1 • Application scanning is more than 11 times slower on mobile device than in a computer • Solution: run security checks on remote computers • Cloud-based security services Computer Science and Engineering

  25. Cloud-based malware protection 1 • Paranoid Android • Smartphone: tracer to record mobile application info to enable rerun of the apps on a different platform • Cloud-service: uses the data sent by the tracer to replay the application execution and check security features: • Memory scanners, System call anomalies, Dynamic malware analysis, Commercial antivirus checking • Proxy: store inbound traffic • Cost of processing: increased CPU load (15%), energy usage (30%), tracer execution is costly (user space installation) Computer Science and Engineering

  26. Cloud-based malware protection 2 • Crowdroid • Behavior-based detection • Lightweight application that • Monitors system calls made by the application • Preprocesses the calls • Send the call info to the cloud • Cloud: classification of the application, whether malicious or not Computer Science and Engineering

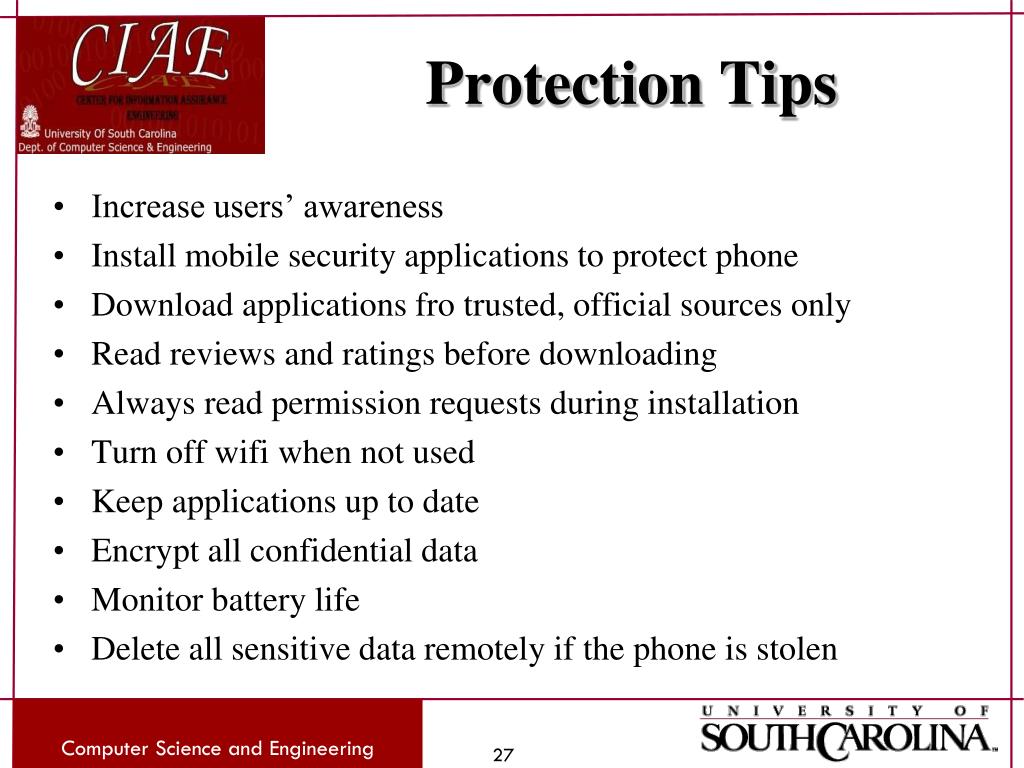

  27. Protection Tips • Increase users’ awareness • Install mobile security applications to protect phone • Download applications fro trusted, official sources only • Read reviews and ratings before downloading • Always read permission requests during installation • Turn off wifi when not used • Keep applications up to date • Encrypt all confidential data • Monitor battery life • Delete all sensitive data remotely if the phone is stolen Computer Science and Engineering

  28. Why Mobile Malware Important? • Underground economy • Constrained security resources • Users’ role and responsibilities Computer Science and Engineering

  29. Next Class • Trust management Computer Science and Engineering
