  1. Ohm's Law (2.1)Kirchhoff's Laws (2.2) Prof. Phillips January 24, 2003 lecture2

  2. Resistors • A resistor is a circuit element that dissipates electrical energy (usually as heat) • Real-world devices that are modeled by resistors: incandescent light bulbs, heating elements (stoves, heaters, etc.), long wires • Resistance is measured in Ohms (W) lecture2

  3. i(t) + The Rest of the Circuit R v(t) – Ohm’s Law • v(t) = i(t) R - or - V = I R • p(t) = i(t)v(t) = i2(t) R = v2(t)/R • Always dissipating or absorbing power (p>0) lecture2

  4. Example: a 25W Bulb • If the voltage across a 25W bulb is 120V, what is its resistance? R = V2/P = (120V)2/25W = 576  • What is the current flowing through the 25W bulb? I = V/R = 120V/576  = 0.208 A = 208 mA lecture2

  5. Thought Question • When I measured the resistance of a 25W bulb, I got a value of about 40W. What’s wrong here? • Answer: The resistance of a wire increases as the temperature increases. For tungsten, the temperature coefficient of resistivity is 4.5x10-3/oK. A light bulb operates at about 5000oF. lecture2

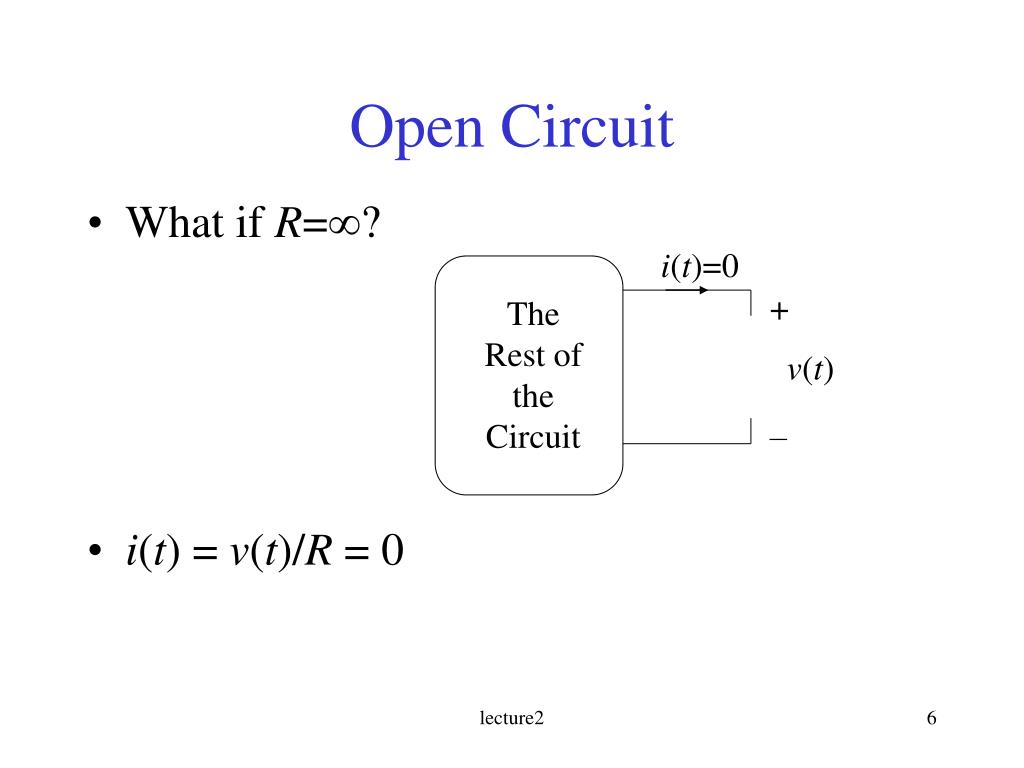

  6. i(t)=0 + The Rest of the Circuit v(t) – Open Circuit • What if R=? • i(t) = v(t)/R = 0 lecture2

  7. i(t) + The Rest of the Circuit v(t)=0 – Short Circuit • What if R=0? • v(t) = i(t) R = 0 lecture2

  8. Class Example lecture2

  9. Kirchhoff’s Laws • Kirchhoff’s Current Law (KCL) • sum of all currents entering a node is zero • sum of currents entering node is equal to sum of currents leaving node • Kirchhoff’s Voltage Law (KVL) • sum of voltage (drops) around any loop in a circuit is zero lecture2

  10. KCL (Kirchhoff’s Current Law) i1(t) i5(t) The sum of currents entering the node is zero: Analogy: mass flow at pipe junction i2(t) i4(t) i3(t) lecture2

  11. Class Examples lecture2

  12. KVL (Kirchhoff’s Voltage Law) + – • The sum of voltages around a loop is zero: • Analogy: pressure drop thru pipe loop + v2(t) + – v1(t) v3(t) – lecture2

  13. KVL Polarity • A loop is any closed path through a circuit in which no node is encountered more than once • Voltage Polarity Convention • A voltage encountered + to - is positive • A voltage encountered - to + is negative lecture2

  14. Class Examples lecture2

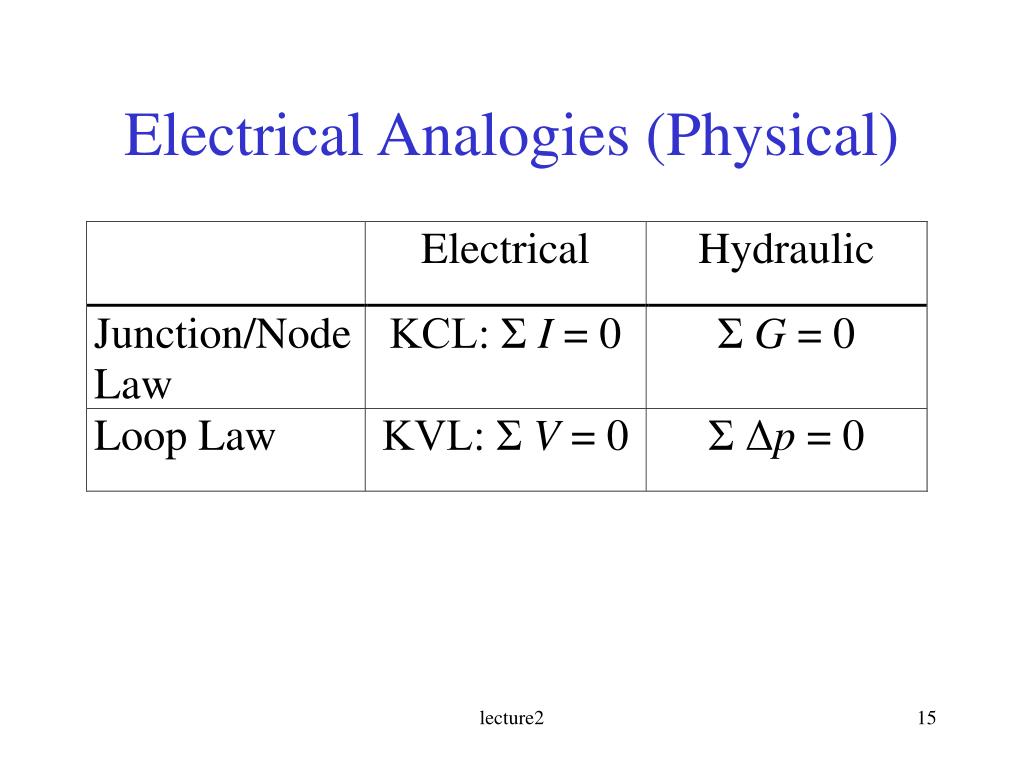

  15. Electrical Analogies (Physical) lecture2

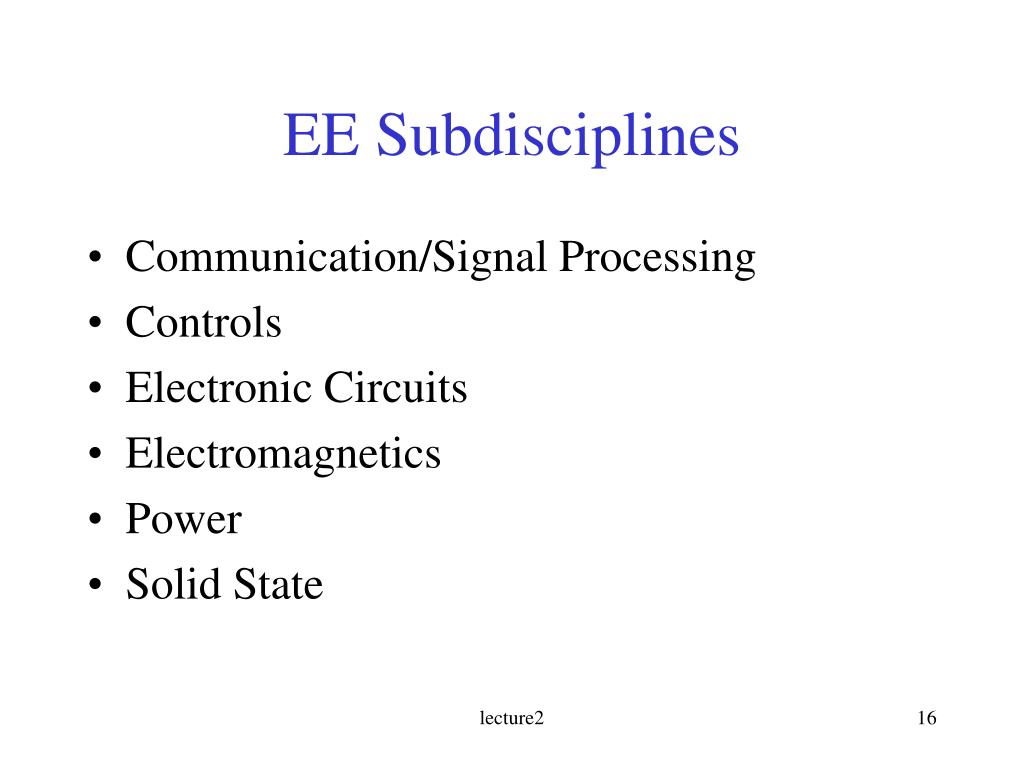

  16. EE Subdisciplines • Communication/Signal Processing • Controls • Electronic Circuits • Electromagnetics • Power • Solid State lecture2

  17. Power • Generation of electrical energy • Storage of electrical energy • Distribution of electrical energy • Rotating machinery-generators, motors lecture2

  18. Electromagnetics • Propagation of electromagnetic energy • Antennas • Very high frequency signals • Fiber optics lecture2

  19. Communications/Signal Proc. • Transmission of information electrically and optically • Modification of signals • enhancement • compression • noise reduction • filtering lecture2

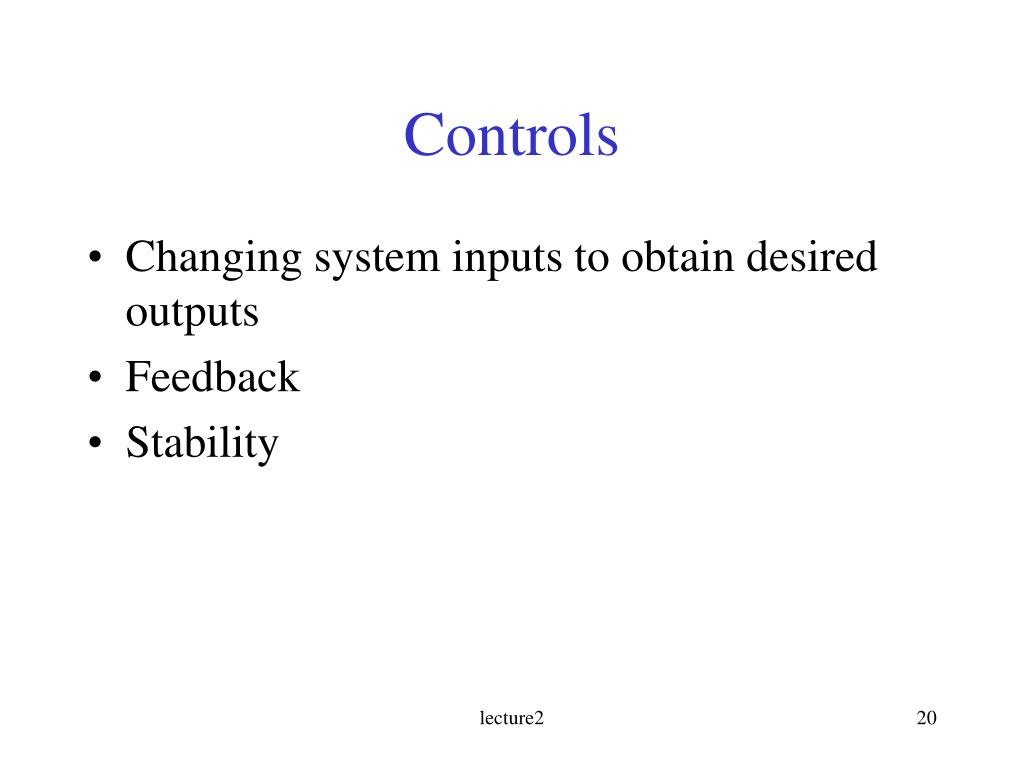

  20. Controls • Changing system inputs to obtain desired outputs • Feedback • Stability lecture2

  21. Solid State • Devices • Transistors • Diodes (LEDs, Laser diodes) • Photodetectors • Miniaturization of electrical devices • Integration of many devices on a single chip lecture2

  22. Digital • Digital (ones and zeros) signals and hardware • Computer architectures • Embedded computer systems • Microprocessors • Microcontrollers • DSP chips lecture2

  23. Personal Systems Scaling lecture2
