Lesson 3-9: More On Functions

Lesson 3-9: More On Functions. Objective Students will: Find composite functions Evaluate composite functions for a given value. Step Functions- a relationship that stays the same value for a set interval then steps up (or down) for the next interval. Example a cell phone’s minutes

tasha
Download Presentation

Lesson 3-9: More On Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

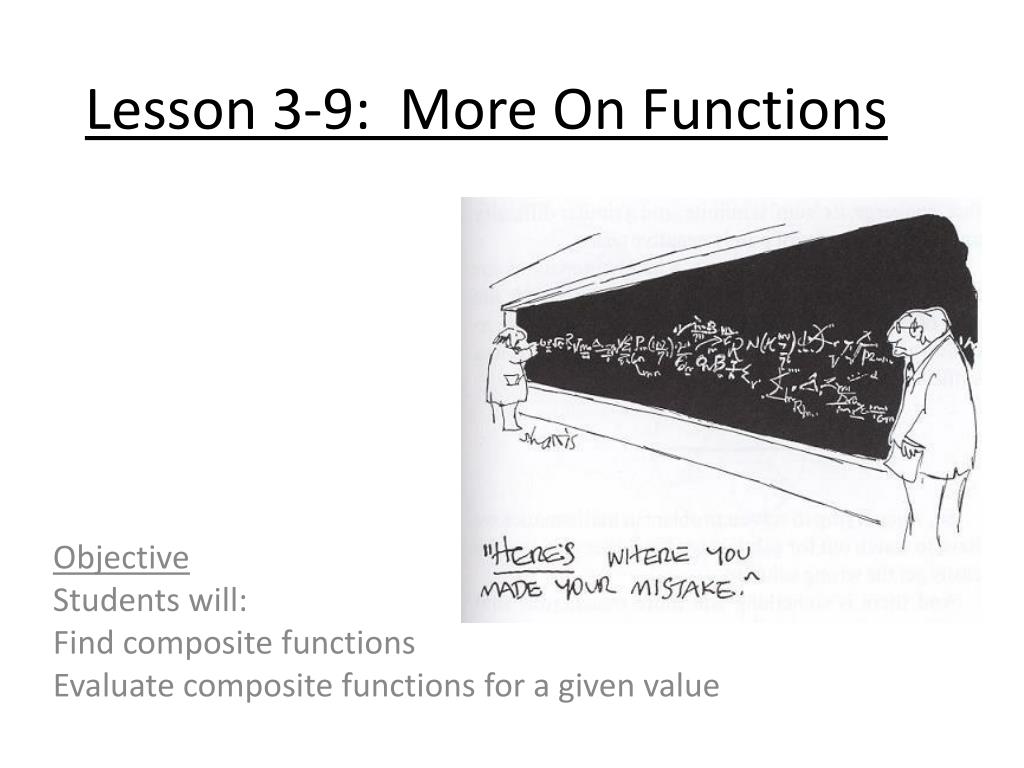

  1. Lesson 3-9: More On Functions Objective Students will: Find composite functions Evaluate composite functions for a given value

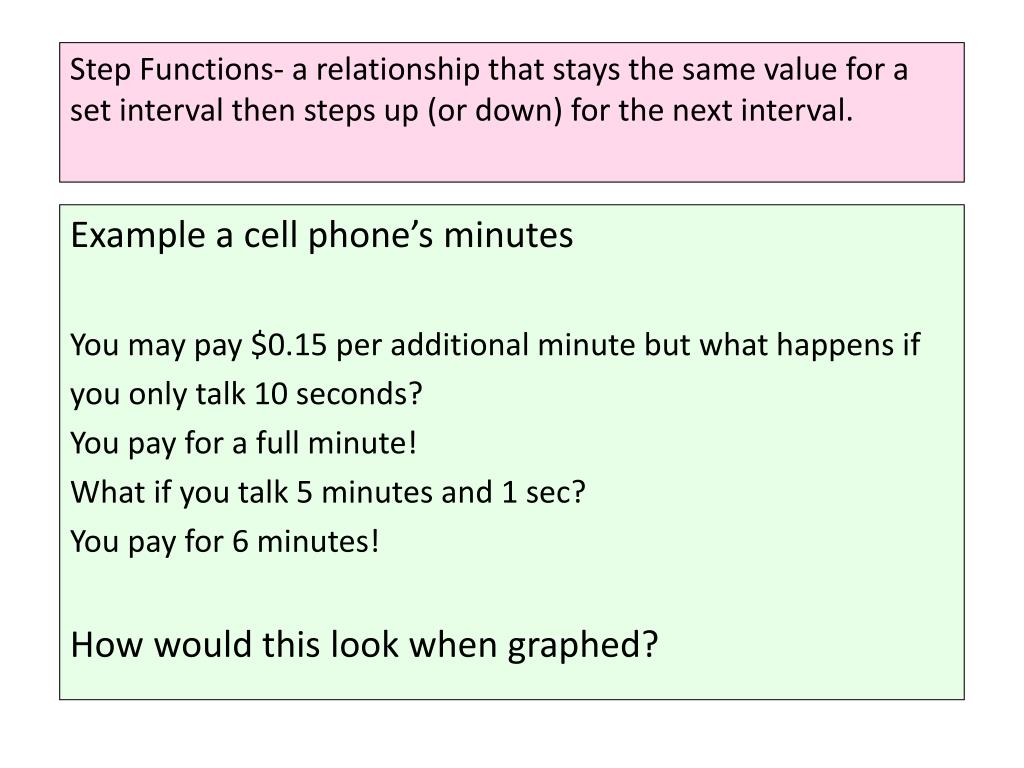

  2. Step Functions- a relationship that stays the same value for a set interval then steps up (or down) for the next interval. Example a cell phone’s minutes You may pay $0.15 per additional minute but what happens if you only talk 10 seconds? You pay for a full minute! What if you talk 5 minutes and 1 sec? You pay for 6 minutes! How would this look when graphed?

  3. Let x = the number of Minutes Let y=Additional Charge 1.05 0.90 0.75 0.60 0.45 0.30 0.15 0 Cost 0 1 2 3 4 5 minutes

  4. Questions: 1)Why is is referred to as a “step” function 2)For this example why are the negative quadrants not visible? 3) Why is the an open and closed circle at each integer?

  5. Greatest Integer Function (another step function): notated y = [x] y = [x] means: the greatest integer that is less than or equal to x Ex: [4.6] = 4 [-1] = -1 [-2.8] = -3 Graph this function: Hint: think about where the function is opened or closed.

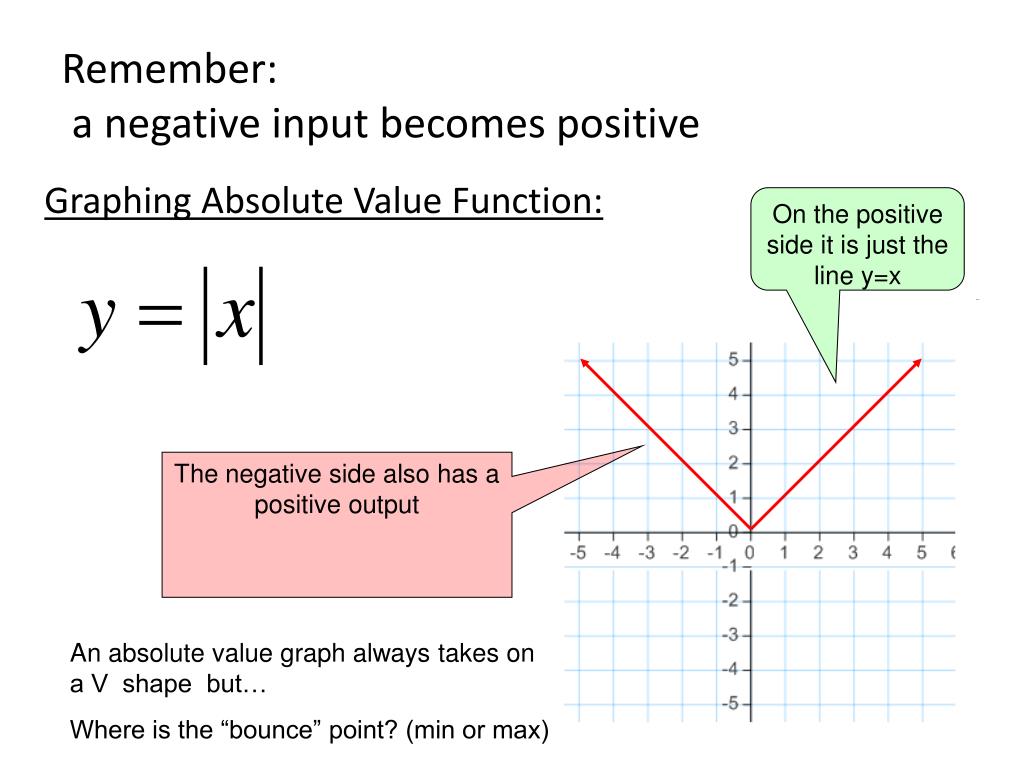

  6. Remember: a negative input becomes positive Graphing Absolute Value Function: On the positive side it is just the line y=x The negative side also has a positive output An absolute value graph always takes on a V shape but… Where is the “bounce” point? (min or max)

  7. Graph y = | x - 2 | What input will make the output zero? 2! Adding a number inside shifts the bounce point right. What would subtracting inside do??? Graph y = | x | + 3 What input will make the output zero? There isn’t one? Adding a number outside shifts the bounce point up. What would subtracting outside do???

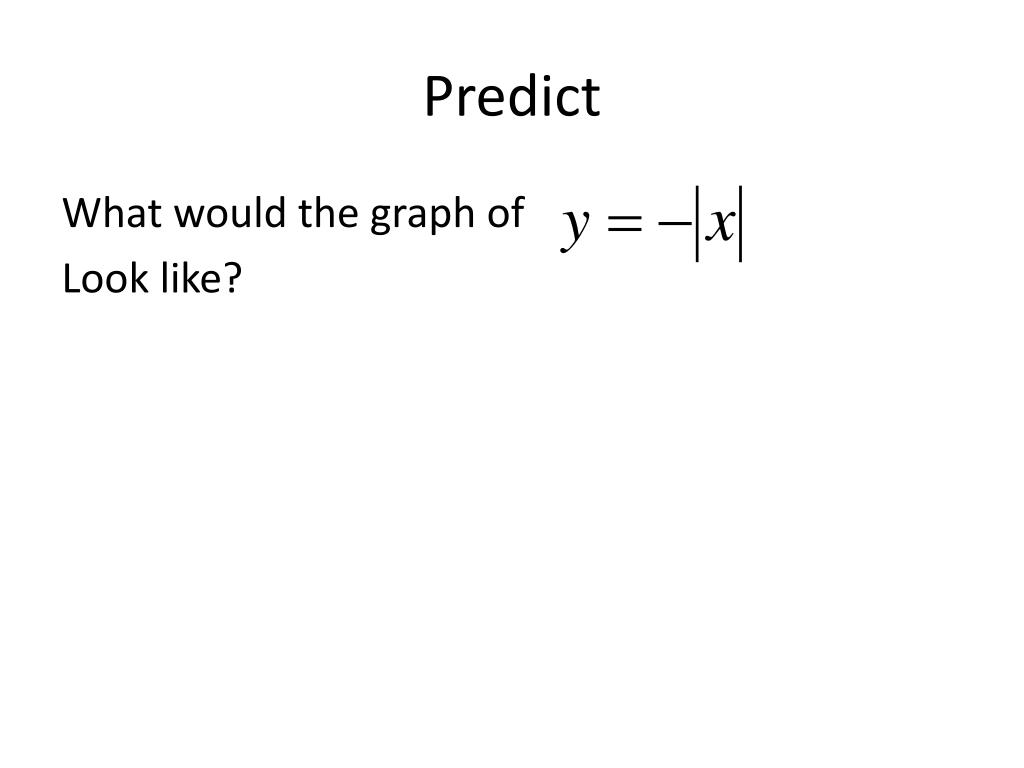

  8. Predict What would the graph of Look like?

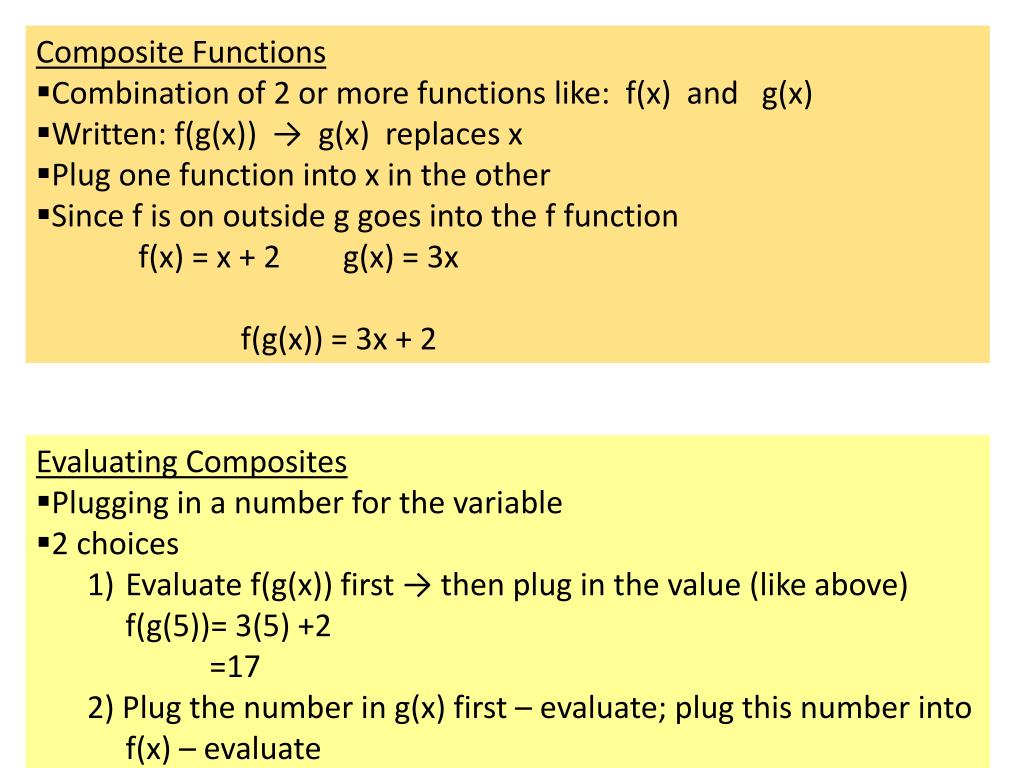

  9. Composite Functions • Combination of 2 or more functions like: f(x) and g(x) • Written: f(g(x)) → g(x) replaces x • Plug one function into x in the other • Since f is on outside g goes into the f function • f(x) = x + 2 g(x) = 3x • f(g(x)) = 3x + 2 • Evaluating Composites • Plugging in a number for the variable • 2 choices • Evaluate f(g(x)) first → then plug in the value (like above) f(g(5))= 3(5) +2 =17 2) Plug the number in g(x) first – evaluate; plug this number into f(x) – evaluate

  10. 2) Plug the number in g(x) first – evaluate; plug this number into f(x) – evaluate f(g(5))= g(5) = 3(5) = 15 f(15) = 15+2 =17 You get the same answer either way!!!

  11. You Try 1: f(x) = 2x – 1 , g(x) = 5x; find f(g(x)) You Try 2: g(x) = x2 – 1 , h(x) = x + 2; find g(h(x)); find g(h(3)) Hmmm… This one is challenging
