Drug dosing in pcrrt

Drug Dosing in PCRRT

Deb Pasko, Pharm.D

Pharmacy Clinical Specialist, PICU

University of Michigan Health System

Crrt solute removal

CRRT Solute Removal

  • Lots of things removed by CRRT!

  • Drugs, nutrients… FD&C Blue dye #1…

  • Crit Care Med, Mar 2002

Diffusive therapies

Dialysate is used (lactated Ringers, PD solution, etc)

Good for small solute removal (<500 Da)

diffusion rate inversely proportional to MW

Efficiency of solute removal dependent on

Blood flow

Dialysate flow

Filter type

Solute molecular weight

Less good for larger solutes (MM, Vancomycin?)

Diffusive Therapies

Joy ms matzke gr frye rf palevsky pm ajkd 1998 31 1019 27

Joy MS, Matzke GR, Frye RF, Palevsky PM. AJKD 1998;31:1019-27.

Rrt drug removal mechanisms

RRT Drug Removal Mechanisms

  • Diffusion

  • Convection

  • Adsorption

    • May be important for 2 Microglobulin removal

      • Especially for PMMA membranes

    • Rarely important for drugs

Vancomycin overdose

Vancomycin overdose

  • 16 day old full-term infant presented to OSH hypothermia, bradycardia, and hypovolemia. Progressed to develop cardiac arrest, transferred to U of M. Dry wt. 2kg.

  • Received 3 doses of vancomycin 100mg/kg

  • Initial vancomycin serum concentration was 195.5 mg/L (desired peak conc ~35mg/L)

Vancomycin overdose case

Vancomycin overdose case

Hemodialyzer differences are they important in cvvhd

Hemodialyzer differences: Are they important in CVVHD?

Most published drug dosing guidelines assume they are all equal in terms of drug removal

most hemofilters are high-permeability with large pores

frequently high flux hemodialyzers were used for CRRT

Vancomycin CVVHD clearance differences between different hemodialyzers

Joy MS, et al. Am J Kidney Dis 1998 Jun;31(6):1019-27

Convective therapies hemofiltration

No dialysate, removes plasma water as it seeps through membrane

Removes small and large molecules easily

as long as they can fit through membrane

Protein binding important determinant – sieving coefficient

<15,000 Da has potential to be removed substantially

Drug removal easy to calculate

based on sieving coefficient – usually a function of PPB

ultrafiltrate concentration/plasma concentration

Convective Therapies (Hemofiltration)

Doses derived via sieving coefficient

Doses Derived Via Sieving Coefficient

  • Sieving Coefficient (SC) known for many drugs

  • SC= UF/A

  • Comes from CAVH or CVVH data

  • Assumption often made that SC can be used CVVHD when dialysate rate is low.

    • Saturation coefficient (Sa) more properly used in CVVHD

  • SC related to protein binding of drugs

    • Protein binding may differ in critically ill vs. normals

Sieving coefficient protein binding

Sieving Coefficient & Protein Binding

Drug dosing recommendations based on sieving coefficient sc

Drug Dosing recommendations based on Sieving Coefficient (SC)

  • Clearance total = ClCRRT + Cl residual renal + Cl non-renal

  • SC equations only account for ClCRRT

  • What about other clearances?

  • Cl residual renal usually not an issue in CRRT patients

  • Cl non-rena l not always available for drugs

Non renal clearance rates of selected drugs in patients with normal renal function and esrd

Non-renal clearance rates of selected drugs in patients with normal renal function and ESRD

Crrt challenges drug dosing

CRRT Challenges: Drug Dosing

Does CVVH removal = CVVHDF = CVVHD???

Molecular weight determines whether solute diffuses well

Vancomycin (MW 1450 Da)

Aminoglycosides (MW ~450 Da)

High dialysate flow rates don’t allow sufficient time for diffusion

Probably not an issue when flow = ~1000ml/1.73m2/hr

Does Sieving Coefficient (CVVH) = Saturation Coefficient (CVVHD)???

Crrt challenges drug dosing1

CRRT Challenges: Drug Dosing


Most CRRT dosing guidelines based on CVVH @ UFR of 1000 mL/hr

Trend is for higher UFR and HD flows

UM uses 2L/1.73m2/hr

Higher flow rates now achievable with new machines

solute removal (H, HD, HDF) mechanisms

Pediatric crcl

Pediatric CrCl

  • CLCR = K x L/SCR

    • Where ClCR = creatinine clearance in ml/min/1.73m2

      K = constant of proportionality age specific


      LBW ≤ 1yo0.33

      Full-term ≤ 1yo0.45


      13-21 female0.55

      13-21 male0.70

Calculating total clearance

Calculating Total Clearance

  • Example:

    • 2yo, 15kg, L = 60cm, SCR = 1.0 mg/dL, K = 0.55

    • CrCl = 0.55 x 60/1 = 33ml/min/1.73m2

    • However, if anuric renal clearance = zero

    • PCRRT = CVVHD of 2L/1.73m2/hr, BSA of 0.5

      • Qd = ~578ml/hr

        • (38.5ml/kg, or 9.6ml/min/0.5 BSA, or 33.2ml/min/1.73ml/min)

        • If this patient was not anuric and had renal fxn as above = 66ml/min/1.73m2, and we need to adjust accordingly

Adjusting doses based on cl

Adjusting doses based on Cl

  • Using the previous example for vancomycin:

    • >50ml/min/1.73m2 = q6-8h dosing

    • 30-50ml/min/1.73m2 = q12h dosing

      It is easy to under-dose or possibly overdose using this method, need to be careful

      Is CrCl the most reliable method for children?

What drugs do we care about

What drugs do we care about?

  • Drugs are “dialyzable” if:

    • Small MW

    • Small volume of distribution

    • Not highly protein bound

    • Water soluble

Drug dosing in pcrrt


  • 10mof, ALL s/p chemo & BMT x60days, now admitted to unit for increased O2 needs requiring vent support, GVHD gut/liver stage IV and in septic shock.

  • PE: T 39.1, HR 180, BP 60/30, wt. 8.5kg, Ht 60cm

  • I/O: 900/50 over past 24hrs (0.24cc/kg/hr)

  • Baseline Scr = 0.3mg/dL, now 0.6mg/dL

  • Meds: Dopamine, Cefepime, Gentamicin, Linezolid, Voriconazole, Pentamidine, Hydrocortisone, Protonix, TPN/lipids, Dilaudid/Ativan, Phenobarb

Case con t

Case con’t

  • AM BC shows Pseudomonas aer. and VRE

  • Order written to start CVVH @ 2L/1.73m2/hr,

    • Calc. clearance: BSA = 0.38m2 (7.24ml/min, or 33ml/min/1.73m2)

    • What drugs do we care about?

    • If you can titrate we don’t necessarily care

    • For this patient antibiotics are going to save her life

So what drugs need adjustment












So what drugs need adjustment?

Antibiotic guidelines um

Antibiotic Guidelines UM

Linezolid clearance during cvvhdf

Linezolid Clearance During CVVHDF

  • 85 yo 90 kg anuric male in the SICU with documented abdominal VRE infection

  • Linezolid 600 mg IV q12

  • No published literature on CRRT removal

  • CVVHDF regimen:

    • dialysate flow rate 2000 mL/hr

    • mean ultrafiltrate production rate of 775 mL/hr

Linezolid calculations

Linezolid Calculations

Half-life, elimination rate, and volume of distribution

  • Sieving coefficient (SC) was calculated:

    SC= CE / Cp, Cp = (CA + CV) / 2

  • The clearance from CRRT (Cl CRRT) calculated as:

    Cl CRRT = (QD + QF) x SC

    • CE = the concentration in the effluent

    • Cp is the linezolid concentration in the plasma

    • CA is the linezolid concentration in the plasma drawn from the pre-filter sampling port

    • CV is the linezolid concentration in the plasma drawn from the post-filter sampling port.

Linezolid results

Linezolid Results

  • Vd = 60L (normal 40-60L)

  • T1/2 = 7.5-9 hrs during CVVHDF (8hrs)

  • SC = 0.77– 0.81 (PPB 30%)

  • ClCRRT = 36.5 mL/min with mean effluent flow rate of 46.2 mL/min

    • (normal ClR 40mL/min)

  • No dosage change necessary

  • First measured linezolid CRRT report

  • Kraft MK, Pasko DA, DePestel DD, Ellis JJ, Peloquin CA, Mueller BA. Linezolid clearance during continuous venovenous hemodiafiltration: A case report. Pharmacotherapy. 2003 Aug;23(8):1071-5.

So what drugs need adjustment1












So what drugs need adjustment?

Gentamicin pharmacokinetics

Gentamicin pharmacokinetics

  • This patient weighing 8.5kg receives a gent dose of 21mg (2.5mg/kg)

  • What peak concentration (mg/L) can be expected?

  • Volume of distribution of gent is 0.2-0.4L/kg

  • 0.25L/kg is normal, but in fluid overloaded patients, expect higher values. If 0.3L/kg =

    • 2.55 Liters = Vd

    • 21mg/2.55L = 8.2 mg/L assuming no drug removal

Gent kinetics con t

Gent kinetics con’t

  • 30 min after the 21mg dose is done a peak is done = 4.0mg/L

  • What is the patients actual volume of distribution?

    • 5.1 Liters = 0.6L/kg (actually double!!!!)

Gent kinetics con t1

Gent kinetics con’t

  • Peak was 4.0 mg/L

  • 12 hours later a random level was done

    • 1.0 mg/L

    • What is the half-life (t1/2) of gentamicin?

    • 4.0mg/L → 2.0mg/L → 1.0mg/L in 12 hours

    • 6 hour half-life

    • Ln 4 – ln 1 = kel = 0.115

      • 12hrs

Gent kinetics final

Gent kinetics FINAL

  • Half-life = 0.693 / 0.115 = 6 hours

So what drugs need adjustment2












So what drugs need adjustment?

Phenobarbital case

Phenobarbital case

  • 2 wof transferred to UM w/ severe CHF w/ AV valve regurgitation and seizure dx

  • 1/20 had cleft AV valve repair w/ PDA ligation, went on VA ECMO, developed ARF

  • 1/24 went on CVVHD in-line w/ECMO circuit

  • Wt 3.45kg (dry), Ht 47cm, BSA 0.21m2

  • Qd set at 300ml/hr (~2400ml/1.73m2/hr)

  • Quf at 69ml/hr (drips + no net loss)

  • Hemodiafilter = Mini-Plus, 0.08m2

Phenobarbital case1

Phenobarbital case

  • Phenobarbital dose pre dialysis initiation = 25mg q24h = 7.2mg/kg = 35.5mg/L serum concentration

  • CVVHD started 1/24

    • 1/25 Pb = 14.2 mg/L

    • 1/26 Pb = 9.6

    • 1/28 Pb = 13.9 @ 0700

    • 1/28 1400 sequential levels done

Phenobarbital case2

Phenobarbital case

Drug dosing problems in high volume hemofiltration

Drug dosing problems in high volume hemofiltration

Most drugs have > 2 compartments (pools)

like urea measurements during HD

high volume hemofiltration removes drug from peripheral compartment rapidly

how fast can drug transfer from deeper compartment?

Many drugs rapidly stripped from first pool

Phenobarb case final

Phenobarb case final

  • SC = 0.44

  • ClCRRT =

    • 2.7ml/0.21m2/min or 22.3ml/1.73m2/min (40)

    • Vd = 3.24L/kg (0.9L/kg, normal 0.6)

    • New maintenance dose to maintain level of 25mg/L =

      • 32.4mg (~10mg/kg) IV q8hrs

      • Original maintenance dose 25mg q24hrs

Drug dosing in pcrrt

Mueller BA, Pasko DA. Artif Organs 2003;27:808-14.

Iv drug administration drug removed as it is infused

Drug is infused into compartment being filtered/dialyzed

reduced ability to distribute into tissues (k12)

serum concentrations during infusion higher than usual “therapeutic” serum concentration

6L/hr = 1L/10 min = entire plasma volume/hr

Qb 150 ml/min Quf/hd 33 mL/min =

22% of volume removed

“first-pass” effect

IV drug administration: Drug removed as it is infused

Drug prescribing in renal failure edited by george aronoff et al

Drug Prescribing in Renal Failureedited by George Aronoff et al

  • Commonly carried text by pharmacists

  • http://www.kdp-baptist.louisville.edu/renalbook/

  • New edition to come out soon

  • Recommendations for new drugs

  • IHD and CRRT recommendations

  • Pediatric recommendations

Strength of evidence

Strength of Evidence

  • Controlled studies in humans or large case series experience

  • Small Case Series or Human Uncontrolled Trials

  • Animal or In Vitro Data

  • Known Drug Characteristics

    • Vast majority are of this type

58 drugs are A->C

D known drug characteristics

D. “Known drug characteristics“

  • These recommendations made by panel of nephrologists and pharmacists

  • Based on:

    • Protein Binding Information

    • Volume of Distribution

    • Molecular Weight

When in doubt start here

When in doubt, start here…

  • Blood flow, filter type are not very important.

  • Find out

    • In CVVHD: Dialysate flow rate (ml/hr)

      • Usually 2 L/1.73m2/hr (33 mL/1.73m2/min)

    • In CVVH: Substitution Fluid rate (ml/hr)

      • Usually 2L/1.73m2/hr (33 mL/1.73m2/min)

  • Add this to patient’s native Cr Cl (ml/1.73m2/min)

  • This is patient’s new Cr Cl  dose accordingly

  • Works in most cases…is good enough for initial estimates. Follow up with drug level monitoring.

Pcrrt roller pump

PCRRT & Roller pump

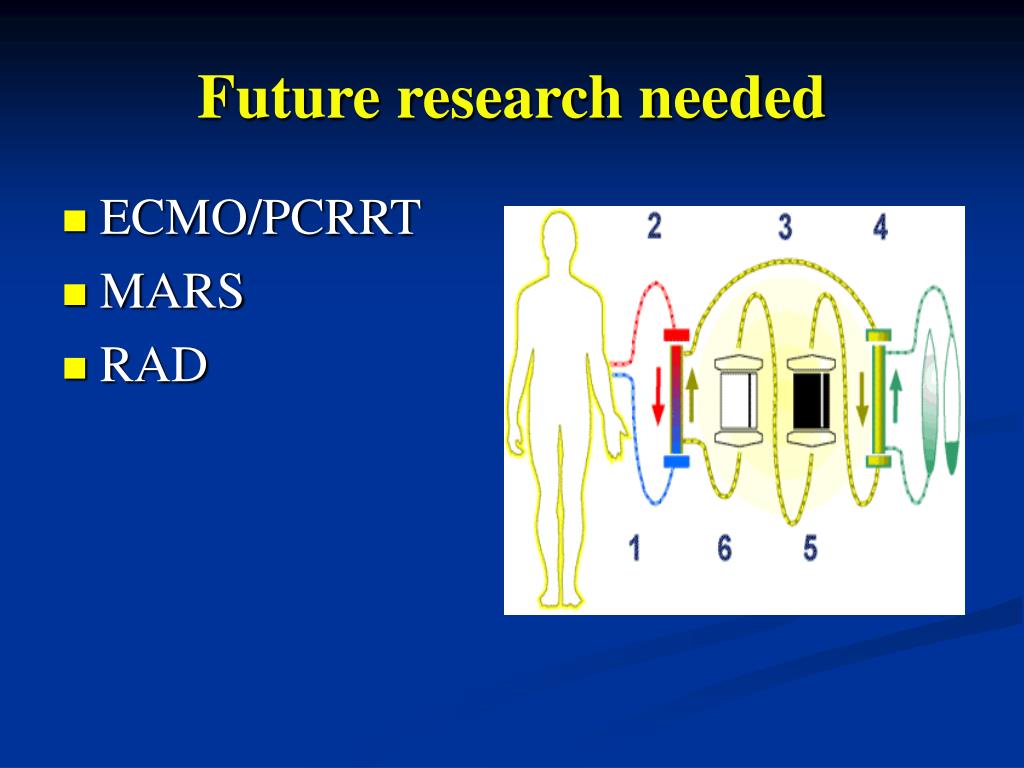

Future research needed

Future research needed


  • MARS

  • RAD

Crrt dosing should not be confusing

CRRT Dosing should not be confusing!

  • Login
