Presentation Transcript
Lighting

Lighting

Jeff Chastine


What is light
What is Light?

  • A very complex process

    • Find a dark area – how is it being lit?

    • Light bounces (mirrors, shiny objects)

    • Light refracts through other media (water, heat)

    • Light comes from everywhere (Global Illumination)

    • Light bounces off of lakes in weird ways (Fresnel effect)

  • THUS

    • We’re forced to make approximations

    • Tradeoff between time and realism

    • “If it looks good, it is good” – Michael Abrash

http://en.wikipedia.org/wiki/File:Global_illumination.JPG

http://darrentakenaga.com/3d.html

Jeff Chastine


A basic lighting concept
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

Directional light - position doesn’t matter

- triangle is almost fully lit

P0

P1

P2

Jeff Chastine


A basic lighting concept1
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

P0

(Triangle less lit)

P1

P2

Jeff Chastine


A basic lighting concept2
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

P0

P1

P2

(Little to no light hits the surface)

Jeff Chastine


A basic lighting concept3
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

P0

(Directional light)

P1

P2

Jeff Chastine


A basic lighting concept4
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

P0

(Directional light)

P1

P2

Jeff Chastine


A basic lighting concept5
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

Lesson learned: Lighting depends on angles between vectors!

P0

(Directional light)

P1

P2

Jeff Chastine


A basic lighting concept6
A Basic Lighting Concept

  • How can we determine how much light should be cast onto a triangle from a directional light?

P0

(Directional light)

P1

P2

Assuming N and L are normalized, and N∙L isn’t negative

Jeff Chastine


Basic lighting
Basic Lighting

  • Four independent components:

    • Diffuse – the way light “falls off” of an object

    • Specular – the “shininess” of the object

    • Ambient – a minimum amount of light used to simulate “global illumination”

    • Emit – a “glowing” effect

Only diffuse

Jeff Chastine


Basic lighting1
Basic Lighting

  • Four independent components:

    • Diffuse – the way light “falls off” of an object

    • Specular – the “shininess” of the object

    • Ambient – a minimum amount of light used to simulate “global illumination”

    • Emit – a “glowing” effect

Diffuse+Specular

Jeff Chastine


Basic lighting2
Basic Lighting

  • Four independent components:

    • Diffuse – the way light “falls off” of an object

    • Specular – the “shininess” of the object

    • Ambient – a minimum amount of light used to simulate “global illumination”

    • Emit – a “glowing” effect

Diffuse+Specular+Ambient

Ambient

Jeff Chastine


Basic lighting3
Basic Lighting

  • Four independent components:

    • Diffuse – the way light “falls off” of an object

    • Specular – the “shininess” of the object

    • Ambient – a minimum amount of light used to simulate “global illumination”

    • Emit – a “glowing” effect

D+S+A+Emit

Note: emit does not produce light!

Jeff Chastine


Interaction between material and lights

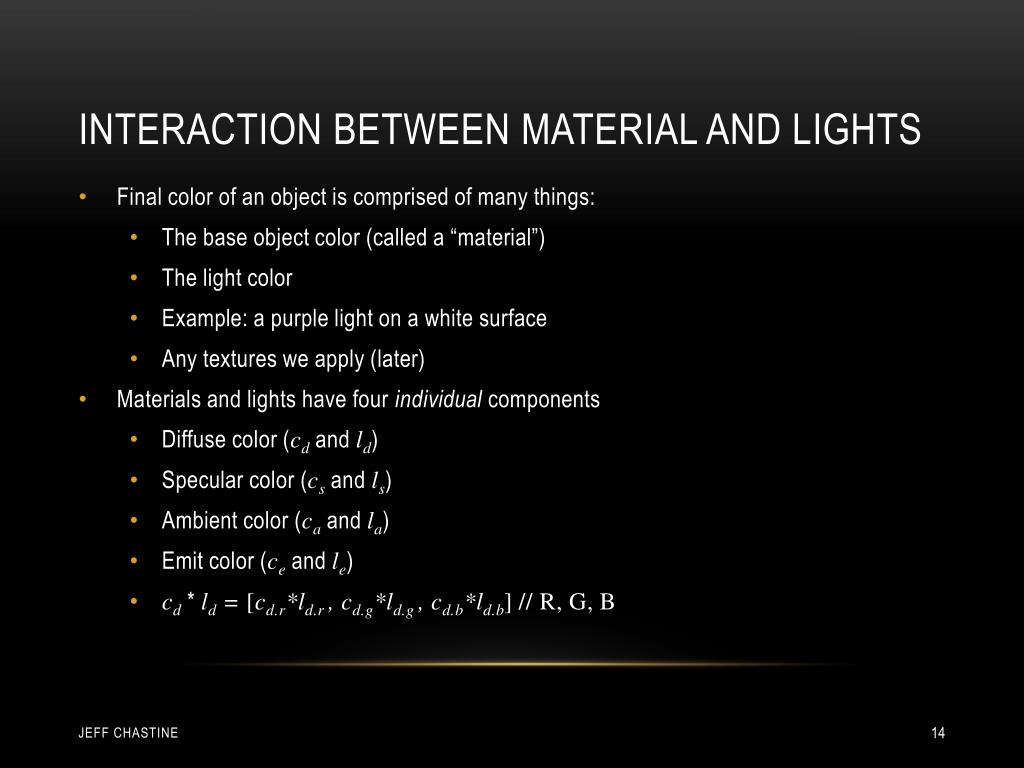

Interaction between Material and Lights

  • Final color of an object is comprised of many things:

    • The base object color (called a “material”)

    • The light color

    • Example: a purple light on a white surface

    • Any textures we apply (later)

  • Materials and lights have four individual components

    • Diffuse color (cdand ld)

    • Specular color (csand ls)

    • Ambient color (caand la)

    • Emit color (ceand le)

    • cd* ld = [cd.r*ld.r, cd.g*ld.g, cd.b*ld.b] // R, G, B

Jeff Chastine


General lighting

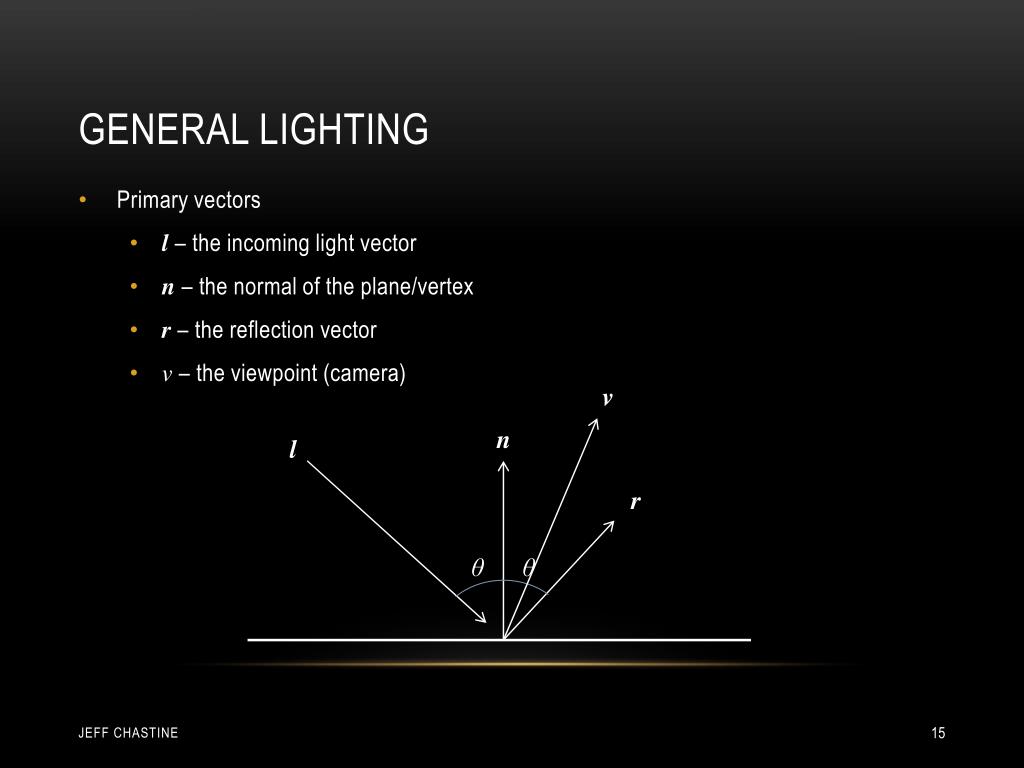

General Lighting

  • Primary vectors

    • l – the incoming light vector

    • n – the normal of the plane/vertex

    • r – the reflection vector

    • v – the viewpoint (camera)

v

n

l

r

θ

θ

Jeff Chastine


Lambertian reflectance diffuse component

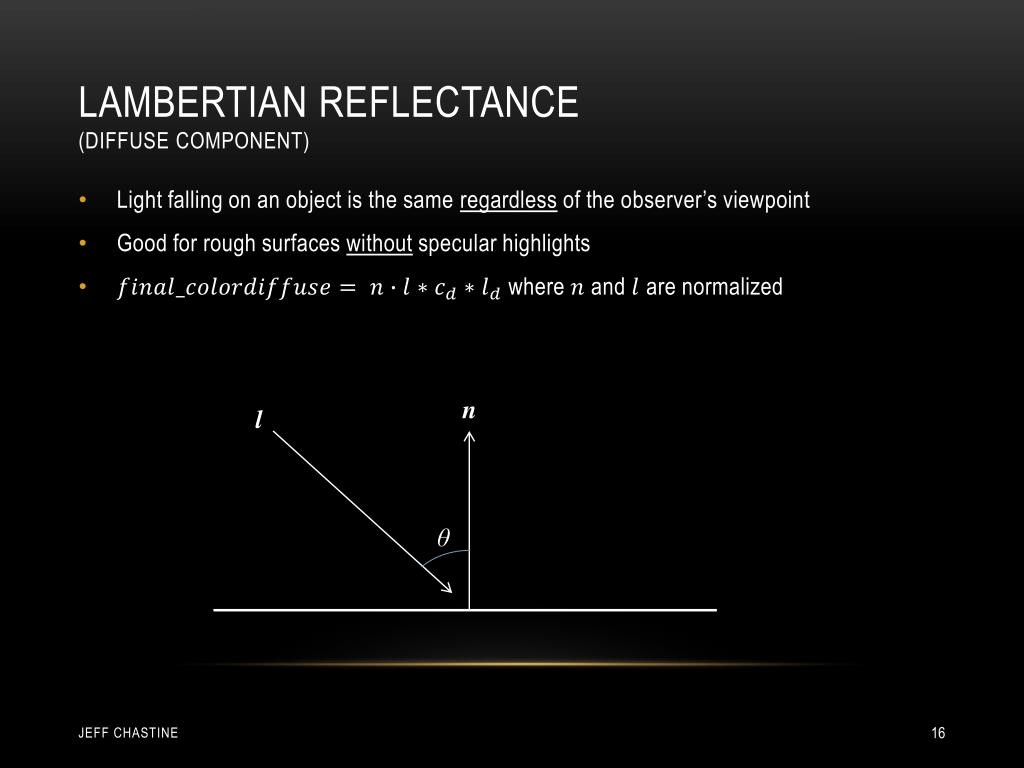

LambertianReFlectance(diffuse Component)

  • Light falling on an object is the same regardless of the observer’s viewpoint

  • Good for rough surfaces without specular highlights

  • where and are normalized

n

l

θ

Jeff Chastine


Lambertian reflectance diffuse component1
LambertianReFlectance(diffuse Component)

  • Light falling on an object is the same regardless of the observer’s viewpoint

  • Good for rough surfaces without specular highlights

  • where and are normalized

3 parts (R, G, B)

scalar

n

l

θ

Note: final_colordiffusehas R, G, B

Jeff Chastine


Lambertian reflectance diffuse component2
LambertianReFlectance(diffuse Component)

  • Technically, it should be:

n

l

θ

Jeff Chastine


Blinn phong reflection specular component
BLINN-PHONG Reflection(Specular Component)

  • Describes the specular highlight and is dependent on viewpoint v

  • Also describes a “half-vector” h that is halfway between v and l

h

v

n

r

l

θ

θ

Jeff Chastine


Blinn phong reflection specular component1
BLINN-PHONG Reflection(Specular Component)

  • - which is really Blinn’s contribution to the original Phong model

h

v

n

r

l

θ

θ

Note: vectors should be normalized

Jeff Chastine


Blinn phong reflection specular component2
BLINN-PHONG Reflection(Specular Component)

  • Our final specular equation is:

h

v

n

r

l

θ

θ

Jeff Chastine


Determining

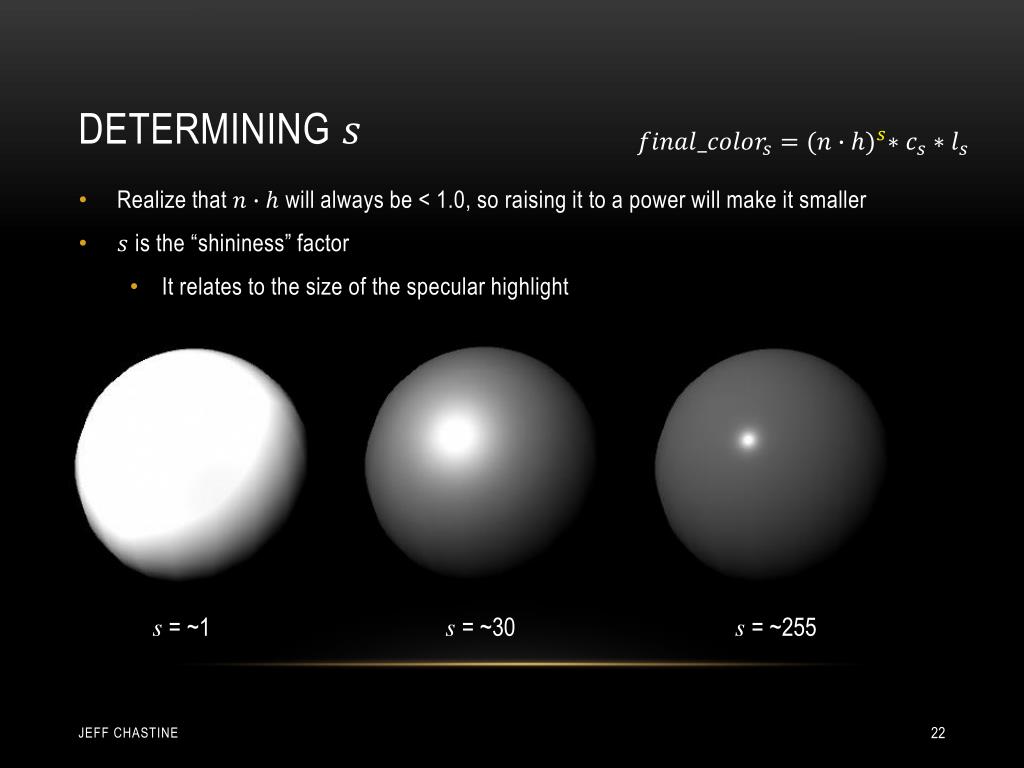

Determining

  • Realize that will always be < 1.0, so raising it to a power will make it smaller

  • is the “shininess” factor

    • It relates to the size of the specular highlight

s = ~1

s = ~30

s = ~255

Jeff Chastine


Ambient and emit components
Ambient and Emit Components

  • Ambient:

    • Used to simulate light bouncing around the environment (global illumination)

    • Real world is far too complex for real time, so just add a little light!

  • Emit:

    • Used to make the object “glow”

    • Does not emit light!!!

  • Both:

    • Independent of viewpoint

    • Super easy to calculate

Jeff Chastine


Final color
Final Color

  • To determine the final color (excluding textures) we sum up all components:

final_colordiffuse

final_colorspecular

final_colorambient

final_coloremit

final_color

+

http://en.wikipedia.org/wiki/Phong_reflection_model

Jeff Chastine


What about multiple lights
What about Multiple lights?

  • Calculate final colors and sum them all together

  • Assuming results are in f [ ] and there are count number of lights

Jeff Chastine


Common kinds of lights
Common Kinds of Lights

  • Point light

  • Directional Light

  • Spot Light

  • Area Light

  • Interesting fact:

    • Lights cannot be seen!

    • Only their effects

    • We can light per vertex (fast) or per fragment (slower)

Jeff Chastine


Point lights
Point Lights

  • These lights have a position in 3D space

  • Sometimes called a “Lamp”

  • Light emanates from the light in all directions

  • Distance d determines brightness (“attenuation”):

Here, per fragment lighting used

Jeff Chastine


Point lights1
Point Lights

  • These lights have a position in 3D space

  • Sometimes called a “Lamp”

  • Light emanates from the light in all directions

  • Distance d determines brightness (“attenuation”):

Here, per vertex lighting used

Jeff Chastine


Directional lights
Directional Lights

  • Are infinitely far away

    • position in NO WAY matters

    • Have only direction

  • All objects are lit evenly

  • Sometimes called a “Sun”

Jeff Chastine


Spotlights
Spotlights

  • Point light source

  • Conical in shape

Jeff Chastine


Spotlights1
Spotlights

  • Point light source

  • Conical in shape

  • Have:

    • An inner and outer cone angle

    • Umbra – areas that are fully in shadow

    • Penumbra – areas that are in partial shadow

  • Note: There’s an ambient light

Jeff Chastine


Area lights
Area Lights

  • A “surface” lights objects

  • Has a position and direction

  • Provides for a smoother drop off than point

    • Larger surface == smoother shadows

  • Expensive to calculate

Jeff Chastine


The end

What you’ll see if you don’t glEnable(GL_LIGHTING)

The End!
