Pairs of Angles

The sum of the measures of supplementary angles is 180º. x ° + m DEF = 180°. Simplify. x ° + 73° = 180°. Substitute 73º for m DEF. x ° + 73° – 73° = 180° – 73°. Subtract 73º from each side. x ° = 107°. The measure of the supplement of m DEF is 107º. COURSE 3 LESSON 8-1.

tarika
Download Presentation

Pairs of Angles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The sum of the measures of supplementary angles is 180º. x° + m DEF = 180° Simplify. x° + 73° = 180° Substitute 73º for mDEF. x° + 73° – 73° = 180° – 73° Subtract 73º from each side. x° = 107° The measure of the supplement of mDEF is 107º. COURSE 3 LESSON 8-1 Pairs of Angles If mDEF = 73º, find the measure of its supplement. 8-1

  2. x° + 67° = 90° Simplify. x° + 67° – 67° = 90° – 67° Subtract 67º from each side. x° = 23° The sum of the measures of complementary angles is 90º. COURSE 3 LESSON 8-1 Pairs of Angles A right angle is divided into two angles. If the measure of the larger angle is 67°, find the measure of its complement. The measure of the complement of 67º is 23º. 8-1

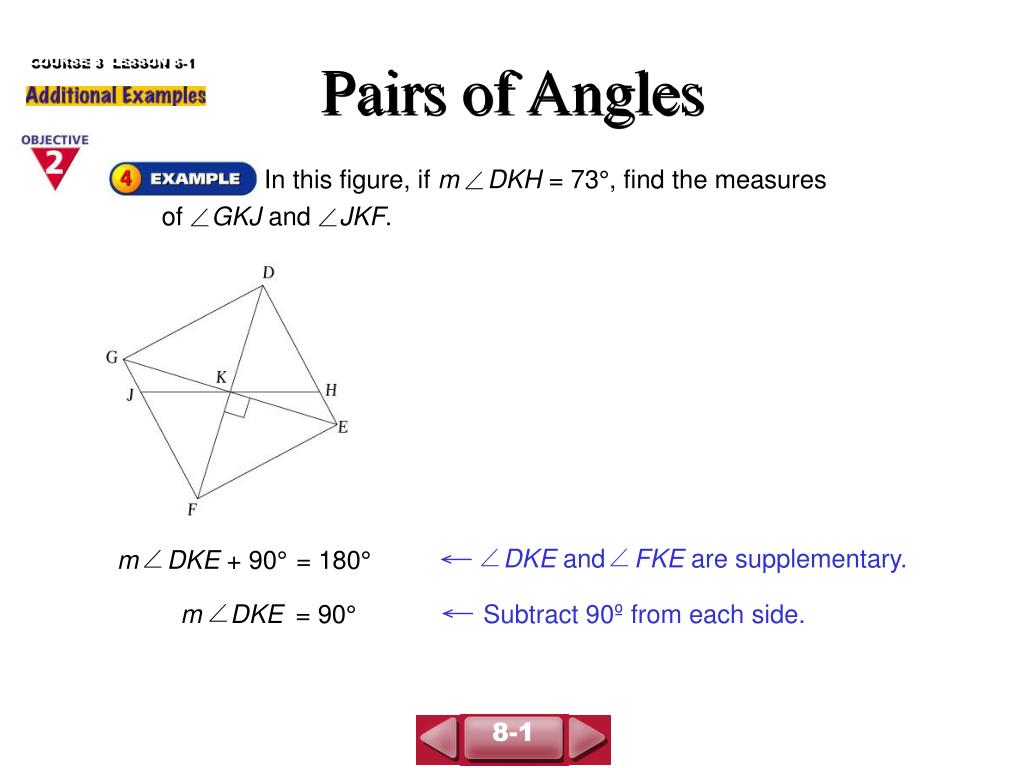

  3. DKE and FKE are supplementary. m DKE + 90° = 180° m DKE = 90° Subtract 90º from each side. COURSE 3 LESSON 8-1 Pairs of Angles In this figure, if mDKH = 73°, find the measures of GKJ and JKF. 8-1

  4. KHE and DKH are complementary. m KHE + 73° = 90° m KHE = 17° Subtract 73º from each side. GKJ and KHE are vertical angles. m GKJ = mKHE = 17° JKF and DKH are vertical angles. m JKF = mDKH = 73° COURSE 3 LESSON 8-1 Pairs of Angles (continued) 8-1

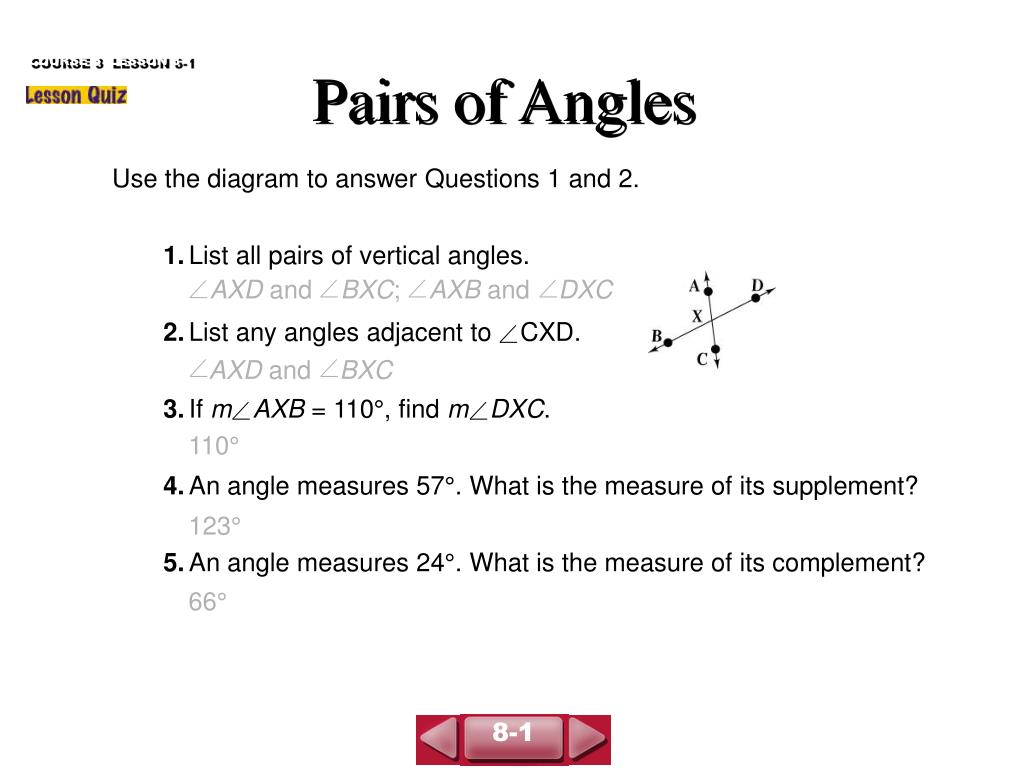

  5. AXD and BXC; AXB and DXC AXD and BXC COURSE 3 LESSON 8-1 Pairs of Angles Use the diagram to answer Questions 1 and 2. 1. List all pairs of vertical angles. 2. List any angles adjacent to CXD. 3. If mAXB = 110°, find mDXC. 4. An angle measures 57°. What is the measure of its supplement? 5. An angle measures 24°. What is the measure of its complement? 110° 123° 66° 8-1
