Characteristics of gases

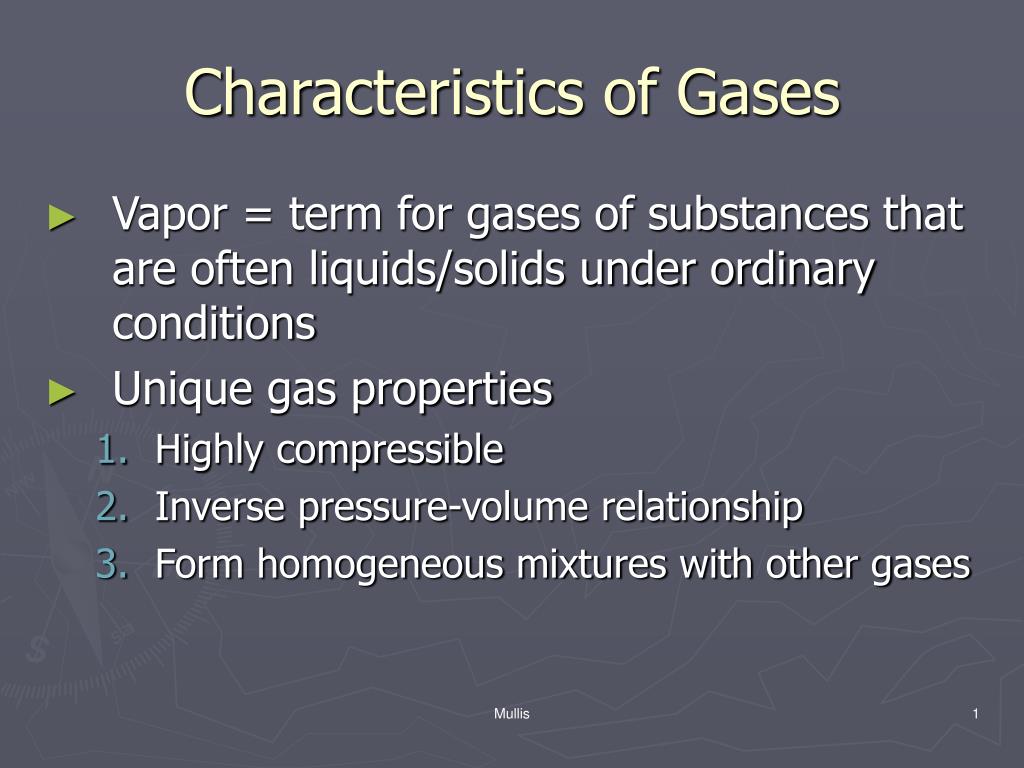

Characteristics of Gases

  • Vapor = term for gases of substances that are often liquids/solids under ordinary conditions

  • Unique gas properties

    • Highly compressible

    • Inverse pressure-volume relationship

    • Form homogeneous mixtures with other gases


Pressures of enclosed gases and manometers

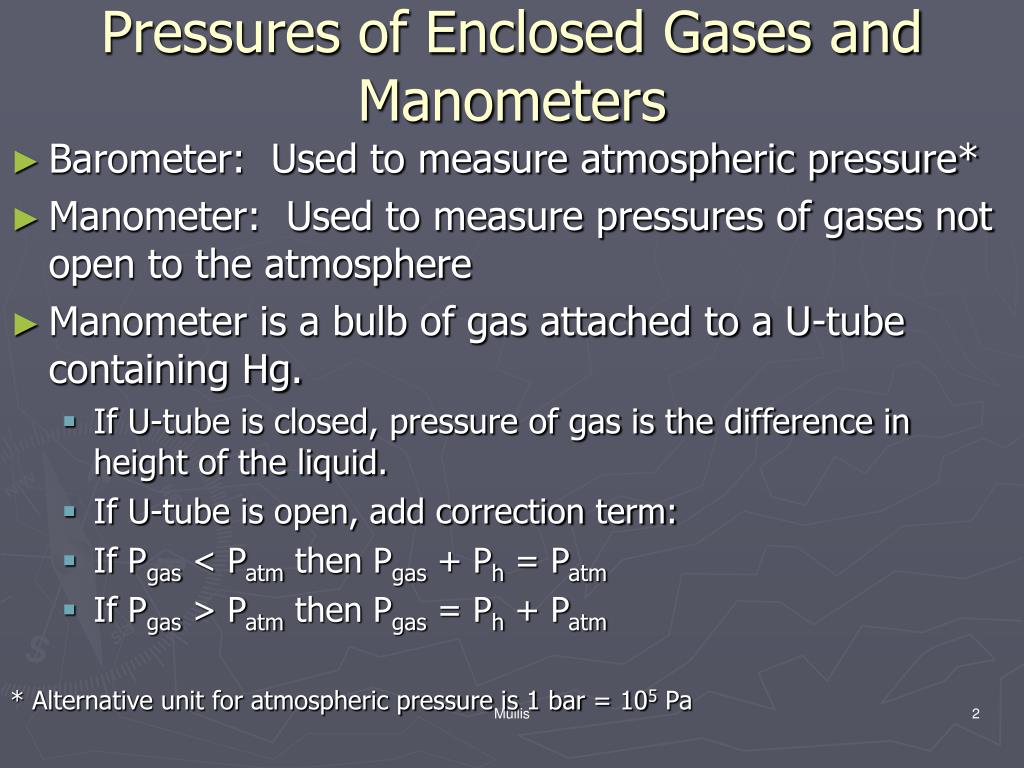

Pressures of Enclosed Gases and Manometers

  • Barometer: Used to measure atmospheric pressure*

  • Manometer: Used to measure pressures of gases not open to the atmosphere

  • Manometer is a bulb of gas attached to a U-tube containing Hg.

    • If U-tube is closed, pressure of gas is the difference in height of the liquid.

    • If U-tube is open, add correction term:

    • If Pgas < Patm then Pgas + Ph = Patm

    • If Pgas > Patm then Pgas = Ph + Patm

      * Alternative unit for atmospheric pressure is 1 bar = 105 Pa


Kinetic molecular theory

Kinetic Molecular Theory

  • Number of molecules

  • Temp

  • Volume

  • Pressure

  • Number of dancers

  • Beat of music

  • Size of room

  • Number and force of collisions


Kinetic molecular theory1

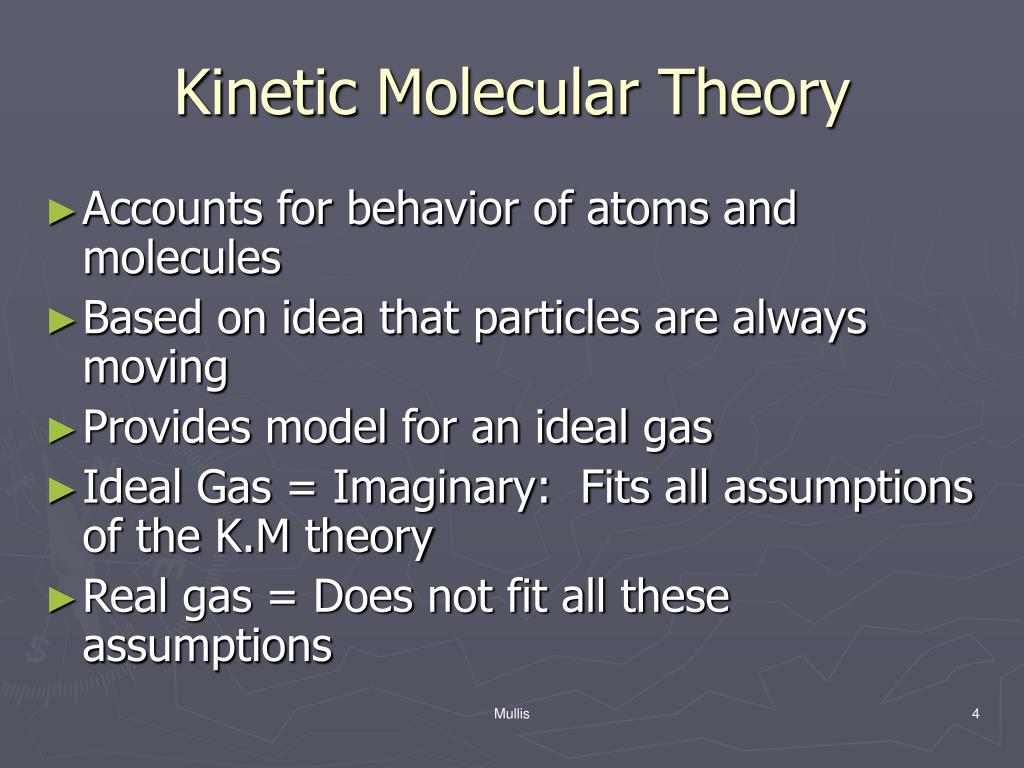

Kinetic Molecular Theory

  • Accounts for behavior of atoms and molecules

  • Based on idea that particles are always moving

  • Provides model for an ideal gas

  • Ideal Gas = Imaginary: Fits all assumptions of the K.M theory

  • Real gas = Does not fit all these assumptions


5 assumptions of kinetic molecular theory

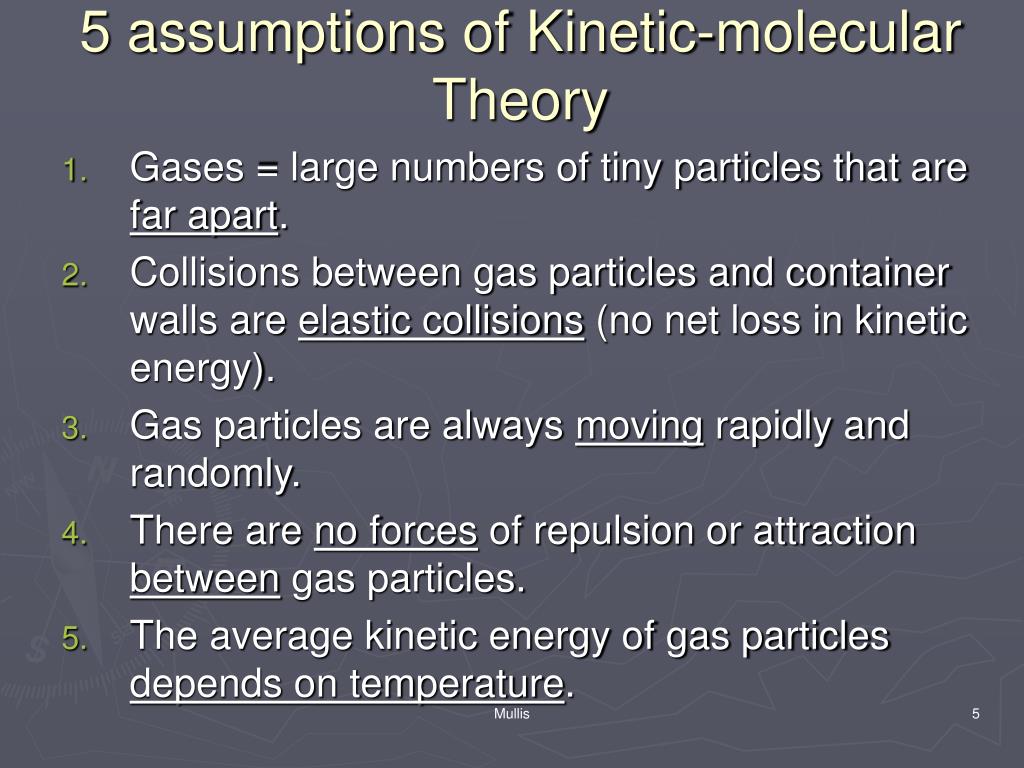

5 assumptions of Kinetic-molecular Theory

  • Gases = large numbers of tiny particles that are far apart.

  • Collisions between gas particles and container walls are elastic collisions (no net loss in kinetic energy).

  • Gas particles are always moving rapidly and randomly.

  • There are no forces of repulsion or attraction between gas particles.

  • The average kinetic energy of gas particles depends on temperature.


Physical properties of gasses

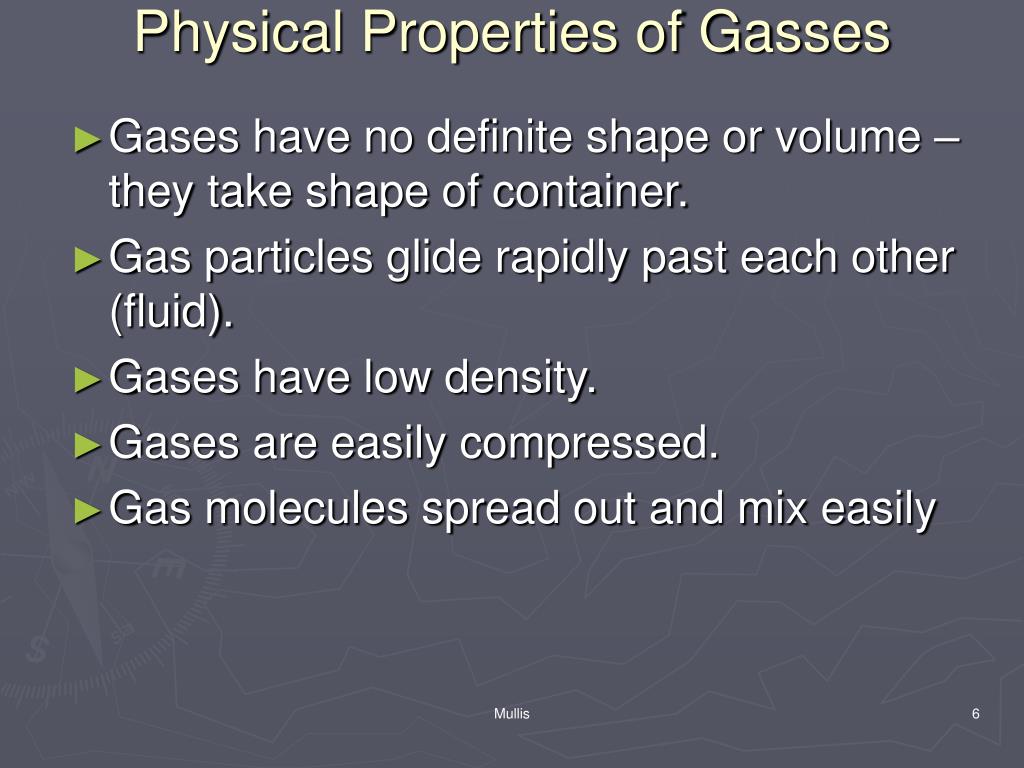

Physical Properties of Gasses

  • Gases have no definite shape or volume – they take shape of container.

  • Gas particles glide rapidly past each other (fluid).

  • Gases have low density.

  • Gases are easily compressed.

  • Gas molecules spread out and mix easily


Characteristics of gases

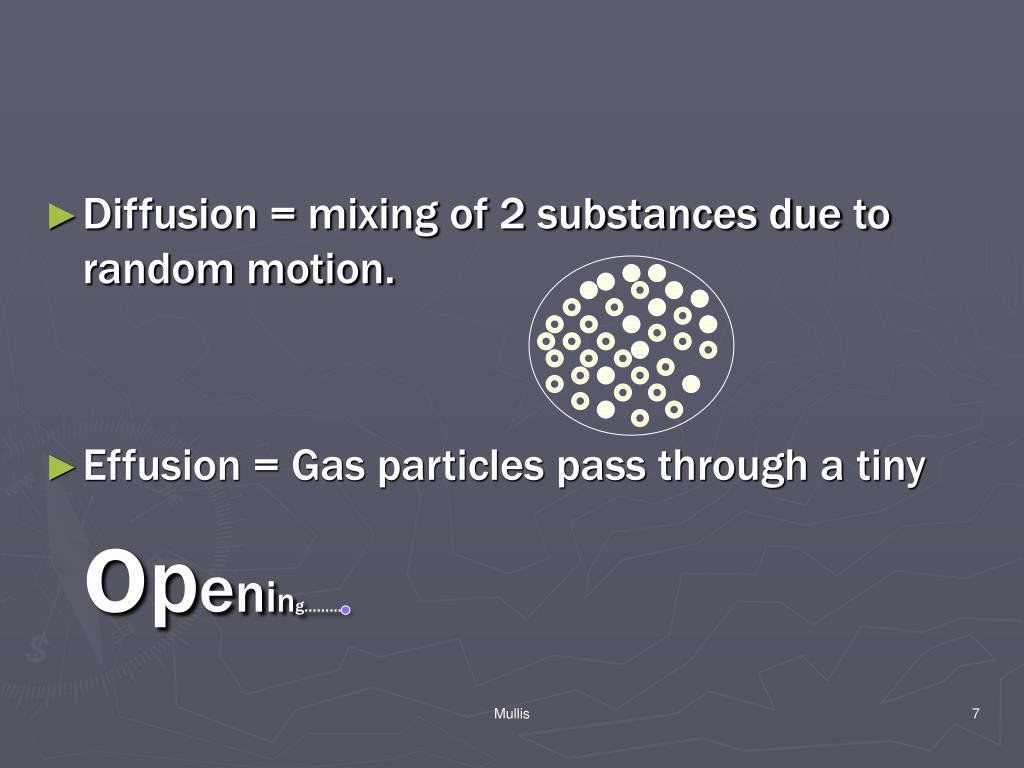

  • Diffusion = mixing of 2 substances due to random motion.

  • Effusion = Gas particles pass through a tiny opening……..…


Real gases

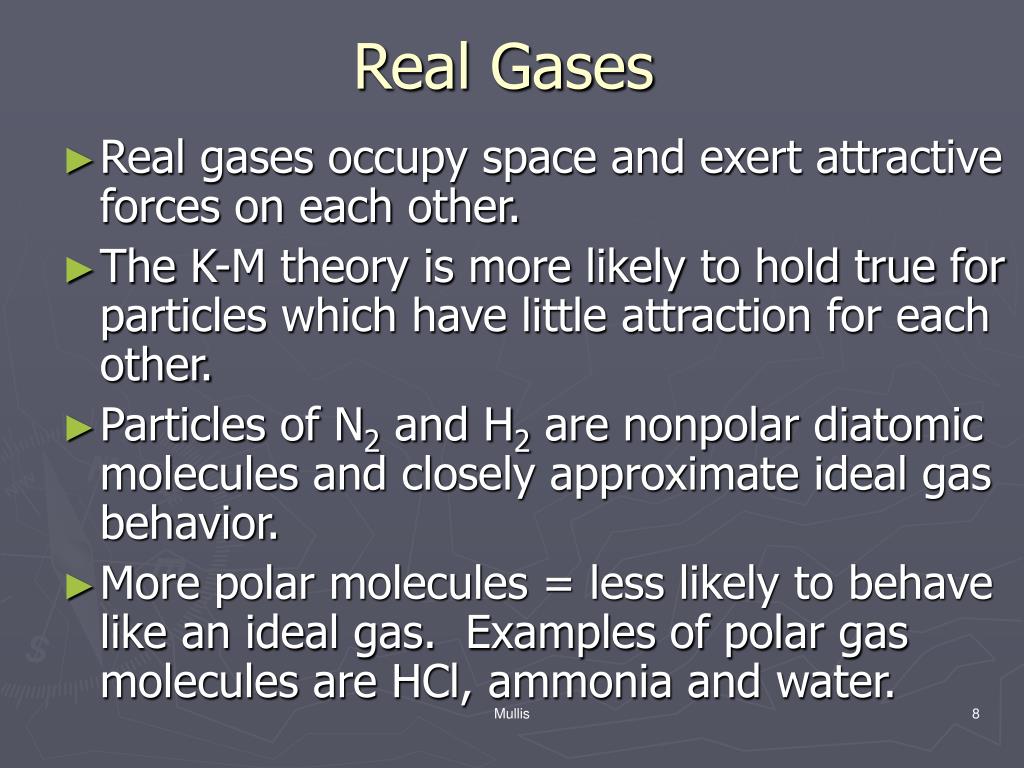

Real Gases

  • Real gases occupy space and exert attractive forces on each other.

  • The K-M theory is more likely to hold true for particles which have little attraction for each other.

  • Particles of N2 and H2 are nonpolar diatomic molecules and closely approximate ideal gas behavior.

  • More polar molecules = less likely to behave like an ideal gas. Examples of polar gas molecules are HCl, ammonia and water.


Gas behavior

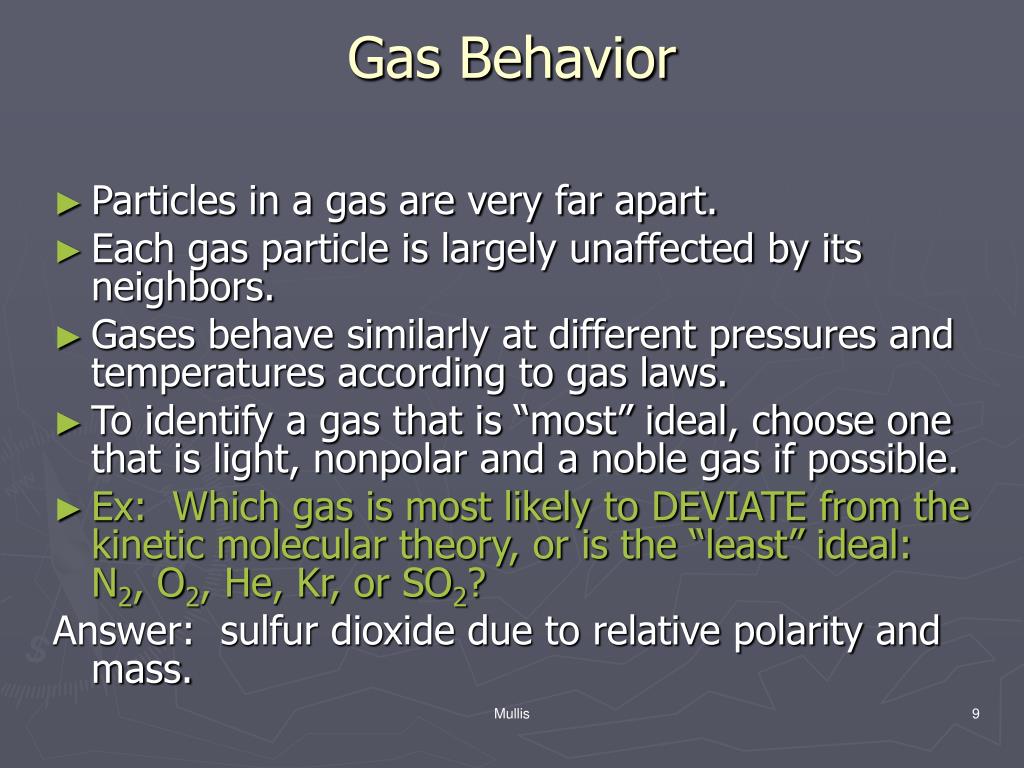

Gas Behavior

  • Particles in a gas are very far apart.

  • Each gas particle is largely unaffected by its neighbors.

  • Gases behave similarly at different pressures and temperatures according to gas laws.

  • To identify a gas that is “most” ideal, choose one that is light, nonpolar and a noble gas if possible.

  • Ex: Which gas is most likely to DEVIATE from the kinetic molecular theory, or is the “least” ideal: N2, O2, He, Kr, or SO2?

    Answer: sulfur dioxide due to relative polarity and mass.


Boyle s law

Boyle’s Law

  • Pressure goes up if volume goes down.

  • Volume goes down if pressure goes up.

  • The more pressure increases, the smaller the change in volume.


Boyle s law1

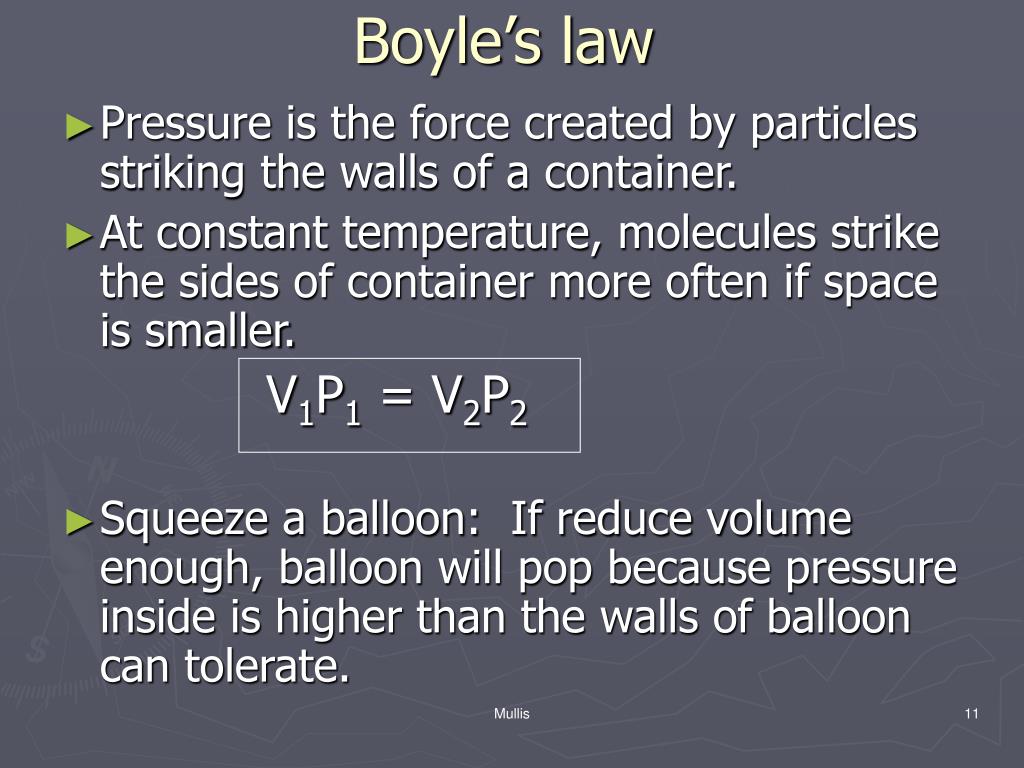

Boyle’s law

  • Pressure is the force created by particles striking the walls of a container.

  • At constant temperature, molecules strike the sides of container more often if space is smaller.

    V1P1 = V2P2

  • Squeeze a balloon: If reduce volume enough, balloon will pop because pressure inside is higher than the walls of balloon can tolerate.


Charles law

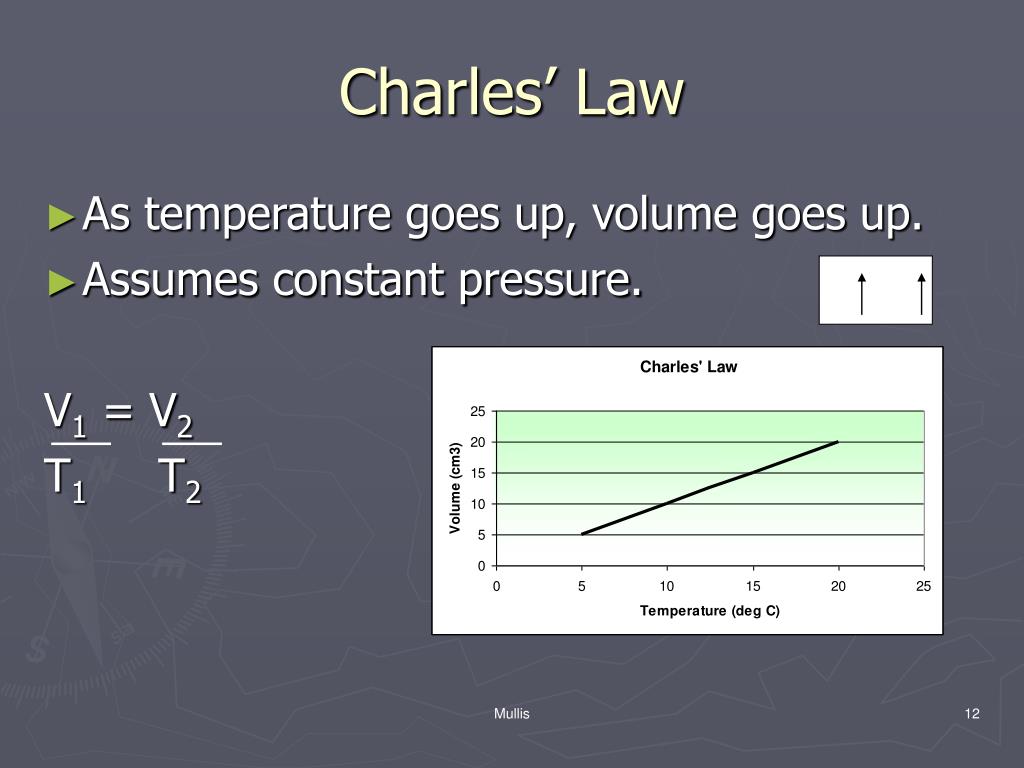

Charles’ Law

  • As temperature goes up, volume goes up.

  • Assumes constant pressure.

    V1 = V2

    T1 T2

T , V


Charles law1

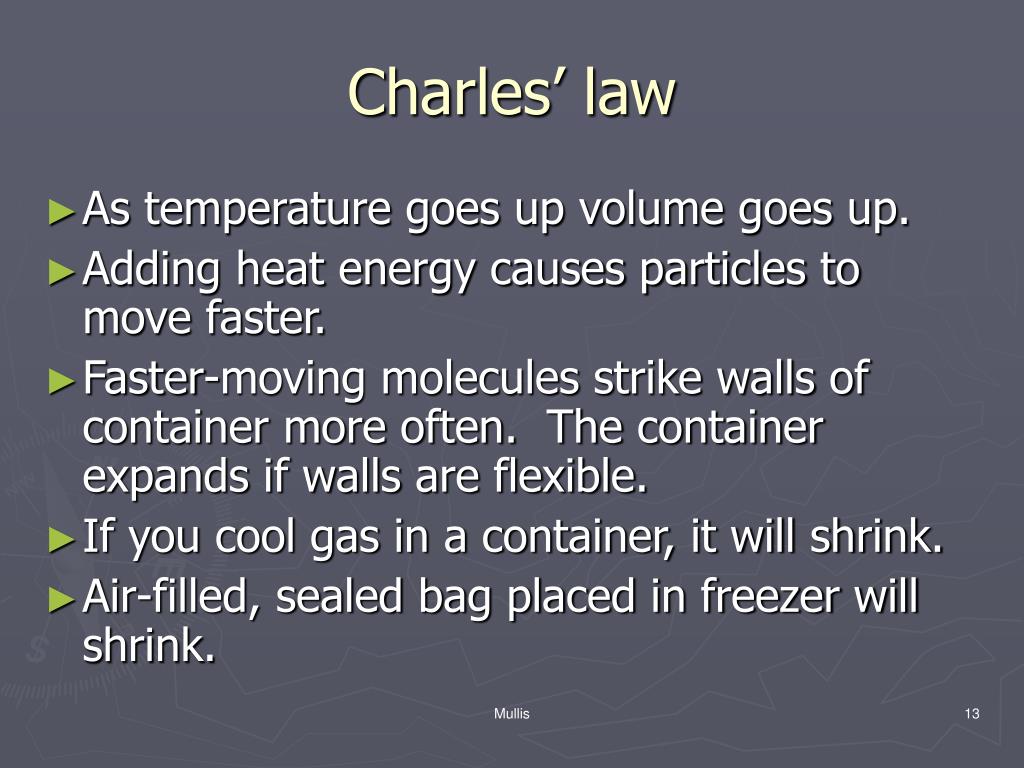

Charles’ law

  • As temperature goes up volume goes up.

  • Adding heat energy causes particles to move faster.

  • Faster-moving molecules strike walls of container more often. The container expands if walls are flexible.

  • If you cool gas in a container, it will shrink.

  • Air-filled, sealed bag placed in freezer will shrink.


Gay lussac s law

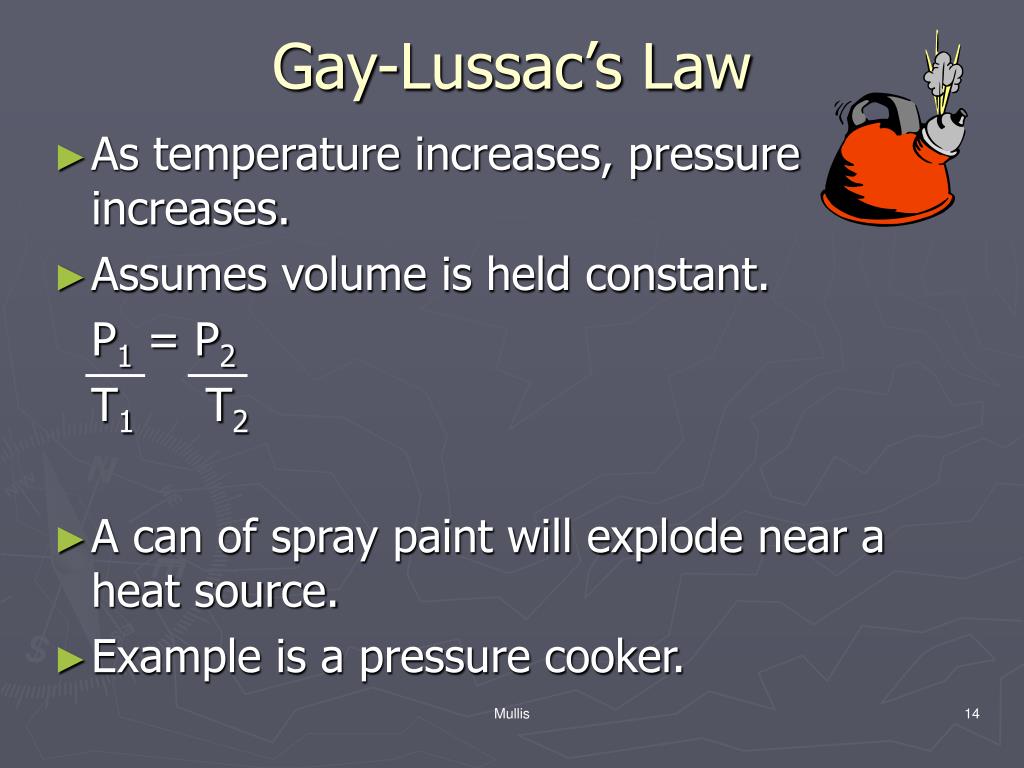

Gay-Lussac’s Law

  • As temperature increases, pressure increases.

  • Assumes volume is held constant.

    P1 = P2

    T1 T2

  • A can of spray paint will explode near a heat source.

  • Example is a pressure cooker.


Combined gas law

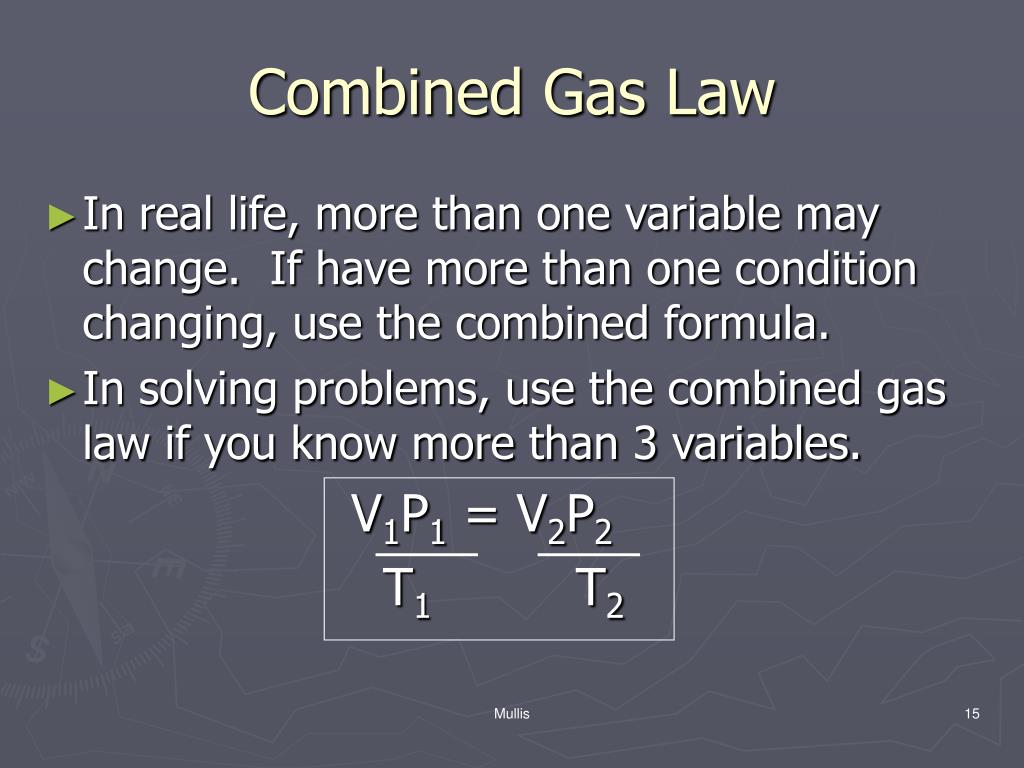

Combined Gas Law

  • In real life, more than one variable may change. If have more than one condition changing, use the combined formula.

  • In solving problems, use the combined gas law if you know more than 3 variables.

    V1P1 = V2P2

    T1 T2


Using gas laws

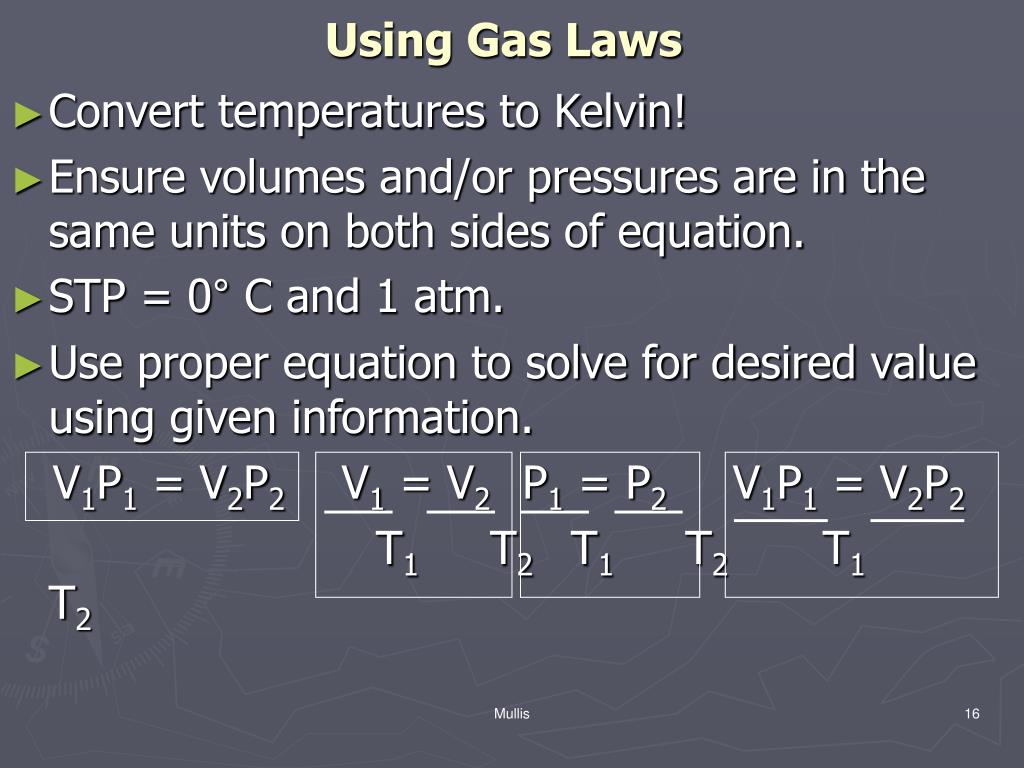

Using Gas Laws

  • Convert temperatures to Kelvin!

  • Ensure volumes and/or pressures are in the same units on both sides of equation.

  • STP = 0° C and 1 atm.

  • Use proper equation to solve for desired value using given information.

    V1P1 = V2P2 V1 = V2 P1 = P2 V1P1 = V2P2

    T1 T2 T1 T2 T1 T2


Gay lussac s law of combining volumes of gases

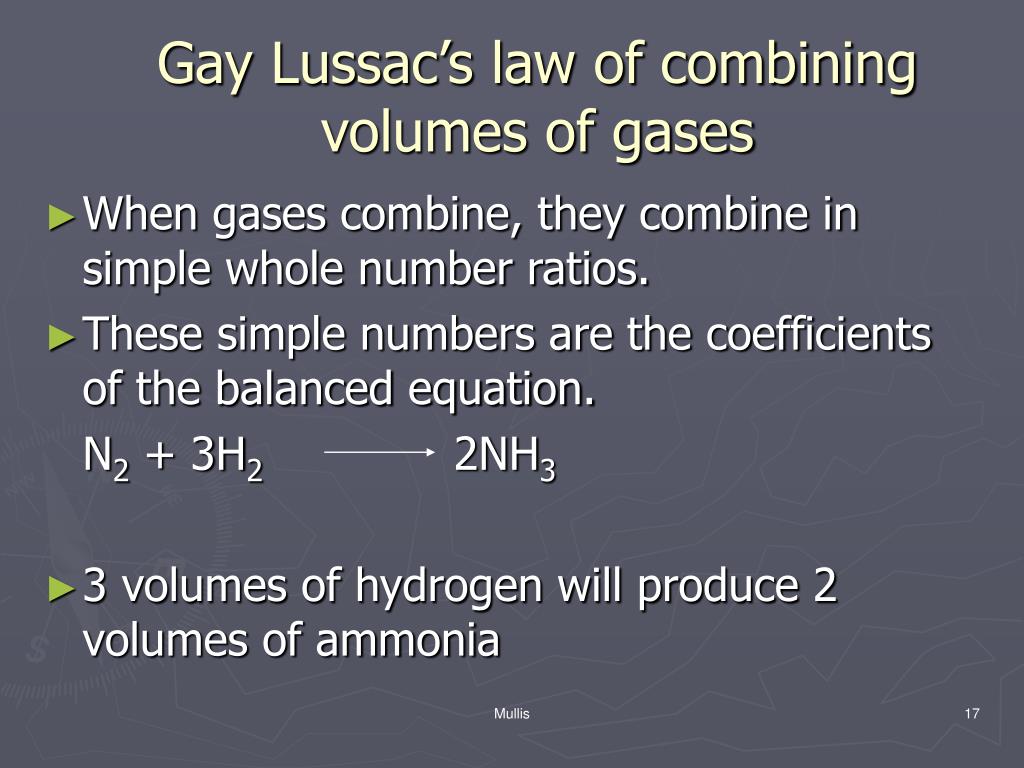

Gay Lussac’s law of combining volumes of gases

  • When gases combine, they combine in simple whole number ratios.

  • These simple numbers are the coefficients of the balanced equation.

    N2 + 3H2 2NH3

  • 3 volumes of hydrogen will produce 2 volumes of ammonia


Avogadro s law and molar volume of gases

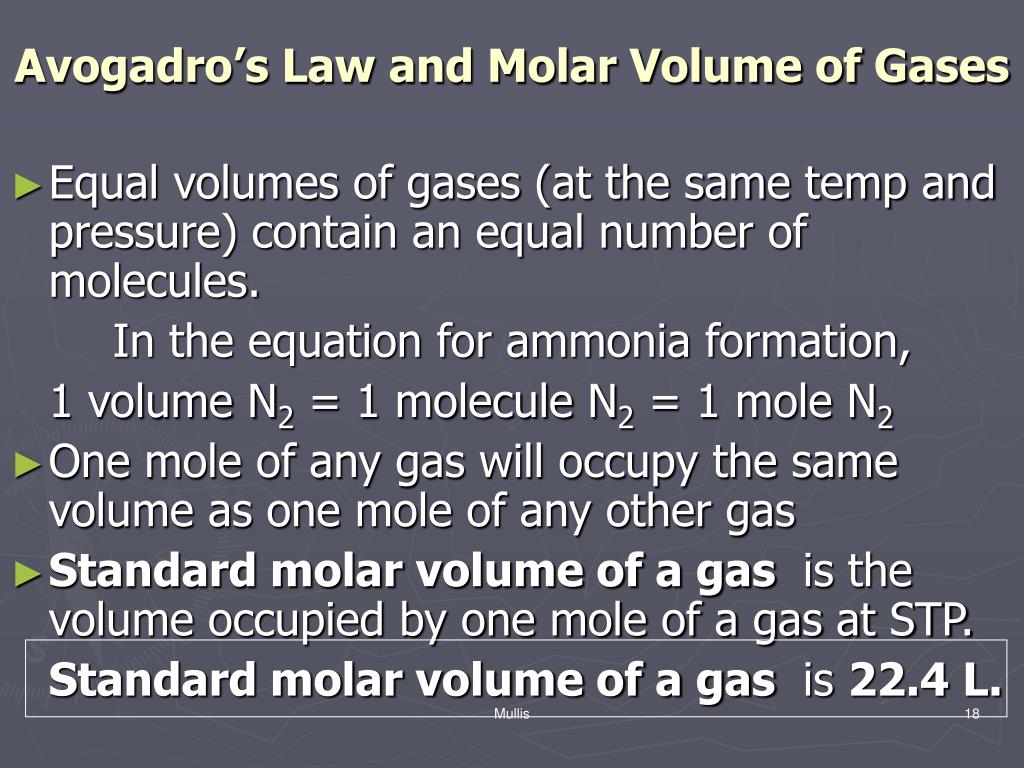

Avogadro’s Law and Molar Volume of Gases

  • Equal volumes of gases (at the same temp and pressure) contain an equal number of molecules.

    In the equation for ammonia formation,

    1 volume N2 = 1 molecule N2 = 1 mole N2

  • One mole of any gas will occupy the same volume as one mole of any other gas

  • Standard molar volume of a gas is the volume occupied by one mole of a gas at STP.

    Standard molar volume of a gas is 22.4 L.


Sample molar volume problem

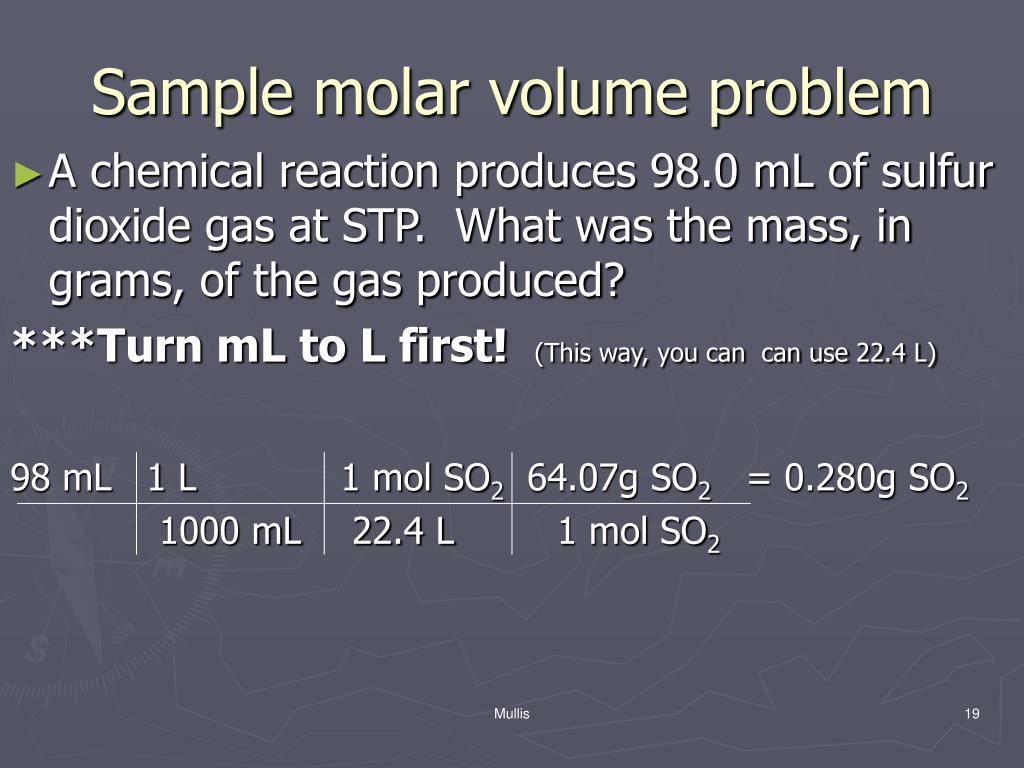

Sample molar volume problem

  • A chemical reaction produces 98.0 mL of sulfur dioxide gas at STP. What was the mass, in grams, of the gas produced?

    ***Turn mL to L first! (This way, you can can use 22.4 L)

    98 mL 1 L 1 mol SO2 64.07g SO2 = 0.280g SO2

    1000 mL 22.4 L 1 mol SO2


Sample molar volume problem 2

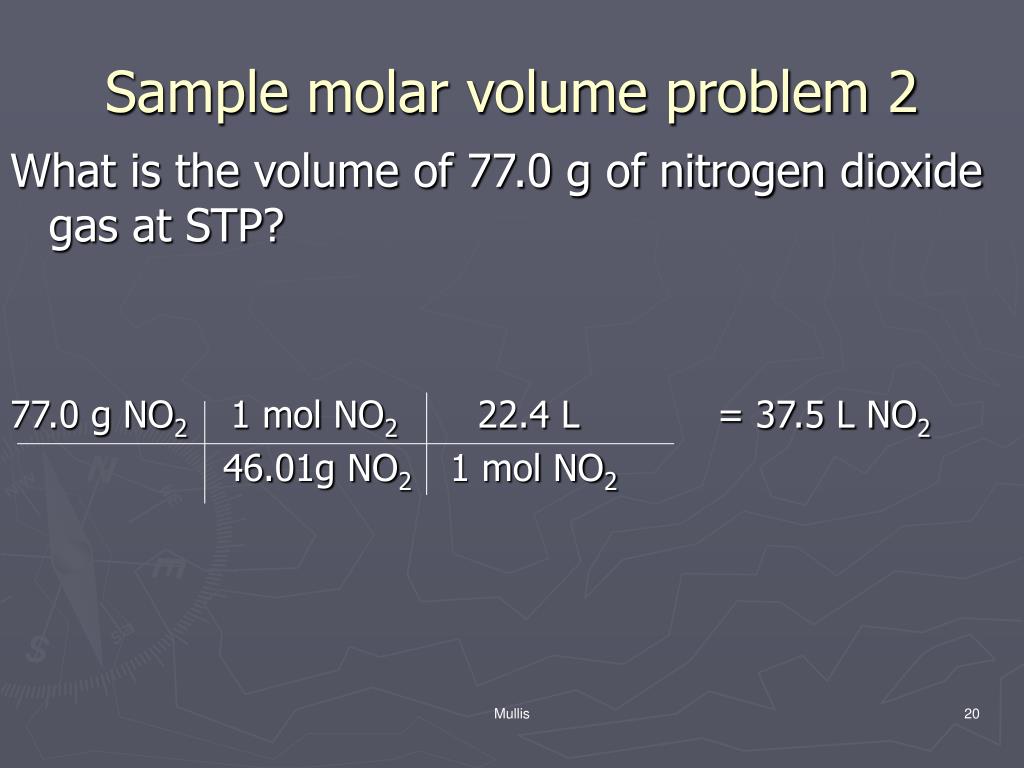

Sample molar volume problem 2

What is the volume of 77.0 g of nitrogen dioxide gas at STP?

77.0 g NO2 1 mol NO2 22.4 L = 37.5 L NO2

46.01g NO2 1 mol NO2


Ideal gas law

Ideal Gas Law

  • Mathematical relationship for PVT and number of moles of gas

    PV = nRTn = number of moles

    R = ideal gas constant

    P = pressure

    V = volume in L

    T = Temperature in K

    R = 0.0821 if pressure is in atm

    R = 8.314 if pressure is in kPa

    R = 62.4 if pressure is in mm Hg


Sample ideal gas law problem

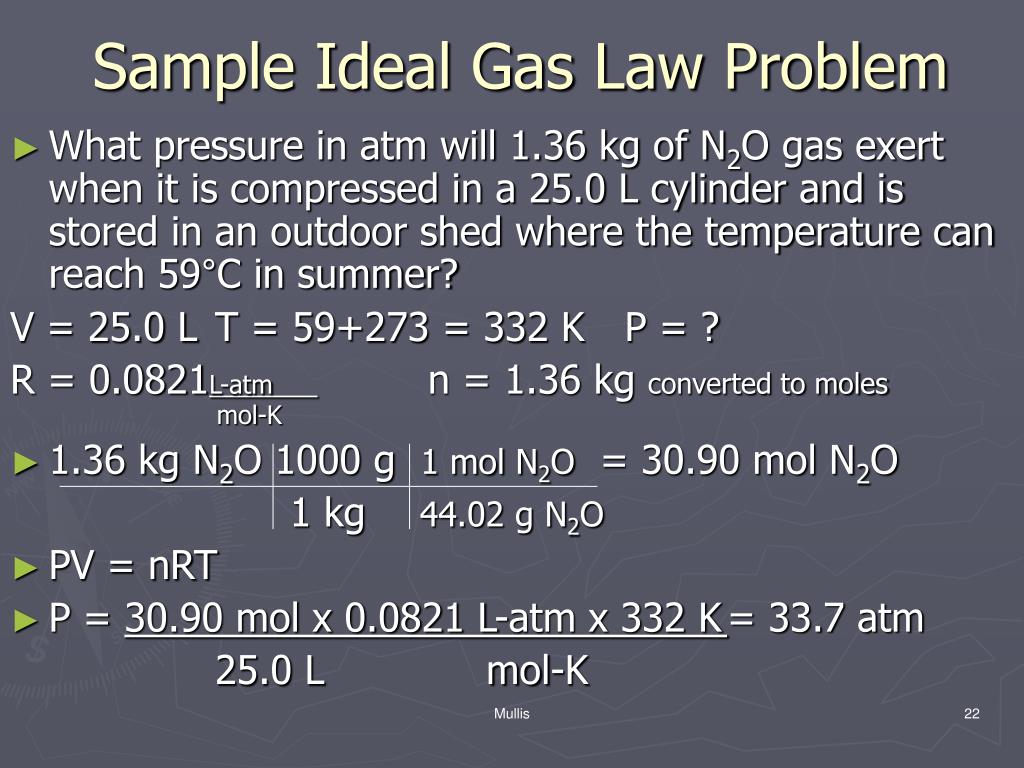

Sample Ideal Gas Law Problem

  • What pressure in atm will 1.36 kg of N2O gas exert when it is compressed in a 25.0 L cylinder and is stored in an outdoor shed where the temperature can reach 59°C in summer?

    V = 25.0 LT = 59+273 = 332 K P = ?

    R = 0.0821L-atmn = 1.36 kg converted to moles mol-K

  • 1.36 kg N2O 1000 g 1 mol N2O = 30.90 mol N2O

    1 kg44.02 g N2O

  • PV = nRT

  • P = 30.90 mol x 0.0821 L-atm x 332 K= 33.7 atm

    25.0 L mol-K


Volume volume calculations

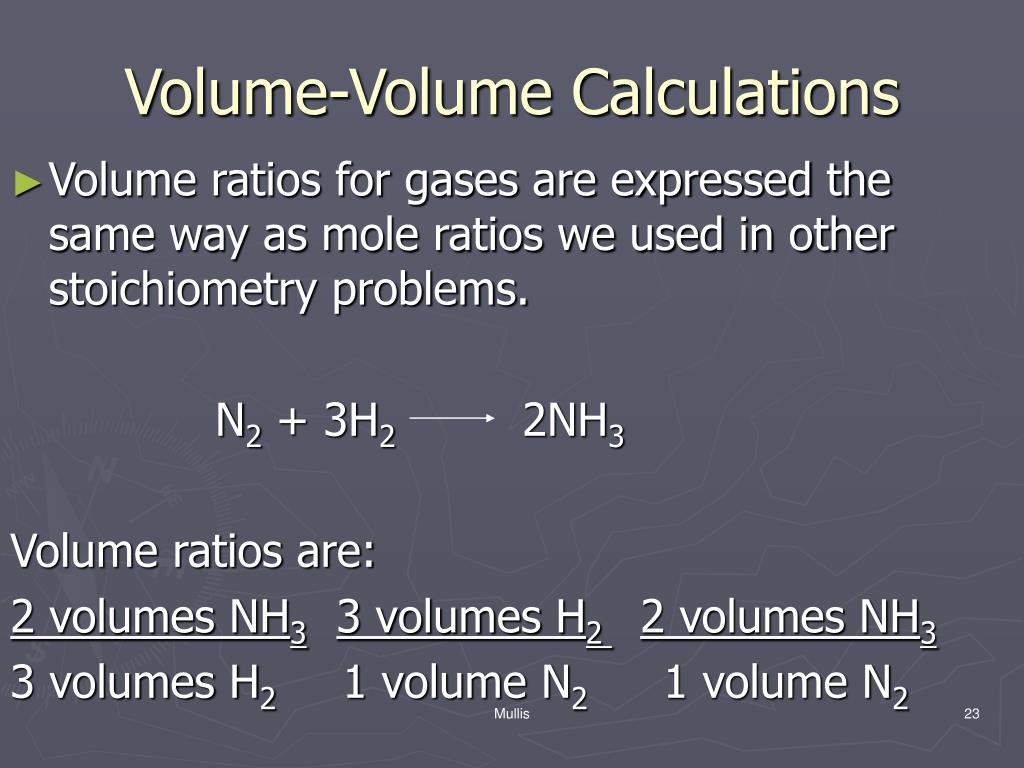

Volume-Volume Calculations

  • Volume ratios for gases are expressed the same way as mole ratios we used in other stoichiometry problems.

    N2 + 3H2 2NH3

    Volume ratios are:

    2 volumes NH33 volumes H2 2 volumes NH3

    3 volumes H2 1 volume N2 1 volume N2


Sample volume volume problem

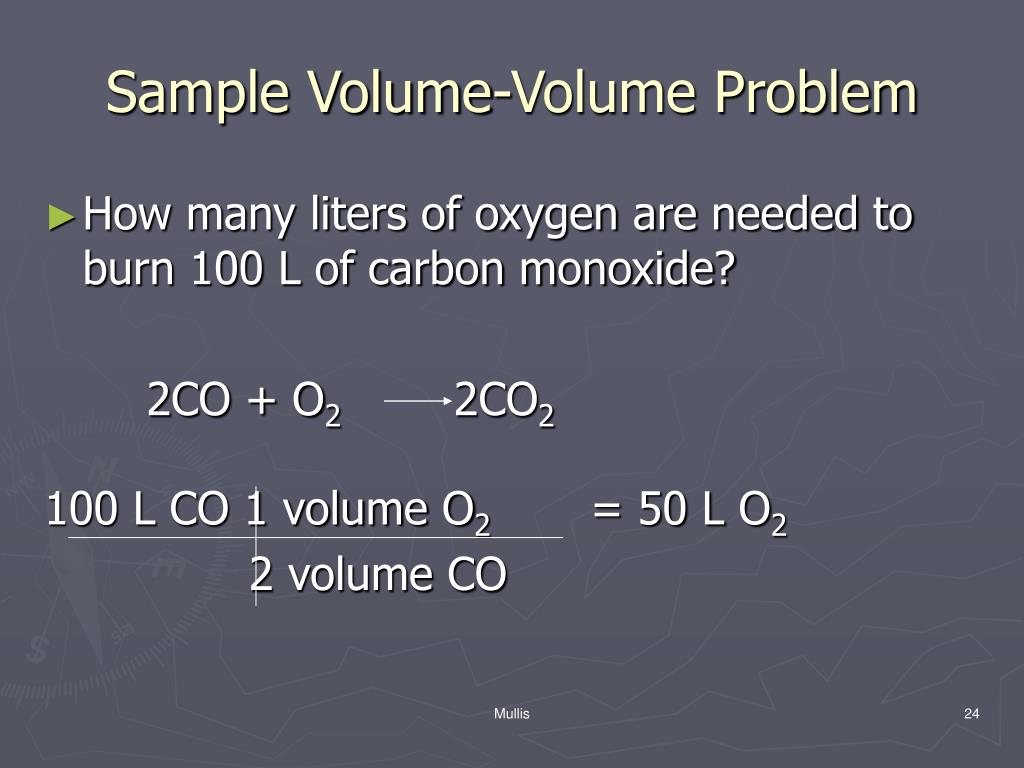

Sample Volume-Volume Problem

  • How many liters of oxygen are needed to burn 100 L of carbon monoxide?

    2CO + O22CO2

    100 L CO 1 volume O2 = 50 L O2

    2 volume CO


Sample volume volume problem 2

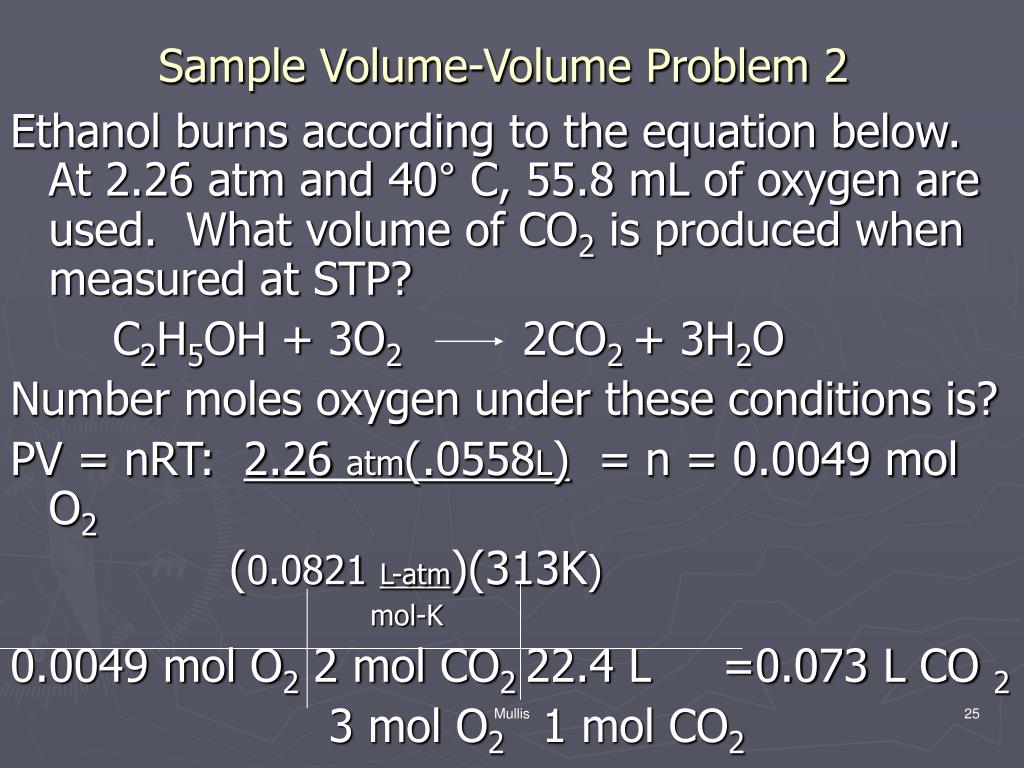

Sample Volume-Volume Problem 2

Ethanol burns according to the equation below. At 2.26 atm and 40° C, 55.8 mL of oxygen are used. What volume of CO2 is produced when measured at STP?

C2H5OH + 3O22CO2 + 3H2O

Number moles oxygen under these conditions is?

PV = nRT: 2.26 atm(.0558L) = n = 0.0049 mol O2

(0.0821 L-atm)(313K)


0.0049 mol O2 2 mol CO2 22.4 L =0.073 L CO 2

3 mol O2 1 mol CO2


Gas densities and molar mass

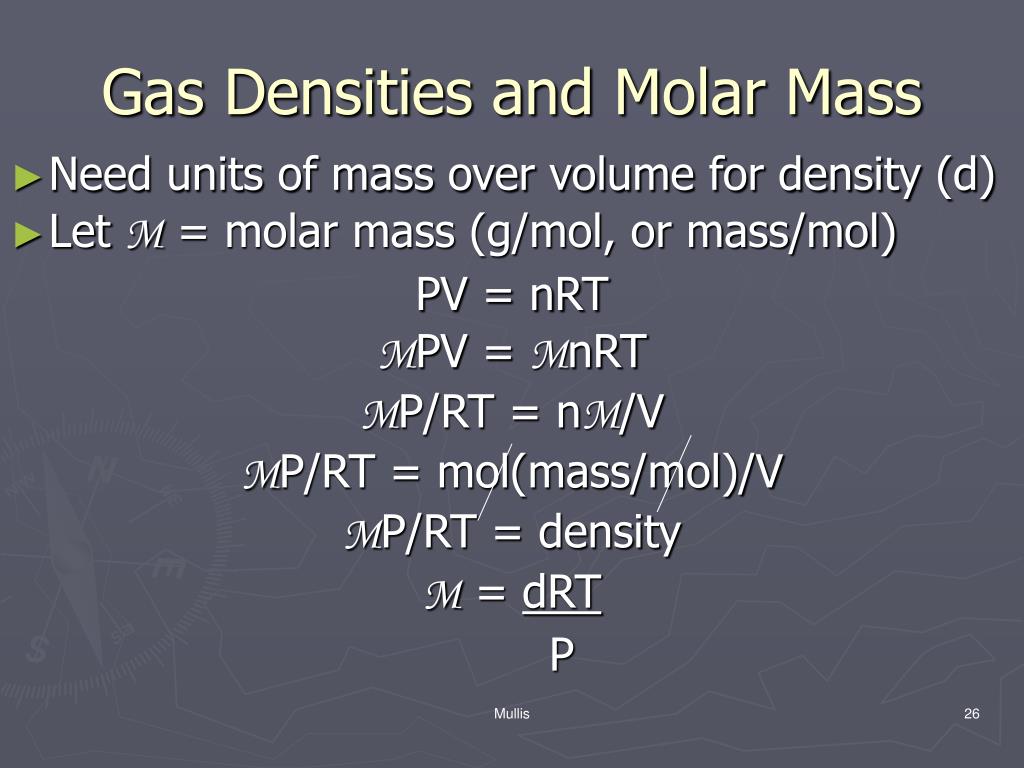

Gas Densities and Molar Mass

  • Need units of mass over volume for density (d)

  • Let M = molar mass (g/mol, or mass/mol)

    PV = nRT

    MPV = MnRT

    MP/RT = nM/V

    MP/RT = mol(mass/mol)/V

    MP/RT = density

    M = dRT



Sample problem density

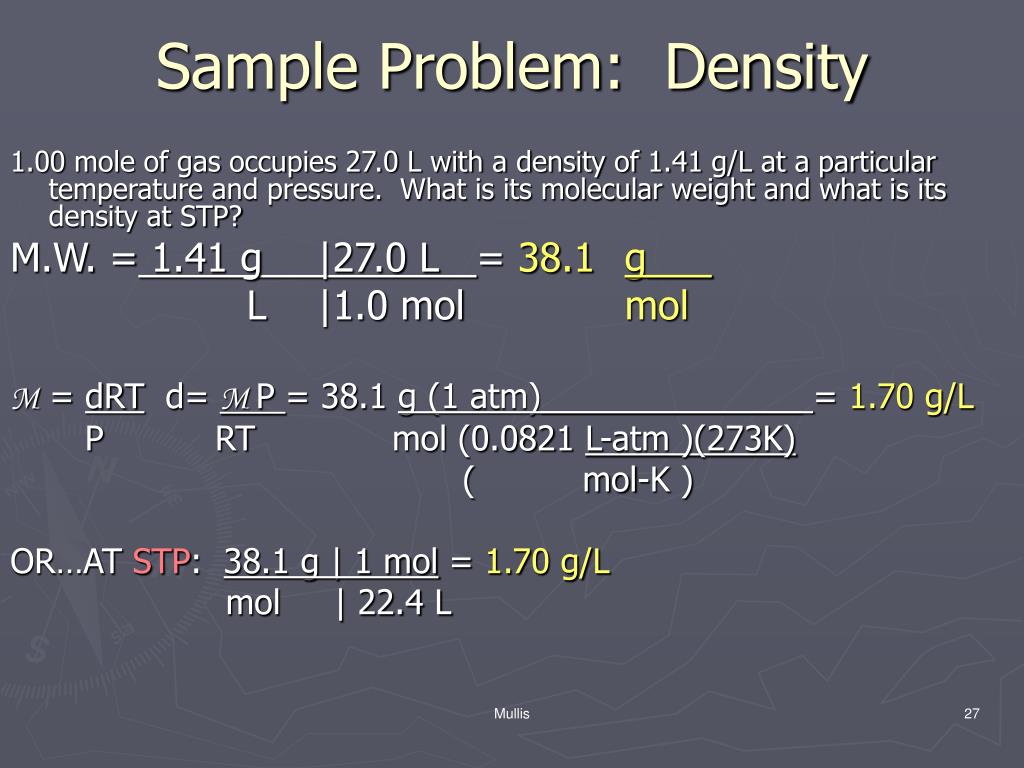

Sample Problem: Density

1.00 mole of gas occupies 27.0 L with a density of 1.41 g/L at a particular temperature and pressure. What is its molecular weight and what is its density at STP?

M.W. = 1.41 g|27.0 L = 38.1 g___

L|1.0 molmol

M = dRT d= M P = 38.1 g (1 atm)______________ = 1.70 g/L

PRT mol (0.0821 L-atm )(273K)

( mol-K )

OR…AT STP: 38.1 g | 1 mol = 1.70 g/L

mol | 22.4 L


Example molecular weight

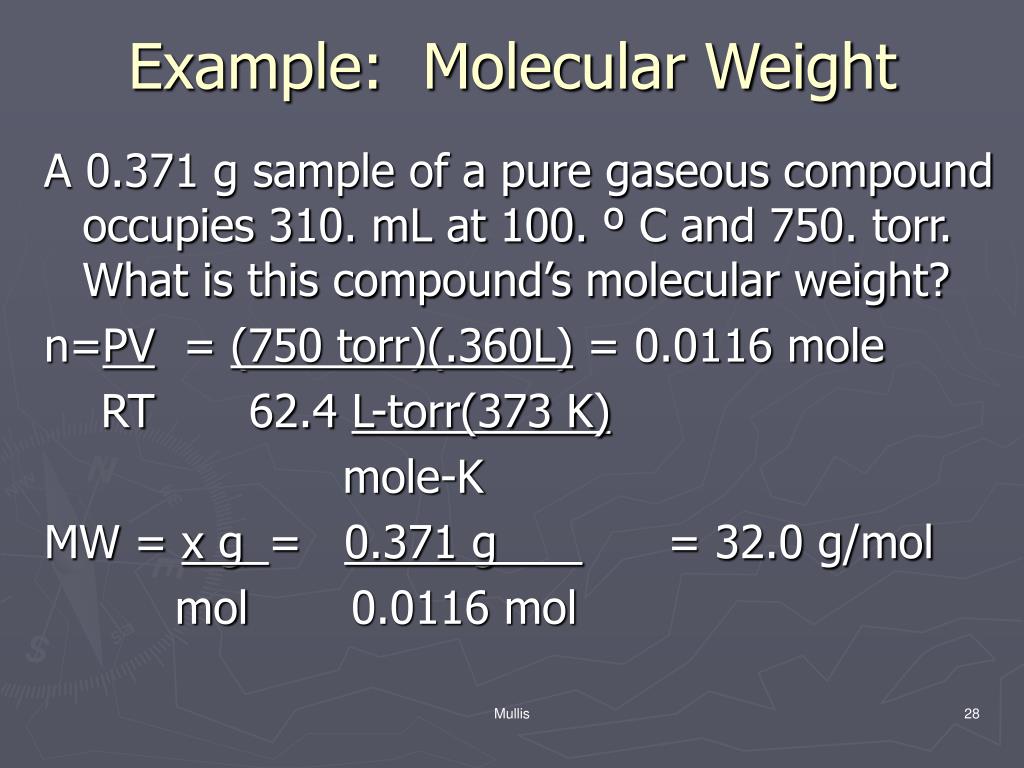

Example: Molecular Weight

A 0.371 g sample of a pure gaseous compound occupies 310. mL at 100. º C and 750. torr. What is this compound’s molecular weight?

n=PV = (750 torr)(.360L) = 0.0116 mole

RT62.4 L-torr(373 K)


MW = x g_= 0.371 g = 32.0 g/mol

mol0.0116 mol


Partial pressures

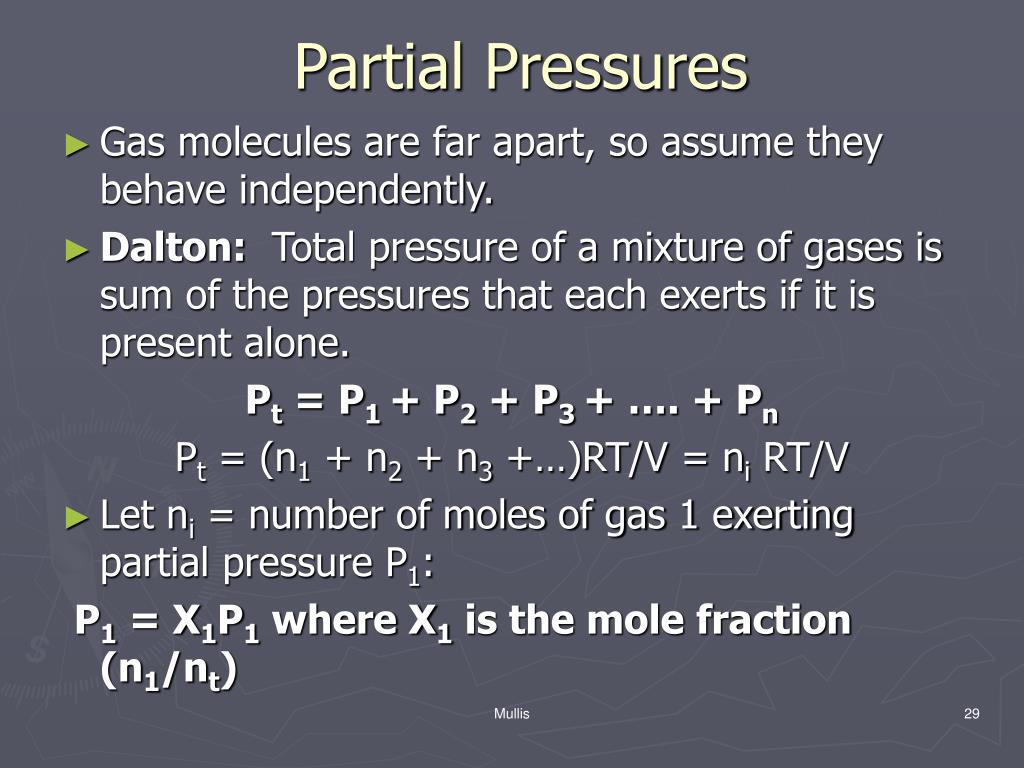

Partial Pressures

  • Gas molecules are far apart, so assume they behave independently.

  • Dalton: Total pressure of a mixture of gases is sum of the pressures that each exerts if it is present alone.

    Pt = P1 + P2 + P3 + …. + Pn

    Pt = (n1 + n2 + n3 +…)RT/V = ni RT/V

  • Let ni = number of moles of gas 1 exerting partial pressure P1:

    P1 = X1P1 where X1 is the mole fraction (n1/nt)


Collecting gases over water

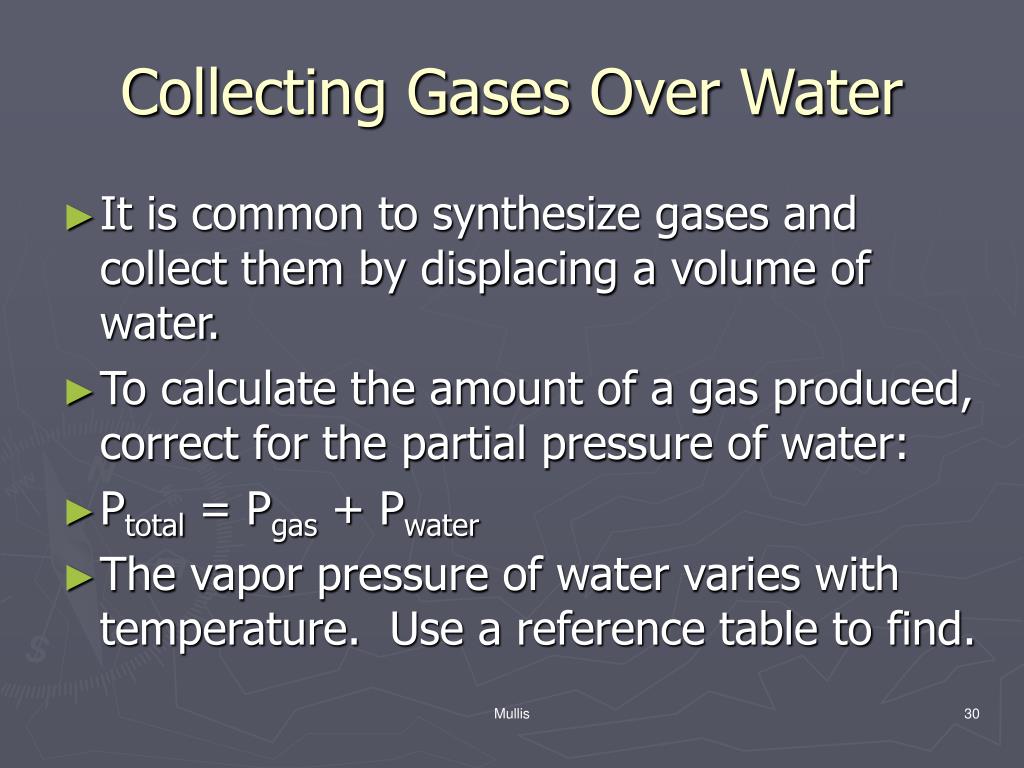

Collecting Gases Over Water

  • It is common to synthesize gases and collect them by displacing a volume of water.

  • To calculate the amount of a gas produced, correct for the partial pressure of water:

  • Ptotal = Pgas + Pwater

  • The vapor pressure of water varies with temperature. Use a reference table to find.


Kinetic energy

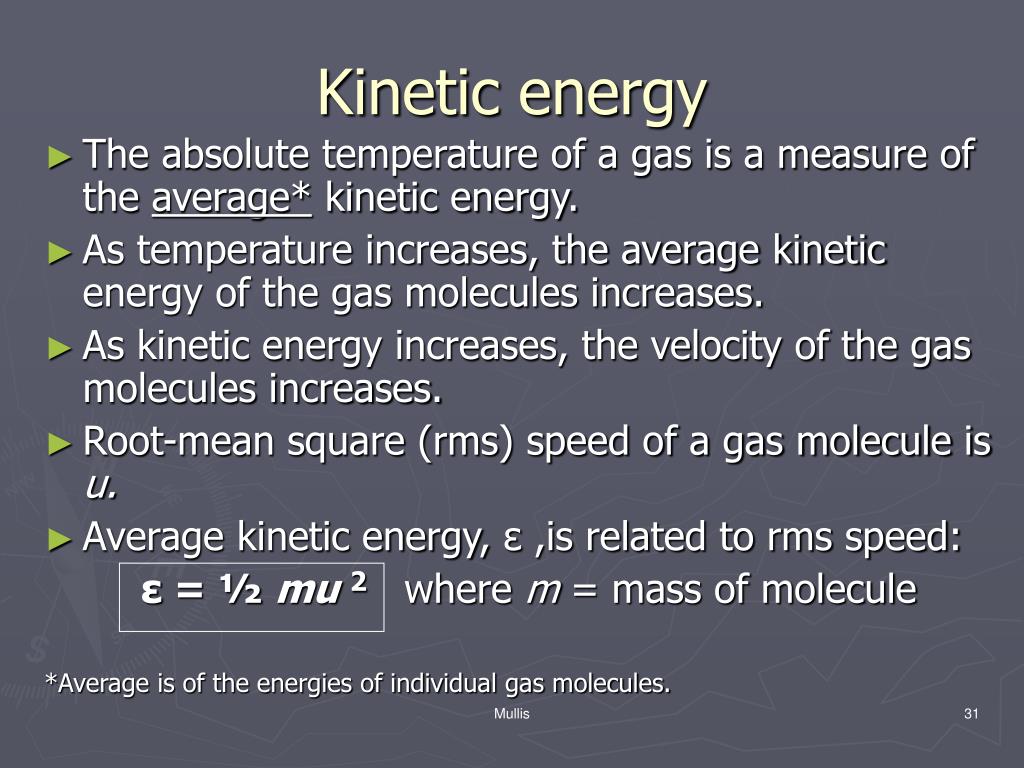

Kinetic energy

  • The absolute temperature of a gas is a measure of the average* kinetic energy.

  • As temperature increases, the average kinetic energy of the gas molecules increases.

  • As kinetic energy increases, the velocity of the gas molecules increases.

  • Root-mean square (rms) speed of a gas molecule is u.

  • Average kinetic energy, ε ,is related to rms speed:

    ε = ½ mu 2 where m = mass of molecule

    *Average is of the energies of individual gas molecules.


Maxwell boltzmann distribution

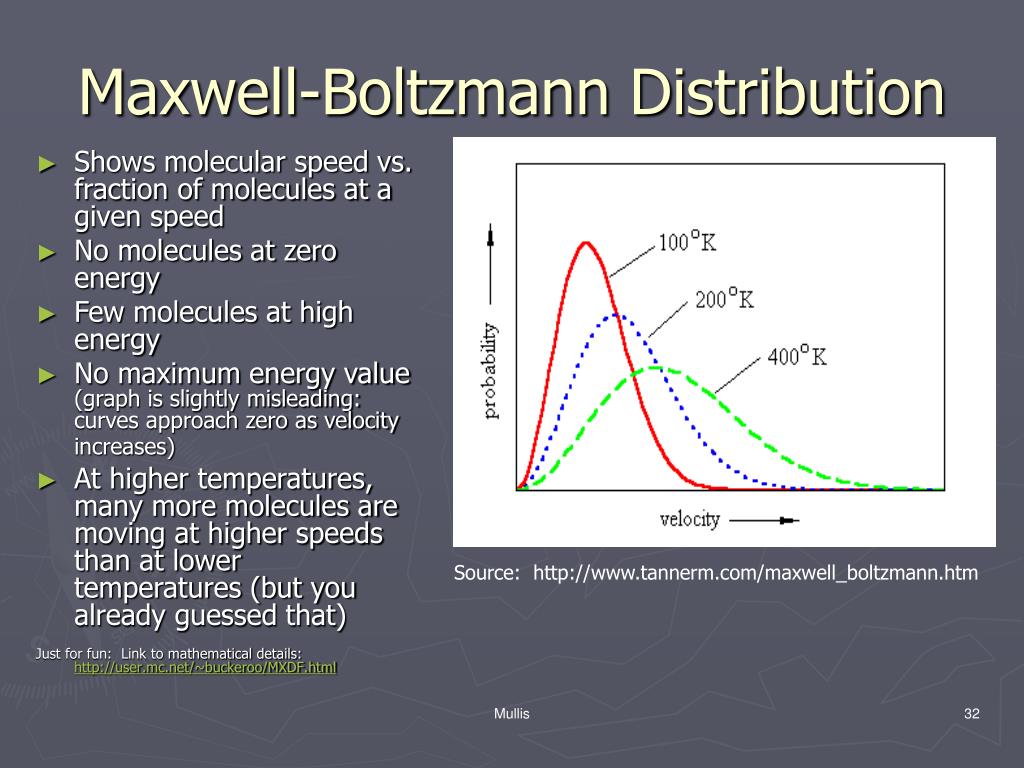

Maxwell-Boltzmann Distribution

  • Shows molecular speed vs. fraction of molecules at a given speed

  • No molecules at zero energy

  • Few molecules at high energy

  • No maximum energy value (graph is slightly misleading: curves approach zero as velocity increases)

  • At higher temperatures, many more molecules are moving at higher speeds than at lower temperatures (but you already guessed that)

    Just for fun: Link to mathematical details:



Molecular effusion and diffusion

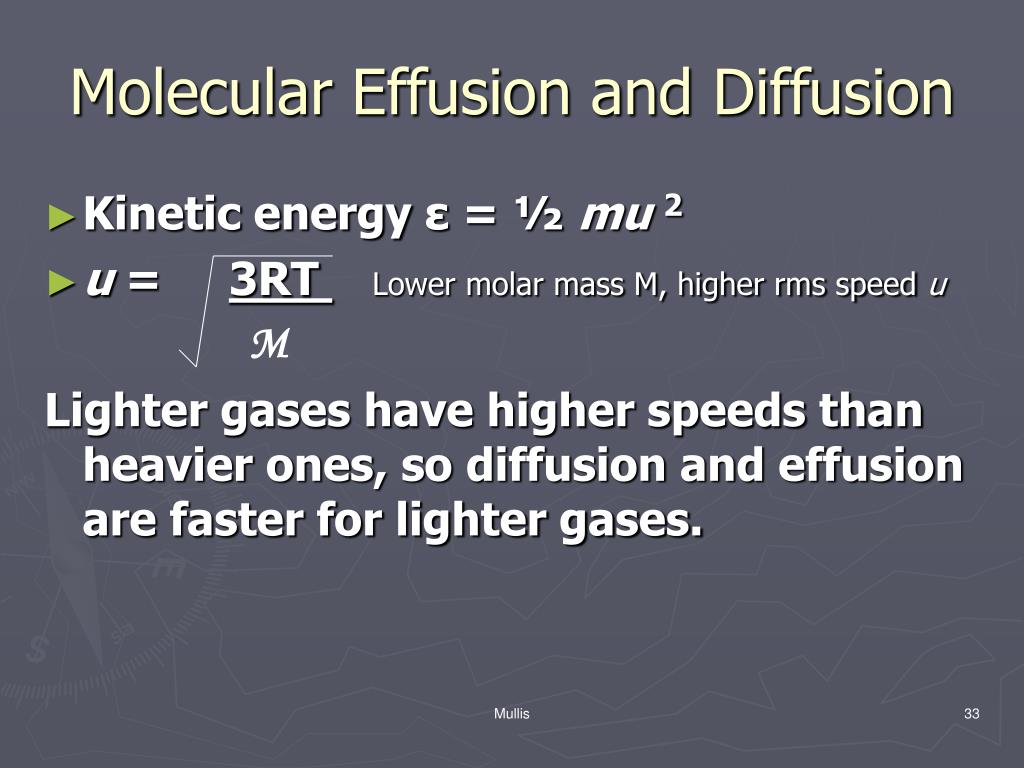

Molecular Effusion and Diffusion

  • Kinetic energy ε = ½ mu 2

  • u = 3RT Lower molar mass M, higher rms speed u


    Lighter gases have higher speeds than heavier ones, so diffusion and effusion are faster for lighter gases.


Graham s law of effusion

Graham’s Law of Effusion

  • To quantify effusion rate for two gases with molar masses M1 and M2:

    r1 = M2


  • Only those molecules that hit the small hole will escape thru it.

  • Higher speed, more likely to hit hole, so

    r1/r2 = u1/u2


Sample problem molecular speed

Sample Problem: Molecular Speed

Find the root-mean square speed of hydrogen molecules in m/s at 20º C.

1 J = 1 kg-m2/s2 R = 8.314 J/mol-K

R = 8.314 kg-m2/mol-K-s2

u2= 3RT = 3(8.314 kg-m2/mol-K-s2)293K

M2.016 g |1 kg___

mol |1000g

u2= 3.62 x 106 m2/s2

u = 1.90 x 103 m/s


Example using graham s law

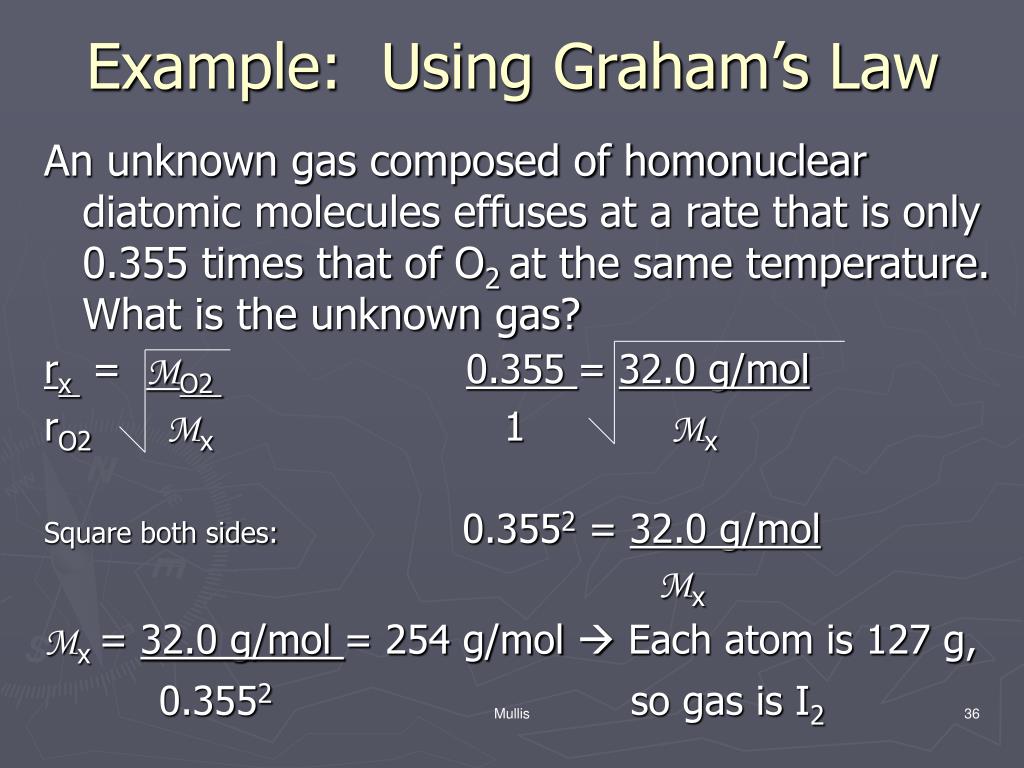

Example: Using Graham’s Law

An unknown gas composed of homonuclear diatomic molecules effuses at a rate that is only 0.355 times that of O2 at the same temperature. What is the unknown gas?

rx = MO2 0.355 = 32.0 g/mol

rO2Mx 1 Mx

Square both sides: 0.3552 = 32.0 g/mol


Mx = 32.0 g/mol = 254 g/mol  Each atom is 127 g,

0.3552 so gas is I2


The van der waals equation

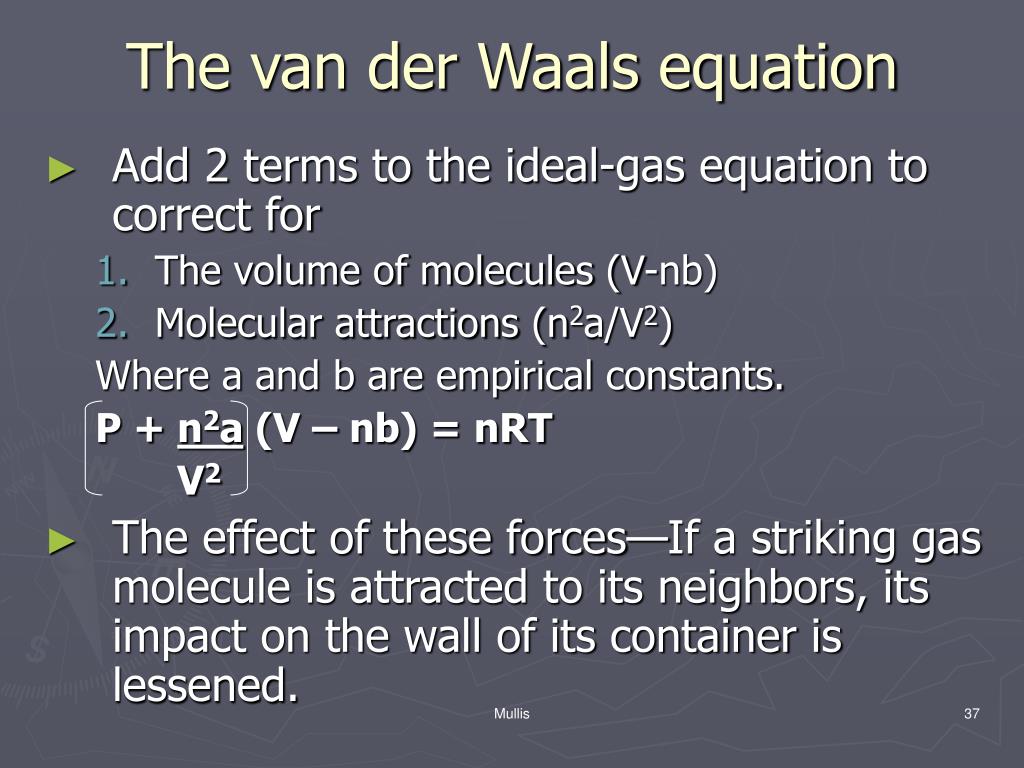

The van der Waals equation

  • Add 2 terms to the ideal-gas equation to correct for

    • The volume of molecules (V-nb)

    • Molecular attractions (n2a/V2)

      Where a and b are empirical constants.

      P + n2a (V – nb) = nRT


  • The effect of these forces—If a striking gas molecule is attracted to its neighbors, its impact on the wall of its container is lessened.


  • Login
