船舶運動及 控制. 指導教授 : 曾 慶 耀 學 號 :10267036 學 生 : 潘 維 剛. Path following of a model ship using model predictive control with experimental verification. Outline. Abstract Introduction Ship dynamic model Path following of the ship using MPC INPA-SQP ALGORITHM

Download Presentation

船舶運動及 控制

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


5122126

船舶運動及控制

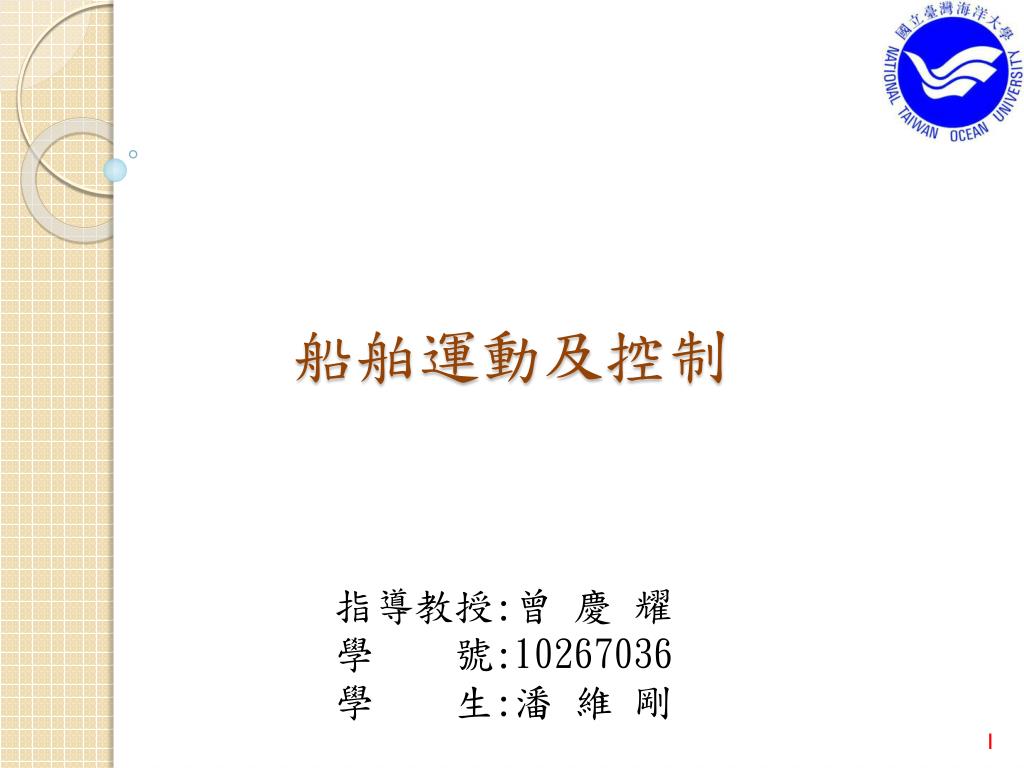

指導教授:曾 慶 耀學 號:10267036學 生:潘 維 剛


Path following of a model ship using model predictive control with experimental verification

Path following of a model ship using modelpredictive control withexperimental verification


Outline

Outline

  • Abstract

  • Introduction

  • Ship dynamic model

  • Path following of the ship using MPC

  • INPA-SQP ALGORITHM

  • Experimental platform and experimental results

  • Conclusion


Abstract

Abstract

  • This paper presents an experimental implementation of a Model Predictive Control (MPC) strategy for path following on a model ship.

  • The implementation is performed experimentally via Integrated Perturbation Analysis and Sequential Quadratic Programming (InPA-SQP) algorithm.


Introduction

Introduction

  • MPC is an attractive candidate to achieve zero cross tracking error and heading angle error via minimizing a suitable cost function while taking into account physical constraints.

  • Quadratic Programming (InPA-SQP), the algorithm was developed to address the computational complexity of MPC.


Ship dynamic model

Ship dynamic model


5122126

  • The following model characterizes the

    dynamics of the model ship.


5122126

  • Assumption can be satisfied by properly controlling the propeller speed to maintain constant vessel surge speed.

  • The nominal value u = 0.4 m/s. The state of the system is and δ is the rudder angle which acts as the only input to the system.


Path following of the ship using mpc

Path following of the ship using MPC


5122126

  • Consider the initial state of the system as

    . To compare the linear and nonlinear model,we solve the optimization problem P(x0) with N = 200 and sampling time 0.1, for both linear and nonlinear systems.

  • Figure 2 shows the resulting open loop optimal control command for linear and nonlinear systems.


Inpa sqp algorithm

INPA-SQP ALGORITHM


Experimental platform and experimental results

Experimental platform and experimental results


Conclusion

Conclusion

  • In this paper, a Model Predictive Controller is designed for path following of a model ship subject to input constraints.To implement MPC with a nonlinear model, the InPA-SQP method is introduced to solve the constrained optimal control problem. The InPA-SQP solver can meet the computational efficiency demand even for the nonlinear model considered in this paper. The effectiveness of the proposed MPC has been verified with experimental results.


Thanks for your attendance

Thanks for your attendance !!

END
