Soft condensed matter physics

Soft Condensed Matter

Physics


Soft condensed matter physics

Liquid Crystals

Liquid crystals are substances that exhibit a phase of matter that has properties between those of a conventional liquid, and those of a solidcrystal. Hence LC show anisotropy.


Soft condensed matter physics

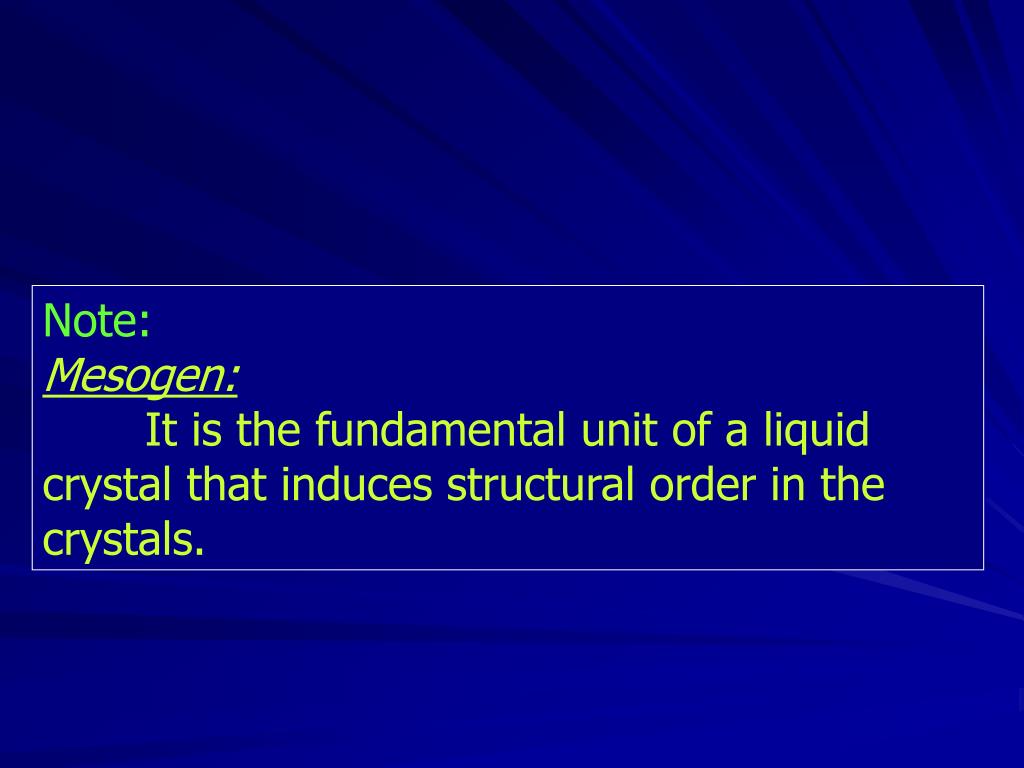

Note:

Mesogen:

It is the fundamental unit of a liquid crystal that induces structural order in the crystals.


Soft condensed matter physics

II. LYOTROPIC LC

I. THERMOTROPIC LC

i. NEMATIC LC

ii. CHOLESTRIC LC

iii. SMECTIC LC

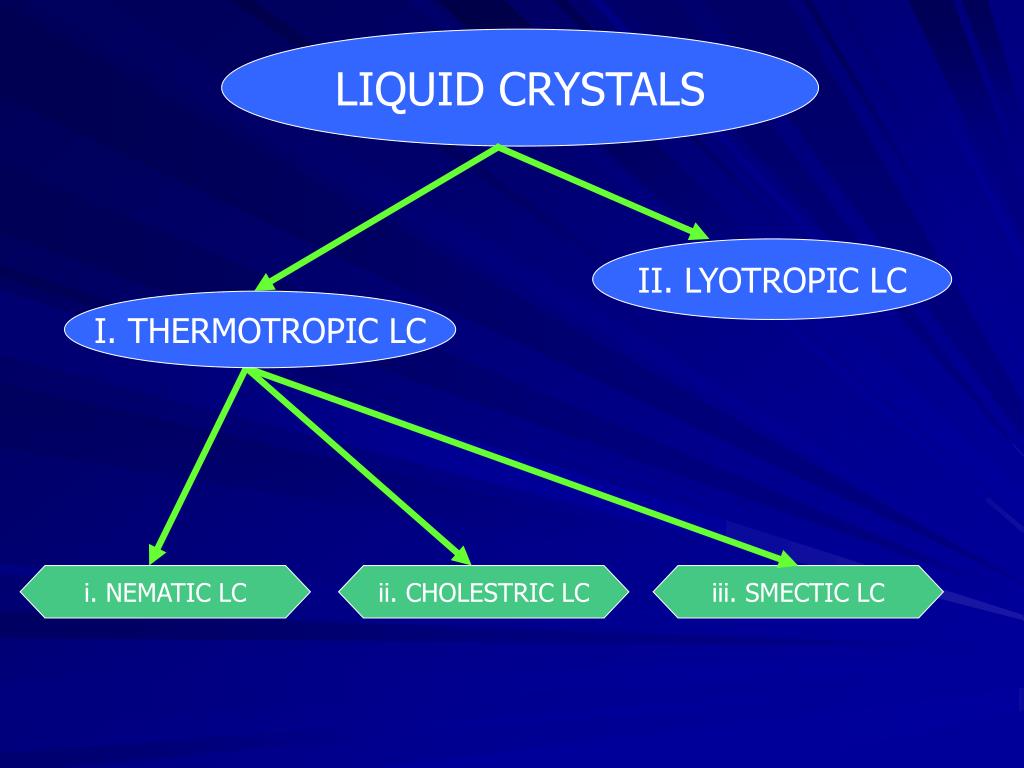

LIQUID CRYSTALS


Soft condensed matter physics

I. THERMOTROPIC LIQUID CRYSTALS

Liquid crystals are said to be thermotropic if there liquid crystalline properties depend on the temperature.


Soft condensed matter physics

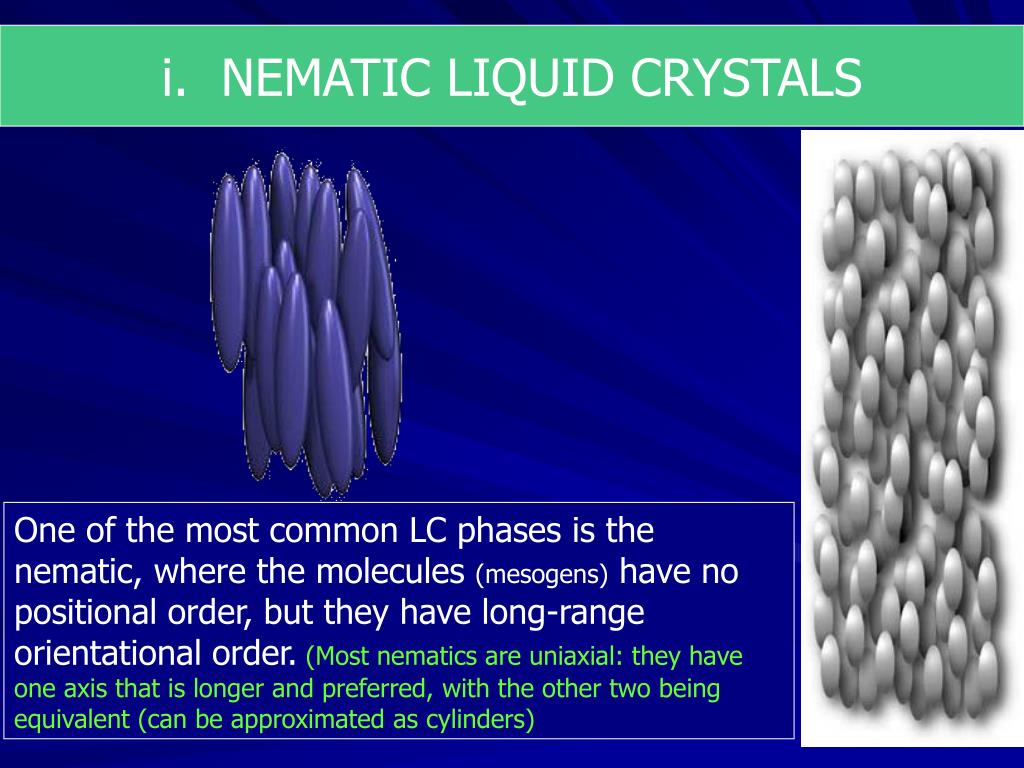

i. NEMATIC LIQUID CRYSTALS

One of the most common LC phases is the nematic, where the molecules (mesogens) have no positional order, but they have long-range orientational order.(Most nematics are uniaxial: they have one axis that is longer and preferred, with the other two being equivalent (can be approximated as cylinders)


Soft condensed matter physics

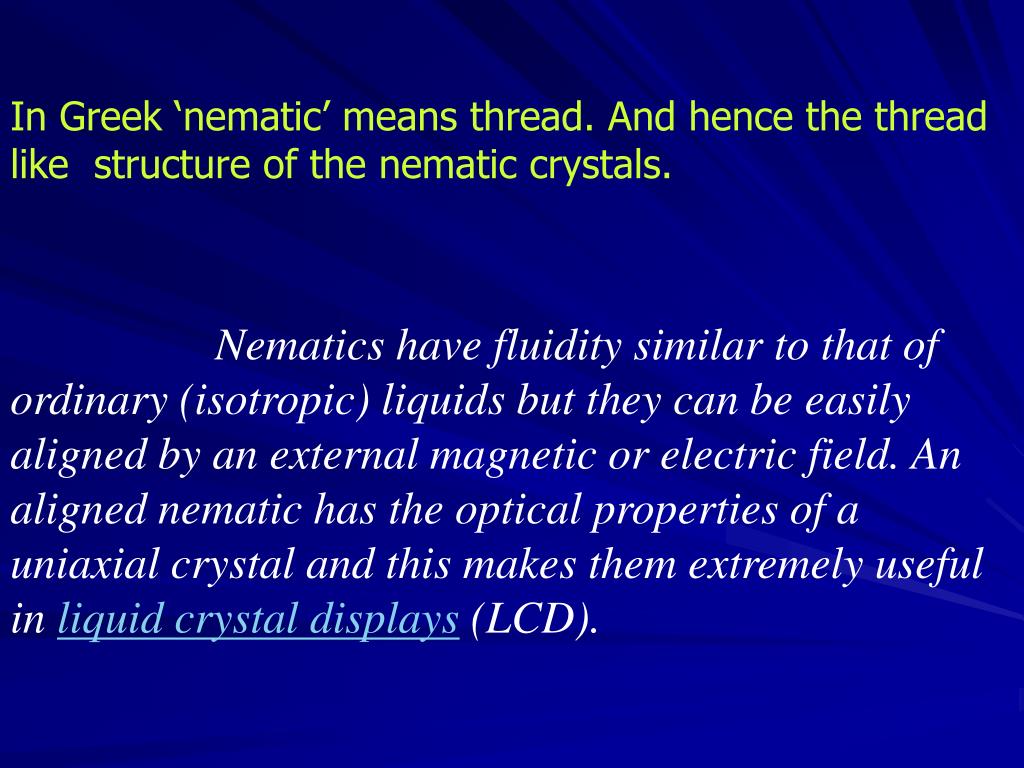

In Greek ‘nematic’ means thread. And hence the thread like structure of the nematic crystals.

Nematics have fluidity similar to that of ordinary (isotropic) liquids but they can be easily aligned by an external magnetic or electric field. An aligned nematic has the optical properties of a uniaxial crystal and this makes them extremely useful in liquid crystal displays (LCD).


Soft condensed matter physics

ii. SMECTIC LIQUID CRYSTALS

In the case of Smectic type LC, the mesogens have both positional order and orientational order. The smectic phases, which are found at lower temperatures than the nematic, form well-defined layers that can slide over one another like soap.

Smectic A

Smectic C


Soft condensed matter physics

iii. CHOLESTRIC LIQUID CRYSTALS

The cholestric phase can be defined as a special type of nematic LC in which the thin layers of the parallel mesogens have their longitudinal axes rotated in adjacent layers at certain angle.


Soft condensed matter physics

Hydrophobic end of the mesogen

Hydrophilic end of the mesogen

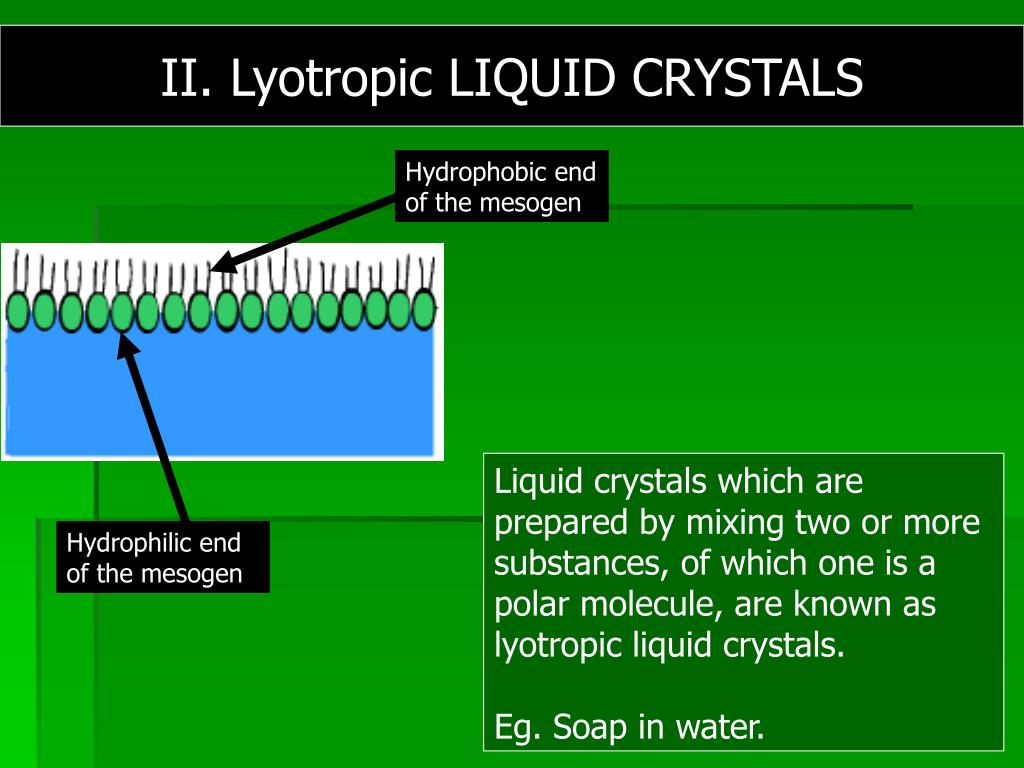

II. Lyotropic LIQUID CRYSTALS

Liquid crystals which are prepared by mixing two or more substances, of which one is a polar molecule, are known as lyotropic liquid crystals.

Eg. Soap in water.


Soft condensed matter physics

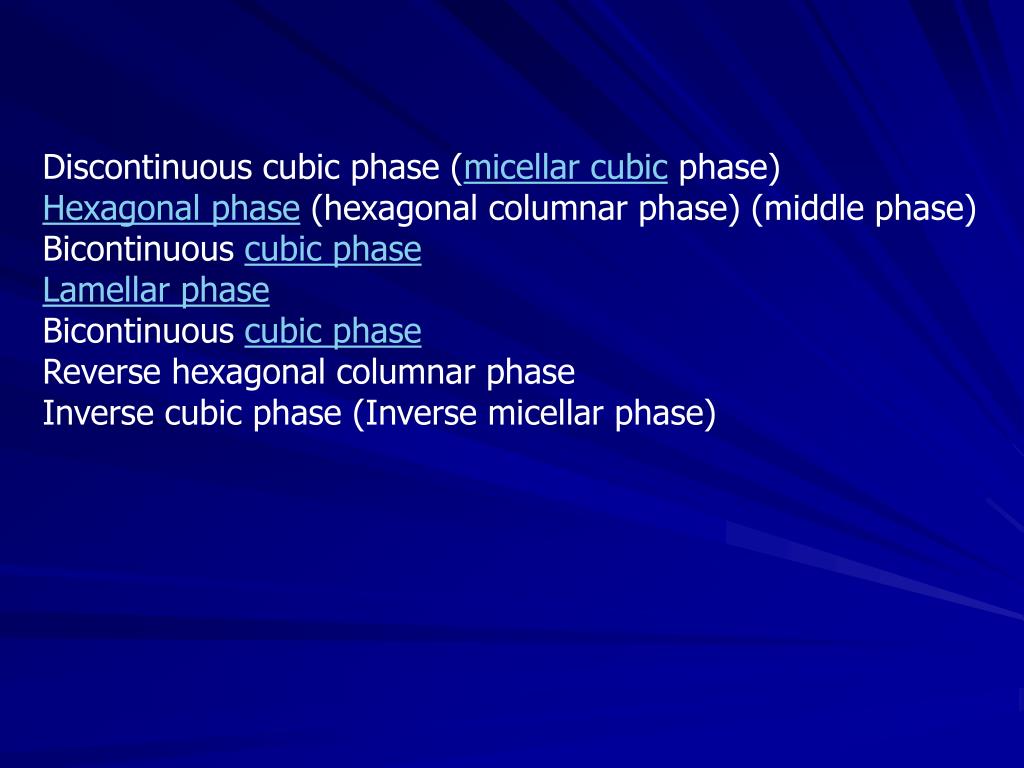

Discontinuous cubic phase (micellar cubic phase)

Hexagonal phase (hexagonal columnar phase) (middle phase)

Bicontinuous cubic phase

Lamellar phase

Bicontinuous cubic phase

Reverse hexagonal columnar phase

Inverse cubic phase (Inverse micellar phase)


Soft condensed matter physics

Applications of Liquid Crystals

1. Liquid Crystal Displays:Used in display devices (LCDs) such as Laptops, watches, calculators, clocks, etc.

2. Liquid Crystal Thermometers: Chiral nematic (cholesteric) liquid crystals reflect light and the color reflected also is dependent upon temperature.

3. Optical Imaging: An application of liquid crystals that is only now being explored is optical imaging and recording.

3. Some of the liquid crystals are used in hydraulic break/clutch system due to their high viscosity values.


Soft condensed matter physics

Applications of Liquid Crystals

Liquid crystal technology has had a major effect many areas of science and engineering, as well as device technology. Applications for this special kind of material are still being discovered and continue to provide effective solutions to many different problems.

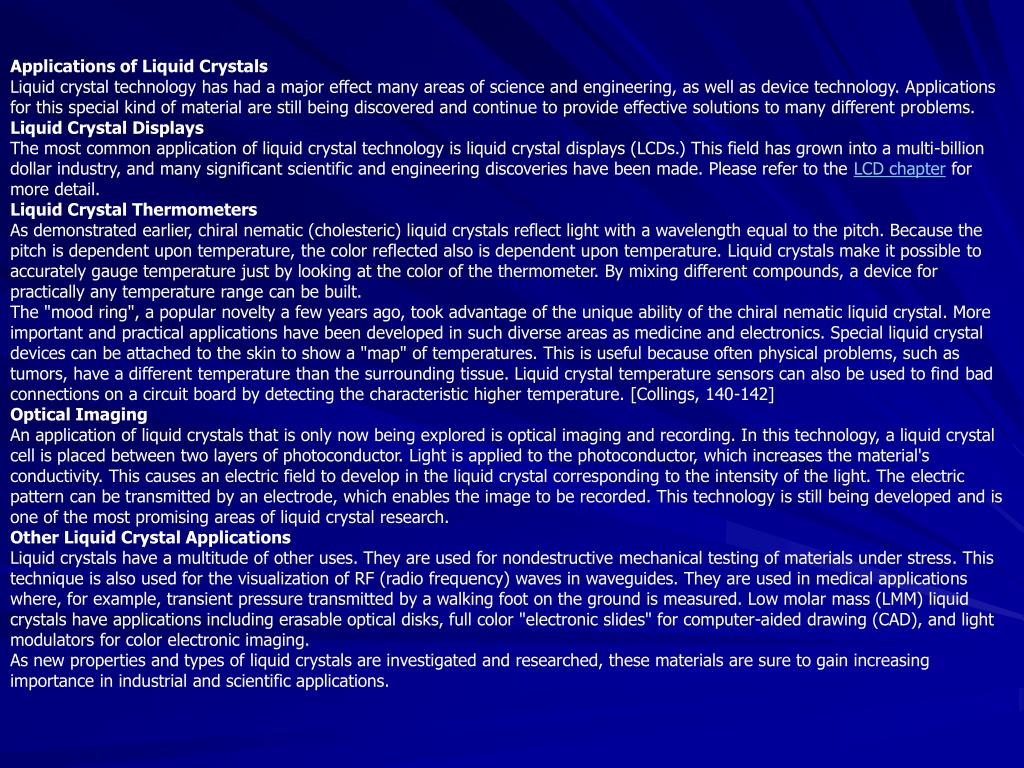

Liquid Crystal Displays

The most common application of liquid crystal technology is liquid crystal displays (LCDs.) This field has grown into a multi-billion dollar industry, and many significant scientific and engineering discoveries have been made. Please refer to the LCD chapter for more detail.

Liquid Crystal Thermometers

As demonstrated earlier, chiral nematic (cholesteric) liquid crystals reflect light with a wavelength equal to the pitch. Because the pitch is dependent upon temperature, the color reflected also is dependent upon temperature. Liquid crystals make it possible to accurately gauge temperature just by looking at the color of the thermometer. By mixing different compounds, a device for practically any temperature range can be built.

The "mood ring", a popular novelty a few years ago, took advantage of the unique ability of the chiral nematic liquid crystal. More important and practical applications have been developed in such diverse areas as medicine and electronics. Special liquid crystal devices can be attached to the skin to show a "map" of temperatures. This is useful because often physical problems, such as tumors, have a different temperature than the surrounding tissue. Liquid crystal temperature sensors can also be used to find bad connections on a circuit board by detecting the characteristic higher temperature. [Collings, 140-142]

Optical Imaging

An application of liquid crystals that is only now being explored is optical imaging and recording. In this technology, a liquid crystal cell is placed between two layers of photoconductor. Light is applied to the photoconductor, which increases the material's conductivity. This causes an electric field to develop in the liquid crystal corresponding to the intensity of the light. The electric pattern can be transmitted by an electrode, which enables the image to be recorded. This technology is still being developed and is one of the most promising areas of liquid crystal research.

Other Liquid Crystal Applications

Liquid crystals have a multitude of other uses. They are used for nondestructive mechanical testing of materials under stress. This technique is also used for the visualization of RF (radio frequency) waves in waveguides. They are used in medical applications where, for example, transient pressure transmitted by a walking foot on the ground is measured. Low molar mass (LMM) liquid crystals have applications including erasable optical disks, full color "electronic slides" for computer-aided drawing (CAD), and light modulators for color electronic imaging.

As new properties and types of liquid crystals are investigated and researched, these materials are sure to gain increasing importance in industrial and scientific applications.


Soft condensed matter physics

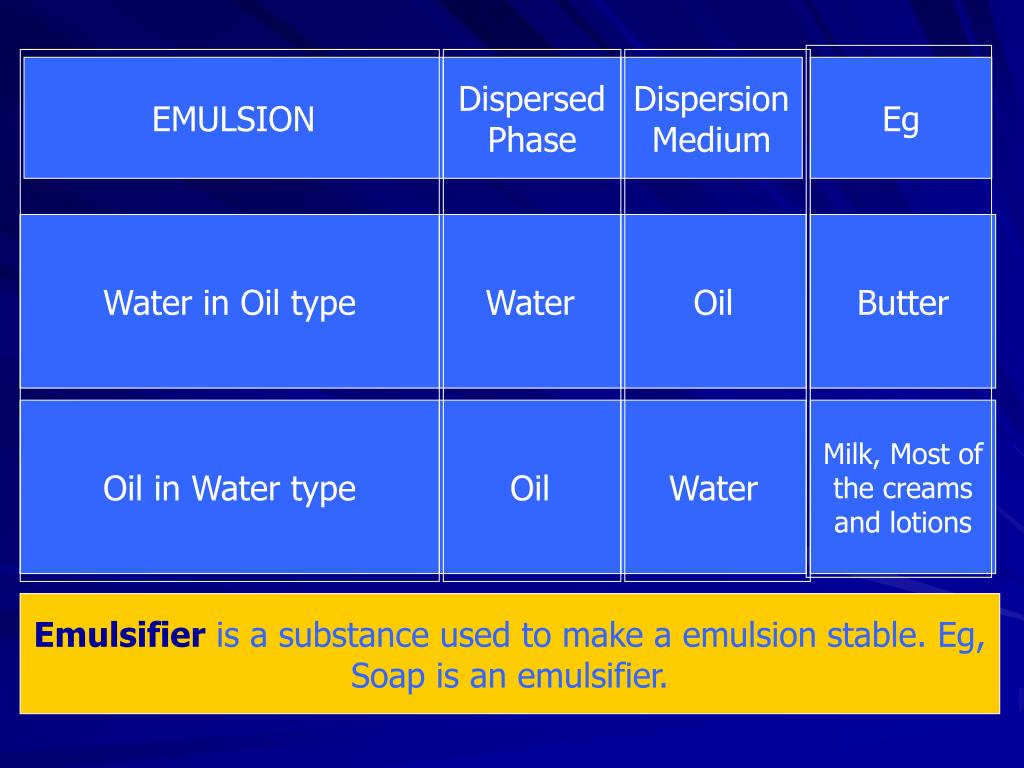

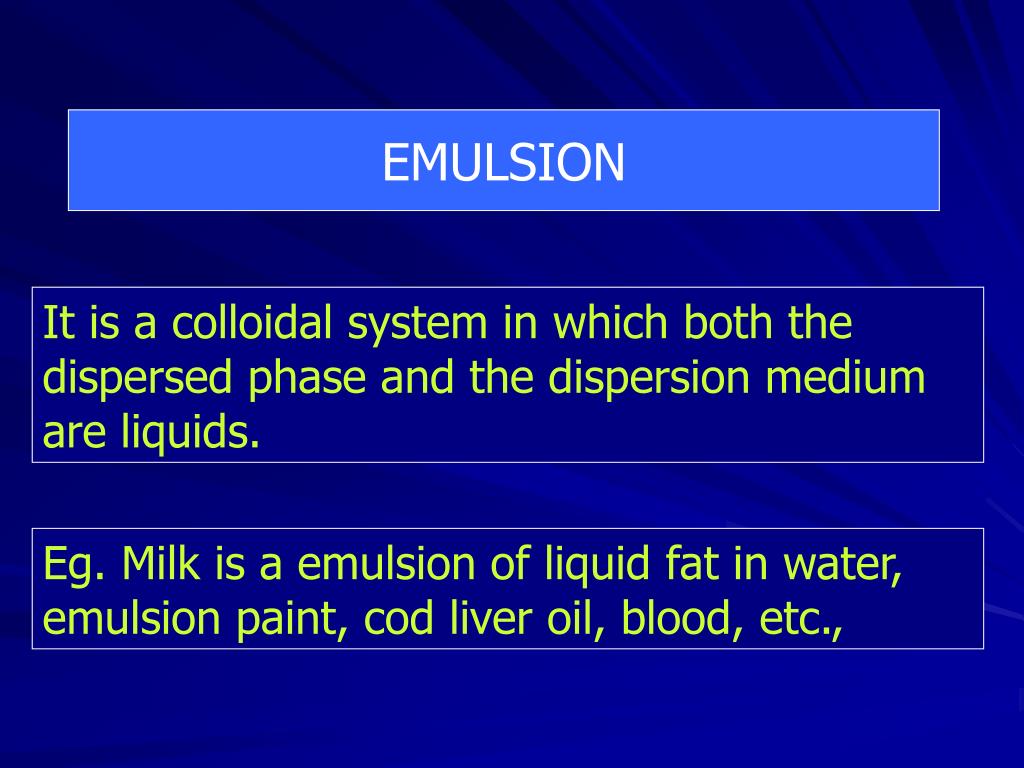

EMULSION

It is a colloidal system in which both the dispersed phase and the dispersion medium are liquids.

Eg. Milk is a emulsion of liquid fat in water, emulsion paint, cod liver oil, blood, etc.,


Soft condensed matter physics

EMULSION

Dispersed

Phase

Dispersion

Medium

Eg

Water in Oil type

Water

Oil

Butter

Oil in Water type

Oil

Water

Milk, Most of the creams and lotions

Emulsifieris a substance used to make a emulsion stable. Eg, Soap is an emulsifier.

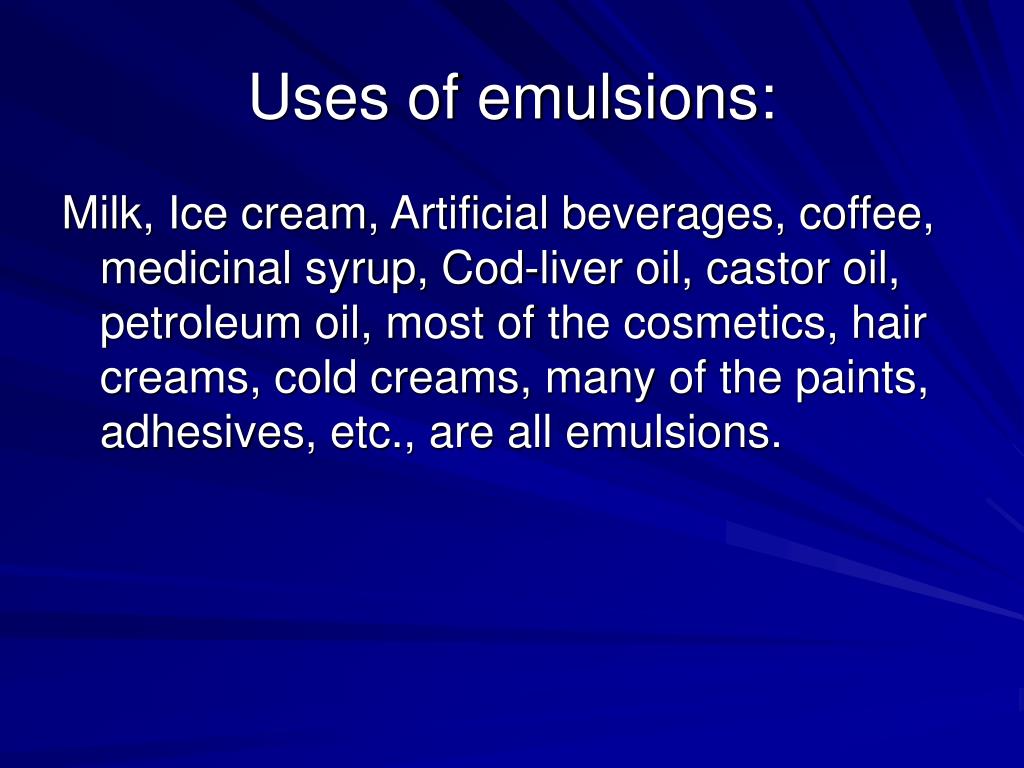

Uses of emulsions

Uses of emulsions:

Milk, Ice cream, Artificial beverages, coffee, medicinal syrup, Cod-liver oil, castor oil, petroleum oil, most of the cosmetics, hair creams, cold creams, many of the paints, adhesives, etc., are all emulsions.


Soft condensed matter physics

Gels

It is a colloidal system in which a liquid is suspended in a solid.

Eg. Hair gel, gel tooth paste, lipsticks, etc.,


Soft condensed matter physics

Foams

It is a colloidal system in which a gas is dispersed in a liquid or solid.

Eg. Shaving foam (gas in liquid)

Sponge (gas in solid)
