  1. Safety Distance Doc No.: TR-1032-006

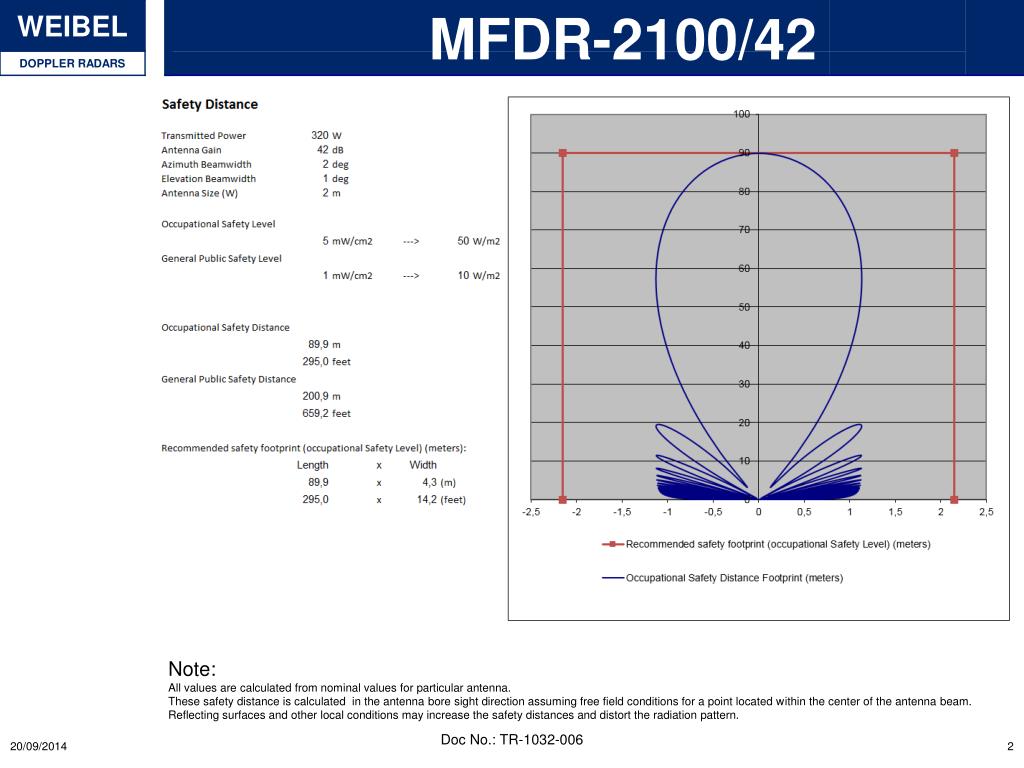

  2. MFDR-2100/42 Note: All values are calculated from nominal values for particular antenna. These safety distance is calculated in the antenna bore sight direction assuming free field conditions for a point located within the center of the antenna beam. Reflecting surfaces and other local conditions may increase the safety distances and distort the radiation pattern. Doc No.: TR-1032-006

  3. MFDR-2100/45 Note: All values are calculated from nominal values for particular antenna. These safety distance is calculated in the antenna bore sight direction assuming free field conditions for a point located within the center of the antenna beam. Reflecting surfaces and other local conditions may increase the safety distances and distort the radiation pattern. Doc No.: TR-1032-006
