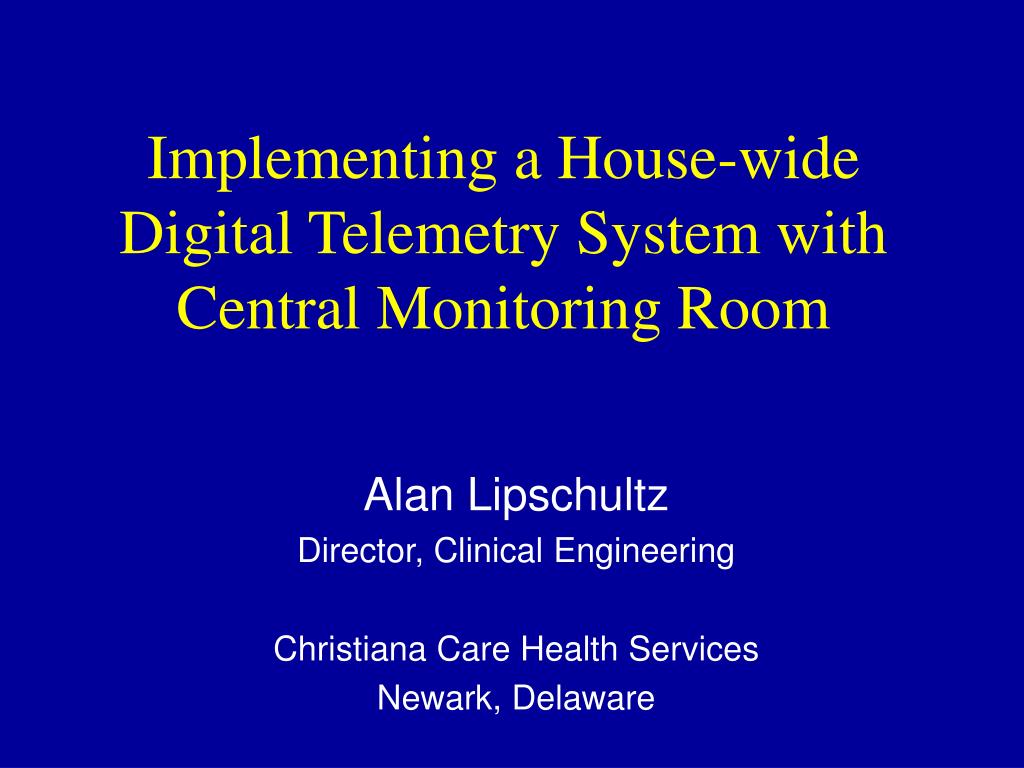

Implementing a House-wide Digital Telemetry System with Central Monitoring Room

Alan Lipschultz

Director, Clinical Engineering

Christiana Care Health Services

Newark, Delaware

overall outline
Overall Outline
  • Why we embarked on project
  • What changed
  • Brief overview of system
  • Decision Process
  • WMTS vs 801.11
  • IS Backbone vs stand alone network
  • Layers of system backup
  • Technical cooperation & Service Roles
christiana care health services
Christiana Care Health Services
  • 1000 bed, tertiary care, 2 campus system
  • Historically – Islands of telemetry for selected patient areas. No dedicated staff for watching monitors.
  • Currently – All telemetry (300 channels) monitored from Central Monitoring Room with dedicated monitor watchers
why we embarked on project
Why we embarked on project
  • Frequent alarms, paper ran into waste basket
  • Nurses tended to ignore low level alarms
  • Two sentinel events – low level alarm ignored & patient expired
  • Severe bed crunch with ED diverts
  • No more UHF channels available
what changed
What Changed
  • Central Monitoring Room (CMR) remote from clinical units
  • monitor watchers, not nurses
  • CMR staff delivers, applies and retrieves telemetry boxes
  • Almost any Non-ICU bed can become a telemetry bed
  • Major culture change for nurses and physicians
  • System onto IS network backbone
brief overview of system
Brief overview of system
  • 328 channels of telemetry
  • 802.11 protocol in 2.4 GHz ISM band
  • System resides on main hospital backbone using virtual LAN
  • Full two way communication between network and telemetry units
  • Access points provide “cellular-like” communications with telemetry units
  • Telemetry units have ECG display on front of unit. Works independent of network.
overall process
Overall Process
  • Clinical/political decision to implement centralized system
  • Search for best vendor to meet goals of clinicians
  • Decision to put system on IS network backbone
  • Implementation
decision process
Decision Process
  • Clinical vision established first
  • Wanted extremely flexible system
  • Early on - decided to utilize IS backbone
  • When we were looking (late 2000), technology was cutting edge
  • Different market today
  • Much uncertainty in market (WMTS vs ISM band)
wmts vs ism 802 11 system
WMTS vs ISM 802.11 system
  • Did not feel WMTS was good option
    • Bandwidth too limiting
    • Proprietary, no standards
    • one way communications
    • at the time we were making decision, most systems were identical to conventional telemetry system we were replacing.
wmts vs ism 802 11 system1
WMTS vs ISM 802.11 system
  • 802.11 industry standard for all sorts of devices
    • Inter-connectivity w/non-medical & medical devices
    • Lower cost
    • infrastructure can be reused
  • Concerns about sharing ISM Band
    • If “rogue” device were to come into institution, would not be able to connect to anything without proper codes
    • Frequency hopping was originally designed to hop around any interference that does occur
    • No issue coexisting with 802.11b applications
is backbone vs stand alone network
IS Backbone vs Stand Alone Network
  • Fully switched IS network with VLAN technology
  • Knew that system would be all over institution. Access Points, terminals, printers
  • Some floors only had a few Access Points
  • Closet space extremely tight
is backbone vs stand alone network cont
IS Backbone vs Stand Alone Network (cont)
  • Utilize existing infrastructure (cost)
  • Good cooperation between Clinical Engineering and Information Services
  • IS really set up for complex network management
  • UDP Packets
  • VLAN technology didn’t initially provide quality of service
layers of system backup
Layers of System Backup
  • High Availability (HA) servers with RAID. (“A” and “B”) Physically separated in different rooms
  • Redundant network switches – one for “A” and one for “B” set of servers
  • Any telemetry device can be used anywhere in system
  • Redundant coverage for Access Points
  • Redundant telephone switch
  • Two way communication between telemetry devices and rest of system
  • If communications lost, telemetry device automatically reverts to local mode with ECG display on face
implementation
Implementation
  • Process/cultural changes much more difficult than technical implementation
  • First CMR adjacent to nursing unit
couldn t work w o close technical cooperation
Couldn’t work w/o close technical cooperation
  • Vendor - hardware, software & 24x7 technical support
  • Information Services group - network infrastructure, network printers, UPS units, 24x7 network monitoring
  • CE – front line repairs, bridge between technical and clinical world, IS & vendor & clinicians, installation coordination
definition of service roles
Definition of service roles
  • How is problem noticed
    • User
    • LAN notification
    • System notification
  • CE primarily responsible. Initially most issues were IS or vendor
  • IS handles network issues
  • Vendor plays an integral service role
