Probability in eecs

Probability in EECS

Jean Walrand – EECS – UC Berkeley

Kalman Filter

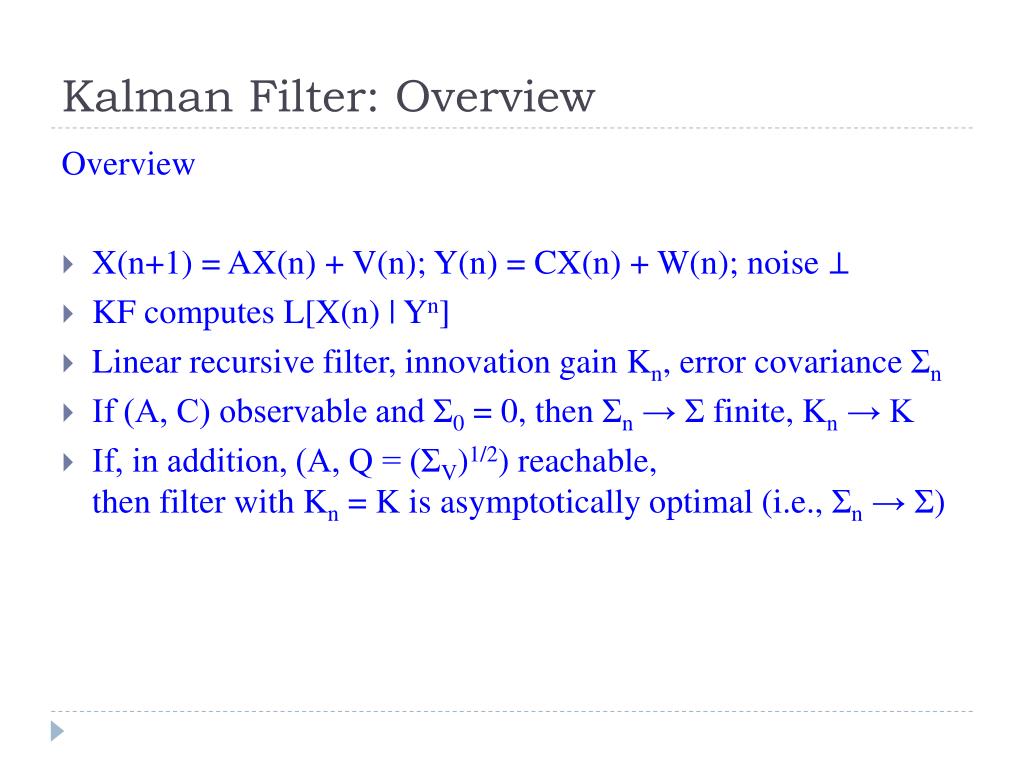

Kalman filter overview
Kalman Filter: Overview

Overview

  • X(n+1) = AX(n) + V(n); Y(n) = CX(n) + W(n); noise ⊥

  • KF computes L[X(n) | Yn]

  • Linear recursive filter, innovation gain Kn, error covariance Σn

  • If (A, C) observable and Σ0 = 0, then Σn → Σ finite, Kn → K

  • If, in addition, (A, Q = (ΣV)1/2) reachable, then filter with Kn = K is asymptotically optimal (i.e., Σn → Σ)


Kalman filter 1 kalman
Kalman Filter1. Kalman

He is most noted for his co-invention

and development of the Kalman Filter that is widely used in control systems, avionics, and outer space manned and unmanned vehicles.

For this work, President Obama awarded him with the National Medal of Science on October 7, 2009.

Rudolf (Rudy) Emil Kálmán

b. 5/19/1930 in Budapest

Research Institute for Advanced Studies Baltimore, Maryland from 1958 until 1964.

Stanford 64-71

Gainesville, Florida 71-92

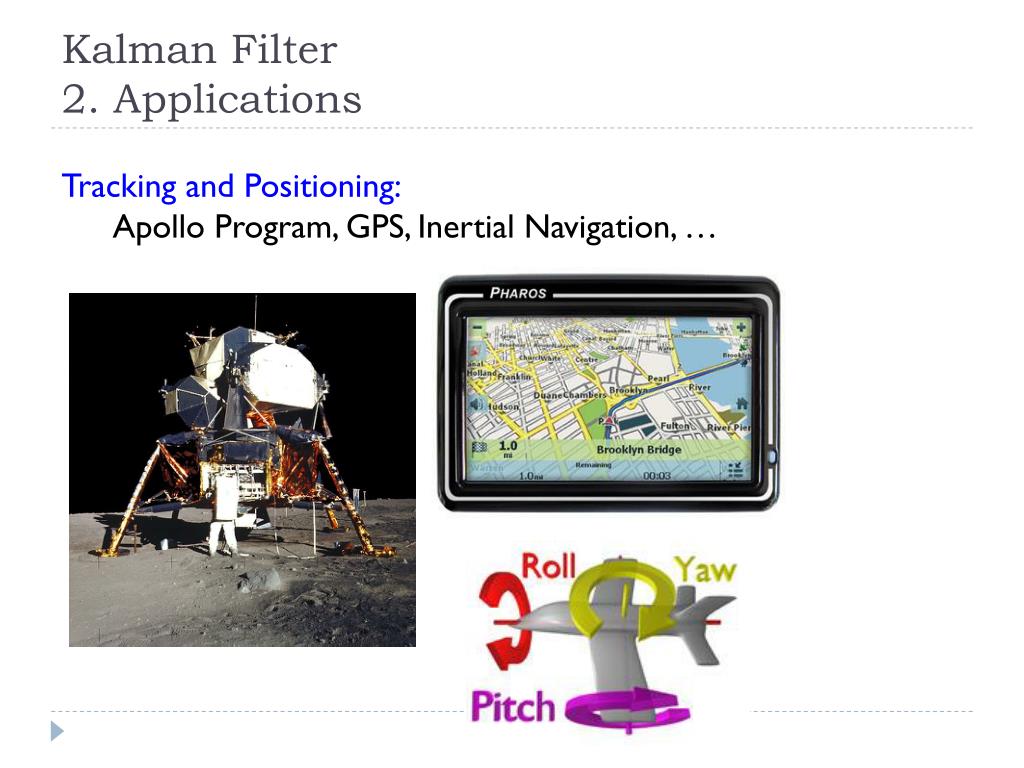

Kalman filter 2 applications
Kalman Filter2. Applications

Tracking and Positioning:

Apollo Program, GPS, Inertial Navigation, …


Kalman filter 2 applications1
Kalman Filter2. Applications

Communications:

MIMO


Kalman filter 2 applications2

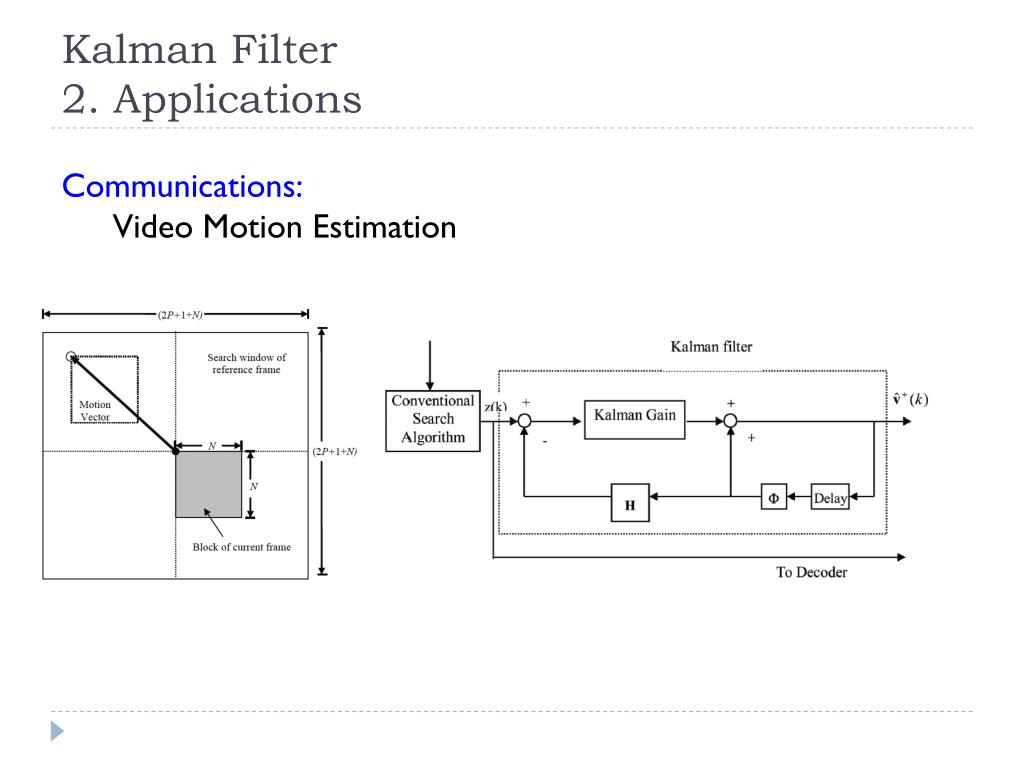

Kalman Filter2. Applications

Communications:

Video Motion Estimation


Kalman filter 2 applications3
Kalman Filter2. Applications

Bio-Medical:


Kalman filter 3 big picture
Kalman Filter3. Big Picture


Kalman filter 3 big picture continued
Kalman Filter3. Big Picture (continued)


Kalman filter 4 formulas
Kalman Filter4. Formulas

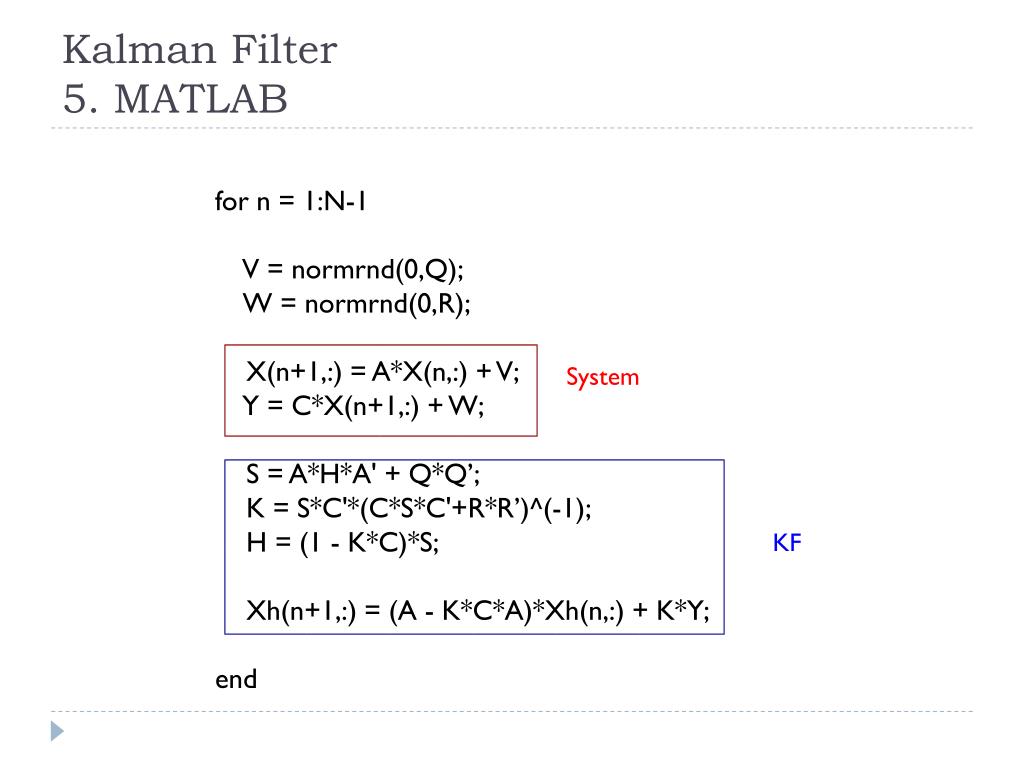

Kalman filter 5 matlab
Kalman Filter5. MATLAB

for n = 1:N-1

V = normrnd(0,Q);

W = normrnd(0,R);

X(n+1,:) = A*X(n,:) + V;

Y = C*X(n+1,:) + W;

S = A*H*A' + Q*Q’;

K = S*C'*(C*S*C'+R*R’)^(-1);

H = (1 - K*C)*S;

Xh(n+1,:) = (A - K*C*A)*Xh(n,:) + K*Y;

end

System

KF

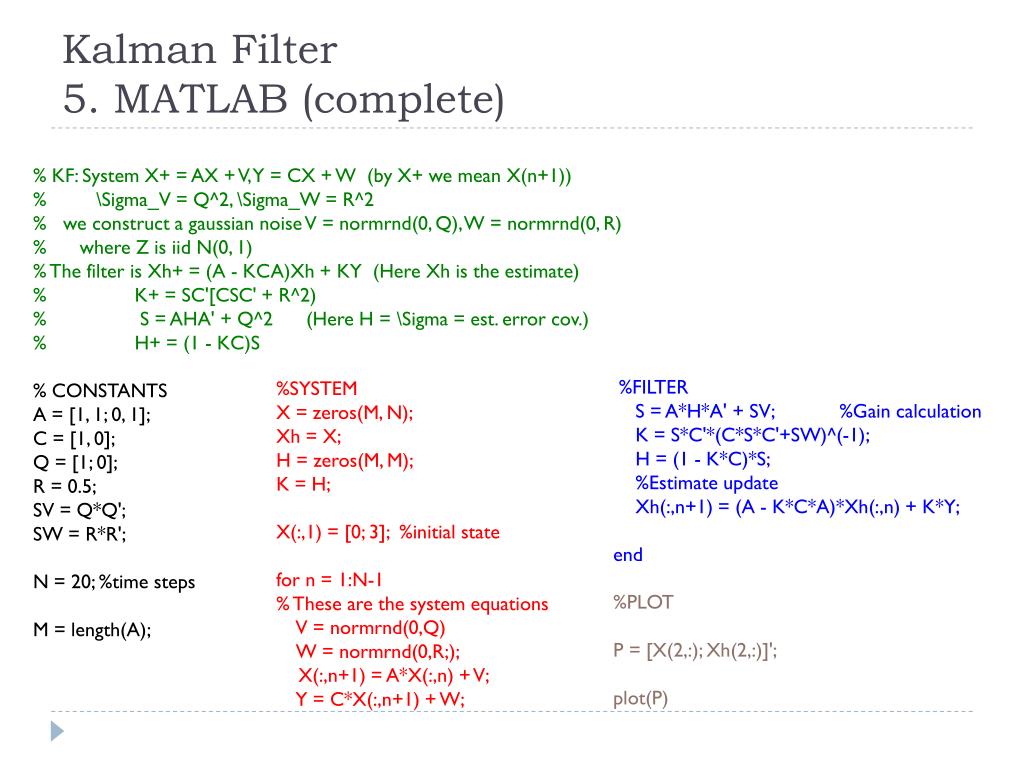

Kalman filter 5 matlab complete
Kalman Filter5. MATLAB (complete)

% KF: System X+ = AX + V, Y = CX + W (by X+ we mean X(n+1))

% \Sigma_V = Q^2, \Sigma_W = R^2

% we construct a gaussian noise V = normrnd(0, Q), W = normrnd(0, R)

% where Z is iid N(0, 1)

% The filter is Xh+ = (A - KCA)Xh + KY (Here Xh is the estimate)

% K+ = SC'[CSC' + R^2)

% S = AHA' + Q^2 (Here H = \Sigma = est. error cov.)

% H+ = (1 - KC)S

% CONSTANTS

A = [1, 1; 0, 1];

C = [1, 0];

Q = [1; 0];

R = 0.5;

SV = Q*Q';

SW = R*R';

N = 20; %time steps

M = length(A);

%FILTER

S = A*H*A' + SV; %Gain calculation

K = S*C'*(C*S*C'+SW)^(-1);

H = (1 - K*C)*S;

%Estimate update

Xh(:,n+1) = (A - K*C*A)*Xh(:,n) + K*Y;

end

%PLOT

P = [X(2,:); Xh(2,:)]';

plot(P)

%SYSTEM

X = zeros(M, N);

Xh = X;

H = zeros(M, M);

K = H;

X(:,1) = [0; 3]; %initial state

for n = 1:N-1% These are the system equations

V = normrnd(0,Q)

W = normrnd(0,R;);

X(:,n+1) = A*X(:,n) + V;

Y = C*X(:,n+1) + W;

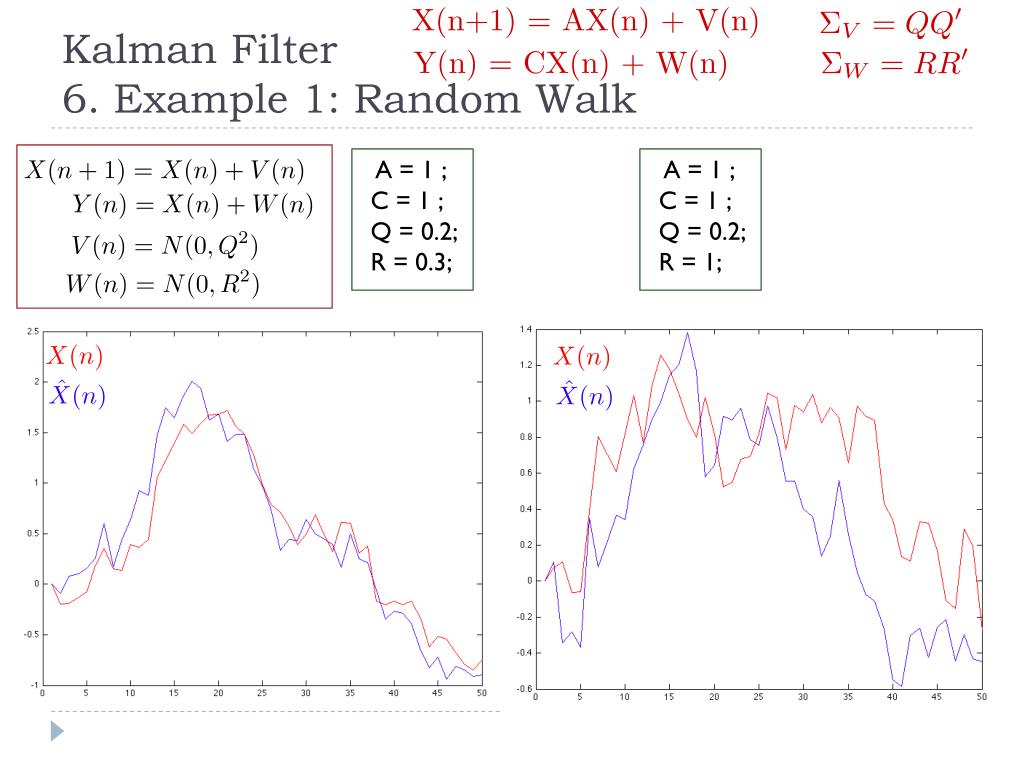

Kalman filter 6 example 1 random walk
Kalman Filter6. Example 1: Random Walk

A = 1 ;

C = 1 ;

Q = 0.2;

R = 0.3;

A = 1 ;

C = 1 ;

Q = 0.2;

R = 1;

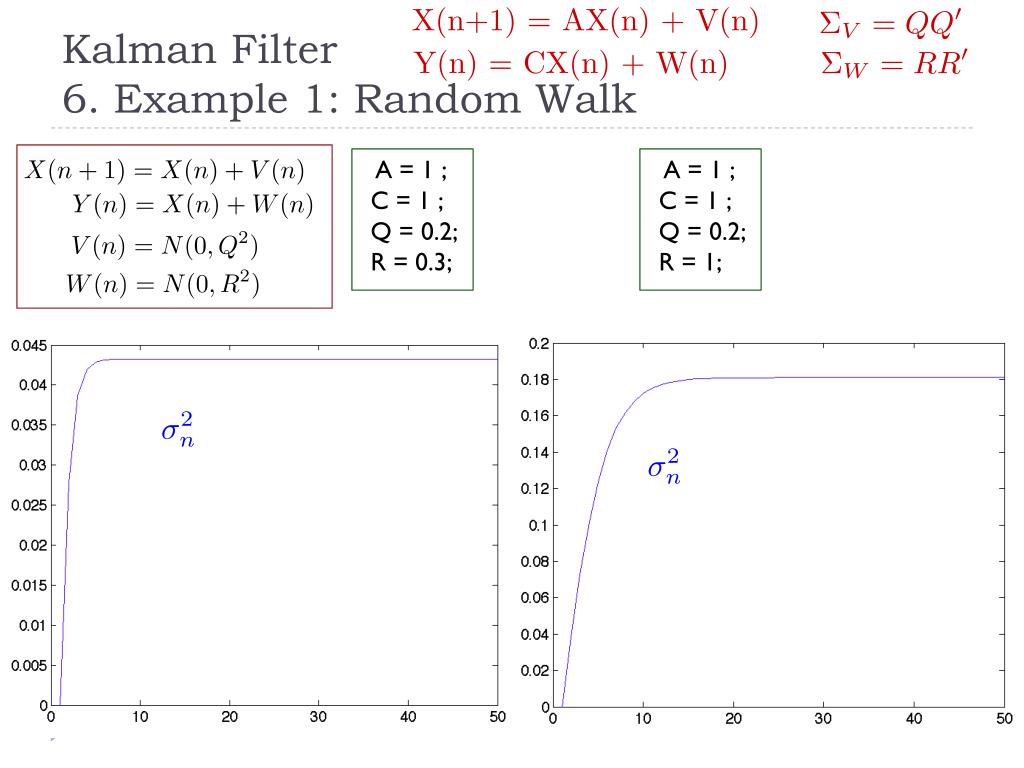

Kalman filter 6 example 1 random walk1
Kalman Filter6. Example 1: Random Walk

A = 1 ;

C = 1 ;

Q = 0.2;

R = 0.3;

A = 1 ;

C = 1 ;

Q = 0.2;

R = 1;


Kalman filter 6 example 1 random walk2
Kalman Filter6. Example 1: Random Walk

A = 1 ;

C = 1 ;

Q = 10;

R = 10;


Kalman filter 7 example 2 rw with unknown drift
Kalman Filter7. Example 2: RW with unknown drift

A = [1, 1; 0, 1];

C = [1, 0];

Q = [1; 0];

R = 0.5;


Kalman filter 8 example 3 1 d tracking changing drift

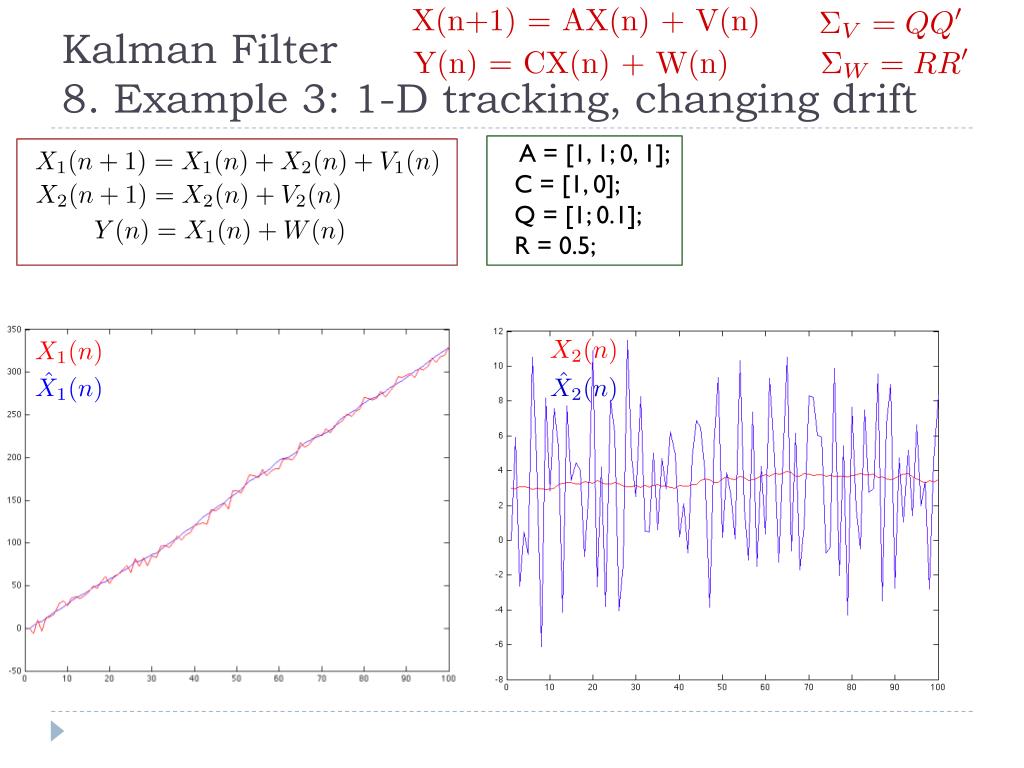

Kalman Filter8. Example 3: 1-D tracking, changing drift

A = [1, 1; 0, 1];

C = [1, 0];

Q = [1; 0.1];

R = 0.5;


Kalman filter 9 example 4 falling body
Kalman Filter9. Example 4: Falling body

A = [1, 1; 0, 1];

C = [1, 0];

Q = [10; 0];

R = 40;

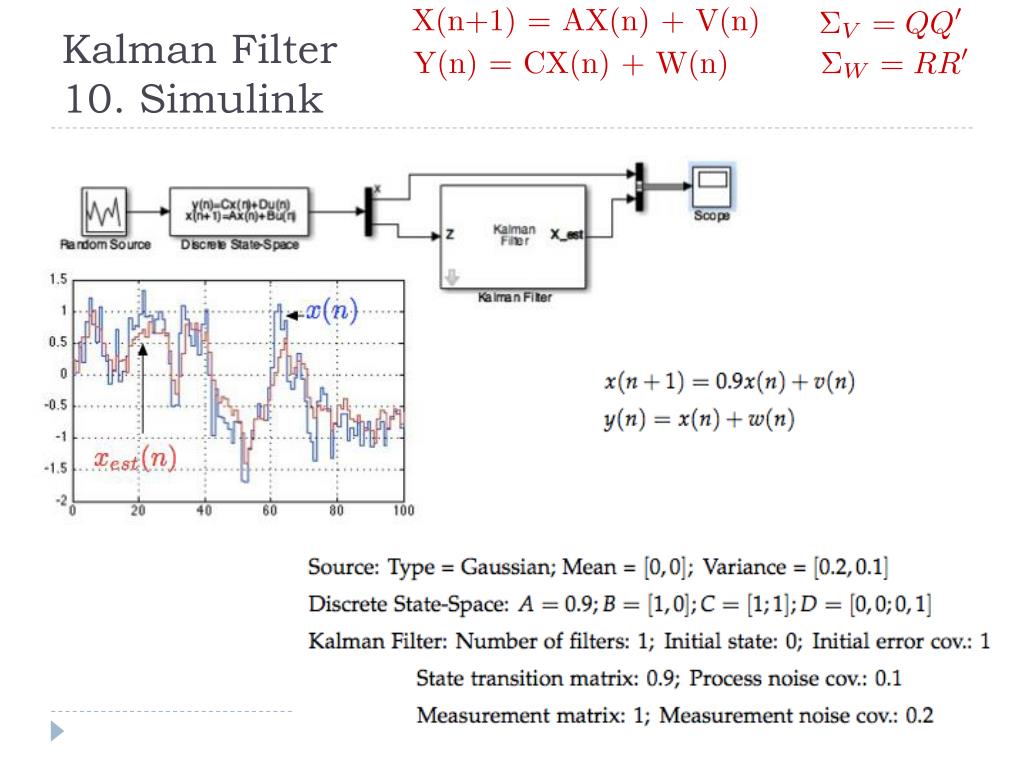

Kalman filter 10 simulink
Kalman Filter10. Simulink
