Monday 7th November COPY LO : To be able to describe and predict outcomes for co-dominance and multiple alleles. Starter Guinea pig sheet. BATS. Explain how co-dominance affects the inheritance of characteristics Explain how multiple alleles affects inheritance

tanner
Download Presentation

Starter Guinea pig sheet

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Monday 7th NovemberCOPY LO: To be able to describe and predict outcomes for co-dominance and multiple alleles • Starter • Guinea pig sheet

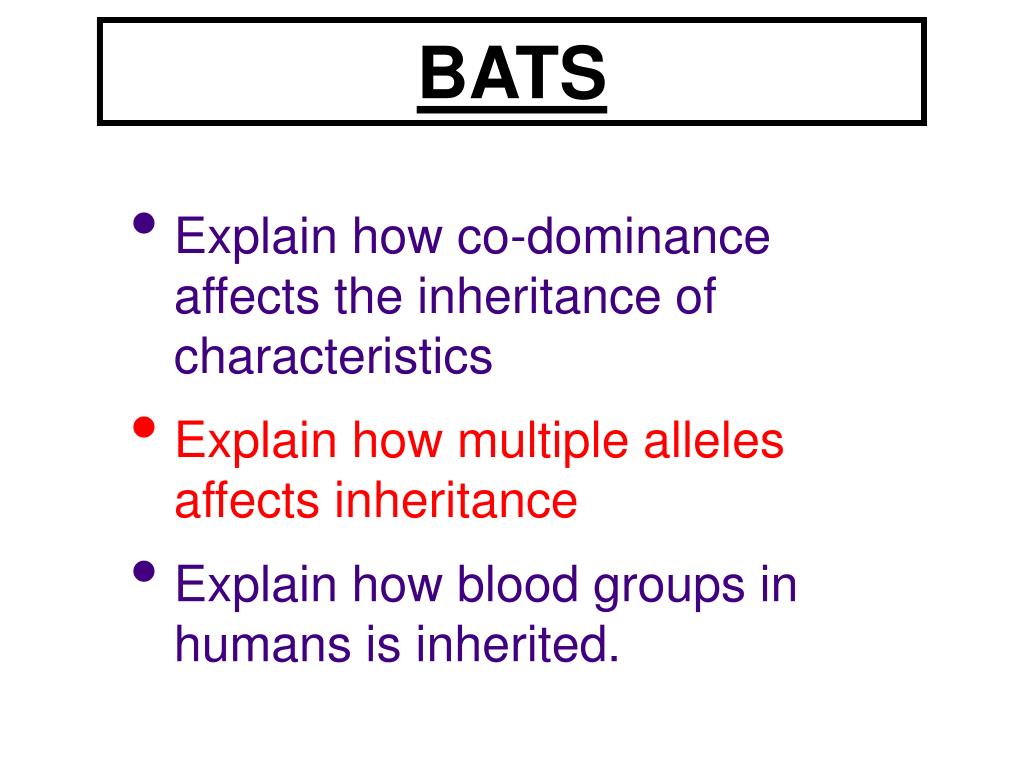

  2. BATS • Explain how co-dominance affects the inheritance of characteristics • Explain how multiple alleles affects inheritance • Explain how blood groups in humans is inherited.

  3. Co-dominance = where both alleles are equally dominant This means that both alleles are expressed in the phenotype

  4. Snapdragon plant • One allele codes for an enzyme that catalyses the formation of a red pigment • The other allele codes for an altered enzyme that lacks this catalytic activity and so does not produce the pigment • If they showed the normal pattern for inheritance - what colours could the flowers have?

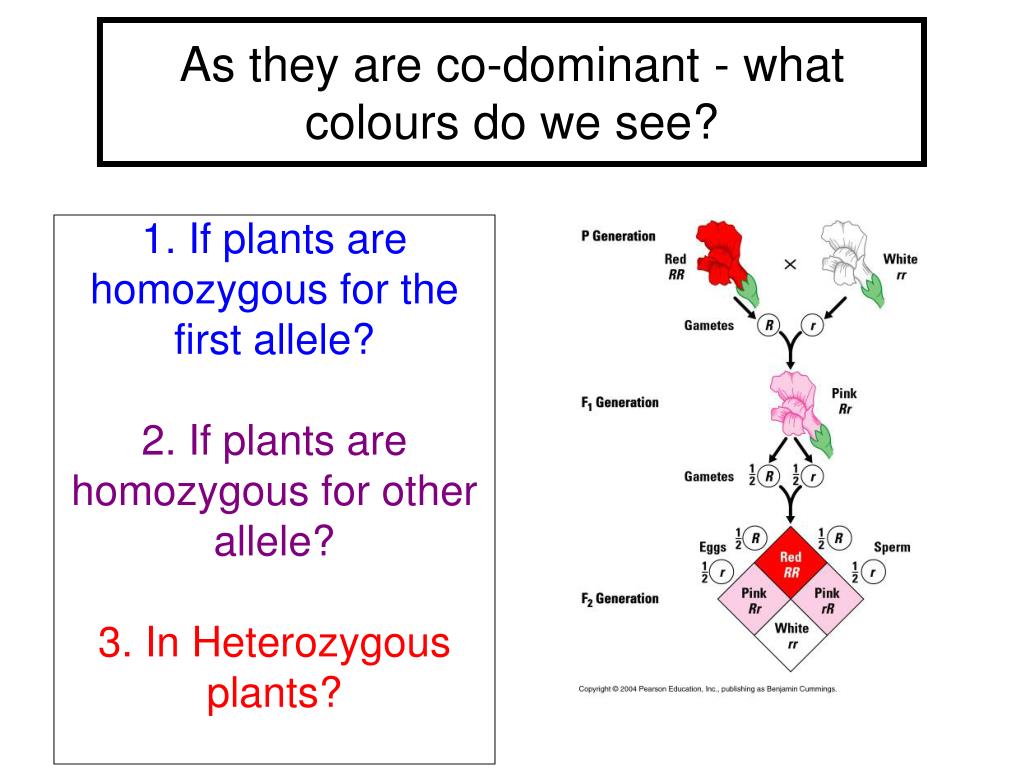

  5. As they are co-dominant - what colours do we see? 1. If plants are homozygous for the first allele? 2. If plants are homozygous for other allele? 3. In Heterozygous plants?

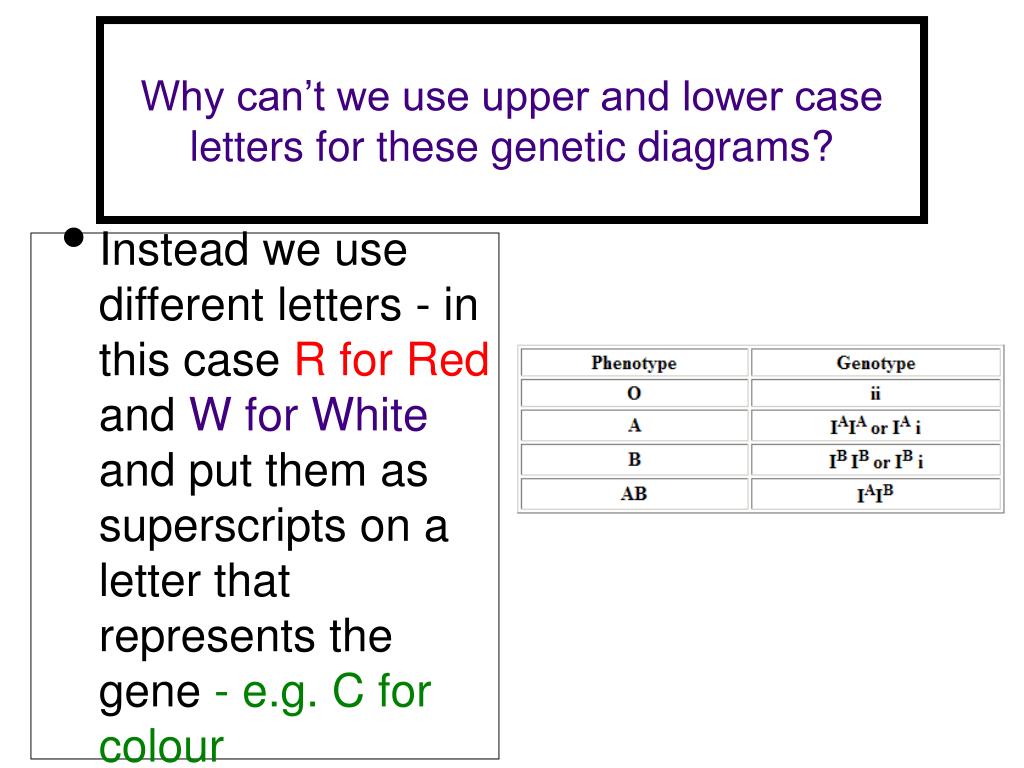

  6. Why can’t we use upper and lower case letters for these genetic diagrams? • Instead we use different letters - in this case R for Red and W for White and put them as superscripts on a letter that represents the gene - e.g. C for colour

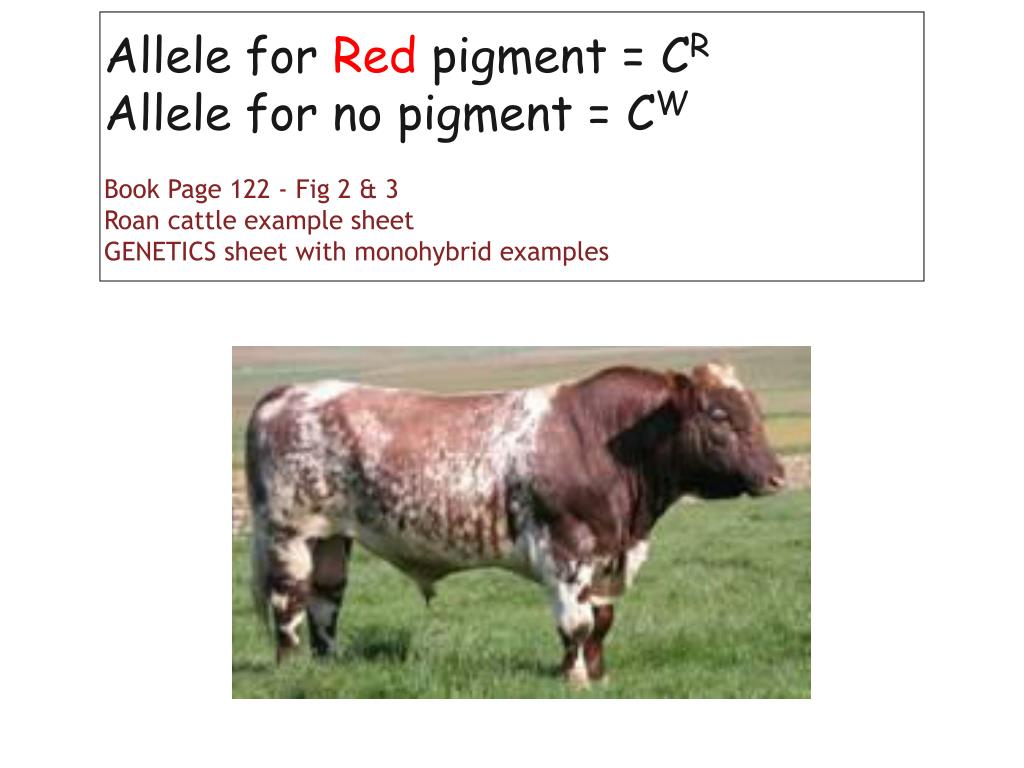

  7. Allele for Red pigment = CRAllele for no pigment = CWBook Page 122 - Fig 2 & 3Roan cattle example sheetGENETICS sheet with monohybrid examples

  8. Human ABO Blood Groups 3 alleles associated with the gene I (immunoglobulin gene) which lead to the production of different antigens on the surface membrane of red blood cells Multiple Alleles - this is when a gene has more than 2 alleles

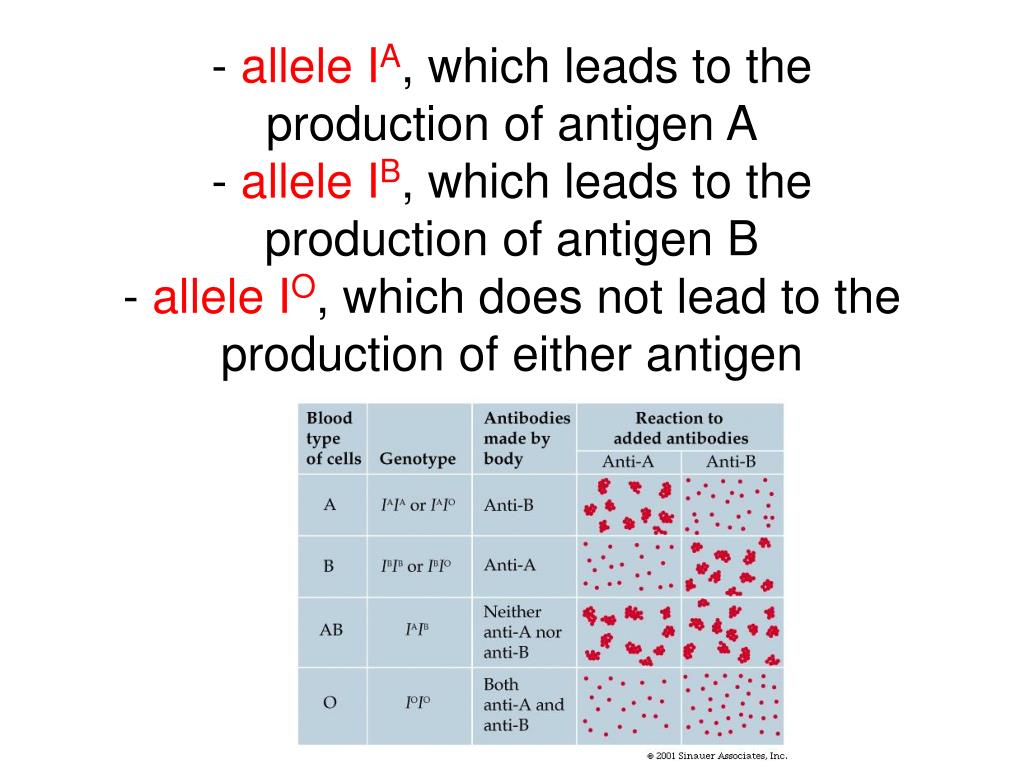

  9. - allele IA, which leads to the production of antigen A- allele IB, which leads to the production of antigen B- allele IO, which does not lead to the production of either antigen

  10. Only 2 of them can be present in an individual as there are only 2 gene loci • The alleles IA and IB are co-dominant • IO is recessive to both

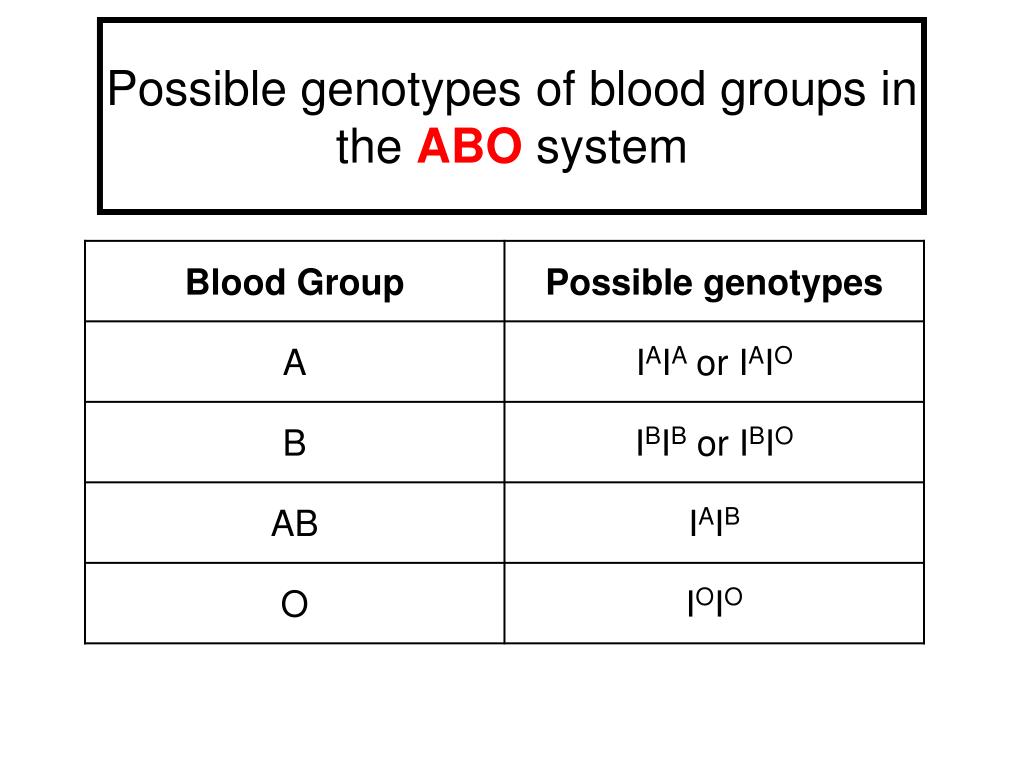

  11. Possible genotypes of blood groups in the ABO system

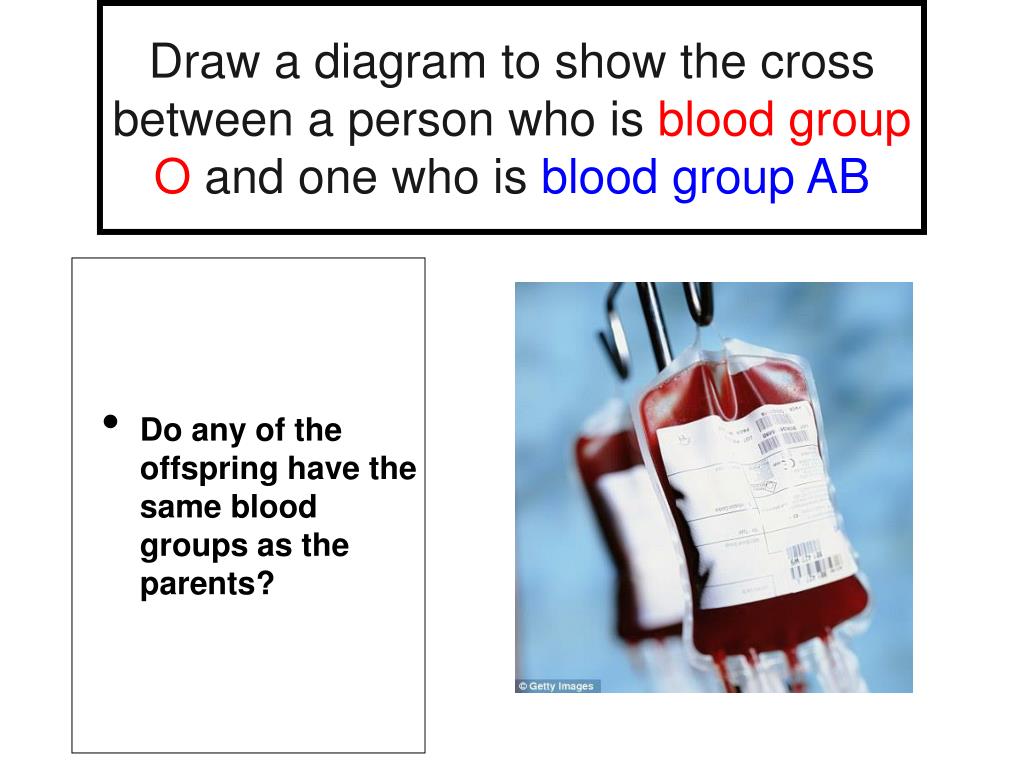

  12. Draw a diagram to show the cross between a person who is blood group O and one who is blood group AB • Do any of the offspring have the same blood groups as the parents?

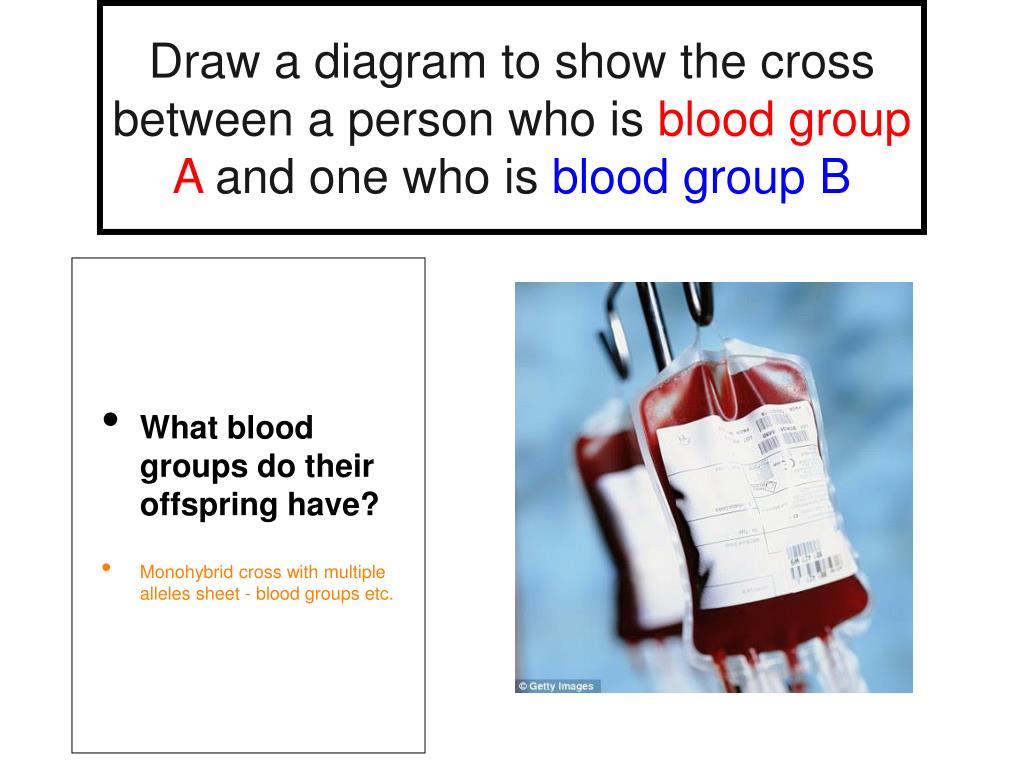

  13. Draw a diagram to show the cross between a person who is blood group A and one who is blood group B • What blood groups do their offspring have? • Monohybrid cross with multiple alleles sheet - blood groups etc.

  14. Multiple Alleles and a dominance hierarchy Sometimes multiple alleles have a hierarchy of dominance - e.g. in rabbit coat colour The gene for coat colour (C) has 4 alleles

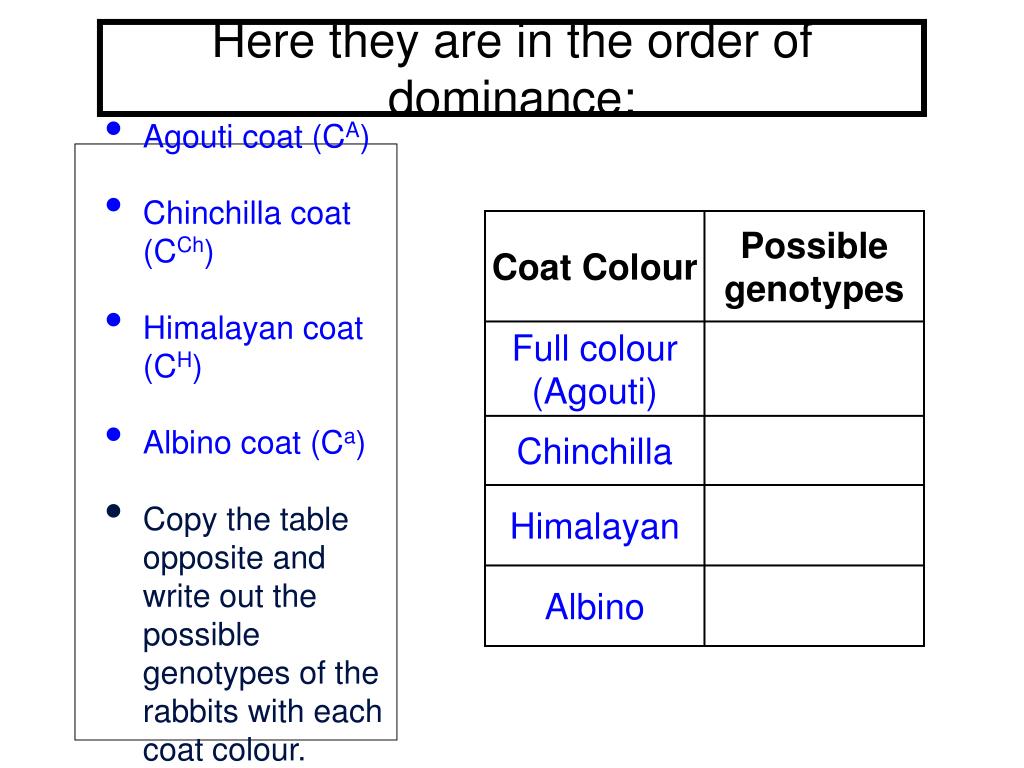

  15. Here they are in the order of dominance: • Agouti coat (CA) • Chinchilla coat (CCh) • Himalayan coat (CH) • Albino coat (Ca) • Copy the table opposite and write out the possible genotypes of the rabbits with each coat colour.

  16. Question 1-3 at bottom of Page 123 • Application Page 124

  17. Other useful Sourceshttp://www.youtube.com/watch?v=NgXOLU3uiHg - summary of Mendelian inheritancehttp://www.biologymad.com/master.html?http://www.biologymad.com/A2Biology.htm The best A Level Biology Website • References • Glenn Toole, Susan Toole (2008). A2 Biology. Cheltenham: Nelson
