  1. Thermodynamics

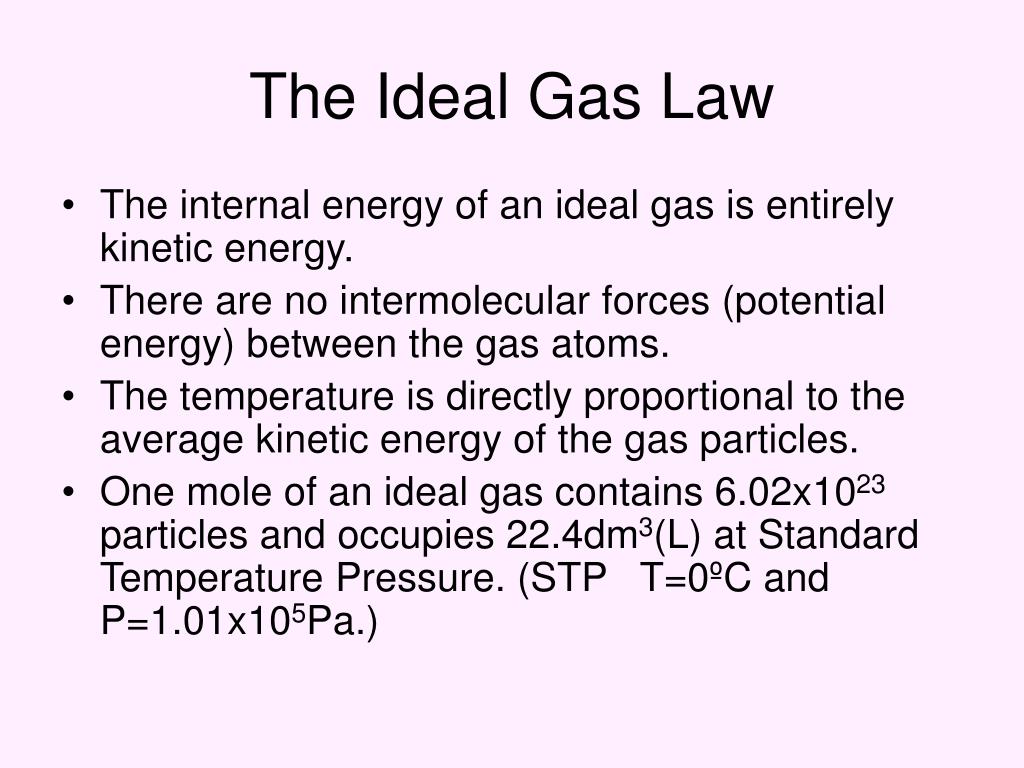

  2. The Ideal Gas Law • The internal energy of an ideal gas is entirely kinetic energy. • There are no intermolecular forces (potential energy) between the gas atoms. • The temperature is directly proportional to the average kinetic energy of the gas particles. • One mole of an ideal gas contains 6.02x1023 particles and occupies 22.4dm3(L) at Standard Temperature Pressure. (STP T=0ºC and P=1.01x105Pa.)

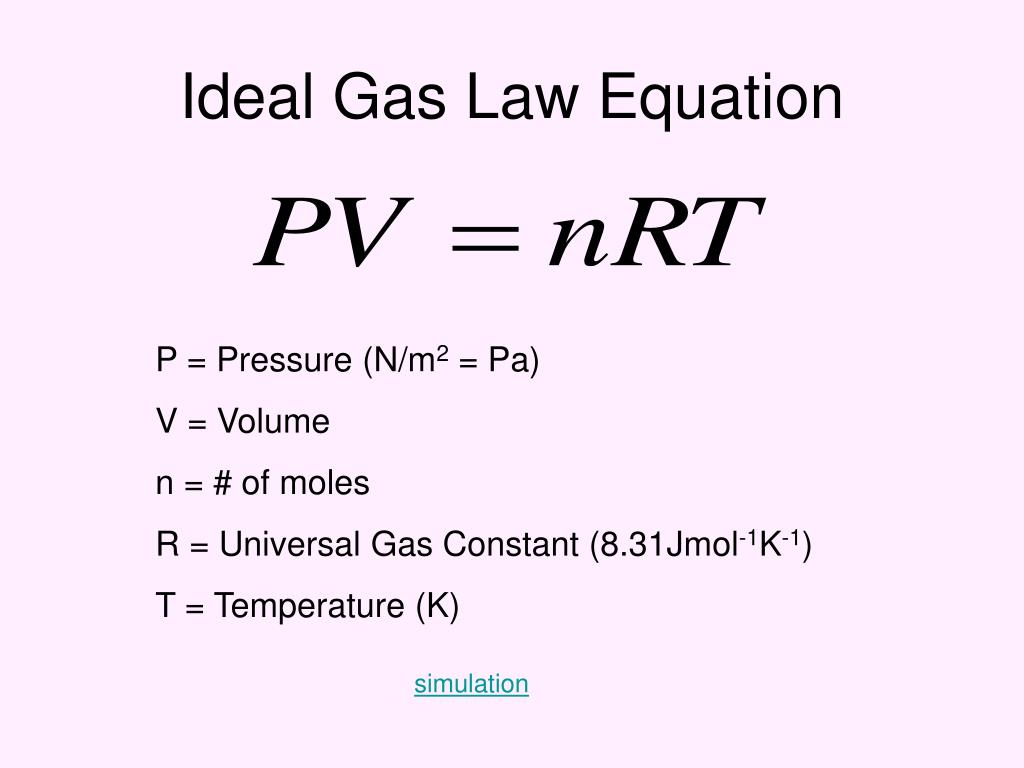

  3. Ideal Gas Law Equation P = Pressure (N/m2 = Pa) V = Volume n = # of moles R = Universal Gas Constant (8.31Jmol-1K-1) T = Temperature (K) simulation

  4. Constant Pressure Constant Temperature Constant Volume P P V T T V Graphical relationships between pressure, volume and temperature.

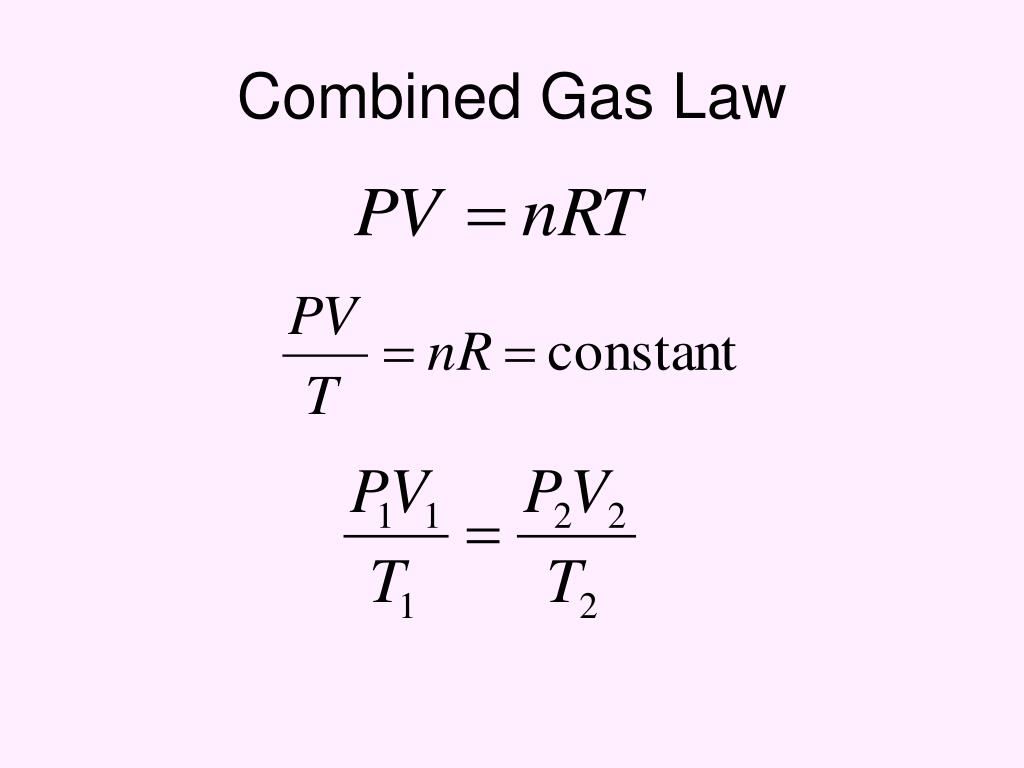

  5. Combined Gas Law

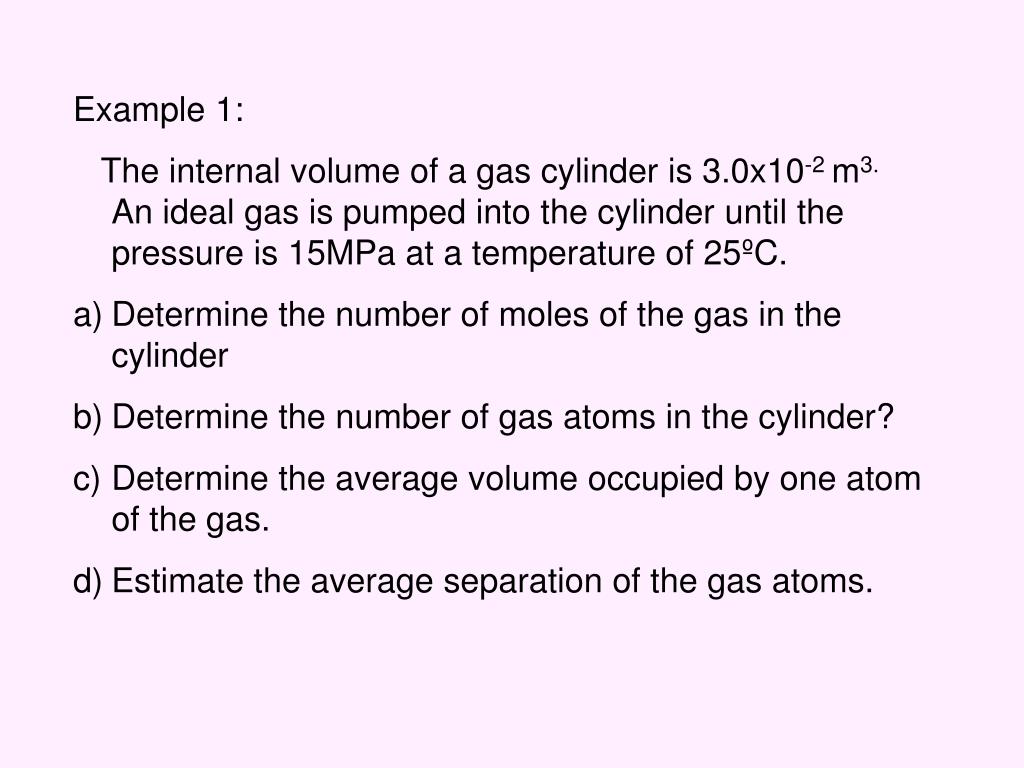

  6. Example 1: • The internal volume of a gas cylinder is 3.0x10-2 m3. An ideal gas is pumped into the cylinder until the pressure is 15MPa at a temperature of 25ºC. • Determine the number of moles of the gas in the cylinder • Determine the number of gas atoms in the cylinder? • Determine the average volume occupied by one atom of the gas. • Estimate the average separation of the gas atoms.

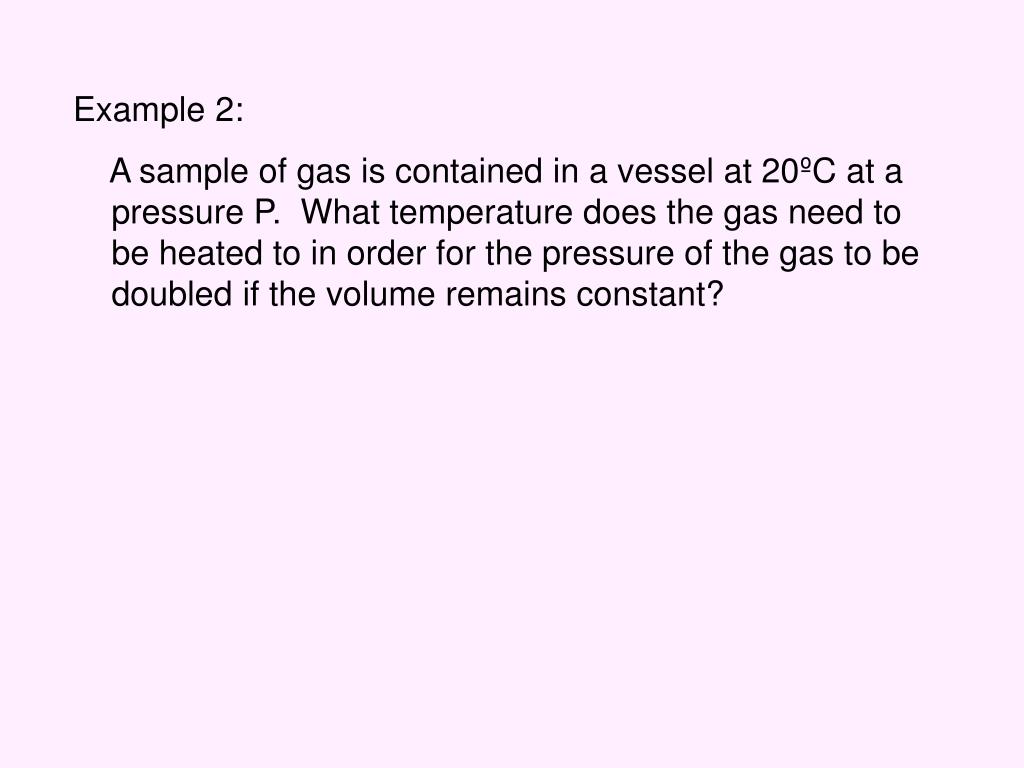

  7. Example 2: A sample of gas is contained in a vessel at 20ºC at a pressure P. What temperature does the gas need to be heated to in order for the pressure of the gas to be doubled if the volume remains constant?

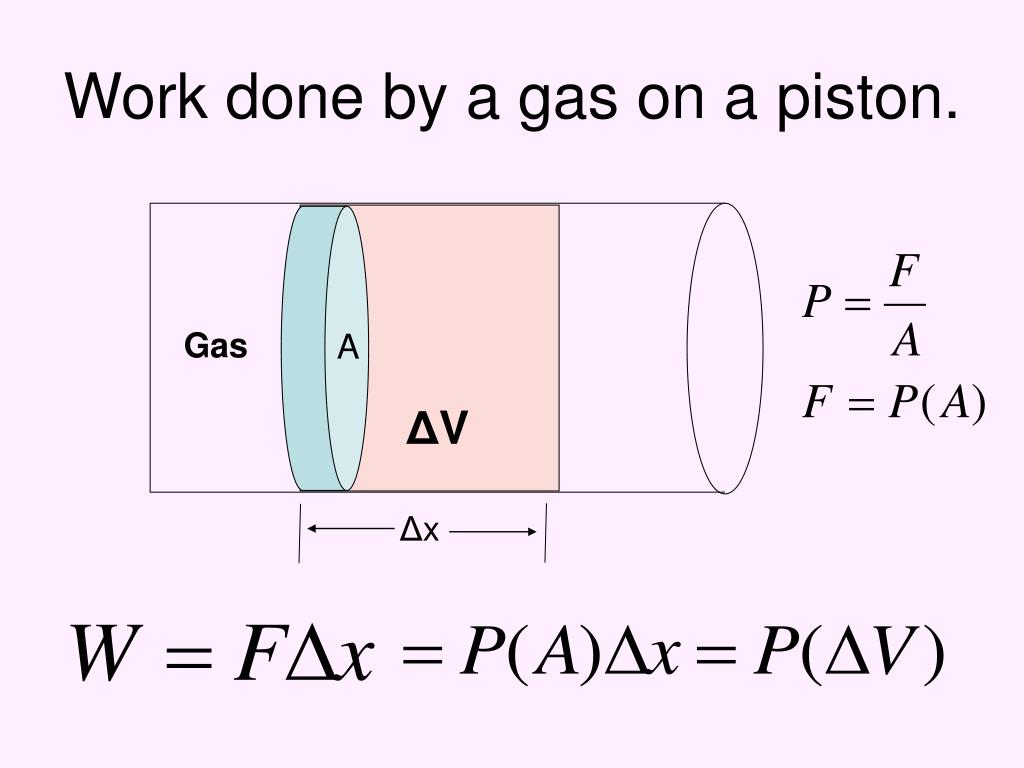

  8. Gas A ΔV Δx Work done by a gas on a piston.

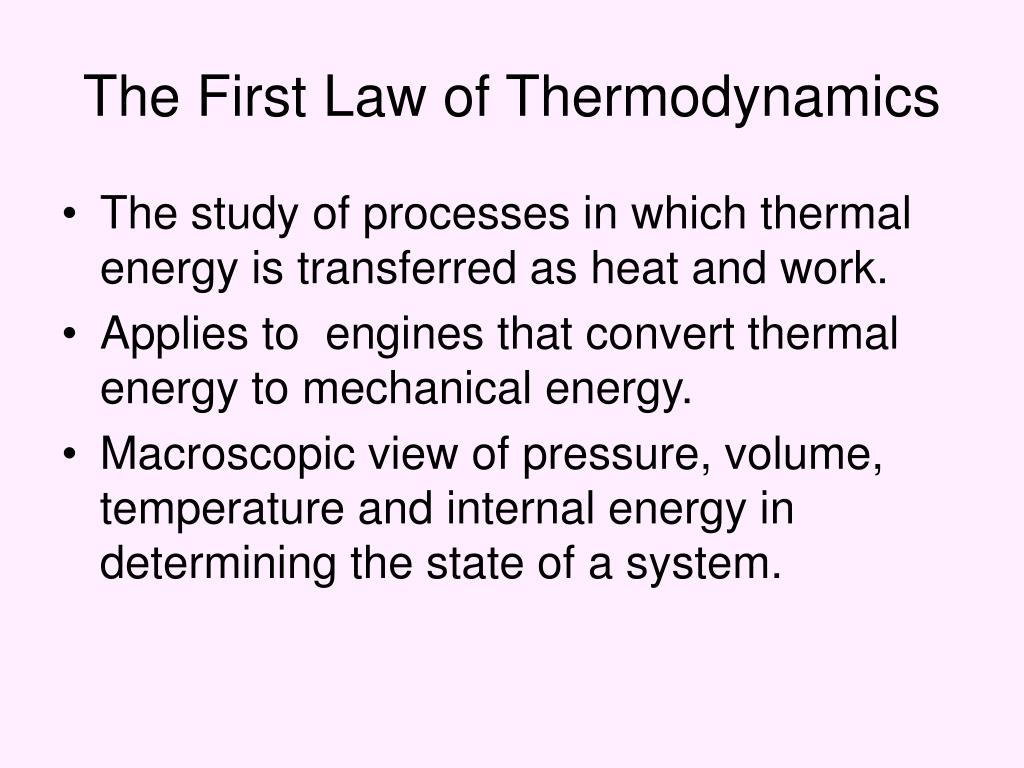

  9. The First Law of Thermodynamics • The study of processes in which thermal energy is transferred as heat and work. • Applies to engines that convert thermal energy to mechanical energy. • Macroscopic view of pressure, volume, temperature and internal energy in determining the state of a system.

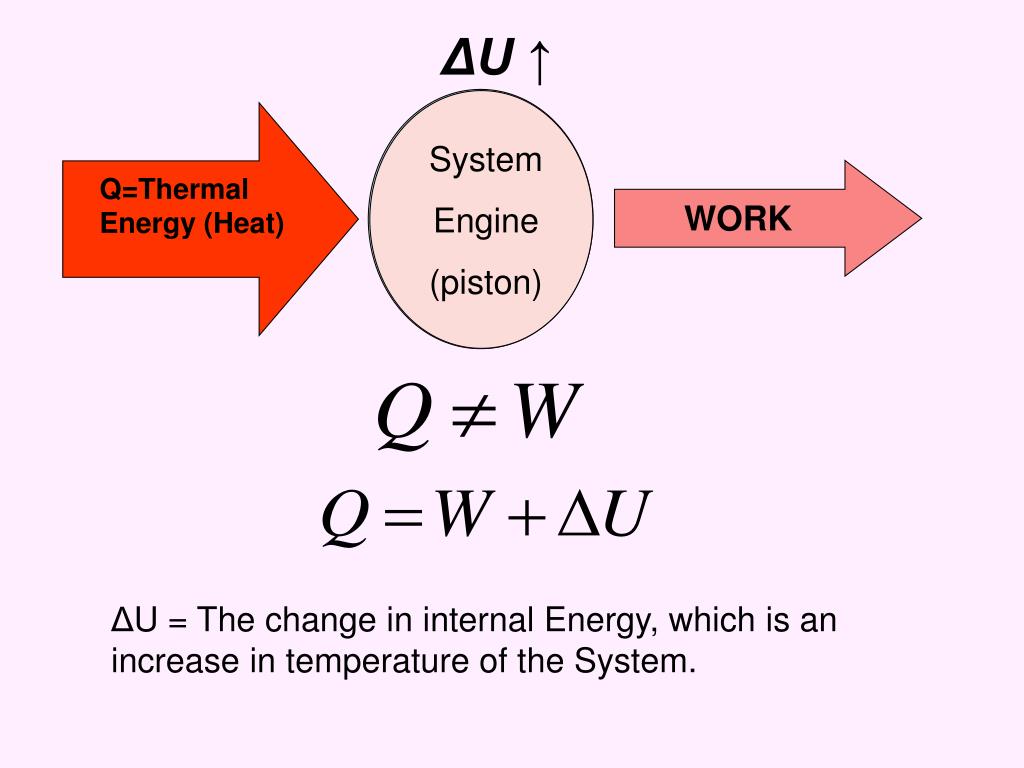

  10. Q=Thermal Energy (Heat) System Engine (piston) WORK ΔU ↑ System Engine (piston) ΔU = The change in internal Energy, which is an increase in temperature of the System.

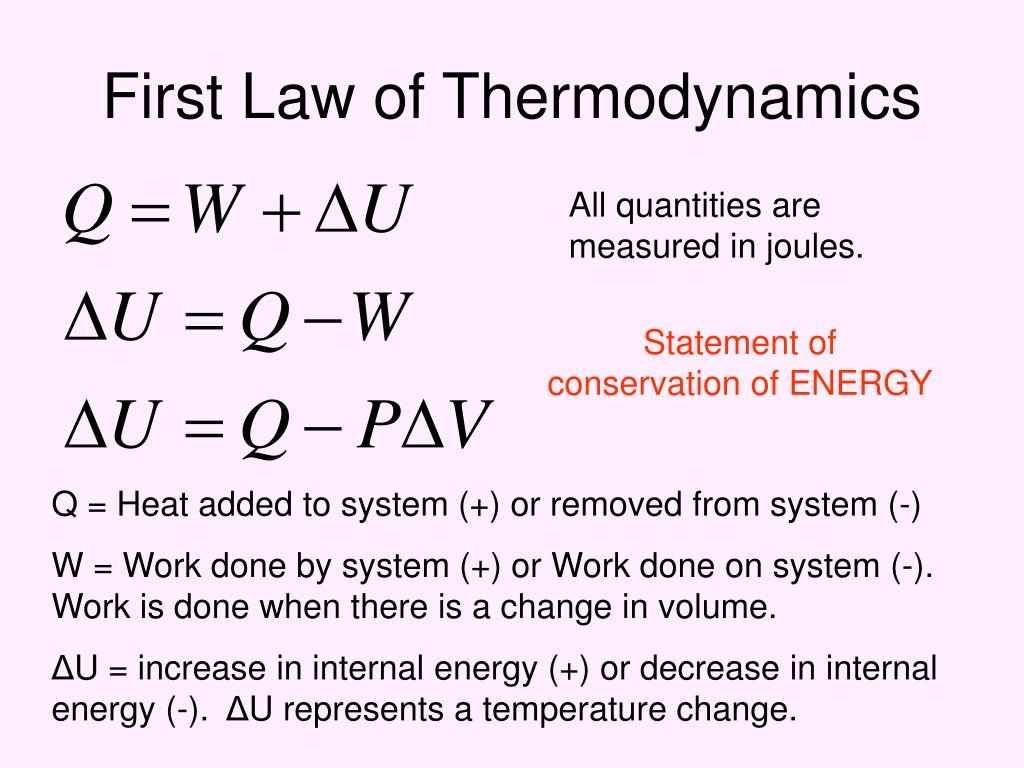

  11. First Law of Thermodynamics All quantities are measured in joules. Statement of conservation of ENERGY Q = Heat added to system (+) or removed from system (-) W = Work done by system (+) or Work done on system (-). Work is done when there is a change in volume. ΔU = increase in internal energy (+) or decrease in internal energy (-). ΔU represents a temperature change.

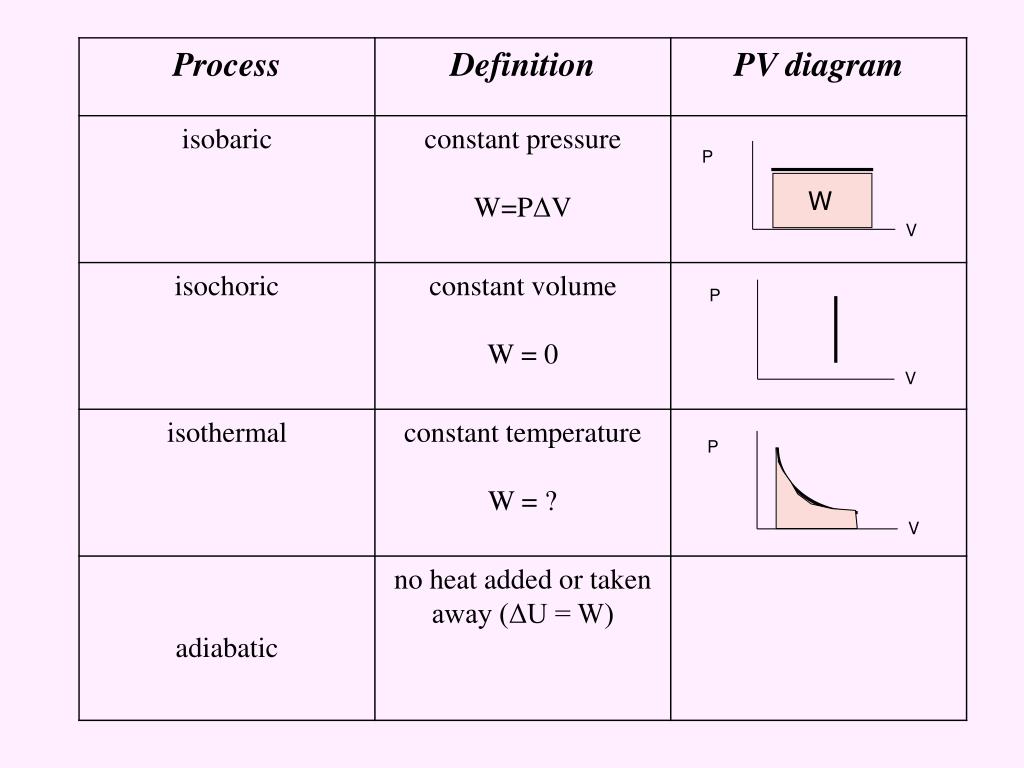

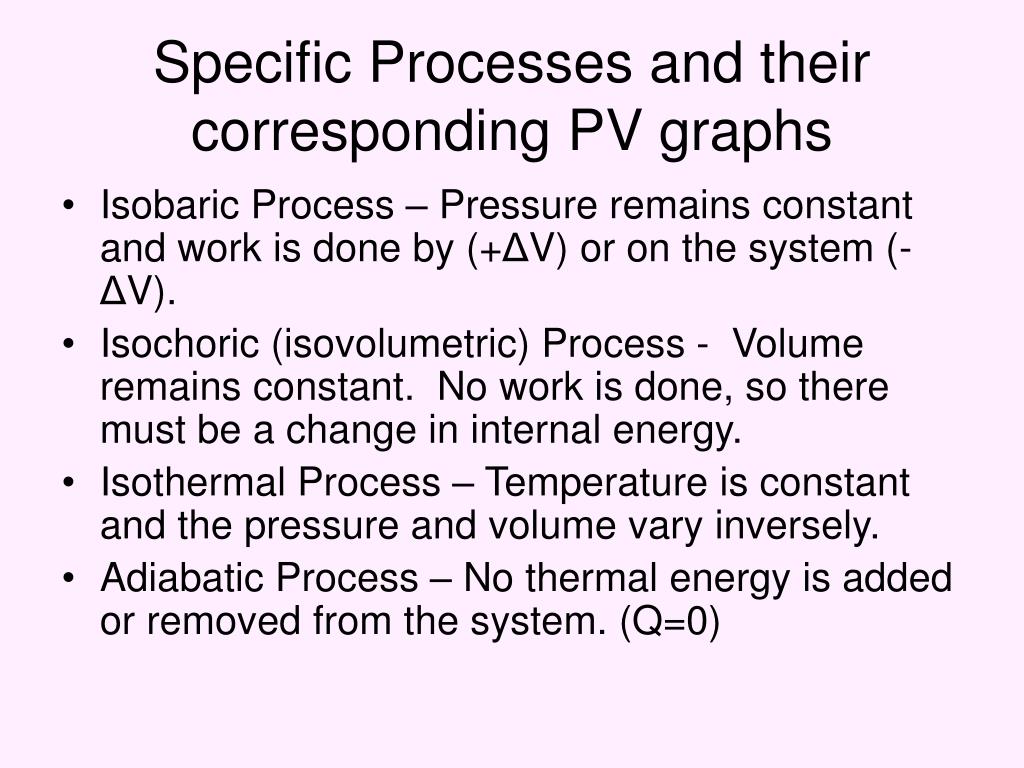

  12. Specific Processes and their corresponding PV graphs • Isobaric Process – Pressure remains constant and work is done by (+ΔV) or on the system (-ΔV). • Isochoric (isovolumetric) Process - Volume remains constant. No work is done, so there must be a change in internal energy. • Isothermal Process – Temperature is constant and the pressure and volume vary inversely. • Adiabatic Process – No thermal energy is added or removed from the system. (Q=0)

  13. W P P P V V V

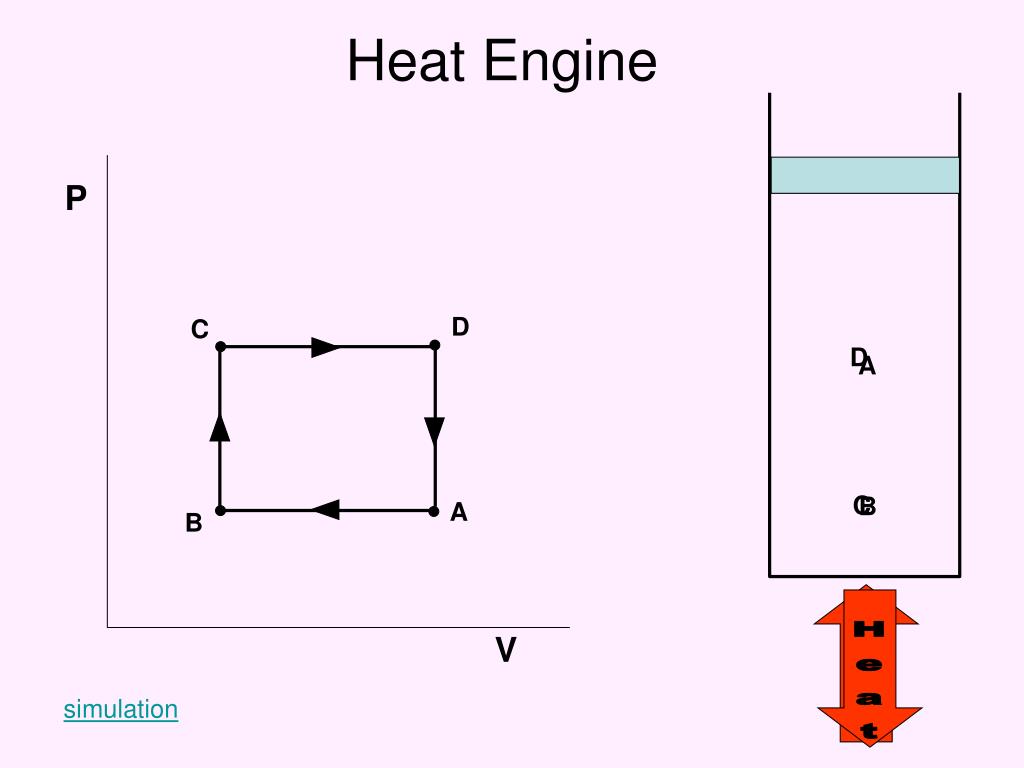

  14. Heat Heat Heat Engine P D C D A C B A B V simulation

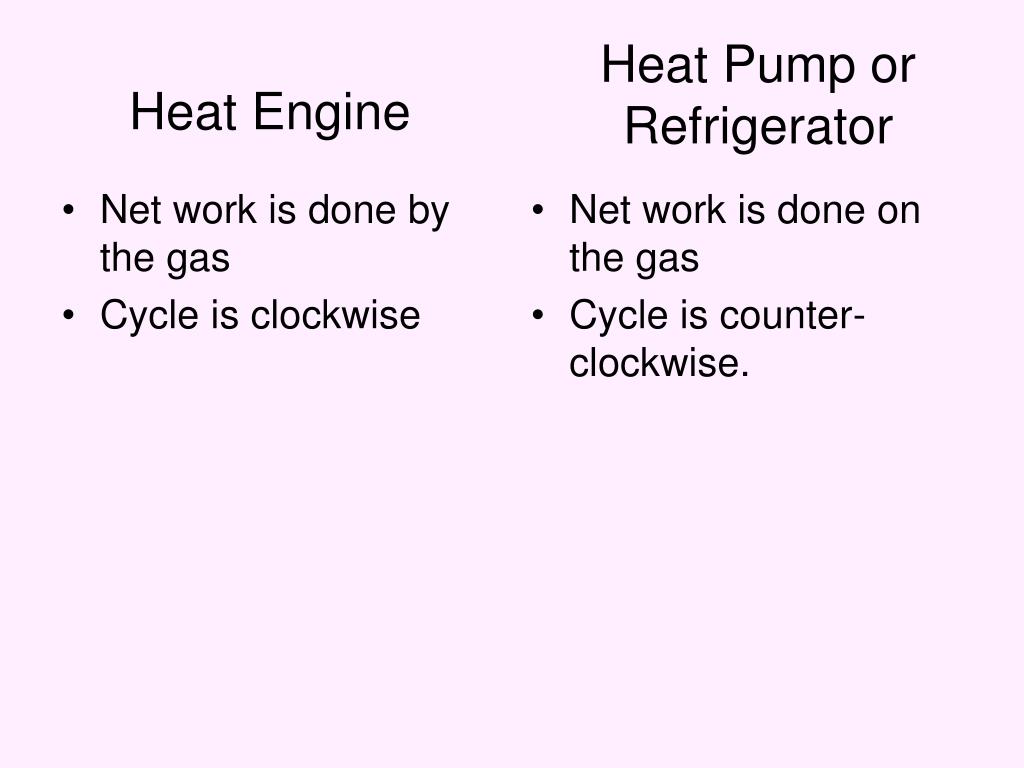

  15. Net work is done by the gas Cycle is clockwise Net work is done on the gas Cycle is counter-clockwise. Heat Pump or Refrigerator Heat Engine

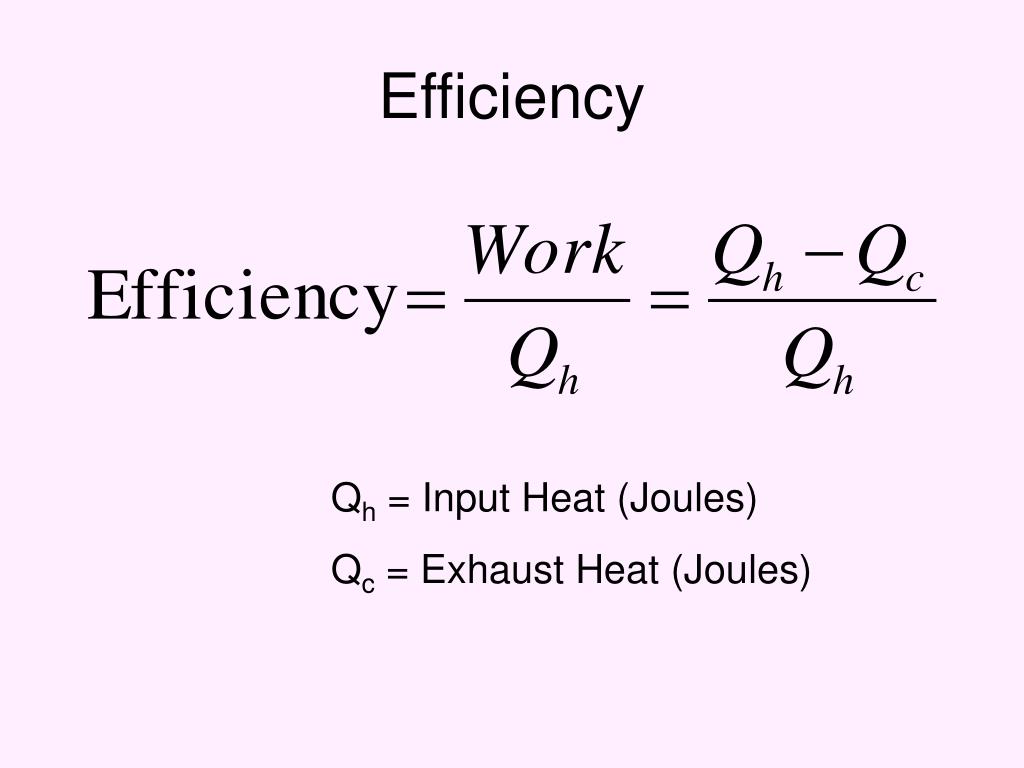

  16. Efficiency Qh = Input Heat (Joules) Qc = Exhaust Heat (Joules)

  17. Maximum Efficiency – Carnot Cycle Maximum Efficiency Th = Maximum temperature in Kelvin Tc = Minimum temperature in Kelvin
