  1. TRAFFIC JAM AVOIDANCE

  2. Acknowledgement • Project Idea

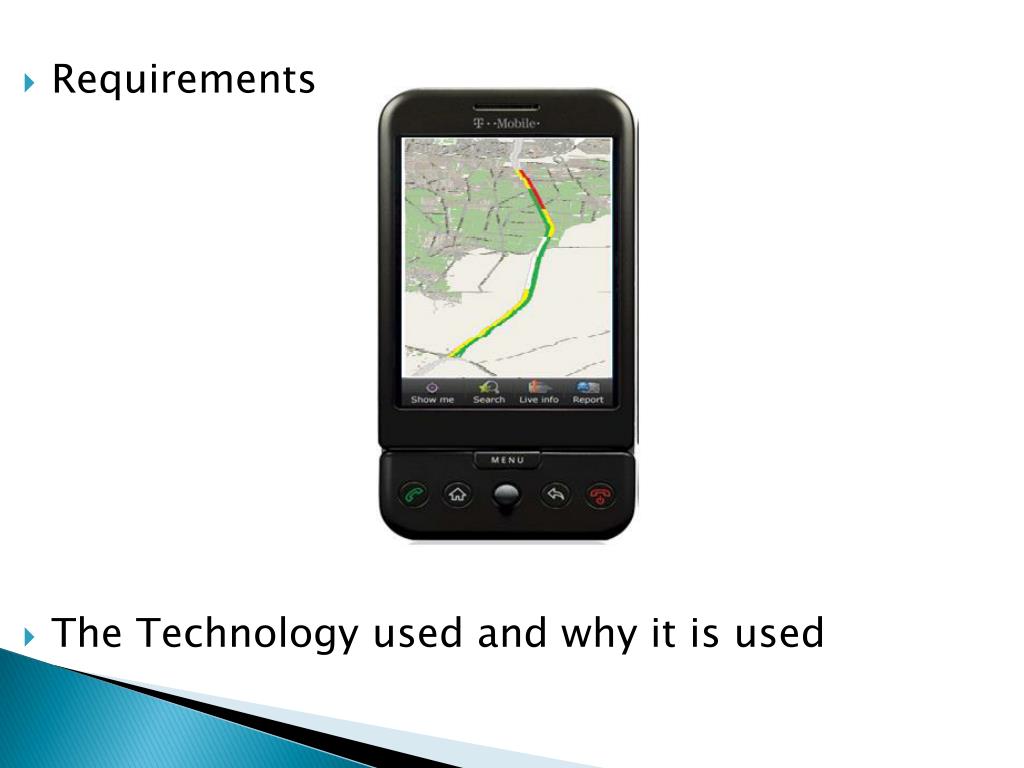

  3. Requirements • The Technology used and why it is used

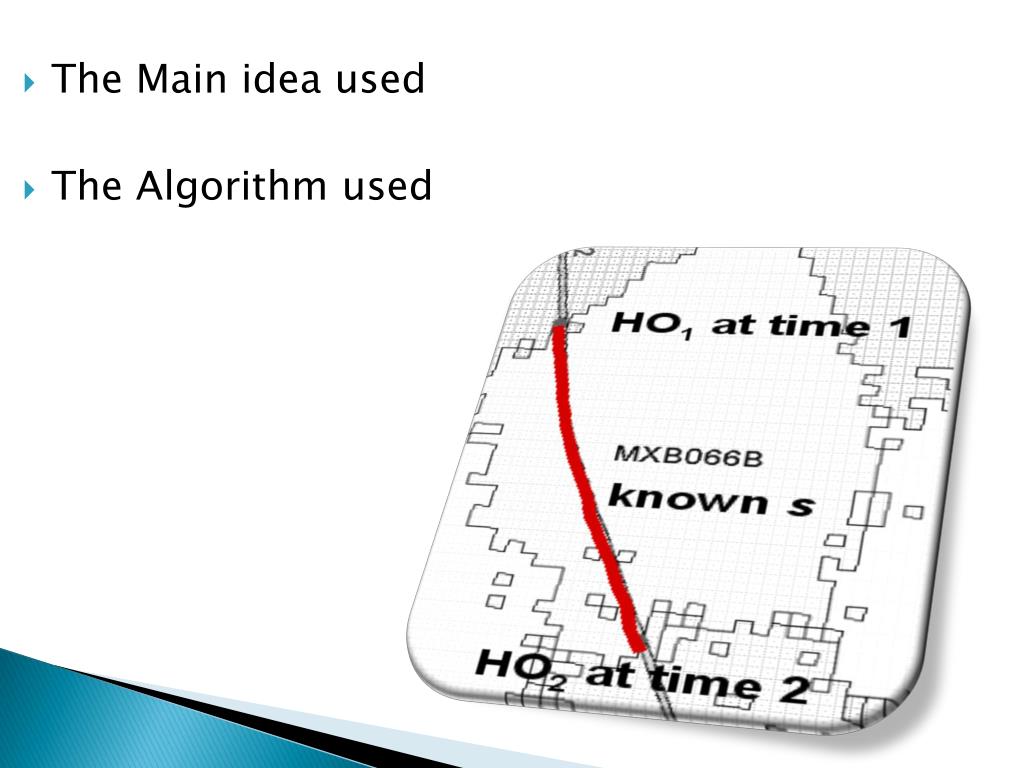

  4. The Main idea used • The Algorithm used

  5. Program used to implement it • Output shape

  6. Double Handover Technique ⇨ Idea ⇨ Equation: ⇨ Conclusion

  7. Drive Tests

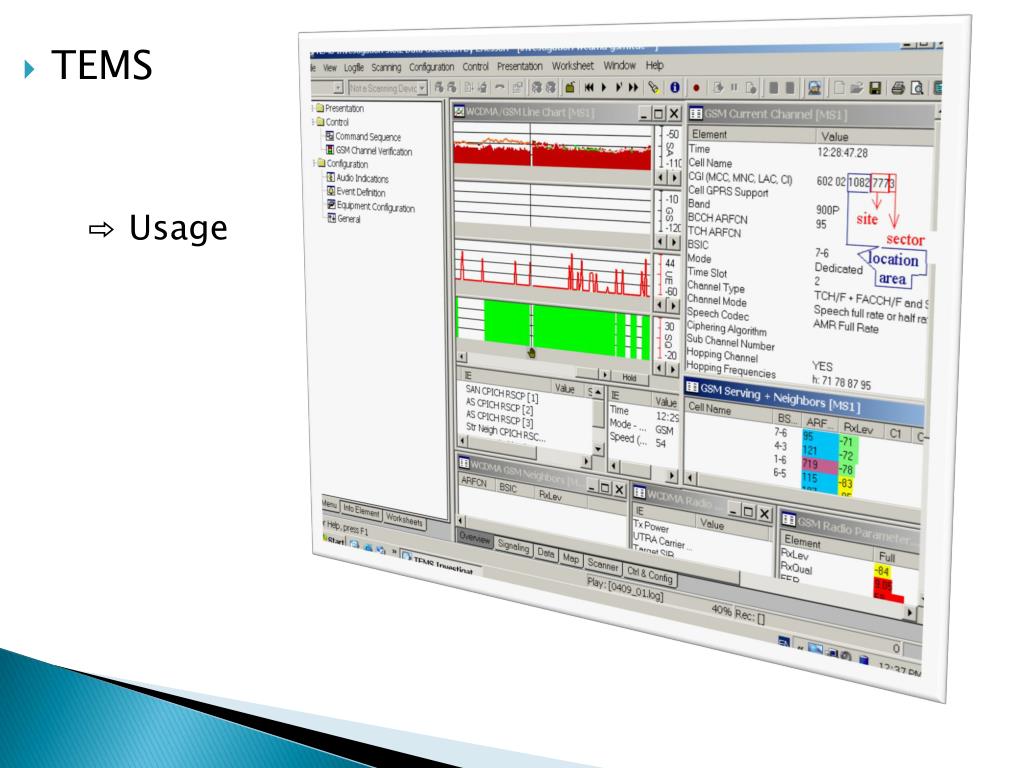

  8. TEMS ⇨ Usage

  9. Drive Tests Benefits ⇨Distance Calculations

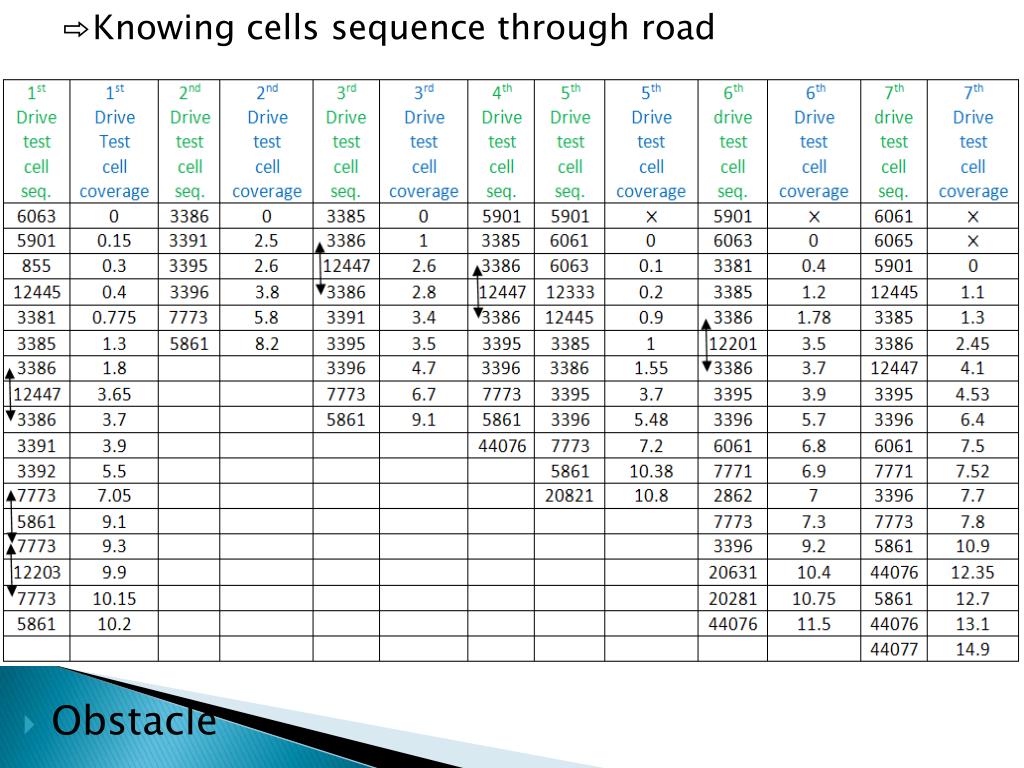

  10. ⇨Knowing cells sequence through road • Obstacle

  11. Pattern

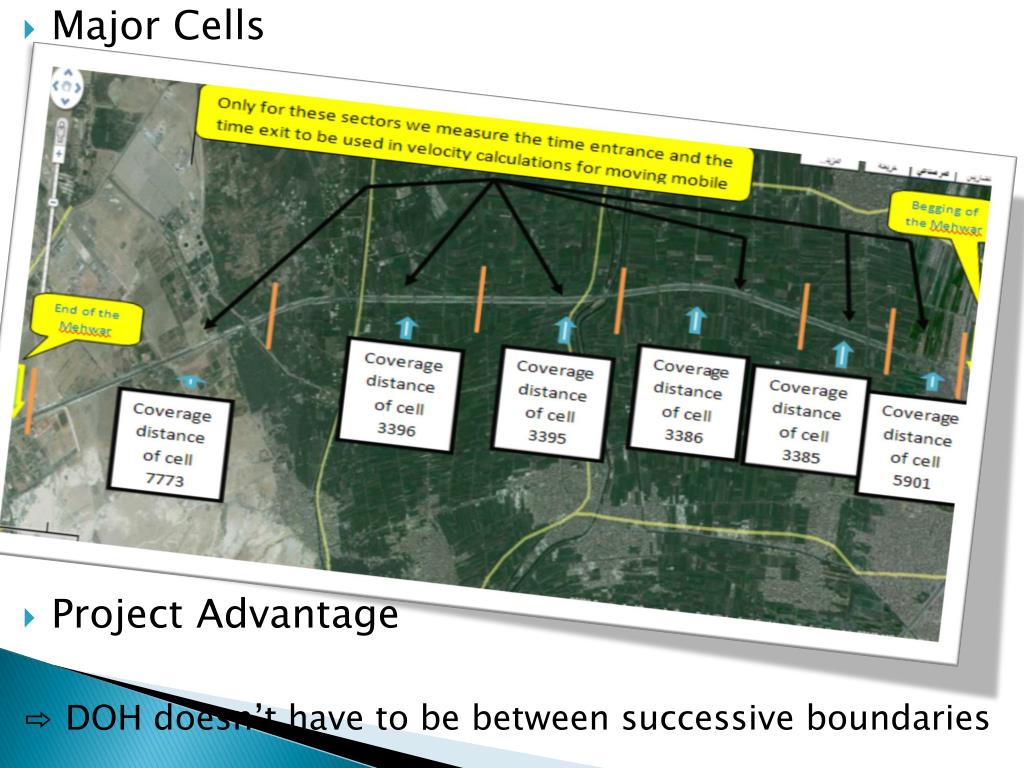

  12. Major Cells • Project Advantage ⇨ DOH doesn’t have to be between successive boundaries

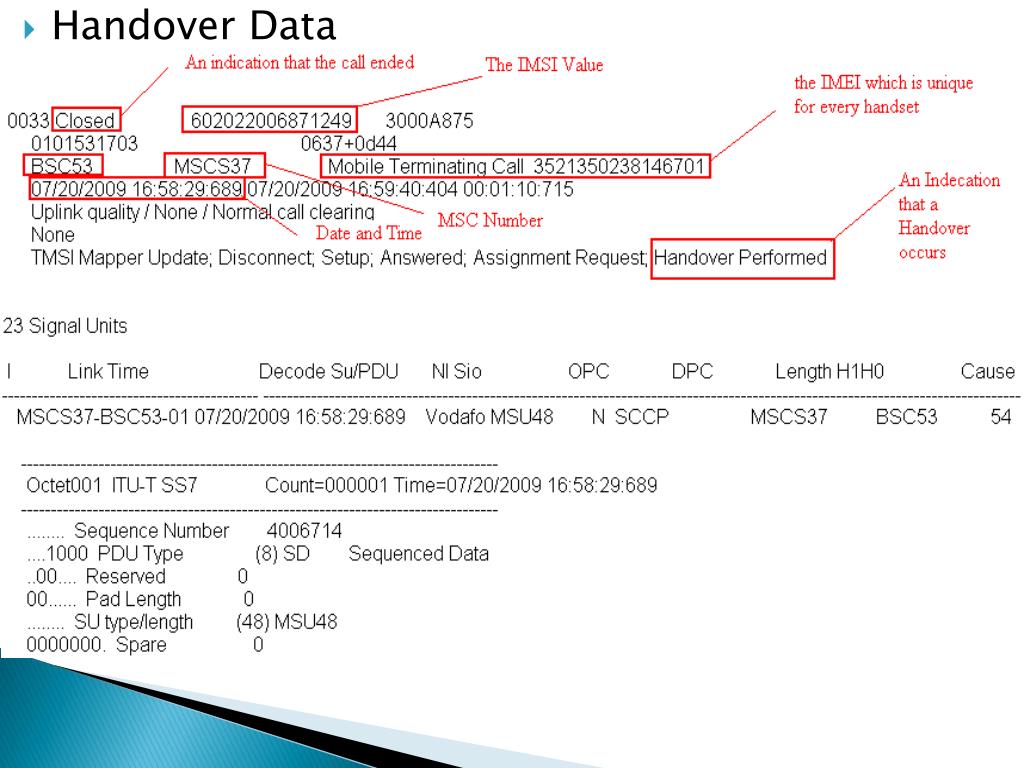

  13. Handover Data

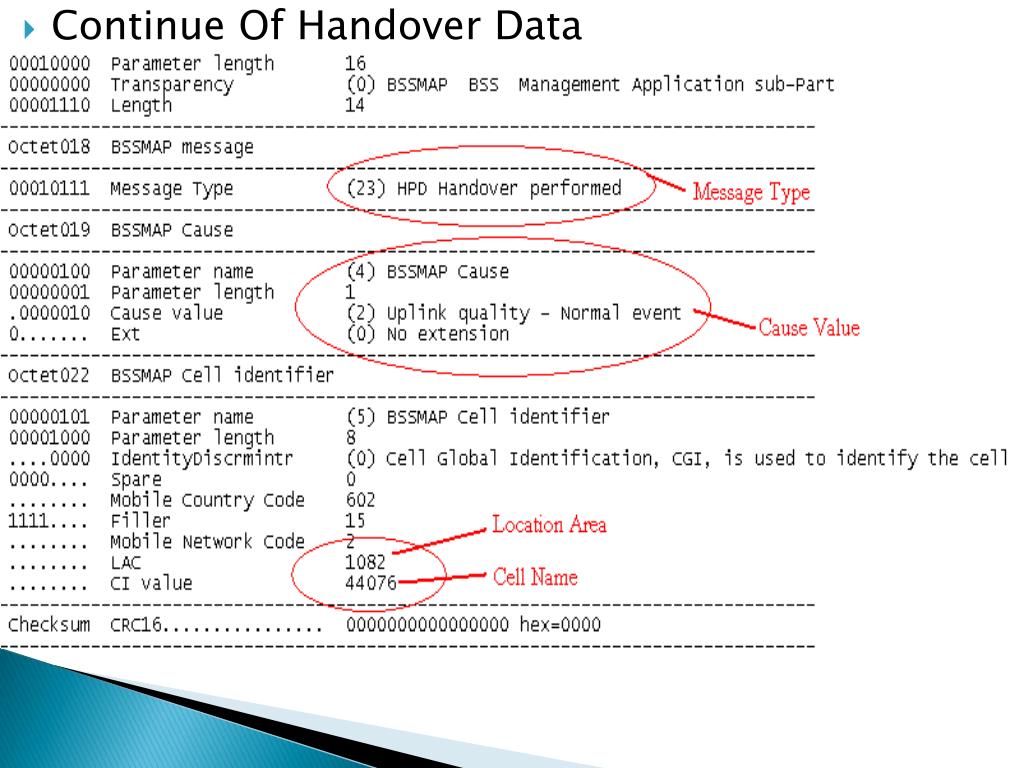

  14. Continue Of Handover Data

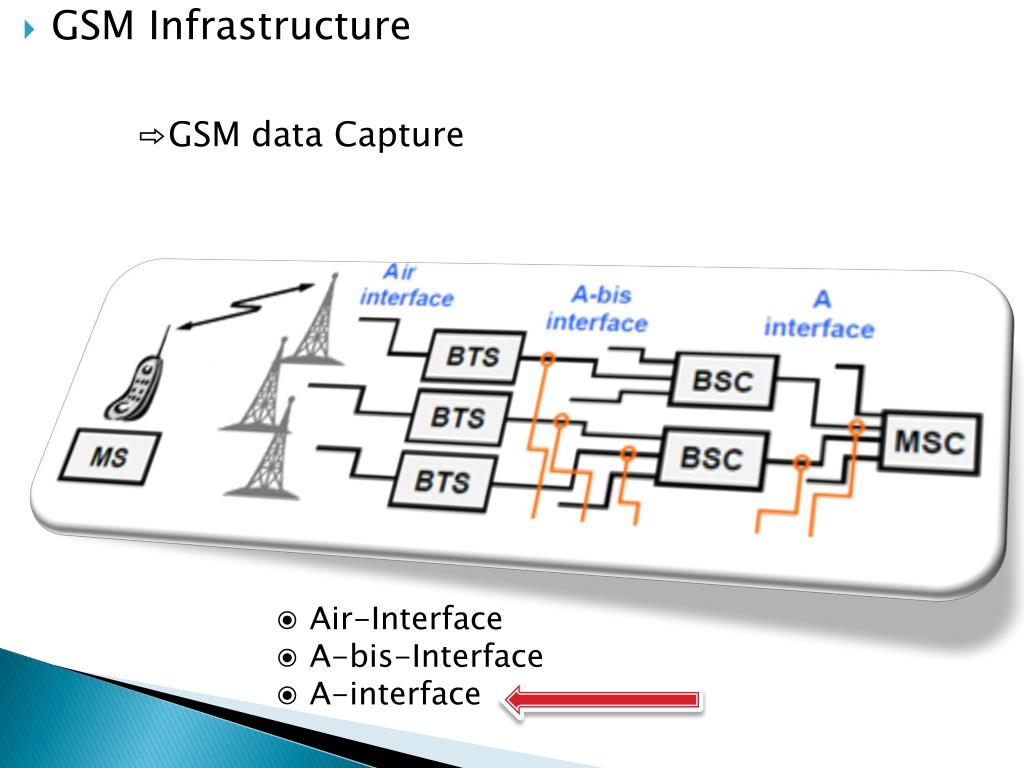

  15. GSM Infrastructure ⇨GSM data Capture ◉ Air-Interface ◉ A-bis-Interface ◉ A-interface

  16. ⇨GSM Frequencies ◉ 900 ◉ 1800

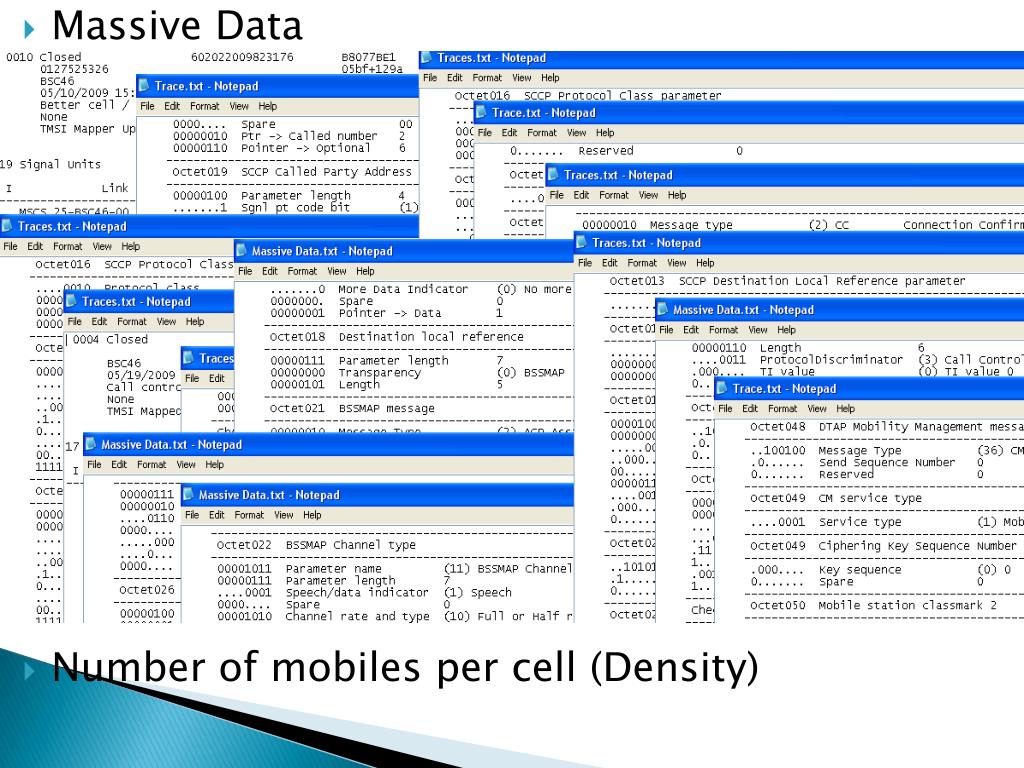

  17. Massive Data • Number of mobiles per cell (Density)

  18. Start • Code Algorithm When we deal with live massive data, we deal with every call in a separate file, as this is the format that it is presented to us. Wegive the java code the path of the directory that contains all the files & get them all & put files in a list called “flist”.

  19. For every file get the information’s in it, as “IMSI” - “Cell Value” – “LAC” – “Date & Time”.

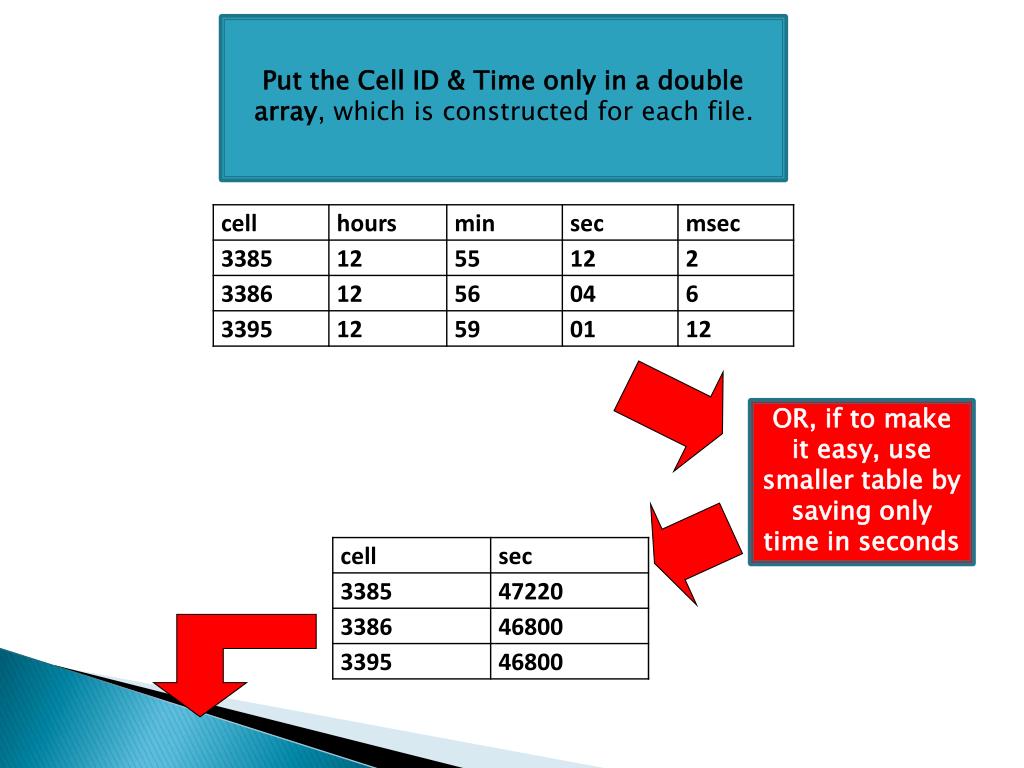

  20. Put the Cell ID & Time only in a double array, which is constructed for each file. OR, if to make it easy, use smaller table by saving only time in seconds

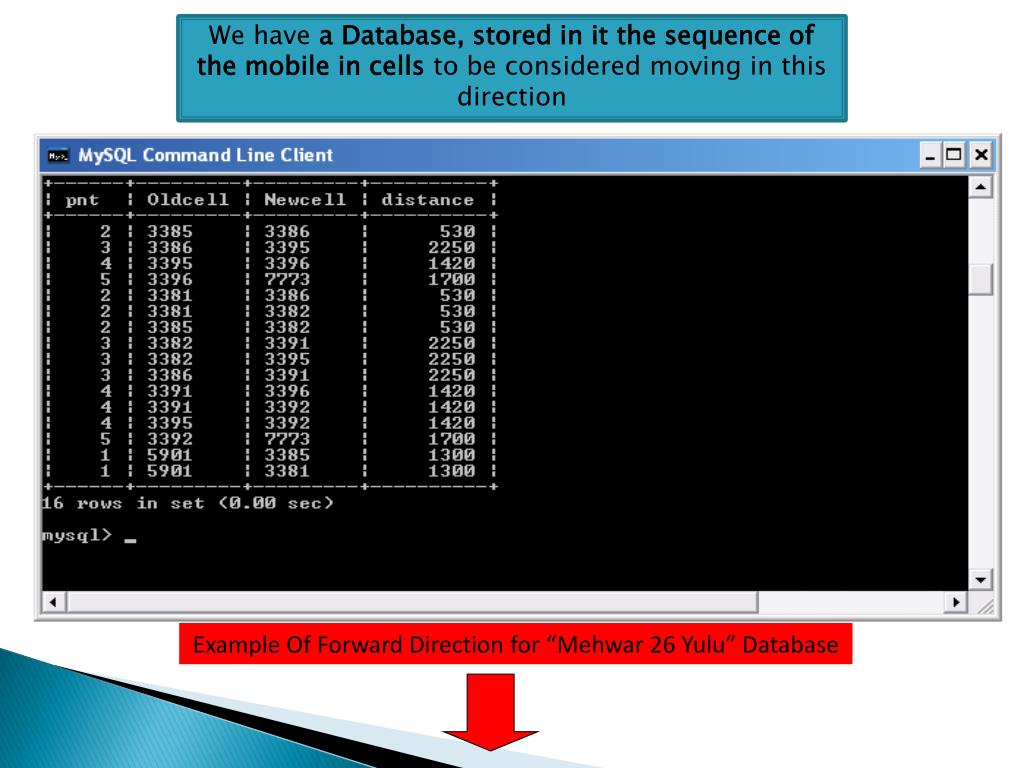

  21. We have a Database, stored in it the sequence of the mobile in cells to be considered moving in this direction Example Of Forward Direction for “Mehwar 26 Yulu” Database

  22. Compare the cell sequence you have with the database, if two points are achieved, double handover occurs & an o/p result occur. Then we work on the table of velocity , analyzing it to get average speed in every sector in the direction that database specify Stop

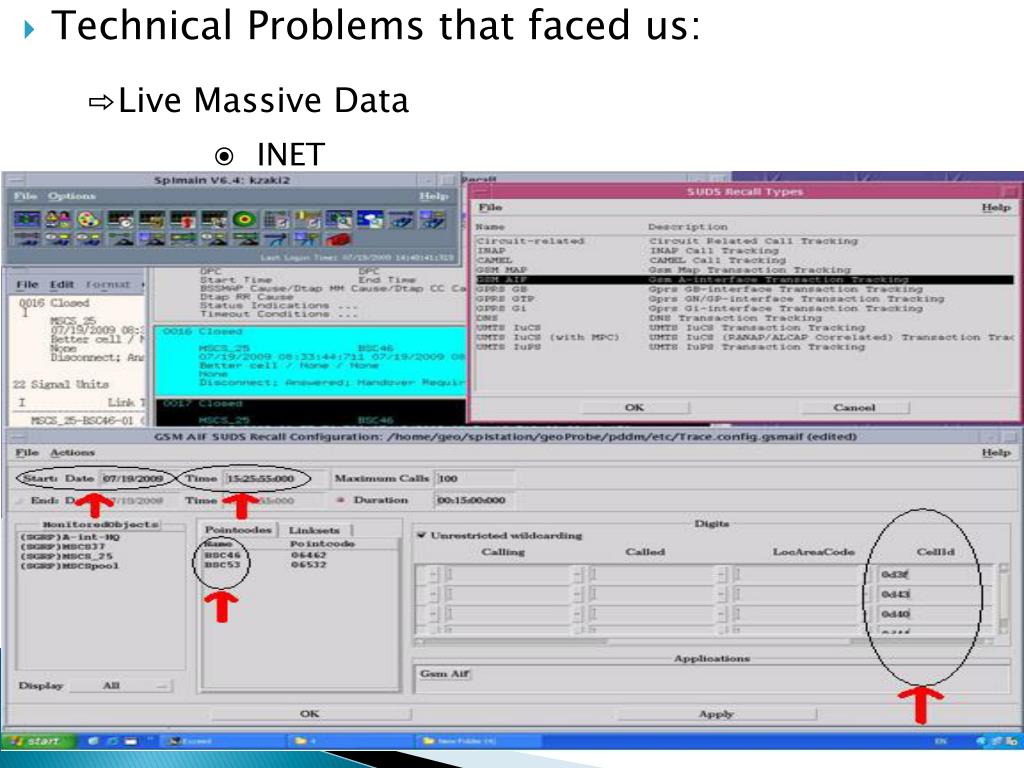

  23. Technical Problems that faced us: ⇨Live Massive Data ◉ INET

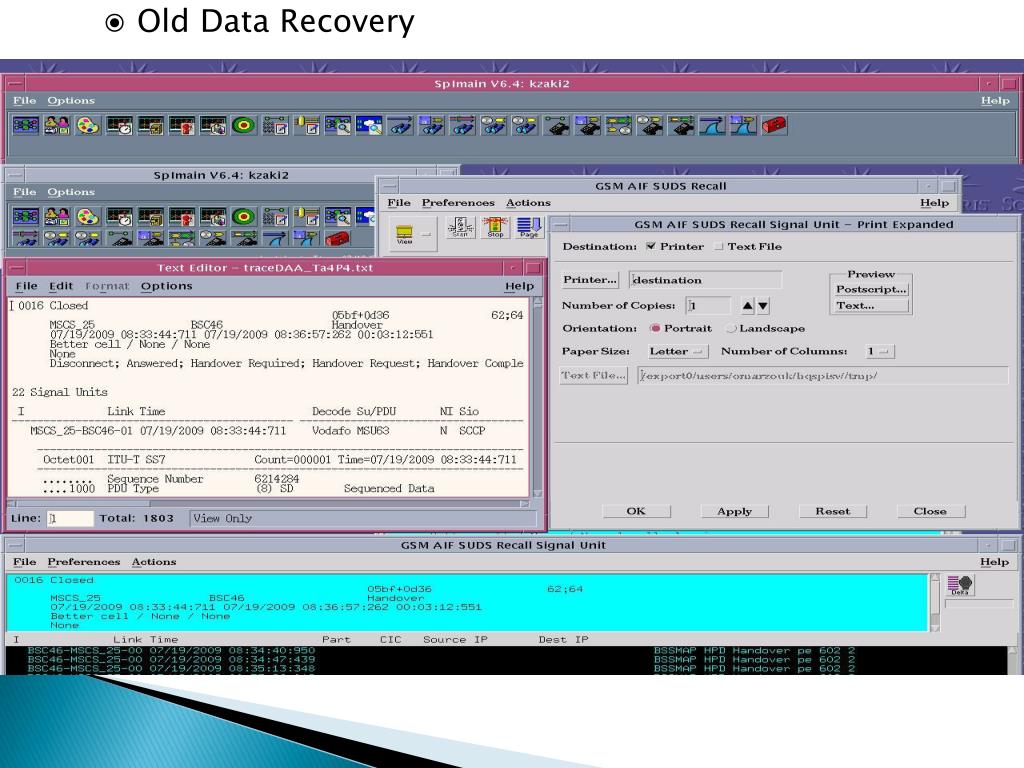

  24. ◉ Old Data Recovery

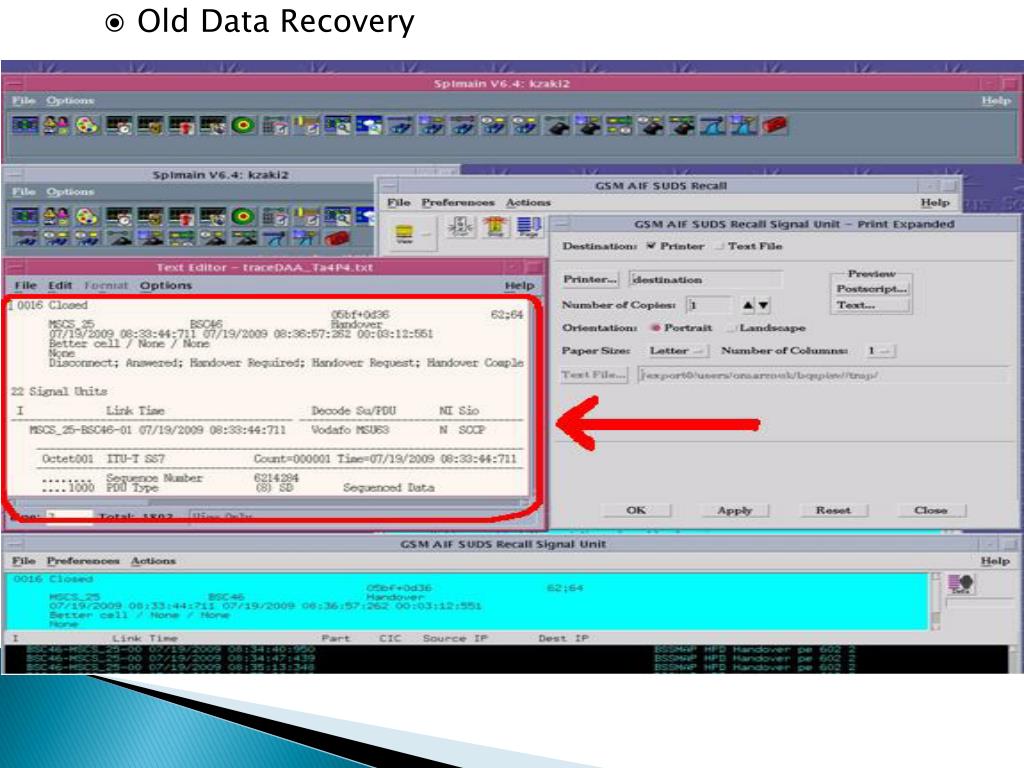

  25. ◉ Old Data Recovery

  26. ⇨ Velocity Database is too Large

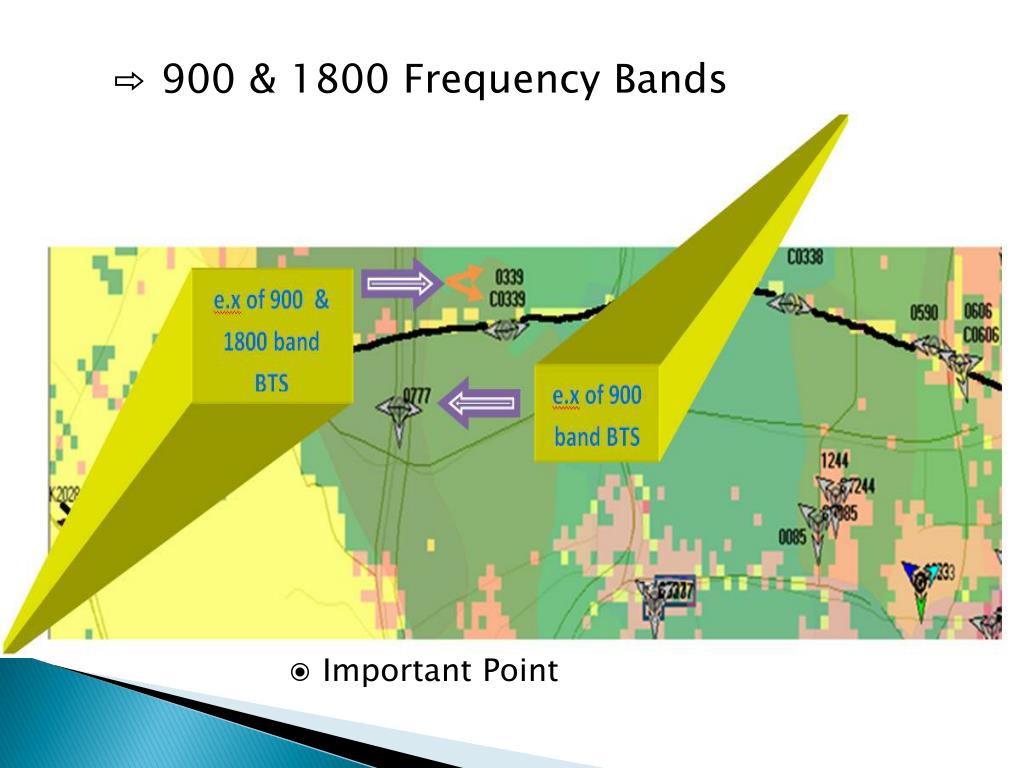

  27. ⇨ 900 & 1800 Frequency Bands ◉ Important Point

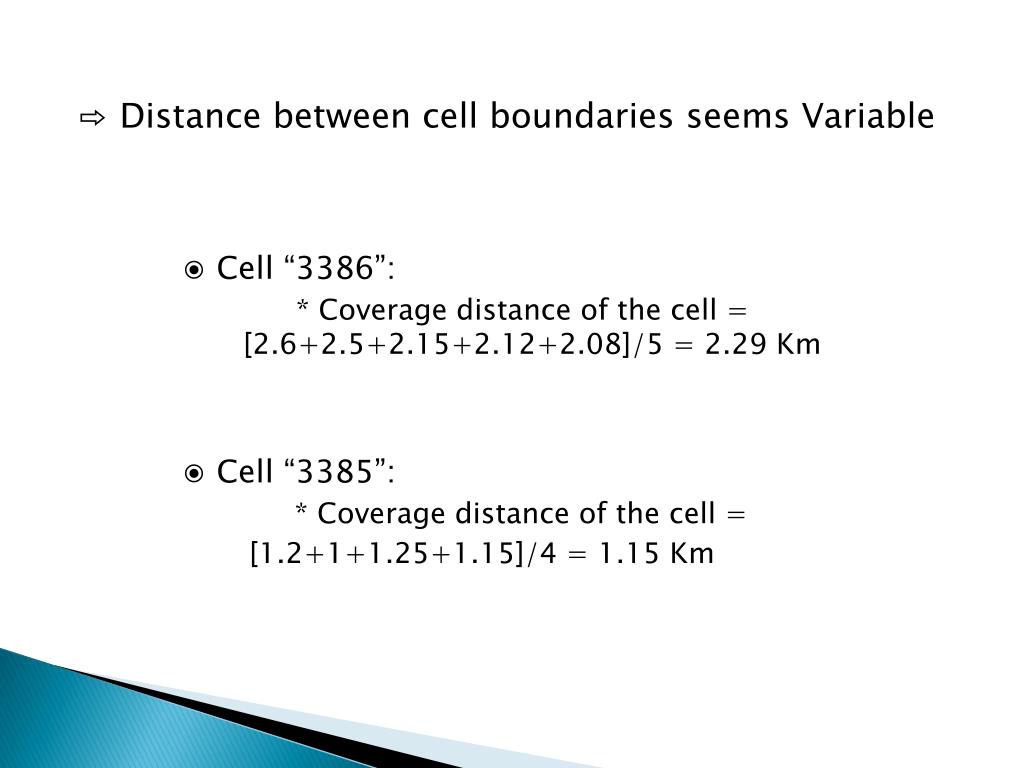

  28. ⇨ Distance between cell boundaries seems Variable ◉ Cell “3386”: * Coverage distance of the cell = [2.6+2.5+2.15+2.12+2.08]/5 = 2.29 Km ◉ Cell “3385”: * Coverage distance of the cell = [1.2+1+1.25+1.15]/4 = 1.15 Km

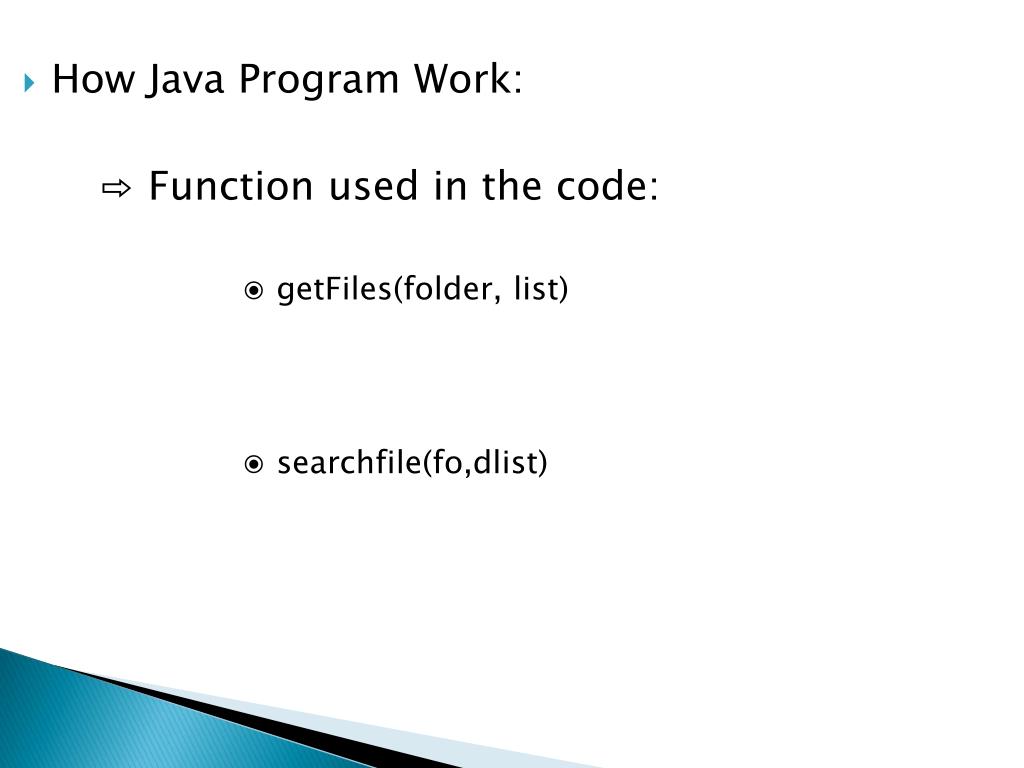

  29. How Java Program Work: ⇨ Function used in the code: ◉ getFiles(folder, list) ◉ searchfile(fo,dlist)

  30. ◉getcelltime(dlist,celltime) ◉ getsequence(celltime,pntarr,pntarrlength, fr) ◉getspeed(pntarr,pntarrlength,sectionspeed,fr)

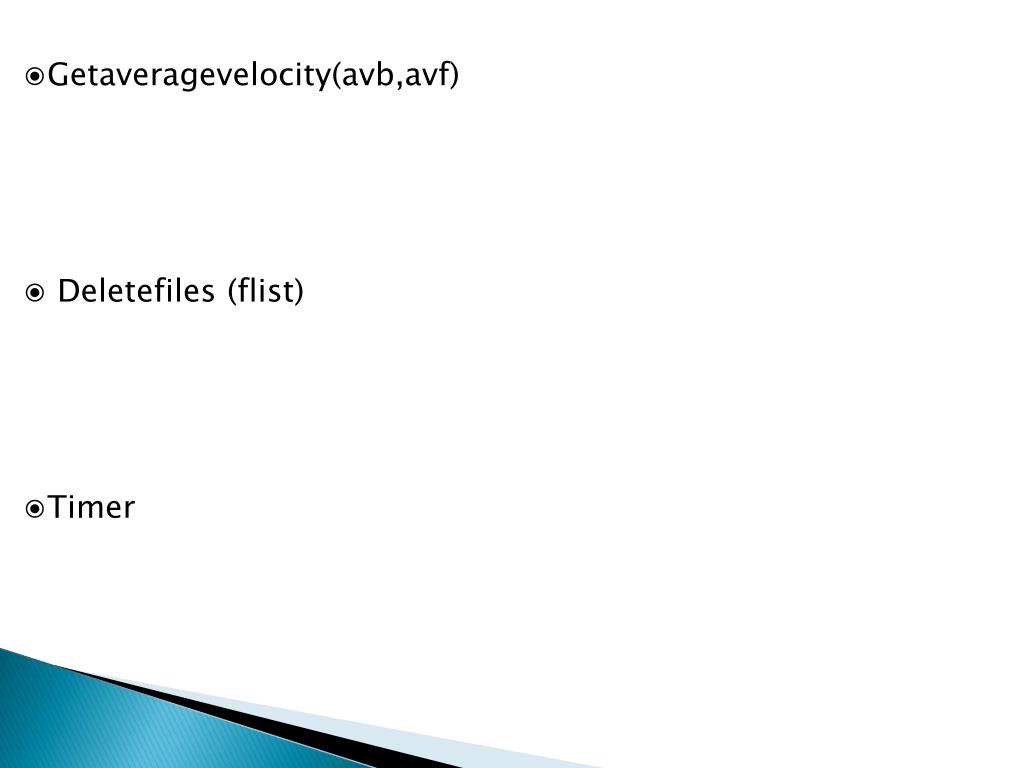

  31. ◉Getaveragevelocity(avb,avf) ◉ Deletefiles (flist) ◉Timer

  32. Market Segments That Will Be Interested In The Product/Service • Charge On Market Segment

  33. Actual Cost Of The Project • Financial Returns For Vodafone

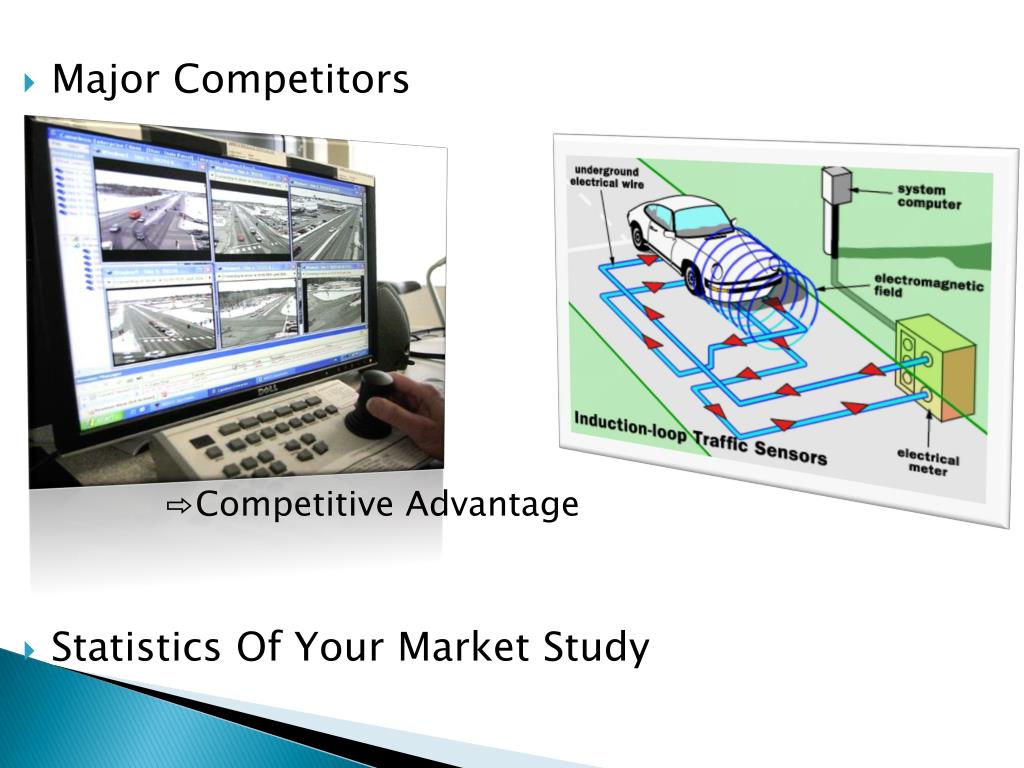

  34. Major Competitors ⇨Competitive Advantage • Statistics Of Your Market Study

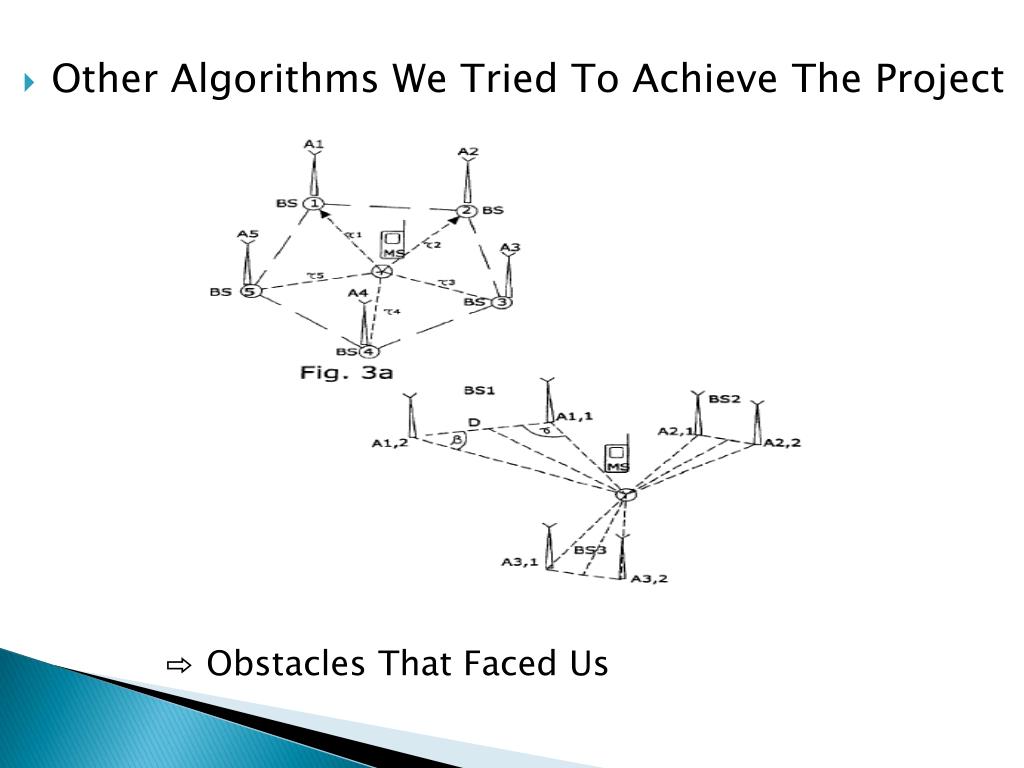

  35. Other Algorithms We Tried To Achieve The Project ⇨ Obstacles That Faced Us

  36. Future work ⇨ Increase The Accuracy of the Calculated Distance Between Cell Boundaries ⇨ Implement It On Other Roads
