  1. LAS SALINASCONDOMINIUMS Key West Florida

  2. Featuring A Sprayed Polyurethane Roof System Applied To Concrete

  3. Installed By WeatherTight Roofing

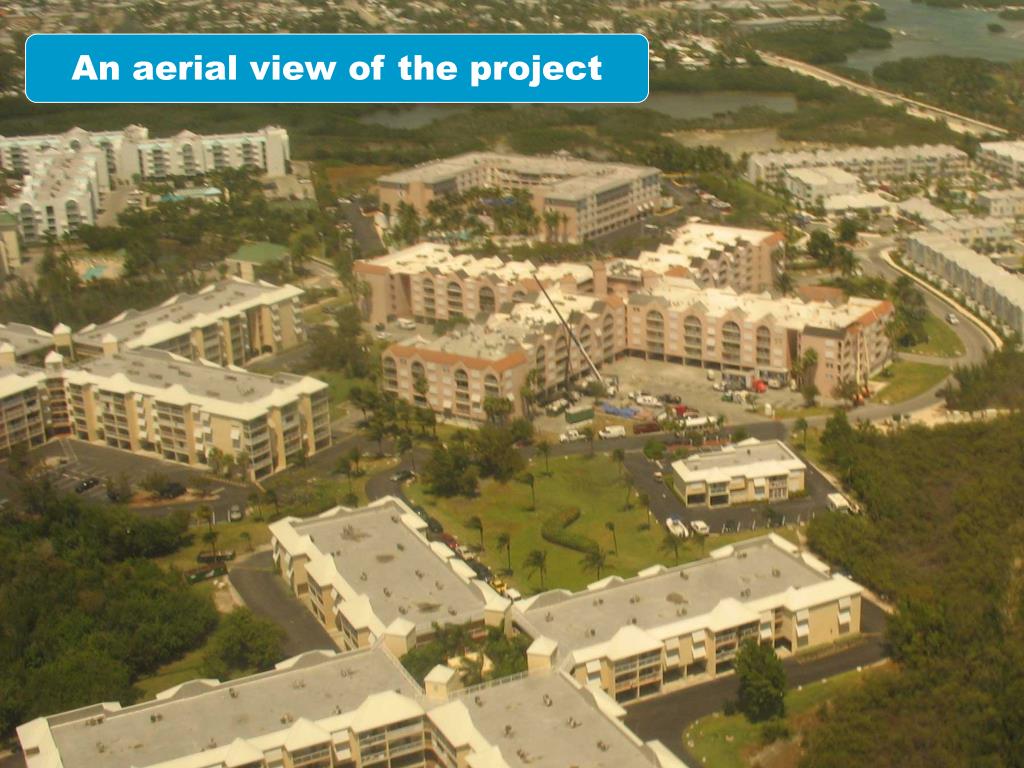

  4. An aerial view of the project

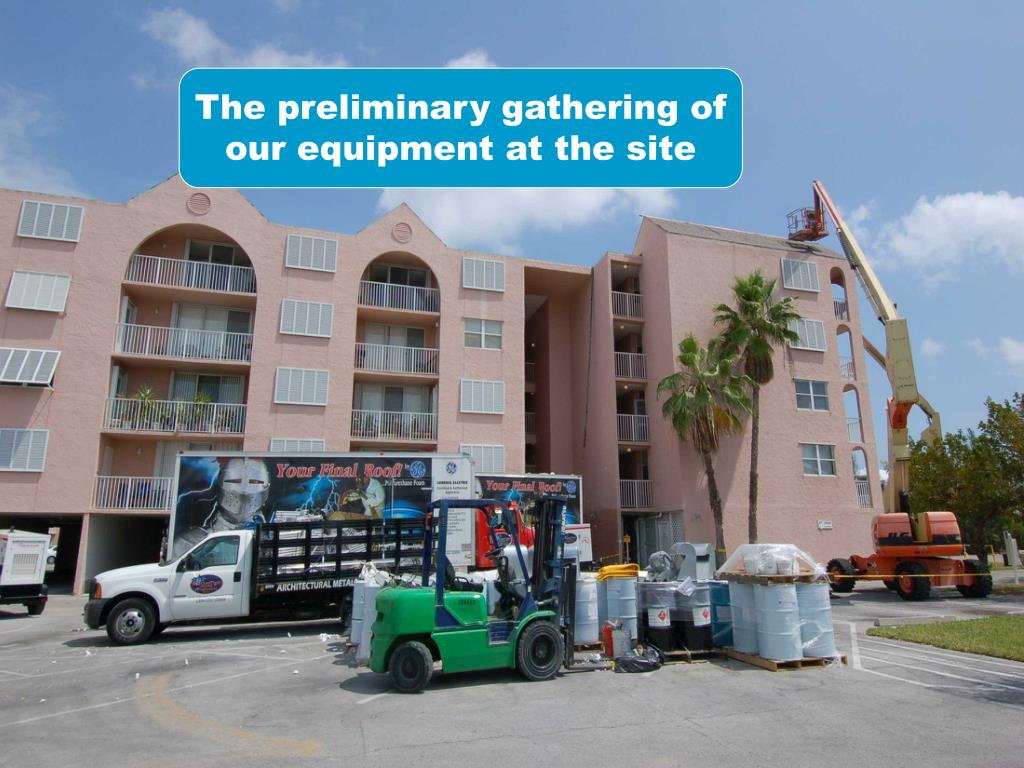

  5. The preliminary gathering of our equipment at the site

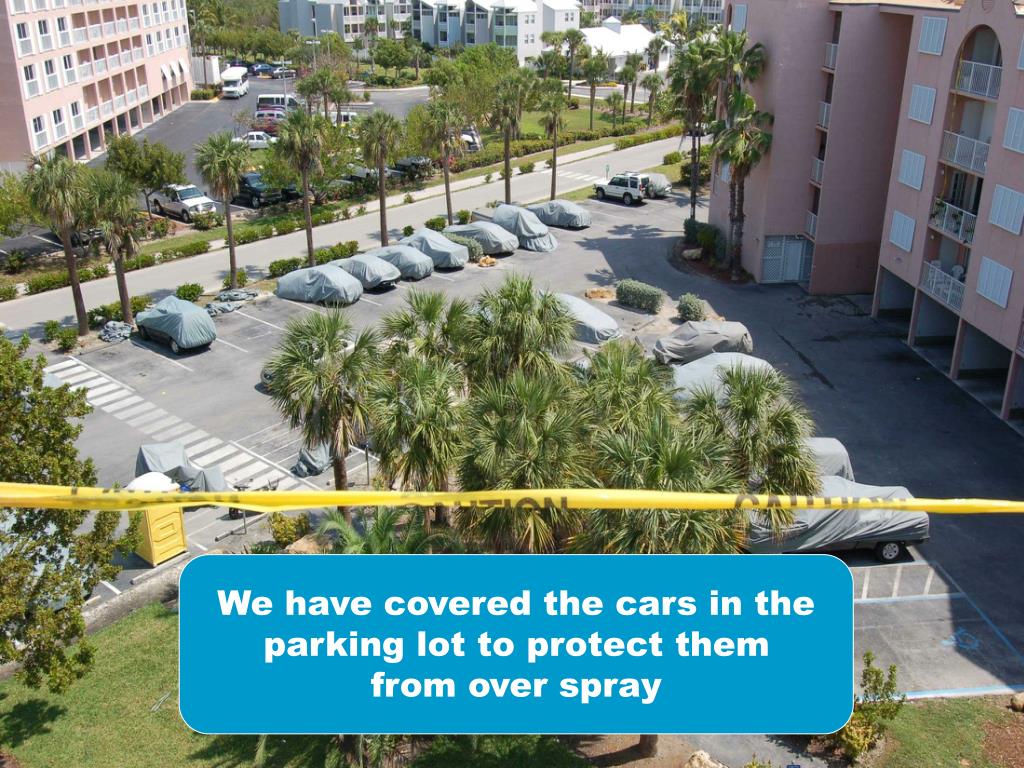

  6. We have covered the cars in the parking lot to protect them from over spray

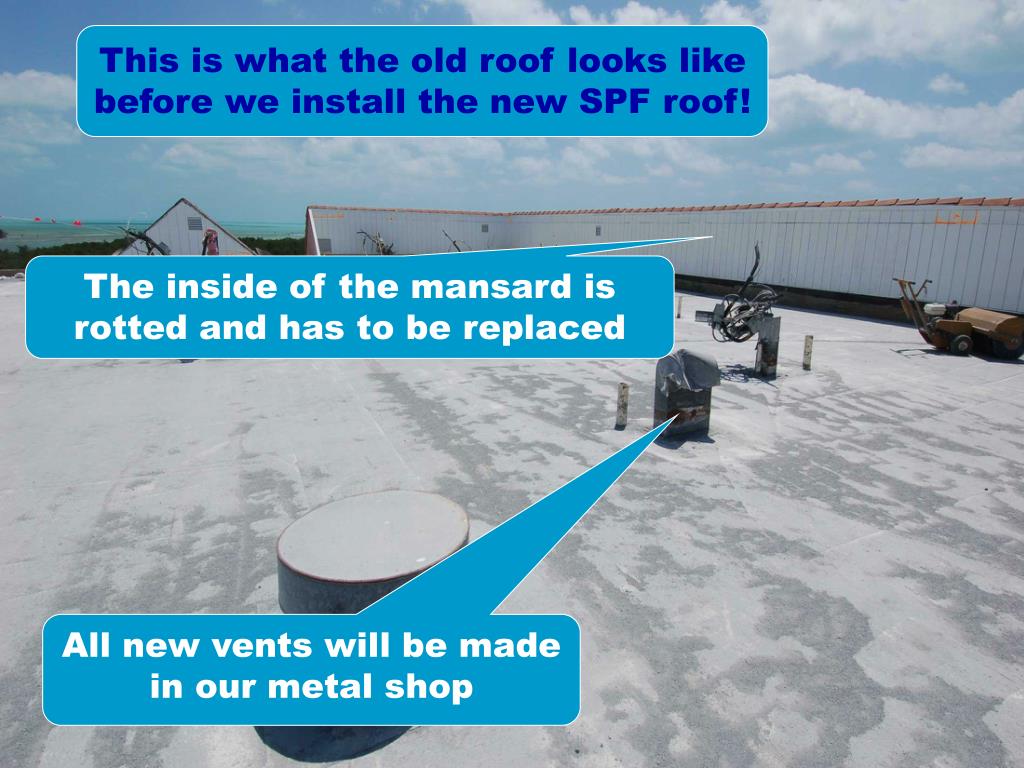

  7. This is what the old roof looks like before we install the new SPF roof! The inside of the mansard is rotted and has to be replaced All new vents will be made in our metal shop

  8. The inside of the mansard has been ripped apart and will be rebuilt

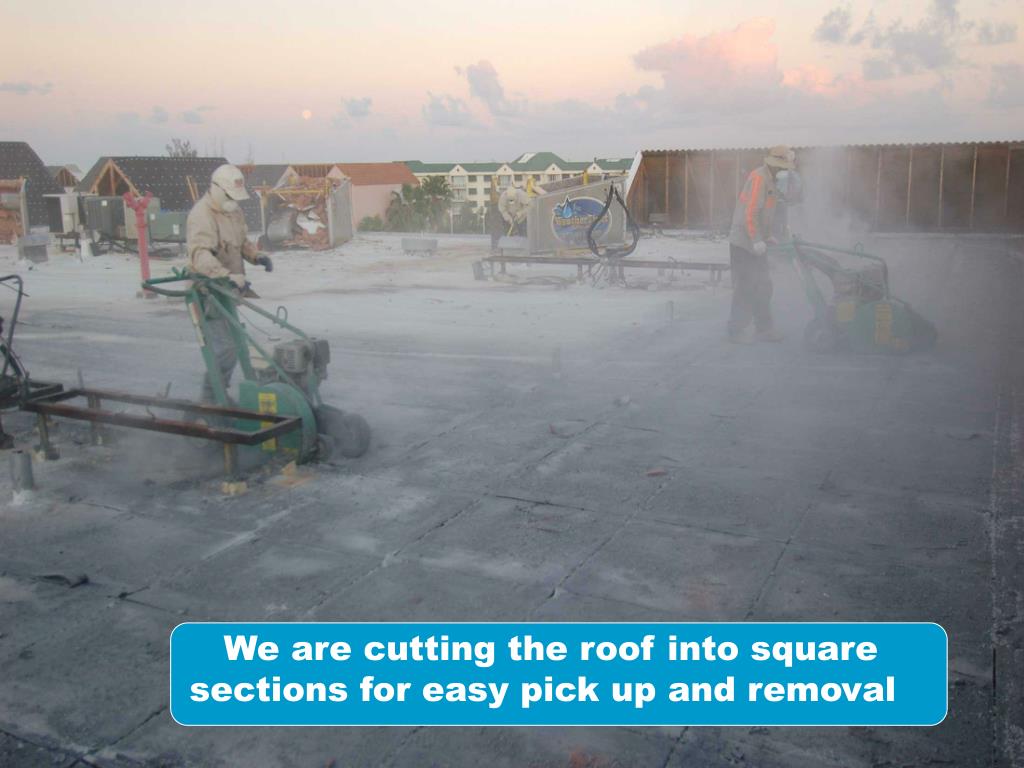

  9. We are cutting the roof into square sections for easy pick up and removal

  10. Our Bobcat starts digging up the concrete roof

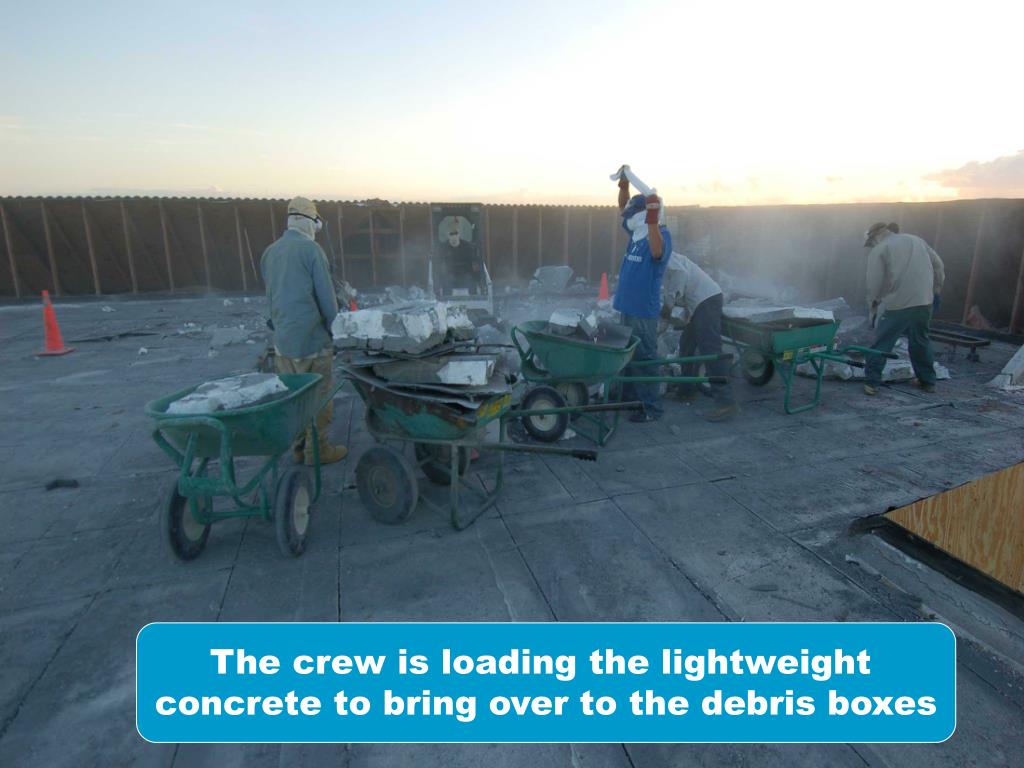

  11. The crew is loading the lightweight concrete to bring over to the debris boxes

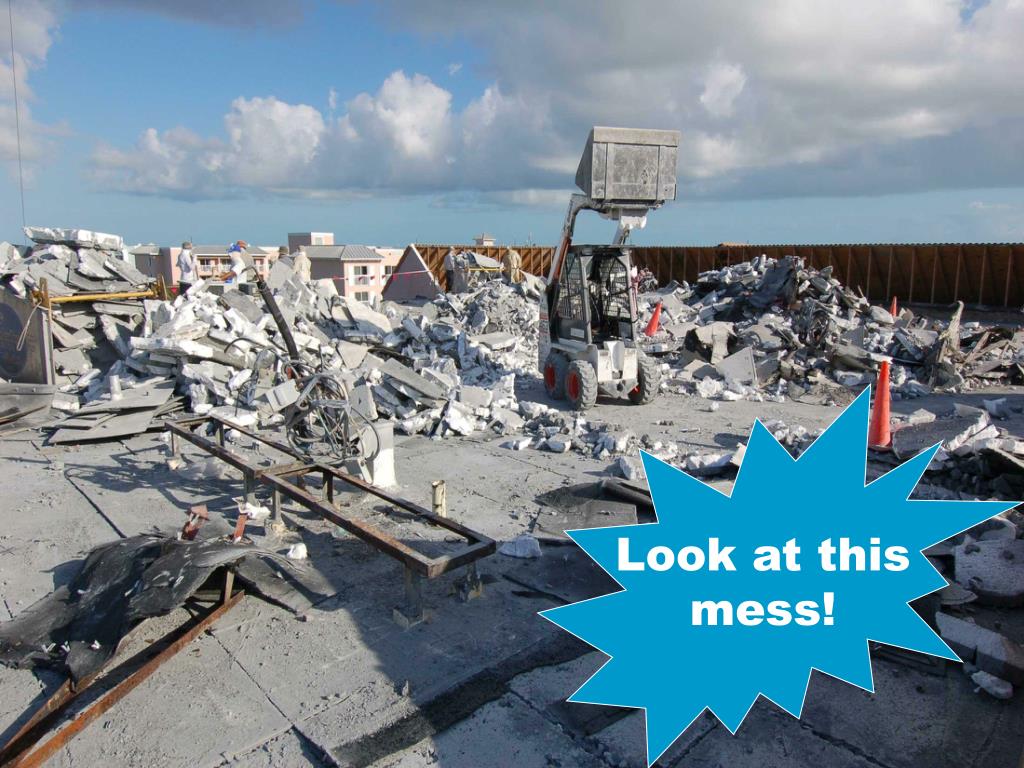

  12. Look at this mess!

  13. Here the guys are loading the slabs of lightweight concrete into our specially built debris boxes

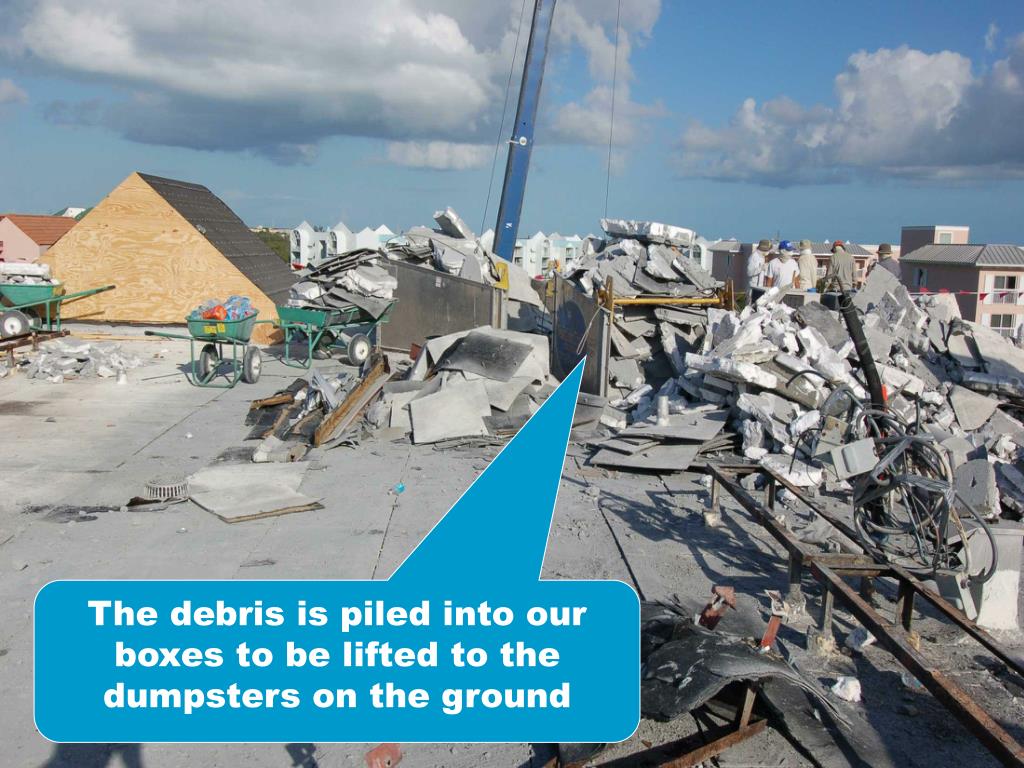

  14. The debris is piled into our boxes to be lifted to the dumpsters on the ground

  15. Our crane is lifting our custom built box to the dumpster below

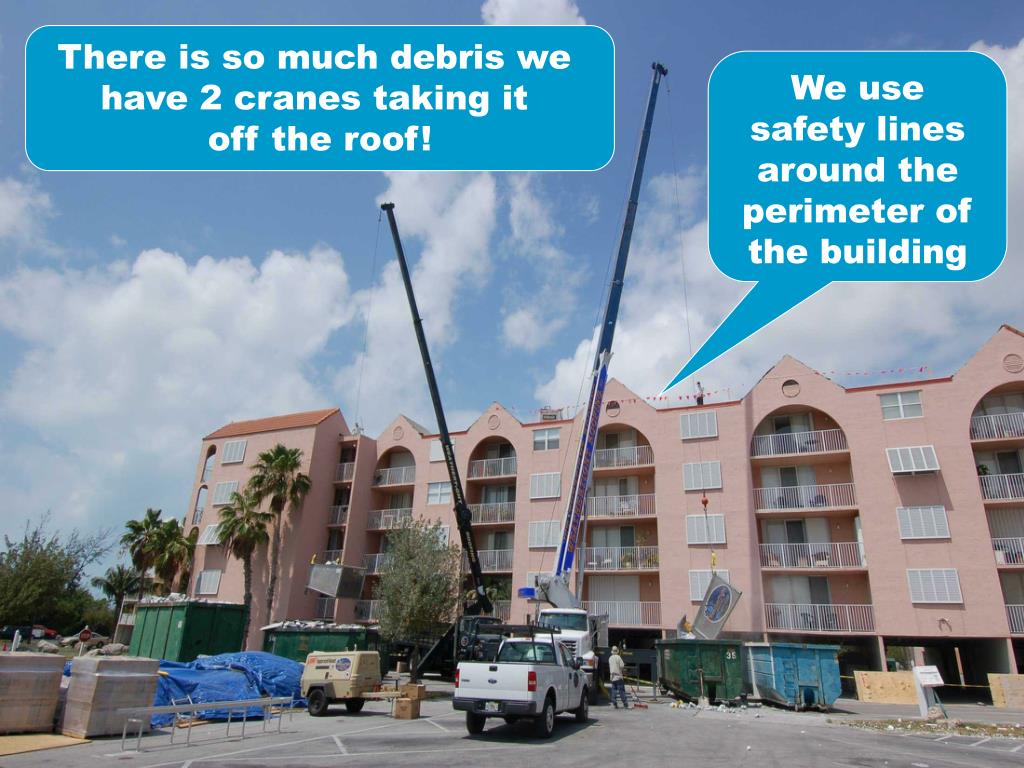

  16. There is so much debris we have 2 cranes taking it off the roof! We use safety lines around the perimeter of the building

  17. Another load to the dumpster

  18. These are the hurricane approved equipment stands waiting to be installed We are rebuilding the dormers

  19. The concrete is being scarified to prepare it for the primer coat

  20. We are starting to rebuild the mansard

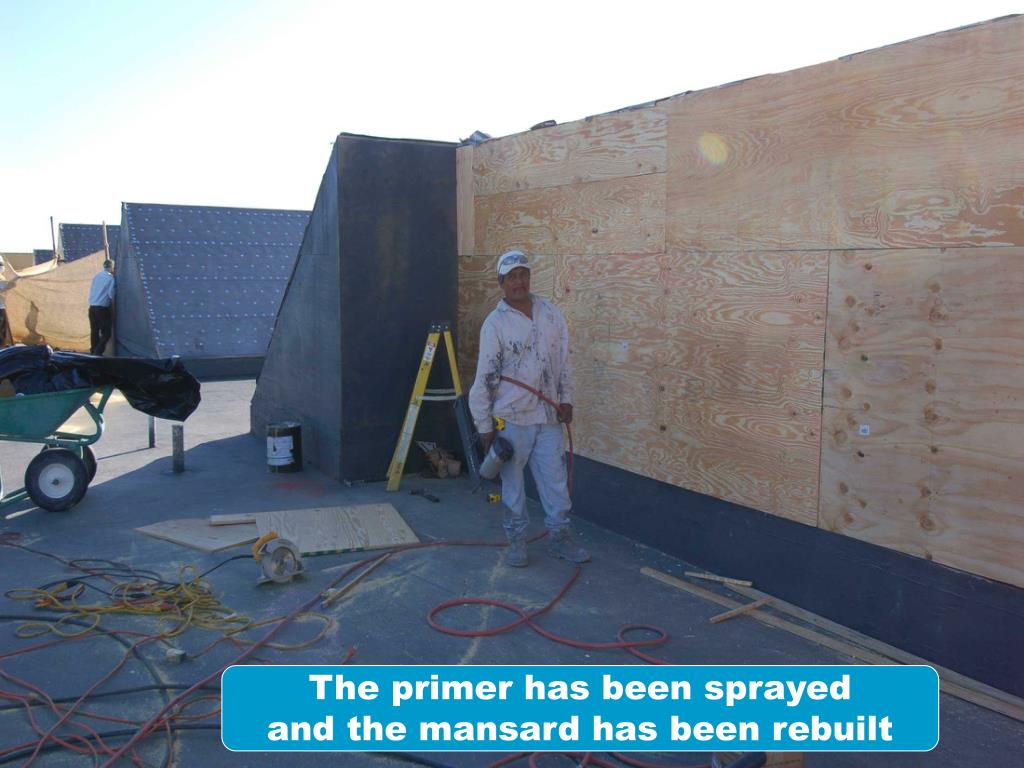

  21. The primer has been sprayed and the mansard has been rebuilt

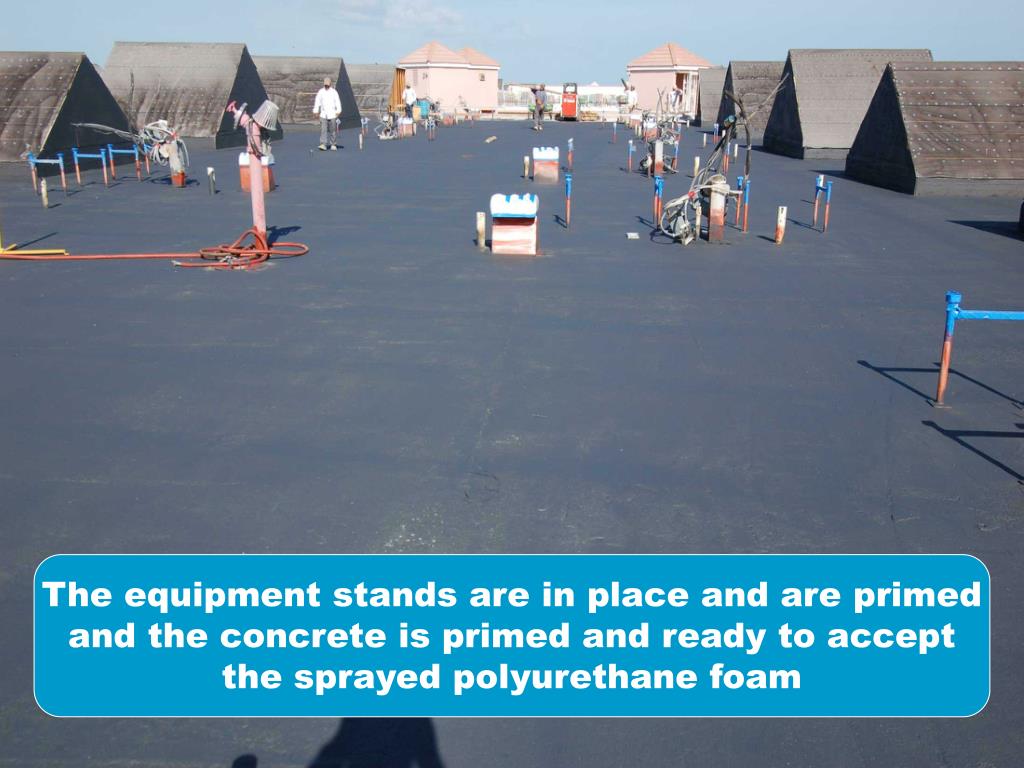

  22. The equipment stands are in place and are primed and the concrete is primed and ready to accept the sprayed polyurethane foam

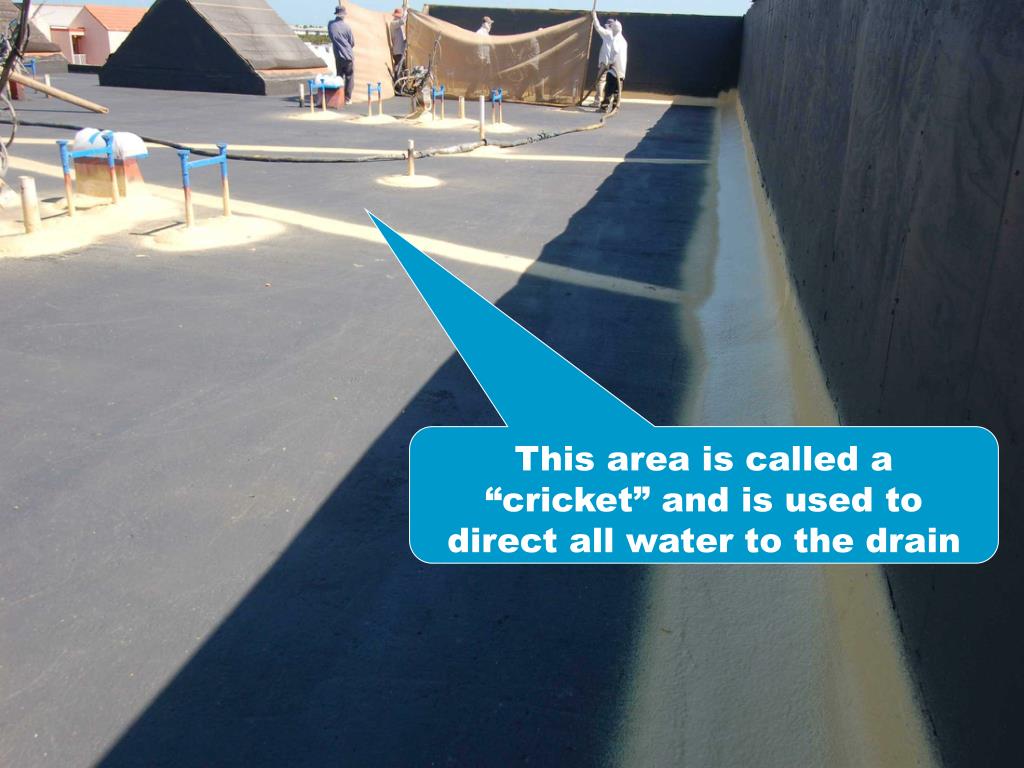

  23. This area is called a “cricket” and is used to direct all water to the drain

  24. We foam in all the protrusions first A “cricket” These are the vents we custom make in our metal shop

  25. The white strips indicate how we will build up the foam for water drainage One of several drains Everything that sticks out of the roof is pre-foamed which will prevent future leaks

  26. We like to foam the corners first The screen they are holding prevents over spray

  27. We are always trying to prevent over spray

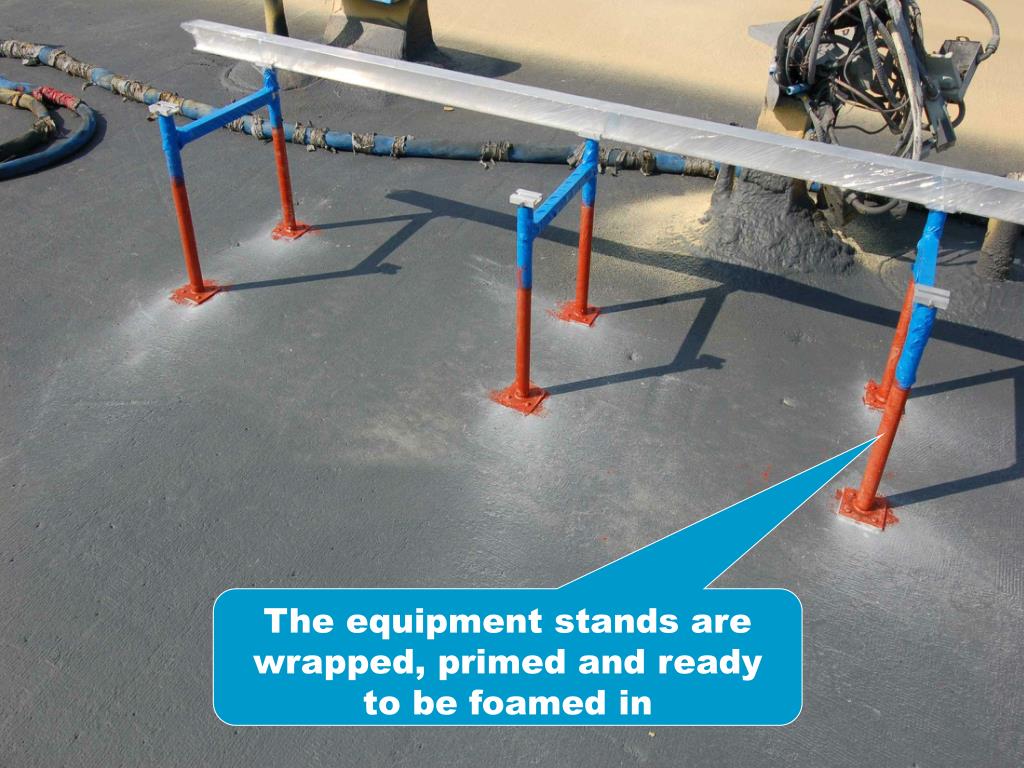

  28. The equipment stands are wrapped, primed and ready to be foamed in

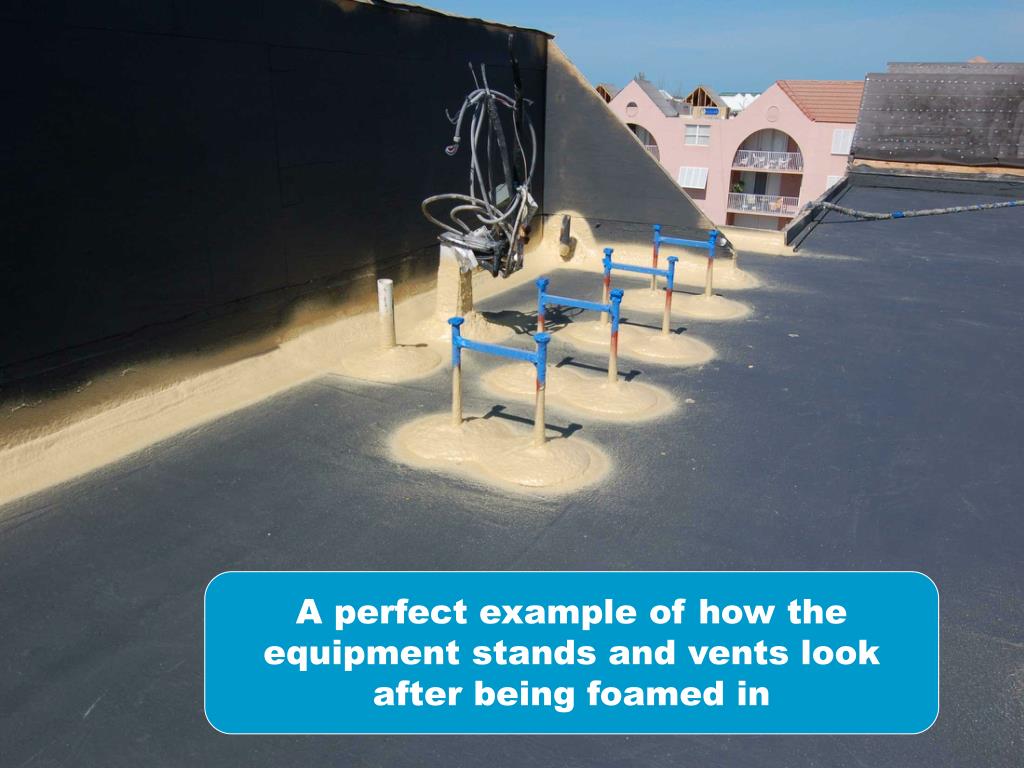

  29. A perfect example of how the equipment stands and vents look after being foamed in

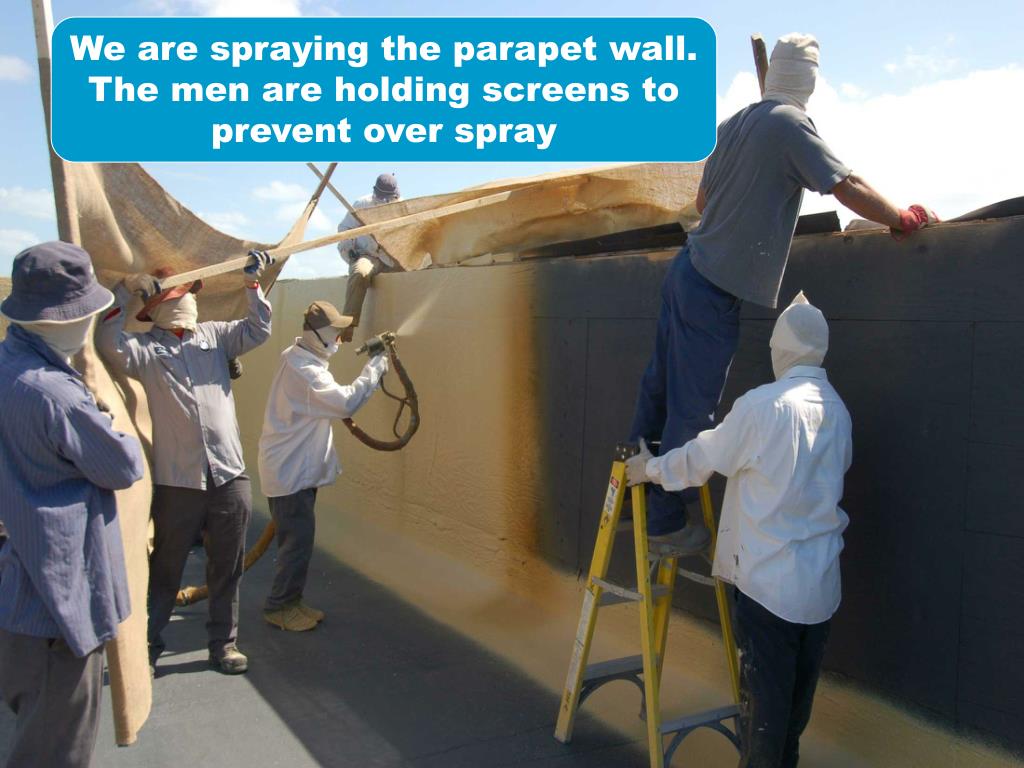

  30. We are spraying the parapet wall. The men are holding screens to prevent over spray

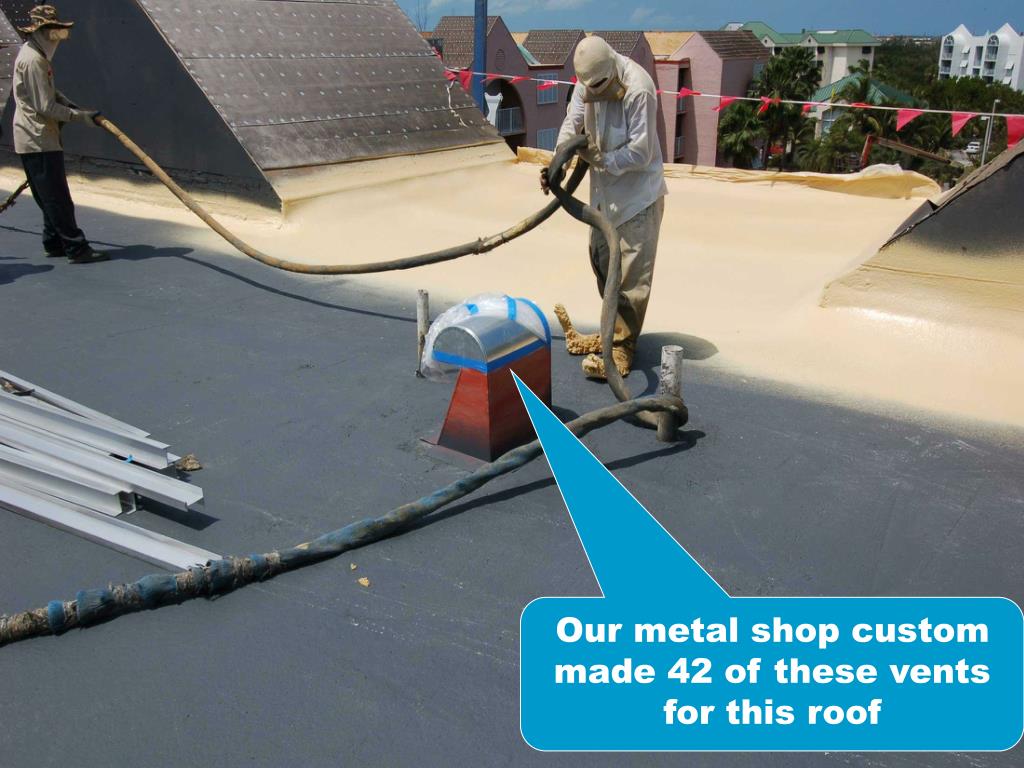

  31. Our metal shop custom made 42 of these vents for this roof

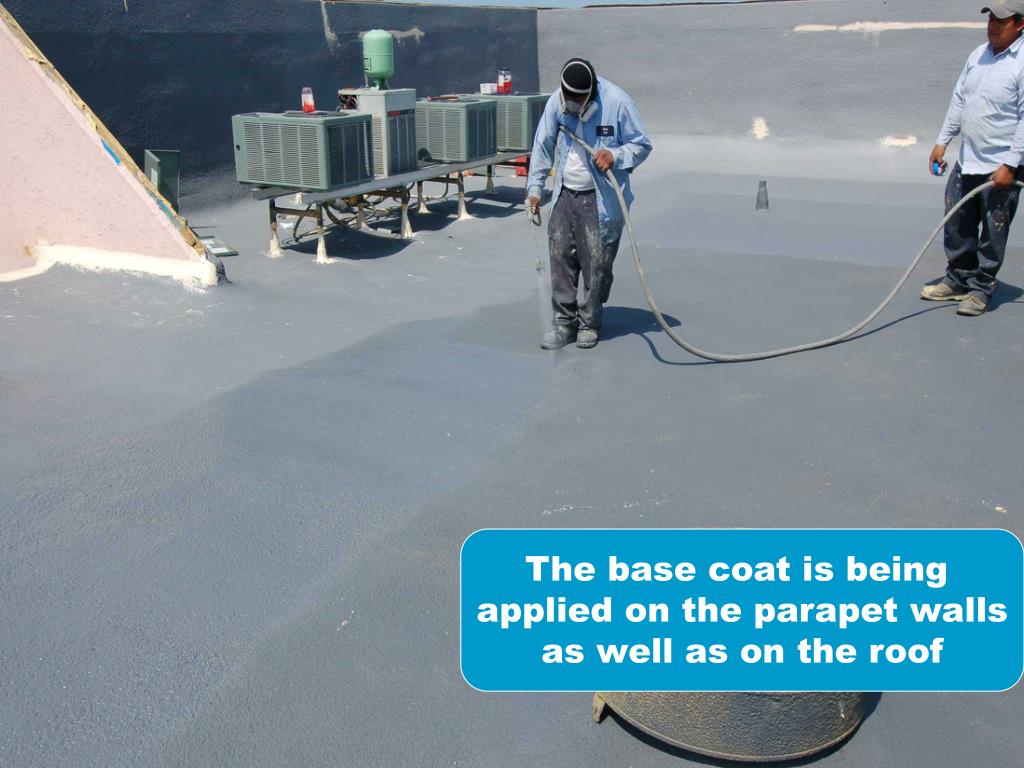

  32. The base coat is being applied on the parapet walls as well as on the roof

  33. A first pass of foam over the silicone

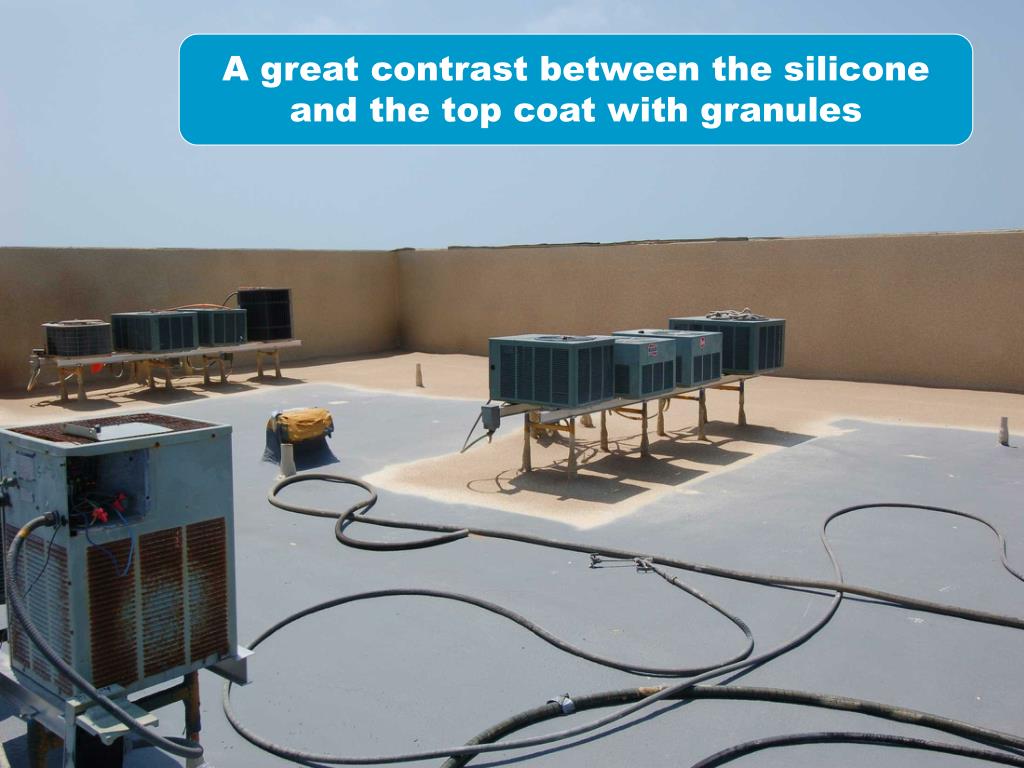

  34. A great contrast between the silicone and the top coat with granules

  35. This shows the preparation of our 3”-2”-1” water management system This broad tan area will have 3” of foam. The gray area will have 2” of foam and then there will be 1” of foam in the small box around the drain. This will insure positive water drainage!

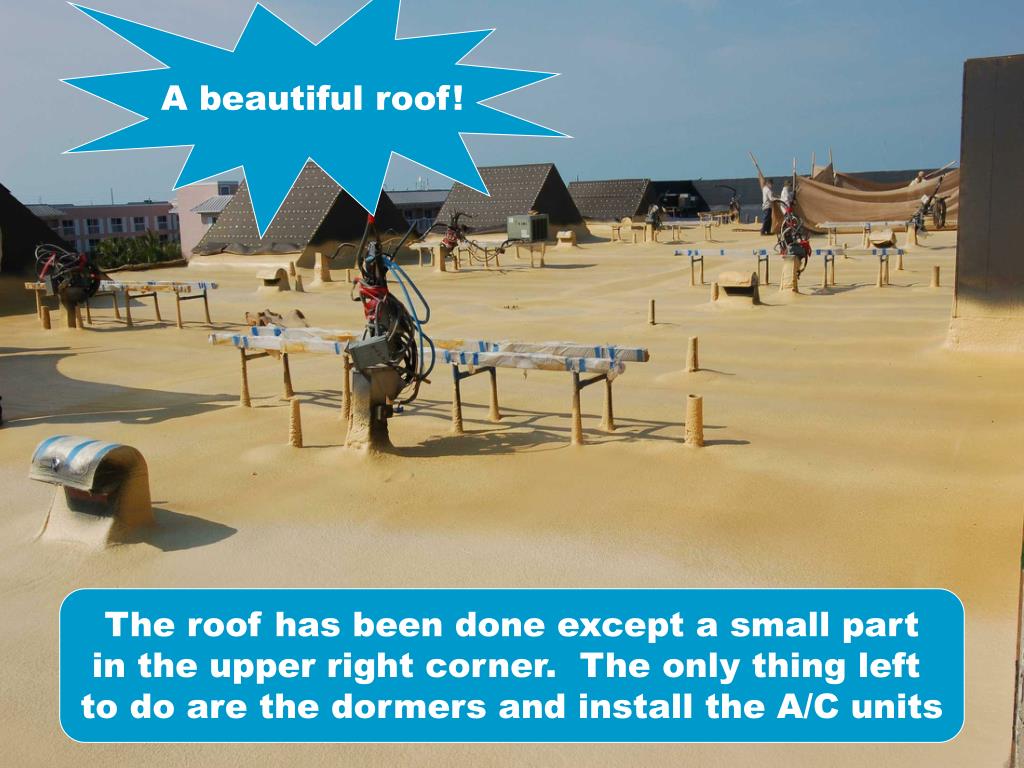

  36. A beautiful roof! The roof has been done except a small part in the upper right corner. The only thing left to do are the dormers and install the A/C units

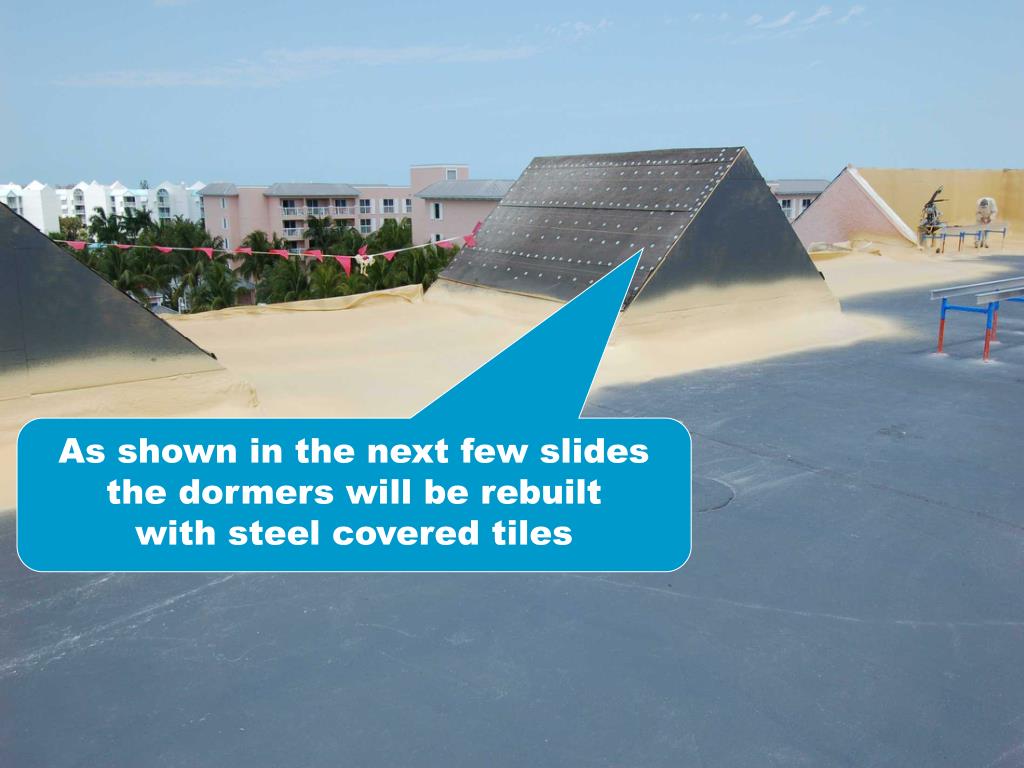

  37. As shown in the next few slides the dormers will be rebuilt with steel covered tiles

  38. The finishing touches are now being completed and the dormers are ready for the tile installation

  39. The tiles are being fitted

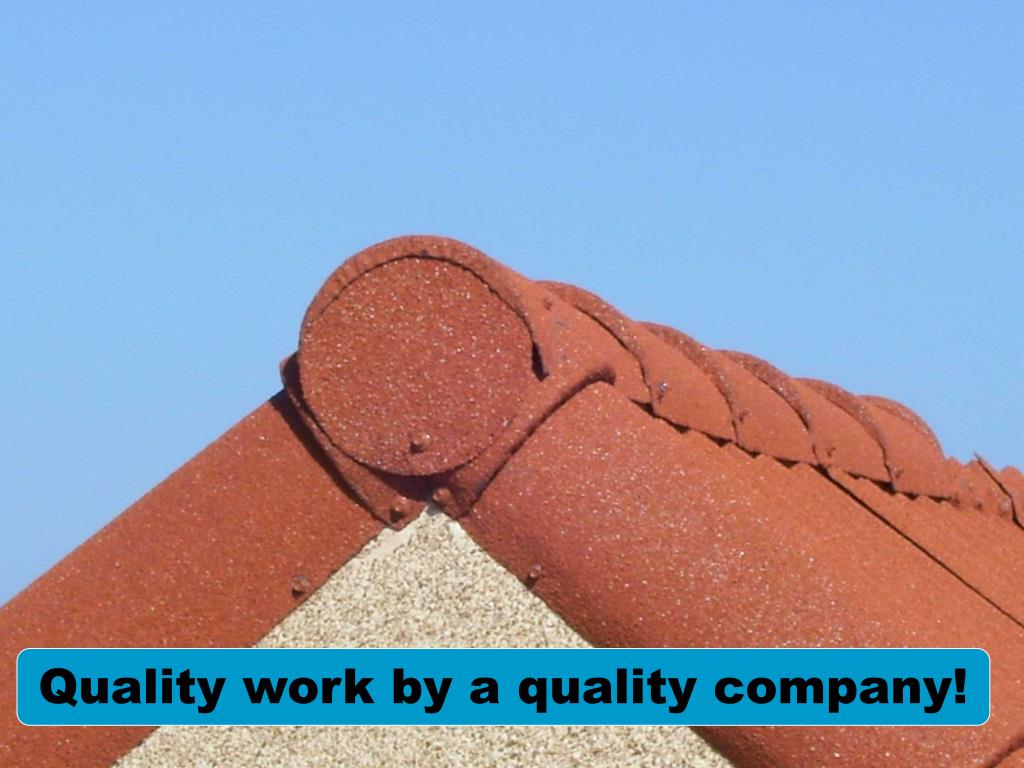

  40. Quality work by a quality company!

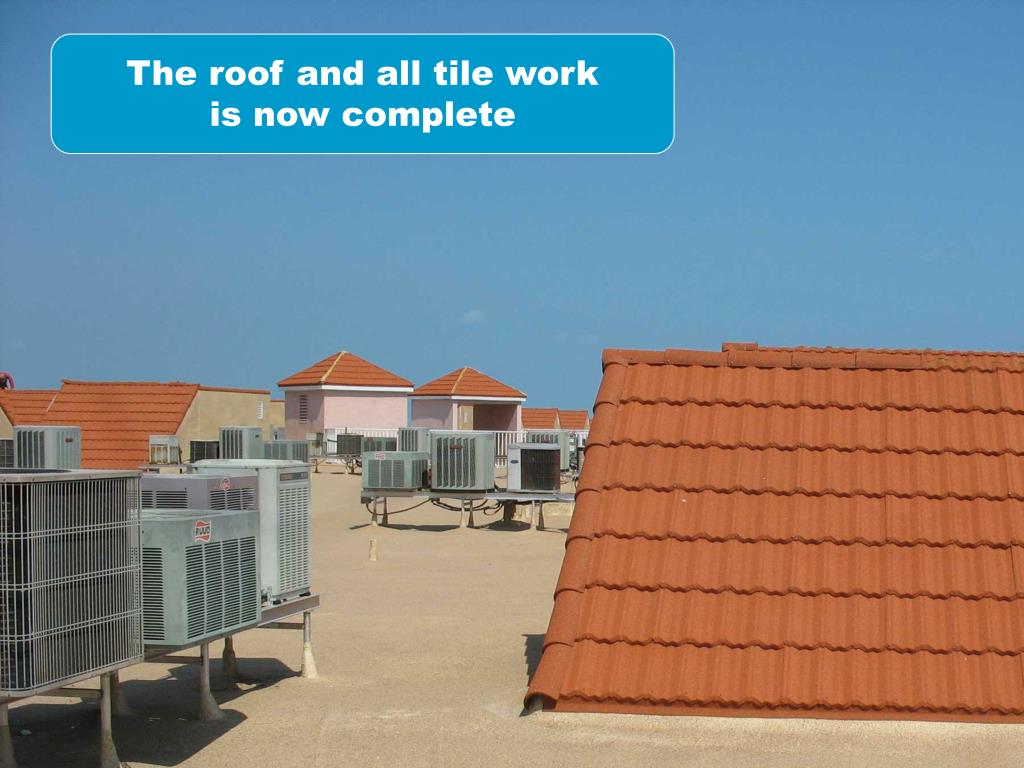

  41. The roof and all tile work is now complete

  42. The End

  43. WAIT! There’s More!!!

  44. WE CANGUARANTEE!

  45. YOUR POLYURETHANEFOAM ROOFWILL NOT BLOW OFF

  46. Even in a CategoryFive Hurricane!

  47. IT SOUNDS TOOGOOD TO BETRUE…

  48. BUT! IT IS TRUE!

  49. BAYERAGThe Global Fortune 500 Company And Its North American Subsidiary BAY SYSTEMS NORTH AMERICA

  50. Along WithWeatherTight Roofing “FOR TWO YEARS IN A ROW THE TOP APPLICATOR IN THE US”
