  1. Announcements • This week’s lab: NAAP Variable Star Photometry. Download the Student Guide http://astro.unl.edu/naap/vsp/naap_vsp_sg.pdfand do all parts of it. Due in 3 weeks. • Homework: Chapter 5 # 1, 2, 5, 6, 8 & 9 • No class next Monday, I’ll be at Kitt Peak. Week after that is Fall Break so we won’t meet again for three weeks. Next class meeting is October 22. So, check out a Dobs so you can do the Moon lab over the next three weeks. It will be due Monday October 22.

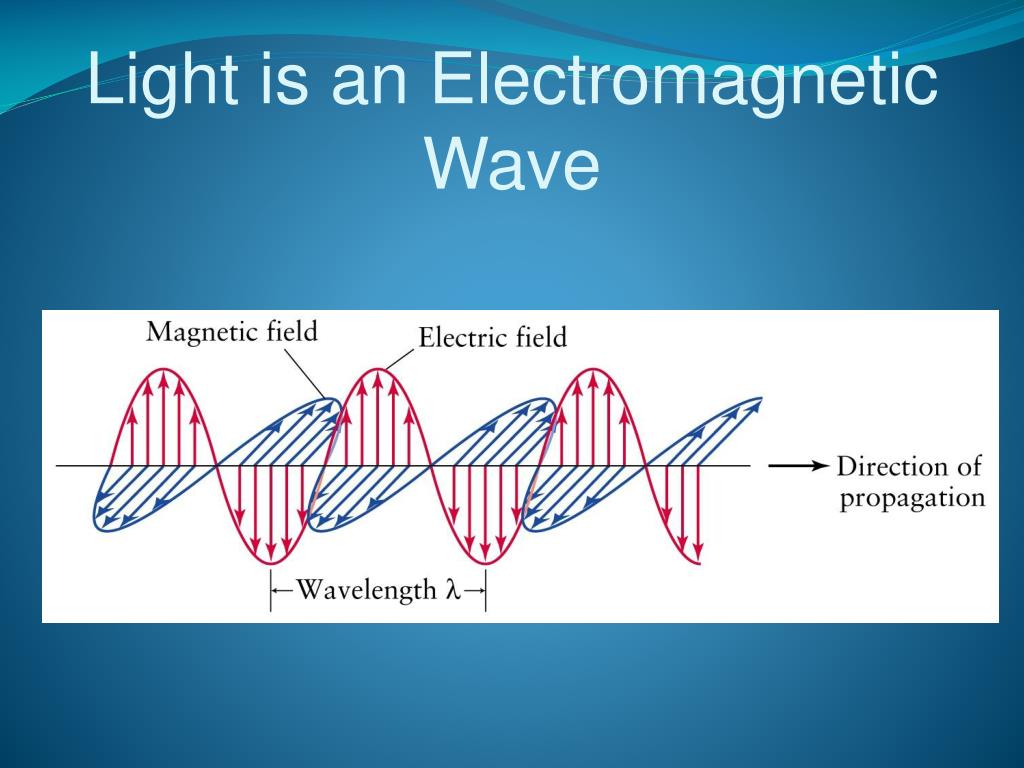

  2. Light is an Electromagnetic Wave

  3. Basic Properties of Waves Wavelength = l in metersFrequency = nin cycles per second or Hertz (Hz)Speed = c in meters per second

  4. Each “color” is characterized by its wavelength Using c = lnwe can see that the frequency of visible light is in the 1014 Hz range

  5. Visible light is only a very small part of the Electromagnetic Spectrum

  6. Magnitude Originally devised by Hipparchus around 140 BC. Based on when stars become visible after sunset. Sunset to astronomical twilight (complete dark) is divided into six equal time periods 1stmag…visible in first 2ndmag…visible in second 3rdmag…visible in third 4thmag…visible in fourth 5thmag…visible in fifth 6thmag…visible in sixth

  7. Modern definition of magnitude is based on light flux Note that this compares two stars. If a “zero point” is defined then where C is the zero point offset

  8. Zero Points N.R. Pogson, originator of the modern magnitude definition, proposed an average of the sixth magnitude stars in certain star catalogues . Result: mSirius = -1.6 North Polar Sequence…system of “standard stars” with known magnitudes to compare against mVega≡ 0.0 but problems with variability and dust leads modern values to mVega = 0.03 Most common systems now are standard star systems

  9. Absolute magnitude Defined as the magnitude of the object if it was located at a distance of 10 parsecs. This gives a distance (d) relationship between apparent magnitude (m) and absolute magnitude (M). Distance is measured in parsecs

  10. Types of Magnitude • Visual Magnitude (mv)…measured over the visible spectrum • Monochromatic magnitude(ml)…measured over a narrow wavelength range • Bolometric magnitude (mbol)…measured over the entire E/M spectrum • Photographic magnitude (mpg)…magnitude measured with photographic plate

  11. Filter Systems Early 20th Century “filter” system was photographic (mpg) and visual (mv) 1950’s H. L. Johnson & W. W. Morgan added an ultraviolet (mU) and converted photographic to “blue” (mB) for the UBV system Alan Cousins work with GaAs photomultipliers which are sensitive in red and IR adds R and I for Johnson-Cousins UBVRI system J. A. Smith et al use mostly non-overlapping filter system for SDSS…ugriz

  12. Johnson-Cousins Filter System

  13. SDSS Filter System

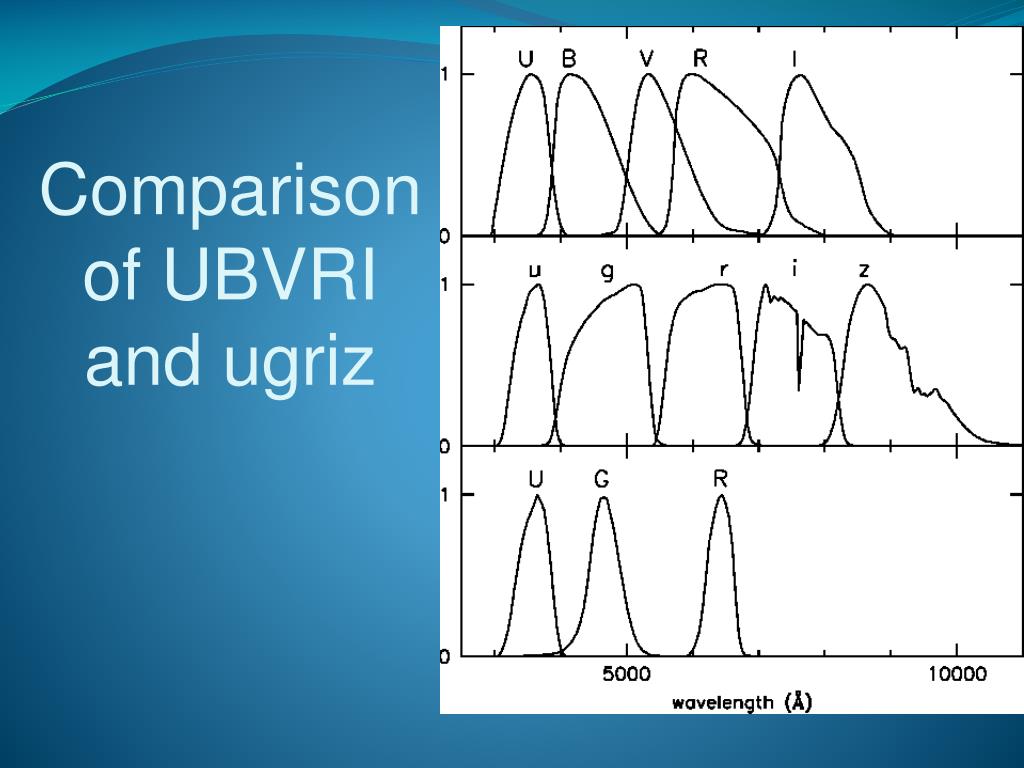

  14. Comparison of UBVRI and ugriz

  15. Flux Amount of light energy per unit area per unit time in a specific wavelength band Recall that

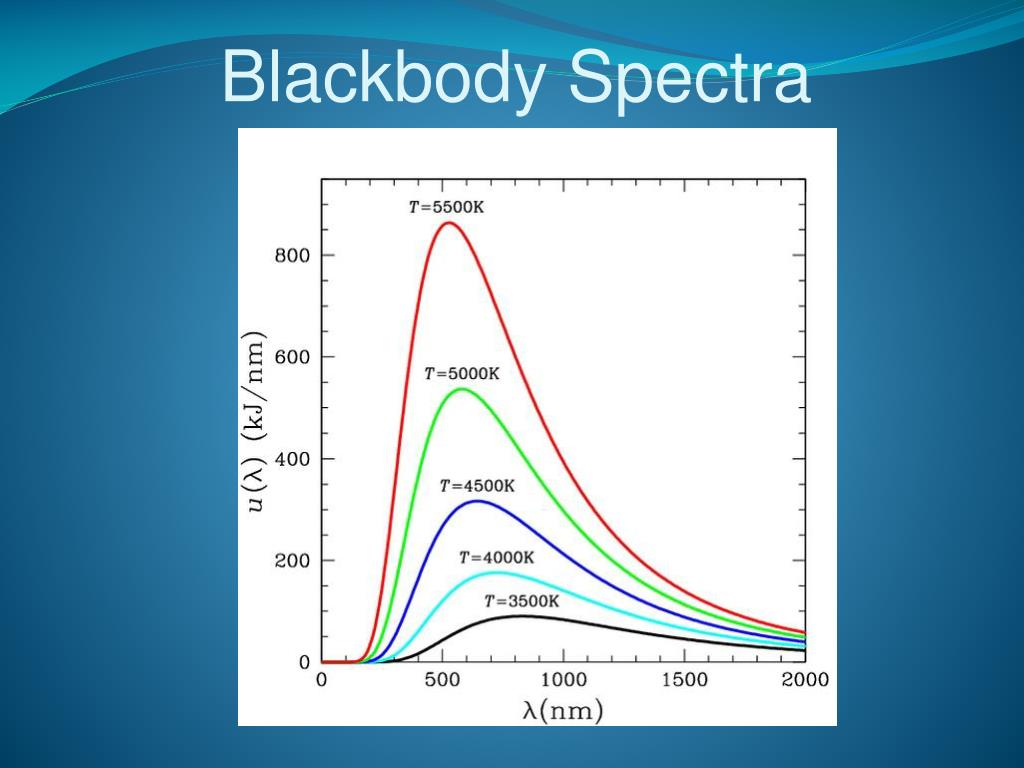

  16. Blackbody Spectra

  17. Two laws govern blackbody radiation Wein’s Displacement Law Where T is in Kelvin and l is in meters Planck’s Law with B in Watts per square meter per Hz per steradians or Watts per square meter per meter per steradians, T in Kelvin, c in meters per second and l is in meters. h is Planck’s constant and k is Boltzmann’s constant

  18. Stellar Classification Annie Jump Cannon developed a stellar classification system based on temperature and the women of Harvard Observatory classified hundreds of thousands of stars. The project spanned several decades and was funded by a grant from the widow of Henry Draper. The resulting catalogue is the Henry Draper Catalogue

  19. Stellar Classification Scheme
