Vdx outstanding features

VDX :Outstanding features

TO EmBEdded ORNOTTO EmBEdded

Prepared by: Stanny Hsu


Contents
Contents

Vortex86DX

Sales points

Sales points:

VDX series with outstanding features

New Product :

VDX and VSX CPU board

New

Product

New Business Model :

We offer Special customized 3.5” CPU board

New Business Model



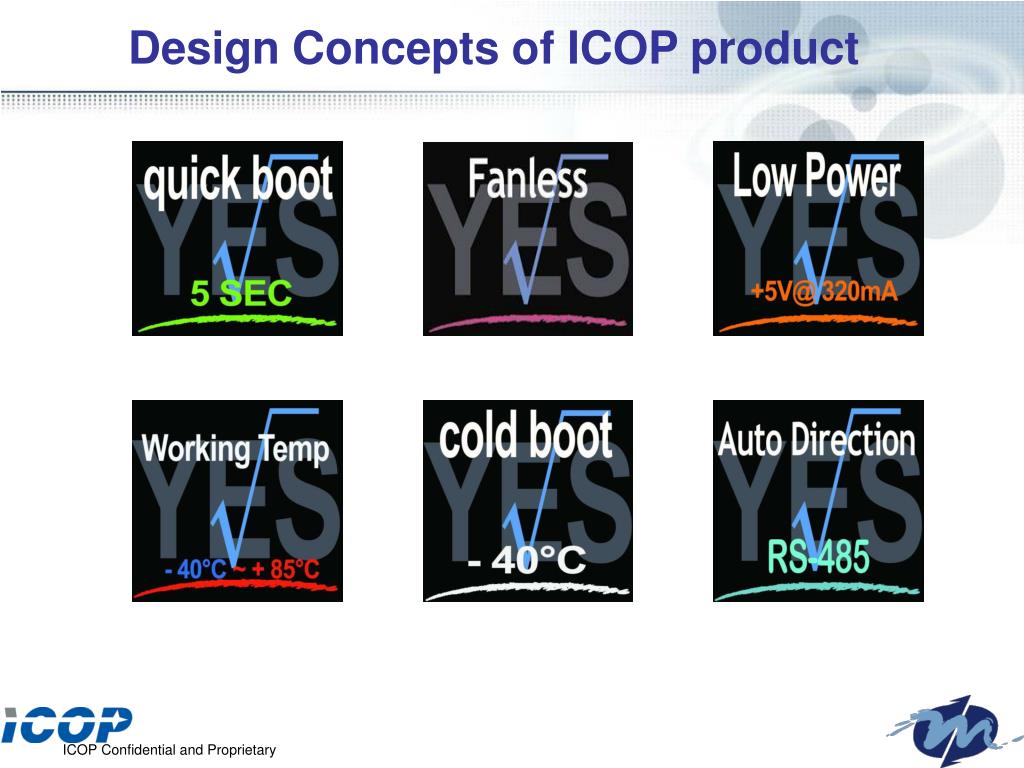

Sales points of vdx series

Sales points of VDX series

TO EmBEdded ORNOTTO EmBEdded


1 0 sales points of vdx
1.0: Sales points of VDX

  • 10 years life-cycle support

  • Vortex86DX

Launched 2008

  • Vortex86SX

Launched 2007


1 1 sales points of vdx

VDX-DIP-ISA

VDX-6316

VDX-6350E

1.1: Sales points of VDX

  • Low power consumption ([email protected])----1.6W

  • Single voltage +5V Input (DC)

  • DC Power Input tolerance: +4.75V DC to +5.25V DC (±5%)

[email protected]

[email protected]

[email protected]


1 2 sales points of vdx
1.2: Sales points of VDX

  • Cold boot at- 40 °C


1 3 sales points of vdx
1.3: Sales points of VDX

  • Wide Operating Temp. (-40 °C ~ +85 °C)


1 4 sales points of vdx
1.4: Sales points of VDX

  • Built-in PWM x 16~32 Channels (GP0/GP1/GP2/GP4)

  • Sample code available


1 5 sales points of vdx
1.5: Sales points of VDX

  • Built-inI²C Bus (Inter-Integrated Circuit) x 2:

  • Sample code available

  • User can use GPIO P34/P35/P36/P37 to implement I²C protocol

  • GPIO_P0 &GPIO_P1 with interrupt support (input/output)

  • Approved Devices

    • ADI ADXL345 (3-axis accelerometer)

    • MEMSIC MXC6202 (2-axis accelerometer)

    • Honeywell HMC5843 (3-Axis Digital Compass)

    • Devantech SRF08 (UltraSonic Ranger)

  • CPU board:VDX-6315/6316/6318/6300/VDX-DIP-PCI/VDX-DIP-ISA

    support I²C Bus

  • Wii Joystick

    UltraSonic Ranger


    1 6 sales points of vdx
    1.6: Sales points of VDX

    Self-define ID for software protection

    ISO-in- Chip for production tracking


    1 7 sales points of vdx
    1.7: Sales points of VDX

    • Built-in SD card controller

    • IDE to Micro SD adapter (Support SDHC)

    44pins IDE to Micro SD adapter


    1 8 sales points of vdx
    1.8: Sales points of VDX

    • Built-in MTBF Flag Counter (655xx Hours) for the life cycle of CPU.

    • It’s highly recommended to replace a new board when

      MTBF LED is flashing.

    MTBF LED


    1 9 sales points of vdx
    1.9: Sales points of VDX

    • Console Redirection Support:

      • BIOS setting

      • Hardware setting: Jumper setting with GPIO P3 bit7


    1 9 1 sales points of vdx
    1.9.1: Sales points of VDX

    • COM 2: RS-232/485/422 is selected by BIOS setting

    • COM 1: (GPIO 4 /TTL/PWM are Optional)

    • COM 3 & COM 4: (TTL Optional)


    1 9 2 sales points of vdx
    1.9.2: Sales points of VDX

    • Serial Port can select more IRQ (3,4,5,6,7,9,11,12,14,15) setting on BIOS


    1 10 sales points of vdx
    1.10: Sales points of VDX

    • Add IRQ trigger type setting on BIOS:Engineer can select Level or Edge triggered interrupt from BIOS setting


    1 11 sales points of vdx

    320x240

    QVGA

    640x480

    VGA

    800x480

    7”LCD

    800x600

    SVGA

    TFT/LVDS

    1024x600

    8.9”/10.1”LCD

    1024x768

    XGA

    1.11: Sales points of VDX

    • TFT(18bits~24bits) & LVDS (18bits)Flat Panel support

    • We also support Special Resolution: 480x640

    3.5”~15” LCD Flat Panel


    1 12 sales points of vdx
    1.12: Sales points of VDX

    • SRAM support:512KB (Optional)

    • Target industry : Gaming and CNC industry

    • Sample code available

    • CPU board Support: VDX-6315/6316/VDX-6356/6357/

      VDX-6351/VDX-6324/VDX-6326/6327/6328/6329

    No Soldering

    Support SRAM


    1 13 sales points of vdx
    1.13: Sales points of VDX

    • Schematic available on ICOP website

    • Engineer can follow the Schematic to develop

      own baseboard

    VDX-DIP-PCI

    VDX-DIP-ISA

    VDX-6300

    VDX-6319-F


    2 0 operating system support

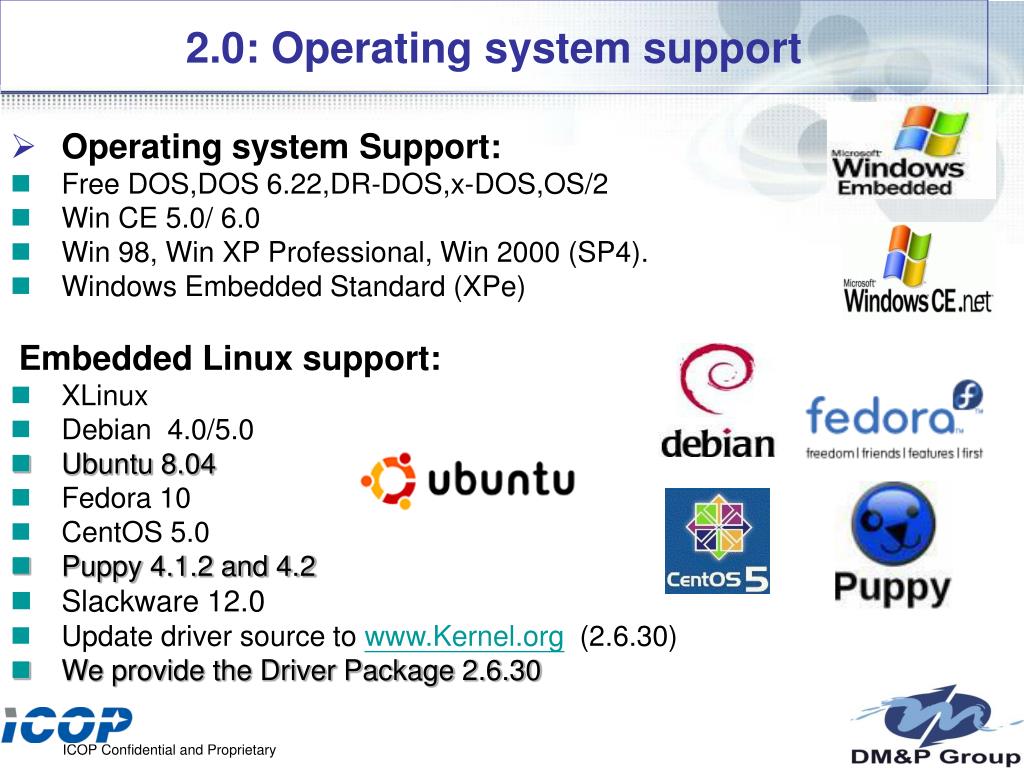

    2.0: Operating system support

    • Operating system Support:

    • Free DOS,DOS 6.22,DR-DOS,x-DOS,OS/2

    • Win CE 5.0/ 6.0

    • Win 98, Win XP Professional, Win 2000 (SP4).

    • Windows Embedded Standard (XPe)

    • Embedded Linux support:

    • XLinux

    • Debian 4.0/5.0

    • Ubuntu 8.04

    • Fedora 10

    • CentOS 5.0

    • Puppy 4.1.2 and 4.2

    • Slackware 12.0

    • Update driver source to www.Kernel.org (2.6.30)

    • We provide the Driver Package 2.6.30


    2 1 operating system support

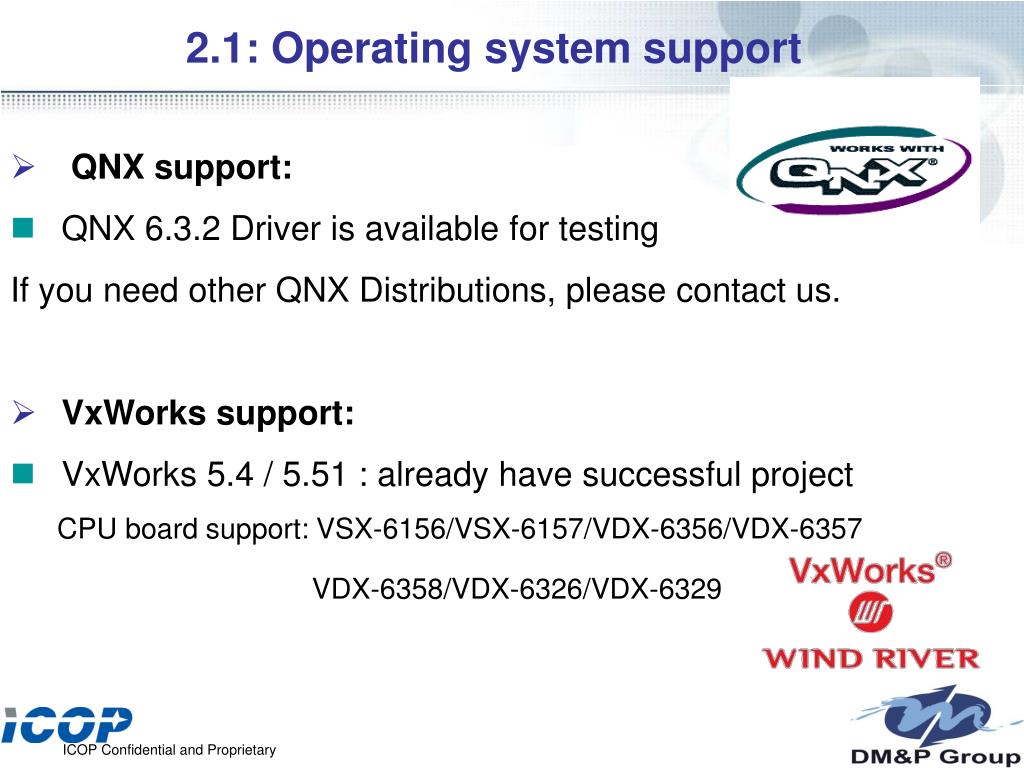

    2.1: Operating system support

    • QNX support:

    • QNX 6.3.2 Driver is available for testing

    • If you need other QNX Distributions, please contact us.

    • VxWorks support:

    • VxWorks 5.4 / 5.51 : already have successful project

      CPU board support: VSX-6156/VSX-6157/VDX-6356/VDX-6357

      VDX-6358/VDX-6326/VDX-6329


    New product 2010

    New Product :2010

    TO EmBEdded ORNOTTO EmBEdded


    2 1 vdx 6329 available now
    2.1: VDX-6329 (Available Now)

    • Compatible with VX86-6049-L26S

    • 3.5” come with Realtek RTL8100B LAN Chip x2

    • 256MB/6S/2USB/VGA/LCD/AUDIO/2LAN/CF/FDD


    2 2 pc104 1918 usb available now

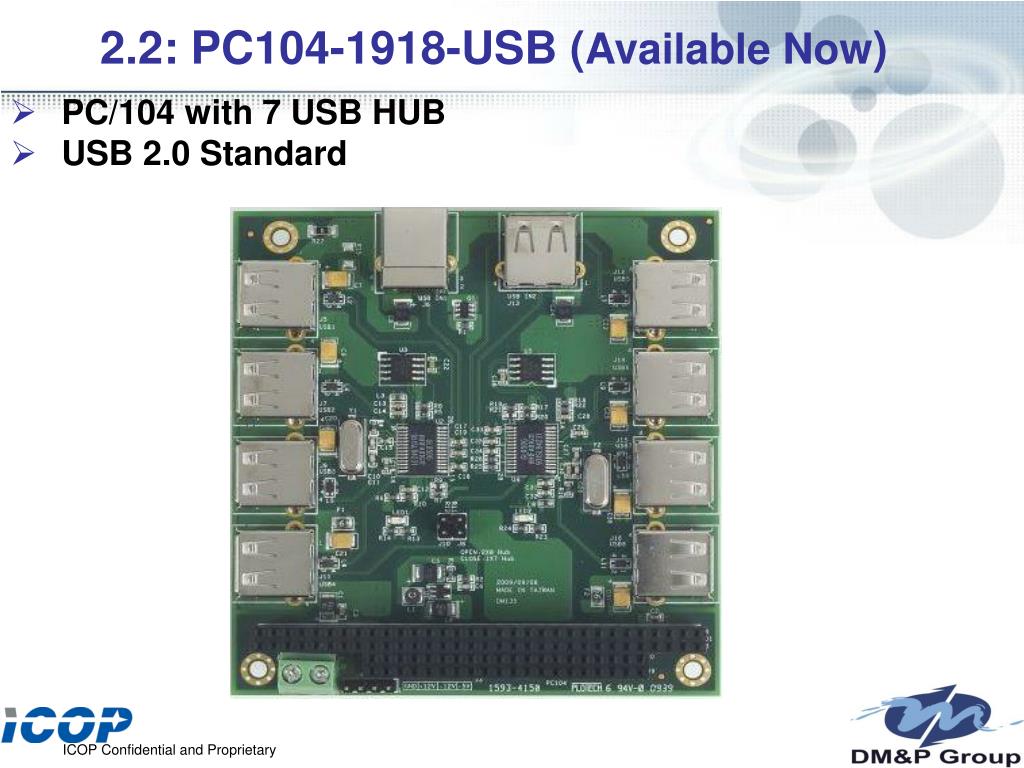

    2.2: PC104-1918-USB (Available Now)

    • PC/104 with 7 USB HUB

    • USB 2.0 Standard


    2 3 ide sata26 h available now
    2.3: IDE-SATA26-H (Available now)

    • 2.5” IDE to SATA Module

    • Converts Standard SATA to IDE interface

    • Complies with ATA/ATAPI-6 specification

    • Support 16-bit Multiword DMA mode and Ultra DMA mode interface.

    • Complies with Serial ATA specification rev. 2.6.


    2 4 vdx 6353 available now
    2.4: VDX-6353 (Available Now)

    • PC/104

    • 256MB/4S/2USB/VGA/LCD/LVDS/AUDIO/LAN/CF/GPIO/PWMx16

    LVDS

    CF


    2 5 vsx 6153 v2 available q3 2010
    2.5: VSX-6153-V2 (Available: Q3 2010)

    -PC/104

    -128MB/4S/2USB/VGA/LCD/LVDS/AUDIO/LAN/GPIO/CF

    LVDS

    CF


    2 6 vdx 6358 available q3 2010
    2.6: VDX-6358 (Available: Q3 2010)

    -PC/104 come with Realtek RTL8100B LAN Chip x2

    -256MB/4S/2USB/VGA/LCD/2LAN/GPIO/PWMx16

    LAN2

    LAN1

    RTL8100B

    RTL8100B


    New business model 3 5

    New business model: 3.5”

    TO EmBEdded ORNOTTO EmBEdded

    800MHZ


    3 0 3 5 cpu board with fully features

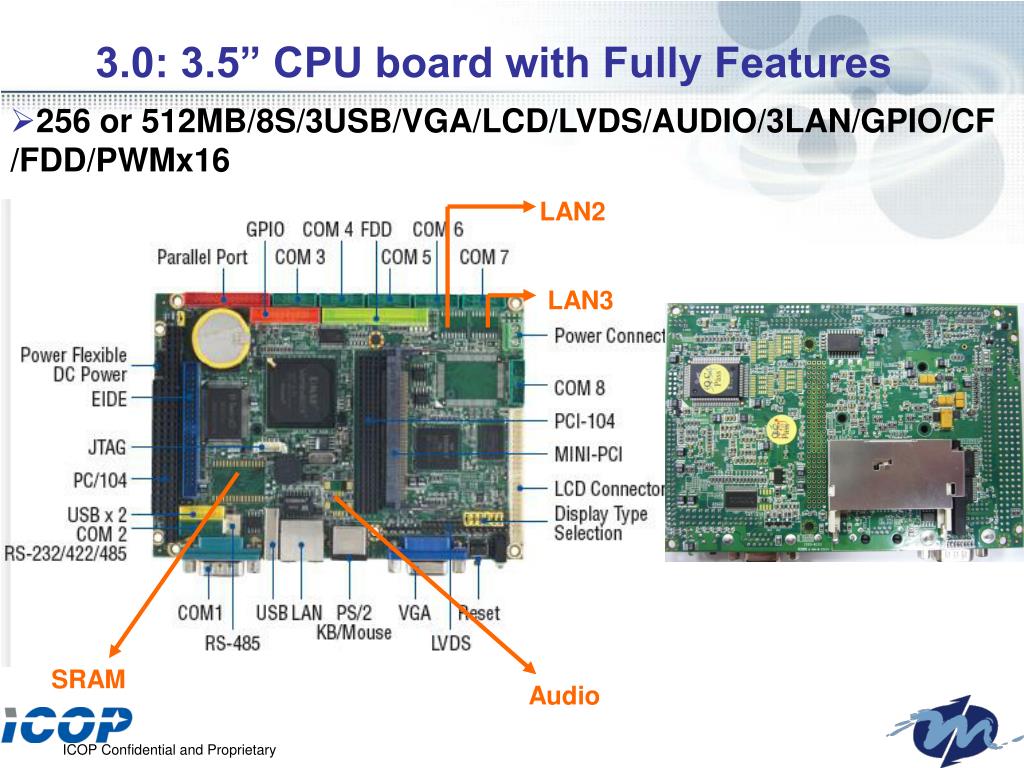

    3.0: 3.5” CPU board with Fully Features

    • 256 or 512MB/8S/3USB/VGA/LCD/LVDS/AUDIO/3LAN/GPIO/CF

    • /FDD/PWMx16

    LAN2

    LAN3

    SRAM

    Audio


    3 1 current 3 5 cpu board

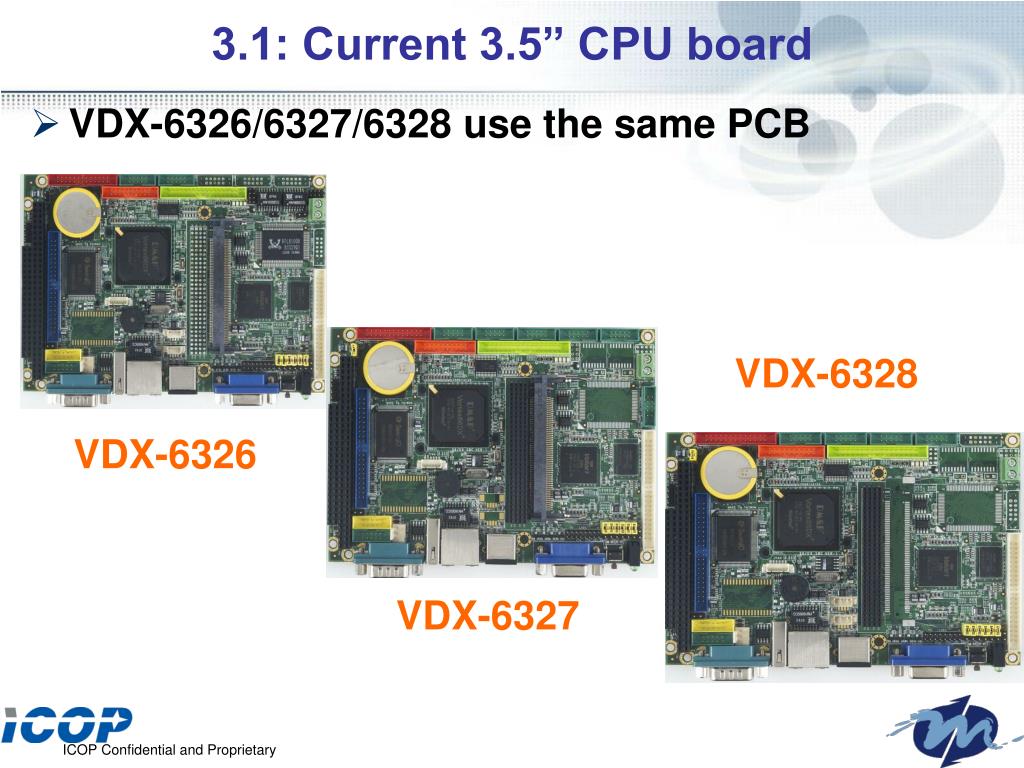

    3.1: Current 3.5” CPU board

    • VDX-6326/6327/6328 use the same PCB

    VDX-6328

    VDX-6326

    VDX-6327


    3 2 1 customized 3 5 cpu board

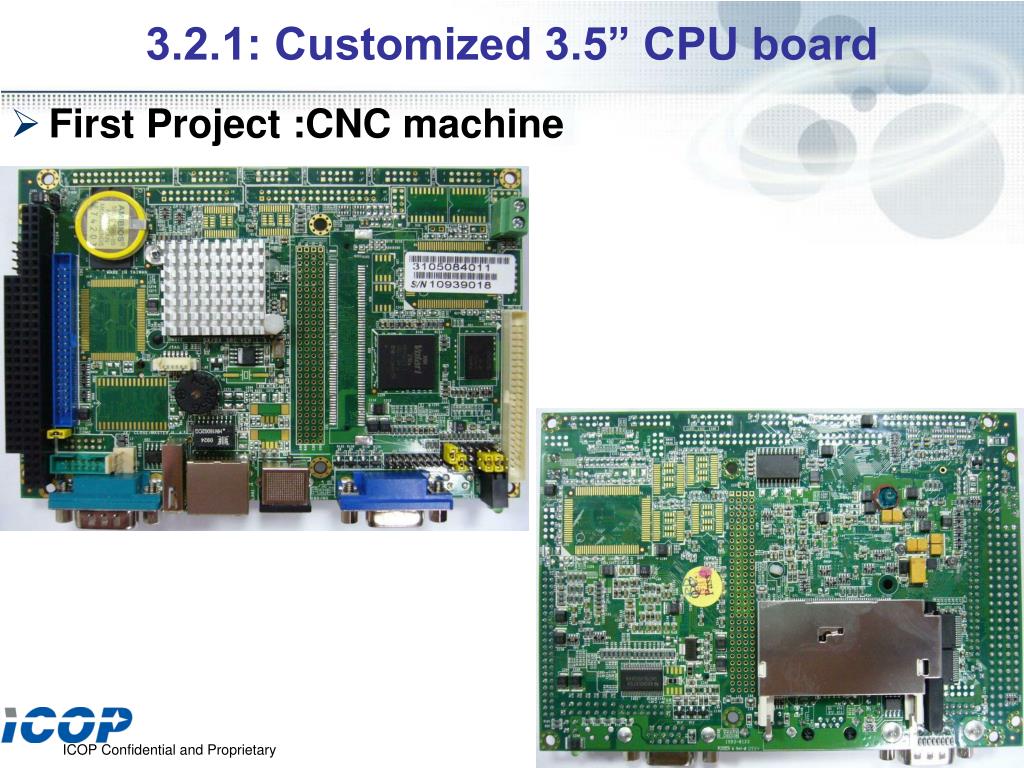

    3.2.1: Customized 3.5” CPU board

    • First Project :CNC machine


    3 2 2 customized 3 5 cpu board

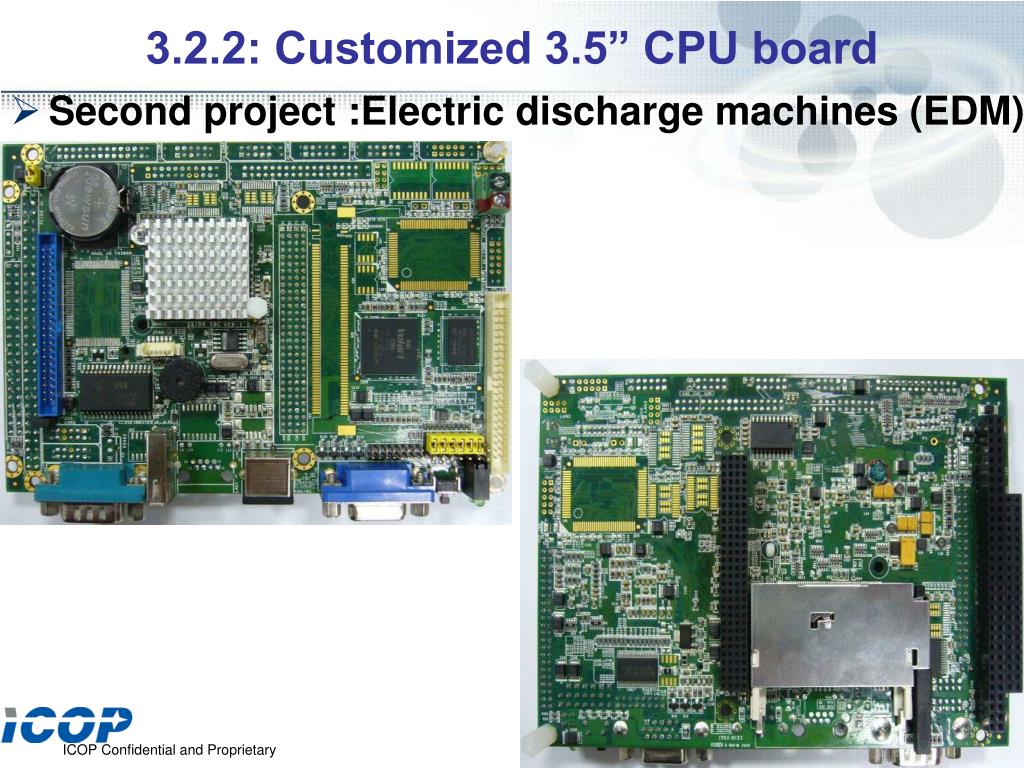

    3.2.2: Customized 3.5” CPU board

    • Second project :Electric discharge machines (EDM)


    3 3 why customer choose customize 3 5 cpu board

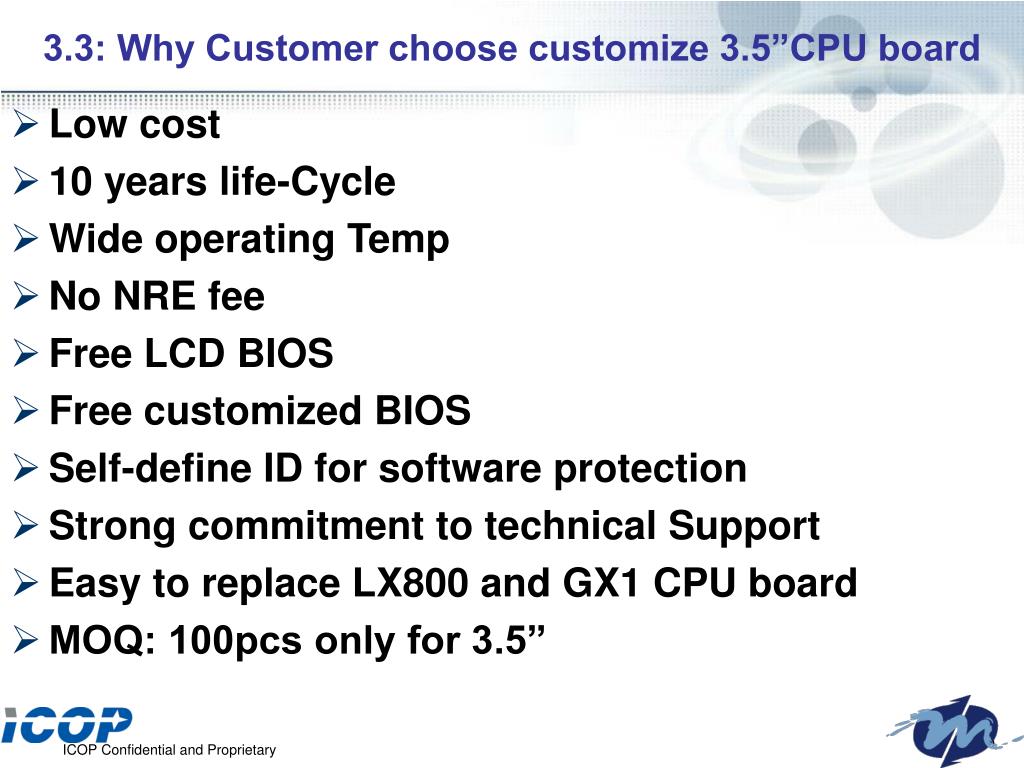

    3.3: Why Customer choose customize 3.5”CPU board

    • Low cost

    • 10 years life-Cycle

    • Wide operating Temp

    • No NRE fee

    • Free LCD BIOS

    • Free customized BIOS

    • Self-define ID for software protection

    • Strong commitment to technical Support

    • Easy to replace LX800 and GX1 CPU board

    • MOQ: 100pcs only for 3.5”
