The Carbon Cycle

The Carbon Cycle. The Carbon Cycle . Earth-Space Science The Geosphere Lesson 02. By the end of this lesson you should be able to:. Discuss the steps of the carbon cycle Analyze movement of matter and energy through the carbon cycle

tammy
Download Presentation

The Carbon Cycle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Carbon Cycle

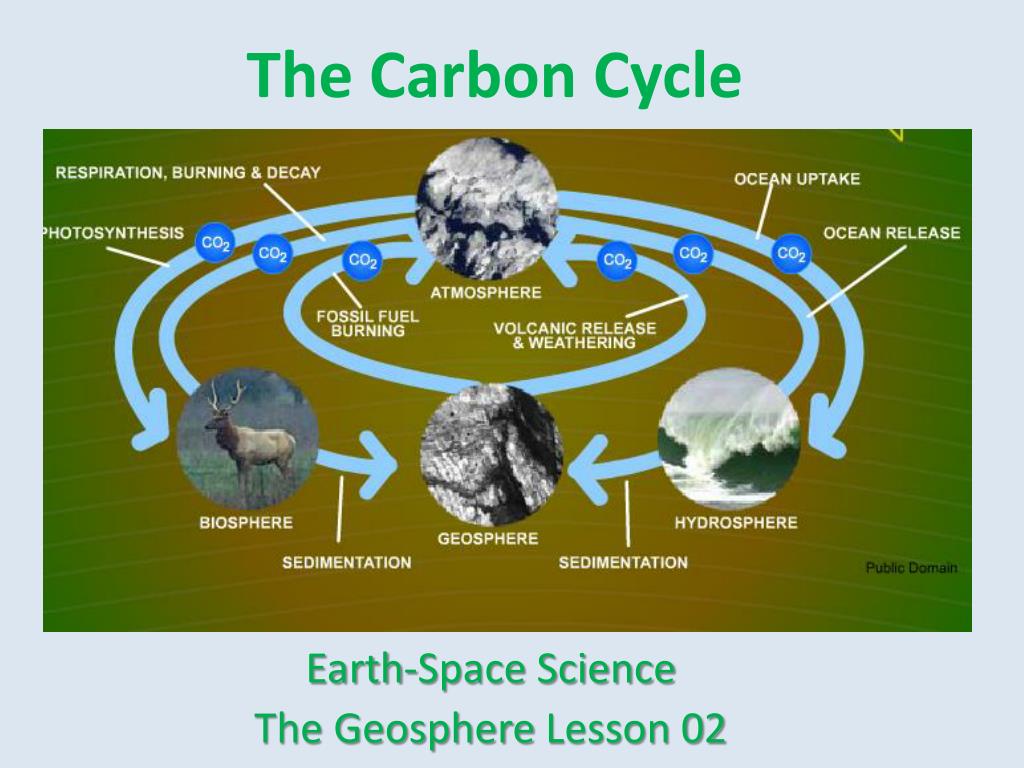

  2. The Carbon Cycle Earth-Space Science The Geosphere Lesson 02

  3. By the end of this lesson you should be able to: • Discuss the steps of the carbon cycle • Analyze movement of matter and energy through the carbon cycle • Discuss interactions of the carbon cycle with all spheres of Earth (hydrosphere, cryosphere, geosphere, biosphere & atmosphere)

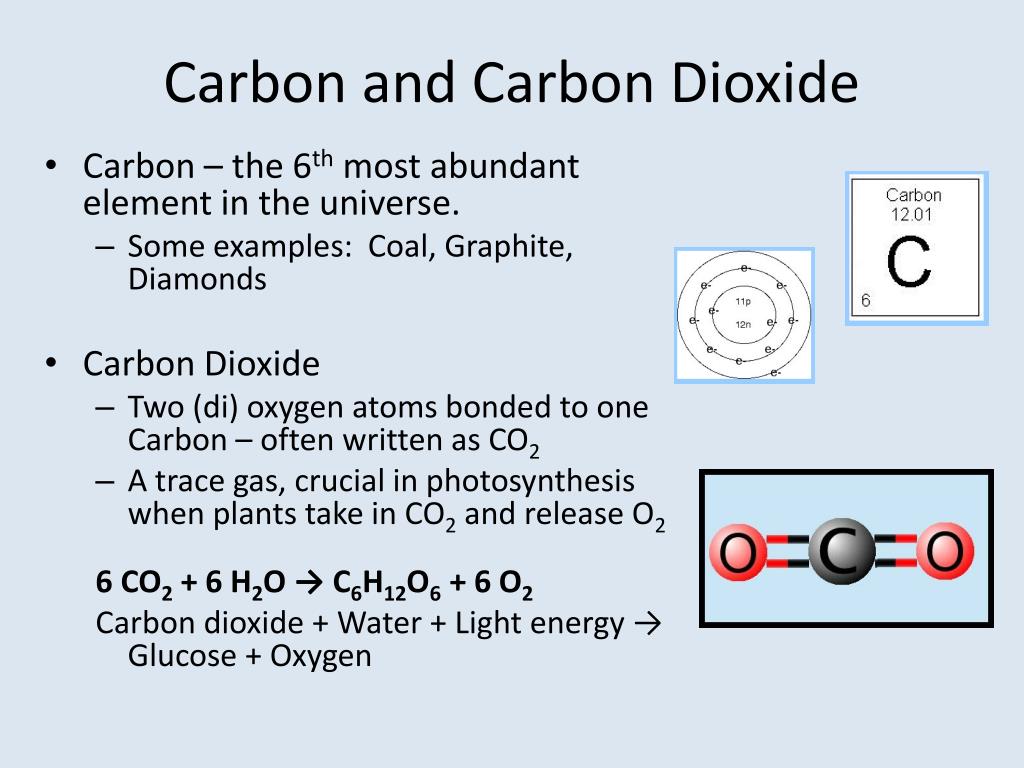

  4. Carbon and Carbon Dioxide • Carbon – the 6th most abundant element in the universe. • Some examples: Coal, Graphite, Diamonds • Carbon Dioxide • Two (di) oxygen atoms bonded to one Carbon – often written as CO2 • A trace gas, crucial in photosynthesis when plants take in CO2 and release O2 6 CO2+ 6 H2O → C6H12O6+ 6 O2 Carbon dioxide + Water + Light energy → Glucose + Oxygen

  5. How does the carbon cycle impact Earth's spheres? Biosphere – Includes all living things on Earth, such as plants and animals. Atmosphere – The thin layer of gas surrounding the Earth Hydrosphere – All of the water in the Earth’s oceans lakes, rivers and streams. Geosphere – The land surfaces and interior of the Earth. Exosphere- Everything located outside of the Earth, including stars and galaxies. Cryosphere – All of the ice on Earth such as glaciers and the icecaps.

  6. Earth Cycles • Essential element: A chemical element from the periodic table that is necessary for life processes on Earth • Biogeochemical cycles: The essential elements move through cycles in the Earth system, taken up by living organisms (Biosphere) and then returning to one of the Earth’s spheres after the organisms die, and eventually are taken up by living organisms. • Conservation of Matter Review – Matter cannot be created or destroyed (from BWS) • The Carbon Cycle :The carbon cycle is the movement of carbon between the biosphere and the other nonliving spheres of Earth. Smaller cycles exist within the main Carbon Cycle. And we will look at those now…

  7. Carbon Dioxide CO2Where is it? + CO2 is released by factories and people burning fossil fuels + CO2 is held in the atmosphere as a trace gas + CO2 is held in surface water as a dissolved gas + CO2 is exhaled by living creatures during respiration + Dead and decaying plants and animals release CO2 + Trees use CO2 to make food and give off oxygen. Deforestation leads to higher CO2 levels.

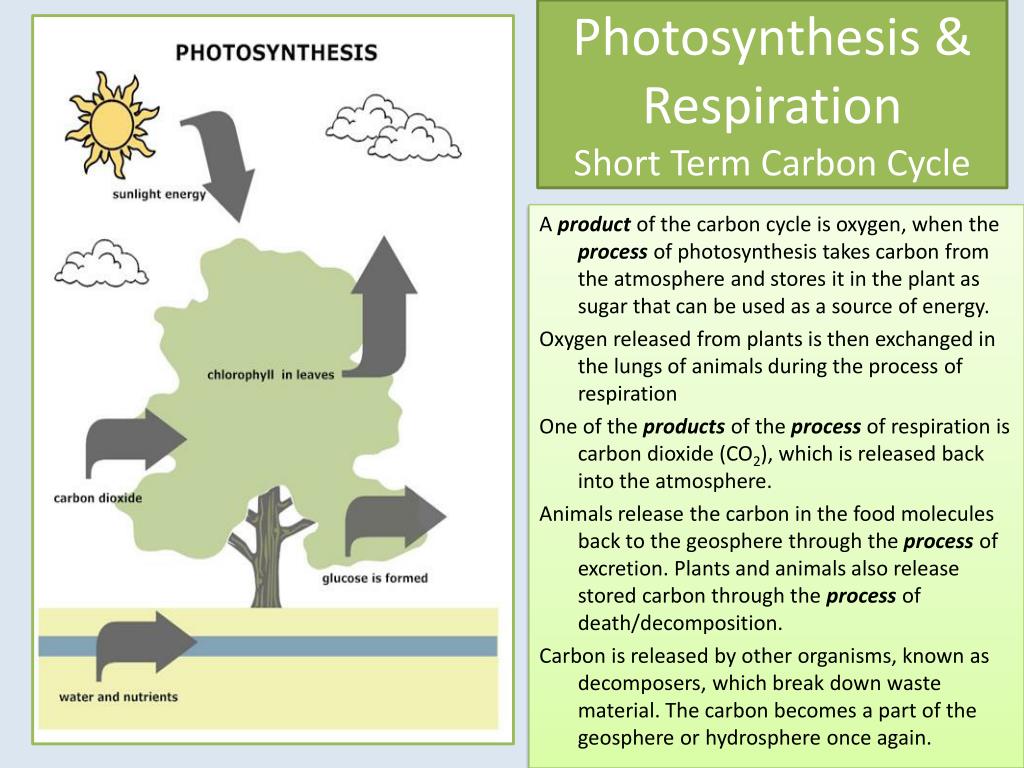

  8. Photosynthesis & RespirationShort Term Carbon Cycle A productof the carbon cycle is oxygen, when theprocessof photosynthesis takes carbon from the atmosphere and stores it in the plant as sugar that can be used as a source of energy. Oxygen released from plants is then exchanged in the lungs of animals during the process of respiration One of the productsof theprocessof respiration is carbon dioxide (CO2), which is released back into the atmosphere. Animals release the carbon in the food molecules back to the geosphere through the processof excretion. Plants and animals also release stored carbon through the process of death/decomposition. Carbon is released by other organisms, known as decomposers, which break down waste material. The carbon becomes a part of the geosphere or hydrosphere once again.

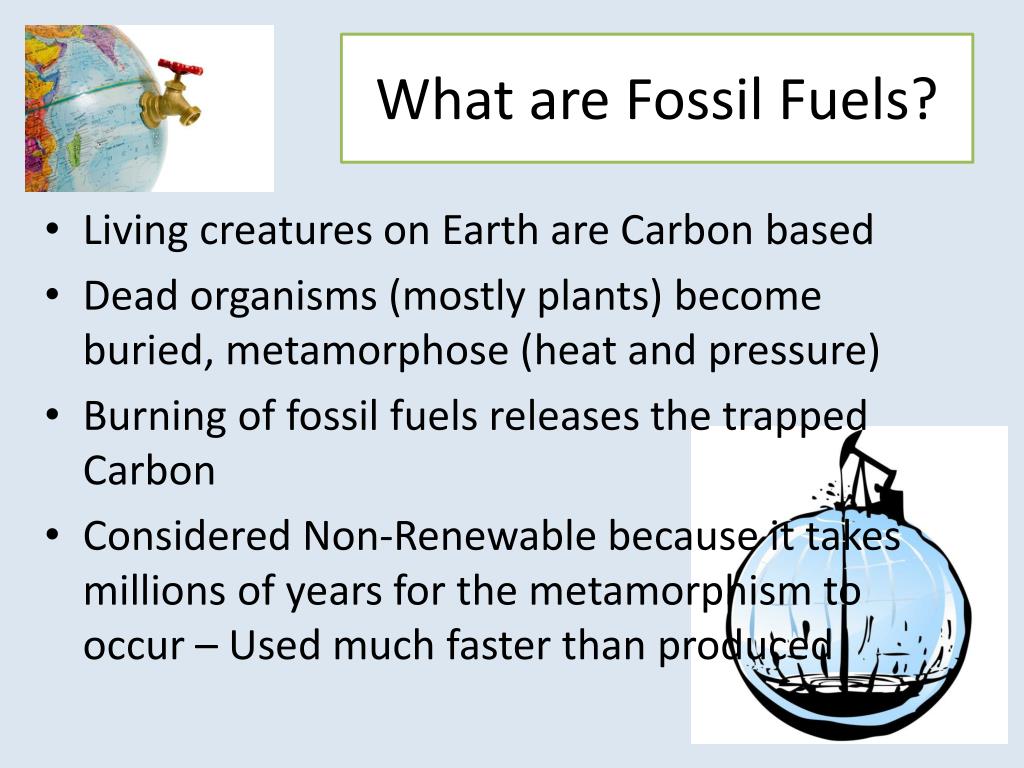

  9. What are Fossil Fuels? • Living creatures on Earth are Carbon based • Dead organisms (mostly plants) become buried, metamorphose (heat and pressure) • Burning of fossil fuels releases the trapped Carbon • Considered Non-Renewable because it takes millions of years for the metamorphism to occur – Used much faster than produced

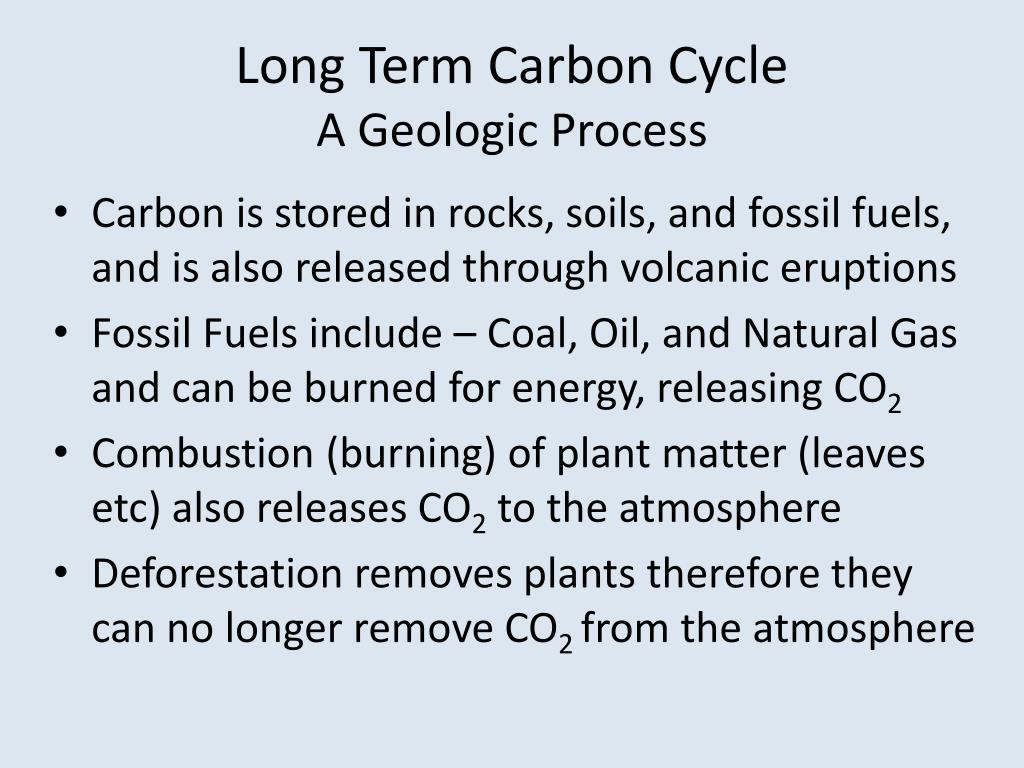

  10. Long Term Carbon CycleA Geologic Process • Carbon is stored in rocks, soils, and fossil fuels, and is also released through volcanic eruptions • Fossil Fuels include – Coal, Oil, and Natural Gas and can be burned for energy, releasing CO2 • Combustion (burning) of plant matter (leaves etc) also releases CO2 to the atmosphere • Deforestation removes plants therefore they can no longer remove CO2 from the atmosphere

  11. Long Term Carbon CycleDiffusion • Can you smell your perfume as well at the end of the day as you can at the start? • Diffusion – substances move from high concentration to low concentration • Gaseous CO2 is dissolved in the ocean in large amounts and will diffuse to the atmosphere • Rain can pick up CO2 from the atmosphere producing acid rain • Takes CO2 back to the Earth, and hydrosphere

  12. Long Term Carbon CycleBiosphere & Geosphere • Some sea animals take CO2 from ocean water and secrete shells • When the animals die, their shells fossilize, eventually break down, or weather/erode and release Carbon • Shells, and excrement will all fall to the bottom of the water, leading to a higher Carbon content in deep water. • Ocean currents circulate water and brings carbon to the surface

  13. Note that the blue boxes represent the products • Other writing represents the process

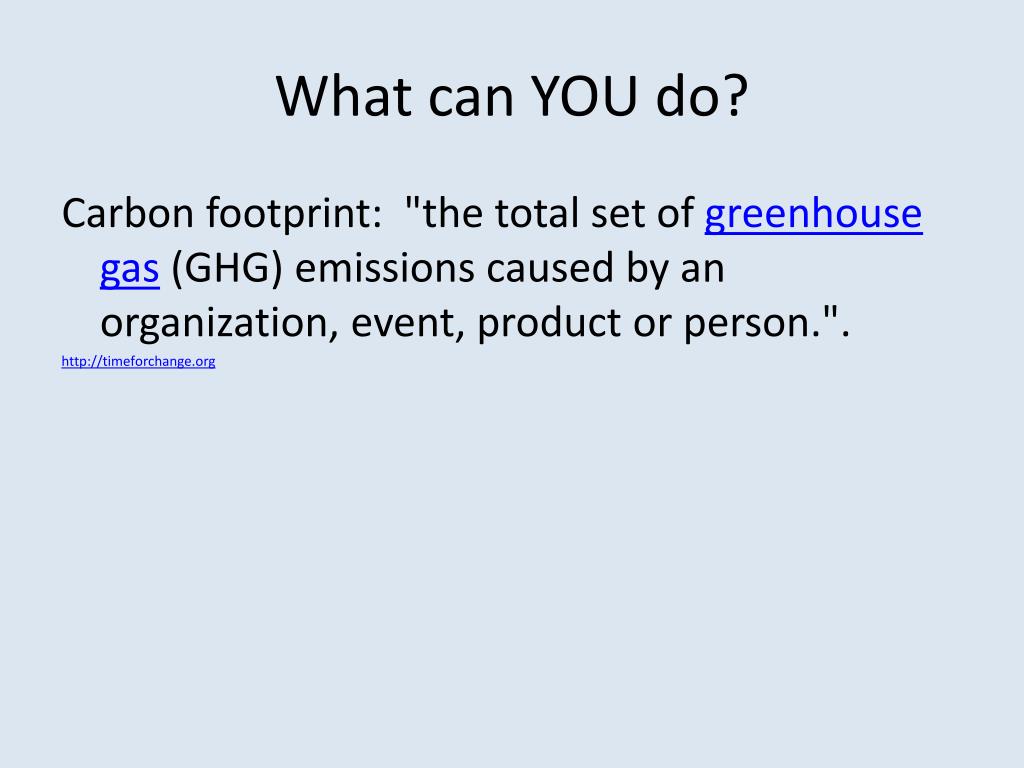

  14. What can YOU do? Carbon footprint: "the total set of greenhouse gas (GHG) emissions caused by an organization, event, product or person.". http://timeforchange.org

  15. There would be very little point in my exhausting myself and other conservationist themselves in trying to protect animals and habitats if we weren't at the same time raising young people to be better stewards. - Dr. Jane Goodall Primatologist, ethologist and anthropologist  Mrs. Renee Mitchell Earth-Space Science Instructor rmitchell@flvs.net
