  1. Workshop 13DPostprocessing Results Viewer

  2. 13D. PostprocessingResults Viewer Description • Use the “Results Viewer” to postprocess the model solved in Workshop 13C. November 1, 2002 Inventory #001756 W13-2

  3. 13D. PostprocessingResults Viewer 1. Enter ANSYS in the working directory specified by your instructor using “multi-ls” as the jobname. 2. Resume the “multi-ls.db” database file from workshop 13C: • Utility Menu > File > Resume from … • Select the “multi-ls.db” database file, then [OK] • Or issue: RESUME,multi-ls,db 3. Enter the General Postprocessor and read in a set of results: • Main Menu > General Postproc > Read Results > First Set • Or issue: /POST1 SET,1 4. Write out a PGR file including all three load steps: • Main Menu > General Postproc > Write PGR File • Write data for all sets • Select “Stress” [OK] • Or issue: POUTRES,S SET, , , , , , ,1 PGSAVE,'multi-ls','pgr','.',0, 0,0 SET, , , , , , ,2 PGSAVE,'multi-ls','pgr','.',0, 0,0 SET, , , , , , ,3 PGSAVE,'multi-ls','pgr','.',0, 0,0 November 1, 2002 Inventory #001756 W13-3

  4. 13D. PostprocessingResults Viewer 4. Open the Results Viewer: • Main Menu > General Postproc > Results Viewer November 1, 2002 Inventory #001756 W13-4

  5. 13D. PostprocessingResults Viewer 5. Use the viewer to plot the Equivalent Stress for Load Step 2: • Move the scroll bar to “Load Step 2”. • Use the pulldown list to select “von Mises Stress”. • Use the contour plot button to display nodal results. 1 3 2 November 1, 2002 Inventory #001756 W13-5

  6. 13D. PostprocessingResults Viewer 6. Move the contour legend to the right side of the graphics window. • Right click on legend, pick “Contour Right”. • Right click in graphics window, select “Replot”. Right click Right click November 1, 2002 Inventory #001756 W13-6

  7. 13D. PostprocessingResults Viewer 7. Animate the X-Componenet of Displacement: • Use the pulldown list to select “X-Component of Displacement”. • Select the animate button. • Select Deformed Results, then [OK] • [OK] 2 1 4 3 November 1, 2002 Inventory #001756 W13-7

  8. 13D. PostprocessingResults Viewer 8. Stop the animation and exit the Results Viewer: • [Stop] • [Close] • Select File -> Close 9. Exit ANSYS: • Pick the “QUIT” button from the Toolbar (or select: Utility Menu > File > Exit...) • Select “Quit – No Save” • [OK] • Or issue: FINISH /EXIT,NOSAV 1 2 November 1, 2002 Inventory #001756 W13-8

  9. Workshop 13E Postprocessing Report Generator

  10. 13E. PostprocessingReport Generator Description • Use the “Report Generator” to create an HTML – “Internet Ready” report. November 1, 2002 Inventory #001756 W13-10

  11. 13E. PostprocessingReport Generator 1. Enter ANSYS in the working directory specified by your instructor using “report” as the jobname. 2. Read input from the “plate-13e.inp” file: • Utility Menu > File > Read Input from … • Select the “plate-13e.inp” file, then [OK] • Or issue: /INPUT,plate-13e,inp 3. Open the Report Generator: • Utility Menu > File > Report Generator • Select “Overwrite”, then [OK] • Select “Yes” to create a new directory November 1, 2002 Inventory #001756 W13-11

  12. 13E. PostprocessingReport Generator 4. Capture images: 4a. Plot elements: • Utility Menu > Plot > Elements • Or issue: EPLOT Report Generator: • [Image Capture] button • Caption “Plot of Elements”, then [OK] • Or issue: ~tcl,'ansys::report::imagecapture “Plot of Elements” ' November 1, 2002 Inventory #001756 W13-12

  13. 13E. PostprocessingReport Generator 4b. Plot Stress in X-direction: • General Postproc > Plot Results > Contour Plot > Nodal Solution • Select “Stress”, “X-direction SX”, then [OK] • Or issue: /POST1 PLNSOL,S,X,0,1 Report Generator: • [Image Capture] button • Caption “X-direction Stress”, then [OK] • Or issue: ~tcl,'ansys::report::imagecapture “X-direction Stress” ' November 1, 2002 Inventory #001756 W13-13

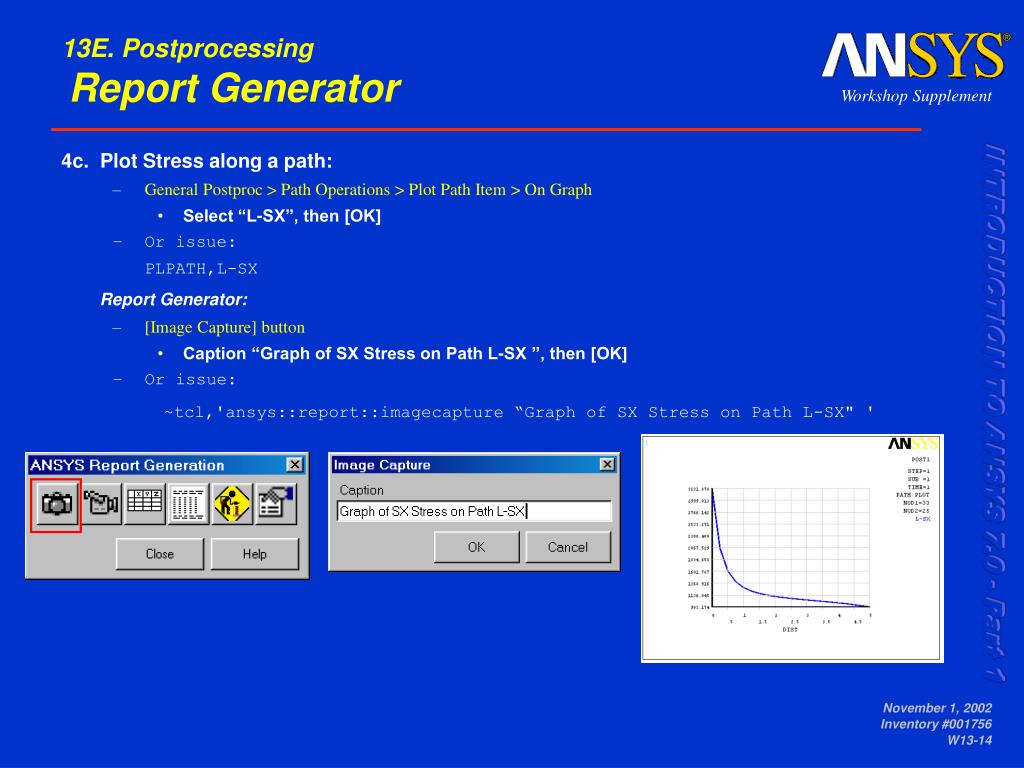

  14. 13E. PostprocessingReport Generator 4c. Plot Stress along a path: • General Postproc > Path Operations > Plot Path Item > On Graph • Select “L-SX”, then [OK] • Or issue: PLPATH,L-SX Report Generator: • [Image Capture] button • Caption “Graph of SX Stress on Path L-SX ”, then [OK] • Or issue: ~tcl,'ansys::report::imagecapture “Graph of SX Stress on Path L-SX" ' November 1, 2002 Inventory #001756 W13-14

  15. 13E. PostprocessingReport Generator 5. Capture an animation: Report Generator: • [Animation Capture] button • Caption “Animation of Deformed Results - SX Stress” • Select “Deformed Results”, then [OK] • Select “Stress”, “X-direction SX”, then [OK] • Or issue: ~tcl,'ansys::report::animcapture "Animation of Deformed Results - SX Stress" 100' /REPLOT,RESIZE PLNSOL,S,X ANCNTR,10,0.5 November 1, 2002 Inventory #001756 W13-15

  16. 13E. PostprocessingReport Generator 6. Capture Tables: Report Generator: • [Table Capture] button • Caption “Material Properties” • Select “Material properties” • [Apply] • Caption “Reaction Forces” • Select “Sum of reaction forces” • [OK] • Or issue: ~tcl,'ansys::report::tablecapture 2 "Material Properties“ 1' ~tcl,'ansys::report::tablecapture 4 "Reaction Forces"' fsum,,1 November 1, 2002 Inventory #001756 W13-16

  17. 13E. PostprocessingReport Generator 7. Capture Lists: Report Generator: • [Listing Capture] button • Caption “List of Stress along Path L-SX”. • Type “PRPATH,L-SX” in command line. • [OK] • [Listing Capture] button • Caption “List of Constraints on Selected Items”. • Type “SBCLIS” in command line. • [OK] • Or issue: ~tcl,'ansys::report::outputcapture "List of Stress along Path L-SX" "prpath,l-sx"' prpath,l-sx ~tcl,'ansys::report::outputcapture "List of Constraints on Selected Items" "sbclis"' sbclis November 1, 2002 Inventory #001756 W13-17

  18. 13E. PostprocessingReport Generator 8. Create the HTML report using all the captured information: Report Generator: • [HTML Report Assembler] button 8a. Insert a Report Heading: • Select “Report Heading” • Title, “Analysis of a Plate with Hole” • Author Name, “John Doe” • Subtitle, “X-Company” • [OK] November 1, 2002 Inventory #001756 W13-18

  19. 13E. PostprocessingReport Generator 8b. Insert Text: • Select “TEXT” • Type in the following, “The purpose of this analysis was to analyze a plate with a hole.” 8c. Insert Dynamic Data: • Select “Dynamic Data” and click on yellow text window • Type in the following /nopr *get,revision,active,0,rev *vwrite,revision (f3.1) 8d. Insert Text: • Select “TEXT” • Type in the following, “revision of ANSYS.” November 1, 2002 Inventory #001756 W13-19

  20. 13E. PostprocessingReport Generator 8e. Insert captured images: • Select the following images under “Report Images” • Plot of Elements • Plot of Stress in X-direction • Animation of Deformed Results • Graph of Plot November 1, 2002 Inventory #001756 W13-20

  21. 13E. PostprocessingReport Generator 8f. Insert Lists and Tables: • Select the following images under “Report Lists” • List of Stress along Path • List of Constraints on Selected Items • Select the following images under “Report Tables” • Material Properties • Reaction Forces November 1, 2002 Inventory #001756 W13-21

  22. 13E. PostprocessingReport Generator 9. Preview the Report • Select the “Preview Report” button November 1, 2002 Inventory #001756 W13-22

  23. 13E. PostprocessingReport Generator 10. Save and Close the Report Generator: • Select “File”, “Save and Close” 11. Exit ANSYS: • Pick the “QUIT” button from the Toolbar (or select: Utility Menu > File > Exit...) • Select “Quit – No Save” • [OK] • Or issue: FINISH /EXIT,NOSAV November 1, 2002 Inventory #001756 W13-23
