Presentation Transcript


E lins technology co ltd

Honesty

Devotion

Innovation

E-Lins Technology Co.,Ltd

  • Mobile Router & Modem (Industrial Class)


E lins technology co ltd1

Honesty

Devotion

Innovation

E-Lins Technology Co.,Ltd

Factory Inside & Factory Office Corner


E lins technology co ltd

Product Series

Industrial Class Cellular Mobile Router1. GPRS Router – Back compatible to GSM

2. EDGE Router – Back compatible to GPRS & GSM

3. CDMA Router – Back compatible

4. HSDPA Router – Back compatible to EDGE & GPRS & GSM

5. HSUPA Router – Back compatible to HSDPA & EDGE & GPRS & GSM

6. EV-DO Router – Rev 0 & Rev A. Back compatible to CDMA

Interface: RJ45, RS232

Configuration: VPN, 1 LANs, 1 WAN, Dual Module Dual SIM, WiFi

Industrial Class Cellular Mobile Modem

1. GPRS Modem – Back compatible to GSM

2. EDGE Modem – Back compatible to GPRS & GSM

3. CDMA Modem – Back compatible

4. HSDPA Modem – Back compatible to EDGE & GPRS & GSM

5. HSUPA Modem – Back compatible to HSDPA & EDGE & GPRS & GSM

6. EV-DO Modem – Back compatible to CDMA

Interface: RS232 (DB9) or USB


E lins technology co ltd

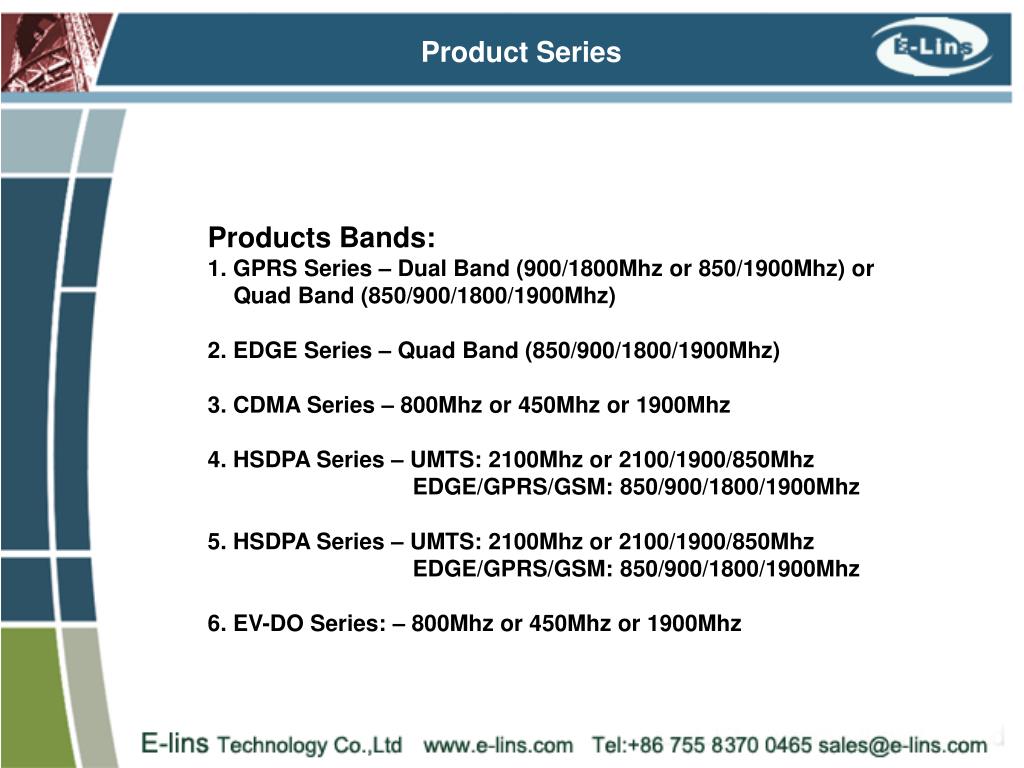

Product Series

Products Bands:1. GPRS Series – Dual Band (900/1800Mhz or 850/1900Mhz) or

Quad Band (850/900/1800/1900Mhz)

2. EDGE Series – Quad Band (850/900/1800/1900Mhz)

3. CDMA Series – 800Mhz or 450Mhz or 1900Mhz

4. HSDPA Series – UMTS: 2100Mhz or 2100/1900/850Mhz EDGE/GPRS/GSM: 850/900/1800/1900Mhz

5. HSDPA Series – UMTS: 2100Mhz or 2100/1900/850Mhz EDGE/GPRS/GSM: 850/900/1800/1900Mhz

6. EV-DO Series: – 800Mhz or 450Mhz or 1900Mhz


E lins technology co ltd

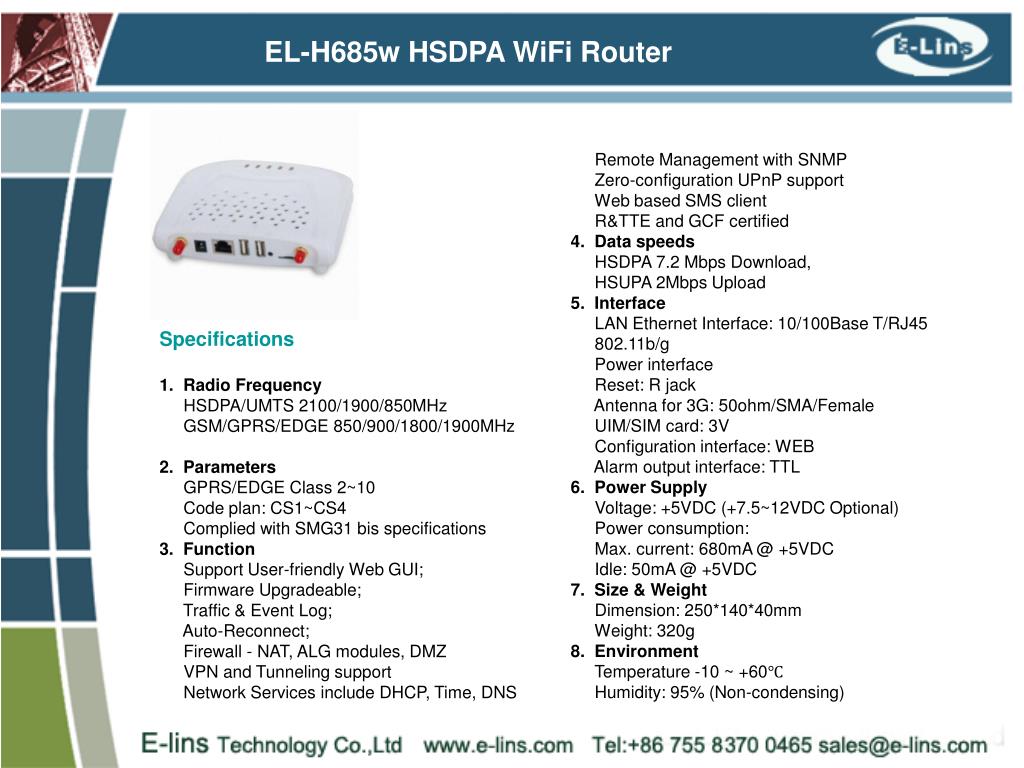

EL-H685w HSDPA WiFi Router

     Remote Management with SNMP     Zero-configuration UPnP support     Web based SMS client     R&TTE and GCF certified

4.  Data speeds     HSDPA 7.2 Mbps Download,

HSUPA 2Mbps Upload

5.  Interface     LAN Ethernet Interface: 10/100Base T/RJ45     802.11b/g     Power interface      Reset: R jack      Antenna for 3G: 50ohm/SMA/Female     UIM/SIM card: 3V     Configuration interface: WEB     Alarm output interface: TTL

6.  Power Supply     Voltage: +5VDC (+7.5~12VDC Optional)     Power consumption:      Max. current: 680mA @ +5VDC     Idle: 50mA @ +5VDC

7.  Size & Weight     Dimension: 250*140*40mm     Weight: 320g

8.  Environment     Temperature -10 ~ +60℃     Humidity: 95% (Non-condensing)

Specifications

1.  Radio Frequency     HSDPA/UMTS 2100/1900/850MHz GSM/GPRS/EDGE 850/900/1800/1900MHz

2.  Parameters     GPRS/EDGE Class 2~10     Code plan: CS1~CS4     Complied with SMG31 bis specifications

3.  Function     Support User-friendly Web GUI;      Firmware Upgradeable;     Traffic & Event Log;     Auto-Reconnect;     Firewall - NAT, ALG modules, DMZ     VPN and Tunneling support

Network Services include DHCP, Time, DNS


E lins technology co ltd

EL-H685w HSDPA WiFi Router

Network Services include DHCP, Time, DNS     Remote Management with SNMP     Zero-configuration UPnP support     Web based SMS client     R&TTE and GCF certified

4.  Data speeds     7.2 Mbps Download, 384kbps upload; easily

upgrade to HSUPA 2Mbps Download

5.  Interface     LAN Ethernet Interface: 10/100Base T/RJ45     802.11b/g     Power interface      Reset: R jack      Antenna for 3G: 50ohm/SMA/Female     UIM/SIM card: 3V     Configuration interface: WEB     Alarm output interface: TTL

6.  Power Supply     Voltage: +5VDC (+7.5~12VDC Optional)     Power consumption:      Max. current: 680mA @ +5VDC     Idle: 50mA @ +5VDC

7.  Size & Weight     Dimension: 98*100*23mm(not including antenna)     Weight: 320g

8.  Environment     Temperature -10 ~ +60℃     Humidity: 95% (Non-condensing)

Specifications

1.  Radio Frequency     HSDPA/UMTS 2100/1900/850Mhz GSM/GPRS/EDGE 850/900/1800/1900MHz

2.  Parameters     GPRS/EDGE Class 2~10     Code plan: CS1~CS4     Complied with SMG31 bis specifications

3.  Function     Support User-friendly Web GUI;      Firmware Upgradeable;     Traffic & Event Log;     Auto-Reconnect;     Firewall - NAT, ALG modules, DMZ     VPN and Tunneling support


E lins technology co ltd

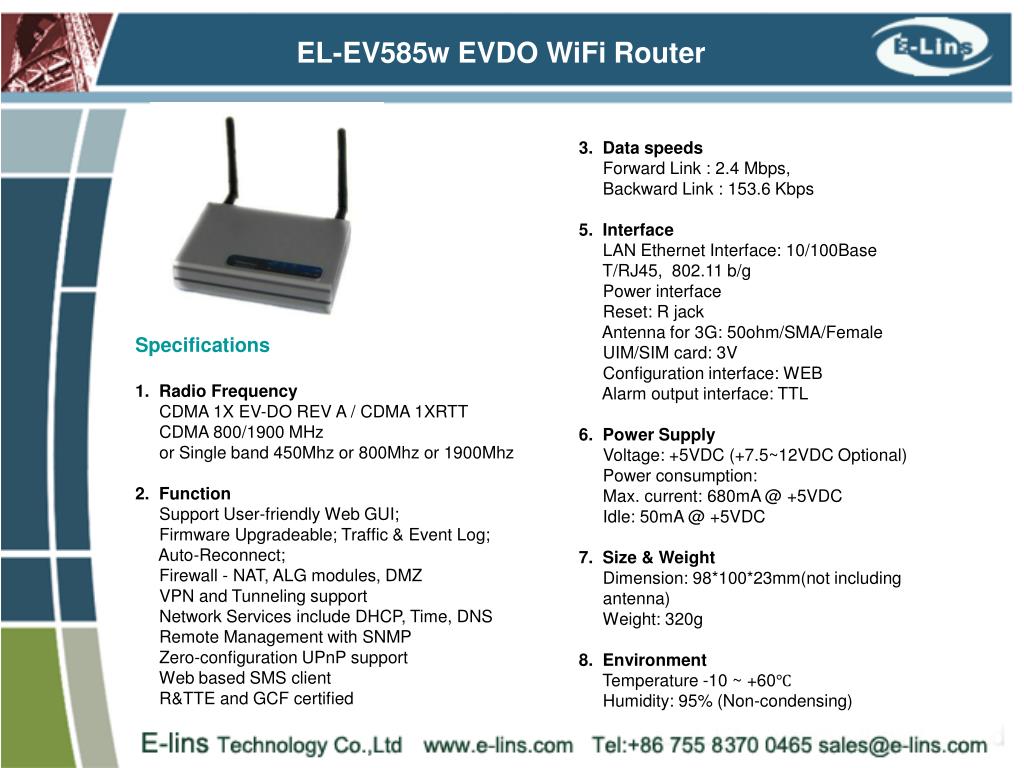

EL-EV585w EVDO WiFi Router

3.  Data speeds     Forward Link : 2.4 Mbps,

Backward Link : 153.6 Kbps

5.  Interface     LAN Ethernet Interface: 10/100Base

T/RJ45,  802.11 b/g     Power interface      Reset: R jack      Antenna for 3G: 50ohm/SMA/Female     UIM/SIM card: 3V     Configuration interface: WEB     Alarm output interface: TTL

6.  Power Supply     Voltage: +5VDC (+7.5~12VDC Optional)     Power consumption:      Max. current: 680mA @ +5VDC     Idle: 50mA @ +5VDC

7.  Size & Weight     Dimension: 98*100*23mm(not including

antenna)     Weight: 320g

8.  Environment     Temperature -10 ~ +60℃     Humidity: 95% (Non-condensing)

Specifications

1.  Radio Frequency     CDMA 1X EV-DO REV A / CDMA 1XRTT      CDMA 800/1900 MHz

or Single band 450Mhz or 800Mhz or 1900Mhz

2.  Function     Support User-friendly Web GUI;      Firmware Upgradeable; Traffic & Event Log;     Auto-Reconnect;     Firewall - NAT, ALG modules, DMZ     VPN and Tunneling support     Network Services include DHCP, Time, DNS     Remote Management with SNMP     Zero-configuration UPnP support     Web based SMS client     R&TTE and GCF certified

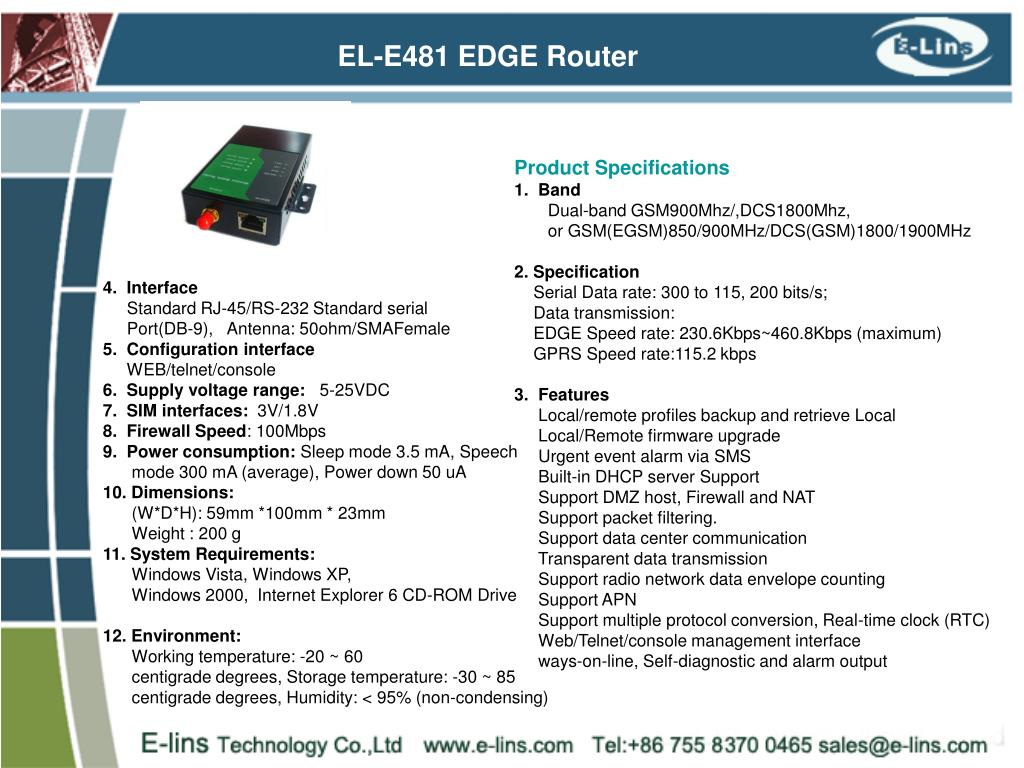

El e481 edge router

EL-E481 EDGE Router

Product Specifications

1. Band

Dual-band GSM900Mhz/,DCS1800Mhz,

or GSM(EGSM)850/900MHz/DCS(GSM)1800/1900MHz

2. Specification

Serial Data rate: 300 to 115, 200 bits/s;

Data transmission:

EDGE Speed rate: 230.6Kbps~460.8Kbps (maximum)

GPRS Speed rate:115.2 kbps

3.  Features

Local/remote profiles backup and retrieve Local

Local/Remote firmware upgrade

Urgent event alarm via SMS

Built-in DHCP server Support

Support DMZ host, Firewall and NAT

Support packet filtering.

Support data center communication

Transparent data transmission

Support radio network data envelope counting

Support APN

Support multiple protocol conversion, Real-time clock (RTC)

Web/Telnet/console management interface

ways-on-line, Self-diagnostic and alarm output

4.  Interface

Standard RJ-45/RS-232 Standard serial Port(DB-9),   Antenna: 50ohm/SMAFemale

5.  Configuration interface

WEB/telnet/console

6.  Supply voltage range:   5-25VDC

7.  SIM interfaces:  3V/1.8V

8.  Firewall Speed: 100Mbps

9. Power consumption: Sleep mode 3.5 mA, Speech mode 300 mA (average), Power down 50 uA

10. Dimensions:

 (W*D*H): 59mm *100mm * 23mm

Weight : 200 g

11. System Requirements:

Windows Vista, Windows XP, Windows 2000,  Internet Explorer 6 CD-ROM Drive

12. Environment:

Working temperature: -20 ~ 60 centigrade degrees, Storage temperature: -30 ~ 85

centigrade degrees, Humidity: < 95% (non-condensing)


El g285 gprs router

EL-G285 GPRS Router

     Web/Telnet/console management interface     Aways-on-line     Self-diagnostic and alarm output4.  Interface     Standard RJ-45/RS-232 Standard serial Port(DB-9)      Antenna: 50ohm/SMAFemale

5.  Configuration interface     WEB/telnet/console

6.  Supply voltage range     5-25VDC

7.  SIM interfaces:  3V/1.8V

8.  Firewall Speed: 100Mbps

9. Power consumption      Sleep mode 3.5 mA       Speech mode 300 mA(average)       Power down 50 uA

10. Dimensions: (W*D*H): 59mm *100mm * 23mm

Weight :  200 g

11. System Requirements      Windows Vista, Windows XP, Windows 2000       Internet Explorer 6 CD-ROM Drive

12. Environment      Working temperature: -20 ~ 60 centigrade degrees      Storage temperature: -30 ~ 85 centigrade degrees      Humidity: < 95% (non-condensing)

Product Specifications

1.Compatible Mobile Networks

Dual-band GSM900/1800MHz dual band Or

GSM 850/900/1800/1900MHz quad band

2. Specificataion

Serial Data rate: 300 to 115, 200 bits/s

Data transmission up to 153.6Kbps

3.  Features

Local/remote profiles backup and retrieve Local

Local/Remote firmware upgrade

     Urgent event alarm via SMS

     Built-in DHCP server Support

     Support DMZ host

Firewall and NAT

  Support packet filtering.

Support data center communication

Transparent data transmission

    Support radio network data envelope counting

Support APN

  Support multiple protocol conversion

Real-time clock (RTC)


El c385 cdma router

EL-C385 CDMA Router

    Support packet filtering.      Support data center communication     Transparent data transmission     Support radio network data envelope counting     Support APN     Support multiple protocol conversion     Real-time clock (RTC)     Web/Telnet/console management interface     Aways-on-line, Self-diagnostic and alarm output

4.  Interface: RS-232/485 Standard serial Port(DB-9)     Ethernet: 10/100BaseT/RJ45     Antenna: 50ohm/SMA Female

5.  Configuration interface:  WEB/telnet/console

6.  Supply voltage range:  5-25VDC (9V suggested)

7.  R-UIM interfaces: 3V/1.8V

8.  Lan Speed:  100Mbps

9. Power consumption      Max.: 430mA @ +5VDC     Idle: 22mA @+5VDC

10. Dimensions:  (W*D*H): 59mm *100mm * 23mm

Weight : 200 g

11. System Requirements: Windows Vista, Windows

XP, Windows 2000 Internet Explorer 6 CD-ROM Drive

Product Specifications

1.Compatible Mobile Networks

Dual-band DMA1x 800/1900MHz or Single

Band800Mhz or 1900Mhz or 450Mhz

2. Speed

Serial Data rate: 300 to 115, 200 bits/s;

Data transmission:  CDMA Speed rate:153.6Kbps

3.  Features

Local/remote profiles backup and retrieve Local

Local/Remote firmware upgrade

Urgent event alarm via SMS

Built-in DHCP server Support

Support DMZ host, Firewall and NAT


Vpn router multi port router dual sim router

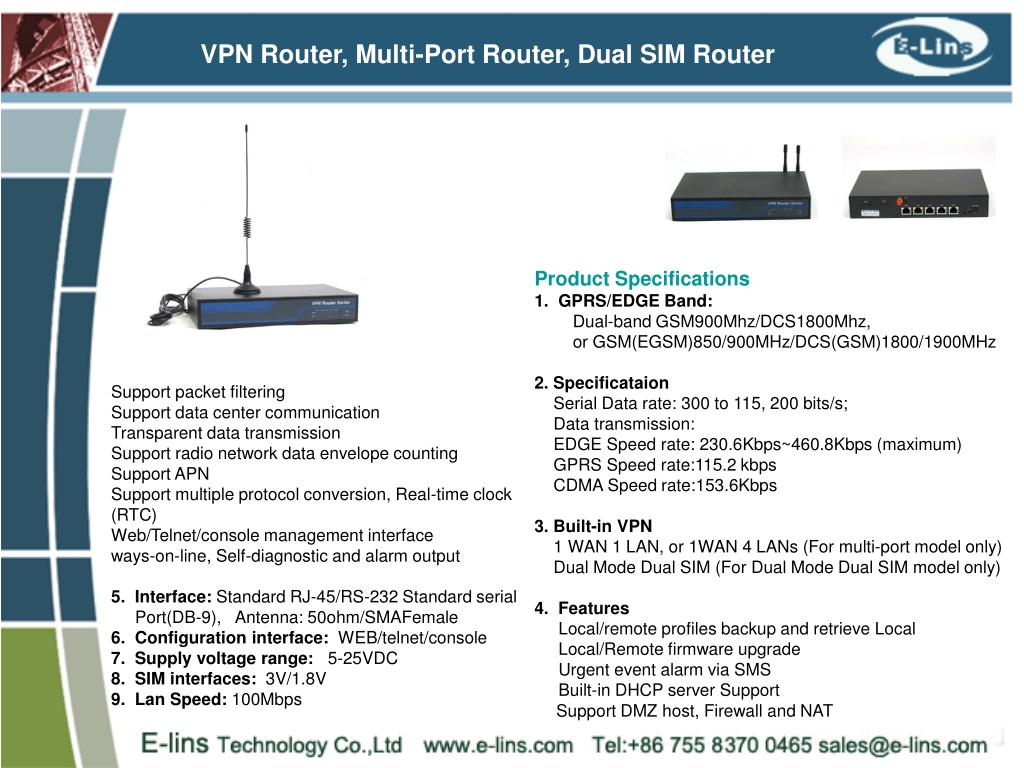

VPN Router, Multi-Port Router, Dual SIM Router

Product Specifications

1. GPRS/EDGE Band:

Dual-band GSM900Mhz/DCS1800Mhz,

or GSM(EGSM)850/900MHz/DCS(GSM)1800/1900MHz

2. Specificataion

Serial Data rate: 300 to 115, 200 bits/s;

Data transmission:

EDGE Speed rate: 230.6Kbps~460.8Kbps (maximum)

GPRS Speed rate:115.2 kbps

CDMA Speed rate:153.6Kbps

3. Built-in VPN

1 WAN 1 LAN, or 1WAN 4 LANs (For multi-port model only)

Dual Mode Dual SIM (For Dual Mode Dual SIM model only)

4.  Features

Local/remote profiles backup and retrieve Local

Local/Remote firmware upgrade

Urgent event alarm via SMS

Built-in DHCP server Support

Support DMZ host, Firewall and NAT

Support packet filtering

Support data center communication

Transparent data transmission

Support radio network data envelope counting

Support APN

Support multiple protocol conversion, Real-time clock (RTC)

Web/Telnet/console management interface

ways-on-line, Self-diagnostic and alarm output

5.  Interface: Standard RJ-45/RS-232 Standard serial Port(DB-9),   Antenna: 50ohm/SMAFemale

6.  Configuration interface:  WEB/telnet/console

7.  Supply voltage range:   5-25VDC

8.  SIM interfaces:  3V/1.8V

9.  Lan Speed: 100Mbps


El uh683 usb hsdpa modem

EL-UH683 USB HSDPA Modem

4. Speed    Console Data transfer Speed: 115200bps    Communication Data Speed:     Downlink up to 7.2Mbps    Uplink up to 385kbps    CSD Downlink/Uplink up to 14.4kbps

5. Dimension & Weight    Dimension: 121*74*25mm    Weight: 200g

6.  Configuration interface:  WEB/telnet/console

7. Environment    Work temperature: -30 ~ 80 centigrade degrees Storage temperature: -40 ~ 90 centigrade degrees    Humidity: 95% (Non-condensing)

8. Interface    USB 2.0 full speed    DB9 Interface (External)

10. Antenna      50ohm/SMA/Female

11. Shell    Steel metal shell: good electromagnetic shield and,      heat radiate performance

Product Specifications

1. Radio Frequency

Tri-band HSDPA/UMTS-850/1900/2100 MHZ

Quad-band EDGE/GPRS-850/900/1800/1900 MHZ

Output Power:

Class 4 (2W) @850/900

Class 3 (0.25W) @UMTS

Class E2 (0.25W) @ 850/900

Class E2 (0.4W) @1800

Class 1 (1W) @1800/1900

Multi-slot class 10

2.   Function

Support voice, SMS, data service

TCP stack with IP and UDP protocol

3.  input: 5 - 25VDC

SIM card support volt: 3V / 1.8V

Power consumption:

Off: 50mA

Idle: <=2.5mA

Minimal Power consumption


El uev583 usb ev do modem

EL- UEV583 USB EV-DO Modem

4. Speed    Console Data transfer Speed: 115200bps    Communication Data Speed:     Downlink up to 2.4Mbps    Uplink up to 153.2kbps

5. Dimension & Weight    Dimension: 121*74*25mm    Weight: 200g

6.  Configuration interface:  WEB/telnet/console

7. Environment    Work temperature: -30 ~ 80 centigrade degrees Storage temperature: -40 ~ 90 centigrade degrees    Humidity: 95% (Non-condensing)

8. Interface    USB 2.0 full speed    DB9 Interface (External)

10. Antenna      50ohm/SMA/Female

11. Shell    Steel metal shell: good electromagnetic shield and,      heat radiate performance

Product Specifications

1. Radio Frequency

CDMA 1X EV-DO REV A / CDMA 1XRTT

CDMA 800/1900 MHz or 450Mhz

2.   Function

Support voice, SMS, data service;

TCP stack with IP and UDP protocol

3.  input: 5 - 25VDC

SIM card support volt: 3V / 1.8V

Power consumption:

Off: 50mA

Idle: <=2.5mA

Minimal Power consumption


El g282 gprs modem

EL-G282 GPRS Modem

4. Speed    Console Data transfer Speed: 115200bps    Communication Data Speed:

Data speed up to 85.6Kbps (Theoretically)    CSD Downlink/Uplink up to 14.4kbps (Experienced)5. Dimension & Weight    Dimension: 75*50*16mm    Weight: 200g

6. Environment    Work temperature: -20 ~ 55 centigrade degrees Storage temperature: -50 ~ 85 centigrade degrees    Humidity: 95% (Non-condensing)

7. Interface    USB 2.0 full speed    RS232/RS485    DB9 Interface (External)

8. Antenna    50ohm/SMA/Female

9. Shell    Steel metal shell: good electromagnetic shield and,     heat radiate performance

Product Specifications

1. Radio Frequency

GSM(EGSM)900MHz/DCS(GSM)1800MHz dual band

or Quad band 850/900/1800/1900Mhz

2.   Function

Support voice, SMS, data service;

TCP stack with IP and UDP protocol

3.  Voltage and Power

Input: 5 - 25VDC

SIM card support volt: 3V / 1.8V

Power consumption:

Sleep mode: 3.5mA

Working mode: 300mA (Average)

Power down 50 uA

GPRS Modem: 360mA (Average)


El g282 gprs modem1

EL-G282 GPRS Modem

4. Speed    Console Data transfer Speed: 115200bps    Communication Data Speed:

Data speed up to 153kbps

5. Dimension & Weight    Dimension: 75*50*16mm    Weight: 200g

6. Environment    Work temperature: -30 ~ 70 centigrade degrees Storage temperature: -50 ~ 85 centigrade degrees    Humidity: 95% (Non-condensing)

7. Interface    USB 2.0 full speed    RS232/RS485    DB9 Interface (External)

8. Antenna    50ohm/SMA/Female

9. Shell    Steel metal shell: good electromagnetic shield and,     heat radiate performance

Product Specifications

1. Radio Frequency

Full TIA/EIA/IS-98A Complicance

CDMA2000 1xRTT: CDMA2000 protocol between

Mobile & BS

Dual band 800/1900Mhz or 450Mhz

Control via AT commands

2.   Function

Point-to-point MO and MT

SMS cell broadcast

Text and PDU mode

Support voice, SMS, data service

3.  Voltage and Power

Input: 5 - 25VDC (9V suggestion)

SIM card support volt: 3V / 1.8V

Max. Output power: 0.2W ~ 0.3W

Power consumption:

Sleep mode: 5mA

up to 1A (Traffic)


El g181 gsm modem

EL-G181 GSM Modem

4. Speed    Console Data transfer Speed: 115200bps    Communication Data Speed:

CSD Downlink/Uplink up to 14.4kbps (Experienced)    USSD, Non transparent mode, V.1105. Dimension & Weight    Dimension: 75*50*16mm    Weight: 200g

6. Environment    Work temperature: -30 ~ 70 centigrade degrees Storage temperature: -50 ~ 85 centigrade degrees    Humidity: 95% (Non-condensing)

7. Interface    USB 2.0 full speed    RS232/RS485    DB9 Interface (External)

8. Antenna    50ohm/SMA/Female

9. Shell    Steel metal shell: good electromagnetic shield and,     heat radiate performance

Product Specifications

1. Radio Frequency

Dual-band GSM(EGSM)900MHz/DCS(GSM)1800MH

Compliant to GSM phase 2/2+

Output Power:

Class 4 (2W) EGSM900

Class 1 (1W) GSM1800

Control via AT commands

2.   Function

Point-to-point MO and MT

SMS cell broadcast

Text and PDU mode

Support voice, SMS, data service

3.  Voltage and Power

Input: 5 - 25VDC (9V suggestion)

SIM card support volt: 3V / 1.8V

Power consumption:

Sleep mode: 3.0mA

Idle mode: 10.0mA

Working mode: 300mA (Average), 1.8A (Peak)

Power down 100 uA


  • Login
