Cell respiration

Cell Respiration

G

A

S

G

A

S


Cell respiration

PLANTS

Use photosynthesis to produce their own foods

ANIMALS

Depends on the nutrients they get by eating other living things


Cell respiration

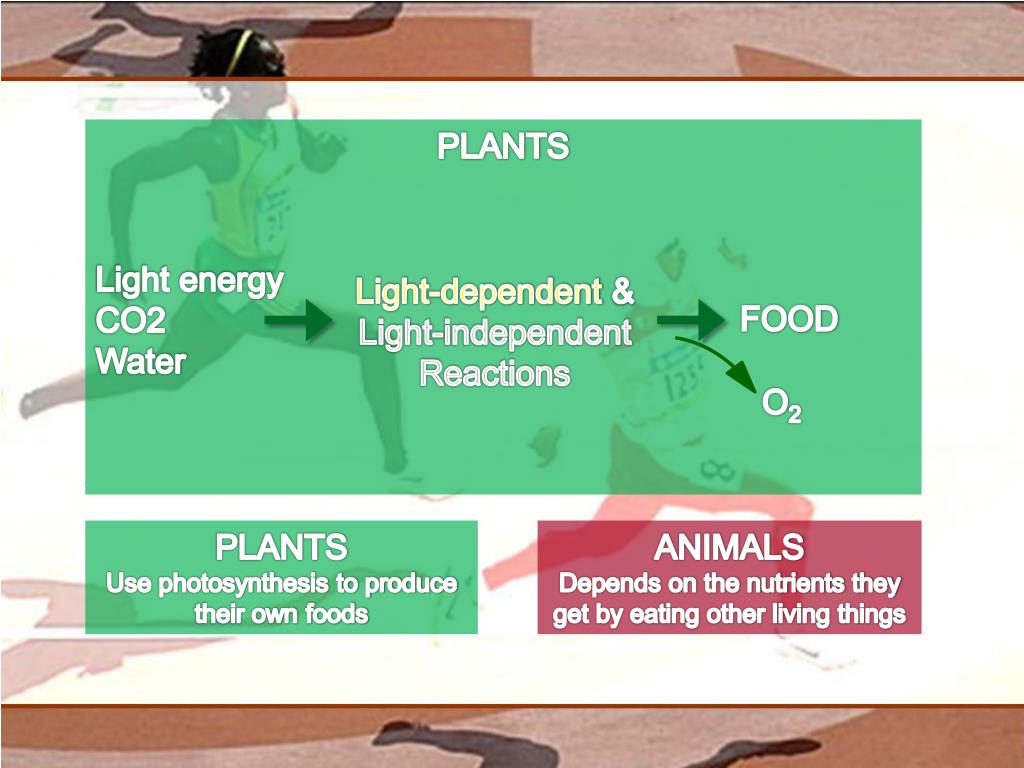

PLANTS

Light energy

CO2

Water

Light-dependent &

Light-independent

Reactions

FOOD

O2

PLANTS

Use photosynthesis to produce their own foods

ANIMALS

Depends on the nutrients they get by eating other living things


Cell respiration

ANIMALS

FOODS

(Carbs, Protein

& Fats)

Monomers

(Monosaccharides,

Amino acids,

triglycerides)

Mechanical

& Chemical Digestion

PLANTS

Use photosynthesis to produce their own foods

ANIMALS

Depends on the nutrients they get by eating other living things


Cell respiration

ANIMALS

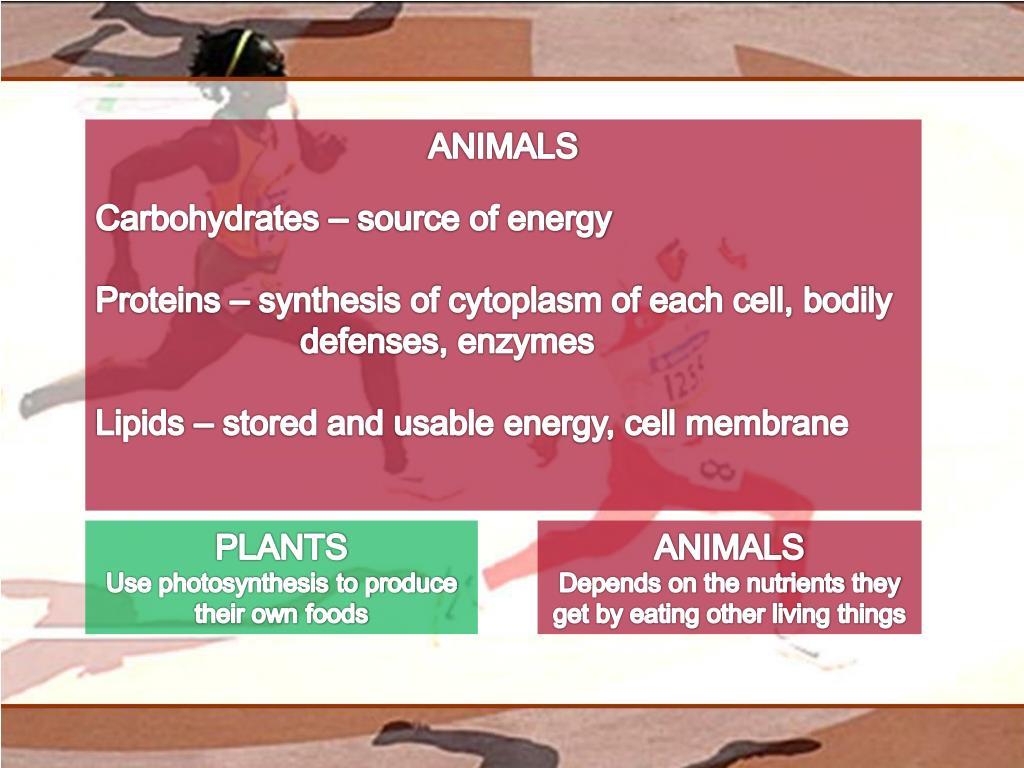

Carbohydrates – source of energy

Proteins – synthesis of cytoplasm of each cell, bodily defenses, enzymes

Lipids – stored and usable energy, cell membrane

PLANTS

Use photosynthesis to produce their own foods

ANIMALS

Depends on the nutrients they get by eating other living things


Cell respiration

ANIMALS

Carbohydrates – 4 Calories380 ATPs

Proteins – 4 Calories380 ATPs

Lipids – 8 Calories760 ATPs

PLANTS

Use photosynthesis to produce their own foods

ANIMALS

Depends on the nutrients they get by eating other living things


Cell respiration

Cell Respiration-an aerobic process of releasing energy from sugars to make ATP.

C6H12O6 + 6O2

6CO2 + 6H20 + Energy


Cell respiration

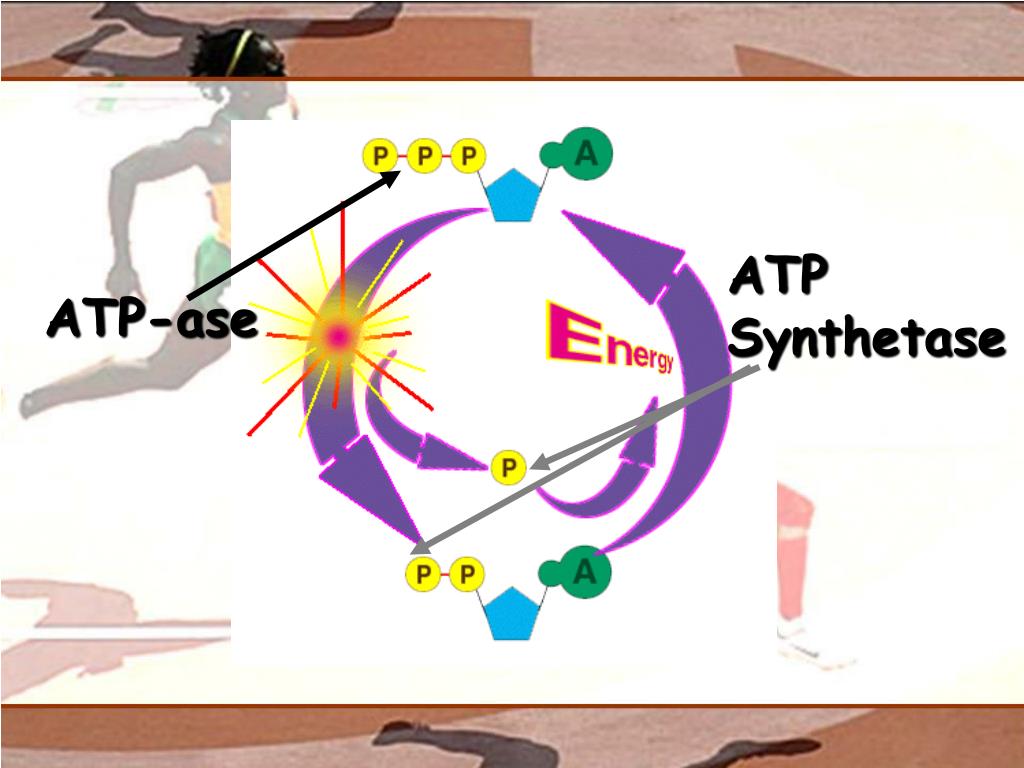

ATP Synthetase

ATP-ase


Cell respiration

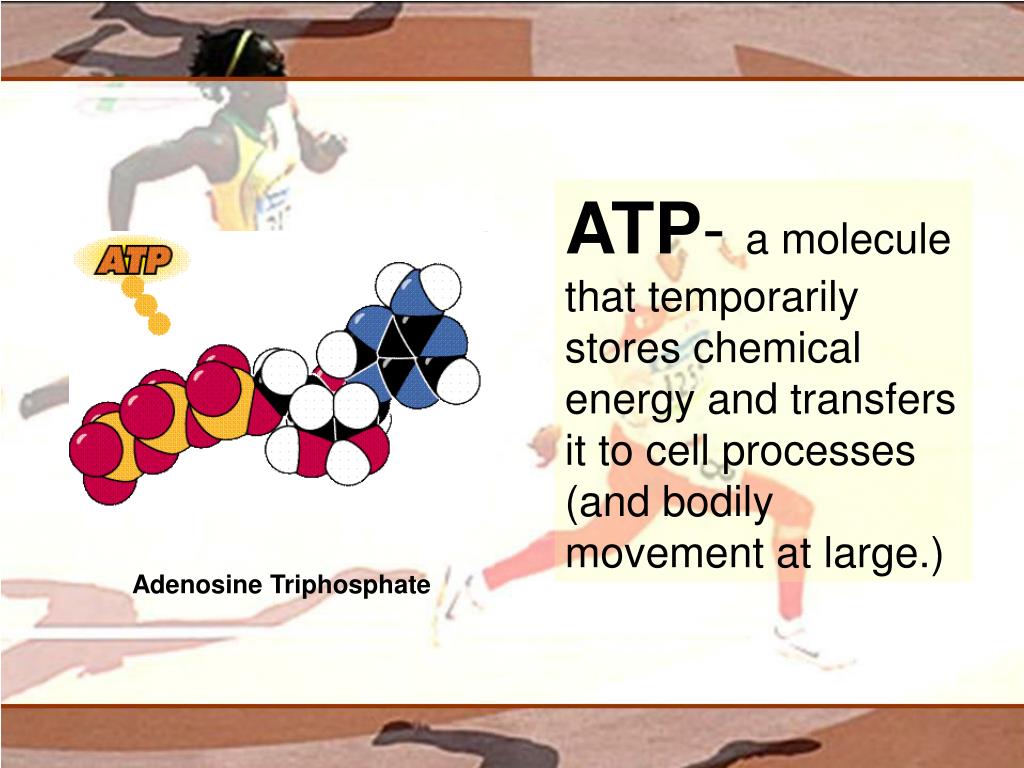

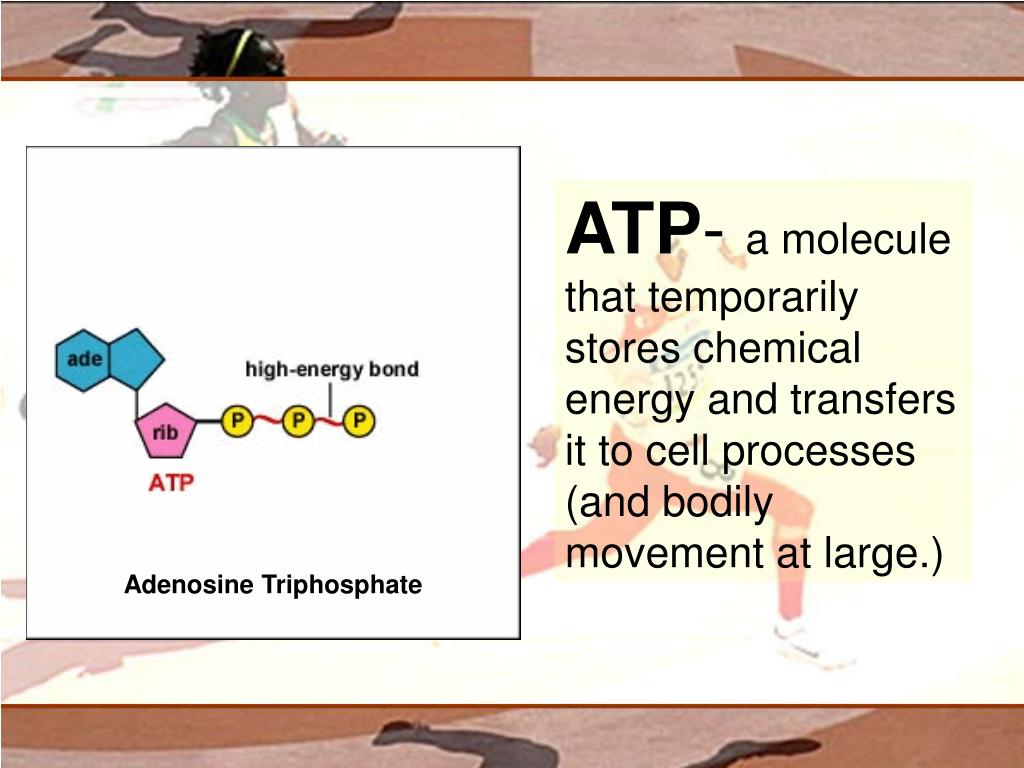

ATP- a molecule that temporarily stores chemical energy and transfers it to cell processes (and bodily movement at large.)

Adenosine Triphosphate


Cell respiration

ATP- a molecule that temporarily stores chemical energy and transfers it to cell processes (and bodily movement at large.)

Adenosine Triphosphate


Cell respiration

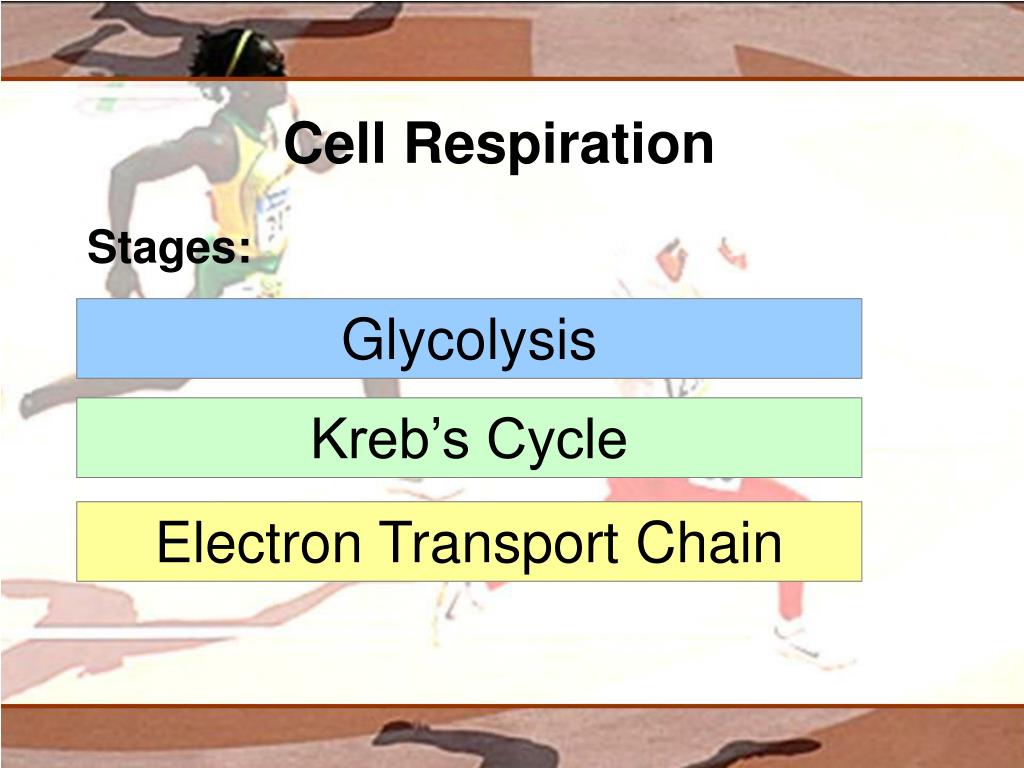

Cell Respiration

Stages:

Glycolysis

Kreb’s Cycle

Electron Transport Chain


Cell respiration

Cell Respiration

Stages:

Glycolysis is the process of breaking down glucose into two pyruvic acids (3-carbon compound) through hydrolysis. During this process 2 ATPs are used up.

Glycolysis

NAD

NAD

H

H


Cell respiration

Glycolysis

Cell Respiration

ADPs re-enters the process and takes the energy that binds the phosphates to the 3 C molecule as well as the phosphates to remake ATPs.

PYRUVATE

PYRUVATE


Cell respiration

Glycolysis

Cell Respiration

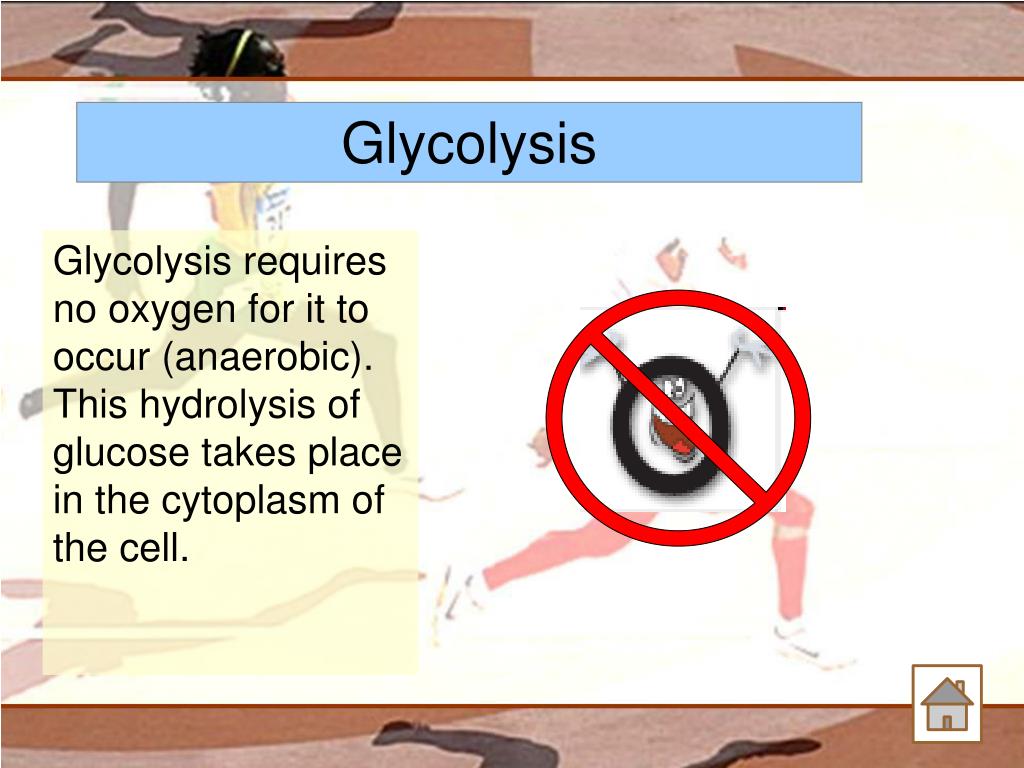

Glycolysis requires no oxygen for it to occur (anaerobic).

This hydrolysis of glucose takes place in the cytoplasm of the cell.


Cell respiration

Glycolysis

Cell Respiration

Glycolysis requires no oxygen for it to occur (anaerobic).

This hydrolysis of glucose takes place in the cytoplasm of the cell.


Cell respiration

Glycolysis

Cell Respiration

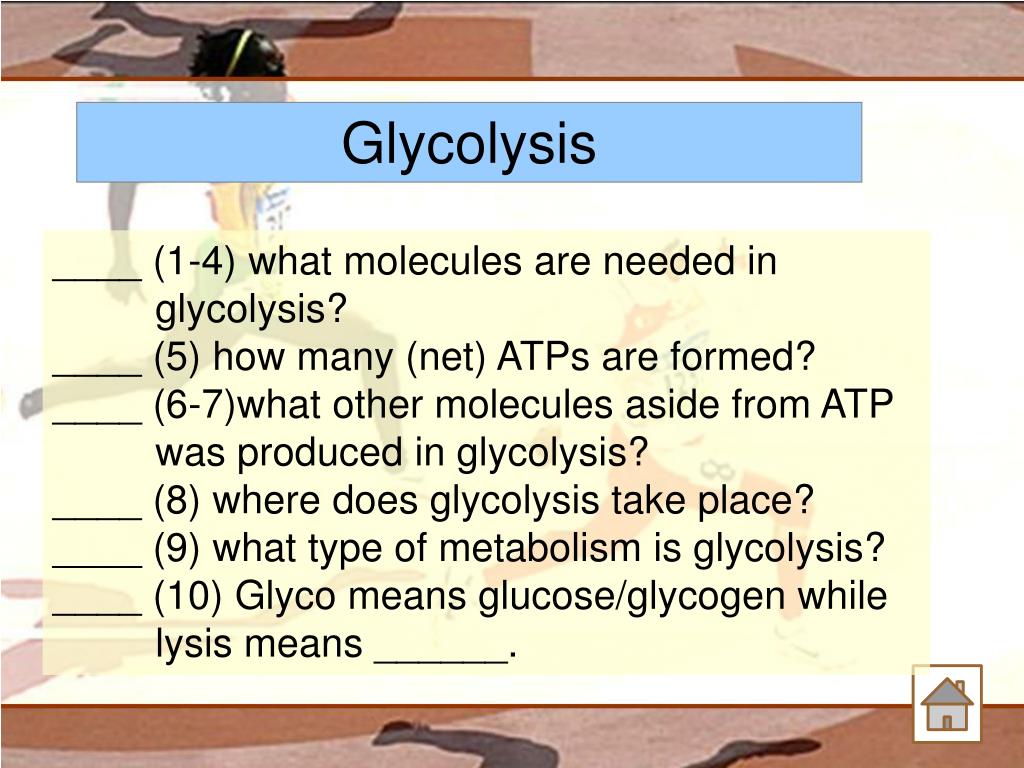

____ (1-4) what molecules are needed in glycolysis?

____ (5) how many (net) ATPs are formed?

____ (6-7)what other molecules aside from ATP was produced in glycolysis?

____ (8) where does glycolysis take place?

____ (9) what type of metabolism is glycolysis?

____ (10) Glyco means glucose/glycogen while lysis means ______.


Cell respiration

Glycolysis

Cell Respiration

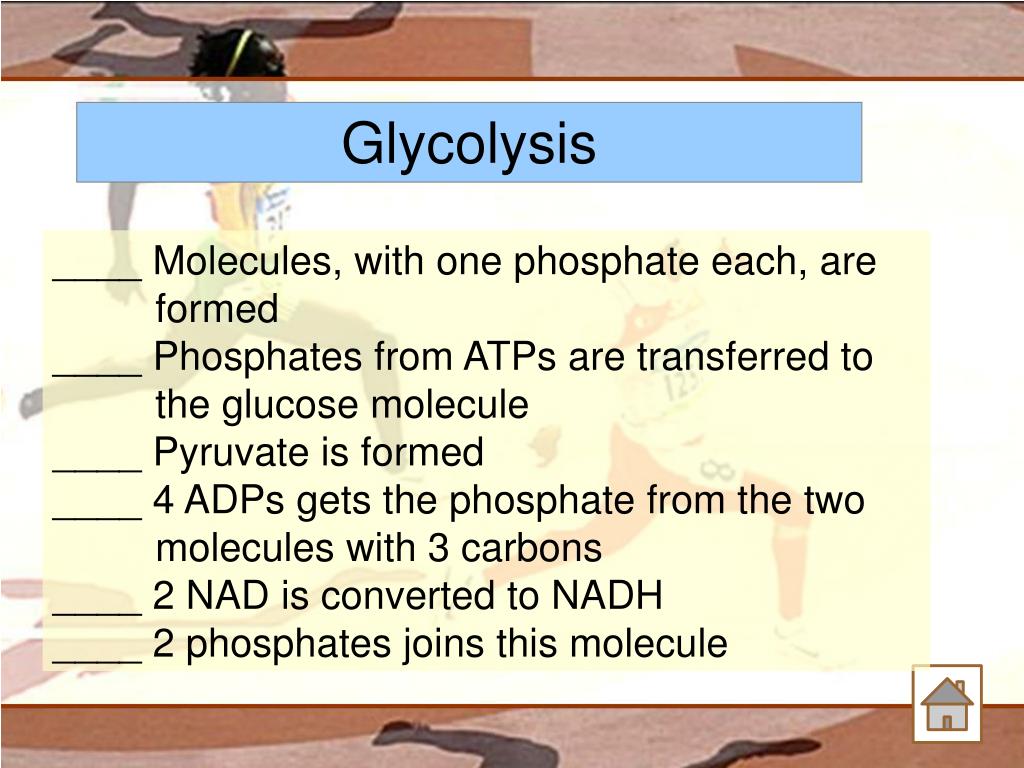

____ Molecules, with one phosphate each, are formed

____ Phosphates from ATPs are transferred to the glucose molecule

____ Pyruvate is formed

____ 4 ADPs gets the phosphate from the two molecules with 3 carbons

____ 2 NAD is converted to NADH

____ 2 phosphates joins this molecule


Cell respiration

Cell Respiration

Stages:

Citric Acid Cycle is an aerobic series of chemical reactions occurring within the cell, responsible for the final breakdown of food molecules to form carbon dioxide, water, and energy.

CO2

CO2

PYRUVATE

PYRUVATE

Kreb’s Cycle

(acetyl-CoA)

(acetyl-CoA)

NAD

NAD

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H

H


Cell respiration

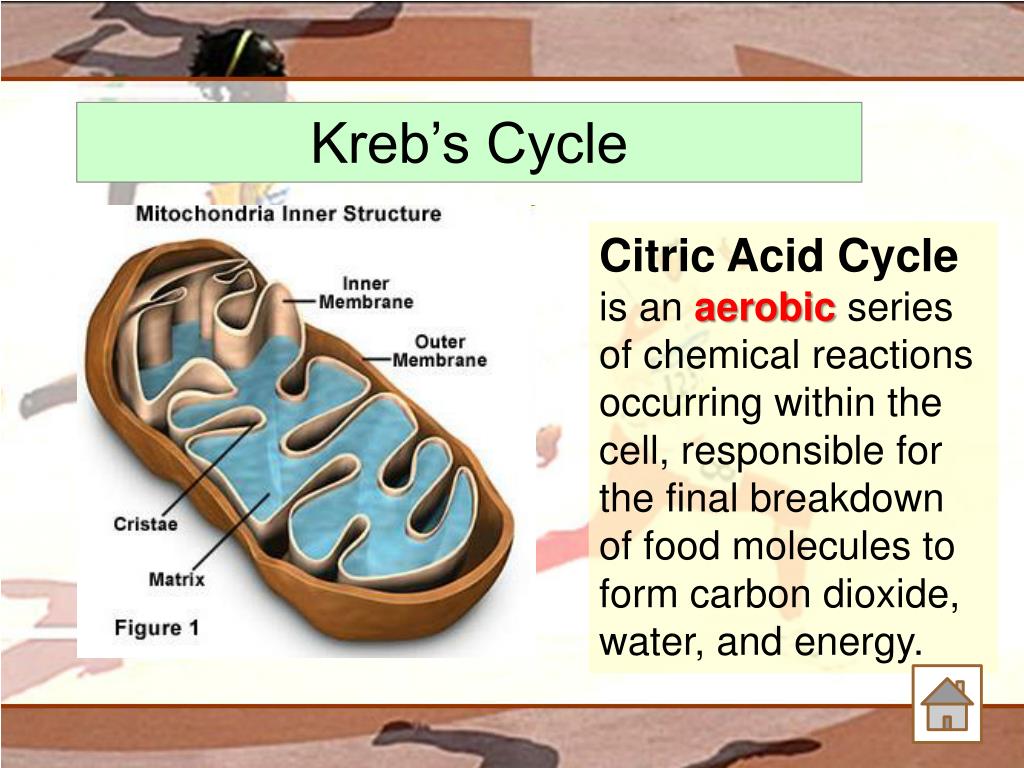

Kreb’s Cycle

Cell Respiration

Citric Acid Cycle is an aerobic series of chemical reactions occurring within the cell, responsible for the final breakdown of food molecules to form carbon dioxide, water, and energy.


Cell respiration

Kreb’s Cycle

Cell Respiration


Cell respiration

Kreb’s Cycle

Cell Respiration

These carbon dioxides will exit our body through respiration


Cell respiration

Cell Respiration

Stages:

Electron Transport Chain refers to a series of oxidation processes where electrons carried by NADH and FADH2 are transferred to electron acceptors. This occurs along the inner membrane of each mitochondrion.

Electron Transport Chain


Cell respiration

Electron Transport Chain

Cell Respiration

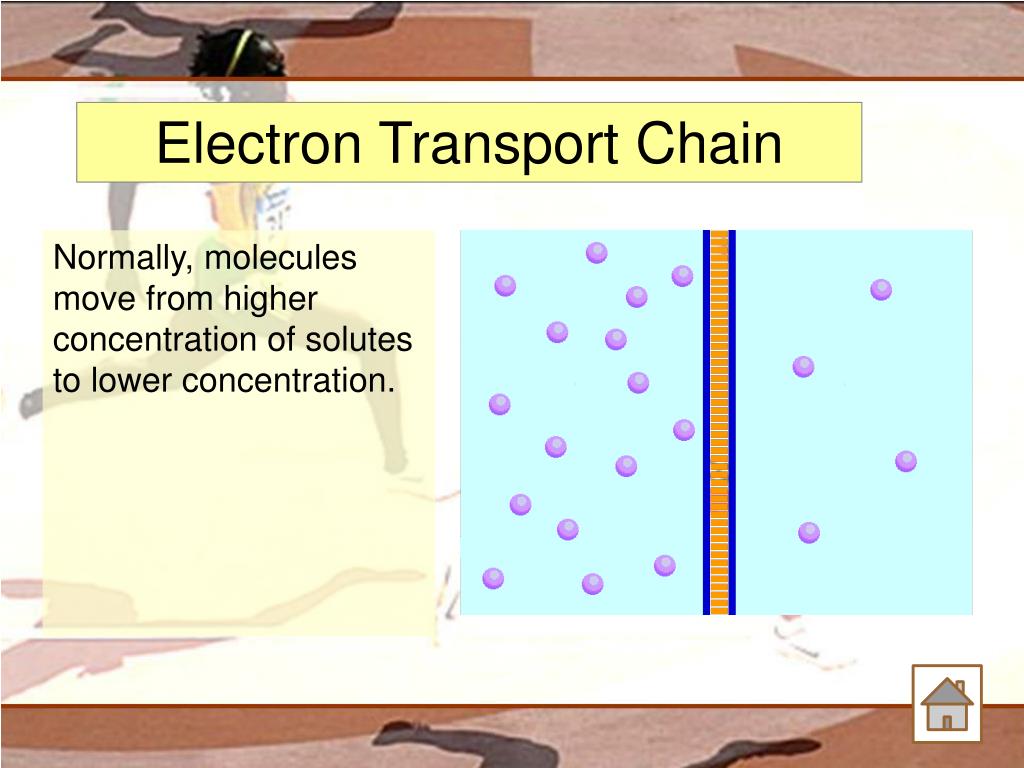

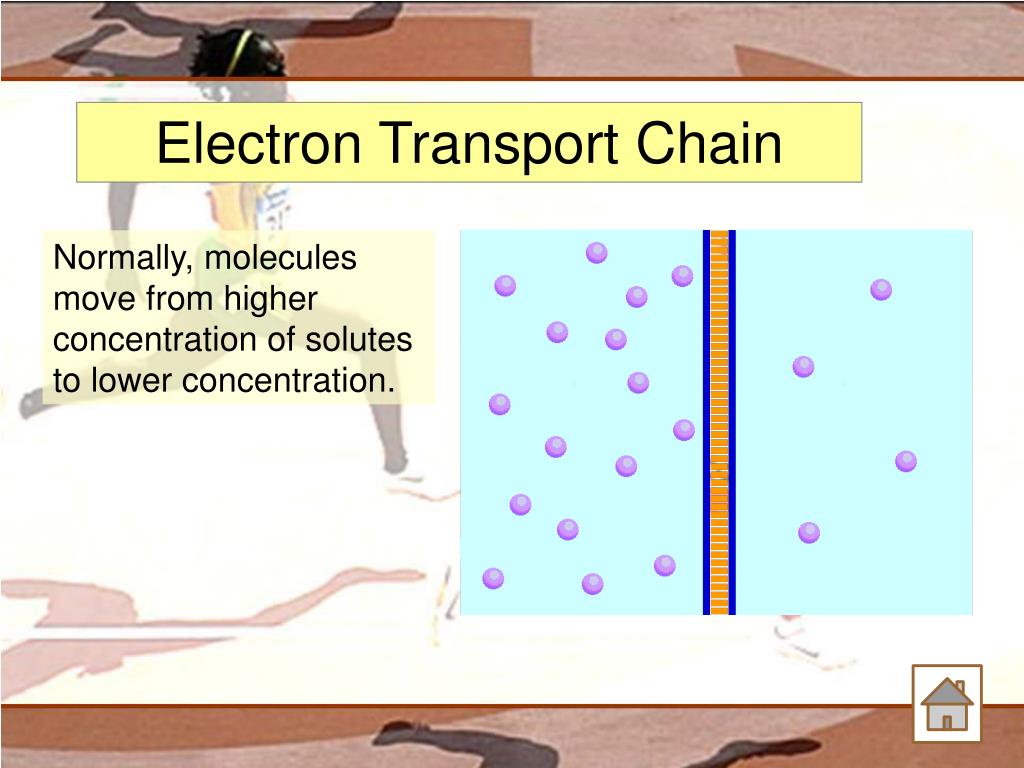

Normally, molecules move from higher concentration of solutes to lower concentration.


Cell respiration

+

=

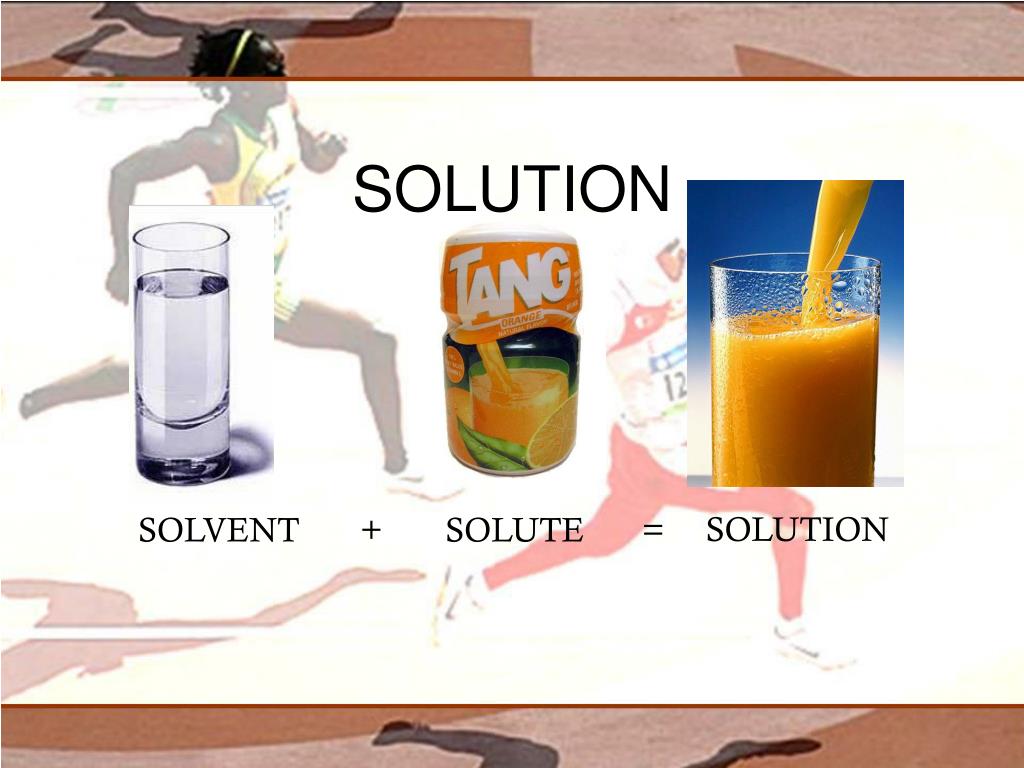

SOLUTION

SOLVENT

SOLUTE

SOLUTION


Cell respiration

higher concentration of soluteslower concentration of solutes

(lower water concentration)(higher water concentration)

CONCENTRATION


Cell respiration

Electron Transport Chain

Cell Respiration

Normally, molecules move from higher concentration of solutes to lower concentration.


Cell respiration

Electron Transport Chain

Cell Respiration

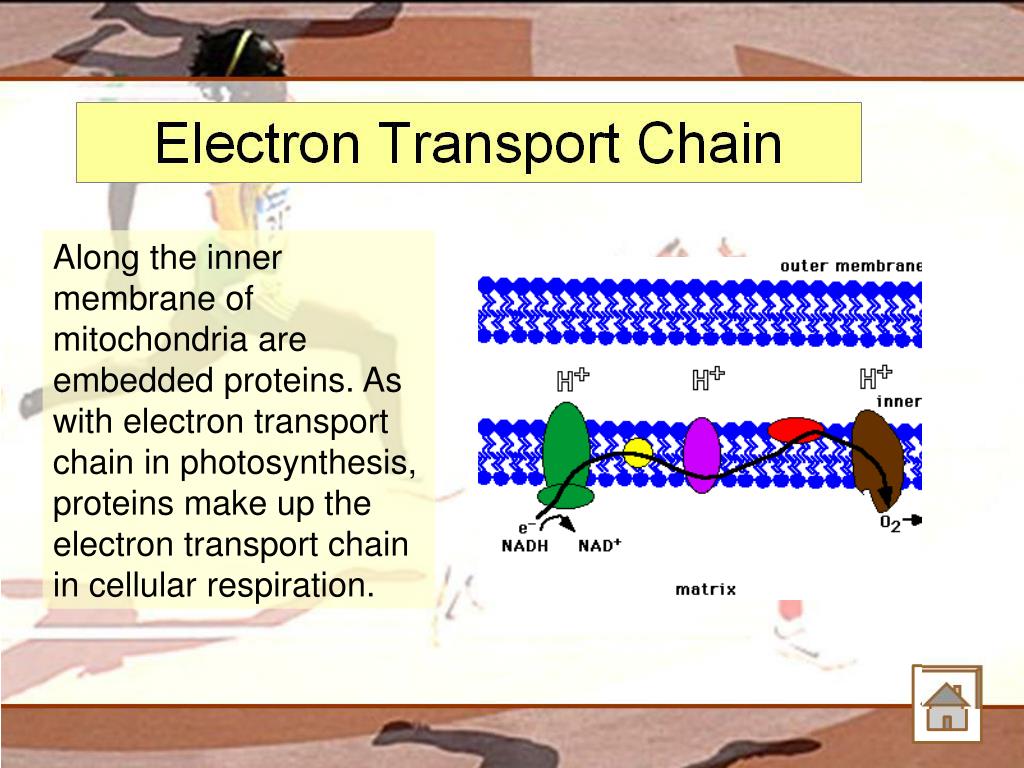

Along the inner membrane of mitochondria are embedded proteins. As with electron transport chain in photosynthesis, proteins make up the electron transport chain in cellular respiration.


Cell respiration

Electron Transport Chain

Cell Respiration

Along the inner membrane of mitochondria are embedded proteins. As with electron transport chain in photosynthesis, proteins make up the electron transport chain in cellular respiration.


Cell respiration

Electron Transport Chain

Cell Respiration

Electrons from NADH and FADH2 are transferred to the proteins embedded in the inner membrane.

These electrons will be transferred from one protein to another and eventually pumping in the hydrogen from the intermembrane space to the inside of the inner membrane.


Cell respiration

Electron Transport Chain

Cell Respiration

This is a carrier protein that once energized by some electrons from NADH and FADH2 will make an action that allows hydrogen to move into the matrix (inside the inner membrane)


Cell respiration

Electron Transport Chain

Cell Respiration

Matrix (inside the inner membrane)

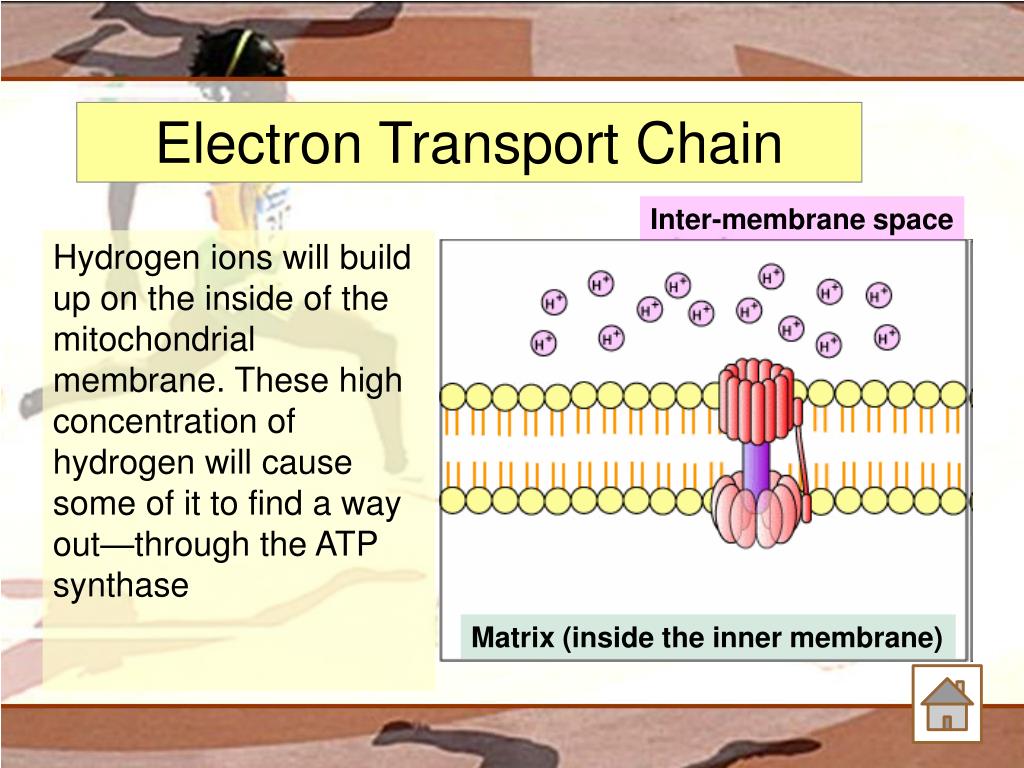

Hydrogen ions will build up on the inside of the mitochondrial membrane. These high concentration of hydrogen will cause some of it to find a way out—through the ATP synthase

Inter-membrane space


Cell respiration

Electron Transport Chain

Cell Respiration

Inter-membrane space

Hydrogen ions will build up on the inside of the mitochondrial membrane. These high concentration of hydrogen will cause some of it to find a way out—through the ATP synthase

ADP + Pi

Matrix (inside the inner membrane)


Cell respiration

Electron Transport Chain

Cell Respiration

Oxygen picks up electrons and hydrogen ions to form water. These water molecules are given off as waste products.
