What do you get when you cross an Audio System with a Lighting System?. Answer: A Complete Solution. Next to hearing the “Word of God” Sunday morning, Seeing is believing. The more AV solutions put into churches, increases the need for better lighting, especially for broadcast.

Download Presentation

What do you get when you cross an Audio System with a Lighting System?

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


What do you get when you cross an audio system with a lighting system

What do you get when you cross an Audio System with a Lighting System?

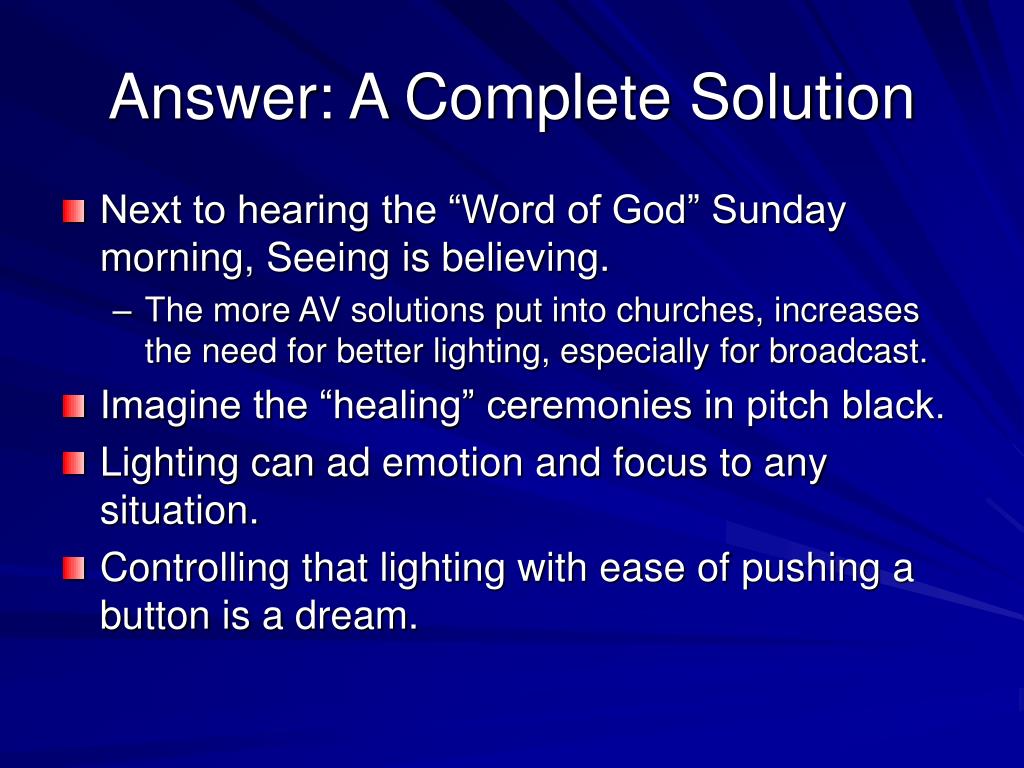

Answer a complete solution

Answer: A Complete Solution

  • Next to hearing the “Word of God” Sunday morning, Seeing is believing.

    • The more AV solutions put into churches, increases the need for better lighting, especially for broadcast.

  • Imagine the “healing” ceremonies in pitch black.

  • Lighting can ad emotion and focus to any situation.

  • Controlling that lighting with ease of pushing a button is a dream.


Lighting is not difficult here is what you need

Lighting is Not DifficultHere is what you need.

  • Electricity –

    • There is no easy way to dim candles.

  • Protocol Cable

  • Lighting Control Console

  • Dimmer Pack

  • Lighting Fixture

  • No EQ, Compressor, Crossover or BBE needed.


Control cables

Control Cables

  • Used for communication between console control and dimmers

  • Can be 3 pin or 5 pin depending on the protocol

  • Example Protocols

    • AMX (analog multiplex-transmits more than one analog signal)

    • MicroPlex (NSI protocol MicroPlex 1, 3 pin XLR Multiplex )

    • DMX (digital multiplex, sends multiple signals, to control 512 apparatuses) 5 PIN

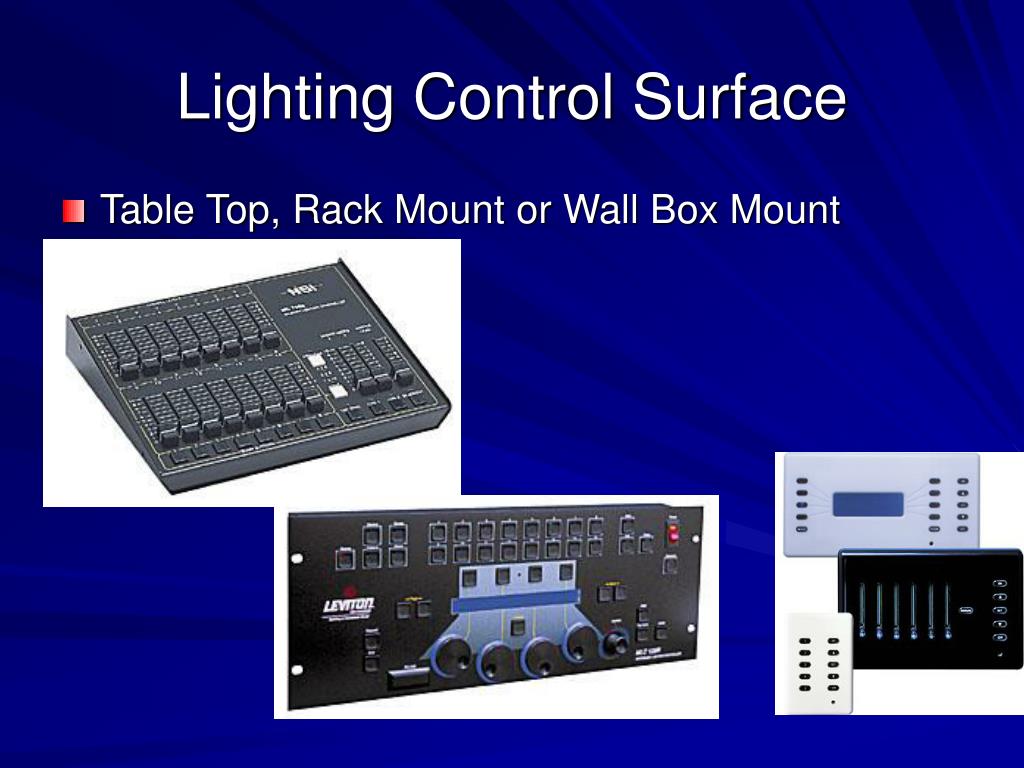

Lighting control surface

Lighting Control Surface

  • Table Top, Rack Mount or Wall Box Mount


Table top mc7008 454 retail

Table TopMC7008 $454 Retail

  • 16 Individual Control Channels

  • 2-Scene Preset or Single Scene Operation (wide mode)

    • Used for two completely different lighting displays (different acts in the production)

  • Individual Channel Bump Buttons

    • To momentarily accent the brightness of a particular light or channel

  • User Programmable Memory Scenes

    • To easily call up lighting scenes for a performance

  • User Programmable Chase Functions

    • Chase is a sequence of events in a lighting show

  • Chase Rate Control (tap button)

    • How fast the chase changes from one fixture to the next

  • Grand Master Fader

    • For fading out the entire scene

  • Blackout Function

    • For a dramatic full lights drop out

  • NSI Micro-Plex Control Signal (3-pin XLR)

  • Optional DMX512 Digital Control (5-pin XLR) $114 Retail

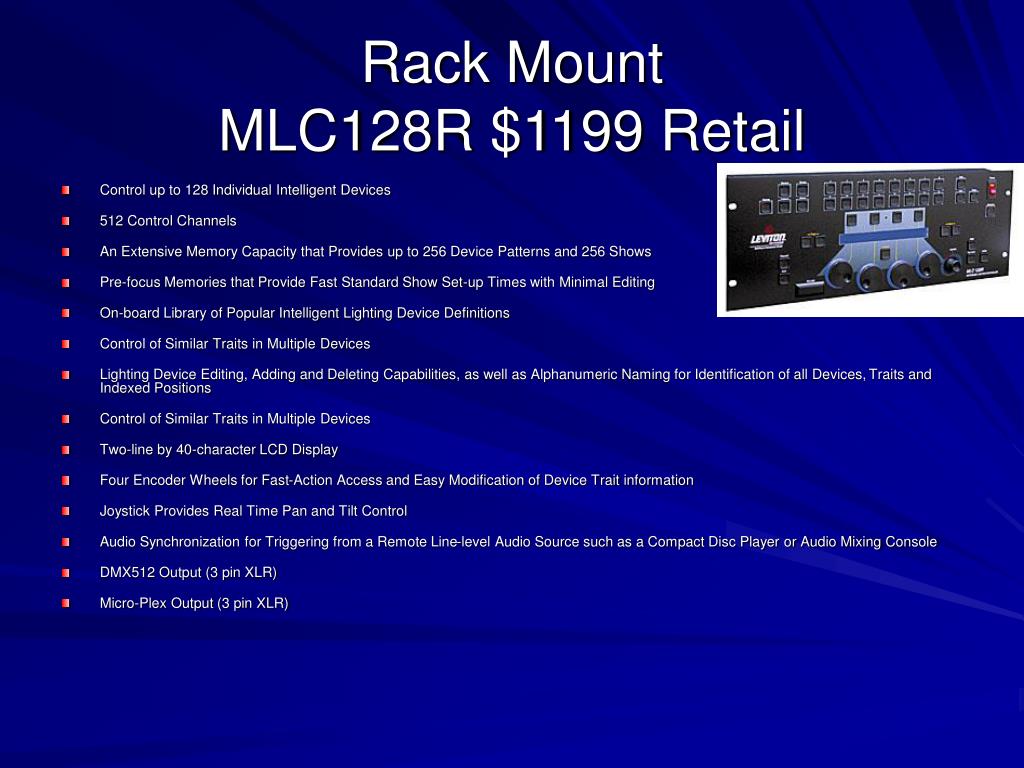

Rack mount mlc128r 1199 retail

Rack MountMLC128R $1199 Retail

  • Control up to 128 Individual Intelligent Devices

  • 512 Control Channels

  • An Extensive Memory Capacity that Provides up to 256 Device Patterns and 256 Shows

  • Pre-focus Memories that Provide Fast Standard Show Set-up Times with Minimal Editing

  • On-board Library of Popular Intelligent Lighting Device Definitions

  • Control of Similar Traits in Multiple Devices

  • Lighting Device Editing, Adding and Deleting Capabilities, as well as Alphanumeric Naming for Identification of all Devices, Traits and Indexed Positions

  • Control of Similar Traits in Multiple Devices

  • Two-line by 40-character LCD Display

  • Four Encoder Wheels for Fast-Action Access and Easy Modification of Device Trait information

  • Joystick Provides Real Time Pan and Tilt Control

  • Audio Synchronization for Triggering from a Remote Line-level Audio Source such as a Compact Disc Player or Audio Mixing Console

  • DMX512 Output (3 pin XLR)

  • Micro-Plex Output (3 pin XLR)


Wall mount sapphire lcd station 1680 when you don t have a lighting guy at church

Wall MountSapphire LCD Station $1680When you don’t have a lighting guy at Church.

All buttons are programmable and can execute any system function

• Programmable functions include, but are not limited to:

“Fade To” Command Change Page

Snapshot Lock

Raise/Lower MAX

• Programmable through LumaEdit™ PC-based offline editing program

• Controls up to 512 dimmer channels

• Mechanically captured buttons to prevent removal or vandalism

• 20 character x 4-line backlit blue LCD screen and blue LED

button backlights with 20-year minimum life

• Fits in 3.5” deep, four-gang wall box

• Stations connected in series using Belden cable #9829 or

equivalent, and two conductors for station power


Dimmer pack starting as low as 169

Dimmer PackStarting as low as $169

  • D4DMX

    • 1200 Watts/channel, 4 Channels

    • 16 Programmable Chase Patterns

  • Choosing a dimmer relies on a few things

    • How many fixtures on the channel you need

      • Too many on an underpowered channel can cause overheating and shutdown

      • Match the power consumption of the fixtures with output of the channel.

    • Where will the dimmer be located

      • Depends on situation

        • Install: most likely in a rack on the wall

        • Mobile: most likely attached to the truss or T-bar


Advanced systems

Advanced Systems

  • Topaz – Modular dimmer system that allows the user to add channels as needed for expansion, inexpensively and replace failed channels with ease.

    • 12 to 96 channel housings (96 is two 48’s)

    • Can be more, consult NSI

    • NEED DLR interface

      • Translator between the control and the rack

  • You don’t need to be an expert, call NSI for help in putting together the system, so you don’t miss anything.

  • NSI can also come to the site to commission the system (turn it on, not take your sales commission)

    • Need 3 weeks plan time

    • Costs money, but consider this, NSI trains your dealer’s Techs on the job, so they can do the next one.

    • Also NSI commissions carry a TWO year warranty, sell that!


Fixture

Fixture

  • Lowes or Home Depot

    • Yes, common lighting can be controlled

  • Theatrical

    -- Par Light Provides general stage light, type depends on bulb used.

    • Fresnel

      • A spotlight employing a single fresnel lens that produces a soft edged beam, and usually provided with a spherical reflector and a means to adjust the focus from spot to flood. Soft edge

    • Ellipsoidal

      • A spotlight that embodies an ellipsoidal reflector and framing shutters, and sometimes an iris and pattern slot. Sharp edge. Varying degrees of coverage.

    • Intelligent

      • A luminaire that is robotic, i.e., certain functions such as panning, tilting, focusing, dimming, beam shaping and coloring, etc., are motorized and remotely operated from a control console.

  • GOBO – usually has a pattern that projects the image or blocks unwanted light

  • GEL – adds color


Don t want to piece together yourself no problem

Don’t want to piece together yourself? No Problem!

PAR Can System in a Box

  • Eight Channel, Programmable Light System

  • Easily Expandable by Adding More of Your Own Dimmers and Lights

  • Six Kits to Choose from

  • Color Frame Included at No Extra Cost

  • Rolled Edges for Extra Strength

  • Solid Steel Clutch on Par 56 Cans

  • Black Finish

  • CE Listed

  • Choose between Hands On or Hands Free operation:The Hands Free system features a NCM 508 which has 2 scene Operation and is configurable to 8 individual Channels with 8 sub-master Sliders.

  • The Hands On system features a MC 7008 which has 4 scene operation and is configurable to 8 individual channels with 8 sub-master sliders.

  • Choose between DDS 5600 dimmer pack or DDS 3600R Relay Pack, depending on your application.


Who to sell to

Who to sell to?

  • Tour/Festival Rig Companies

  • Theatrical Lighting Contractors

  • Home Theatre

  • Retail – systems in a box

  • Church Contractors – biggest avenue

    • Churches are always on a budget, NSI is the budget line, without sacrificing quality

  • AV Contractors - Board Rooms – VC and presentations

  • Electrical Contractors – guess who gets called for lighting 90% of the time.


What do you get when you cross an audio system with a lighting system

NSI

  • The easiest, most recognizable name to sell in the lighting biz.

  • Billion Dollar, financially strong company

  • Own their own production facilities, no rented time like the competition.

  • Look for the UL listing.

  • Having Trouble, Travel with Debbi, she can fix it if given the floor, Schedule time now!

  • Scott Andergard is a wealth of knowledge, call and ask for him, he is there to help.
