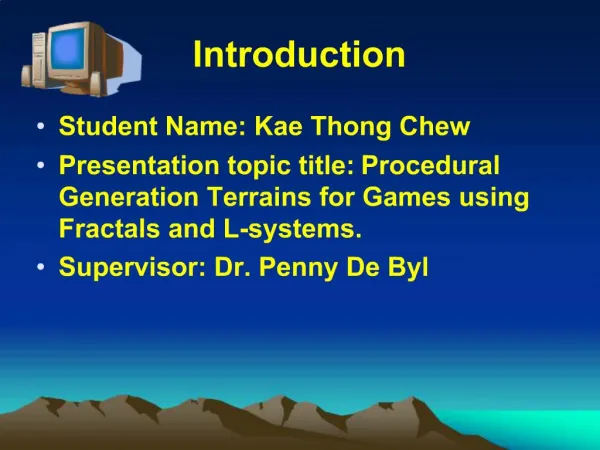

    1. Introduction Student Name: Kae Thong Chew Presentation topic title: Procedural Generation Terrains for Games using Fractals and L-systems. Supervisor: Dr. Penny De Byl

    2. Why is this research important Computer games today are incredibly complex As game universes become more complex more worlds, more buildings, more rooms, with more polygons, textures, characters and so on Hiring game artists become a very expensive exercise.

    3. Why is this research important As game worlds grow larger, so do the data files storing the game information; game map designs, character models etc.. Example: Castle Wolfenstein install file(1983) = 69kb but Return to Castle Wolfenstein (2001) demo install file = 114.1 MB How to solve this problem Procedural terrain generation

    4. Procedural Terrain Generation Procedural terrain generation is about making use of computer algorithms to dynamically generate terrain without manually hand drawn each of the terrain.

    5. Different Approaches to Procedural Generated Terrain Some of the procedural generation methods used in contemporary games include: Fractal landscape Perlin Noise Pseudo Random Number Generator (PRNG) L-systems Voronoi maps

    6. Fractal Landscape A fractal landscape is recursively self-similar, that appears similar at all scales of magnification.

    7. Fractal Landscape A way to create this fractal landscape is to employ random midpoint displacement algorithm.

    8. Fractal Landscape Another method is to divide and purturb.

    9. Fractal Landscapes

    10. Fractal Landscapes

    11. Perlin Noise Developed by Ken Perlin to create textures. Uses interpolation between a large number of pre-calculated gradient vectors to construct a value that varies pseudo-randomly over space and/or time to create textures. linear interpolation cosine interpolation

    12. Perlin Noise Two-dimensional Perlin noise. Salt and pepper noise, band-limited, and then up-sampled. Procedural marble texture

    13. Pseudo Random Number Generator (PRNG) A pseudorandom number generator (PRNG) is an algorithm that generates a sequence of numbers which are not truly random. This is used together with Perlin Noise to achieve nice-looking textures.

    14. Voronoi maps Voronoi maps choose a limited number of random specific points and calculates the distance of each grid cell from the nearest defined point. Each point creates territories around itself until it meets a neighbouring shape.

    15. Voronoi Maps The final image represent the boundaries or the graduated distances where the calculations can be varied to generate different results.

    16. Procedural Generation Methods used in Games One good example of a game that uses the procedurally generated content technology is a PC simulation game called Spore. Spore is a simulation game about life evolution.

    17. Procedural Methods used in Games Spore uses procedural generation methods where the game itself can generate its unique animation based from players creature design on the fly without game artists create them.

    18. Procedural Methods used in Games Spore implements procedural planet generation and a simulation of dynamic atmospheric scattering like the space phase of Spore.

    19. L-systems L-systems are a special kind of string rewriting grammars introduced by A.Lindenmayer in 1968 for modeling plants. They rewrite a given string (a sequence of symbols) according to a grammar, i.e. a set of rules. To give an example, the single rule: a ? b a b transforms the string: a b a c into b a b b b a b c

    20. Examples of L-systems Used for modelling tree plant branches Example using Axiom X where rules F --> FF rules X --> F-[[X]+X]+F[+FX]-X angle = 22.5 will produce the image

    21. Examples of L-systems Using turtle graphics, to draw images The Sierpinski triangle drawn using an L-system. variables: A B constants: + - axiom : A rules : (A ? B-A-B), (B ? A+B+A) angle : 60 Evolution for n = 2, n = 4, n = 6, n = 9

    22. L-System Turtle Implementation L-Systems use string symbols to model elements of drawing on the computer screen as turtle graphics to produce screen images. The "turtle" is an imaginary pen that is given drawing commands, such as go forward and turn right to draw on the screen.

    23. L-systems used for creating cities Parish and Mller (2001) procedurally using extended L-systems to build street maps and city buildings.

    24. L-systems used for creating cities This is useful for urban modelling and planning environment but lacks support for real time interactively. However, this problem has been approached and refined by G. Stefan, P. Jeremy, S. Nigel and L.Geoff (2003) by creating a pseudo infinite virtual cities in real-time to the user.

    25. L-systems used for creating cities Real time procedural cities screenshots.

    26. Research Interest Both these L-System research work focus on modelling exterior look of buildings only but no attempt has been made on creating the interior design of the buildings How do we determine the interior of buildings for game maps ?

    27. L-Systems for Dynamic Creation of Building Interiors Using L-systems as modeling structure, we defined an interior area by giving a different sets of rules. Considering the following example: The axiom as been defined as F + F + F + F to model a square shape The rewriting rules for F string would be F ? F [+ W] F Where W is another set of rules to draw internal walls W ? W [+ W] [ W] W

    28. Example of Research Implementation Results The initial axiom screenshots for square shape.

    29. Example of Research Implementation Results After 1st iteration, interior walls which is grey texture are rendered within the square shape

    30. Example of Research Implementation Results At the 2nd iterations, more grey interior texture can be seen rendered within the square shape.

    31. Creating L-System Interiors using Regular Polygons Using the same L-Systems rules, regular polygons from triangles to decagons are chosen to create interior textures. The result of the image are analyzed and compared with other regular polygon generated interiors. Interior textures issues like overlapping and collision detection are discussed.

    32. Example of L-System regular polygon interiors Triangle L-Systems string rules: atom = F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 120

    33. Example of L-System regular polygon interiors Square L-Systems string rules: atom = F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 90

    34. Example of L-System regular polygon interiors Pentagon L-Systems string rules: atom = F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 72

    35. Example of L-System regular polygon interiors Hexagon L-Systems string rules: atom = F+F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 60

    36. Example of L-System regular polygon interiors Heptagon L-Systems string rules: atom = F+F+F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 51.42857143

    37. Example of L-System regular polygon interiors Octagon L-Systems string rules: atom = F+F+F+F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 45

    38. Example of L-System regular polygon interiors Nonagon L-Systems string rules: atom = F+F+F+F+F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 40

    39. Example of L-System regular polygon interiors Decagon L-Systems string rules: atom = F+F+F+F+F+F+F+F+F+F Fstr = F[+W]F Wstr = W[+W][-W]W angle = 36

    40. L-System Interiors Discussion Some regular polygons were considered suitable for modelling purposes like generating game maps. These polygons are squares and hexagons ? do not have overlapping and collision detections issues.

    41. L-System Interiors Discussion Squares are suitable candidates in generating city buildings architecture and game maps for tile-based strategy RPG. Each of the squares are arranged to adjacent to one another in the grid, and each of the tile usually represents a game terrain for that game map.

    42. L-System Interiors Discussion Examples of square-based game maps like Super Robot Wars and Disgaea

    43. L-System Interiors Discussion Hexagon is used to generate hexagonal game map grids called hex map. Most of the war strategy games use this layout to generate their game maps. The distance between the center of each hex cell and the center of all six adjacent hex cells remains constant.

    44. L-System Interiors Discussion Example of hex map game maps like Battle for Wesnoth.

    45. L-System Interiors Discussion The L-System examples can be further added graphics visually with different kinds of textures like doors, windows and picture frames to the system to become L-buildings. Different algorithms can be added within string production rules to create interesting building structure patterns.

    46. L-Buildings Examples Screenshots of L-buildings interior design

    47. L-System Versus Software Editor Tools Reason of using L-Systems for procedurally generating building interiors. L-System can achieve similar results of images to those images generated by graphic software editors like Maya. The models file size generated by L-Systems and Maya are reviewed and compared.

    48. L-System Versus Software Editor Tools

    49. L-System Versus Software Editor Tools

    50. L-System Versus Software Editor Tools

    51. L-System Versus Software Editor Tools

    52. L-System Versus Software Editor Tools L-System rules settings file rarely increase in file sizes and used up a very small storage space because it depend on computational algorithm method. For the Maya model files, it have significant increase in the file size depending on how many textures needed to be drawn on that screen.

    53. L-System Versus Software Editor Tools The level of efforts are easy for L-Systems string rules file. Maya models need to manually draw again the required model. L-Systems string rules only took a small amount of time to build the model . Maya models files needed to take a lot of time.

    54. Contributions to the Research and Games Community Reduce the workload of game level designers. Possibilities to create infinite game worlds. Generate random interior textures with ease and produce interesting design. Produce cheaper games while maintained the same or high standard quality of its gameplay.

    55. Future Work For This Research Complexity of the modelling task. No collision detection. More Randomness.

    56. Thank you Any Questions ?
